8-15 — FIXING PARTS; WIRING HARNESS (#54150) — 140 parça

16 16 16 16 16 483 507 513 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS COOLER WO/HEATER(C65) 03.162 (H) L=140 IDN	5-09707-031-1	01	1	1401-
16	02.559 CLIP; HARNESS (F) L=135 IDN	1-09987-143-1	01	1	0804-1106
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16 IDN	8-94413-325-0	01	1	0804-
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0804-
16	02.559 CLIP; HARNESS 03.483 (G)	8-97101-436-0	01	1	0804-
16	02.559 CLIP; HARNESS (A) L=155 IDN	8-97173-307-0	14	1	0804-
16	02.559 CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	0804-
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	0804-
483	02.559 CLIP; ENG HARNESS 04.785 (C) ID=12 L=70	1-09700-097-1	01	1	0804-
483	02.559 CLIP; ENG HARNESS (B) ID=24 L=24	1-09701-001-1	01	1	0804-
483	02.559 CLIP; ENG HARNESS 01.152 (E) L=36	8-94224-891-1	04	1	0804-
483	02.559 CLIP; ENG HARNESS (D) ID=19 L=60	0-95235-896-0	01	1	0907-
483	02.559 CLIP; ENG HARNESS 03.671 (A) ID=12 VINYL CHLORIDE IDN	8-97367-984-1	01	1	0907-
488	02.559 CLIP; CABLE,TRAILER L=250 IDN	5-09707-030-1	01	1	0804-
507	02.559 FINISHER 16.742 (B) L=73 L=120	1-73948-004-0	01	1	1309-1309
507	02.559 FINISHER 02.183 (A) L=40	8-94212-660-0	01	1	0804-0902
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 130X80 IDN	8-97304-373-0	01	1	0808-
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	0907-1309
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	0804-

313 139 150 150 480 529 480 377 377 386 377 386 386 377 386 24 515 577 219 294 515 552 24 515 552 516 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE IDN	0-91180-106-0	01	1	0804-1409
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS IDN	8-98297-112-0	01	1	1410-
24	02.559 NUT; HARNESS 03.162 (B) M10 FLANGE IDN	0-91180-110-0	01	1	0804-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0812-1101
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 (B) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
150	02.343 BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	03	1	0804-0906
150	02.343 BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	04	1	0907-
150	02.343 BOLT; CLIP 03.671 (A) M6X10 FLANGE IDN	0-28050-610-0	01	1	0907-
219	02.559 NUT 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0804-
294	02.559 NUT 04.309 M8 W/LK WASHER	8-94413-537-0	01	1	0804-0904
294	02.559 NUT 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0905-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0804-
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0804-1004
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0804-1004
377	02.559 BOLT; CAB EARTH 02.343 (D) M8X18.5 W/PL WASHER IDN	8-98141-255-0	03	1	1005-
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER IDN	8-97086-825-0	01	1	0804-1004
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER IDN	8-98164-836-0	01	1	1005-
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER IDN	8-97086-825-0	01	1	0804-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER IDN	8-98141-255-0	01	1	1005-
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0804-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-
480	02.483 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	0804-
488	02.559 CLIP; CABLE,TRAILER L=250 IDN	5-09707-030-1	01	1	0804-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE IDN	0-91180-106-0	01	1	0804-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0804-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	0804-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	0804-
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET IDN	8-98063-767-0	01	1	0804-
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0804-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE IDN	0-91180-108-0	02	1	0804-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE IDN	0-91180-110-0	01	1	0804-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE IDN	0-91180-106-0	04	1	0804-

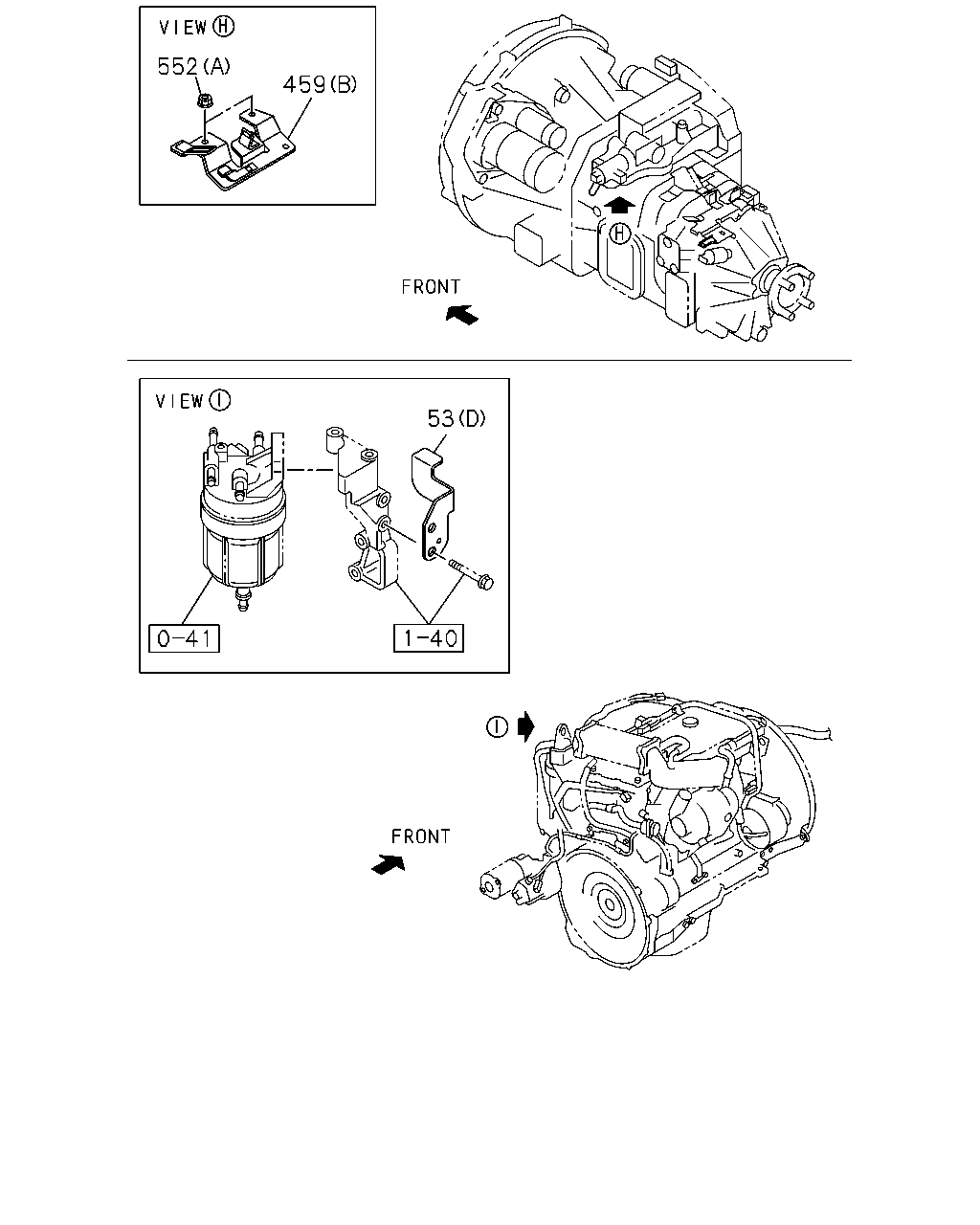

552 459 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS 02.559 (D)	8-98052-804-0	01	1	0804-
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0804-
53	02.483 BRACKET; HARNESS (G) IDN	8-98051-457-0	01	1	0804-
53	02.483 BRACKET; HARNESS (A) IDN	8-98052-458-0	01	1	0804-
53	02.483 BRACKET; HARNESS (E)	8-98074-502-0	01	1	0804-
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0804-
53	02.483 BRACKET; HARNESS (F)	8-98077-504-0	01	1	0804-
53	02.483 BRACKET; HARNESS (I)	8-98094-629-0	01	1	0804-1303
53	02.483 BRACKET; HARNESS (I)	8-98130-669-1	01	1	1304-
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) IDN	8-98084-590-0	01	1	0812-
459	02.483 BRACKET; SUPPORT,HARNESS 02.559 (A)	8-97379-633-0	01	1	0804-
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98020-227-3	01	1	0804-
488	02.559 CLIP; CABLE,TRAILER L=250 IDN	5-09707-030-1	01	1	0804-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE IDN	0-91180-108-0	02	1	0804-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE IDN	0-91180-110-0	01	1	0804-

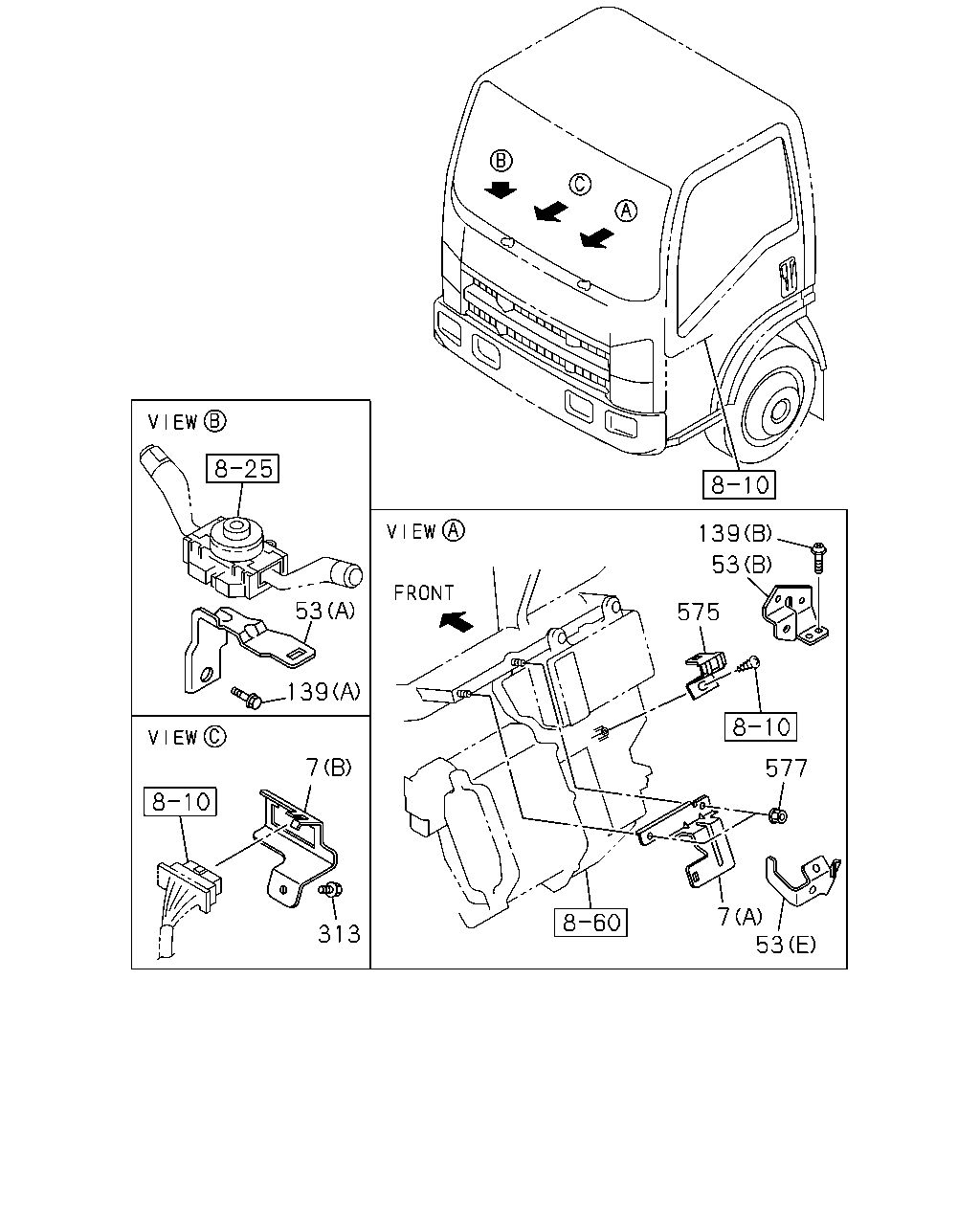

139 53 53 575 139 7 577 7 53 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	02.559 BRACKET; CONNECTOR (A)	8-98029-762-4	01	1	0804-
7	02.559 BRACKET; CONNECTOR (B)	8-98043-070-1	01	1	0804-
53	02.483 BRACKET; HARNESS 02.559 (D)	8-98052-804-0	01	1	0804-
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0804-
53	02.483 BRACKET; HARNESS (G) IDN	8-98051-457-0	01	1	0804-
53	02.483 BRACKET; HARNESS (A) IDN	8-98052-458-0	01	1	0804-
53	02.483 BRACKET; HARNESS (E)	8-98074-502-0	01	1	0804-
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0804-
53	02.483 BRACKET; HARNESS (F)	8-98077-504-0	01	1	0804-
53	02.483 BRACKET; HARNESS (I)	8-98094-629-0	01	1	0804-1303
53	02.483 BRACKET; HARNESS (I)	8-98130-669-1	01	1	1304-
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) IDN	8-98084-590-0	01	1	0812-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0812-1101
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 (B) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0804-
488	02.559 CLIP; CABLE,TRAILER L=250 IDN	5-09707-030-1	01	1	0804-
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	0804-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE IDN	0-91180-106-0	04	1	0804-

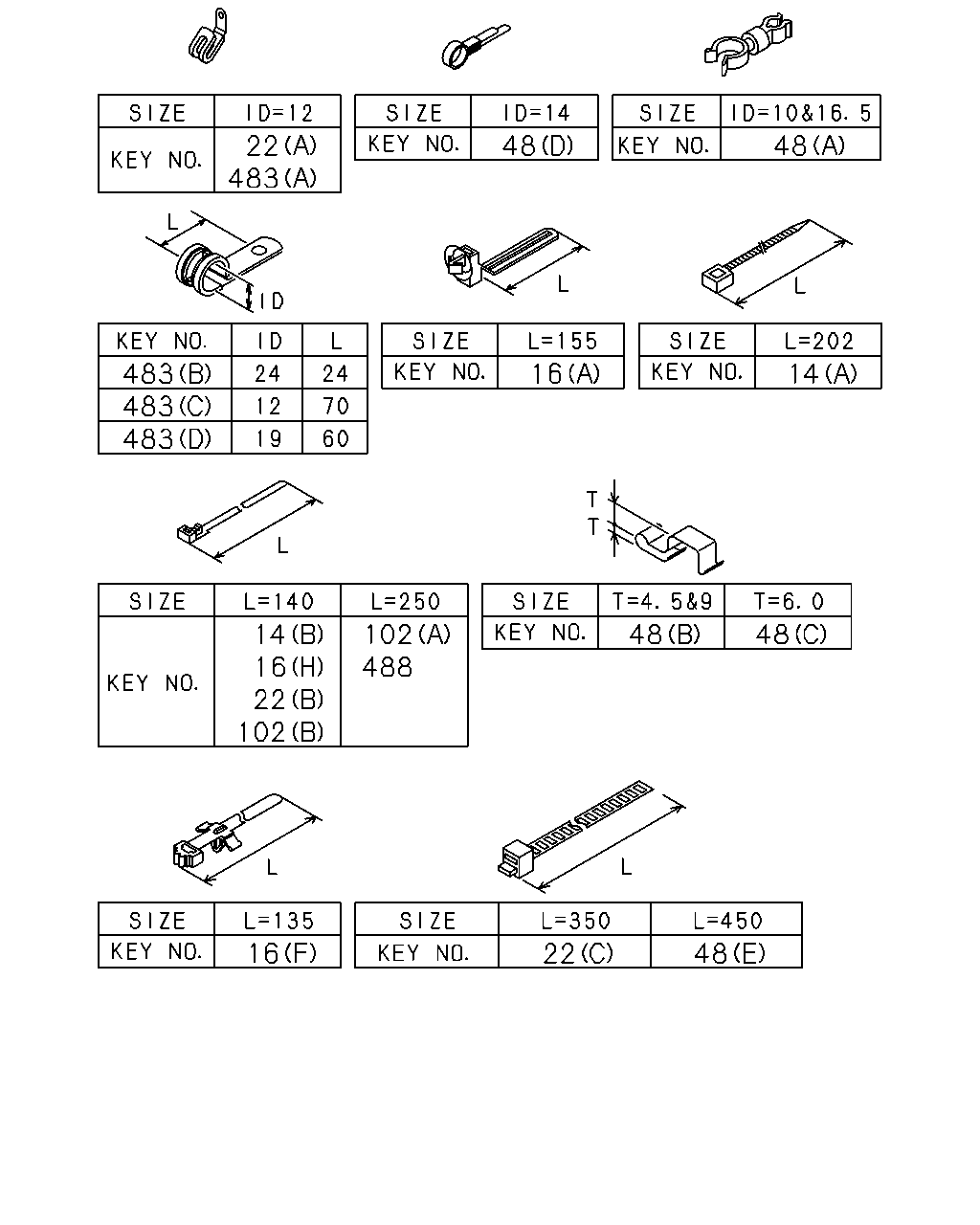

22 48 48 48 14 16 483 483 483 14 16 22 102 48 16 22 48 102 188 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	02.559 CLIP; BAND,HARNESS GLOW SYSTEM DELETE<7RK> GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.162 (B) L=140 IDN	5-09707-031-1	01	1	1502-
14	02.559 CLIP; BAND,HARNESS 09.242 (A) L=150	8-97355-273-0	01	1	0804-0810
14	02.559 CLIP; BAND,HARNESS 09.242 (A) L=150	8-97355-273-0	02	1	0811-0906
14	02.559 CLIP; BAND,HARNESS 09.242 (A) L=150	8-97355-273-0	01	1	0907-
16	02.559 CLIP; HARNESS COOLER WO/HEATER(C65) 03.162 (H) L=140 IDN	5-09707-031-1	01	1	1401-
16	02.559 CLIP; HARNESS (F) L=135 IDN	1-09987-143-1	01	1	0804-1106
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16 IDN	8-94413-325-0	01	1	0804-
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0804-
16	02.559 CLIP; HARNESS 03.483 (G)	8-97101-436-0	01	1	0804-
16	02.559 CLIP; HARNESS (A) L=155 IDN	8-97173-307-0	14	1	0804-
16	02.559 CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	0804-
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	0804-
22	02.559 CLIP; ENG HARNESS 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0804-0809
22	02.559 CLIP; ENG HARNESS 08.852 (C) L=350	8-94152-256-1	02	1	0804-0902
22	02.559 CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT(C60) 03.671 (A) ID=12 VINYL CHLORIDE IDN	8-97367-984-1	01	1	0804-
22	02.559 CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.671 (A) ID=12 VINYL CHLORIDE IDN	8-97367-984-1	01	1	0804-
48	02.559 CLIP; FRAME HARNESS 03.483 (E) L=450	1-09707-142-1	01	1	0804-
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	01	1	0804-
48	02.559 CLIP; FRAME HARNESS 03.430 (A) ID=10 & 16.5	8-94424-440-0	01	1	0804-
48	02.559 CLIP; FRAME HARNESS (C) T=6.0	5-09709-024-0	01	1	0804-0804
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0805-
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	06	1	0804-0805
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	05	1	0806-
102	02.559 CLIP; BAND (A) L=250 IDN	5-09707-030-1	01	1	0804-
102	02.559 CLIP; BAND 03.162 (B) L=140 IDN	5-09707-031-1	04	1	0804-1202
102	02.559 CLIP; BAND 03.162 (B) L=140 IDN	5-09707-031-1	02	1	1203-
483	02.559 CLIP; ENG HARNESS 04.785 (C) ID=12 L=70	1-09700-097-1	01	1	0804-
483	02.559 CLIP; ENG HARNESS (B) ID=24 L=24	1-09701-001-1	01	1	0804-
483	02.559 CLIP; ENG HARNESS 01.152 (E) L=36	8-94224-891-1	04	1	0804-
483	02.559 CLIP; ENG HARNESS (D) ID=19 L=60	0-95235-896-0	01	1	0907-
483	02.559 CLIP; ENG HARNESS 03.671 (A) ID=12 VINYL CHLORIDE IDN	8-97367-984-1	01	1	0907-
488	02.559 CLIP; CABLE,TRAILER L=250 IDN	5-09707-030-1	01	1	0804-

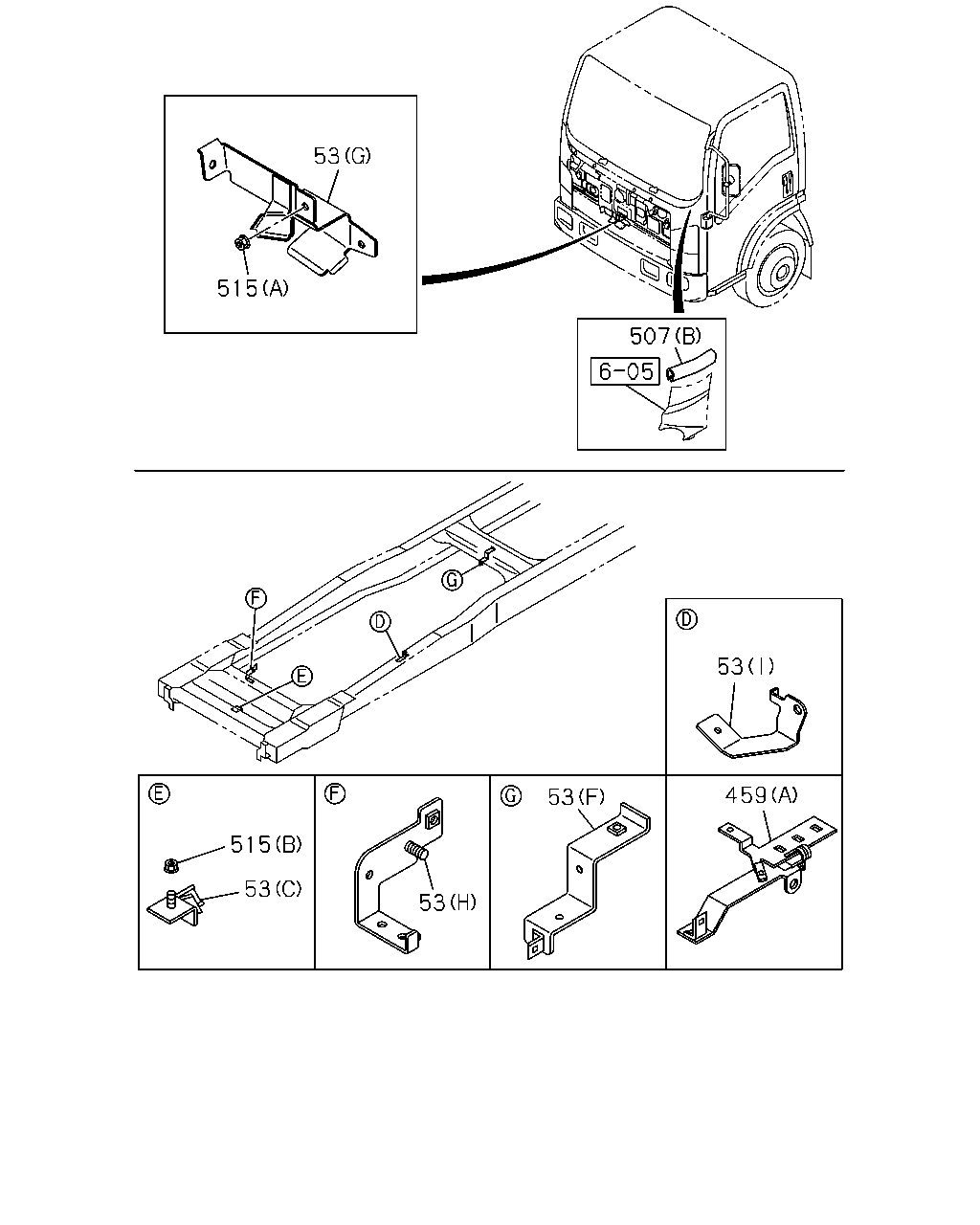

53 515 507 515 53 53 53 53 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS 02.559 (D)	8-98052-804-0	01	1	0804-
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0804-
53	02.483 BRACKET; HARNESS (G) IDN	8-98051-457-0	01	1	0804-
53	02.483 BRACKET; HARNESS (A) IDN	8-98052-458-0	01	1	0804-
53	02.483 BRACKET; HARNESS (E)	8-98074-502-0	01	1	0804-
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0804-
53	02.483 BRACKET; HARNESS (F)	8-98077-504-0	01	1	0804-
53	02.483 BRACKET; HARNESS (I)	8-98094-629-0	01	1	0804-1303
53	02.483 BRACKET; HARNESS (I)	8-98130-669-1	01	1	1304-
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) IDN	8-98084-590-0	01	1	0812-
459	02.483 BRACKET; SUPPORT,HARNESS 02.559 (A)	8-97379-633-0	01	1	0804-
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98020-227-3	01	1	0804-
488	02.559 CLIP; CABLE,TRAILER L=250 IDN	5-09707-030-1	01	1	0804-
507	02.559 FINISHER 16.742 (B) L=73 L=120	1-73948-004-0	01	1	1309-1309
507	02.559 FINISHER 02.183 (A) L=40	8-94212-660-0	01	1	0804-0902
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE IDN	0-91180-106-0	01	1	0804-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0804-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	0804-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	0804-
