7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶
7-20 — MIRROR AND MIRROR STAY
(#54138) — 24 parça
◀

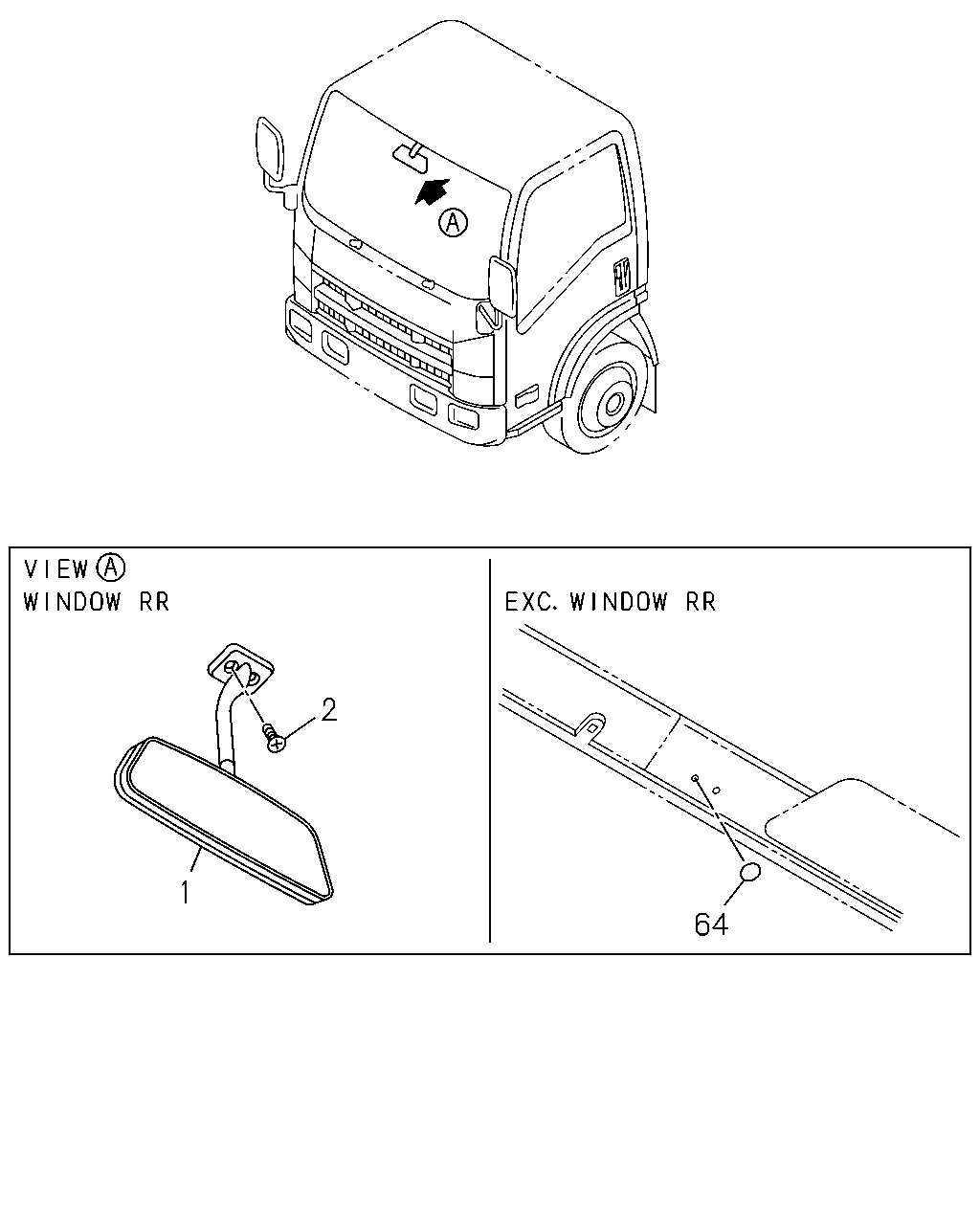

[720A] ROOM MIRROR (4 parça)

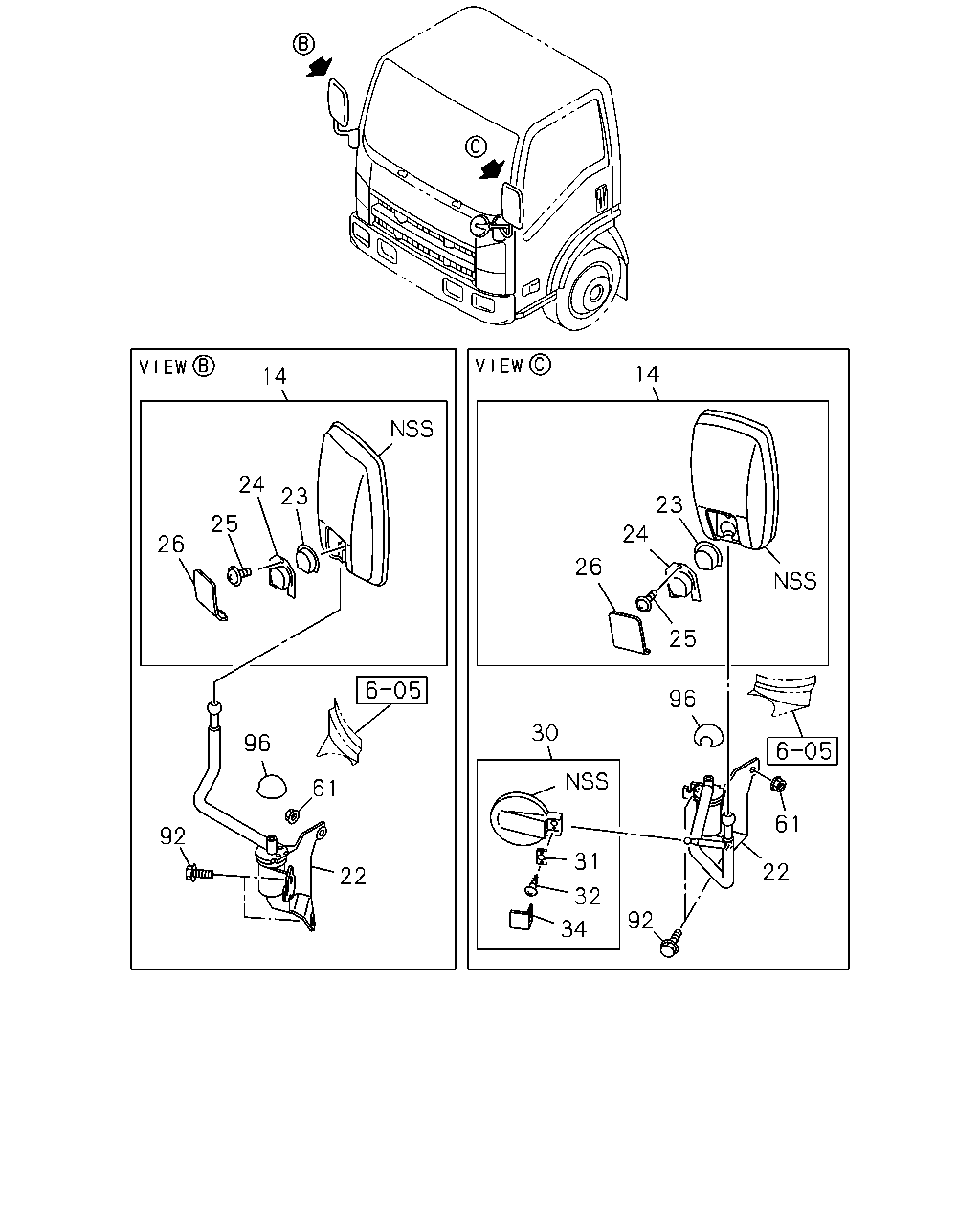

[720A] OUTSIDE MIRROR (20 parça)
▶
2
1
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.068 MIRROR; ROOM
WINDOW RR<8LF> DARK GRAY IDN
8-98097-534-1
01
1
0804-
2
16.069 SCREW; MIRROR TO BODY
WINDOW RR<8LF> 16.070 M6X26
8-98033-674-0
02
1
0804-
64
16.069 SEAL; MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDOW RR<8LF> 16.570 OD=20 T=0.05 WHITE IDN
8-98059-421-0
02
1
0804-
64
16.069 SEAL; MIRROR
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> 16.165 OD=20 T=0.05 BLACK IDN
5-76777-036-0
02
1
0804-
14
14
24
23
23
25
24
26
26
25
96
30
96
61
61
92
31
22
22
32
92
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
16.068 MIRROR ASM; OUTSIDE
IDN
8-94262-542-3
01
1
0804-
14
16.068 MIRROR ASM; OUTSIDE
IDN
8-94262-542-3
01
1
0804-
22
16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9>
8-98027-519-0
01
1
0804-
22
16.069 STAY; OUTSIDE MIRROR
IDN
8-98038-224-1
01
1
0804-
22
16.069 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> IDN
8-98070-509-0
01
1
0804-
23
16.069 WASHER; OUTSIDE MIRROR
T=2.0 IDN
8-94262-545-0
01
1
0804-
23
16.069 WASHER; OUTSIDE MIRROR
T=2.0 IDN
8-94262-545-0
01
1
0804-
24
16.069 HOLDER; OUTSIDE MIRROR
T=1.6 IDN
8-94262-546-1
01
1
0804-
24
16.069 HOLDER; OUTSIDE MIRROR
T=1.6 IDN
8-94262-546-1
01
1
0804-
25
16.069 SCREW; OUTSIDE MIRROR
M6X30 IDN
8-94279-365-0
01
1
0804-
25
16.069 SCREW; OUTSIDE MIRROR
M6X30 IDN
8-94279-365-0
01
1
0804-
26
16.069 COVER; OUTSIDE MIRROR
T=2.3 IDN
8-94262-547-2
01
1
0804-
26
16.069 COVER; OUTSIDE MIRROR
T=2.3 IDN
8-94262-547-2
01
1
0804-
30
16.068 MIRROR; UNDER
UNDER MIRROR<RR9>
8-94262-625-2
01
1
0804-
31
16.069 PLATE; MIRROR
UNDER MIRROR<RR9>
8-94262-631-0
01
1
0804-
32
16.069 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> M5X18
8-94279-372-0
02
1
0804-
34
16.069 CAP; MIRROR
UNDER MIRROR<RR9>
8-94262-629-0
01
1
0804-
61
16.069 NUT; STAY,OUTSIDE MIRROR
01.062 M8 FLANGE IDN
0-91180-108-0
02
1
0804-
92
16.069 BOLT; STAY BRKT,MIRROR
06.216 M8X25 FLANGE IDN
0-28650-825-0
04
1
0804-
96
16.069 CAP; MIRROR STAY
IDN
8-98027-552-2
02
1
0804-
