◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51403 - NPS INDONESIA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#54137) — 15 parça

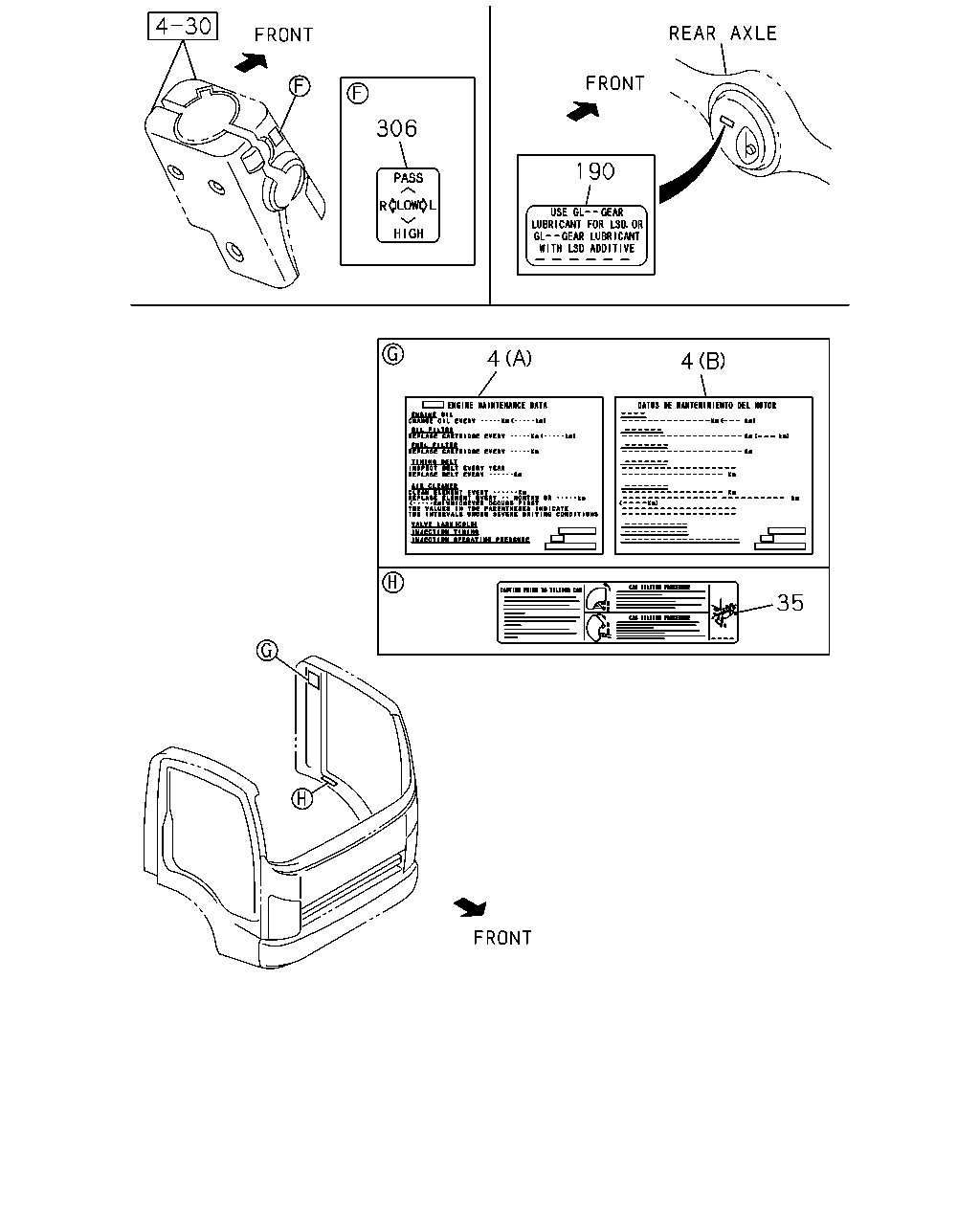

çizim 150013
306 190 4 4 35
BalonParca AdiParca NoAdetTipApplied Date
4 00.004 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> (B) 		8-98013-424-0 01 1 0804-
4 00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> (A) 		8-98013-423-0 01 1 0804-
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> 		8-98070-512-0 01 1 0804-
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> IDN 		8-98067-809-0 01 1 0804-
190 08.808 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF<6LV> 		8-97200-740-0 01 1 0805-
306 08.808 LABEL; BEAM & PASS
IDN 		8-98070-239-0 01 1 0804-
çizim 150020
149 302 302 49 139 234
BalonParca AdiParca NoAdetTipApplied Date
49 08.808 PLATE; CAUTION,FUSE BOX 8-98090-175-0 01 1 0804-
139 08.808 PLATE; CAUTION,PROP SHAFT
CAUTION SPANISH<YN1> 		8-98009-407-0 01 1 0804-
139 08.808 PLATE; CAUTION,PROP SHAFT
EXC. CAUTION SPANISH<YN1> 		8-97118-440-0 01 1 0804-
149 08.808 PLATE; CAUTION,LOCKING HUB
CAUTION SPANISH<YN1> 		8-97108-674-2 01 1 0804-
149 08.808 PLATE; CAUTION,LOCKING HUB
EXC. CAUTION SPANISH<YN1> 		8-97108-673-1 01 1 0804-
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA> 		8-98071-067-0 01 1 0804-
234 08.808 PLATE; CAUTION,ENG COVER
INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1> IDN 		8-97994-545-0 01 1 0804-
302 08.808 PLATE; CAUTION,TRANSFER
CAUTION SPANISH<YN1> 04.017 (A) 		8-97108-716-1 01 1 0804-
302 08.808 PLATE; CAUTION,TRANSFER
EXC. CAUTION SPANISH<YN1> 04.017 (B) 		8-97108-715-0 01 1 0804-
