Isuzu WW
▶
TRUCKS
▶
NPS
▶
51403 - NPS INDONESIA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

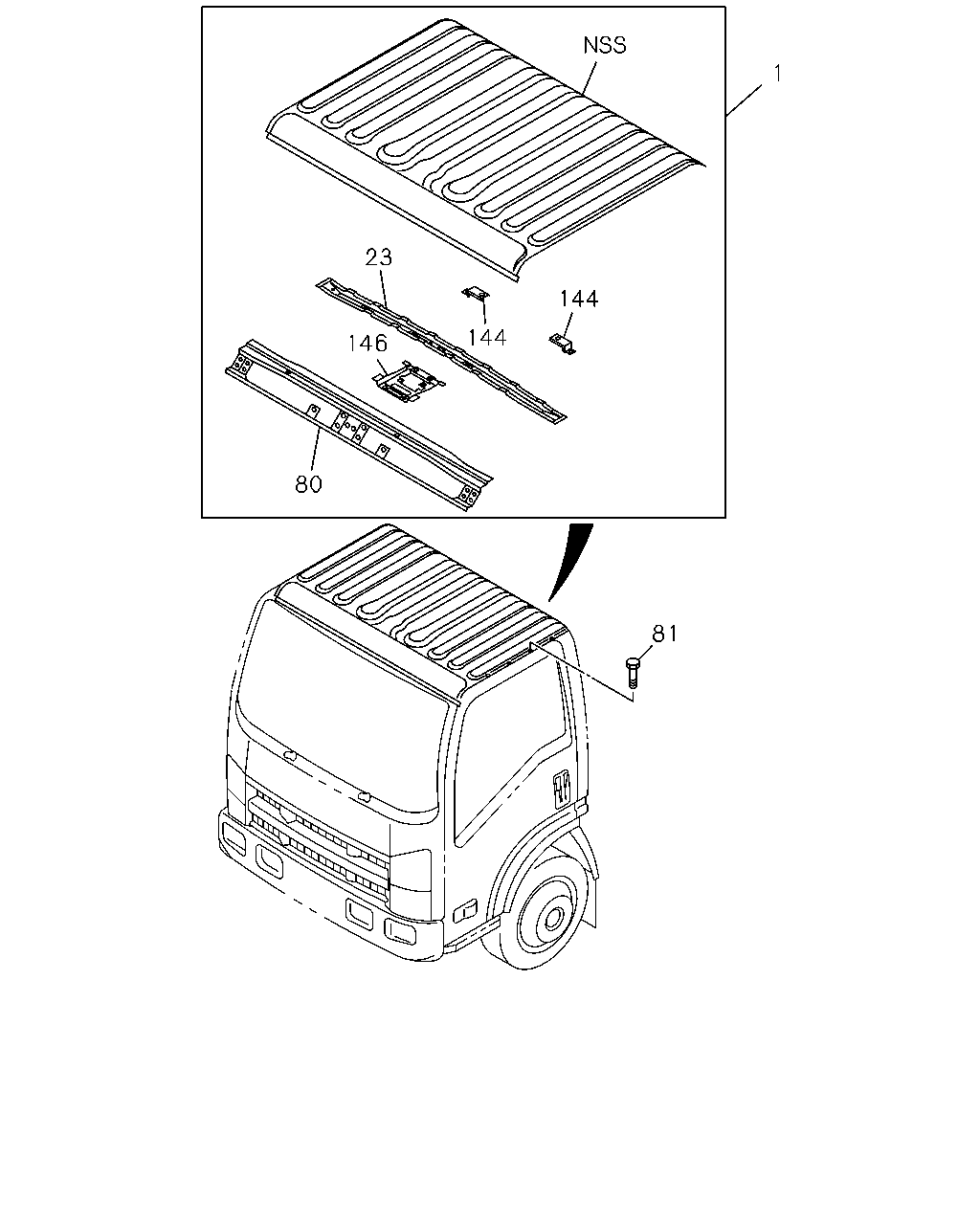

6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#54126) — 10 parça
1
23
144
144
146
80
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.585 PANEL; ROOF
8-98024-941-6
01
1
0804-1503
1
16.585 PANEL; ROOF
IDN
8-98287-347-0
01
1
1504-
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
IDN
8-98013-502-0
01
1
0804-1503
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
IDN
8-98287-359-0
01
1
1504-
80
16.585 PANEL; HEADER,ROOF
IDN
8-97584-190-4
01
1
0804-1503
80
16.585 PANEL; HEADER,ROOF
IDN
8-98287-354-0
01
1
1504-
81
16.585 BOLT; ROOF
16.450 M8X15.5 HEXALOBULAR
8-98028-744-0
08
1
0804-0910
81
16.585 BOLT; ROOF
M8X15.5 HEXALOBULAR IDN
8-98141-874-0
08
1
0911-
144
16.585 BRACKET; ROOF
IDN
8-98013-931-1
02
1
0804-
146
16.570 REINFORCEMENT; ROOM LAMP
IDN
8-98075-827-0
01
1
0804-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
