◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#5412) — 411 parça

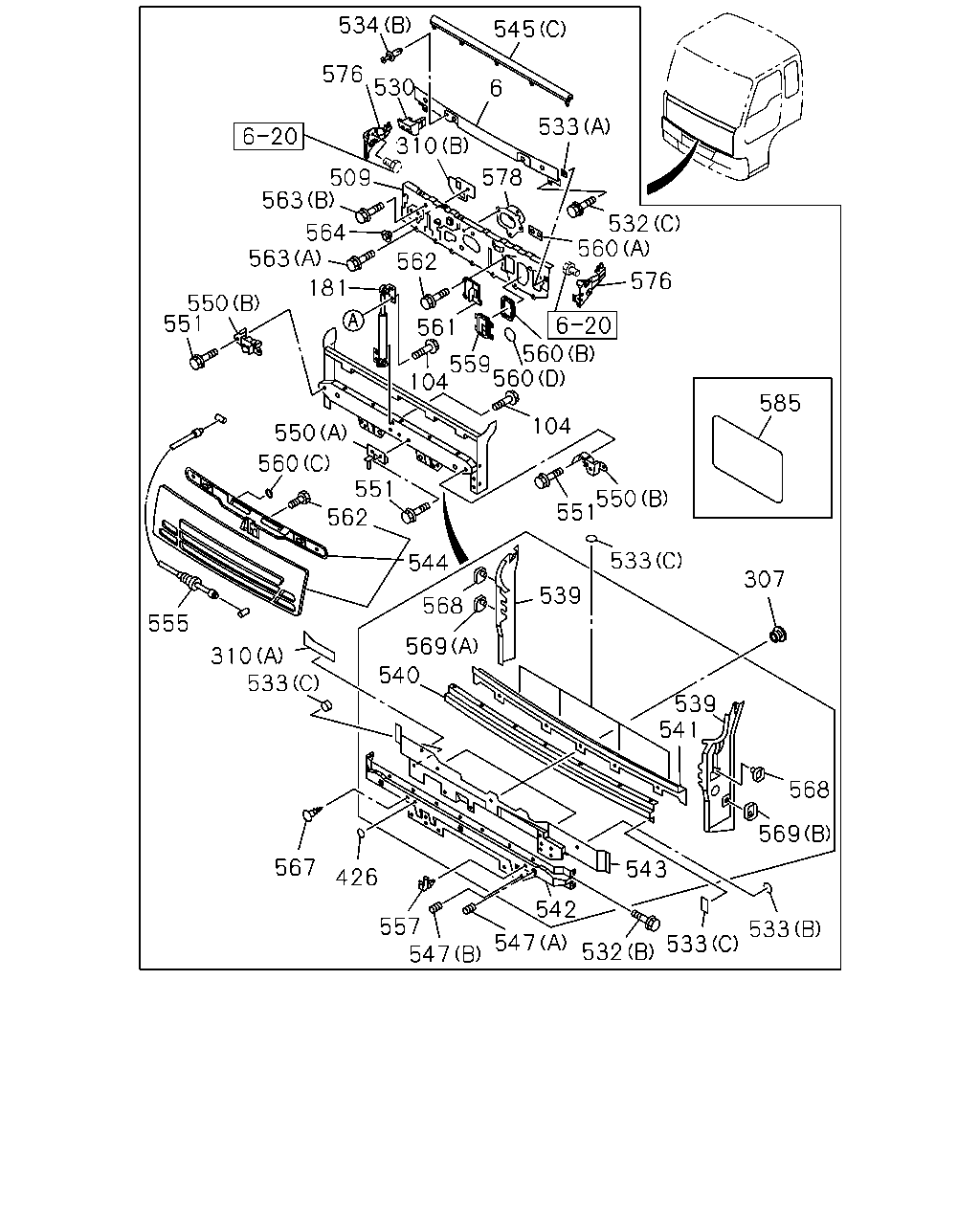

çizim 10150
534 545 576 530 6 533 310 578 509 563 562 532 560 564 563 576 181 550 551 560 559 104 560 561 585 104 550 560 551 562 550 551 533 544 307 539 568 555 569 310 533 540 539 541 568 569 543 567 426 542 557 547 533 547 533 532
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65471-970-2 01 1 9601-9604
6 PANEL; FRONT 1-65472-255-2 01 1 9605-9807
6 PANEL; FRONT 1-65472-549-3 01 1 9808-
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 9601-
104 BOLT; SUPPORT BAR
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9601-9709
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-118-0 01 1 9601-9609
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-261-0 01 1 9610-
307 GROMMET; FRT PANEL
OD=44 		8-94279-727-0 03 1 9601-9703
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 9601-
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 9601-
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 9601-9804
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 9805-0102
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 9805-0102
426 GASKET
OD=25 BLACK 		1-76798-019-0 03 1 0103-
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0103-
509 PANEL; DASH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-492-1 01 1 9601-
509 PANEL; DASH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-478-5 01 1 9601-
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 9605-
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 9605-
532 BOLT; FRT PANEL
(C) M8X20 		1-79198-002-0 02 1 9601-
532 BOLT; FRT PANEL
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9601-9904
532 BOLT; FRT PANEL
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9905-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9601-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 9601-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 9601-9709
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 12 1 9710-9806
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 9807-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9601-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-019-0 08 1 9601-9803
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9804-0001
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9601-
539 CLOSING; PILLAR 1-61480-674-6 01 1 9601-
539 CLOSING; PILLAR 1-61480-673-6 01 1 9601-
540 PANEL; FRONT,OUTER 1-61470-688-2 01 1 9601-
541 PANEL; FRONT,INNER 1-61470-690-0 01 1 9601-
542 RAIL; FRT MOUNTING 1-61470-705-4 01 1 9601-
543 CLOSING; FRT MTG RAIL 1-61470-680-4 01 1 9601-
544 LID; FRT
BUMPER W/HEADLAMPS<SLB> 		1-71107-108-4 01 1 9601-9904
544 LID; FRT
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71107-107-4 01 1 9601-9904
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 1<NBH> DELUXE CAB(W14) 		1-71107-237-2 01 1 9905-
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 1<NBH> EXC. DELUXE CAB(W14) 		1-71107-345-0 01 1 9905-
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 2<NBJ> DELUXE CAB(W14) 		1-71107-218-3 01 1 9905-
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 2<NBJ> EXC. DELUXE CAB(W14) 		1-71107-281-0 01 1 9905-
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> DELUXE CAB(W14) 		1-71107-249-1 01 1 9905-
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> EXC. DELUXE CAB(W14) 		1-71107-346-0 01 1 9905-
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> DELUXE CAB(W14) 		1-71107-217-2 01 1 9905-
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> EXC. DELUXE CAB(W14) 		1-71107-293-0 01 1 9905-
545 SEAL; FRT LID
(C) 		1-71907-152-2 01 1 9601-9604
545 SEAL; FRT LID
(C) L=2038 		1-71907-481-0 01 1 9605-
545 SEAL; FRT LID
(A) 		1-71907-154-4 01 1 9601-9904
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) 		1-71907-154-4 01 1 9905-
545 SEAL; FRT LID
(B) 		1-71907-153-3 01 1 9601-9904
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-71907-153-3 01 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-470-0 01 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-471-0 01 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) 		1-71907-472-0 02 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (E) L=63 		1-71998-963-2 01 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) OD=25 BLACK 		1-76798-019-0 01 1 9905-
547 RUBBER; CUSHION
(B) OD=22 L=39 		1-71907-419-0 02 1 9601-
547 RUBBER; CUSHION
(A) OD=22 L=29 		8-94324-556-2 02 1 9601-
550 LOCK ASM; FRT LID
(A) 		1-79317-002-1 01 1 9601-9904
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) 		1-79317-002-2 01 1 9905-
550 LOCK ASM; FRT LID
(B) 		1-79318-010-1 01 1 9601-9904
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-79318-010-1 01 1 9905-
550 LOCK ASM; FRT LID
(B) 		1-79318-009-3 01 1 9601-9904
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-79318-009-3 01 1 9905-
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) 		1-79317-006-1 01 1 9905-
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-79317-008-0 01 1 9905-
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-79317-007-1 01 1 9905-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 9601-
551 BOLT; LOCK
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905-
551 BOLT; LOCK
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9905-
555 CABLE; FRT LID
L=2442 		1-79347-003-2 01 1 9601-9904
555 CABLE; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> L=2442 		1-79347-003-4 01 1 9905-
555 CABLE; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=2682 		1-79347-005-2 01 1 9905-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 9601-9904
557 CLIP; CABLE
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> ID=4.8 		8-94128-483-0 02 1 9905-
557 CLIP; CABLE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> ID=4.8 		8-94128-483-0 01 1 9905-
559 COVER; EVAPOLATOR 1-71998-831-3 01 1 9601-9603
559 COVER; EVAPOLATOR 1-71996-162-0 01 1 9604-9608
559 COVER; EVAPOLATOR 1-71996-194-0 01 1 9609-
560 SEAL; COVER
(A) 		1-61281-497-0 02 1 9601-9805
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 9601-
560 SEAL; COVER
(D) OD=36 BLACK 		1-76798-018-0 01 1 9601-9610
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (D) OD=36 BLACK 		1-76798-018-0 01 1 9611-9806
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (D) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9807-
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9601-9610
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9601-9610
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9611-9708
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9611-9708
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9709-9806
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9807-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9807-
560 SEAL; COVER
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (E) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9905-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D) OD=36 BLACK 		1-76798-018-0 02 1 9709-9806
561 COVER; HEATER CORE 1-71998-829-1 01 1 9601-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9601-9904
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9905-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9601-9904
562 BOLT; COVER
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9905-
563 BOLT; DASH PANEL
(A) M8X20 		1-79198-002-0 16 1 9601-9707
563 BOLT; DASH PANEL
(A) M8X20 		1-79198-002-0 14 1 9708-9807
563 BOLT; DASH PANEL
(A) M8X20 		1-79198-002-0 18 1 9808-
563 BOLT; DASH PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 9601-9707
563 BOLT; DASH PANEL
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 9708-9807
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 9601-
567 PLUG; FRT MTG RAIL
OD=15 BLACK 		8-94279-804-0 01 1 9601-9712
567 PLUG; FRT MTG RAIL
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=15 BLACK 		8-94279-804-0 01 1 9801-9803
567 PLUG; FRT MTG RAIL
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 9804-9804
568 PATCH; INST REINF 1-61480-675-2 02 1 9601-
569 PATCH; LWR GRIP
(A) 		1-61480-689-2 01 1 9601-
569 PATCH; LWR GRIP
(B) 		1-61480-736-2 01 1 9601-
576 FRAME; INST SIDE 1-62280-177-7 01 1 9601-
576 FRAME; INST SIDE 1-62280-176-6 01 1 9601-
578 COVER; WIPER MOTOR 1-62280-185-3 01 1 9601-0009
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0010-
585 PLATE; EVAPOLATOR
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-71996-084-1 01 1 9601-

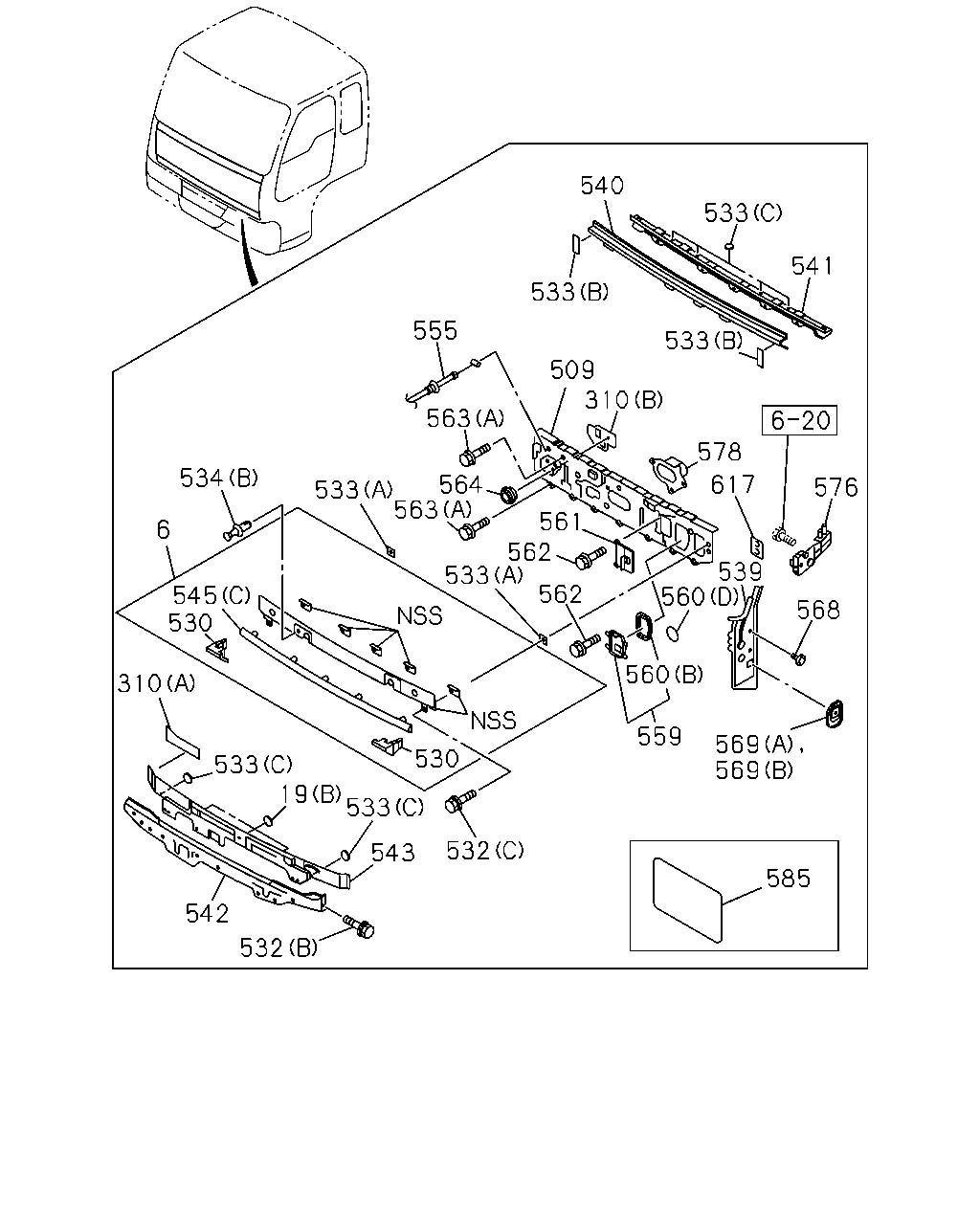

çizim 10151
540 533 541 533 555 533 509 310 563 578 534 564 563 617 576 533 561 562 533 6 539 560 562 545 530 568 560 310 559 569 569 530 533 19 533 532 543 585 542 532
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65471-970-2 01 1 9601-9604
6 PANEL; FRONT 1-65472-255-2 01 1 9605-9807
6 PANEL; FRONT 1-65472-549-3 01 1 9808-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 9601-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 9601-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9704-
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-165-4 01 1 9601-
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-164-4 01 1 9601-
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-160-4 01 1 9601-
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-159-4 01 1 9601-
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 9601-
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 9601-
509 PANEL; DASH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-492-1 01 1 9601-
509 PANEL; DASH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-478-5 01 1 9601-
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 9605-
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 9605-
532 BOLT; FRT PANEL
(C) M8X20 		1-79198-002-0 02 1 9601-
532 BOLT; FRT PANEL
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9601-9904
532 BOLT; FRT PANEL
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9905-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9601-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 9601-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 9601-9709
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 12 1 9710-9806
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 9807-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9601-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-019-0 08 1 9601-9803
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9804-0001
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9601-
539 CLOSING; PILLAR 1-61480-674-6 01 1 9601-
539 CLOSING; PILLAR 1-61480-673-6 01 1 9601-
540 PANEL; FRONT,OUTER 1-61470-688-2 01 1 9601-
541 PANEL; FRONT,INNER 1-61470-690-0 01 1 9601-
542 RAIL; FRT MOUNTING 1-61470-705-4 01 1 9601-
543 CLOSING; FRT MTG RAIL 1-61470-680-4 01 1 9601-
545 SEAL; FRT LID
(C) 		1-71907-152-2 01 1 9601-9604
545 SEAL; FRT LID
(C) L=2038 		1-71907-481-0 01 1 9605-
545 SEAL; FRT LID
(A) 		1-71907-154-4 01 1 9601-9904
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) 		1-71907-154-4 01 1 9905-
545 SEAL; FRT LID
(B) 		1-71907-153-3 01 1 9601-9904
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-71907-153-3 01 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-470-0 01 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-471-0 01 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) 		1-71907-472-0 02 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (E) L=63 		1-71998-963-2 01 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) OD=25 BLACK 		1-76798-019-0 01 1 9905-
555 CABLE; FRT LID
L=2442 		1-79347-003-2 01 1 9601-9904
555 CABLE; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> L=2442 		1-79347-003-4 01 1 9905-
555 CABLE; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=2682 		1-79347-005-2 01 1 9905-
559 COVER; EVAPOLATOR 1-71998-831-3 01 1 9601-9603
559 COVER; EVAPOLATOR 1-71996-162-0 01 1 9604-9608
559 COVER; EVAPOLATOR 1-71996-194-0 01 1 9609-
560 SEAL; COVER
(A) 		1-61281-497-0 02 1 9601-9805
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 9601-
560 SEAL; COVER
(D) OD=36 BLACK 		1-76798-018-0 01 1 9601-9610
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (D) OD=36 BLACK 		1-76798-018-0 01 1 9611-9806
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (D) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9807-
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9601-9610
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9601-9610
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9611-9708
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9611-9708
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9709-9806
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9807-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9807-
560 SEAL; COVER
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (E) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9905-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D) OD=36 BLACK 		1-76798-018-0 02 1 9709-9806
561 COVER; HEATER CORE 1-71998-829-1 01 1 9601-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9601-9904
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9905-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9601-9904
562 BOLT; COVER
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9905-
563 BOLT; DASH PANEL
(A) M8X20 		1-79198-002-0 16 1 9601-9707
563 BOLT; DASH PANEL
(A) M8X20 		1-79198-002-0 14 1 9708-9807
563 BOLT; DASH PANEL
(A) M8X20 		1-79198-002-0 18 1 9808-
563 BOLT; DASH PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 9601-9707
563 BOLT; DASH PANEL
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 9708-9807
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 9601-
568 PATCH; INST REINF 1-61480-675-2 02 1 9601-
569 PATCH; LWR GRIP
(A) 		1-61480-689-2 01 1 9601-
569 PATCH; LWR GRIP
(B) 		1-61480-736-2 01 1 9601-
576 FRAME; INST SIDE 1-62280-177-7 01 1 9601-
576 FRAME; INST SIDE 1-62280-176-6 01 1 9601-
578 COVER; WIPER MOTOR 1-62280-185-3 01 1 9601-0009
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0010-
585 PLATE; EVAPOLATOR
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-71996-084-1 01 1 9601-
617 SEAL; DASH 1-61281-497-0 02 1 9806-

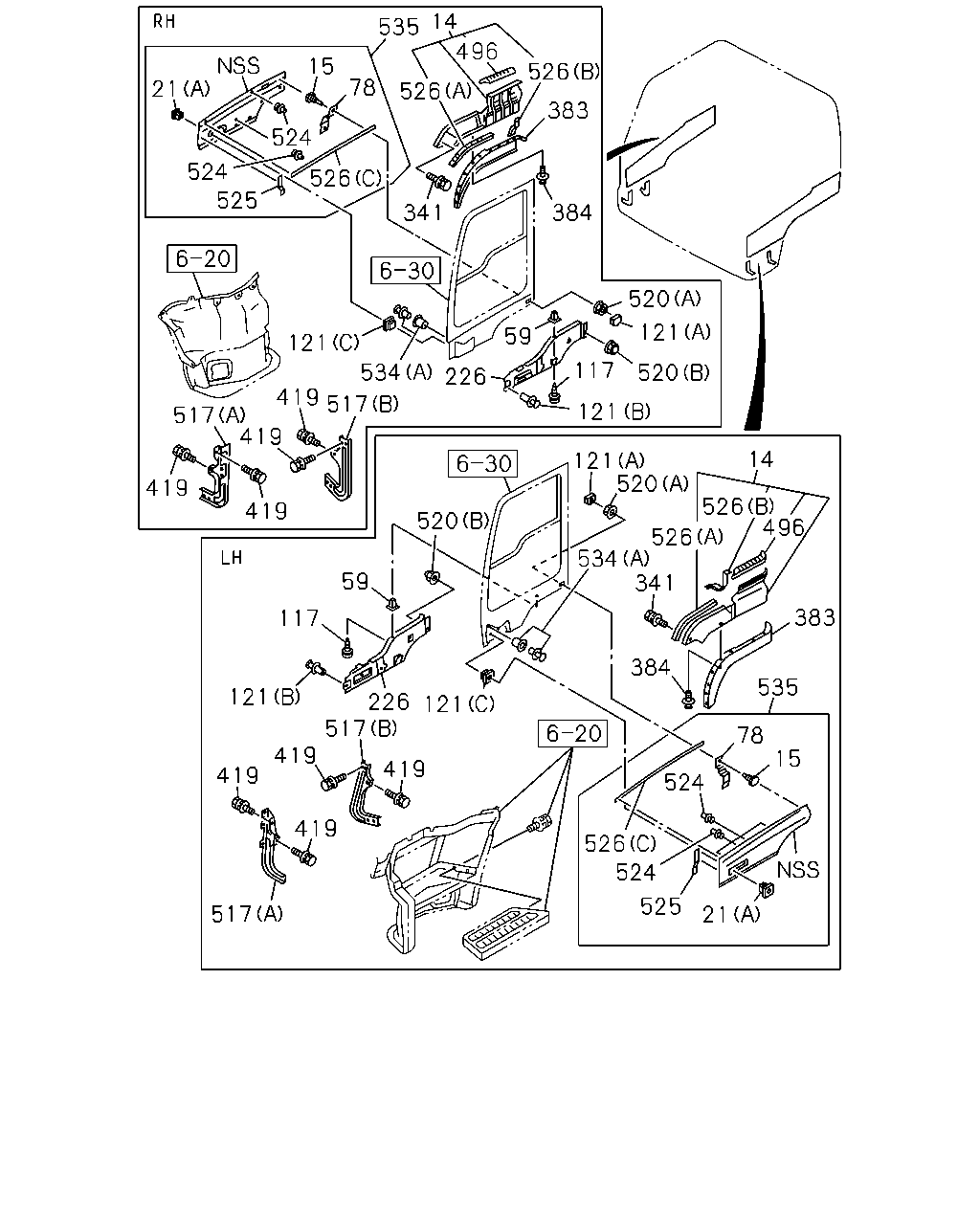

çizim 11043
14 535 496 15 526 78 21 526 383 524 524 526 525 384 341 520 121 59 121 117 534 520 226 419 517 121 517 419 14 121 520 419 526 496 419 520 526 534 341 59 383 117 384 535 121 226 517 121 78 419 15 419 419 524 419 526 524 525 517 21
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT 1-65471-722-9 01 1 9601-9704
14 FENDER; FRT
WHITE 		1-65472-453-0 01 1 9705-9904
14 FENDER; FRT
WHITE 		1-65472-453-2 01 1 9905-
14 FENDER; FRT 1-65471-721-9 01 1 9601-9704
14 FENDER; FRT
WHITE 		1-65472-452-0 01 1 9705-9904
14 FENDER; FRT
WHITE 		1-65472-452-2 01 1 9905-
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 9601-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9601-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9601-
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 9601-
78 BRACKET; FENDER 1-71267-215-0 01 1 9601-
78 BRACKET; FENDER 1-71267-214-0 01 1 9601-
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 9601-
121 GROMMET; FENDER
(A) 		1-09983-162-0 02 1 9601-
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 9601-
121 GROMMET; FENDER
(C) 14.5X14.5 BLACK 		8-94279-714-0 02 1 9601-9601
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9602-9603
121 GROMMET; FENDER
(C) 14.5X14.5 BLACK 		8-94279-714-0 02 1 9604-
226 PROTECTOR; FRT 1-71267-153-7 01 1 9601-9902
226 PROTECTOR; FRT 1-71267-269-1 01 1 9903-
226 PROTECTOR; FRT 1-71267-152-7 01 1 9601-9902
226 PROTECTOR; FRT 1-71267-268-1 01 1 9903-
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 18 1 9601-
383 GUARD; MUD,FENDER LWR 1-71907-443-2 01 1 9601-
383 GUARD; MUD,FENDER LWR 1-71907-442-2 01 1 9601-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 11 1 9601-
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9601-
496 RUBBER; STEP 1-71998-862-0 01 1 9601-
496 RUBBER; STEP 1-71998-861-0 01 1 9601-
517 SUPPORT; STEP PANEL
(A) 		1-65671-529-3 01 1 9601-9904
517 SUPPORT; STEP PANEL
(A) 		1-65671-767-1 01 1 9905-
517 SUPPORT; STEP PANEL
(B) 		1-65671-531-1 01 1 9601-
517 SUPPORT; STEP PANEL
(A) 		1-65671-528-3 01 1 9601-9904
517 SUPPORT; STEP PANEL
(A) 		1-65671-766-1 01 1 9905-
517 SUPPORT; STEP PANEL
(B) 		1-65671-530-1 01 1 9601-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9601-
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 9601-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-174-0 08 1 9601-9803
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 9804-
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 9601-
526 FINISHER; FENDER
(B) 		1-71998-900-3 02 1 9601-
526 FINISHER; FENDER
(C) 		1-71268-276-1 01 1 9601-
526 FINISHER; FENDER
(A) 		1-71907-181-4 01 1 9601-
526 FINISHER; FENDER
(C) 		1-71268-275-1 01 1 9601-
526 FINISHER; FENDER
(A) 		1-71907-180-4 01 1 9601-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-019-0 08 1 9601-9803
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9804-0001
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9601-
535 FENDER; BLISTER 1-71267-186-2 01 1 9601-
535 FENDER; BLISTER 1-71267-185-2 01 1 9601-
çizim 41163
544 562 544 548 545 545 548 532 548
BalonParca AdiParca NoAdetTipApplied Date
532 BOLT; FRT PANEL
(C) M8X20 		1-79198-002-0 02 1 9601-
532 BOLT; FRT PANEL
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9601-9904
532 BOLT; FRT PANEL
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9905-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9601-
544 LID; FRT
BUMPER W/HEADLAMPS<SLB> 		1-71107-108-4 01 1 9601-9904
544 LID; FRT
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71107-107-4 01 1 9601-9904
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 1<NBH> DELUXE CAB(W14) 		1-71107-237-2 01 1 9905-
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 1<NBH> EXC. DELUXE CAB(W14) 		1-71107-345-0 01 1 9905-
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 2<NBJ> DELUXE CAB(W14) 		1-71107-218-3 01 1 9905-
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 2<NBJ> EXC. DELUXE CAB(W14) 		1-71107-281-0 01 1 9905-
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> DELUXE CAB(W14) 		1-71107-249-1 01 1 9905-
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> EXC. DELUXE CAB(W14) 		1-71107-346-0 01 1 9905-
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> DELUXE CAB(W14) 		1-71107-217-2 01 1 9905-
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> EXC. DELUXE CAB(W14) 		1-71107-293-0 01 1 9905-
545 SEAL; FRT LID
(C) 		1-71907-152-2 01 1 9601-9604
545 SEAL; FRT LID
(C) L=2038 		1-71907-481-0 01 1 9605-
545 SEAL; FRT LID
(A) 		1-71907-154-4 01 1 9601-9904
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) 		1-71907-154-4 01 1 9905-
545 SEAL; FRT LID
(B) 		1-71907-153-3 01 1 9601-9904
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-71907-153-3 01 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-470-0 01 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-471-0 01 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) 		1-71907-472-0 02 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (E) L=63 		1-71998-963-2 01 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) OD=25 BLACK 		1-76798-019-0 01 1 9905-
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-0 01 1 9601-
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-0 02 1 9601-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9601-9904
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9905-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9601-9904
562 BOLT; COVER
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9905-

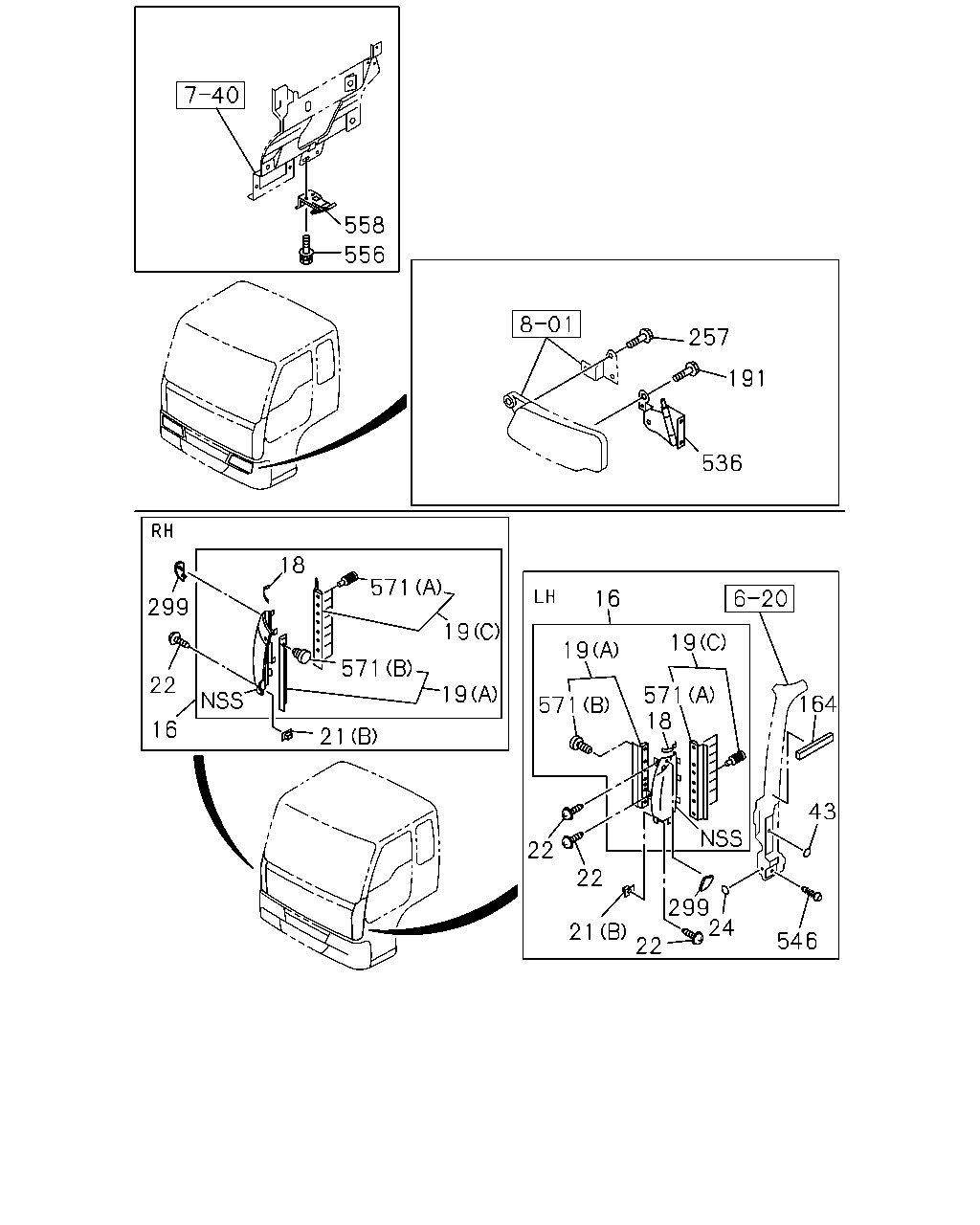

çizim 41535
558 556 257 191 536 18 571 16 299 19 19 19 571 22 19 571 18 164 571 16 21 43 22 22 299 24 21 22 546
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> 		1-65471-899-0 01 1 9601-
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> 		1-65472-219-0 01 1 9601-9705
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> 		1-65471-898-0 01 1 9706-
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65471-897-0 01 1 9601-
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65472-217-0 01 1 9601-9705
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65471-896-0 01 1 9706-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 9601-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 9601-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 9601-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 9601-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9704-
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-165-4 01 1 9601-
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-164-4 01 1 9601-
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-160-4 01 1 9601-
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-159-4 01 1 9601-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9601-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9601-
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 9601-0003
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0004-
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 04 1 9601-9811
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 04 1 9812-9903
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 06 1 9904-
24 SEAL; FRT PANEL LWR
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 10 1 9812-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9601-9807
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9808-9811
43 GROMMET; LOCATION HOLE,A-POST
EXC. POWER WINDOW<A30> OD=45 BLACK 		1-76798-017-0 02 1 9808-9811
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9812-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9601-
191 BOLT; HINGE
EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9601-
257 BOLT; BRKT
EXC. BUMPER W/HEADLAMPS<SLB> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9601-
299 COVER; FRT PANEL SIDE 1-71998-995-1 01 1 9706-
299 COVER; FRT PANEL SIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-71998-996-1 01 1 9905-
536 HINGE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-032-5 01 1 9601-
536 HINGE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-031-5 01 1 9601-
546 PLUG; DUMMY HOLE
FRT PILLER LOWER OD=16 L=11 		1-76378-155-0 02 1 9601-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9601-9611
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 9612-
558 LEVER; FRT LID 1-79338-003-1 01 1 9601-
571 CLIP; SEAL
(A) PINK 		1-09987-256-0 08 1 9601-
571 CLIP; SEAL
(A) NATURAL 		1-09987-257-0 08 1 9601-
571 CLIP; SEAL
BUMPER W/HEADLAMPS<SLB> (B) 		1-09987-228-0 16 1 9601-
571 CLIP; SEAL
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-09987-228-0 14 1 9601-

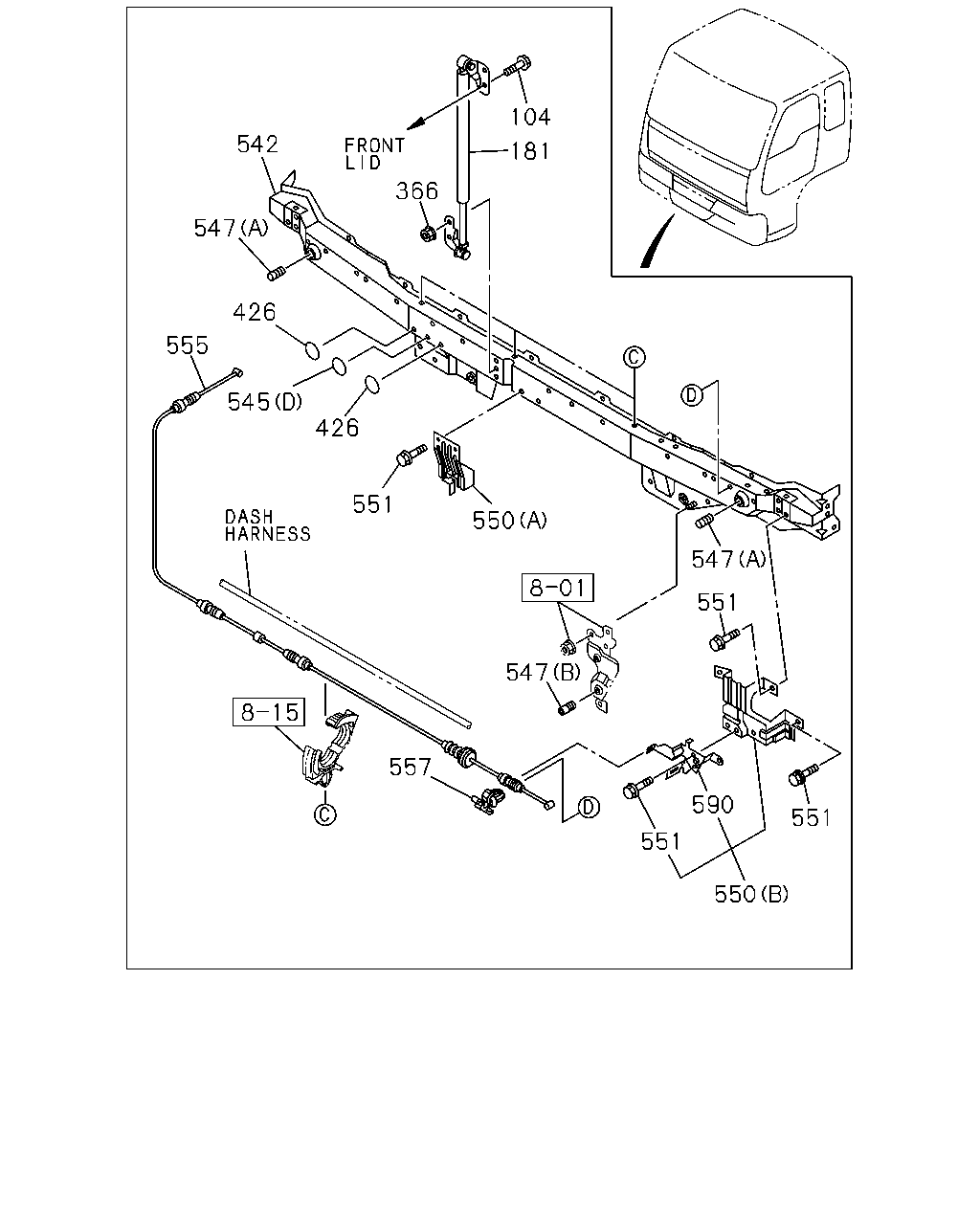

çizim 41576
104 542 181 366 547 426 555 545 426 551 550 547 551 547 557 590 551 551 550
BalonParca AdiParca NoAdetTipApplied Date
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 9601-
104 BOLT; SUPPORT BAR
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9601-9709
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-118-0 01 1 9601-9609
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-261-0 01 1 9610-
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9710-
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 9601-9804
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 9805-0102
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 9805-0102
426 GASKET
OD=25 BLACK 		1-76798-019-0 03 1 0103-
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0103-
542 RAIL; FRT MOUNTING 1-61470-705-4 01 1 9601-
545 SEAL; FRT LID
(C) 		1-71907-152-2 01 1 9601-9604
545 SEAL; FRT LID
(C) L=2038 		1-71907-481-0 01 1 9605-
545 SEAL; FRT LID
(A) 		1-71907-154-4 01 1 9601-9904
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) 		1-71907-154-4 01 1 9905-
545 SEAL; FRT LID
(B) 		1-71907-153-3 01 1 9601-9904
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-71907-153-3 01 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-470-0 01 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-471-0 01 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) 		1-71907-472-0 02 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (E) L=63 		1-71998-963-2 01 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) OD=25 BLACK 		1-76798-019-0 01 1 9905-
547 RUBBER; CUSHION
(B) OD=22 L=39 		1-71907-419-0 02 1 9601-
547 RUBBER; CUSHION
(A) OD=22 L=29 		8-94324-556-2 02 1 9601-
550 LOCK ASM; FRT LID
(A) 		1-79317-002-1 01 1 9601-9904
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) 		1-79317-002-2 01 1 9905-
550 LOCK ASM; FRT LID
(B) 		1-79318-010-1 01 1 9601-9904
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-79318-010-1 01 1 9905-
550 LOCK ASM; FRT LID
(B) 		1-79318-009-3 01 1 9601-9904
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-79318-009-3 01 1 9905-
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) 		1-79317-006-1 01 1 9905-
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-79317-008-0 01 1 9905-
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-79317-007-1 01 1 9905-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 9601-
551 BOLT; LOCK
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905-
551 BOLT; LOCK
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9905-
555 CABLE; FRT LID
L=2442 		1-79347-003-2 01 1 9601-9904
555 CABLE; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> L=2442 		1-79347-003-4 01 1 9905-
555 CABLE; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=2682 		1-79347-005-2 01 1 9905-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 9601-9904
557 CLIP; CABLE
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> ID=4.8 		8-94128-483-0 02 1 9905-
557 CLIP; CABLE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> ID=4.8 		8-94128-483-0 01 1 9905-
590 LOCK; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> 		1-79318-010-1 01 1 9905-
590 LOCK; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> 		1-79318-009-3 01 1 9905-
çizim 41613
544 544 560 548 545 545 601 545 198 548 548
BalonParca AdiParca NoAdetTipApplied Date
198 NUT; PANEL
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> M6 FLANGE 		8-94197-199-0 02 1 9905-
544 LID; FRT
BUMPER W/HEADLAMPS<SLB> 		1-71107-108-4 01 1 9601-9904
544 LID; FRT
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71107-107-4 01 1 9601-9904
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 1<NBH> DELUXE CAB(W14) 		1-71107-237-2 01 1 9905-
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 1<NBH> EXC. DELUXE CAB(W14) 		1-71107-345-0 01 1 9905-
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 2<NBJ> DELUXE CAB(W14) 		1-71107-218-3 01 1 9905-
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 2<NBJ> EXC. DELUXE CAB(W14) 		1-71107-281-0 01 1 9905-
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> DELUXE CAB(W14) 		1-71107-249-1 01 1 9905-
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> EXC. DELUXE CAB(W14) 		1-71107-346-0 01 1 9905-
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> DELUXE CAB(W14) 		1-71107-217-2 01 1 9905-
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> EXC. DELUXE CAB(W14) 		1-71107-293-0 01 1 9905-
545 SEAL; FRT LID
(C) 		1-71907-152-2 01 1 9601-9604
545 SEAL; FRT LID
(C) L=2038 		1-71907-481-0 01 1 9605-
545 SEAL; FRT LID
(A) 		1-71907-154-4 01 1 9601-9904
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) 		1-71907-154-4 01 1 9905-
545 SEAL; FRT LID
(B) 		1-71907-153-3 01 1 9601-9904
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-71907-153-3 01 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-470-0 01 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-471-0 01 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) 		1-71907-472-0 02 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (E) L=63 		1-71998-963-2 01 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) OD=25 BLACK 		1-76798-019-0 01 1 9905-
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-0 01 1 9601-
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-0 02 1 9601-
560 SEAL; COVER
(A) 		1-61281-497-0 02 1 9601-9805
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 9601-
560 SEAL; COVER
(D) OD=36 BLACK 		1-76798-018-0 01 1 9601-9610
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (D) OD=36 BLACK 		1-76798-018-0 01 1 9611-9806
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (D) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9807-
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9601-9610
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9601-9610
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9611-9708
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9611-9708
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9709-9806
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9807-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9807-
560 SEAL; COVER
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (E) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9905-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D) OD=36 BLACK 		1-76798-018-0 02 1 9709-9806
601 FINISHER; LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=120 SERVICED BY L=190 		1-71998-300-0 01 1 9905-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
