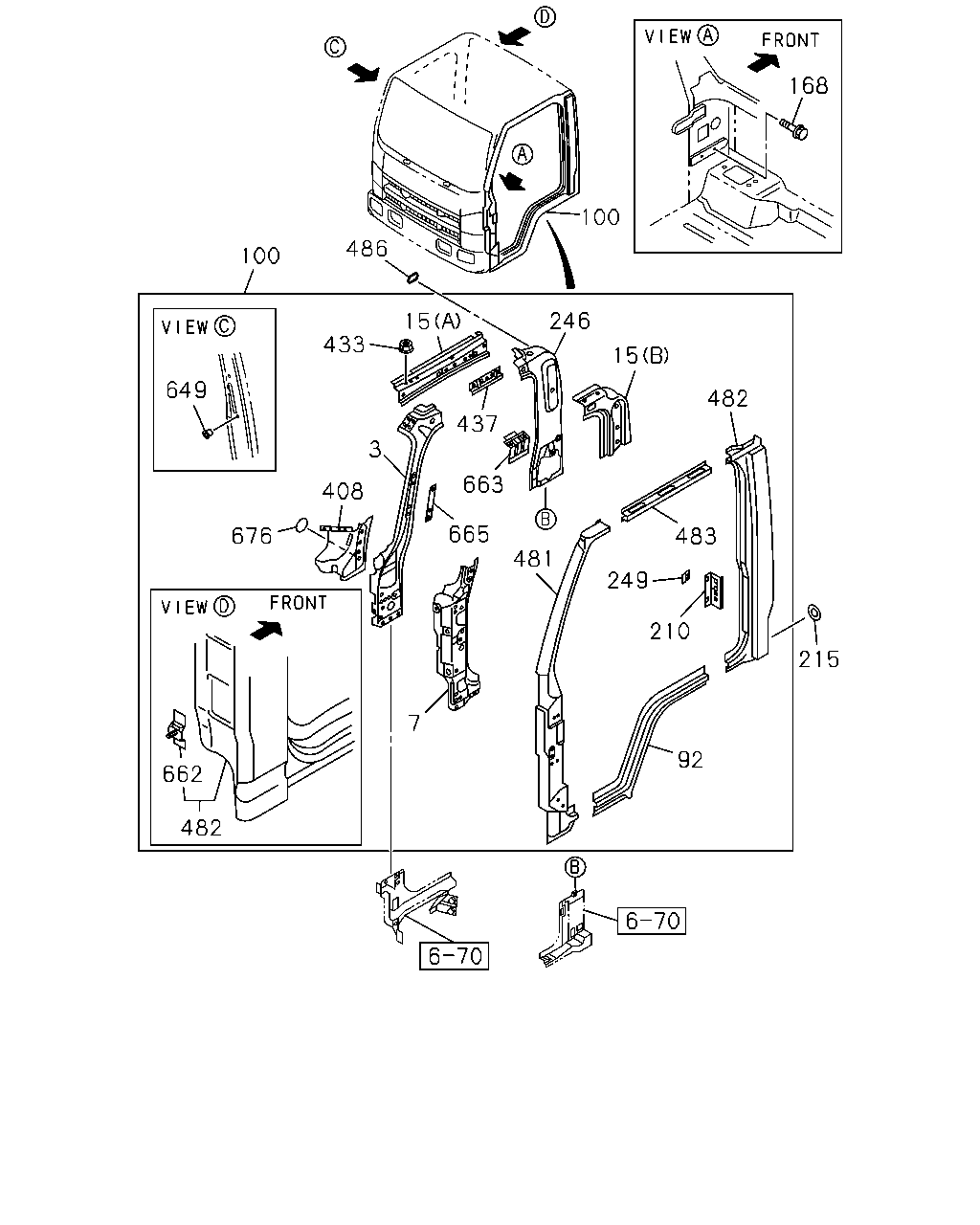

3 |
16.592 PANEL; CLOSING,FRT PILLAR
|
8-98058-236-1 |
01 |
1 |
0804- |
| |
3 |
16.592 PANEL; CLOSING,FRT PILLAR
IDN
|
8-98058-237-1 |
01 |
1 |
0804- |
| |
7 |
16.570 REINFORCEMENT; HINGE
IDN
|
8-97585-240-3 |
01 |
1 |
0804- |
| |
7 |
16.570 REINFORCEMENT; HINGE
IDN
|
8-97585-244-4 |
01 |
1 |
0804- |
| |
15 |
16.592 PANEL; CANT RAIL SIDE
(A)
|
8-97585-294-2 |
01 |
1 |
0804- |
| |
15 |
16.592 PANEL; CANT RAIL SIDE
(A)
IDN
|
8-97585-295-2 |
01 |
1 |
0804- |
| |
15 |
16.592 PANEL; CANT RAIL SIDE
(B)
|
8-97585-302-1 |
01 |
1 |
0804- |
| |
15 |
16.592 PANEL; CANT RAIL SIDE
(B)
IDN
|
8-97585-303-2 |
01 |
1 |
0804- |
| |
92 |
16.570 PANEL; SIDE SILL,CAB
|
8-98055-461-1 |
01 |
1 |
0804- |
| |
92 |
16.570 PANEL; SIDE SILL,CAB
|
8-98055-462-1 |
01 |
1 |
0804- |
| |
100 |
16.570 PANEL ASM; BODY SIDE
IDN
|
8-97585-200-9 |
01 |
1 |
0804- |
| |
100 |
16.570 PANEL ASM; BODY SIDE
IDN
|
8-97586-023-5 |
01 |
1 |
0804- |
| |
168 |
16.570 BOLT; BODY SIDE PANEL
M6X16
IDN
|
0-38050-616-0 |
08 |
1 |
0804-0804 |
| |
168 |
16.570 BOLT; BODY SIDE PANEL
16.650
T25 M6X12 HEXALOBULAR SOCKET
|
0-38050-612-0 |
08 |
1 |
0804- |
| |
210 |
16.588 PANEL; DOOR STRIKER REINF
|
8-97585-260-4 |
01 |
1 |
0804- |
| |
210 |
16.588 PANEL; DOOR STRIKER REINF
IDN
|
8-97585-261-4 |
01 |
1 |
0804- |
| |
215 |
16.674 GROMMET; RR PILLAR
15.222
OD=35
IDN
|
8-94122-971-0 |
01 |
1 |
0804- |
| |
246 |
16.575 PANEL; RR PILLAR,INNER
IDN
|
8-97585-301-3 |
01 |
1 |
0804- |
| |
246 |
16.575 PANEL; RR PILLAR,INNER
|
8-97586-154-3 |
01 |
1 |
0804- |
| |
249 |
16.674 REINFORCEMENT; RR PILLAR
|
8-98012-287-1 |
02 |
1 |
0804- |
| |
408 |
16.570 GUSSET; PILLAR
|
8-97585-316-3 |
01 |
1 |
0804- |
| |
408 |
16.570 GUSSET; PILLAR
IDN
|
8-97585-317-4 |
01 |
1 |
0804- |
| |
433 |
16.585 NUT; HEADER SHELF
16.545
M6
|
9-09114-086-0 |
04 |
1 |
0804- |
| |
437 |
08.155 BRACKET; ROOF RAIL
|
8-98039-019-0 |
01 |
1 |
0804- |
| |
437 |
08.155 BRACKET; ROOF RAIL
IDN
|
8-98039-020-0 |
01 |
1 |
0804- |
| |
481 |
16.570 PANEL; SIDE FRT PILLAR
|
8-98055-451-0 |
01 |
1 |
0804- |
| |
481 |
16.570 PANEL; SIDE FRT PILLAR
|
8-98055-470-0 |
01 |
1 |
0804- |
| |
482 |
16.570 PANEL; SIDE RR PILLAR
|
8-98055-464-0 |
01 |
1 |
0804- |
| |
482 |
16.570 PANEL; SIDE RR PILLAR
|
8-98055-472-0 |
01 |
1 |
0804-0811 |
| |
482 |
16.570 PANEL; SIDE RR PILLAR
|
8-98055-463-0 |
01 |
1 |
0812- |
| |
483 |
16.570 PANEL; SIDE CANTRAIL
|
8-98055-458-0 |
01 |
1 |
0804- |
| |
483 |
16.570 PANEL; SIDE CANTRAIL
|
8-98055-460-0 |
01 |
1 |
0804- |
| |
486 |
16.570 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729)
OD=20 T=0.05 WHITE
IDN
|
8-98059-421-0 |
04 |
1 |
0804- |
| |
486 |
16.570 SEAL; BODY SIDE
BODY COLOR MARINE BLUE(890),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS
BLUE(999)
16.165
OD=20 T=0.05 BLACK
IDN
|
5-76777-036-0 |
04 |
1 |
0804- |
| |
649 |
16.570 NUT; POP
09.647
M5 POP NUT
IDN
|
8-97249-574-0 |
02 |
1 |
0804- |
| |
662 |
16.570 BRACKET; DUCT
IDN
|
8-97584-611-1 |
01 |
1 |
0804- |
| |
663 |
08.228 BRACKET; AIR
|
8-97585-207-2 |
01 |
1 |
0804- |
| |
663 |
08.228 BRACKET; AIR
IDN
|
8-97585-208-2 |
01 |
1 |
0804- |
| |
665 |
16.575 REINFORCEMENT; GRIP,ASSIST
|
8-97585-314-0 |
02 |
1 |
0804- |
| |
676 |
16.520 SEAL
16.165
OD=20 T=0.05 BLACK
IDN
|
5-76777-036-0 |
01 |
1 |
1007- |
