◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51403 - NPS INDONESIA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#54117) — 52 parça

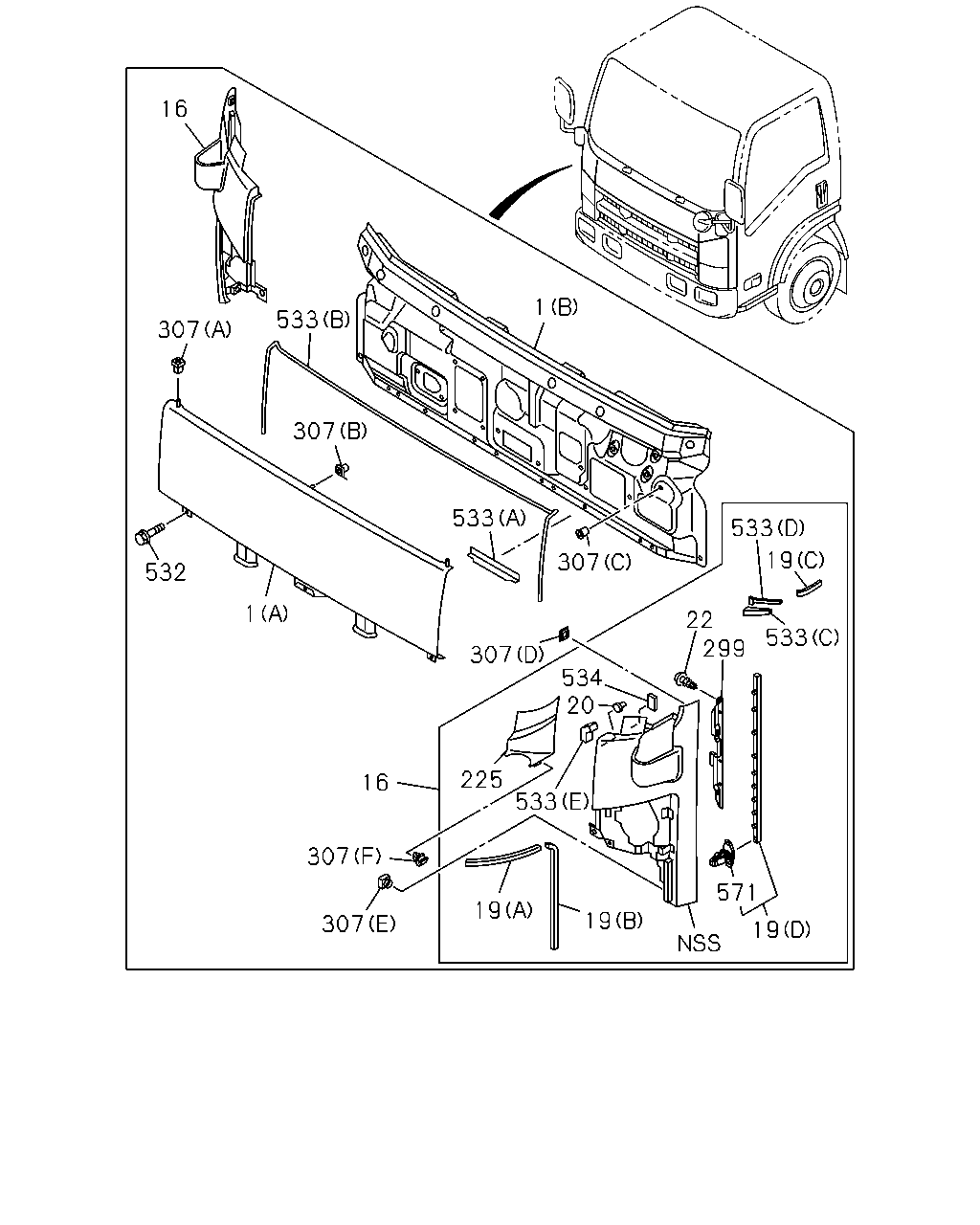

çizim 150016
16 533 307 307 532 1 16 307 307 19 19 571 19 533 225 307 534 20 22 299 533 19 533 307 533 1
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT
(A) 		8-98021-859-5 01 1 0804-0807
1 16.550 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 0808-
1 16.550 PANEL ASM; FRT
(B) 		8-97585-324-9 01 1 0804-1102
1 16.550 PANEL ASM; FRT
(B) IDN 		8-98181-027-0 01 1 1103-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE IDN 		8-97405-621-8 01 1 0804-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE IDN 		8-97405-625-8 01 1 0804-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-103-8 01 1 0804-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-114-8 01 1 0804-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-619-8 01 1 0804-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-623-8 01 1 0804-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-620-8 01 1 0804-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-624-8 01 1 0804-
19 16.588 SEAL; FRT SIDE PANEL
(A) IDN 		8-98035-268-0 02 1 0804-
19 16.588 SEAL; FRT SIDE PANEL
(B) IDN 		8-98062-215-0 02 1 0804-
19 16.588 SEAL; FRT SIDE PANEL
(C) IDN 		8-98038-608-0 02 1 0804-
19 16.588 SEAL; FRT SIDE PANEL
(D) IDN 		8-98028-749-3 01 1 0804-
19 16.588 SEAL; FRT SIDE PANEL
(D) IDN 		8-98028-750-3 01 1 0804-
20 16.588 CLIP; FRT PANEL SIDE
IDN 		8-97410-739-1 04 1 0804-
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER IDN 		0-74360-410-0 06 1 0804-
225 16.069 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR IDN 		8-98036-520-3 01 1 0804-
225 16.069 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR IDN 		8-98036-521-3 01 1 0804-
299 16.069 COVER; FRT PANEL SIDE
IDN 		8-98028-144-1 01 1 0804-
299 16.069 COVER; FRT PANEL SIDE
IDN 		8-98028-145-1 01 1 0804-
307 16.125 GROMMET; FRT PANEL
(A) IDN 		8-98021-968-0 01 1 0804-
307 16.125 GROMMET; FRT PANEL
(A) IDN 		8-98021-969-0 01 1 0804-
307 16.125 GROMMET; FRT PANEL
(B) IDN 		8-98023-229-1 01 1 0804-
307 16.125 GROMMET; FRT PANEL
(C) OD=20 IDN 		8-98034-363-1 04 1 0804-
307 16.125 GROMMET; FRT PANEL
(D) IDN 		8-97410-738-0 02 1 0804-
307 16.125 GROMMET; FRT PANEL
(E) IDN 		8-98021-300-1 04 1 0804-
307 16.125 GROMMET; FRT PANEL
(F) IDN 		8-98028-743-0 02 1 0804-
532 08.143 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER IDN 		0-52010-616-0 04 1 0804-
533 08.143 SEAL; FRT PANEL
(A) IDN 		8-98021-965-2 01 1 0804-
533 08.143 SEAL; FRT PANEL
(B) IDN 		8-98021-964-4 01 1 0804-1506
533 08.143 SEAL; FRT PANEL
(B) IDN 		8-98309-764-0 01 1 1507-
533 08.143 SEAL; FRT PANEL
(C) IDN 		8-98043-509-0 01 1 0804-
533 08.143 SEAL; FRT PANEL
(C) IDN 		8-98043-510-0 01 1 0804-
533 08.143 SEAL; FRT PANEL
(D) IDN 		8-98043-511-1 02 1 0804-
533 08.143 SEAL; FRT PANEL
(E) IDN 		8-98064-939-0 02 1 0804-
534 16.550 FASTENER
20X30 IDN 		8-98059-208-1 02 1 0804-
571 16.570 CLIP; SEAL
16.165 NATURAL IDN 		8-98027-457-0 20 1 0804-

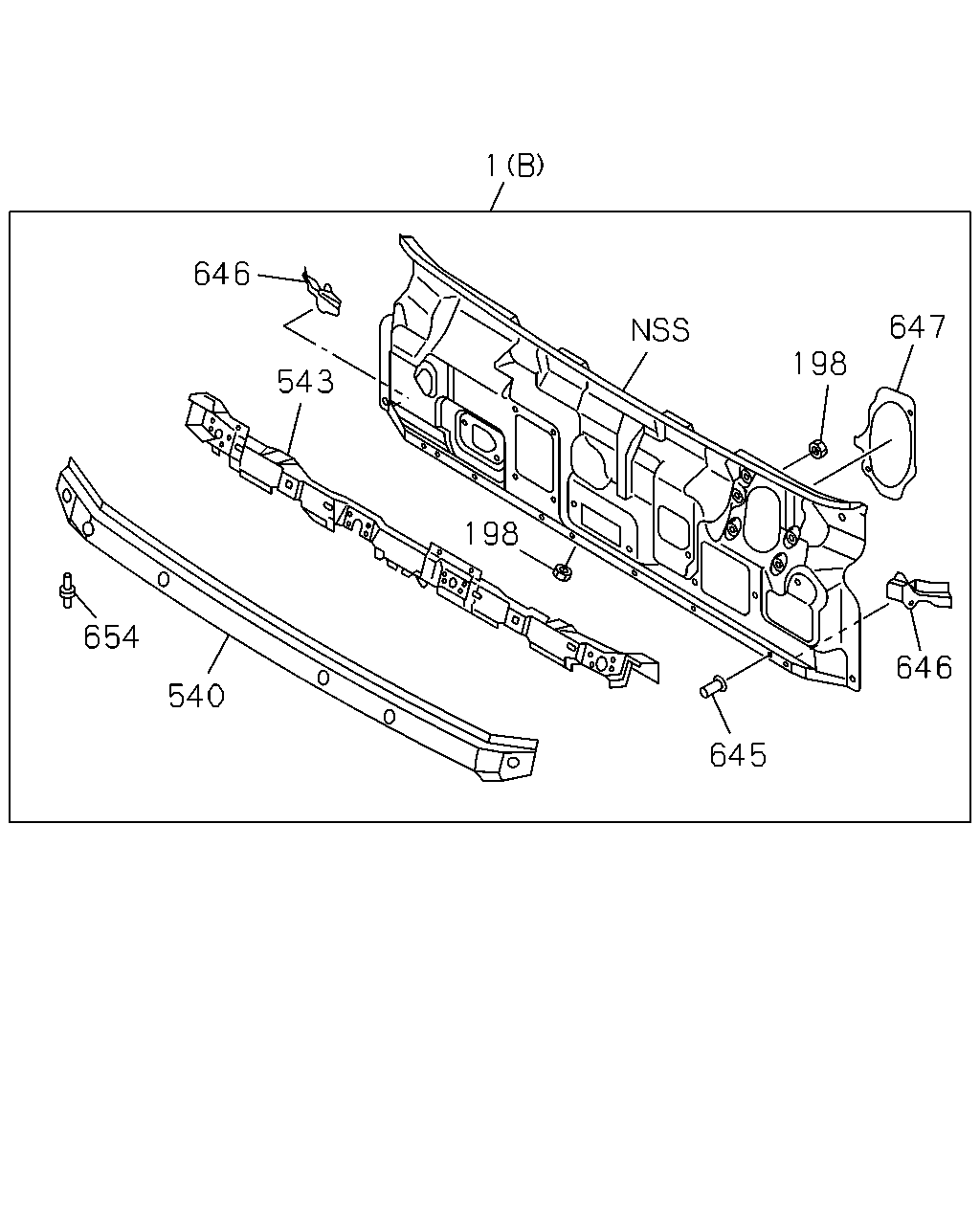

çizim 150026
1 646 647 198 543 198 654 646 540 645
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT
(A) 		8-98021-859-5 01 1 0804-0807
1 16.550 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 0808-
1 16.550 PANEL ASM; FRT
(B) 		8-97585-324-9 01 1 0804-1102
1 16.550 PANEL ASM; FRT
(B) IDN 		8-98181-027-0 01 1 1103-
198 16.125 NUT; PANEL
16.545 M6 		9-09114-086-0 04 1 0804-
540 16.588 PANEL; FRONT,OUTER
IDN 		8-97585-325-3 01 1 0804-
543 16.570 CLOSING; FRT MTG RAIL
IDN 		8-97585-328-5 01 1 0804-
645 16.588 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 0804-
646 08.155 REINFORCEMENT; DASH
IDN 		8-98023-098-1 01 1 0804-
646 08.155 REINFORCEMENT; DASH
IDN 		8-98023-099-1 01 1 0804-
647 08.155 REINFORCEMENT; WIPER MOTOR
IDN 		8-98006-327-0 01 1 0804-
654 16.125 PIN; FRT PANEL
IDN 		8-98021-967-2 02 1 0804-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
