◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51403 - NPS INDONESIA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶

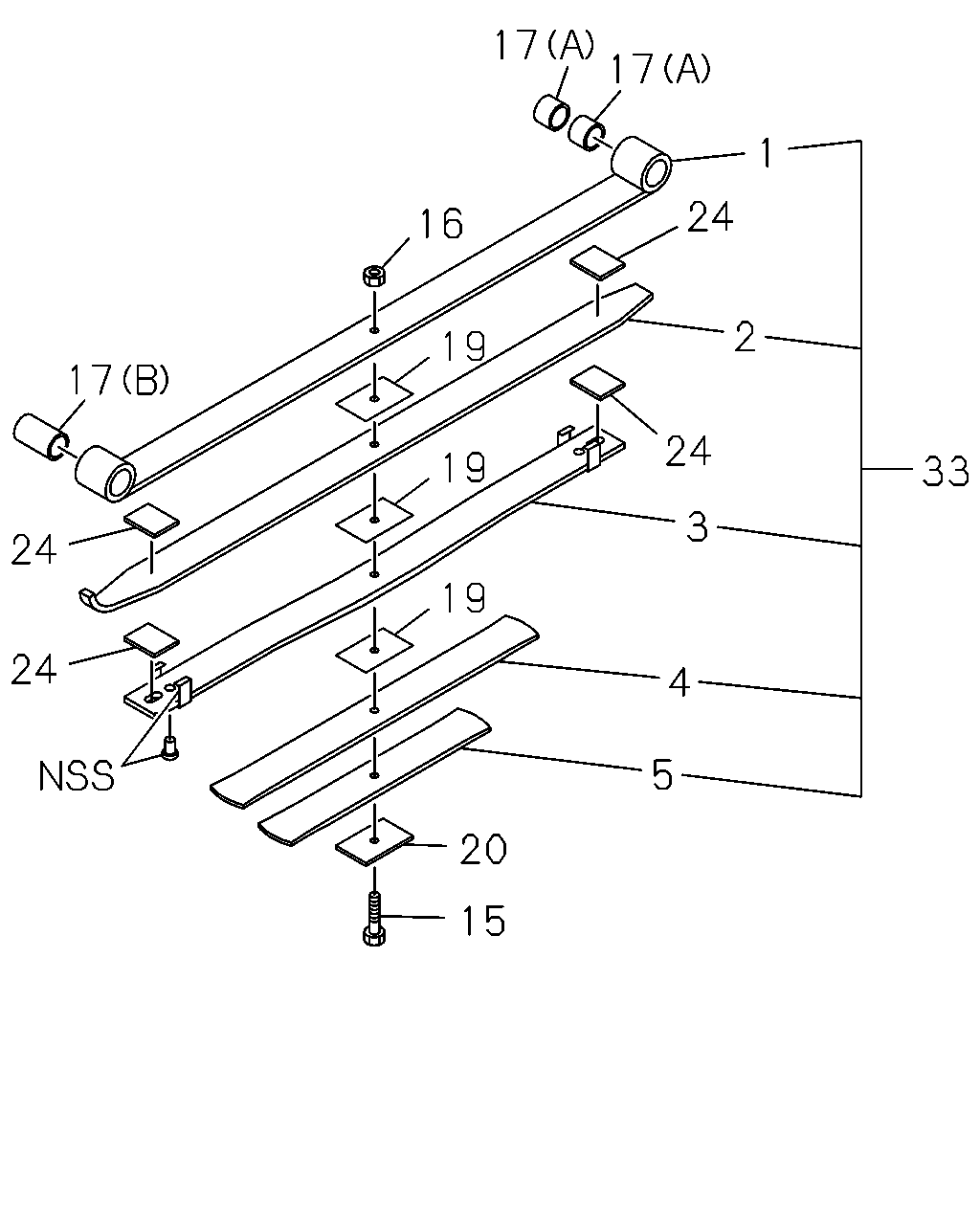

4-55 — FRONT LEAF SPRING (#54104) — 19 parça
çizim 149961
17 17 1 24 16 2 19 17 24 19 33 3 24 19 24 4 5 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98090-401-0, 98090401 		8-98094-418-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98090-402-0, 98090402 		8-98094-420-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98090-401-0, 98090401 		8-98080-189-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98090-402-0, 98090402 		8-98080-195-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98090-401-0, 98090401 		8-98080-190-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98090-402-0, 98090402 		8-98080-196-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-98090-401-0, 98090401 		8-98080-191-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: B = 8-98090-402-0, 98090402 		8-98080-197-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: A = 8-98090-401-0, 98090401 		8-98080-193-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: B = 8-98090-402-0, 98090402 		8-98080-199-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=90 ASM PART: A = 8-98090-401-0, 98090401, B = 8-98090-402-0, 98090402 		8-98095-023-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
06.216, M18 ASM PART: A = 8-98090-401-0, 98090401, B = 8-98090-402-0, 98090402 		9-99110-518-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.524, (A) ASM PART: A = 8-98090-401-0, 98090401, B = 8-98090-402-0, 98090402 		8-94118-588-1 02 1 -
17 07.413 BUSHING; LEAF SPR,FRT
(B), OD=42 L=81 ASM PART: A = 8-98090-401-0, 98090401, B = 8-98090-402-0, 98090402 		8-97081-586-0 01 1 -
19 07.425 SPACER; LEAF SPRING,FRT
ASM PART: A = 8-98090-401-0, 98090401, B = 8-98090-402-0, 98090402 		8-97084-847-0 03 1 -
20 07.425 SEAT; LEAF SPR,FRT
ASM PART: A = 8-98090-401-0, 98090401, B = 8-98090-402-0, 98090402 		8-98095-024-0 01 1 -
24 07.436 LINER; LEAF SPR,FWD FRT
IDN ASM PART: A = 8-98090-401-0, 98090401, B = 8-98090-402-0, 98090402 		8-97084-848-0 04 1 -
33 07.415 SPRING ASM; LEAF,FRT MAIN
ASM PART: A = 8-98090-401-0, 98090401 		8-98094-417-0 01 1 -
33 07.415 SPRING ASM; LEAF,FRT MAIN
ASM PART: B = 8-98090-402-0, 98090402 		8-98094-419-0 01 1 -
