◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 5 - Frame, Cab Mounting ▶ 5-16 - OIL PUMP; CAB TILT ▶
5-16 — OIL PUMP; CAB TILT (#5410) — 129 parça

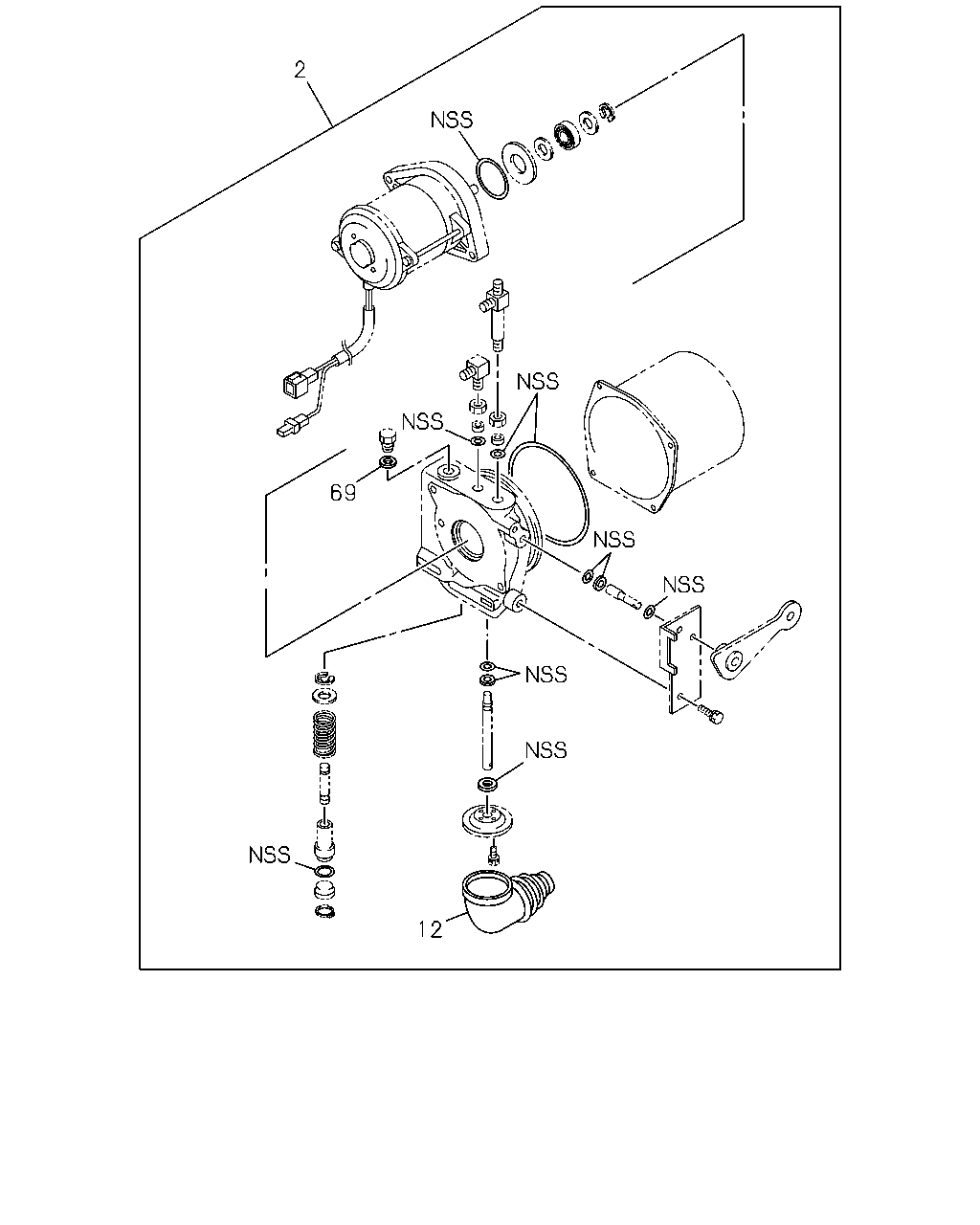

çizim 4545
2 69 12
BalonParca AdiParca NoAdetTipApplied Date A B C
2 REPAIR KIT; OIL PUMP 1-85579-053-0 01 1 9603-9901 ● ● ●
2 REPAIR KIT; OIL PUMP 1-85579-058-0 01 1 9902- ● ● ●
12 BOOT; OIL PUMP 1-53458-560-0 01 1 9603- ● ● ●
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 9603- ● ● ●

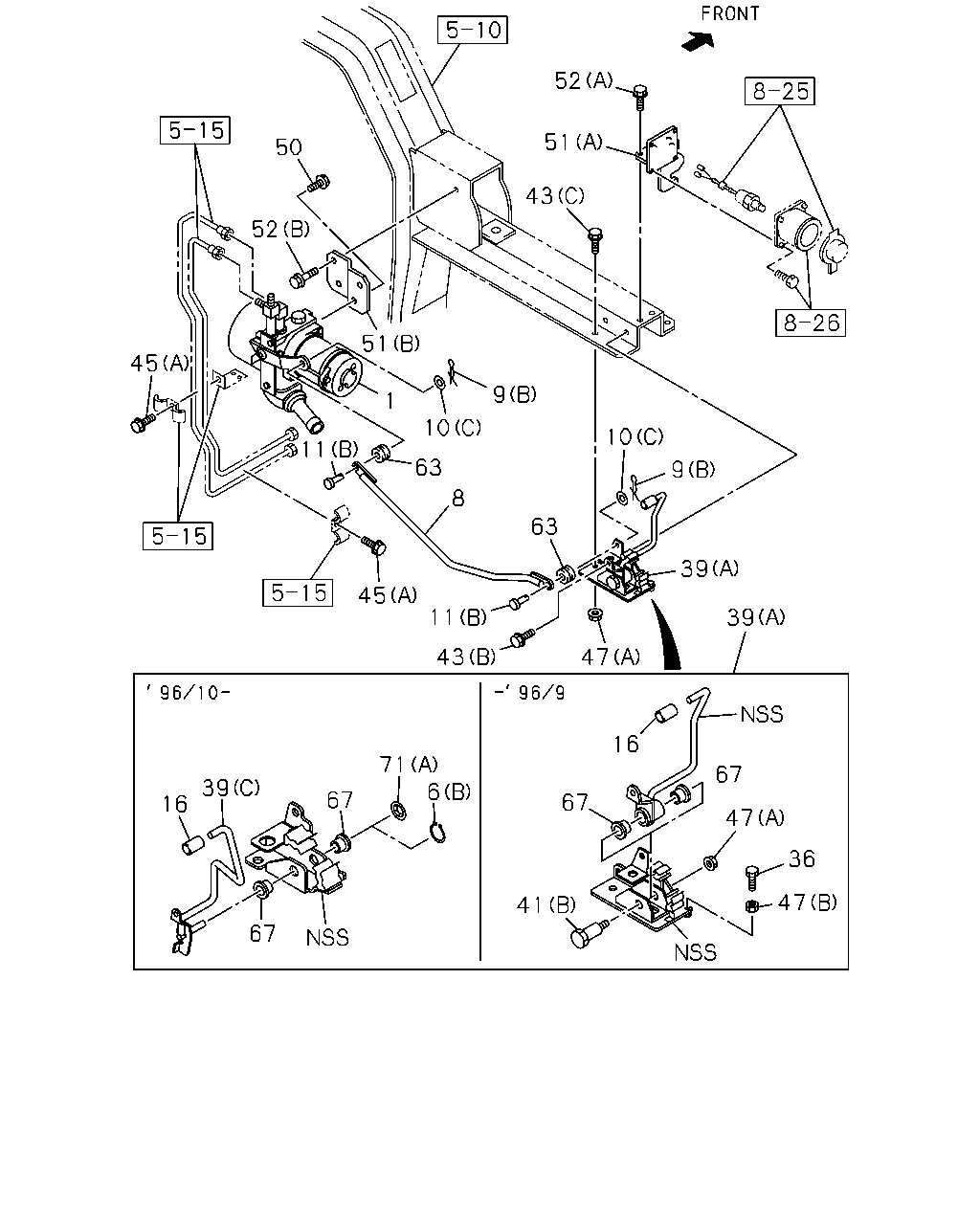

çizim 6069
52 51 50 43 52 51 45 9 1 10 11 10 63 9 8 63 3 45 39 11 43 47 16 71 6 67 39 67 67 16 47 36 47 41 67
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP; OIL,CAB TILT 1-53458-661-1 01 1 9603-9902 ● ● ●
1 PUMP; OIL,CAB TILT 1-53458-921-0 01 1 9903-9910 ● ● ●
1 PUMP; OIL,CAB TILT 1-53458-965-0 01 1 9911- ● ● ●
3 PISTON; MANUAL 1-53458-414-0 01 1 9603-9901 ● ● ●
3 PISTON; MANUAL 1-53458-842-0 01 1 9902- ● ● ●
6 RING; SNAP
(A) 		1-53458-411-0 01 1 9603- ● ● ●
6 RING; SNAP
(B) ID=8 		9-09185-408-0 01 1 9610-9803 ● ● ●
8 LINK; OIL PUMP 1-53458-664-0 01 1 9603-9903 ● ● ●
8 LINK; OIL PUMP 1-53458-929-0 01 1 9904- ● ● ●
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 9603- ● ● ●
9 PIN; OIL PUMP
(A) 		1-53458-060-0 02 1 9603-9901 ● ● ●
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 9902- ● ● ●
9 PIN; OIL PUMP
(A) 		1-53458-844-0 01 1 9902- ● ● ●
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 9603- ● ● ●
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		9-09160-708-0 02 1 9603- ● ● ●
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 02 1 9603-9901 ● ● ●
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 9902- ● ● ●
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		9-08223-817-0 02 1 9603- ● ● ●
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 02 1 9603-9901 ● ● ●
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 9902- ● ● ●
16 CAP
ID=9.0 		8-94207-303-0 01 1 9603- ● ● ●
36 BOLT; STOPPER
M8X25 		0-20800-825-0 01 1 9603-9609 ● ● ●
39 LEVER; OIL PUMP
(A) 		1-53458-662-0 01 1 9603-9609 ● ● ●
39 LEVER; OIL PUMP
(A) 		1-53458-779-1 01 1 9610- ● ● ●
39 LEVER; OIL PUMP
(B) 		1-53458-723-0 01 1 9603- ● ● ●
39 LEVER; OIL PUMP
(C) 		1-53458-778-0 01 1 9610-9803 ● ● ●
39 LEVER; OIL PUMP
(C) 		1-53458-872-0 01 1 9804- ● ● ●
41 PIN; SPR,LEVER
(B) 		1-33619-128-1 01 1 9603-9609 ● ● ●
41 PIN; SPR,LEVER
(A) 		1-53458-019-0 01 1 9603- ● ● ●
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ● ●
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9607- ● ● ●
43 BOLT; LEVER
(C) M10X20 FLANGE 		0-28081-020-0 01 1 9603-9606 ● ● ●
43 BOLT; LEVER
(C) M10X20 FLANGE 		0-28681-020-0 01 1 9607-9802 ● ● ●
43 BOLT; LEVER
(C) M10X25 FLANGE 		0-28681-025-0 01 1 9803- ● ● ●
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 04 1 9603-9901 ● ● ●
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 9902- ● ● ●
45 BOLT; COVER
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9603-9606 ● ● ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 9607- ● ● ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ● ●
45 BOLT; COVER
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9607- ● ● ●
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 9603- ● ● ●
45 BOLT; COVER
CAB UP +110MM<TGG> (A) M8X16 FLANGE 		0-28080-816-0 01 1 9902-9904 ● ● ●
47 NUT; LEVER
(A) M10 FLANGE 		0-91150-110-0 01 1 9603-9606 ● ● ●
47 NUT; LEVER
(A) M10 FLANGE 		0-91150-110-0 01 1 9603-9606 ● ● ●
47 NUT; LEVER
(A) M10 FLANGE 		0-91150-110-0 01 1 9607-9609 ● ● ●
47 NUT; LEVER
(B) M8 		9-09111-408-0 01 1 9603-9609 ● ● ●
47 NUT; LEVER
(A) M10 FLANGE 		0-91150-210-0 01 1 9607- ● ● ●
50 BOLT; OIL PUMP
M10X16 FLANGE 		0-28081-016-0 02 1 9603- ● ● ●
51 BRACKET; OIL PUMP
(A) 		1-53458-665-0 01 1 9603-9609 ● ● ●
51 BRACKET; OIL PUMP
(A) 		1-53458-781-0 01 1 9610- ● ● ●
51 BRACKET; OIL PUMP
(B) 		1-53458-666-0 01 1 9603- ● ● ●
52 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ● ● ●
52 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9607- ● ● ●
52 BOLT; BRKT
(B) M10X20 FLANGE 		0-28081-020-0 02 1 9603-9606 ● ● ●
52 BOLT; BRKT
(B) M10X25 FLANGE 		0-28681-025-0 02 1 9607- ● ● ●
63 GROMMET
ID=10 OD=23 T=8 ID=10 OD=23 T=8 		1-09983-010-0 02 1 9603- ● ● ●
67 BUSHING
ID=16 OD=18 L=12.5 		1-09330-048-0 02 1 9603-9609 ● ● ●
67 BUSHING
T=6 OD=17.5 		9-33659-249-0 02 1 9610- ● ● ●
71 NUT; PUSH
(A) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9804- ● ● ●
71 NUT; PUSH
(B) 		1-53458-845-0 01 1 9902- ● ● ●

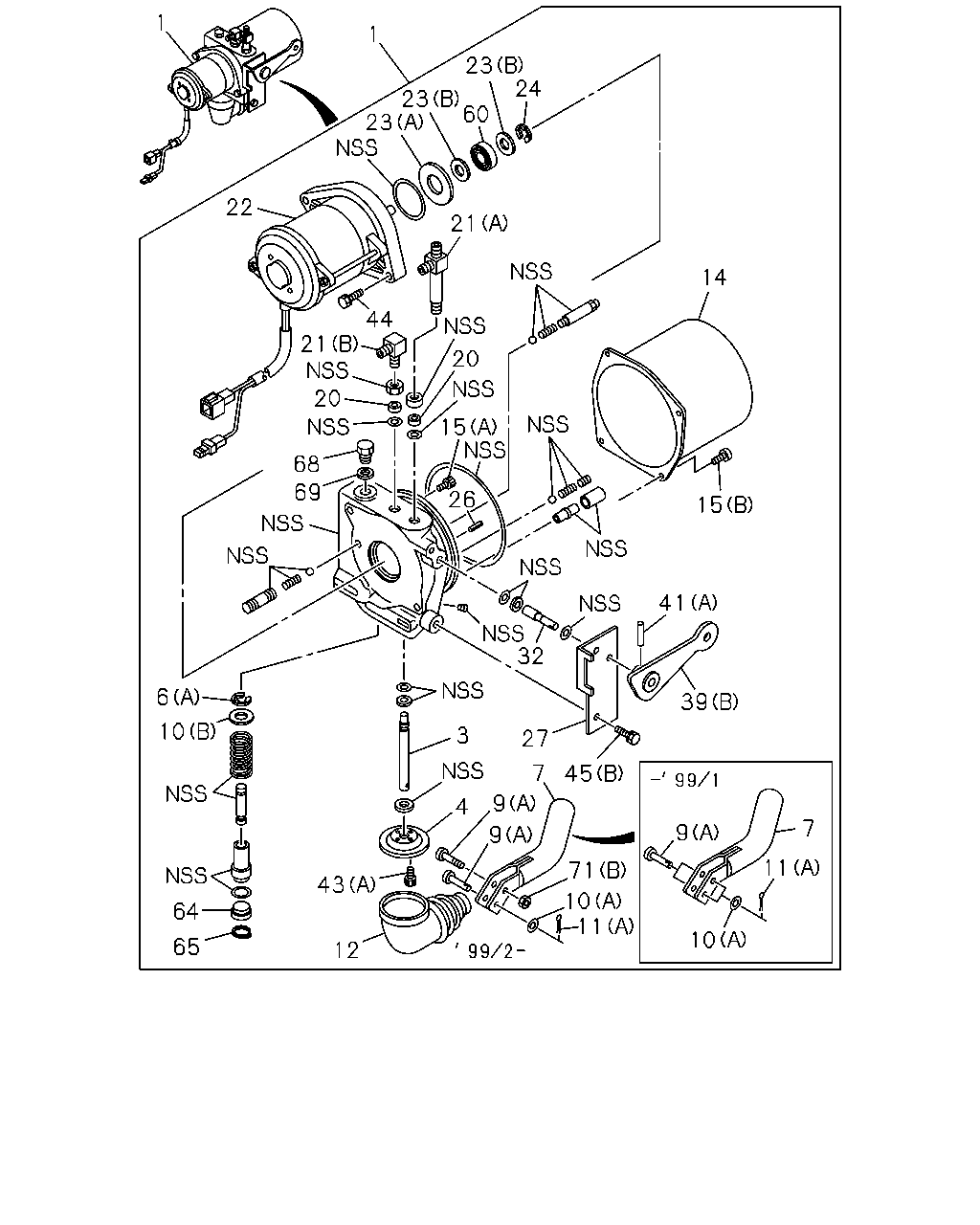

çizim 7356
1 1 23 24 23 60 23 22 21 14 44 21 20 20 15 68 69 26 15 41 32 6 39 10 3 27 7 45 9 4 7 9 9 11 71 43 10 11 64 10 65 12
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP; OIL,CAB TILT 1-53458-661-1 01 1 9603-9902 ● ● ●
1 PUMP; OIL,CAB TILT 1-53458-921-0 01 1 9903-9910 ● ● ●
1 PUMP; OIL,CAB TILT 1-53458-965-0 01 1 9911- ● ● ●
3 PISTON; MANUAL 1-53458-414-0 01 1 9603-9901 ● ● ●
3 PISTON; MANUAL 1-53458-842-0 01 1 9902- ● ● ●
4 BRACKET; OIL PUMP 1-53458-566-0 01 1 9603- ● ● ●
6 RING; SNAP
(A) 		1-53458-411-0 01 1 9603- ● ● ●
6 RING; SNAP
(B) ID=8 		9-09185-408-0 01 1 9610-9803 ● ● ●
7 SOCKET; OIL PUMP 1-53458-724-1 01 1 9603- ● ● ●
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 9603- ● ● ●
9 PIN; OIL PUMP
(A) 		1-53458-060-0 02 1 9603-9901 ● ● ●
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 9902- ● ● ●
9 PIN; OIL PUMP
(A) 		1-53458-844-0 01 1 9902- ● ● ●
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 9603- ● ● ●
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		9-09160-708-0 02 1 9603- ● ● ●
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 02 1 9603-9901 ● ● ●
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 9902- ● ● ●
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		9-08223-817-0 02 1 9603- ● ● ●
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 02 1 9603-9901 ● ● ●
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 9902- ● ● ●
12 BOOT; OIL PUMP 1-53458-560-0 01 1 9603- ● ● ●
14 RESERVOIR; OIL PUMP 1-53458-432-0 01 1 9603- ● ● ●
15 BOLT; RESERVOIR
(B) M5X8 		1-53458-005-0 04 1 9603- ● ● ●
15 BOLT; RESERVOIR
(A) M5X8 		1-53458-433-0 02 1 9603- ● ● ●
20 FILTER; OIL PUMP 1-53458-048-0 02 1 9603- ● ● ●
21 CONNECTOR; OIL PUMP
(A) 		1-53458-562-0 01 1 9603-9910 ● ● ●
21 CONNECTOR; OIL PUMP
(A) 		1-53457-026-0 01 1 9911- ● ● ●
21 CONNECTOR; OIL PUMP
(B) M12 		1-53458-941-0 02 1 9903-9910 ● ● ●
21 CONNECTOR; OIL PUMP
(B) M12 		1-53458-941-0 01 1 9911- ● ● ●
21 CONNECTOR; OIL PUMP
(B) 		1-53458-563-0 01 1 9603-9902 ● ● ●
22 MOTOR; OIL PUMP 1-53458-731-0 01 1 9603- ● ● ●
23 WASHER; MOTOR
(A) 		1-53458-018-0 01 1 9603- ● ● ●
23 WASHER; MOTOR
(B) 		1-53458-045-0 02 1 9603- ● ● ●
24 RING; SNAP,MOTOR 1-53458-044-0 01 1 9603- ● ● ●
26 PIN; SPR,OIL PUMP 1-53458-038-0 01 1 9603- ● ● ●
27 COVER; OIL PUMP 1-53458-725-0 01 1 9603- ● ● ●
32 VALVE; OIL PUMP 1-53458-569-0 01 1 9603- ● ● ●
39 LEVER; OIL PUMP
(A) 		1-53458-662-0 01 1 9603-9609 ● ● ●
39 LEVER; OIL PUMP
(A) 		1-53458-779-1 01 1 9610- ● ● ●
39 LEVER; OIL PUMP
(B) 		1-53458-723-0 01 1 9603- ● ● ●
39 LEVER; OIL PUMP
(C) 		1-53458-778-0 01 1 9610-9803 ● ● ●
39 LEVER; OIL PUMP
(C) 		1-53458-872-0 01 1 9804- ● ● ●
41 PIN; SPR,LEVER
(B) 		1-33619-128-1 01 1 9603-9609 ● ● ●
41 PIN; SPR,LEVER
(A) 		1-53458-019-0 01 1 9603- ● ● ●
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ● ●
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9607- ● ● ●
43 BOLT; LEVER
(C) M10X20 FLANGE 		0-28081-020-0 01 1 9603-9606 ● ● ●
43 BOLT; LEVER
(C) M10X20 FLANGE 		0-28681-020-0 01 1 9607-9802 ● ● ●
43 BOLT; LEVER
(C) M10X25 FLANGE 		0-28681-025-0 01 1 9803- ● ● ●
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 04 1 9603-9901 ● ● ●
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 9902- ● ● ●
44 BOLT; MOTOR
M6X20 		1-53458-007-0 02 1 9603- ● ● ●
45 BOLT; COVER
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9603-9606 ● ● ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 9607- ● ● ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ● ●
45 BOLT; COVER
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9607- ● ● ●
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 9603- ● ● ●
45 BOLT; COVER
CAB UP +110MM<TGG> (A) M8X16 FLANGE 		0-28080-816-0 01 1 9902-9904 ● ● ●
60 BEARING; OIL PUMP 1-53458-423-0 01 1 9603- ● ● ●
64 SLEEVE; OIL PUMP 1-53458-572-0 01 1 9603- ● ● ●
65 RING; SNAP,SLEEVE 1-53458-570-0 01 1 9603- ● ● ●
68 PLUG; FILLER 1-53458-428-0 01 1 9603- ● ● ●
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 9603- ● ● ●
71 NUT; PUSH
(A) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9804- ● ● ●
71 NUT; PUSH
(B) 		1-53458-845-0 01 1 9902- ● ● ●
