Isuzu WW
▶
TRUCKS
▶
NPR
▶
51295 - NPR/NQR BUS CHA(RHD)
▶
0 - Engine, Emission, Engine Electrical
▶
0-40 - FUEL INJECTION SYSTEM
▶
0-40 — FUEL INJECTION SYSTEM
(#54096) — 184 parça
Tümü
A - 4HG1 ENG
B - 4HK1-TCN ENG
◀

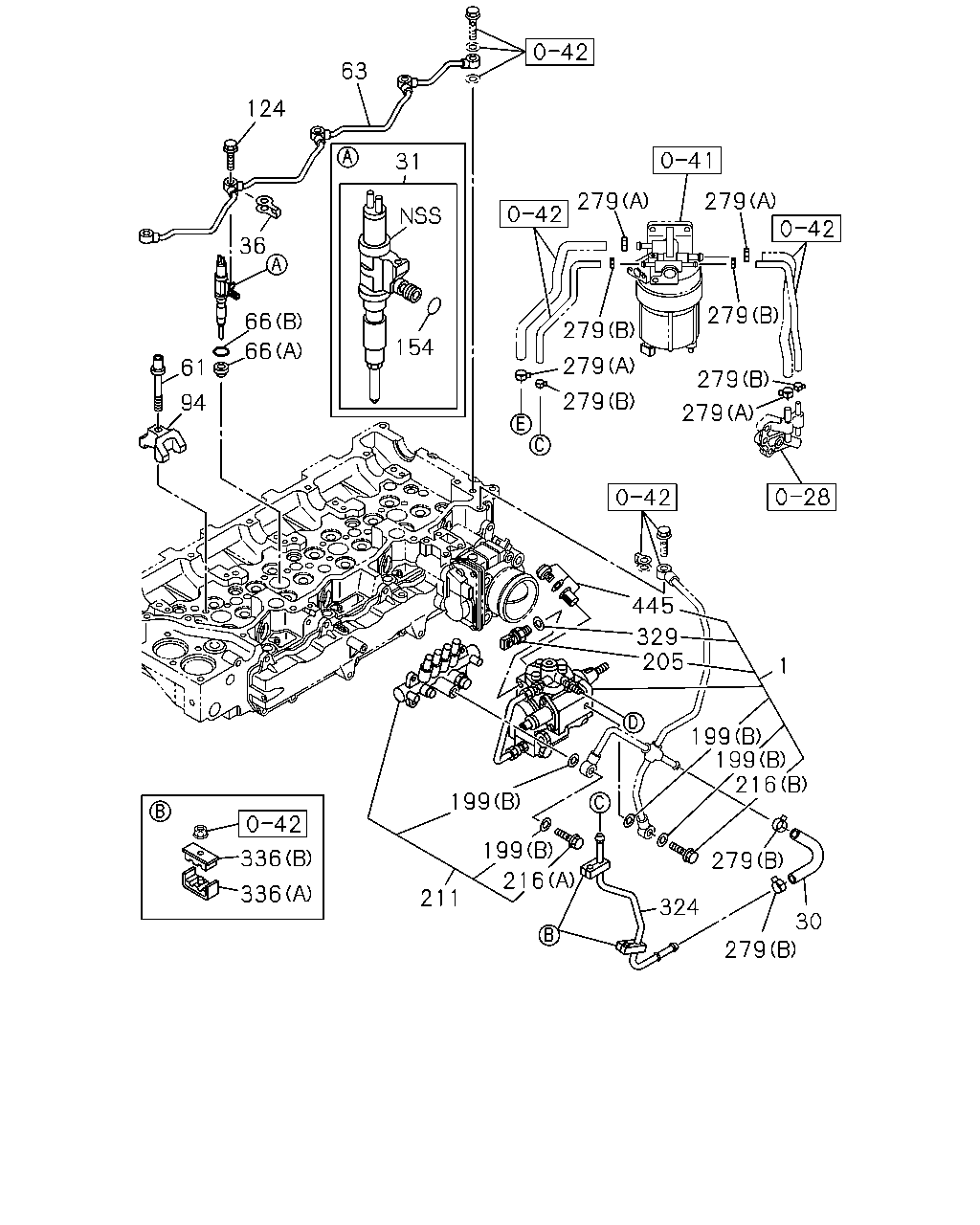

[040A] 4HK1(NO.1) (34 parça)

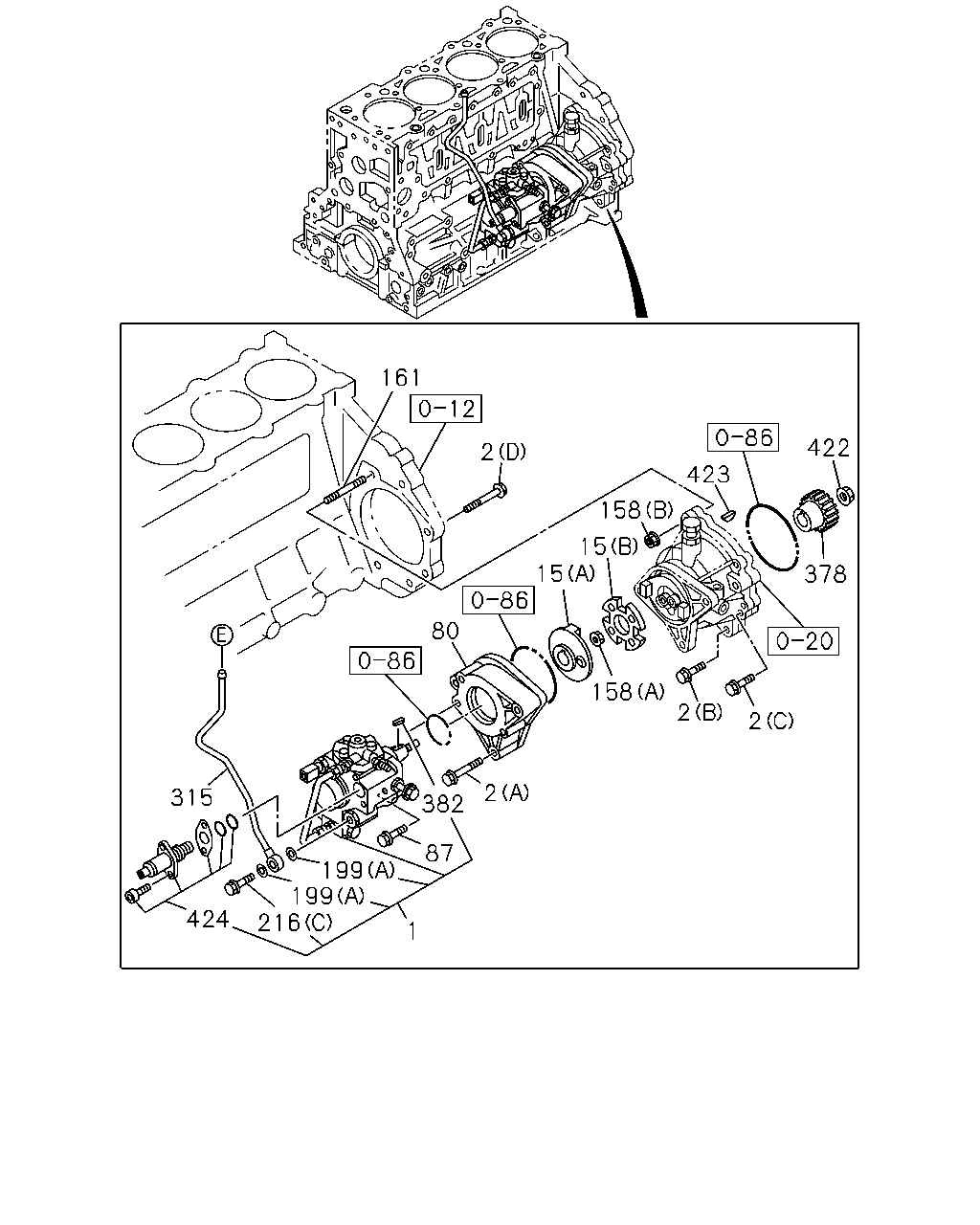

[040A] 4HK1(NO.3) (30 parça)

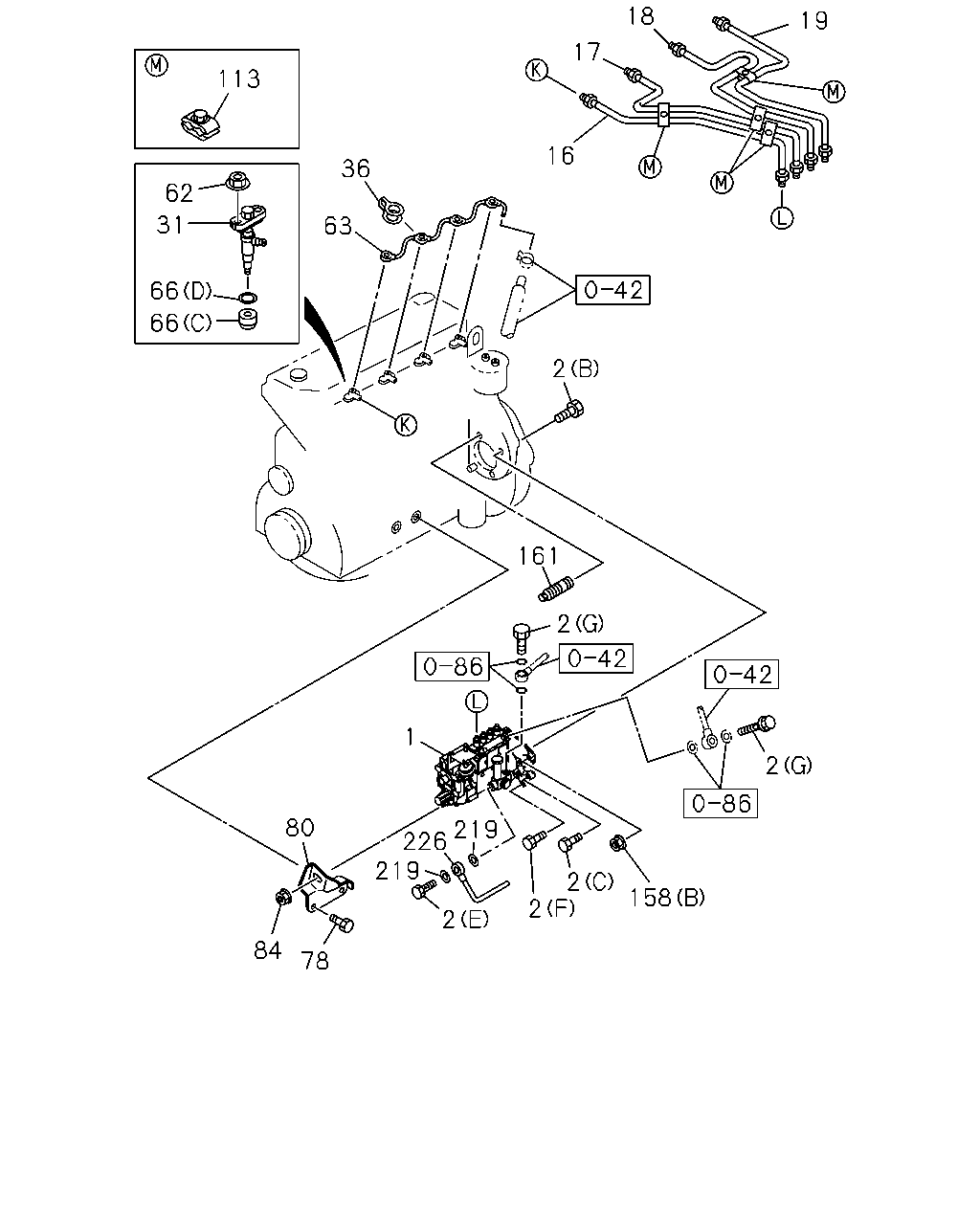

[040A] 4HG1(NO.2) (20 parça)
[040A] 4HG1(NO.1) (53 parça)

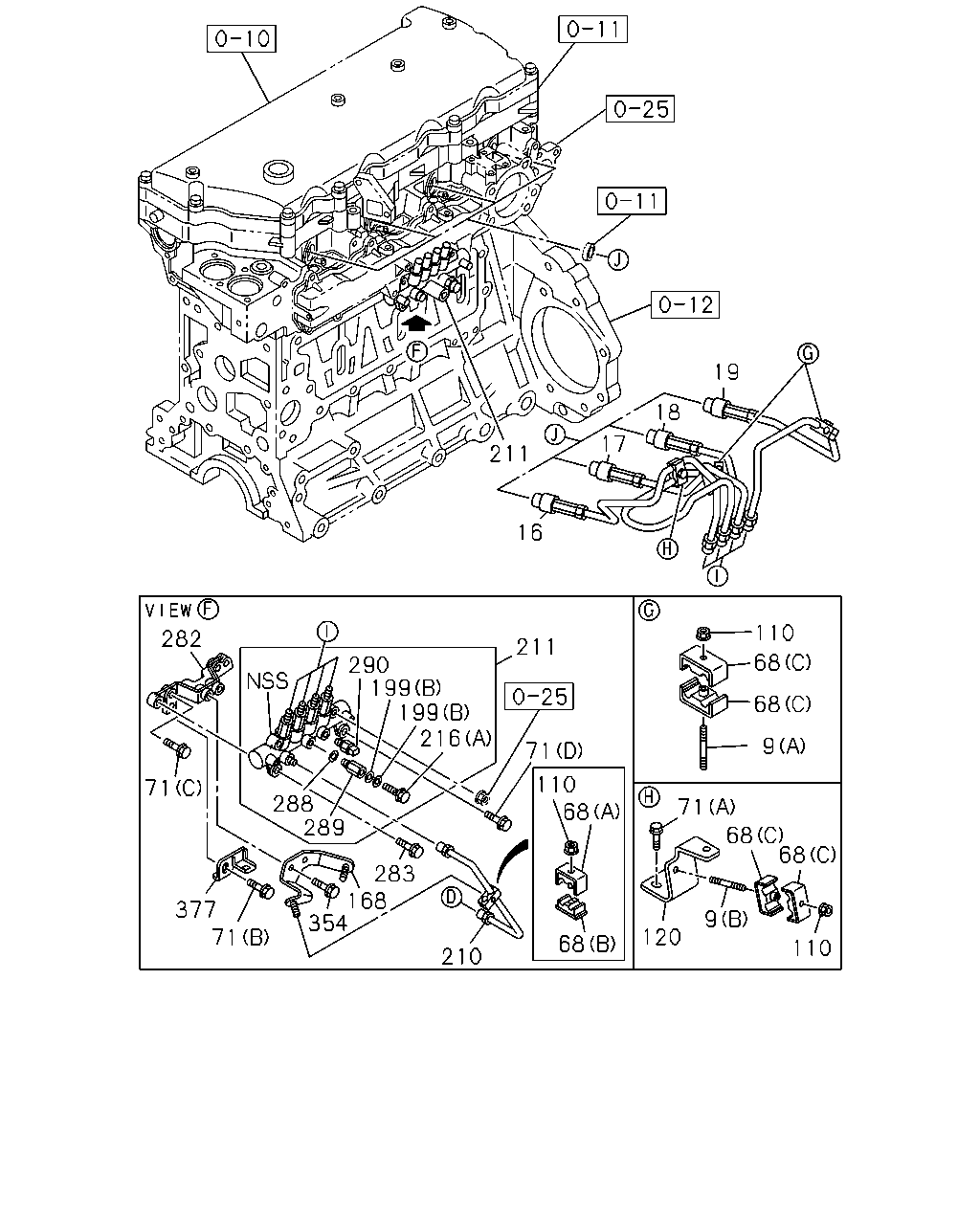

[040A] 4HK1(NO.2) (47 parça)
▶
279
279
279
279
279
279
279
279
279
279
63
31
154
66
66
36
124
61
94
336
336
211
199
199
216
324
216
199
1
199
205
445
329
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
8-97212-101-0
01
1
1012-
●
1
03.306 PUMP ASM; INJ
EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
8-97212-102-0
01
1
1012-
●
1
03.306 PUMP ASM; INJ
8-97386-557-5
01
1
1012-
●
30
03.163 HOSE; RUBBER,FUEL LEAK
8-98036-320-2
01
1
1012-
●
31
03.332 NOZZLE ASM; INJ
8-97119-811-0
04
1
1012-
●
31
03.332 NOZZLE ASM; INJ
8-97609-788-6
04
1
1012-
●
36
03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6
8-94395-214-0
04
1
1012-1312
●
36
03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6
8-98246-930-0
04
1
1401-
●
36
03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0
8-98065-992-0
04
1
1012-
●
61
03.332 BOLT; CLAMP NOZZLE HOLDER
M8X54
8-98008-895-0
04
1
1012-
●
63
03.163 PIPE; FUEL,NOZZLE LEAK OFF
8-97118-895-0
01
1
1012-
●
63
03.163 PIPE; FUEL,NOZZLE LEAK OFF
8-97306-081-0
01
1
1012-
●
66
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D)
8-94326-439-0
04
1
1012-
●
66
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=7.2 OD=15.0 T=6.6
8-97171-331-0
04
1
1012-
●
66
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3
8-94173-412-0
04
1
1012-
●
66
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1
8-98079-248-0
04
1
1012-
●
94
03.330 BRACKET; INJ NOZZLE
8-98028-999-1
04
1
1012-
●
124
03.162 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT
1-09675-037-1
04
1
1012-
●
154
03.332 GASKET; CONNECTOR
06.609 ID=11.0
9-09561-111-0
04
1
1012-1106
●
154
03.332 GASKET; CONNECTOR
ID=11.0
0-95690-111-0
04
1
1107-
●
199
03.332 GASKET; EYE BOLT
(A)
1-15619-507-0
02
1
1012-
●
199
03.332 GASKET; EYE BOLT
(B)
8-97602-218-0
04
1
1012-
●
205
03.320 SENSOR; FUEL TEMP
8-98023-581-0
01
1
1012-
●
211
03.331 RAIL ASM; COMMON
8-98011-888-2
01
1
1012-
●
216
03.162 BOLT; EYE
(C)
5-15759-003-0
01
1
1012-
●
216
03.162 BOLT; EYE
(B)
8-97351-388-0
01
1
1012-
●
216
03.162 BOLT; EYE
(A)
8-98043-033-0
01
1
1012-
●
279
03.162 CLIP; FUEL HOSE
01.097 (A) ID=16
8-97329-628-0
04
1
1012-
●
279
03.162 CLIP; FUEL HOSE
01.153 (B) ID=11.5
8-97375-638-0
06
1
1012-
●
324
03.330 PIPE; FUEL RETURN
8-98036-173-0
01
1
1012-
●
329
03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7
9-09566-110-0
01
1
1012-1201
●
336
03.163 CLIP; FUEL PIPE
01.531 (A) ID=8 & 9 L=25
8-97603-522-0
02
1
1012-
●
336
03.163 CLIP; FUEL PIPE
01.531 (B) ID=8 & 9 L=25
8-97603-523-0
02
1
1012-
●
445
03.330 SCREW; FILTER,INLET
8-98204-986-0
01
1
1012-
●
161
422
2
423
158
15
15
378
80
158
2
2
2
315
382
87
199
199
216
424
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
8-97212-101-0
01
1
1012-
●
1
03.306 PUMP ASM; INJ
EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
8-97212-102-0
01
1
1012-
●
1
03.306 PUMP ASM; INJ
8-97386-557-5
01
1
1012-
●
2
03.330 BOLT; INJ PUMP
(F) M12X90 FLANGE
0-28151-290-0
01
1
1012-
●
2
03.330 BOLT; INJ PUMP
03.162 (G) M14X27 FLANGE
1-09675-086-0
02
1
1012-
●
2
03.330 BOLT; INJ PUMP
03.162 (E) M14X30
8-97203-957-0
01
1
1012-
●
2
03.330 BOLT; INJ PUMP
00.685 (A) M10X60 FLANGE
0-28051-060-0
03
1
1012-
●
2
03.330 BOLT; INJ PUMP
02.277 (B) M10X70 FLANGE
0-28151-070-0
01
1
1012-
●
●
2
03.330 BOLT; INJ PUMP
00.206 (C) M12X70 FLANGE
0-28151-270-0
01
1
1012-
●
●
2
03.330 BOLT; INJ PUMP
(D) M12X95 FLANGE
8-94396-485-1
01
1
1012-
●
15
03.340 COUPLING ASM; INJ PUMP
(A)
8-97306-054-0
01
1
1012-
●
15
03.340 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT.
8-97306-059-1
01
1
1012-
●
80
03.306 BRACKET; PUMP
8-97136-677-0
01
1
1012-
●
80
03.306 BRACKET; PUMP
8-98061-699-0
01
1
1012-
●
87
03.330 BOLT; PUMP
03.403 M8X30 FLANGE
0-28650-830-0
03
1
1012-
●
158
03.330 NUT; INJ PUMP
03.162 (B) M10 FLANGE
0-91180-110-0
02
1
1012-
●
●
158
03.330 NUT; INJ PUMP
07.529 (A) M14 FLANGE
0-91180-114-0
01
1
1012-
●
161
03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5
8-97066-386-1
02
1
1012-
●
●
199
03.332 GASKET; EYE BOLT
(A)
1-15619-507-0
02
1
1012-
●
199
03.332 GASKET; EYE BOLT
(B)
8-97602-218-0
04
1
1012-
●
216
03.162 BOLT; EYE
(C)
5-15759-003-0
01
1
1012-
●
216
03.162 BOLT; EYE
(B)
8-97351-388-0
01
1
1012-
●
216
03.162 BOLT; EYE
(A)
8-98043-033-0
01
1
1012-
●
315
03.163 PIPE; FUEL,SUCTION
8-98126-333-0
01
1
1012-
●
378
03.330 GEAR; PUMP
Z=35
8-98017-915-0
01
1
1012-
●
382
03.162 KEY; DRIVE SHAFT
8-97375-384-0
01
1
1012-1201
●
382
03.162 KEY; DRIVE SHAFT
8-98161-995-0
01
1
1202-
●
422
03.330 NUT; GEAR
06.172 M18
8-97141-154-0
01
1
1012-
●
423
03.162 KEY; GEAR
08.960
9-08055-519-0
01
1
1012-
●
424
03.332 OVERHAUL KIT; SUPPLY PUMP
8-98145-501-1
01
1
1012-
●
31
32
34
58
140
44
43
146
46
33
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
31
03.332 NOZZLE ASM; INJ
8-97119-811-0
04
1
1012-
●
31
03.332 NOZZLE ASM; INJ
8-97609-788-6
04
1
1012-
●
32
03.332 HOLDER ASM; NOZZLE
8-94311-966-2
04
1
1012-
●
33
03.332 NOZZLE; INJ
8-97119-809-0
04
1
1012-
●
34
03.330 BOLT; EYE,NOZZLE HOLDER
1-15339-009-0
04
1
1012-
●
35
03.330 NUT; NOZZLE RET,NOZZLE HOLDER
8-94174-184-0
04
1
1012-
●
43
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
8-94329-555-0
04
1
1012-
●
44
03.330 SPRING; NOZZLE,NOZZLE HOLDER
8-94174-141-0
04
1
1012-
●
46
03.330 PIN; NOZZLE SET,NOZZLE HOLDER
8-94174-139-0
08
1
1012-
●
58
03.332 FLANGE; INJ,NOZZLE HOLDER
8-97065-713-0
04
1
1012-
●
140
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.10
8-97027-432-0
AR
1
1012-
●
140
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.20
8-97027-433-0
AR
1
1012-
●
140
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.30
8-97027-434-0
AR
1
1012-
●
140
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.40
8-97027-435-0
AR
1
1012-
●
140
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.50
8-97027-436-0
AR
1
1012-
●
140
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.52
8-97027-437-0
AR
1
1012-
●
140
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.54
8-97027-438-0
AR
1
1012-
●
140
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.56
8-97027-439-0
AR
1
1012-
●
140
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.58
8-97027-440-0
AR
1
1012-
●
146
03.332 SPACER; NOZZLE
8-94344-439-0
04
1
1012-
●
18
19
17
113
16
36
62
31
63
66
66
2
161
2
1
2
219
226
219
80
2
2
158
2
84
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
8-97212-101-0
01
1
1012-
●
1
03.306 PUMP ASM; INJ
EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
8-97212-102-0
01
1
1012-
●
1
03.306 PUMP ASM; INJ
8-97386-557-5
01
1
1012-
●
2
03.330 BOLT; INJ PUMP
(F) M12X90 FLANGE
0-28151-290-0
01
1
1012-
●
2
03.330 BOLT; INJ PUMP
03.162 (G) M14X27 FLANGE
1-09675-086-0
02
1
1012-
●
2
03.330 BOLT; INJ PUMP
03.162 (E) M14X30
8-97203-957-0
01
1
1012-
●
2
03.330 BOLT; INJ PUMP
00.685 (A) M10X60 FLANGE
0-28051-060-0
03
1
1012-
●
2
03.330 BOLT; INJ PUMP
02.277 (B) M10X70 FLANGE
0-28151-070-0
01
1
1012-
●
●
2
03.330 BOLT; INJ PUMP
00.206 (C) M12X70 FLANGE
0-28151-270-0
01
1
1012-
●
●
2
03.330 BOLT; INJ PUMP
(D) M12X95 FLANGE
8-94396-485-1
01
1
1012-
●
16
03.330 PIPE; INJ NO.1
8-97123-374-0
01
1
1012-
●
16
03.330 PIPE; INJ NO.1
8-98039-934-0
01
1
1012-1102
●
16
03.330 PIPE; INJ NO.1
8-98185-344-0
01
1
1103-1404
●
16
03.330 PIPE; INJ NO.1
8-98271-202-0
01
1
1405-1501
●
16
03.330 PIPE; INJ NO.1
8-98298-606-0
01
1
1502-
●
17
03.330 PIPE; INJ NO.2
8-97123-375-0
01
1
1012-
●
17
03.330 PIPE; INJ NO.2
8-98039-935-0
01
1
1012-1102
●
17
03.330 PIPE; INJ NO.2
8-98185-345-0
01
1
1103-1404
●
17
03.330 PIPE; INJ NO.2
8-98271-203-0
01
1
1405-1501
●
17
03.330 PIPE; INJ NO.2
8-98298-607-0
01
1
1502-
●
18
03.330 PIPE; INJ NO.3
8-97123-376-0
01
1
1012-
●
18
03.330 PIPE; INJ NO.3
8-98039-936-0
01
1
1012-1102
●
18
03.330 PIPE; INJ NO.3
8-98185-346-0
01
1
1103-1404
●
18
03.330 PIPE; INJ NO.3
8-98271-204-0
01
1
1405-1501
●
18
03.330 PIPE; INJ NO.3
8-98298-608-0
01
1
1502-
●
19
03.330 PIPE; INJ NO.4
8-97123-377-1
01
1
1012-
●
19
03.330 PIPE; INJ NO.4
8-98039-937-0
01
1
1012-1102
●
19
03.330 PIPE; INJ NO.4
8-98185-347-0
01
1
1103-1404
●
19
03.330 PIPE; INJ NO.4
8-98271-205-0
01
1
1405-1501
●
19
03.330 PIPE; INJ NO.4
8-98298-609-0
01
1
1502-
●
31
03.332 NOZZLE ASM; INJ
8-97119-811-0
04
1
1012-
●
31
03.332 NOZZLE ASM; INJ
8-97609-788-6
04
1
1012-
●
36
03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6
8-94395-214-0
04
1
1012-1312
●
36
03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6
8-98246-930-0
04
1
1401-
●
36
03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0
8-98065-992-0
04
1
1012-
●
62
03.332 NUT; NOZZLE HOLDER
01.062 M8 FLANGE
0-91180-108-0
08
1
1012-
●
63
03.163 PIPE; FUEL,NOZZLE LEAK OFF
8-97118-895-0
01
1
1012-
●
63
03.163 PIPE; FUEL,NOZZLE LEAK OFF
8-97306-081-0
01
1
1012-
●
66
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D)
8-94326-439-0
04
1
1012-
●
66
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=7.2 OD=15.0 T=6.6
8-97171-331-0
04
1
1012-
●
66
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3
8-94173-412-0
04
1
1012-
●
66
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1
8-98079-248-0
04
1
1012-
●
78
03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE
0-28751-020-0
02
1
1012-
●
80
03.306 BRACKET; PUMP
8-97136-677-0
01
1
1012-
●
80
03.306 BRACKET; PUMP
8-98061-699-0
01
1
1012-
●
84
03.330 NUT; BRKT TO BRKT
04.085 M10 FLANGE
0-91180-210-0
01
1
1012-
●
113
03.162 CLIP; INJ PIPE
8-97213-050-0
04
1
1012-
●
158
03.330 NUT; INJ PUMP
03.162 (B) M10 FLANGE
0-91180-110-0
02
1
1012-
●
●
158
03.330 NUT; INJ PUMP
07.529 (A) M14 FLANGE
0-91180-114-0
01
1
1012-
●
161
03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5
8-97066-386-1
02
1
1012-
●
●
219
03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2
1-09630-085-0
02
1
1012-1312
●
219
03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
●
226
03.163 PIPE; FUEL
8-97203-567-0
01
1
1012-
●
19
211
18
17
16
110
282
211
68
290
199
199
216
68
9
71
110
68
71
288
289
71
68
68
283
168
354
377
71
9
120
68
110
210
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
9
03.340 STUD; CLIP
00.413 (A) M6X30 L=38
0-41010-630-0
02
1
1012-
●
9
03.340 STUD; CLIP
00.413 (B) M6X35 L=43
8-97203-278-0
01
1
1012-
●
16
03.330 PIPE; INJ NO.1
8-97123-374-0
01
1
1012-
●
16
03.330 PIPE; INJ NO.1
8-98039-934-0
01
1
1012-1102
●
16
03.330 PIPE; INJ NO.1
8-98185-344-0
01
1
1103-1404
●
16
03.330 PIPE; INJ NO.1
8-98271-202-0
01
1
1405-1501
●
16
03.330 PIPE; INJ NO.1
8-98298-606-0
01
1
1502-
●
17
03.330 PIPE; INJ NO.2
8-97123-375-0
01
1
1012-
●
17
03.330 PIPE; INJ NO.2
8-98039-935-0
01
1
1012-1102
●
17
03.330 PIPE; INJ NO.2
8-98185-345-0
01
1
1103-1404
●
17
03.330 PIPE; INJ NO.2
8-98271-203-0
01
1
1405-1501
●
17
03.330 PIPE; INJ NO.2
8-98298-607-0
01
1
1502-
●
18
03.330 PIPE; INJ NO.3
8-97123-376-0
01
1
1012-
●
18
03.330 PIPE; INJ NO.3
8-98039-936-0
01
1
1012-1102
●
18
03.330 PIPE; INJ NO.3
8-98185-346-0
01
1
1103-1404
●
18
03.330 PIPE; INJ NO.3
8-98271-204-0
01
1
1405-1501
●
18
03.330 PIPE; INJ NO.3
8-98298-608-0
01
1
1502-
●
19
03.330 PIPE; INJ NO.4
8-97123-377-1
01
1
1012-
●
19
03.330 PIPE; INJ NO.4
8-98039-937-0
01
1
1012-1102
●
19
03.330 PIPE; INJ NO.4
8-98185-347-0
01
1
1103-1404
●
19
03.330 PIPE; INJ NO.4
8-98271-205-0
01
1
1405-1501
●
19
03.330 PIPE; INJ NO.4
8-98298-609-0
01
1
1502-
●
68
03.162 CLIP; INJ PIPE
(A)
1-09701-195-3
01
1
1012-
●
68
03.162 CLIP; INJ PIPE
(B)
1-09701-196-2
01
1
1012-
●
68
03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19
8-98039-293-0
06
1
1012-1405
●
68
03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19
8-98148-996-2
06
1
1406-
●
71
03.162 BOLT; BRKT
03.671 (B) M6X10 FLANGE
0-28050-610-0
01
1
1012-
●
71
03.162 BOLT; BRKT
02.343 (A) M8X16 FLANGE
0-28050-816-0
01
1
1012-
●
71
03.162 BOLT; BRKT
02.277 (C) M8X40 FLANGE
0-28050-840-0
01
1
1012-
●
71
03.162 BOLT; BRKT
00.386 (D) M8X50 FLANGE
0-28050-850-0
01
1
1012-
●
110
03.330 NUT; CLIP
01.062 M6 FLANGE
0-91180-106-0
04
1
1012-
●
120
03.330 BRACKET; INJ PIPE
8-98041-601-0
01
1
1012-
●
168
03.890 BRACKET; FUEL PIPE
8-98036-175-1
01
1
1012-
●
199
03.332 GASKET; EYE BOLT
(A)
1-15619-507-0
02
1
1012-
●
199
03.332 GASKET; EYE BOLT
(B)
8-97602-218-0
04
1
1012-
●
210
03.330 PIPE; INJ,C/R
8-98036-176-1
01
1
1012-
●
211
03.331 RAIL ASM; COMMON
8-98011-888-2
01
1
1012-
●
216
03.162 BOLT; EYE
(C)
5-15759-003-0
01
1
1012-
●
216
03.162 BOLT; EYE
(B)
8-97351-388-0
01
1
1012-
●
216
03.162 BOLT; EYE
(A)
8-98043-033-0
01
1
1012-
●
282
03.163 BRACKET; COMMON RAIL
8-98157-115-0
01
1
1012-
●
283
03.330 BOLT; COMMON RAIL
03.275 M8X25 FLANGE
0-28050-825-0
01
1
1012-
●
288
03.331 GASKET
ID=11 OD=16.3
1-15641-046-0
01
1
1012-
●
289
03.331 LIMITER; FUEL PRESS
8-98032-549-0
01
1
1012-
●
290
03.331 SENSOR; PRESS
8-98119-790-0
01
1
1012-
●
354
03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE
0-28050-816-0
02
1
1012-
●
377
03.332 BRACKET; HARNESS
8-97310-438-1
01
1
1012-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
