5-15 — CAB MOUNTING; CAB SIDE (#5409) — 156 parça

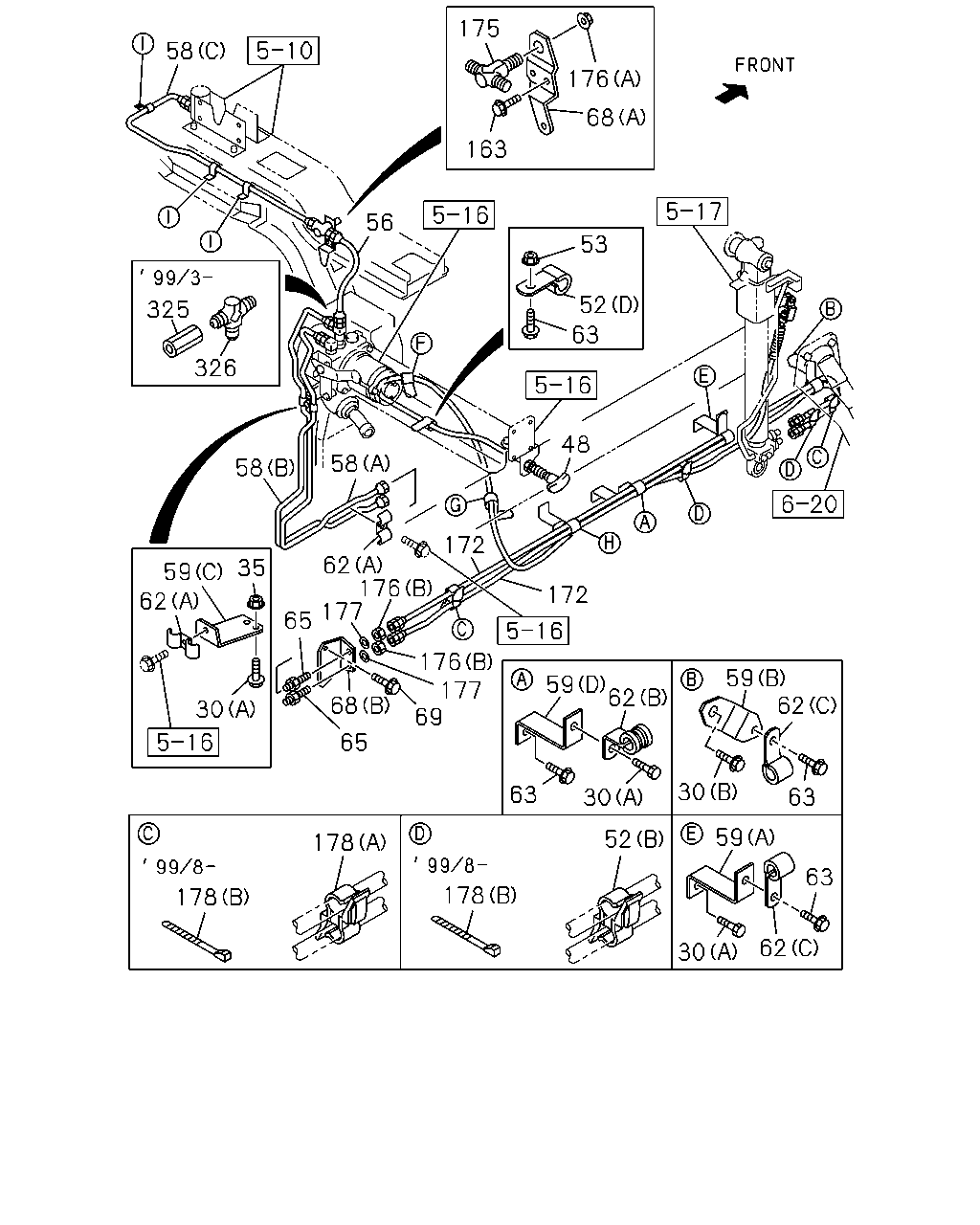

çizim 6756
175 58 176 68 163 56 53 52 325 63 326 48 58 58 172 62 176 177 35 59 172 62 65 176 177 69 59 62 59 62 68 30 65 30 63 63 30 59 52 178 63 178 178 62 30
BalonParca AdiParca NoAdetTipApplied Date A B C
30 BOLT; BRKT FIX
(B) M12X25 FLANGE 		0-28081-225-0 01 1 9603-9606 ● ● ●
30 BOLT; BRKT FIX
(B) M12X25 FLANGE 		0-28681-225-0 01 1 9607- ● ● ●
30 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ● ● ●
30 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9901 ● ● ●
30 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9901 ● ● ●
30 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9902-9903 ● ● ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9904- ● ● ●
30 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X25 FLANGE 		0-28680-825-0 02 1 9905- ● ● ●
30 BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE 		0-28080-825-0 03 1 9603-9606 ● ●
30 BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE 		0-28680-825-0 03 1 9607- ● ●
35 NUT; BRKT
M8 		9-09110-408-0 02 1 9603-9606 ● ● ●
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607- ● ● ●
48 CABLE ASM; CONT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> L=2457 		1-62500-670-6 01 1 9603-9711 ● ● ●
48 CABLE ASM; CONT
V TYPE ENG<91L> L=2457 		1-62500-670-6 01 1 9603-9711 ● ●
48 CABLE ASM; CONT
L=2457 		1-62500-670-6 01 1 9712-9910 ● ● ●
48 CABLE ASM; CONT
L=2457 		1-62500-730-0 01 1 9911- ● ● ●
48 CABLE ASM; CONT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> L=2455 L=2688 		1-62500-684-2 01 1 9603-9711 ● ● ●
52 CLIP; CONT CABLE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 9603- ● ● ●
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 02 1 9603-9907 ● ● ●
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 01 1 9908- ● ● ●
52 CLIP; CONT CABLE
(C) ID=7 L=20 		9-09524-635-0 01 1 9603- ● ● ●
52 CLIP; CONT CABLE
(D) ID=7 L=50 		9-09524-685-0 01 1 9603- ● ● ●
52 CLIP; CONT CABLE
L TYPE ENG<90L> EXC. ENGINE REAR PTO(SV1) (B) ID=6-10 & 10-14 		1-09709-201-1 01 1 9603-9907 ● ●
53 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9603- ● ● ●
56 HOSE; FLEX,OIL PIPE
L=300 		1-09364-545-2 01 1 9603-9901 ● ● ●
56 HOSE; FLEX,OIL PIPE
EXC. CAB UP +110MM<TGG> L=300 		1-09364-545-2 01 1 9902-9902 ● ●
56 HOSE; FLEX,OIL PIPE
EXC. CAB UP +110MM<TGG> L=300 		1-09365-059-0 01 1 9903- ● ●
56 HOSE; FLEX,OIL PIPE
CAB UP +110MM<TGG> L=400 		1-09364-835-1 01 1 9902-9902 ● ● ●
56 HOSE; FLEX,OIL PIPE
CAB UP +110MM<TGG> L=400 		1-09365-060-0 01 1 9903- ● ● ●
58 PIPE; OIL,POWER UNIT
(C) CAB LOCK L=1390 		1-47428-967-0 01 1 9603-9901 ● ● ●
58 PIPE; OIL,POWER UNIT
EXC. SILENCER SINGLE VERTICAL<N28> (C) CAB LOCK L=1390 		1-47428-967-0 01 1 9902-9902 ● ● ●
58 PIPE; OIL,POWER UNIT
EXC. SILENCER SINGLE VERTICAL<N28> (B) UPPER L=1050 		1-49163-340-0 01 1 9903-9903 ● ● ●
58 PIPE; OIL,POWER UNIT
EXC. SILENCER SINGLE VERTICAL<N28> (B) UPPER L=1054 		1-49164-150-0 01 1 9904- ● ● ●
58 PIPE; OIL,POWER UNIT
(A) DOWN L=997 		1-47429-806-0 01 1 9603-9902 ● ● ●
58 PIPE; OIL,POWER UNIT
(C) CAB LOCK L=1396 		1-49163-351-0 01 1 9903- ● ● ●
58 PIPE; OIL,POWER UNIT
(B) UPPER L=1025 		1-47429-627-0 01 1 9603-9902 ● ● ●
58 PIPE; OIL,POWER UNIT
EXC. SILENCER SINGLE VERTICAL<N28> (A) D0WN L=1116 		1-49163-346-0 01 1 9903-9903 ● ● ●
58 PIPE; OIL,POWER UNIT
EXC. SILENCER SINGLE VERTICAL<N28> (A) D0WN L=1120 		1-49164-151-0 01 1 9904-9910 ● ● ●
58 PIPE; OIL,POWER UNIT
EXC. SILENCER SINGLE VERTICAL<N28> (A) D0WN L=1006 		1-49165-034-0 01 1 9911- ● ● ●
58 PIPE; OIL,POWER UNIT
SILENCER SINGLE VERTICAL<N28> (B) UPPER L=959 		1-49163-984-0 01 1 9903-9903 ● ●
58 PIPE; OIL,POWER UNIT
SILENCER SINGLE VERTICAL<N28> (B) UPPER L=964 		1-49164-287-0 01 1 9904- ● ●
58 PIPE; OIL,POWER UNIT
SILENCER SINGLE VERTICAL<N28> (A) DOWN L=1044 		1-49163-985-0 01 1 9903-9903 ● ●
58 PIPE; OIL,POWER UNIT
SILENCER SINGLE VERTICAL<N28> (A) DOWN L=1049 		1-49164-288-0 01 1 9904-9910 ● ●
58 PIPE; OIL,POWER UNIT
SILENCER SINGLE VERTICAL<N28> (A) D0WN 		1-49165-033-0 01 1 9911- ● ●
59 BRACKET; CLIP
(A) W/NUT 		1-47476-200-0 01 1 9603- ● ● ●
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 9603- ● ● ●
59 BRACKET; CLIP
(B) W/NUT 		1-47477-631-1 01 1 9603- ● ● ●
59 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) W/NUT L=90 		1-82699-856-0 01 1 9603- ● ● ●
59 BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) W/NUT L=90 		1-82699-856-0 02 1 9603- ● ●
62 CLIP; OIL PIPE
(A) ID=9 & 9 L=17 & 17 		1-09700-651-0 02 1 9603-9902 ● ● ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 9903- ● ● ●
62 CLIP; OIL PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 9603-9905 ● ● ●
62 CLIP; OIL PIPE
(B) ID=18 H=23 L=28 		1-09700-860-0 02 1 9906- ● ● ●
62 CLIP; OIL PIPE
(C) ID=11X2 L=16 		9-09535-025-0 02 1 9603-9902 ● ● ●
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		9-09534-825-0 02 1 9903- ● ● ●
62 CLIP; OIL PIPE
FULL FLOATING CAB(W16) (D) ID=8 H=20 L=20 		1-09700-604-0 01 1 9603-9901 ● ● ●
62 CLIP; OIL PIPE
FULL FLOATING CAB(W16) (D) ID=8 H=20 L=20 		1-09700-604-0 01 1 9902-9902 ● ●
62 CLIP; OIL PIPE
FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20 		1-09700-603-0 01 1 9903- ● ●
62 CLIP; OIL PIPE
EXC. FULL FLOATING CAB(W16) (D) ID=8 H=20 L=20 		1-09700-604-0 03 1 9603-9902 ● ● ●
62 CLIP; OIL PIPE
EXC. FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20 		1-09700-603-0 03 1 9903- ● ● ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 06 1 9603-9606 ● ● ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 06 1 9607- ● ● ●
65 UNION; OIL PIPE
M14 		9-09223-308-1 02 1 9603-9902 ● ● ●
65 UNION; OIL PIPE
M12 L=66.5 		9-09223-306-1 02 1 9903- ● ● ●
68 BRACKET; UNION
(B) 		1-47477-751-0 01 1 9603-9902 ● ● ●
68 BRACKET; UNION
(B) 		1-47478-384-0 01 1 9903- ● ● ●
68 BRACKET; UNION
(A) 		1-53458-374-1 01 1 9603- ● ● ●
69 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ● ● ●
69 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 9607- ● ● ●
163 BOLT; BRKT FIX
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ● ● ●
163 BOLT; BRKT FIX
M8X20 FLANGE 		0-28680-820-0 02 1 9607- ● ● ●
172 HOSE; FLEX,OIL TILT
UPPER L=1600 		1-09364-825-1 02 1 9603-9902 ● ● ●
172 HOSE; FLEX,OIL TILT
UPPER L=1600 		1-09365-052-1 02 1 9903- ● ● ●
175 UNION; FLEX HOSE
M14 2WAY 		1-09654-176-2 01 1 9603-9902 ● ● ●
175 UNION; FLEX HOSE 1-09654-234-2 01 1 9903- ● ● ●
176 NUT; UNION
(A) M12 FLANGE 		0-91150-112-0 01 1 9603-9606 ● ● ●
176 NUT; UNION
(A) M12 FLANGE 		0-91150-212-0 01 1 9607- ● ● ●
176 NUT; UNION
(B) M14 		9-99111-414-0 02 1 9603-9902 ● ● ●
176 NUT; UNION
(B) M12 		9-09840-280-0 02 1 9903- ● ● ●
177 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 02 1 9603-9902 ● ● ●
177 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 9903- ● ● ●
178 CLIP; FLEX HOSE
(A) ID=12-16 & 12-16 		1-09709-191-0 02 1 9603-9706 ● ● ●
178 CLIP; FLEX HOSE
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (B) L=140 		5-09707-031-1 01 1 9908- ● ● ●
178 CLIP; FLEX HOSE
V TYPE ENG<91L> (B) L=140 		5-09707-031-1 01 1 9908- ● ●
178 CLIP; FLEX HOSE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (B) L=140 		5-09707-031-1 02 1 9908- ● ●
325 ADAPTER; PUMP
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 9903- ● ● ●
326 UNION; PUMP
M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 9903- ● ● ●

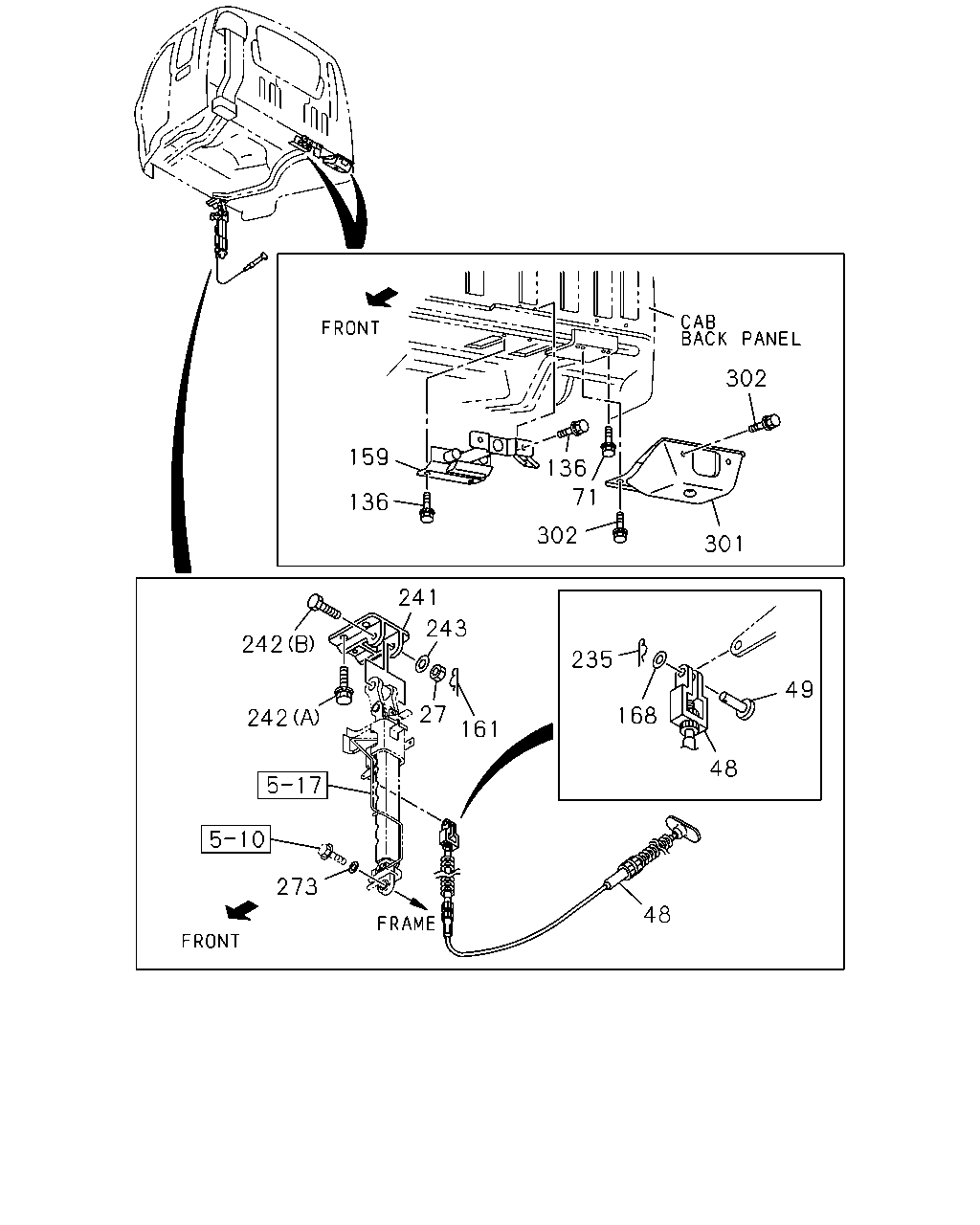

çizim 39763
302 159 136 71 136 302 301 241 243 242 235 49 27 168 242 161 48 273 48
BalonParca AdiParca NoAdetTipApplied Date A B C
27 NUT; OIL CYL
M14 		9-99116-414-0 01 1 9603- ● ● ●
48 CABLE ASM; CONT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> L=2457 		1-62500-670-6 01 1 9603-9711 ● ● ●
48 CABLE ASM; CONT
V TYPE ENG<91L> L=2457 		1-62500-670-6 01 1 9603-9711 ● ●
48 CABLE ASM; CONT
L=2457 		1-62500-670-6 01 1 9712-9910 ● ● ●
48 CABLE ASM; CONT
L=2457 		1-62500-730-0 01 1 9911- ● ● ●
48 CABLE ASM; CONT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> L=2455 L=2688 		1-62500-684-2 01 1 9603-9711 ● ● ●
49 PIN; JAW FIX
OD=6 L=17 OD=6 L=17 		9-08223-617-0 01 1 9603- ● ● ●
71 BOLT
M10X25 W/LK&PL WASHER 		8-94279-220-0 02 1 9603- ● ● ●
136 BOLT; CAB LK
W/LK&PL WASHER M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9603- ● ● ●
159 PIN
CABLE LOCK PIN 		1-79717-615-2 01 1 9603-9609 ● ● ●
159 PIN
CABLE LOCK PIN 		1-79717-627-1 01 1 9610- ● ● ●
161 PIN; SPLIT
OD=2.8 L=25 		9-08113-025-0 01 1 9603- ● ● ●
168 WASHER; PL
ID=6.4 		9-09160-506-0 01 1 9603- ● ● ●
235 PIN; SNAP
L=21.2 		8-94157-840-0 01 1 9603- ● ● ●
241 BRACKET; POWER CYL UPR,CAB TILT 1-53458-660-0 01 1 9603- ● ● ●
242 BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 		1-09980-546-0 05 1 9603- ● ● ●
242 BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70 		1-53458-633-0 01 1 9603- ● ● ●
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		9-09150-514-0 01 1 9603- ● ● ●
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		9-09164-810-0 01 1 9603- ● ● ●
301 BRACKET; RR MTG,CAB 1-62570-866-1 02 1 9603- ● ● ●
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		8-94279-220-0 08 1 9603- ● ● ●
çizim 40793
52 63 52 63 198 199 47 52 63 62 64 62 63 189 30 62 63 59
BalonParca AdiParca NoAdetTipApplied Date A B C
30 BOLT; BRKT FIX
(B) M12X25 FLANGE 		0-28081-225-0 01 1 9603-9606 ● ● ●
30 BOLT; BRKT FIX
(B) M12X25 FLANGE 		0-28681-225-0 01 1 9607- ● ● ●
30 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ● ● ●
30 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9901 ● ● ●
30 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9901 ● ● ●
30 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9902-9903 ● ● ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9904- ● ● ●
30 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X25 FLANGE 		0-28680-825-0 02 1 9905- ● ● ●
30 BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE 		0-28080-825-0 03 1 9603-9606 ● ●
30 BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE 		0-28680-825-0 03 1 9607- ● ●
47 NUT; BRKT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 9603-9901 ● ● ●
47 NUT; BRKT
L TYPE ENG<90L> EXC. ENGINE REAR PTO(SV1) M8 FLANGE 		0-91150-108-0 01 1 9902- ● ●
52 CLIP; CONT CABLE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 9603- ● ● ●
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 02 1 9603-9907 ● ● ●
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 01 1 9908- ● ● ●
52 CLIP; CONT CABLE
(C) ID=7 L=20 		9-09524-635-0 01 1 9603- ● ● ●
52 CLIP; CONT CABLE
(D) ID=7 L=50 		9-09524-685-0 01 1 9603- ● ● ●
52 CLIP; CONT CABLE
L TYPE ENG<90L> EXC. ENGINE REAR PTO(SV1) (B) ID=6-10 & 10-14 		1-09709-201-1 01 1 9603-9907 ● ●
59 BRACKET; CLIP
(A) W/NUT 		1-47476-200-0 01 1 9603- ● ● ●
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 9603- ● ● ●
59 BRACKET; CLIP
(B) W/NUT 		1-47477-631-1 01 1 9603- ● ● ●
59 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) W/NUT L=90 		1-82699-856-0 01 1 9603- ● ● ●
59 BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) W/NUT L=90 		1-82699-856-0 02 1 9603- ● ●
62 CLIP; OIL PIPE
(A) ID=9 & 9 L=17 & 17 		1-09700-651-0 02 1 9603-9902 ● ● ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 9903- ● ● ●
62 CLIP; OIL PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 9603-9905 ● ● ●
62 CLIP; OIL PIPE
(B) ID=18 H=23 L=28 		1-09700-860-0 02 1 9906- ● ● ●
62 CLIP; OIL PIPE
(C) ID=11X2 L=16 		9-09535-025-0 02 1 9603-9902 ● ● ●
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		9-09534-825-0 02 1 9903- ● ● ●
62 CLIP; OIL PIPE
FULL FLOATING CAB(W16) (D) ID=8 H=20 L=20 		1-09700-604-0 01 1 9603-9901 ● ● ●
62 CLIP; OIL PIPE
FULL FLOATING CAB(W16) (D) ID=8 H=20 L=20 		1-09700-604-0 01 1 9902-9902 ● ●
62 CLIP; OIL PIPE
FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20 		1-09700-603-0 01 1 9903- ● ●
62 CLIP; OIL PIPE
EXC. FULL FLOATING CAB(W16) (D) ID=8 H=20 L=20 		1-09700-604-0 03 1 9603-9902 ● ● ●
62 CLIP; OIL PIPE
EXC. FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20 		1-09700-603-0 03 1 9903- ● ● ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 06 1 9603-9606 ● ● ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 06 1 9607- ● ● ●
64 NUT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 		9-09110-408-0 01 1 9603-9606 ● ● ●
64 NUT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91150-108-0 01 1 9607- ● ● ●
189 BOLT; CLIP
FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ● ●
189 BOLT; CLIP
FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9901 ● ● ●
189 BOLT; CLIP
FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28680-820-0 01 1 9902- ● ●
189 BOLT; CLIP
EXC. FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28080-820-0 03 1 9603-9606 ● ● ●
189 BOLT; CLIP
EXC. FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28680-820-0 03 1 9607- ● ● ●
198 BRACKET; CABLE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> 		1-46147-101-0 01 1 9603-9901 ● ● ●
198 BRACKET; CABLE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> 		1-46147-101-0 01 1 9902- ● ●
199 BOLT; BRKT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ● ●
199 BOLT; BRKT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 01 1 9607-9901 ● ● ●
199 BOLT; BRKT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 01 1 9902- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
