0-22 — ENGINE MOUNTING (#54085) — 20 parça

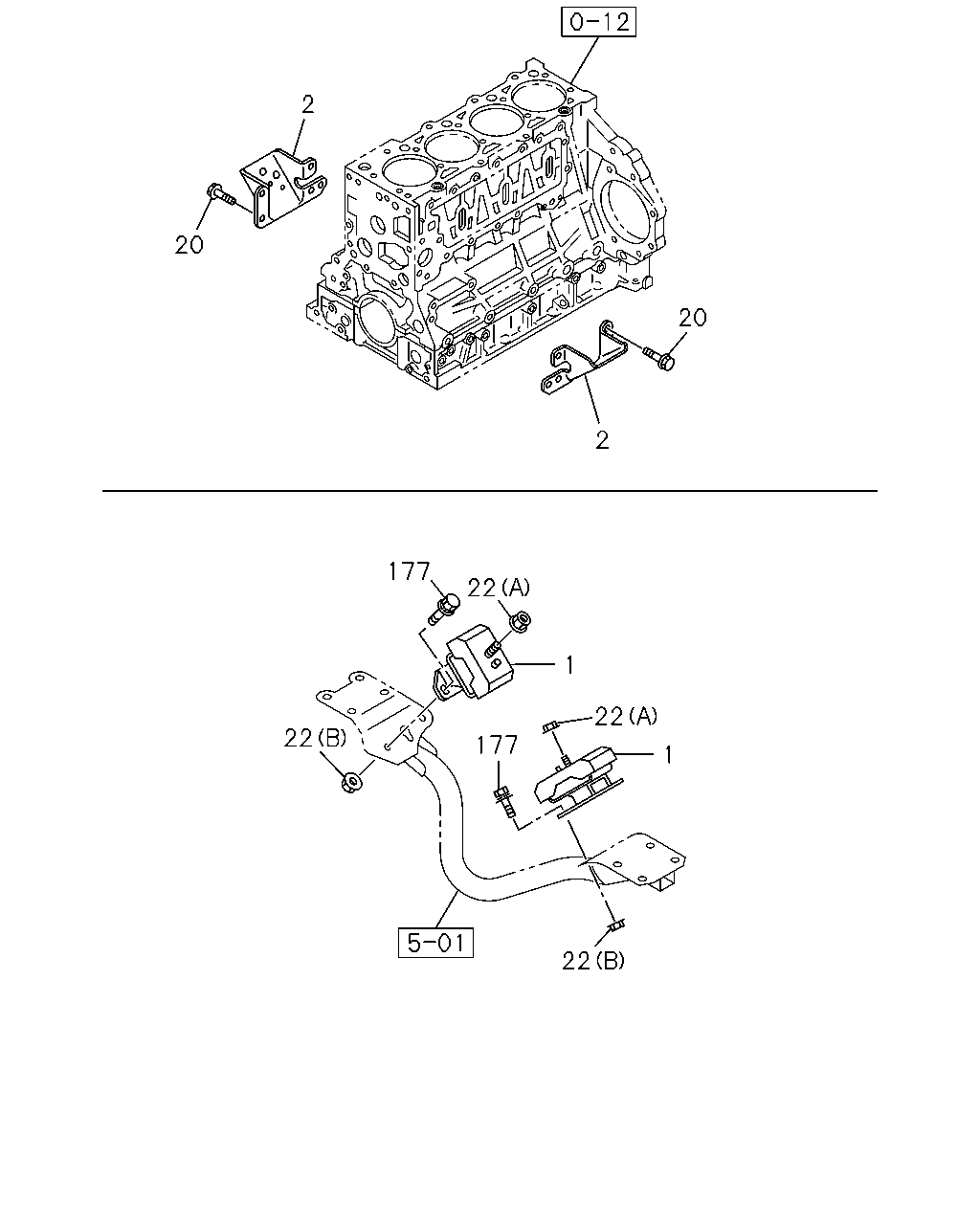

çizim 175431
2 20 20 2 177 22 1 22 22 177 1 22
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.027 RUBBER; ENG FOOT,FRT 8-98061-232-0 01 1 1012-1112 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98203-634-0 01 1 1201- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97387-247-3 01 1 1012- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97387-250-2 01 1 1012-1112 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98203-633-0 01 1 1201- ● ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 1012- ● ●
20 00.029 BOLT; ENG FOOT
M10X20 FLANGE 		0-28161-020-0 08 1 1012- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (A) M12 FLANGE 		0-91180-112-0 02 1 1012- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (B) M10 FLANGE 		0-91180-210-0 04 1 1012- ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 1012- ● ●

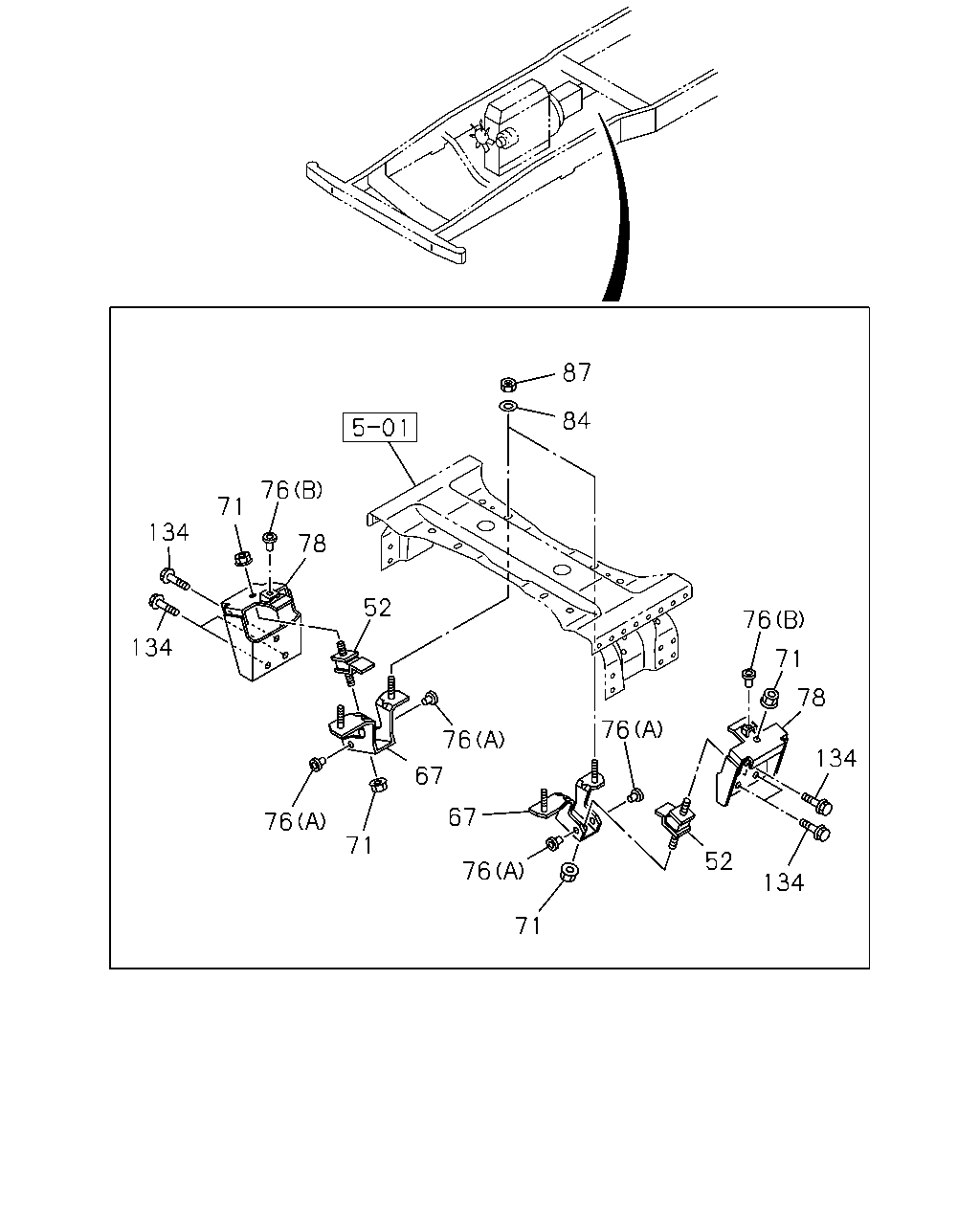

çizim 175440
87 84 76 71 134 78 52 76 134 71 78 76 76 134 67 67 76 71 52 76 134 71
BalonParca AdiParca NoAdetTipApplied Date A B
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 1012- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97255-776-1 01 1 1012- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97255-778-1 01 1 1012- ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 1012- ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (B) 		8-94111-904-0 02 1 1012- ● ●
76 00.002 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 04 1 1012- ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97255-756-1 02 1 1012- ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 1012- ● ●
87 00.029 NUT; ENG MTG RR
03.162 M10 FLANGE 		0-91180-110-0 04 1 1012- ● ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 1012- ● ●
