Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#5408) — 639 parça

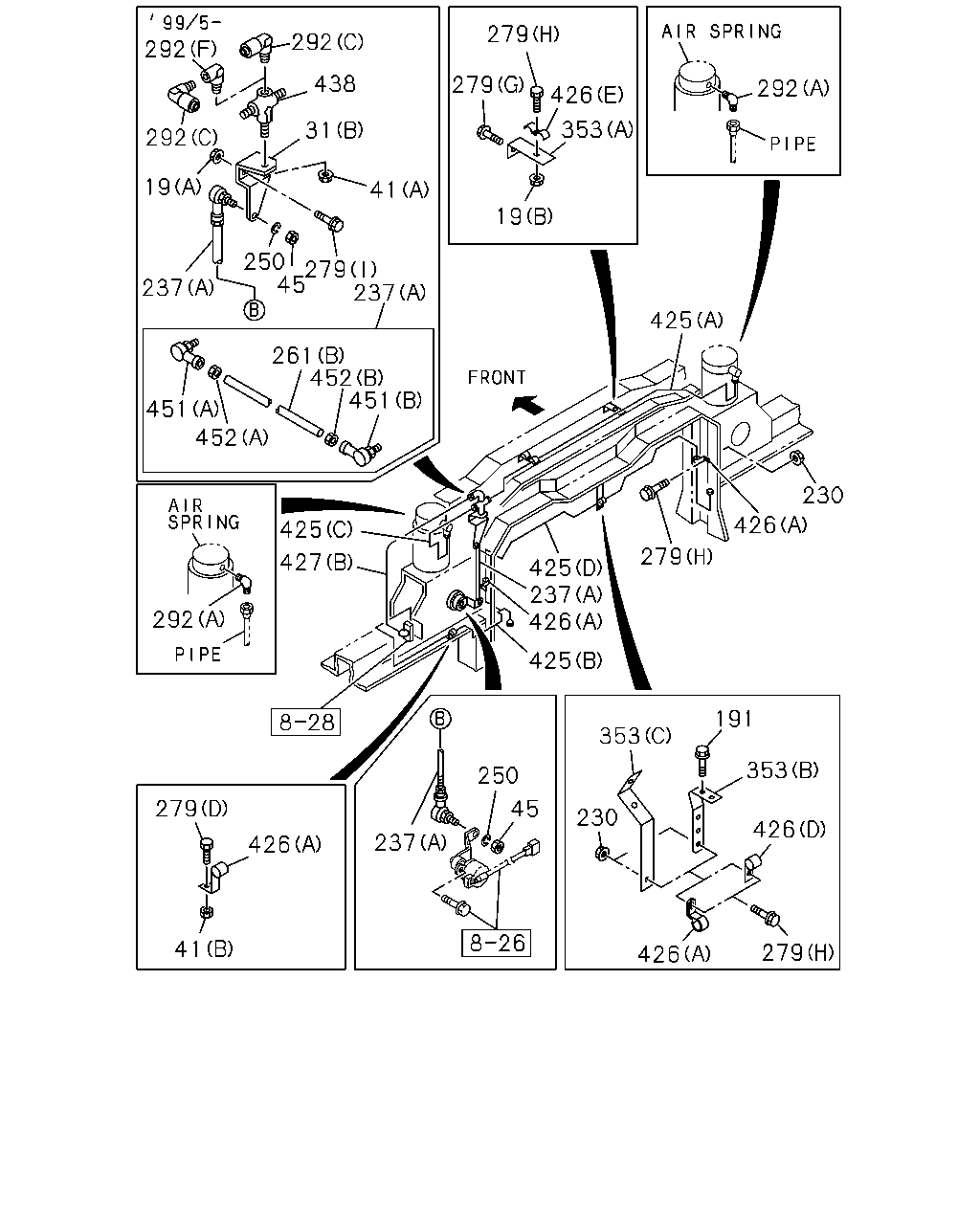

292 279 292 438 279 292 426 353 31 292 19 41 19 250 279 45 237 237 425 261 452 451 451 452 230 426 425 279 427 425 237 426 292 425 191 353 353 250 279 45 230 426 237 426 41 279 426

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	NUT FULL FLOATING CAB(W16) (A) M8	9-09110-408-0	02	1	9603-9606	●	●	●
19	NUT FULL FLOATING CAB(W16) (A) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●	●	●
19	NUT FULL FLOATING CAB(W16) (A) M8 FLANGE	0-91150-108-0	02	1	9902-		●	●
19	NUT FULL FLOATING CAB(W16) (B) M8	9-09110-508-0	02	1	9603-		●	●
31	BRACKET; CAB (A)	1-44226-150-0	01	1	9603-9901	●	●	●
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-150-0	01	1	9902-		●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-673-1	01	1	9603-9901	●	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-673-1	01	1	9902-		●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	9603-9901	●	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	9902-		●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-2	01	1	9603-9901	●	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	9902-		●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-281-0	01	1	9603-9901	●	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-281-1	01	1	9902-		●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	9603-	●	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-280-1	01	1	9603-	●	●	●
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-156-0	01	1	9902-	●	●	●
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91150-112-0	01	1	9603-9606	●	●	●
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91150-212-0	01	1	9607-9901	●	●	●
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91150-212-0	01	1	9902-		●	●
41	NUT 6WA1 TC-S(56L) FULL FLOATING CAB(W16) (B) M8	9-09110-508-0	01	1	9603-9606	●	●	●
41	NUT 6WA1 TC-S(56L) FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91150-108-0	01	1	9607-9901	●	●	●
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91150-108-0	01	1	9902-9904		●	●
41	NUT L TYPE ENG<90L> FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91150-108-0	01	1	9905-		●	●
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	04	1	9603-9901	●	●	●
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	04	1	9902-		●	●
191	BOLT; BRKT FIX 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606		●	●
191	BOLT; BRKT FIX 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) M8X25 FLANGE	0-28680-825-0	01	1	9607-		●	●
230	NUT 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) M8 FLANGE	0-91150-108-0	03	1	9603-9901		●	●
230	NUT 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) M8 FLANGE	0-91150-108-0	03	1	9905-		●	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	9603-	●	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A) REAR	1-33670-407-0	01	1	9603-9901	●	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A) REAR	1-33670-407-0	01	1	9902-		●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C) FRONT	1-33670-773-0	01	1	9603-9901	●	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C) FRONT	1-33670-773-0	01	1	9902-		●	●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	9603-9901	●	●	●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	9902-		●	●
261	ROD; LINK FULL FLOATING CAB(W16) (A) FRONT	9-08410-507-0	01	1	9902-		●	●
261	ROD; LINK FULL FLOATING CAB(W16) (B) REAR	9-08410-514-0	01	1	9902-		●	●
279	BOLT (B) M12X40	9-92061-240-0	04	1	9603-9605	●	●	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9606-	●	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9705	●	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9706-9904	●	●	●
279	BOLT SAKHALIN EQUIPMENT(TLE) (A) M8X25 FLANGE	0-28680-825-0	02	1	9706-9904		●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-9905	●	●	●
279	BOLT SAKHALIN EQUIPMENT(TLE) EXC. ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-9905		●
279	BOLT ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	03	1	9906-	●	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9603-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9902-		●	●
279	BOLT FULL FLOATING CAB(W16) (G) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●	●
279	BOLT FULL FLOATING CAB(W16) (G) M8X20 FLANGE	0-28680-820-0	02	1	9607-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (G) M8X20 FLANGE	0-28680-820-0	02	1	9902-		●	●
279	BOLT FULL FLOATING CAB(W16) (H) M8X20 FLANGE	0-28080-820-0	06	1	9603-9606	●	●	●
279	BOLT FULL FLOATING CAB(W16) (H) M8X20 FLANGE	0-28680-820-0	06	1	9607-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (H) M8X20 FLANGE	0-28680-820-0	06	1	9902-		●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9603-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9902-		●	●
279	BOLT FULL FLOATING CAB(W16) (I) M8X25	1-09980-511-0	02	1	9603-9711	●	●	●
279	BOLT FULL FLOATING CAB(W16) (I) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9712-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (I) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9902-		●	●
279	BOLT 6WA1 TC-S(56L) FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●	●
279	BOLT 6WA1 TC-S(56L) FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	9607-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	9902-9904		●	●
279	BOLT L TYPE ENG<90L> FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	9905-		●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	02	1	9906-		●	●
279	BOLT SAKHALIN EQUIPMENT(TLE) EXC. ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9906-		●
279	BOLT 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) (H) M8X20 FLANGE	0-28080-820-0	03	1	9603-9606		●	●
279	BOLT 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) (H) M8X20 FLANGE	0-28680-820-0	03	1	9607-		●	●
292	CONNECTOR; CAB SUSPENSION (E) M14	1-53458-047-0	01	1	9603-9902	●	●	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	9903-	●	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9603-9901	●	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9902-		●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-0	01	1	9603-9901	●	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	9902-		●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) ELBOW TRI LC6X4-R1/8	1-09660-760-0	01	1	9603-9901	●	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) ELBOW TRI LC6X4-R1/8	1-09660-760-1	01	1	9902-		●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-0	01	1	9603-9901	●	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	9902-		●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (F) PT1/8 ELBOW	8-94338-418-1	01	1	9905-		●	●
353	BRACKET FULL FLOATING CAB(W16) (A) WO/NUT L=55	1-47475-304-0	02	1	9603-9901	●	●	●
353	BRACKET FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (A) WO/NUT L=55	1-47475-304-0	02	1	9902-		●	●
353	BRACKET 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) (B)	1-47477-385-0	01	1	9603-9901		●	●
353	BRACKET CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (C)	1-47478-230-0	02	1	9902-		●	●
353	BRACKET 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) (B)	1-47477-385-0	01	1	9905-		●	●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (A) L=1353	1-49116-898-0	01	1	9603-9901	●	●	●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (A) L=1353	1-49116-898-0	01	1	9902-		●	●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (C) 3 WAY-ELBOW L=375	1-49116-899-0	01	1	9603-9901	●	●	●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (C) 3 WAY-ELBOW L=375	1-49116-899-0	01	1	9902-9904		●	●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (C) 3 WAY-ELBOW L=357	1-49121-862-0	01	1	9905-		●	●
425	PIPE ASM; AIR 6WA1 TC-S(56L) FULL FLOATING CAB(W16) (B) UN-M/V L=697	1-49114-818-0	01	1	9603-9901	●	●	●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) UN-M/V L=776	1-49121-296-0	01	1	9902-9904		●	●
425	PIPE ASM; AIR L TYPE ENG<90L> FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) UN-M/V L=776	1-49121-296-0	01	1	9905-		●	●
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) UN-M/V L=831	1-49121-297-0	01	1	9902-		●	●
425	PIPE ASM; AIR 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) (D) L=2197	1-49116-145-0	01	1	9603-9901		●	●
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (D) L=1376	1-49119-625-0	01	1	9902-		●	●
425	PIPE ASM; AIR 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) (D) UN-M/V L=2197	1-49116-145-0	01	1	9905-		●	●
426	CLIP FULL FLOATING CAB(W16) (E) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9603-9901	●	●	●
426	CLIP FULL FLOATING CAB(W16) (E) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9902-9904		●	●
426	CLIP FULL FLOATING CAB(W16) (E) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9905-		●	●
426	CLIP FULL FLOATING CAB(W16) (C) ID=11 H=20 L=20	5-09700-351-0	02	1	9603-9901	●	●	●
426	CLIP FULL FLOATING CAB(W16) (C) ID=11 H=20 L=20	5-09700-351-0	02	1	9902-		●	●
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	9603-9901	●	●	●
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	9902-		●	●
426	CLIP 6WA1 TC-S(56L) FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9603-9901	●	●	●
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9902-9904		●	●
426	CLIP L TYPE ENG<90L> FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-		●	●
426	CLIP 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9603-9901		●	●
426	CLIP 6WA1 TC-C(55L) FULL FLOATING CAB(W16) (F) L=140	5-09707-031-1	01	1	9902-9904		●	●
426	CLIP 6WA1 TC-C(55L),6WG1 TC-R(75L) FULL FLOATING CAB(W16) (F) L=140	5-09707-031-1	01	1	9905-9905		●	●
426	CLIP ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB(W16) (F) L=140	5-09707-031-1	01	1	9906-		●	●
426	CLIP 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) (D) ID=7 L=20	9-09524-635-0	01	1	9603-9904		●	●
426	CLIP 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9905-		●	●
426	CLIP 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) (D) ID=7 L=20	9-09524-635-0	01	1	9905-		●	●
427	TUBE FULL FLOATING CAB(W16) (A) L=1300	1-09368-930-0	01	1	9603-9901	●	●	●
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9902-		●	●
427	TUBE FULL FLOATING CAB(W16) (B) L=1300	1-09368-930-0	01	1	9603-9901	●	●	●
427	TUBE FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9902-9904		●	●
427	TUBE FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9905-		●	●
427	TUBE CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) L=440 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9905-		●	●
438	UNION FULL FLOATING CAB(W16) M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	9603-9901	●	●	●
438	UNION FULL FLOATING CAB(W16) M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	9902-		●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	02	1	9902-		●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	02	1	9902-		●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	9902-		●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	02	1	9902-		●	●

65 65 202 202 203 69 204 72 205 70 204 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-472-0	02	1	9603-9610	●	●	●
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-546-0	02	1	9611-9703	●	●	●
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-603-0	02	1	9704-	●	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	9603-	●	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	9603-	●	●	●
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	9603-	●	●	●
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	9603-	●	●	●
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	28	1	9603-	●	●	●
202	NUT; S/ABS (A) M10	9-09110-410-0	06	1	9603-9610	●	●	●
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	9611-	●	●	●
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	9603-	●	●	●
202	NUT; S/ABS (A) M10 FLANGE	0-91150-110-0	02	1	9611-	●	●	●
203	WASHER; RUBBER,SHOCK ID=10.5 OD=38 T=6	1-51631-005-0	12	1	9603-9610	●	●	●
203	WASHER; RUBBER,SHOCK ID=10.5 OD=38 T=6	1-51631-005-0	10	1	9611-	●	●	●
203	WASHER; RUBBER,SHOCK ID=10 OD=38 T=5	1-51631-104-0	02	1	9611-	●	●	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	9603-	●	●	●
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	9603-	●	●	●

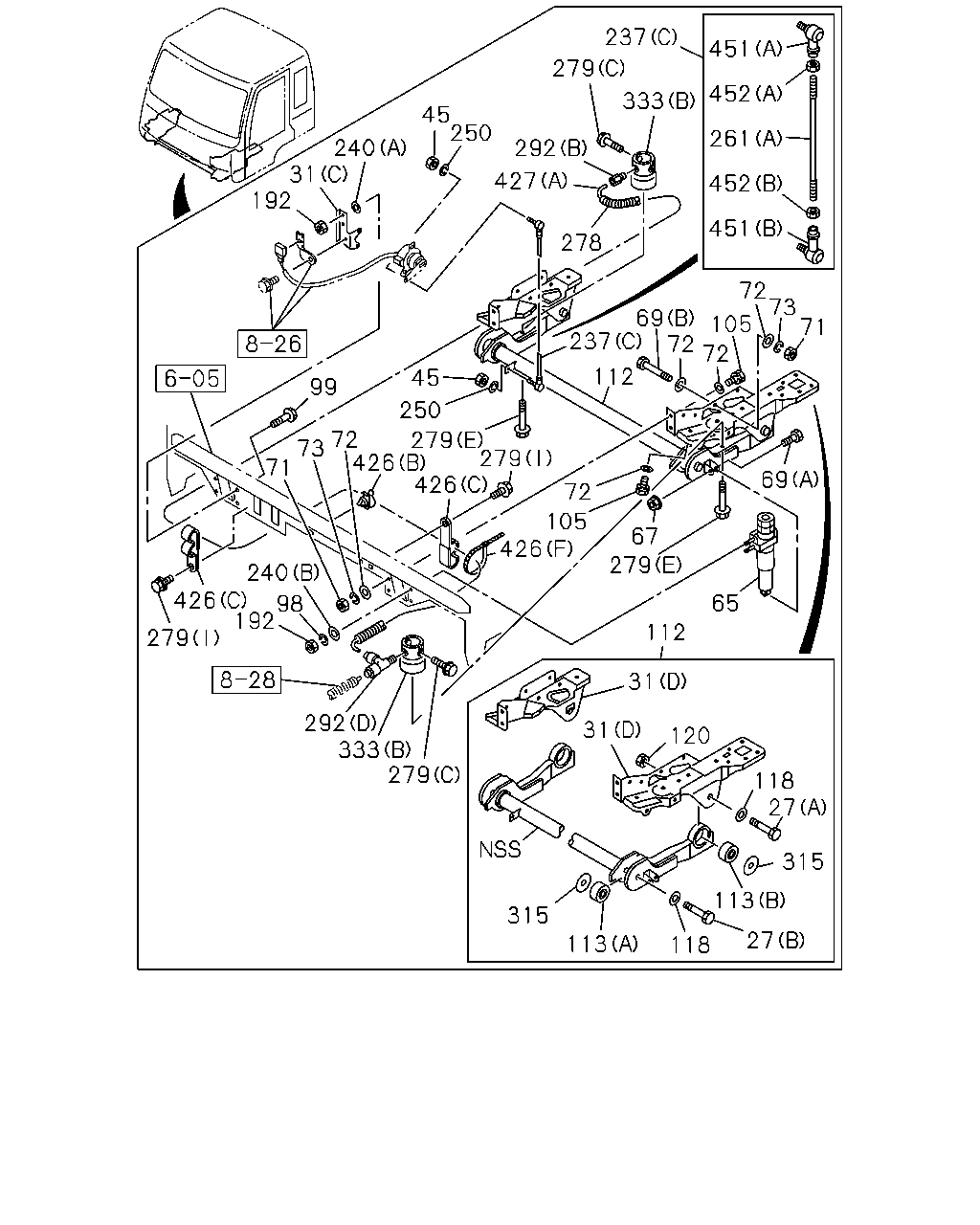

237 451 279 452 333 45 250 261 240 31 192 292 427 452 451 278 72 73 71 69 237 72 72 105 112 45 99 250 72 279 73 279 426 71 426 69 72 105 426 67 279 240 426 98 192 65 112 279 31 31 292 333 279 120 118 27 315 113 315 27 113 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	9603-	●	●	●
27	BOLT; BUSHING (A) M18X100	9-91066-800-0	02	1	9603-0104	●	●	●
27	BOLT; BUSHING FULL FLOATING CAB(W16) (A) M18X100	9-91066-800-0	02	1	0105-		●	●
27	BOLT; BUSHING EXC. FULL FLOATING CAB(W16) (A) M18X90	9-91066-890-0	02	1	0105-	●	●	●
31	BRACKET; CAB (A)	1-44226-150-0	01	1	9603-9901	●	●	●
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-150-0	01	1	9902-		●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-673-1	01	1	9603-9901	●	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-673-1	01	1	9902-		●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	9603-9901	●	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	9902-		●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-2	01	1	9603-9901	●	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	9902-		●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-281-0	01	1	9603-9901	●	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-281-1	01	1	9902-		●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	9603-	●	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-280-1	01	1	9603-	●	●	●

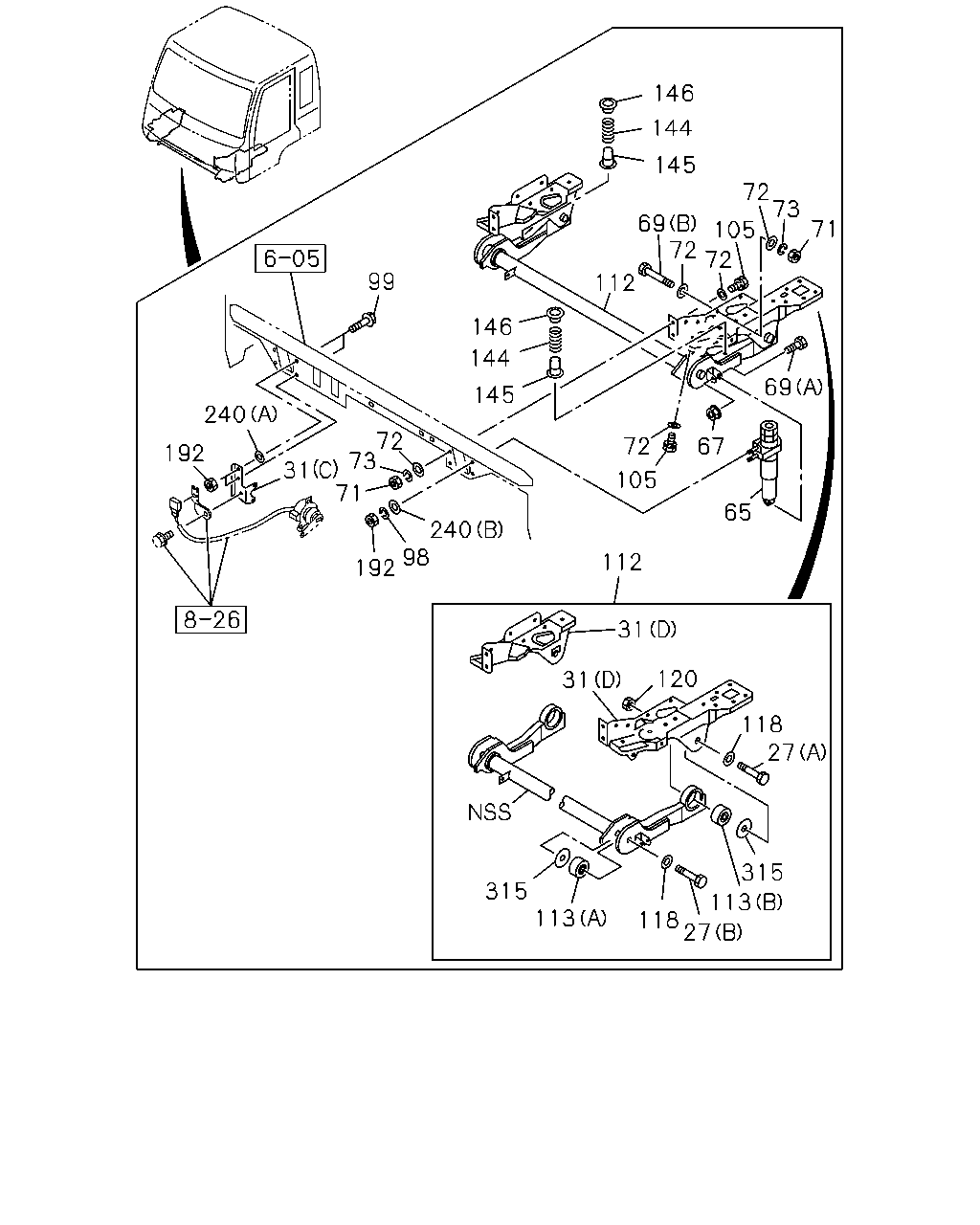

31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-156-0	01	1	9902-	●	●	●
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	04	1	9603-9901	●	●	●
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	04	1	9902-		●	●
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-472-0	02	1	9603-9610	●	●	●
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-546-0	02	1	9611-9703	●	●	●
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-603-0	02	1	9704-	●	●	●
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-112-0	02	1	9603-9606	●	●	●
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-212-0	02	1	9607-	●	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	9603-	●	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	9603-	●	●	●
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	9603-	●	●	●
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	28	1	9603-	●	●	●
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	9603-	●	●	●
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	9603-	●	●	●
99	BOLT; BRKT M10X30 FLANGE	0-28081-030-0	02	1	9603-9606	●	●	●
99	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9607-	●	●	●
105	BOLT; BRKT TO CAB FRAME M10X30	1-09980-546-0	15	1	9603-	●	●	●
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53450-569-4	01	1	9603-9901	●	●	●
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53450-569-6	01	1	9902-		●	●
112	ARM ASM; LINK,CAB FRT SUSP EXC. FULL FLOATING CAB(W16)	1-53450-567-6	01	1	9603-	●	●	●
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (A) ID=32 OD=70	1-53458-333-3	02	1	9603-	●	●	●
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (B) ID=32 OD=70	1-53458-714-0	02	1	9603-	●	●	●
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	9603-	●	●	●
120	NUT; STOPPER RUBBER,LINK ARM M18	9-99110-518-0	02	1	9603-	●	●	●
192	NUT; BRKT FIX M10	1-09984-142-0	04	1	9603-	●	●	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	9603-	●	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A) REAR	1-33670-407-0	01	1	9603-9901	●	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A) REAR	1-33670-407-0	01	1	9902-		●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C) FRONT	1-33670-773-0	01	1	9603-9901	●	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C) FRONT	1-33670-773-0	01	1	9902-		●	●
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	9603-	●	●	●
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9603-	●	●	●
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	9706-	●	●	●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	9603-9901	●	●	●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	9902-		●	●
261	ROD; LINK FULL FLOATING CAB(W16) (A) FRONT	9-08410-507-0	01	1	9902-		●	●
261	ROD; LINK FULL FLOATING CAB(W16) (B) REAR	9-08410-514-0	01	1	9902-		●	●
278	COVER FULL FLOATING CAB(W16) L=1300 SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	9603-9711	●	●	●
278	COVER FULL FLOATING CAB(W16) L=1200 SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	9712-9901	●	●	●
278	COVER FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9902-9905		●	●
278	COVER CAB UP +110MM<TGG> FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9902-9905		●	●
278	COVER FULL FLOATING CAB(W16) L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9906-		●	●
279	BOLT (B) M12X40	9-92061-240-0	04	1	9603-9605	●	●	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9606-	●	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9705	●	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9706-9904	●	●	●
279	BOLT SAKHALIN EQUIPMENT(TLE) (A) M8X25 FLANGE	0-28680-825-0	02	1	9706-9904		●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-9905	●	●	●
279	BOLT SAKHALIN EQUIPMENT(TLE) EXC. ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-9905		●
279	BOLT ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	03	1	9906-	●	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9603-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9902-		●	●
279	BOLT FULL FLOATING CAB(W16) (G) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●	●
279	BOLT FULL FLOATING CAB(W16) (G) M8X20 FLANGE	0-28680-820-0	02	1	9607-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (G) M8X20 FLANGE	0-28680-820-0	02	1	9902-		●	●
279	BOLT FULL FLOATING CAB(W16) (H) M8X20 FLANGE	0-28080-820-0	06	1	9603-9606	●	●	●
279	BOLT FULL FLOATING CAB(W16) (H) M8X20 FLANGE	0-28680-820-0	06	1	9607-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (H) M8X20 FLANGE	0-28680-820-0	06	1	9902-		●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9603-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9902-		●	●
279	BOLT FULL FLOATING CAB(W16) (I) M8X25	1-09980-511-0	02	1	9603-9711	●	●	●
279	BOLT FULL FLOATING CAB(W16) (I) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9712-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (I) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9902-		●	●
279	BOLT 6WA1 TC-S(56L) FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●	●
279	BOLT 6WA1 TC-S(56L) FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	9607-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	9902-9904		●	●
279	BOLT L TYPE ENG<90L> FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	9905-		●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	02	1	9906-		●	●
279	BOLT SAKHALIN EQUIPMENT(TLE) EXC. ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9906-		●
279	BOLT 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) (H) M8X20 FLANGE	0-28080-820-0	03	1	9603-9606		●	●
279	BOLT 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) (H) M8X20 FLANGE	0-28680-820-0	03	1	9607-		●	●

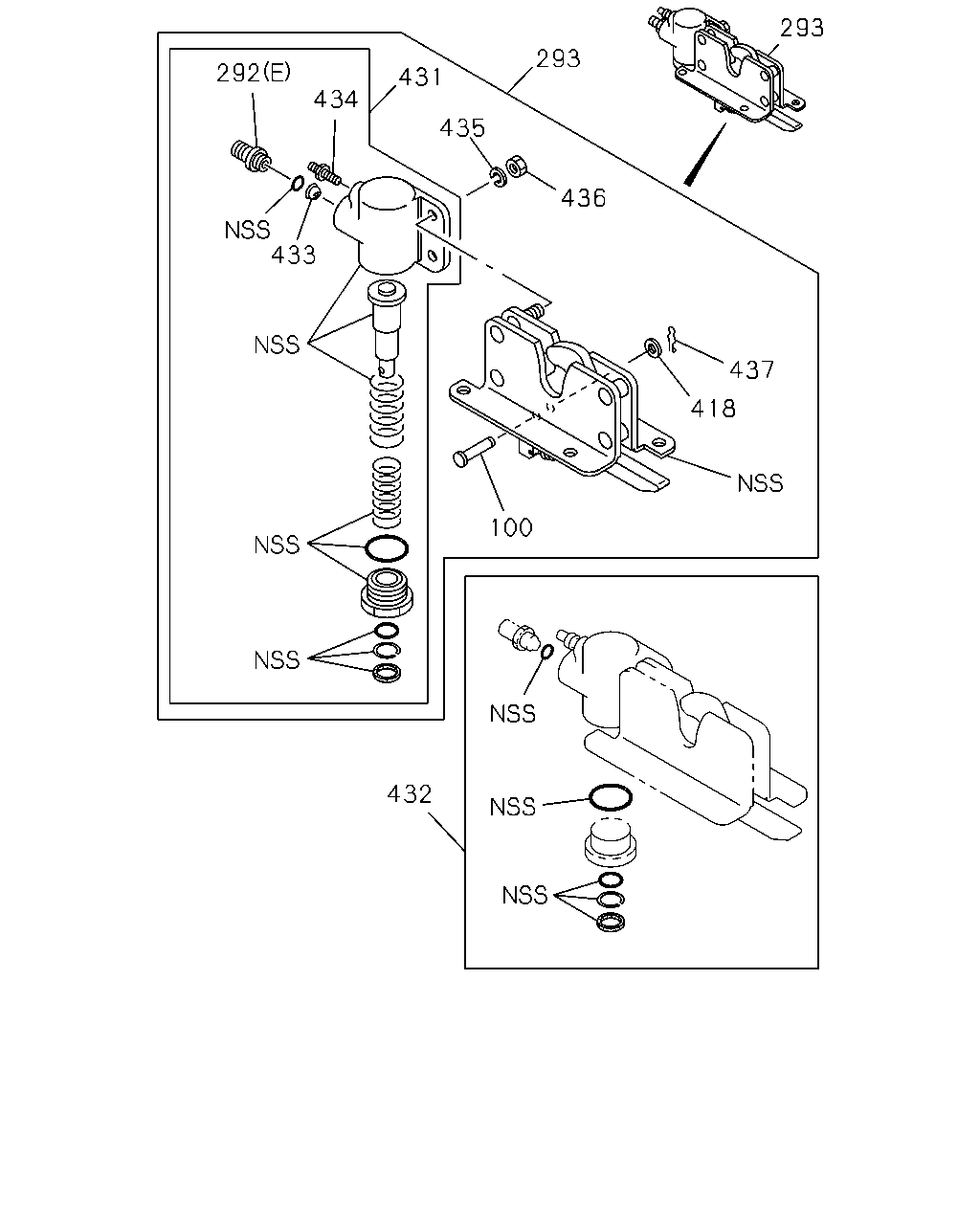

292	CONNECTOR; CAB SUSPENSION (E) M14	1-53458-047-0	01	1	9603-9902	●	●	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	9903-	●	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9603-9901	●	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9902-		●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-0	01	1	9603-9901	●	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	9902-		●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) ELBOW TRI LC6X4-R1/8	1-09660-760-0	01	1	9603-9901	●	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) ELBOW TRI LC6X4-R1/8	1-09660-760-1	01	1	9902-		●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-0	01	1	9603-9901	●	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	9902-		●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (F) PT1/8 ELBOW	8-94338-418-1	01	1	9905-		●	●
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	9603-	●	●	●
333	SPRING FULL FLOATING CAB(W16) (B) FRONT	1-52110-142-1	02	1	9603-9901	●	●	●
333	SPRING FULL FLOATING CAB(W16) (B) FRONT	1-52110-142-1	02	1	9902-		●	●
333	SPRING FULL FLOATING CAB(W16) (A) REAR	1-52110-143-1	02	1	9603-9901	●	●	●
333	SPRING FULL FLOATING CAB(W16) (A) REAR	1-52110-143-1	02	1	9902-		●	●
426	CLIP FULL FLOATING CAB(W16) (E) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9603-9901	●	●	●
426	CLIP FULL FLOATING CAB(W16) (E) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9902-9904		●	●
426	CLIP FULL FLOATING CAB(W16) (E) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9905-		●	●
426	CLIP FULL FLOATING CAB(W16) (C) ID=11 H=20 L=20	5-09700-351-0	02	1	9603-9901	●	●	●
426	CLIP FULL FLOATING CAB(W16) (C) ID=11 H=20 L=20	5-09700-351-0	02	1	9902-		●	●
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	9603-9901	●	●	●
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	9902-		●	●
426	CLIP 6WA1 TC-S(56L) FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9603-9901	●	●	●
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9902-9904		●	●
426	CLIP L TYPE ENG<90L> FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-		●	●
426	CLIP 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9603-9901		●	●
426	CLIP 6WA1 TC-C(55L) FULL FLOATING CAB(W16) (F) L=140	5-09707-031-1	01	1	9902-9904		●	●
426	CLIP 6WA1 TC-C(55L),6WG1 TC-R(75L) FULL FLOATING CAB(W16) (F) L=140	5-09707-031-1	01	1	9905-9905		●	●
426	CLIP ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB(W16) (F) L=140	5-09707-031-1	01	1	9906-		●	●
426	CLIP 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) (D) ID=7 L=20	9-09524-635-0	01	1	9603-9904		●	●
426	CLIP 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9905-		●	●
426	CLIP 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) (D) ID=7 L=20	9-09524-635-0	01	1	9905-		●	●
427	TUBE FULL FLOATING CAB(W16) (A) L=1300	1-09368-930-0	01	1	9603-9901	●	●	●
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9902-		●	●
427	TUBE FULL FLOATING CAB(W16) (B) L=1300	1-09368-930-0	01	1	9603-9901	●	●	●
427	TUBE FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9902-9904		●	●
427	TUBE FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9905-		●	●
427	TUBE CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) L=440 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9905-		●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	02	1	9902-		●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	02	1	9902-		●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	9902-		●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	02	1	9902-		●	●

293 309 244 240 243 321 321 300 299 298 297 295 299 237 301 55 299 55 301 291 294 300 296 55 274 213 24 201 212 175 183 211 274 66 173 188 174 288 183 189 449 188 175 279 289 264 287 288 290

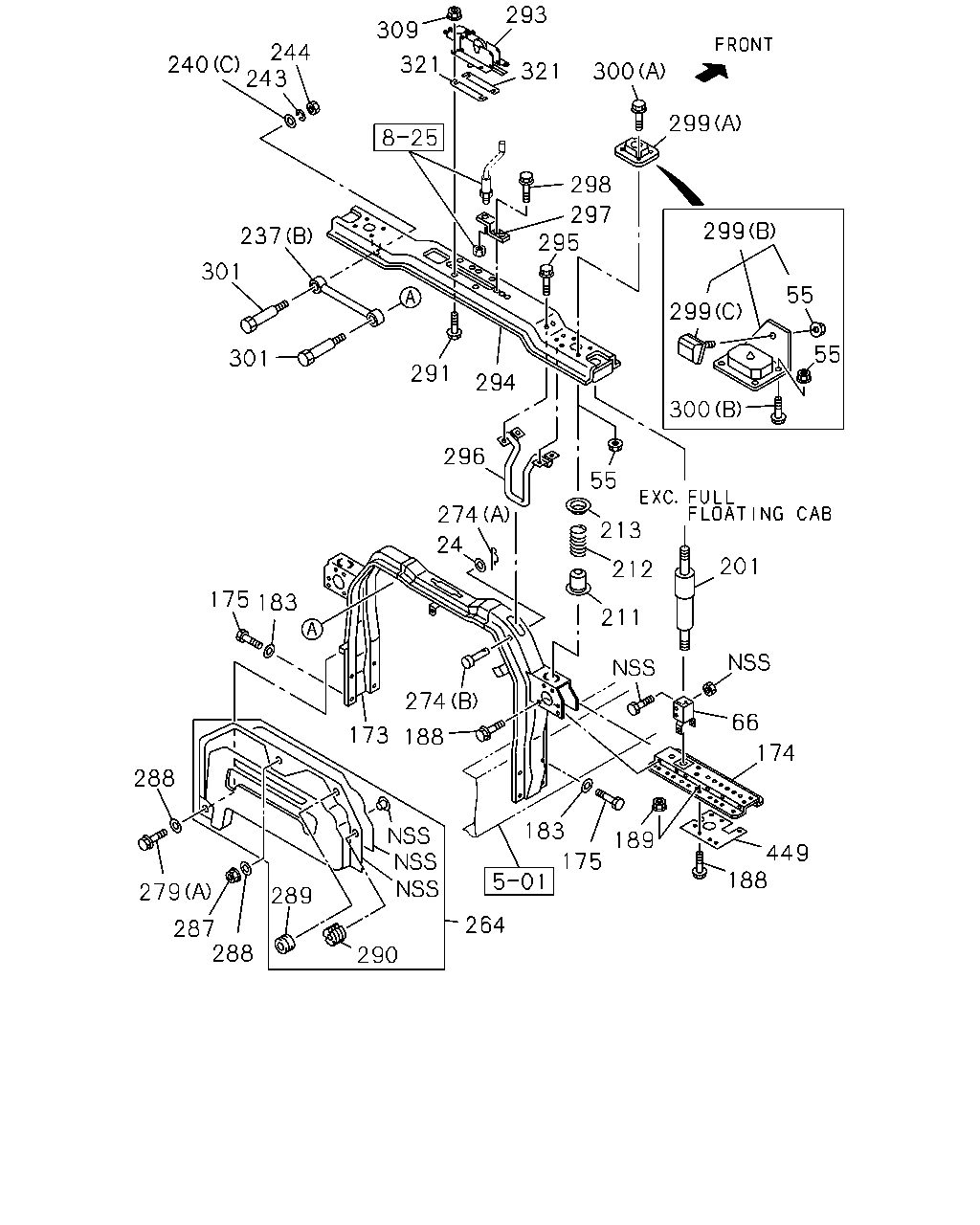

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	WASHER; PL ID=12.5	9-09160-512-0	01	1	9603-	●	●	●
55	NUT; RUBBER M8 FLANGE	0-91150-108-0	02	1	9603-9607	●	●	●
55	NUT; RUBBER M8 FLANGE	0-91150-108-0	06	1	9608-	●	●	●
55	NUT; RUBBER FULL FLOATING CAB(W16) M8	9-09110-508-0	04	1	9603-9603	●	●	●
55	NUT; RUBBER FULL FLOATING CAB(W16) M8	9-09110-408-0	08	1	9604-9606	●	●	●
55	NUT; RUBBER FULL FLOATING CAB(W16) M8 FLANGE	0-91150-108-0	08	1	9607-9607	●	●	●
55	NUT; RUBBER EXC. FULL FLOATING CAB(W16) M8	9-09110-408-0	04	1	9603-9606	●	●	●
55	NUT; RUBBER EXC. FULL FLOATING CAB(W16) M8 FLANGE	0-91150-108-0	04	1	9607-9607	●	●	●
66	BRACKET; S/ABS CAB UP +110MM<TGG>	1-53458-755-1	01	1	9902-	●	●	●
66	BRACKET; S/ABS CAB UP +110MM<TGG>	1-53458-786-0	01	1	9902-	●	●	●
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	1-53450-570-0	01	1	9603-9901	●	●	●
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG>	1-53450-570-0	01	1	9902-9903		●	●
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG>	1-53450-616-1	01	1	9904-		●	●
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-564-0	01	1	9603-9901	●	●	●
173	MEMBER; CAB MTG RR EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16)	1-53450-564-0	01	1	9902-9903	●	●	●
173	MEMBER; CAB MTG RR EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16)	1-53450-617-2	01	1	9904-	●	●	●
173	MEMBER; CAB MTG RR MIXER TRUCK<RA2> ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-623-0	01	1	9906-9908		●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-623-2	01	1	9909-		●	●
173	MEMBER; CAB MTG RR MIXER TRUCK<RA2> ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-624-0	01	1	9906-9908		●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-624-2	01	1	9909-	●	●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-610-0	01	1	9903-9903		●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-613-1	01	1	9904-9905		●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. MIXER TRUCK<RA2>	1-53450-613-1	01	1	9906-9908		●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-609-0	01	1	9903-9903		●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-615-1	01	1	9904-9904		●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-615-1	01	1	9905-9905	●	●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2>,FULL FLOATING CAB(W16)	1-53450-615-1	01	1	9906-9908	●	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-594-0	01	1	9902-9902		●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-594-0	01	1	9903-9903		●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-612-2	01	1	9904-		●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-595-0	01	1	9902-9902		●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-595-0	01	1	9903-9903		●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-614-2	01	1	9904-		●	●
174	OUTRIGGER	1-53456-270-0	02	1	9603-9607	●	●	●
174	OUTRIGGER	1-53456-278-3	01	1	9608-	●	●	●
174	OUTRIGGER	1-53456-277-3	01	1	9608-	●	●	●
175	BOLT; MEMBER TO FRAME M14X35	9-92061-435-0	08	1	9603-	●	●	●
183	WASHER; PL,MEMBER ID=15	9-09651-069-0	08	1	9603-	●	●	●
188	BOLT; OUTRIGGER M10X20 FLANGE	0-28081-020-0	08	1	9603-9606	●	●	●
188	BOLT; OUTRIGGER M10X20 FLANGE	0-28681-020-0	08	1	9607-9609	●	●	●
188	BOLT; OUTRIGGER M10X25 FLANGE	0-28681-025-0	08	1	9610-	●	●	●
188	BOLT; OUTRIGGER CAB UP +110MM<TGG> M10X20 FLANGE	0-28681-020-0	08	1	9902-	●	●	●
189	NUT; OUTRIGGER CAB UP +110MM<TGG> M10 FLANGE	0-91150-210-0	08	1	9902-	●	●	●
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-480-0	02	1	9603-9703	●	●	●
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-607-0	02	1	9704-	●	●	●
211	RUBBER; CUSHION,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-128-0	02	1	9603-	●	●	●
212	SPRING; COIL EXC. FULL FLOATING CAB(W16)	1-09580-515-0	02	1	9603-	●	●	●
213	SEAT; SPR,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-132-1	02	1	9603-	●	●	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	9603-	●	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A) REAR	1-33670-407-0	01	1	9603-9901	●	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A) REAR	1-33670-407-0	01	1	9902-		●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C) FRONT	1-33670-773-0	01	1	9603-9901	●	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C) FRONT	1-33670-773-0	01	1	9902-		●	●
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	9603-	●	●	●
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9603-	●	●	●
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	9706-	●	●	●
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	02	1	9603-	●	●	●
244	NUT; LATERAL ROD M12	9-99110-412-0	02	1	9603-9606	●	●	●
244	NUT; LATERAL ROD M12 FLANGE	0-91150-212-0	02	1	9607-9705	●	●	●
244	NUT; LATERAL ROD M12	9-99110-512-0	02	1	9706-	●	●	●
264	PANEL; BACK ANTI NOISE EQUIPMENT<SV9>	1-53192-606-1	01	1	9603-9705	●	●	●
264	PANEL; BACK ANTI NOISE EQUIPMENT<SV9>	1-53192-606-1	01	1	9706-9901	●	●	●
264	PANEL; BACK SAKHALIN EQUIPMENT(TLE)	1-53192-606-1	01	1	9706-9901		●
264	PANEL; BACK ANTI NOISE EQUIPMENT<SV9> EXC. MIXER TRUCK<RA2>	1-53192-606-1	01	1	9902-9904		●	●
264	PANEL; BACK ANTI NOISE EQUIPMENT<SV9> EXC. MIXER TRUCK<RA2>	1-53192-606-1	01	1	9905-9905	●	●	●
264	PANEL; BACK SAKHALIN EQUIPMENT(TLE) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53192-606-1	01	1	9905-9905		●
264	PANEL; BACK L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG>	1-53192-606-2	01	1	9906-		●	●
264	PANEL; BACK V TYPE ENG<91L> SAKHALIN EQUIPMENT(TLE) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53192-606-2	01	1	9906-			●
264	PANEL; BACK L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2>	1-53193-618-1	01	1	9906-	●	●	●
264	PANEL; BACK L TYPE ENG<90L> MIXER TRUCK<RA2> ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG>	1-53193-819-1	01	1	9906-		●
264	PANEL; BACK MIXER TRUCK<RA2> ANTI NOISE EQUIPMENT<SV9>	1-53193-390-0	01	1	9902-9904		●
264	PANEL; BACK L TYPE ENG<90L> MIXER TRUCK<RA2> ANTI NOISE EQUIPMENT<SV9>	1-53193-390-0	01	1	9905-9905		●
264	PANEL; BACK L TYPE ENG<90L> MIXER TRUCK<RA2> ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG>	1-53193-390-2	01	1	9906-		●
274	PIN (A) L=35.8 SNAP PIN	1-09987-158-1	01	1	9603-	●	●	●
274	PIN (B) OD=12 L=72 OD=12 L=72	9-08234-272-0	01	1	9603-	●	●	●
279	BOLT (B) M12X40	9-92061-240-0	04	1	9603-9605	●	●	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9606-	●	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9705	●	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9706-9904	●	●	●
279	BOLT SAKHALIN EQUIPMENT(TLE) (A) M8X25 FLANGE	0-28680-825-0	02	1	9706-9904		●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-9905	●	●	●
279	BOLT SAKHALIN EQUIPMENT(TLE) EXC. ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-9905		●
279	BOLT ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	03	1	9906-	●	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9603-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9902-		●	●
279	BOLT FULL FLOATING CAB(W16) (G) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●	●
279	BOLT FULL FLOATING CAB(W16) (G) M8X20 FLANGE	0-28680-820-0	02	1	9607-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (G) M8X20 FLANGE	0-28680-820-0	02	1	9902-		●	●
279	BOLT FULL FLOATING CAB(W16) (H) M8X20 FLANGE	0-28080-820-0	06	1	9603-9606	●	●	●
279	BOLT FULL FLOATING CAB(W16) (H) M8X20 FLANGE	0-28680-820-0	06	1	9607-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (H) M8X20 FLANGE	0-28680-820-0	06	1	9902-		●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9603-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9902-		●	●
279	BOLT FULL FLOATING CAB(W16) (I) M8X25	1-09980-511-0	02	1	9603-9711	●	●	●
279	BOLT FULL FLOATING CAB(W16) (I) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9712-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (I) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9902-		●	●
279	BOLT 6WA1 TC-S(56L) FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●	●
279	BOLT 6WA1 TC-S(56L) FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	9607-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	9902-9904		●	●
279	BOLT L TYPE ENG<90L> FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	9905-		●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	02	1	9906-		●	●
279	BOLT SAKHALIN EQUIPMENT(TLE) EXC. ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9906-		●
279	BOLT 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) (H) M8X20 FLANGE	0-28080-820-0	03	1	9603-9606		●	●
279	BOLT 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) (H) M8X20 FLANGE	0-28680-820-0	03	1	9607-		●	●
287	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9603-9705	●	●	●
287	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9706-9904	●	●	●
287	NUT SAKHALIN EQUIPMENT(TLE) M8 FLANGE	0-91150-108-0	01	1	9706-9904		●
287	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●
287	NUT SAKHALIN EQUIPMENT(TLE) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9905-		●
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26	9-09164-808-0	03	1	9603-9705	●	●	●
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26	9-09164-808-0	03	1	9706-9904	●	●	●
288	WASHER; PL SAKHALIN EQUIPMENT(TLE) ID=8.4 OD=26	9-09164-808-0	03	1	9706-9904		●
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26	9-09164-808-0	03	1	9905-9905	●	●	●
288	WASHER; PL SAKHALIN EQUIPMENT(TLE) EXC. ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26	9-09164-808-0	03	1	9905-9905		●
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> ID=8.4 OD=26	9-09164-808-0	04	1	9906-	●	●	●
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG> ID=8.4 OD=26	9-09164-808-0	03	1	9906-		●	●
288	WASHER; PL SAKHALIN EQUIPMENT(TLE) EXC. ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26	9-09164-808-0	03	1	9906-		●
289	GROMMET ANTI NOISE EQUIPMENT<SV9> OD=40 T=4.8	9-09576-198-0	01	1	9603-9705	●	●	●
289	GROMMET ANTI NOISE EQUIPMENT<SV9> OD=40 T=4.8	9-09576-198-0	01	1	9706-9904	●	●	●
289	GROMMET SAKHALIN EQUIPMENT(TLE) OD=40 T=4.8	9-09576-198-0	01	1	9706-9904		●
289	GROMMET ANTI NOISE EQUIPMENT<SV9> OD=40 T=4.8	9-09576-198-0	01	1	9905-	●	●	●
289	GROMMET SAKHALIN EQUIPMENT(TLE) EXC. ANTI NOISE EQUIPMENT<SV9> OD=40 T=4.8	9-09576-198-0	01	1	9905-		●
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	04	1	9603-9608	●	●	●
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	03	1	9609-9705	●	●	●
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	03	1	9706-9904	●	●	●
290	RUBBER; MTG SAKHALIN EQUIPMENT(TLE)	1-53459-702-1	03	1	9706-9904		●
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	03	1	9905-9905	●	●	●
290	RUBBER; MTG SAKHALIN EQUIPMENT(TLE) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	03	1	9905-9905		●
290	RUBBER; MTG L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG>	1-53459-702-1	04	1	9906-	●	●	●
290	RUBBER; MTG L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG>	1-53459-702-1	03	1	9906-		●	●
290	RUBBER; MTG V TYPE ENG<91L> SAKHALIN EQUIPMENT(TLE) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	03	1	9906-		●
291	BOLT; RATCH M10X20 FLANGE	0-28081-020-0	04	1	9603-9606	●	●	●
291	BOLT; RATCH M10X20 FLANGE	0-28681-020-0	04	1	9607-9609	●	●	●
291	BOLT; RATCH M10X25 FLANGE	0-28681-025-0	04	1	9610-	●	●	●
293	RATCH; CAB SUSP,RR	1-53458-346-0	01	1	9603-9705	●	●	●
293	RATCH; CAB SUSP,RR	1-53458-826-0	01	1	9706-9902	●	●	●
293	RATCH; CAB SUSP,RR	1-53458-923-0	01	1	9903-	●	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-561-4	01	1	9603-9607	●	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-692-1	01	1	9608-9803	●	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-737-0	01	1	9804-9901	●	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-737-2	01	1	9902-9903		●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-828-2	01	1	9904-		●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-629-3	01	1	9603-9607	●	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-695-1	01	1	9608-9803	●	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-740-2	01	1	9804-9903	●	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-831-2	01	1	9904-	●	●	●
295	BOLT; STOPPER,UPR M8X20 FLANGE	0-28080-820-0	04	1	9603-9606	●	●	●
295	BOLT; STOPPER,UPR M8X20 FLANGE	0-28680-820-0	04	1	9607-	●	●	●
296	STOPPER; UPR	1-53458-382-0	01	1	9603-	●	●	●
297	BRACKET; LIMIT SW	1-53458-348-0	01	1	9603-9901	●	●	●
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	9902-	●	●	●
298	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●	●
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9607-9901	●	●	●
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	9902-	●	●	●
299	RUBBER; MTG (A)	1-53366-130-1	02	1	9603-9603	●	●	●
299	RUBBER; MTG (B)	1-53366-156-0	02	1	9604-	●	●	●
299	RUBBER; MTG (C)	1-53366-155-0	02	1	9603-	●	●	●
300	BOLT; MTG RUBBER (A) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9603-9607	●	●	●
300	BOLT; MTG RUBBER (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9608-9612	●	●	●
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9701-9901	●	●	●
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9902-		●	●
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (A) M8X16 FLANGE	0-28080-816-0	04	1	9608-9901	●	●	●
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (A) M8X16 FLANGE	0-28080-816-0	04	1	9902-		●	●
300	BOLT; MTG RUBBER EXC. FULL FLOATING CAB(W16) (B) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9701-	●	●	●
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	9603-	●	●	●
309	NUT M10	9-09110-510-0	04	1	9603-9606	●	●	●
309	NUT M10 FLANGE	0-91150-210-0	04	1	9607-	●	●	●
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	9603-	●	●	●
449	BRACKET; OUTRIGGER CAB UP +110MM<TGG>	1-53456-279-0	02	1	9902-9904		●	●
449	BRACKET; OUTRIGGER CAB UP +110MM<TGG>	1-53456-279-0	02	1	9905-	●	●	●

146 144 145 72 73 69 72 72 71 105 99 112 146 144 69 145 240 72 73 72 67 31 192 71 105 65 240 98 192 112 31 120 31 118 27 315 315 113 113 118 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	9603-	●	●	●
27	BOLT; BUSHING (A) M18X100	9-91066-800-0	02	1	9603-0104	●	●	●
27	BOLT; BUSHING FULL FLOATING CAB(W16) (A) M18X100	9-91066-800-0	02	1	0105-		●	●
27	BOLT; BUSHING EXC. FULL FLOATING CAB(W16) (A) M18X90	9-91066-890-0	02	1	0105-	●	●	●
31	BRACKET; CAB (A)	1-44226-150-0	01	1	9603-9901	●	●	●
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-150-0	01	1	9902-		●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-673-1	01	1	9603-9901	●	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-673-1	01	1	9902-		●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	9603-9901	●	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	9902-		●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-2	01	1	9603-9901	●	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	9902-		●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-281-0	01	1	9603-9901	●	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-281-1	01	1	9902-		●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	9603-	●	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-280-1	01	1	9603-	●	●	●
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-156-0	01	1	9902-	●	●	●
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-472-0	02	1	9603-9610	●	●	●
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-546-0	02	1	9611-9703	●	●	●
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-603-0	02	1	9704-	●	●	●
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-112-0	02	1	9603-9606	●	●	●
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-212-0	02	1	9607-	●	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	9603-	●	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	9603-	●	●	●
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	9603-	●	●	●
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	28	1	9603-	●	●	●
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	9603-	●	●	●
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	9603-	●	●	●
99	BOLT; BRKT M10X30 FLANGE	0-28081-030-0	02	1	9603-9606	●	●	●
99	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9607-	●	●	●
105	BOLT; BRKT TO CAB FRAME M10X30	1-09980-546-0	15	1	9603-	●	●	●
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53450-569-4	01	1	9603-9901	●	●	●
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53450-569-6	01	1	9902-		●	●
112	ARM ASM; LINK,CAB FRT SUSP EXC. FULL FLOATING CAB(W16)	1-53450-567-6	01	1	9603-	●	●	●
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (A) ID=32 OD=70	1-53458-333-3	02	1	9603-	●	●	●
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (B) ID=32 OD=70	1-53458-714-0	02	1	9603-	●	●	●
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	9603-	●	●	●
120	NUT; STOPPER RUBBER,LINK ARM M18	9-99110-518-0	02	1	9603-	●	●	●
144	SPRING; COIL,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-09580-537-0	02	1	9603-	●	●	●
145	RUBBER; CUSHION,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-139-0	02	1	9603-	●	●	●
146	SEAT; SPRING,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-138-0	02	1	9603-	●	●	●
192	NUT; BRKT FIX M10	1-09984-142-0	04	1	9603-	●	●	●
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	9603-	●	●	●
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9603-	●	●	●
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	9706-	●	●	●
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	9603-	●	●	●

202 202 203 204 205 201 204 203 203 204 205 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-480-0	02	1	9603-9703	●	●	●
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-607-0	02	1	9704-	●	●	●
202	NUT; S/ABS (A) M10	9-09110-410-0	06	1	9603-9610	●	●	●
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	9611-	●	●	●
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	9603-	●	●	●
202	NUT; S/ABS (A) M10 FLANGE	0-91150-110-0	02	1	9611-	●	●	●
203	WASHER; RUBBER,SHOCK ID=10.5 OD=38 T=6	1-51631-005-0	12	1	9603-9610	●	●	●
203	WASHER; RUBBER,SHOCK ID=10.5 OD=38 T=6	1-51631-005-0	10	1	9611-	●	●	●
203	WASHER; RUBBER,SHOCK ID=10 OD=38 T=5	1-51631-104-0	02	1	9611-	●	●	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	9603-	●	●	●
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	9603-	●	●	●

447 410 41 411 411 410 411 141 141 93 137 140 137 140 279 136 345 30 12 228 17 12 21 279 228 31 345 1 12 17 12 21 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BRACKET; CAB MTG	1-53453-275-0	01	1	9603-9901	●	●	●
1	BRACKET; CAB MTG EXC. CAB UP +110MM<TGG>	1-53453-275-1	01	1	9902-		●	●
1	BRACKET; CAB MTG CAB UP +110MM<TGG>	1-53453-306-1	01	1	9902-	●	●	●
12	WASHER; LK,BRKT ID=15	9-09651-069-0	11	1	9603-9901	●	●	●
12	WASHER; LK,BRKT EXC. CAB UP +110MM<TGG> ID=15	9-09651-069-0	11	1	9902-		●	●
12	WASHER; LK,BRKT CAB UP +110MM<TGG> ID=16.2	1-09503-223-0	11	1	9902-	●	●	●
17	NUT; BRKT,CAB TILT M14	9-99110-514-0	01	1	9603-9901	●	●	●
17	NUT; BRKT,CAB TILT EXC. CAB UP +110MM<TGG> M14	9-99110-514-0	01	1	9902-		●	●
17	NUT; BRKT,CAB TILT CAB UP +110MM<TGG> M16	9-99110-516-0	01	1	9902-	●	●	●
21	STUD; BRKT,CAB TILT (A) M14X48 L=75	1-09300-094-0	01	1	9603-9901	●	●	●
21	STUD; BRKT,CAB TILT EXC. CAB UP +110MM<TGG> (A) M14X48 L=75	1-09300-094-0	01	1	9902-		●	●
21	STUD; BRKT,CAB TILT CAB UP +110MM<TGG> (A) M16X50 L=74	1-09300-117-0	01	1	9902-9904		●	●
21	STUD; BRKT,CAB TILT CAB UP +110MM<TGG> (A) M16X50 L=74	1-09300-117-0	01	1	9905-	●	●	●
21	STUD; BRKT,CAB TILT TRANSMISSION OIL COOLER<C2C> CAB UP +110MM<TGG> ISUZU M/T<X9A> (B) M10X20,M16X50 L=81	1-09029-069-0	02	1	9902-	●	●	●
30	BOLT; CAB FRT FOOT M14X45	9-92061-445-0	10	1	9603-9901	●	●	●
30	BOLT; CAB FRT FOOT EXC. CAB UP +110MM<TGG> M14X45	9-92061-445-0	10	1	9902-		●	●
30	BOLT; CAB FRT FOOT CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. TRANSMISSION OIL COOLER<C2C> M16X45	9-92061-645-0	10	1	9902-		●	●
30	BOLT; CAB FRT FOOT CAB UP +110MM<TGG> ZF M/T<X9E> M16X45	9-92061-645-0	10	1	9902-		●	●
30	BOLT; CAB FRT FOOT TRANSMISSION OIL COOLER<C2C> CAB UP +110MM<TGG> ISUZU M/T<X9A> M16X45	9-92061-645-0	08	1	9902-	●	●	●
31	BRACKET; CAB (A)	1-44226-150-0	01	1	9603-9901	●	●	●
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-150-0	01	1	9902-		●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-673-1	01	1	9603-9901	●	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-673-1	01	1	9902-		●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	9603-9901	●	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	9902-		●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-2	01	1	9603-9901	●	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	9902-		●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-281-0	01	1	9603-9901	●	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-281-1	01	1	9902-		●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	9603-	●	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-280-1	01	1	9603-	●	●	●
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-156-0	01	1	9902-	●	●	●
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91150-112-0	01	1	9603-9606	●	●	●
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91150-212-0	01	1	9607-9901	●	●	●
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91150-212-0	01	1	9902-		●	●
41	NUT 6WA1 TC-S(56L) FULL FLOATING CAB(W16) (B) M8	9-09110-508-0	01	1	9603-9606	●	●	●
41	NUT 6WA1 TC-S(56L) FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91150-108-0	01	1	9607-9901	●	●	●
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91150-108-0	01	1	9902-9904		●	●
41	NUT L TYPE ENG<90L> FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91150-108-0	01	1	9905-		●	●
93	BOLT; PIN M10X20 W/LK WASHER	0-50041-020-0	01	1	9603-9606	●	●	●
93	BOLT; PIN M10X20 FLANGE	0-28681-020-0	01	1	9607-9901	●	●	●
93	BOLT; PIN EXC. CAB UP +110MM<TGG> M10X20 FLANGE	0-28681-020-0	01	1	9902-		●	●
93	BOLT; PIN CAB UP +110MM<TGG> M10X30	1-09000-283-0	01	1	9902-	●	●	●
136	BRACKET; OIL CYL	1-53458-653-0	01	1	9603-9901	●	●	●
136	BRACKET; OIL CYL EXC. CAB UP +110MM<TGG>	1-53458-653-0	01	1	9902-		●	●
136	BRACKET; OIL CYL CAB UP +110MM<TGG>	1-53458-903-0	01	1	9902-	●	●	●
137	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	9603-	●	●	●
140	NUT; BRKT M14	9-99110-514-0	02	1	9603-	●	●	●
141	BOLT; BRKT M14X50	9-92061-450-0	04	1	9603-	●	●	●
228	WASHER; PL ID=12.5	9-09164-512-0	04	1	9603-9605	●	●	●
279	BOLT (B) M12X40	9-92061-240-0	04	1	9603-9605	●	●	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9606-	●	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9705	●	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9706-9904	●	●	●
279	BOLT SAKHALIN EQUIPMENT(TLE) (A) M8X25 FLANGE	0-28680-825-0	02	1	9706-9904		●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-9905	●	●	●
279	BOLT SAKHALIN EQUIPMENT(TLE) EXC. ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-9905		●
279	BOLT ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	03	1	9906-	●	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9603-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9902-		●	●
279	BOLT FULL FLOATING CAB(W16) (G) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●	●
279	BOLT FULL FLOATING CAB(W16) (G) M8X20 FLANGE	0-28680-820-0	02	1	9607-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (G) M8X20 FLANGE	0-28680-820-0	02	1	9902-		●	●
279	BOLT FULL FLOATING CAB(W16) (H) M8X20 FLANGE	0-28080-820-0	06	1	9603-9606	●	●	●
279	BOLT FULL FLOATING CAB(W16) (H) M8X20 FLANGE	0-28680-820-0	06	1	9607-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (H) M8X20 FLANGE	0-28680-820-0	06	1	9902-		●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9603-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9902-		●	●
279	BOLT FULL FLOATING CAB(W16) (I) M8X25	1-09980-511-0	02	1	9603-9711	●	●	●
279	BOLT FULL FLOATING CAB(W16) (I) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9712-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (I) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9902-		●	●
279	BOLT 6WA1 TC-S(56L) FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●	●
279	BOLT 6WA1 TC-S(56L) FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	9607-9901	●	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	9902-9904		●	●
279	BOLT L TYPE ENG<90L> FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	9905-		●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	02	1	9906-		●	●
279	BOLT SAKHALIN EQUIPMENT(TLE) EXC. ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9906-		●
279	BOLT 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) (H) M8X20 FLANGE	0-28080-820-0	03	1	9603-9606		●	●
279	BOLT 8PE1S(59L),10PE1S(60L) FULL FLOATING CAB(W16) (H) M8X20 FLANGE	0-28680-820-0	03	1	9607-		●	●
345	CAP; CAB	1-53458-336-3	02	1	9603-	●	●	●
410	REINFORCEMENT; CAB TILT (A)	1-62570-864-0	01	1	9603-	●	●	●
410	REINFORCEMENT; CAB TILT (B)	1-62570-939-0	01	1	9603-	●	●	●
411	BOLT; REINFORCEMENT M8X24.5 W/LK&PL WASHER	8-94279-208-0	06	1	9603-	●	●	●
411	BOLT; REINFORCEMENT M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9603-	●	●	●
447	SEAL OD=25 BLACK	1-76798-019-0	02	1	9603-	●	●	●

293 293 292 431 434 435 436 433 437 418 100 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
100	PIN; JOINT	1-53458-527-0	01	1	9603-9705	●	●	●
100	PIN; JOINT	1-53458-831-0	01	1	9706-	●	●	●
292	CONNECTOR; CAB SUSPENSION (E) M14	1-53458-047-0	01	1	9603-9902	●	●	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	9903-	●	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9603-9901	●	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9902-		●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-0	01	1	9603-9901	●	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	9902-		●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) ELBOW TRI LC6X4-R1/8	1-09660-760-0	01	1	9603-9901	●	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) ELBOW TRI LC6X4-R1/8	1-09660-760-1	01	1	9902-		●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-0	01	1	9603-9901	●	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	9902-		●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (F) PT1/8 ELBOW	8-94338-418-1	01	1	9905-		●	●
293	RATCH; CAB SUSP,RR	1-53458-346-0	01	1	9603-9705	●	●	●
293	RATCH; CAB SUSP,RR	1-53458-826-0	01	1	9706-9902	●	●	●
293	RATCH; CAB SUSP,RR	1-53458-923-0	01	1	9903-	●	●	●
418	WASHER; PL,PIN	1-53458-059-0	01	1	9603-	●	●	●
431	CYLINDER; AIR,RATCH	1-53458-539-0	01	1	9603-9902	●	●	●
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	9903-	●	●	●
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	9603-	●	●	●
433	FILTER; AIR CYL	1-53458-048-0	01	1	9603-	●	●	●
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	9603-	●	●	●
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	9603-	●	●	●
436	NUT; AIR CYL	1-53458-528-0	02	1	9603-	●	●	●
437	PIN; SNAP	1-53458-526-0	01	1	9603-	●	●	●

300 299 299 55 299 55 333 55 300 300 325 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
55	NUT; RUBBER M8 FLANGE	0-91150-108-0	02	1	9603-9607	●	●	●
55	NUT; RUBBER M8 FLANGE	0-91150-108-0	06	1	9608-	●	●	●
55	NUT; RUBBER FULL FLOATING CAB(W16) M8	9-09110-508-0	04	1	9603-9603	●	●	●
55	NUT; RUBBER FULL FLOATING CAB(W16) M8	9-09110-408-0	08	1	9604-9606	●	●	●
55	NUT; RUBBER FULL FLOATING CAB(W16) M8 FLANGE	0-91150-108-0	08	1	9607-9607	●	●	●
55	NUT; RUBBER EXC. FULL FLOATING CAB(W16) M8	9-09110-408-0	04	1	9603-9606	●	●	●
55	NUT; RUBBER EXC. FULL FLOATING CAB(W16) M8 FLANGE	0-91150-108-0	04	1	9607-9607	●	●	●
220	GUIDE; SPR FULL FLOATING CAB(W16)	1-53458-648-1	02	1	9603-9901	●	●	●
220	GUIDE; SPR FULL FLOATING CAB(W16)	1-53458-648-1	02	1	9902-		●	●
299	RUBBER; MTG (A)	1-53366-130-1	02	1	9603-9603	●	●	●
299	RUBBER; MTG (B)	1-53366-156-0	02	1	9604-	●	●	●
299	RUBBER; MTG (C)	1-53366-155-0	02	1	9603-	●	●	●
300	BOLT; MTG RUBBER (A) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9603-9607	●	●	●
300	BOLT; MTG RUBBER (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9608-9612	●	●	●
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9701-9901	●	●	●
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9902-		●	●
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (A) M8X16 FLANGE	0-28080-816-0	04	1	9608-9901	●	●	●
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (A) M8X16 FLANGE	0-28080-816-0	04	1	9902-		●	●
300	BOLT; MTG RUBBER EXC. FULL FLOATING CAB(W16) (B) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9701-	●	●	●
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●	●
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28680-820-0	02	1	9607-9901	●	●	●
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28680-820-0	02	1	9902-		●	●
333	SPRING FULL FLOATING CAB(W16) (B) FRONT	1-52110-142-1	02	1	9603-9901	●	●	●
333	SPRING FULL FLOATING CAB(W16) (B) FRONT	1-52110-142-1	02	1	9902-		●	●
333	SPRING FULL FLOATING CAB(W16) (A) REAR	1-52110-143-1	02	1	9603-9901	●	●	●
333	SPRING FULL FLOATING CAB(W16) (A) REAR	1-52110-143-1	02	1	9902-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
