Isuzu WW
▶
TRUCKS
▶
NPR
▶
51295 - NPR/NQR BUS CHA(RHD)
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶
0-10 — CYLINDER HEAD COVER
(#54078) — 23 parça
Tümü

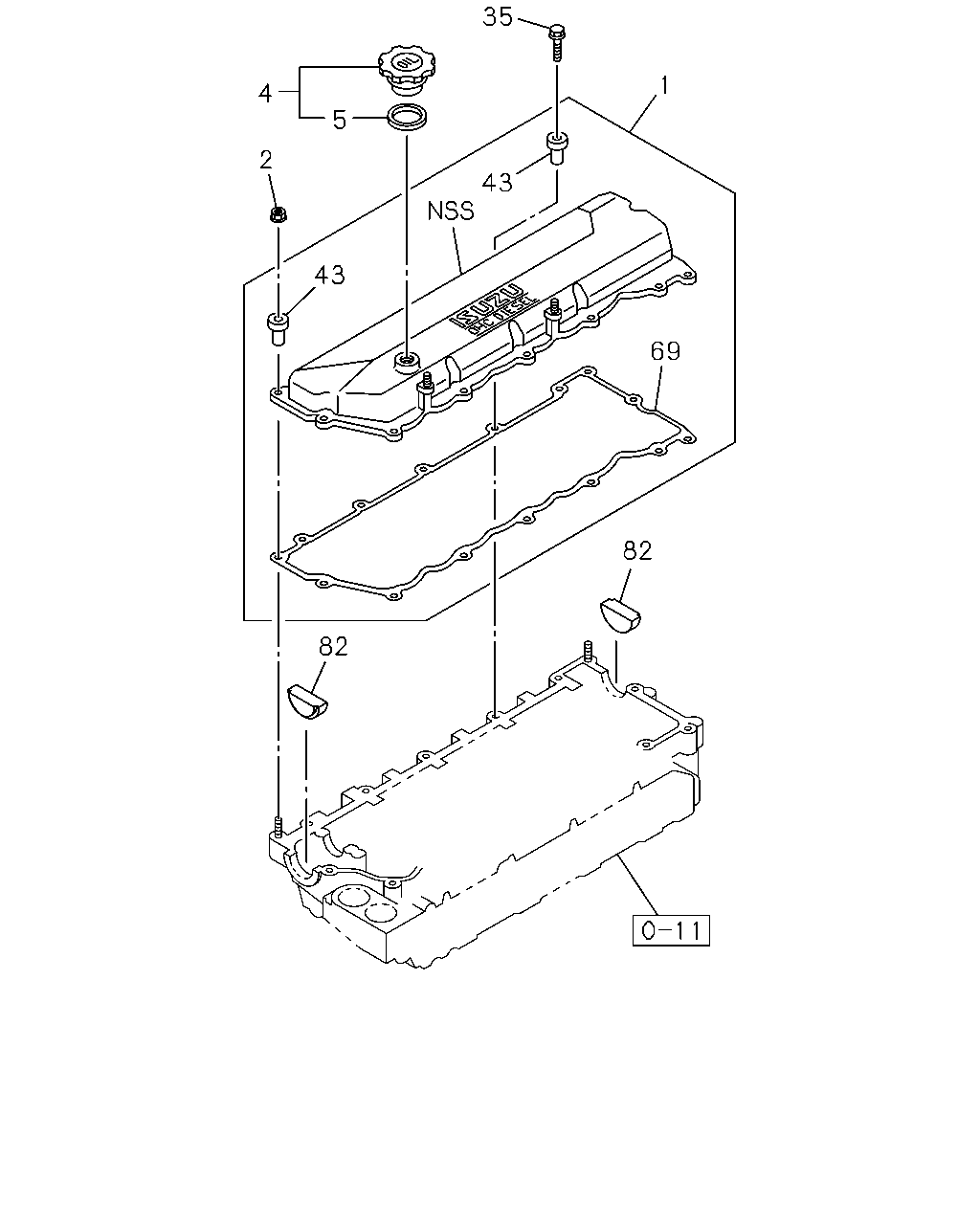

A - 4HG1 ENG

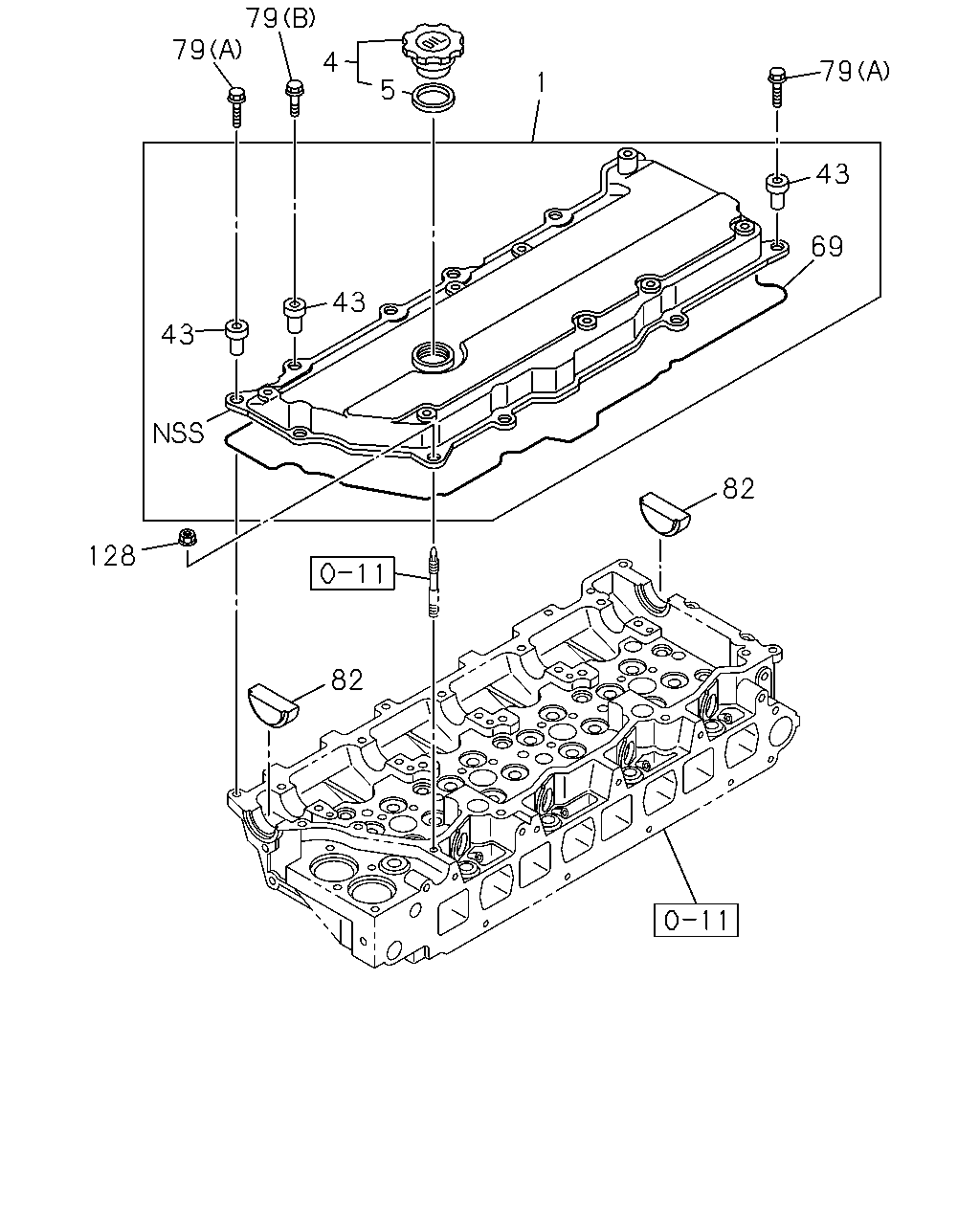

B - 4HK1-TCN ENG
◀
[010A] 4HG1 (11 parça)
[010A] 4HK1 (12 parça)
▶
35
1
4
5
2
43
43
69
82
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
00.386 COVER; CYL HD
8-98171-615-0
01
1
1012-
●
1
00.386 COVER; CYL HD
8-97331-361-2
01
1
1012-
●
2
00.413 NUT; COVER,HD
01.062 M8 FLANGE
0-91180-108-0
02
1
1012-
●
4
01.758 CAP; OIL FILLER
8-94133-207-5
01
1
1012-
●
●
5
01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40
8-94123-623-1
01
1
1012-
●
●
35
00.293 BOLT; NOISE SHIELD COVER
03.403 M8X30 FLANGE
0-28650-830-0
13
1
1012-
●
43
00.413 RUBBER; MTG,HD COVER,OUTER
03.265 OD=23
8-97105-689-6
15
1
1012-
●
43
00.413 RUBBER; MTG,HD COVER,OUTER
OD=22
8-94395-684-0
11
1
1012-
●
69
00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97105-690-2
01
1
1012-
●
69
00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97331-359-1
01
1
1012-
●
82
00.386 PLUG; CYL HD COVER
8-98163-813-0
02
1
1012-
●
●
79
79
4
5
1
79
43
69
82
82
128
43
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
00.386 COVER; CYL HD
8-98171-615-0
01
1
1012-
●
1
00.386 COVER; CYL HD
8-97331-361-2
01
1
1012-
●
4
01.758 CAP; OIL FILLER
8-94133-207-5
01
1
1012-
●
●
5
01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40
8-94123-623-1
01
1
1012-
●
●
43
00.413 RUBBER; MTG,HD COVER,OUTER
03.265 OD=23
8-97105-689-6
15
1
1012-
●
43
00.413 RUBBER; MTG,HD COVER,OUTER
OD=22
8-94395-684-0
11
1
1012-
●
69
00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97105-690-2
01
1
1012-
●
69
00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97331-359-1
01
1
1012-
●
79
00.293 BOLT; COVER
01.060 (B) M8X35 FLANGE
0-28650-835-0
02
1
1012-
●
79
00.293 BOLT; COVER
01.097 (A) M8X65 FLANGE
1-09044-072-1
07
1
1012-
●
82
00.386 PLUG; CYL HD COVER
8-98163-813-0
02
1
1012-
●
●
128
00.413 NUT; COVER,CYL HEAD COVER
01.062 M8 FLANGE
0-91180-108-0
02
1
1012-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
