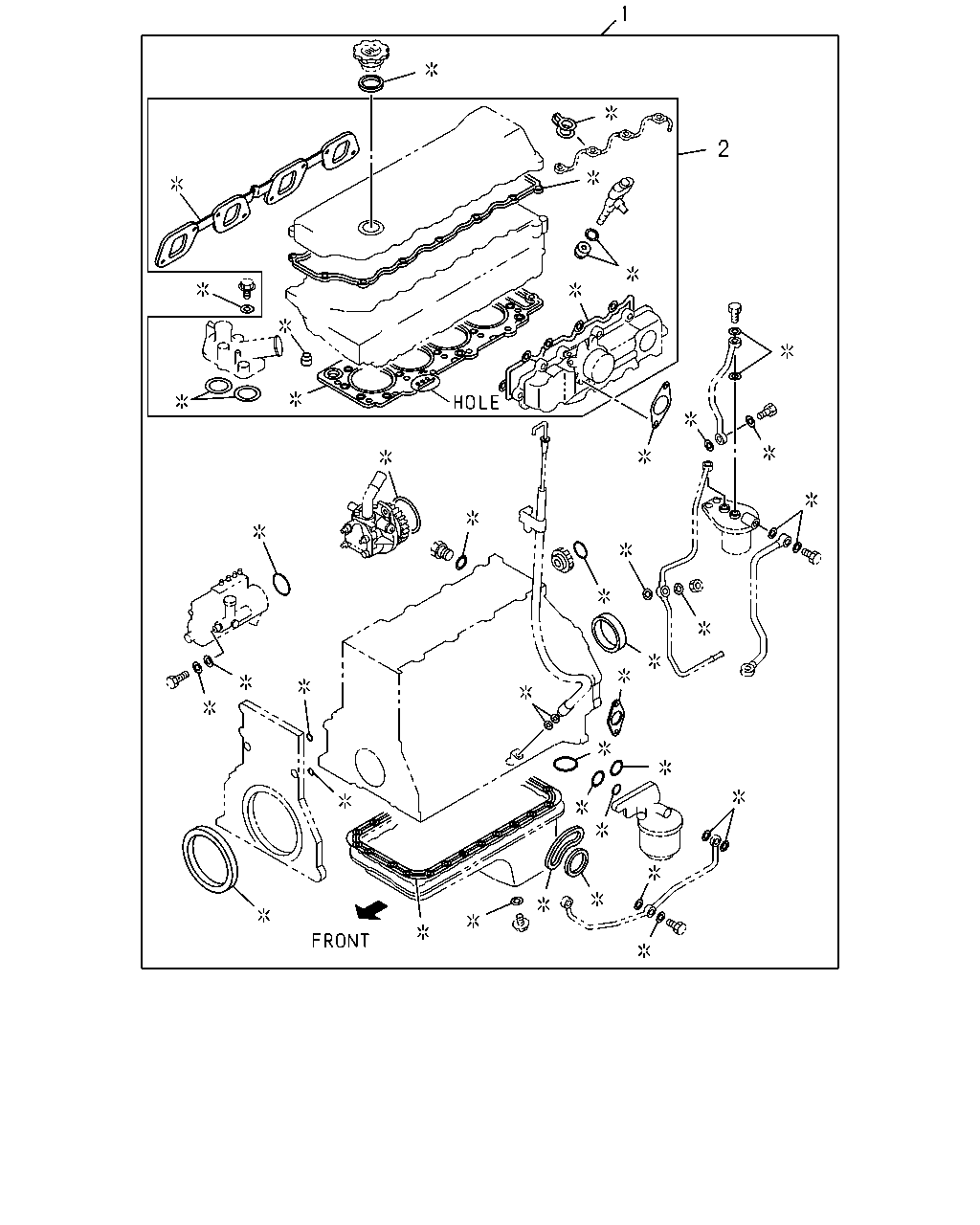

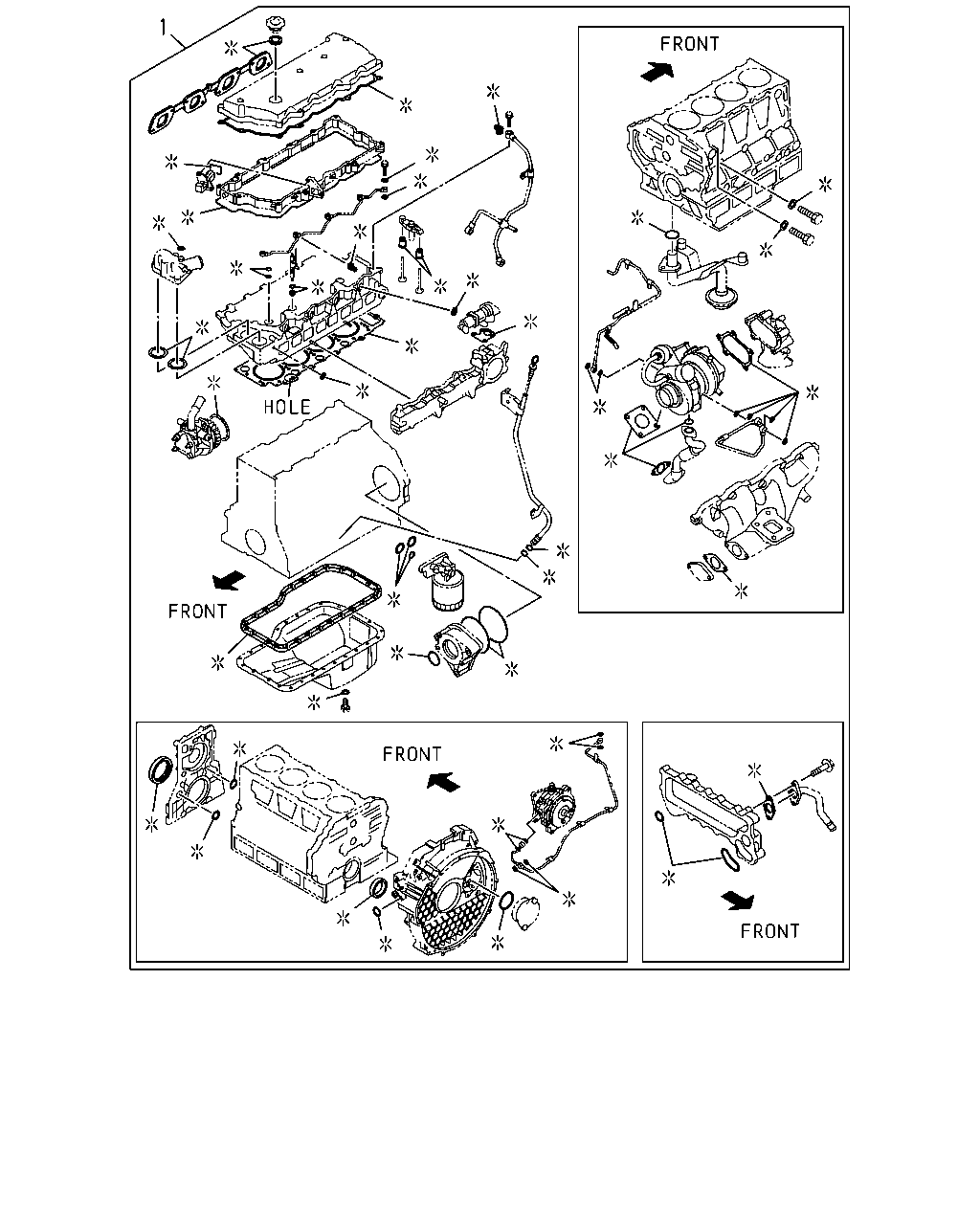

0-05 — ENGINE GASKET KIT (#54077) — 66 parça

1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-653-2	01	1	1012-1312	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87817-029-1	01	1	1401-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-654-2	01	1	1012-1312	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87817-030-1	01	1	1401-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-655-2	01	1	1012-1312	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87817-031-1	01	1	1401-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-810-0	01	1	1012-1101		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-952-2	01	1	1102-1312		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87817-044-0	01	1	1401-1501		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87817-762-0	01	1	1502-1505		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87817-957-0	01	1	1506-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-811-0	01	1	1012-1101		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-953-2	01	1	1102-1312		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87817-045-0	01	1	1401-1501		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87817-763-0	01	1	1502-1505		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87817-958-0	01	1	1506-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-812-0	01	1	1012-1101		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-954-2	01	1	1102-1312		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87817-046-0	01	1	1401-1501		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87817-764-0	01	1	1502-1505		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87817-959-0	01	1	1506-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87815-656-2	01	1	1012-1312	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87817-035-1	01	1	1401-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87815-657-2	01	1	1012-1312	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87817-036-1	01	1	1401-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87815-658-2	01	1	1012-1312	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87817-037-1	01	1	1401-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87815-532-3	01	1	1012-1505		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87817-993-0	01	1	1506-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87815-533-3	01	1	1012-1505		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87817-994-0	01	1	1506-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87815-534-3	01	1	1012-1505		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87817-995-0	01	1	1506-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87815-656-2	01	1	1012-1312	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87817-035-1	01	1	1401-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87815-657-2	01	1	1012-1312	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87817-036-1	01	1	1401-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87815-658-2	01	1	1012-1312	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87817-037-1	01	1	1401-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87815-532-3	01	1	1012-1505		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87817-993-0	01	1	1506-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87815-533-3	01	1	1012-1505		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87817-994-0	01	1	1506-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87815-534-3	01	1	1012-1505		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87817-995-0	01	1	1506-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-653-2	01	1	1012-1312	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87817-029-1	01	1	1401-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-654-2	01	1	1012-1312	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87817-030-1	01	1	1401-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-655-2	01	1	1012-1312	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87817-031-1	01	1	1401-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-810-0	01	1	1012-1101		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-952-2	01	1	1102-1312		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87817-044-0	01	1	1401-1501		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87817-762-0	01	1	1502-1505		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87817-957-0	01	1	1506-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-811-0	01	1	1012-1101		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-953-2	01	1	1102-1312		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87817-045-0	01	1	1401-1501		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87817-763-0	01	1	1502-1505		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87817-958-0	01	1	1506-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-812-0	01	1	1012-1101		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-954-2	01	1	1102-1312		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87817-046-0	01	1	1401-1501		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87817-764-0	01	1	1502-1505		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87817-959-0	01	1	1506-		●
