8-90 — RADIO AND TV (#54074) — 30 parça

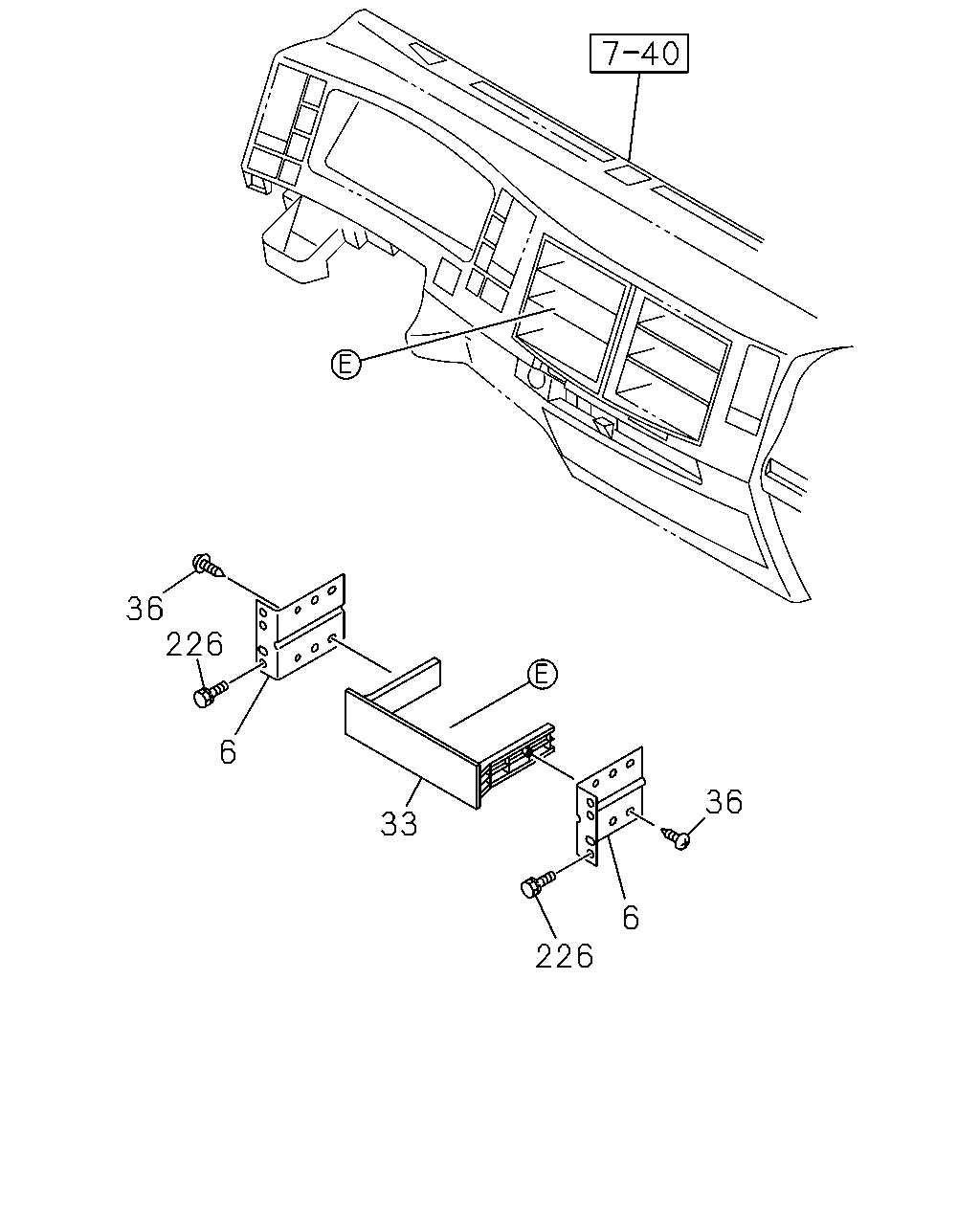

çizim 175117
36 226 6 36 33 6 226
BalonParca AdiParca NoAdetTipApplied Date A B
6 09.645 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 1012-1303 ●
6 09.645 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 1304- ● ●
33 09.650 COVER; RADIO
BLACK 		8-97407-896-2 01 1 1012-1303 ●
33 09.650 COVER; RADIO
BLACK 		8-97407-896-2 01 1 1304- ● ●
36 09.779 SCREW; COVER
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1012-1303 ●
36 09.779 SCREW; COVER
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1304- ● ●
226 09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 1012-1012 ●
226 09.647 BOLT; BRKT
16.100 M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 02 1 1101-1212 ●
226 09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 1301-1303 ●
226 09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 1304- ● ●

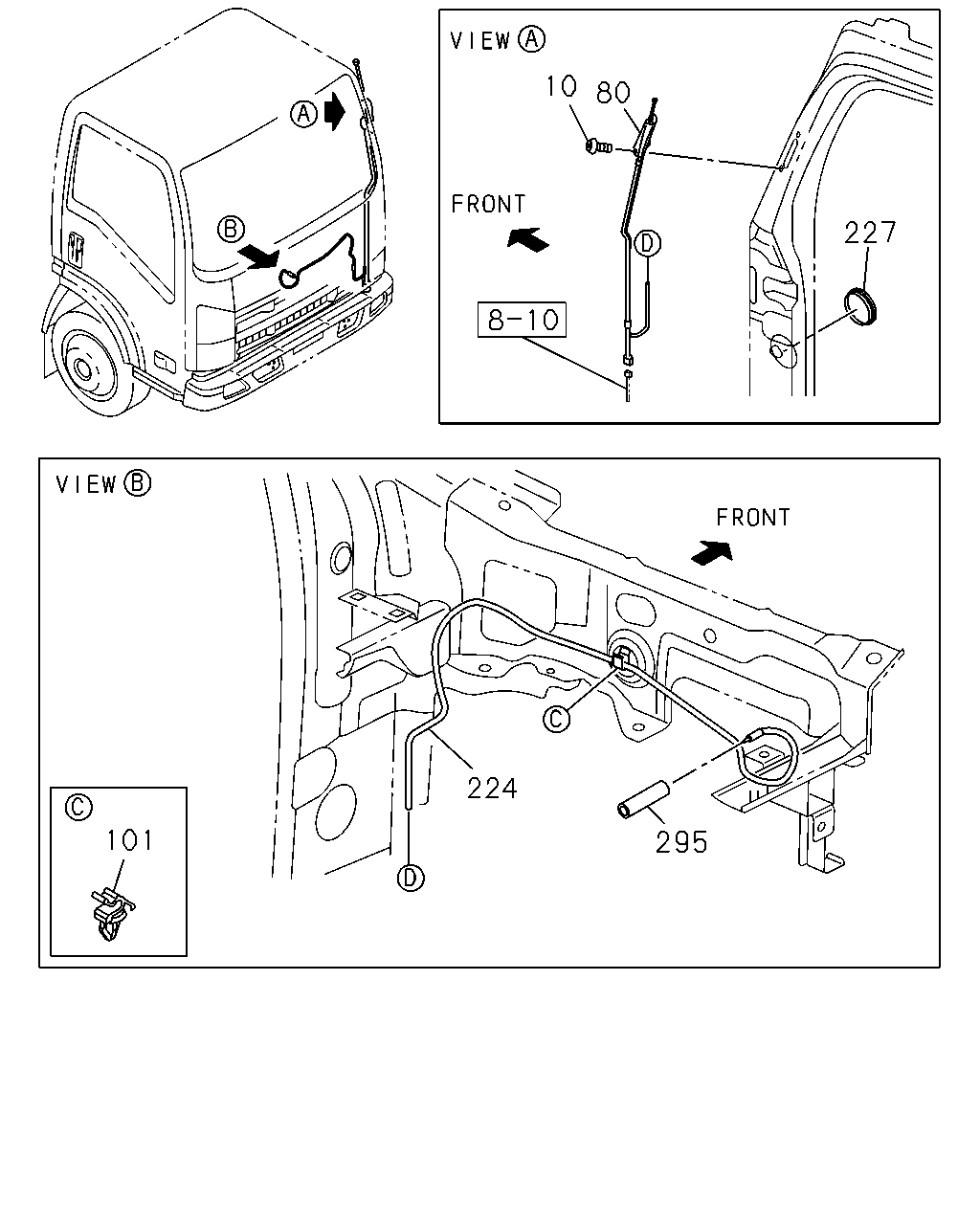

çizim 175128
10 80 227 224 101 295
BalonParca AdiParca NoAdetTipApplied Date A B
10 09.647 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES 		8-98061-742-0 02 1 1012-1303 ●
10 09.647 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES 		8-98061-742-0 02 1 1304- ● ●
80 09.645 ANTENNA 8-97387-265-3 01 1 1012-1303 ●
80 09.645 ANTENNA 8-97387-265-3 01 1 1304- ● ●
101 09.649 CLIP; FEEDER TO BRKT
04.342 ID=6.5 		5-09709-117-0 01 1 1012-1303 ●
101 09.649 CLIP; FEEDER TO BRKT
04.342 ID=6.5 		5-09709-117-0 01 1 1304- ● ●
224 09.647 CABLE; EXT,FEEDER
4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98029-970-1 01 1 1012-1012 ●
224 09.647 CABLE; EXT,FEEDER
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98029-970-1 01 1 1012-1012 ●
224 09.647 CABLE; EXT,FEEDER
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98029-970-1 01 1 1012-1212 ●
224 09.647 CABLE; EXT,FEEDER
4HG1 ENG(RJH) 		8-98029-970-1 01 1 1012-1212 ●
224 09.647 CABLE; EXT,FEEDER 8-98029-970-1 01 1 1301-1303 ●
224 09.647 CABLE; EXT,FEEDER 8-98029-970-1 01 1 1304-1503 ●
224 09.647 CABLE; EXT,FEEDER
4HK1-TCN ENG(RDQ) 		8-98029-970-1 01 1 1304-1503 ●
224 09.647 CABLE; EXT,FEEDER
4HG1 ENG(RJH) EXC. FAST GLOW SYSTEM<KM6> 		8-98029-970-1 01 1 1504- ●
224 09.647 CABLE; EXT,FEEDER 8-98029-970-1 01 1 1504- ●
224 09.647 CABLE; EXT,FEEDER
4HK1-TCN ENG(RDQ) 		8-98029-970-1 01 1 1504- ●
227 09.647 PROTECTOR; EDGE 8-98053-117-0 01 1 1012-1303 ●
227 09.647 PROTECTOR; EDGE 8-98053-117-0 01 1 1304- ● ●
295 09.665 INSULATOR; ANTENNA 8-98095-617-1 01 1 1012-1303 ●
295 09.665 INSULATOR; ANTENNA 8-98095-617-1 01 1 1304- ● ●
