◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51292 - NPR/NQR BUS CHA(LHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#54070) — 36 parça
çizim 175107
531 666
BalonParca AdiParca NoAdetTipApplied Date A B
531 02.769 RELAY; MAIN
4HK1-TCN ENG(RDQ) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 1012-1303 ●
531 02.769 RELAY; MAIN
4HK1-TCN ENG(RDQ) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 1304-1402 ● ●
531 02.769 RELAY; MAIN
4HK1-TCN ENG(RDQ) 02.485 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●
666 02.173 RELAY; STARTER
4HK1-TCN ENG(RDQ) 24V 10A PANASONIC 		8-98167-173-0 01 1 1012-1303 ●
666 02.173 RELAY; STARTER
4HK1-TCN ENG(RDQ) 24V 10A PANASONIC 		8-98167-173-0 01 1 1304- ● ●

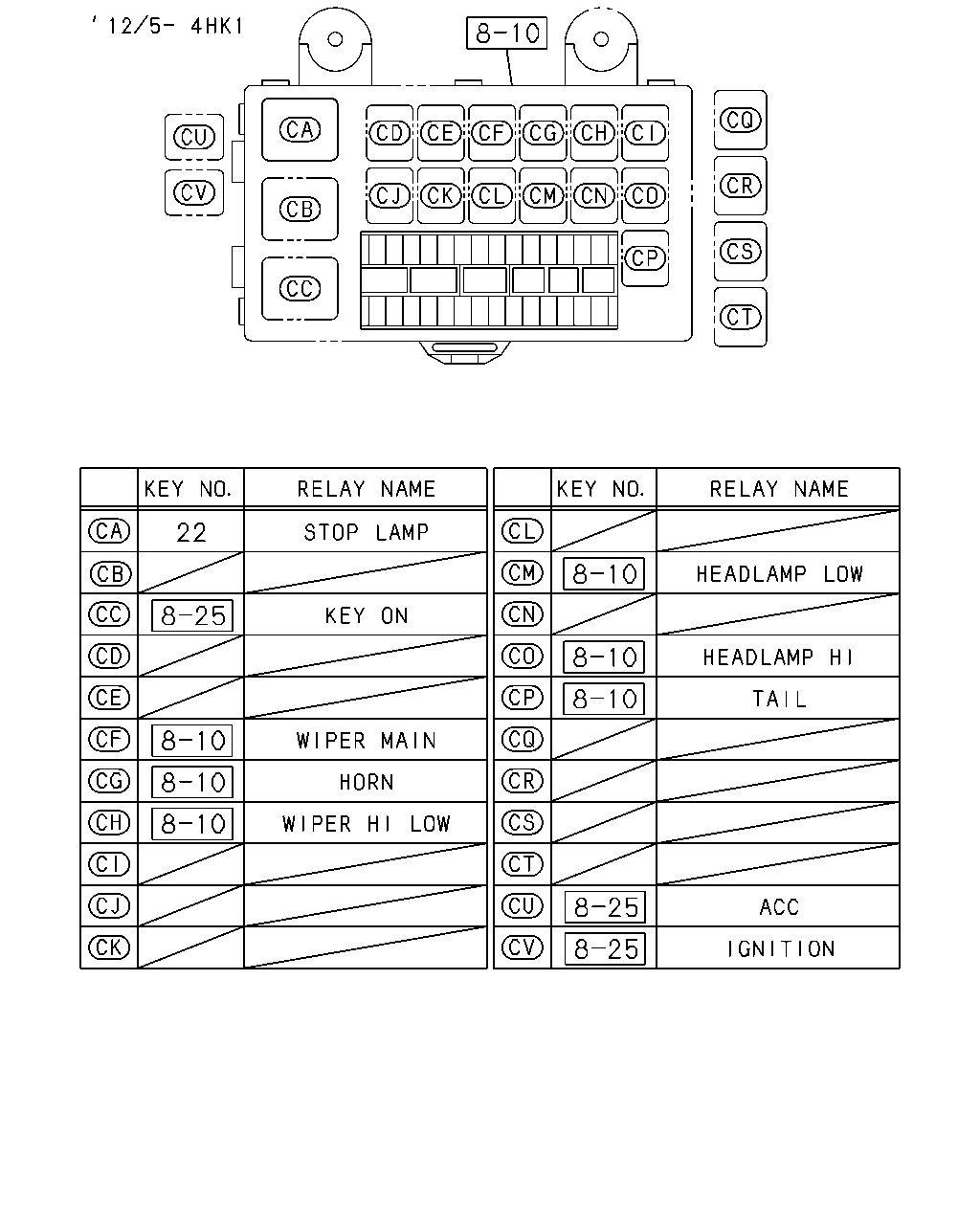

çizim 175109
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1303 ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1304- ●
22 02.679 RELAY; STOP LAMP
4HK1-TCN ENG(RDQ) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1304- ●

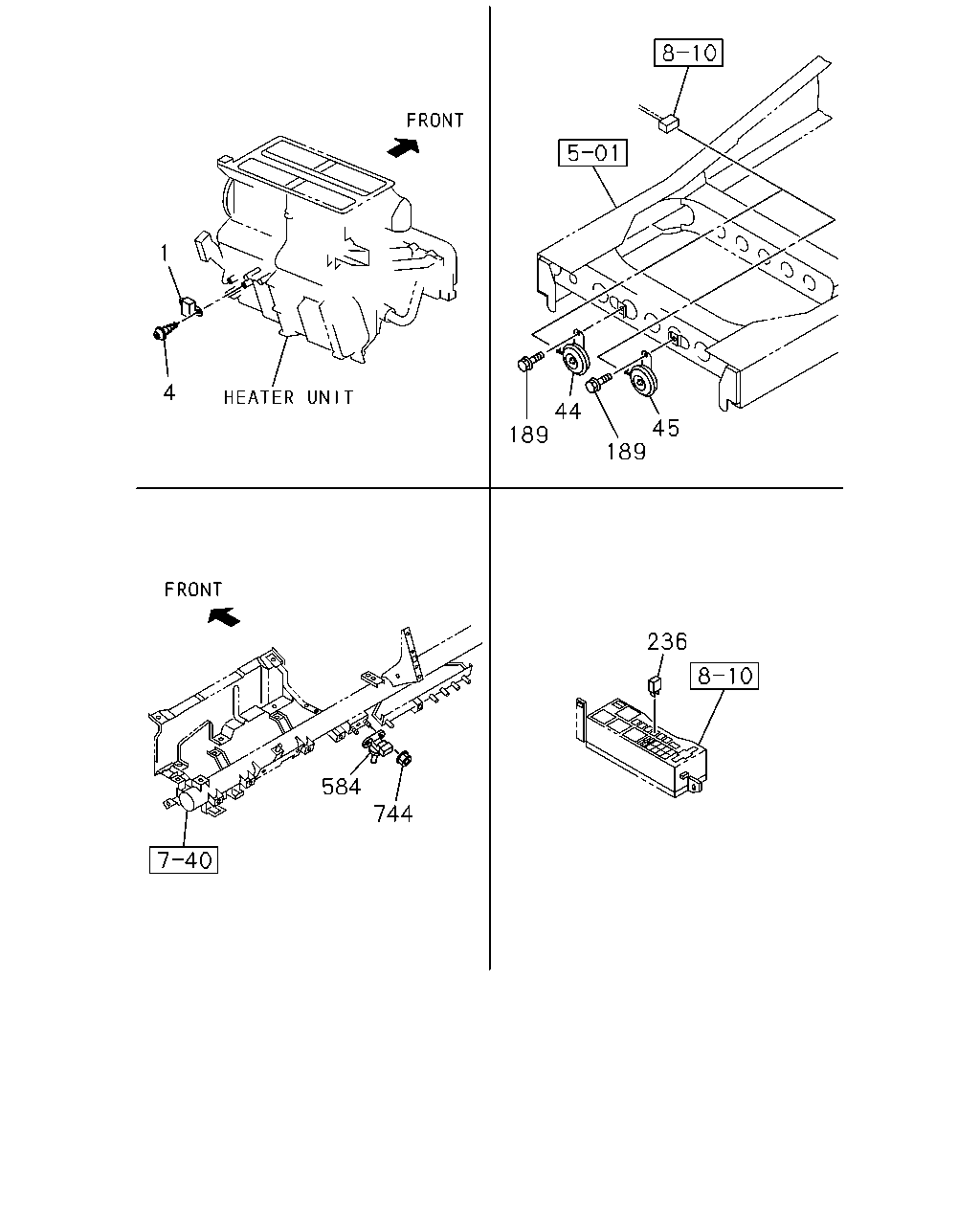

çizim 175113
1 4 44 189 45 189 236 584 744
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.575 UNIT; FLASHER 1-83470-057-0 01 1 1012-1303 ●
1 02.575 UNIT; FLASHER 1-83470-057-0 01 1 1304- ● ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1012-1012 ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1101-1212 ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-1303 ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1304- ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) 		8-98070-080-0 01 1 1012-1303 ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) 		8-98070-080-0 01 1 1304- ● ●
45 02.810 HORN; LOW NOTE 8-98022-023-0 01 1 1012-1303 ●
45 02.810 HORN; LOW NOTE 8-98022-023-0 01 1 1304- ● ●
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1012-1303 ●
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1012-1303 ●
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1304- ● ●
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1304- ● ●
236 02.485 RELAY; FUEL PUMP
4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
584 02.440 SENSOR; PRESSURE
4HK1-TCN ENG(RDQ) 03.331 		8-98020-514-0 01 1 1012-1303 ●
584 02.440 SENSOR; PRESSURE
4HK1-TCN ENG(RDQ) 03.331 		8-98020-514-0 01 1 1304- ● ●
744 09.277 NUT; SENSOR
4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1012-1303 ●
744 09.277 NUT; SENSOR
4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1304- ● ●

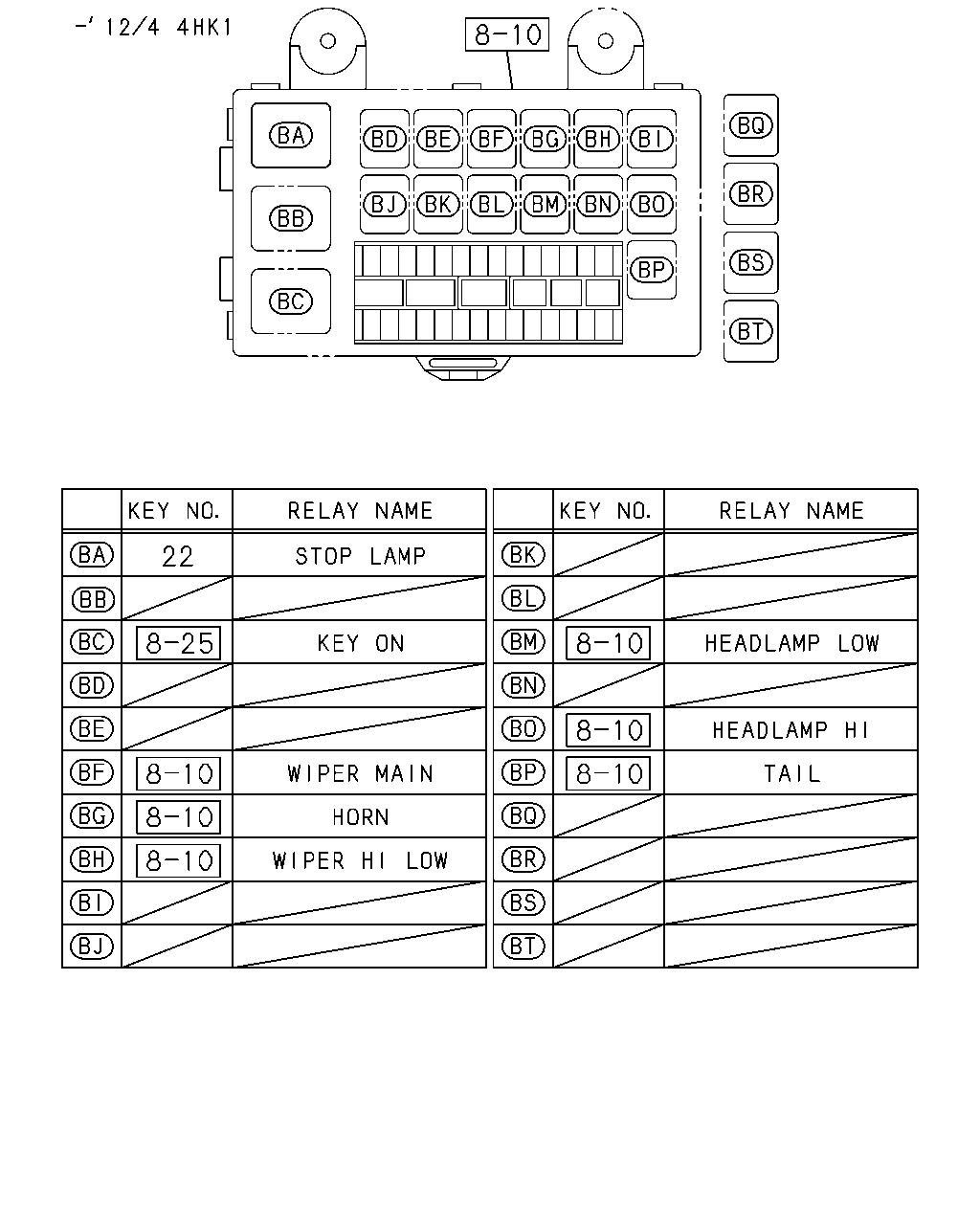

çizim 175118
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1303 ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1304- ●
22 02.679 RELAY; STOP LAMP
4HK1-TCN ENG(RDQ) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1304- ●
çizim 283547
22 770 8 540
BalonParca AdiParca NoAdetTipApplied Date A B
8 16.067 RELAY; WIPER
4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1303 ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1304- ●
22 02.679 RELAY; STOP LAMP
4HK1-TCN ENG(RDQ) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1304- ●
540 16.067 RELAY; WIPER INTERVAL
4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
770 02.510 RELAY; ENG BRK
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
