Sayfa 5-01 - Isuzu EPC

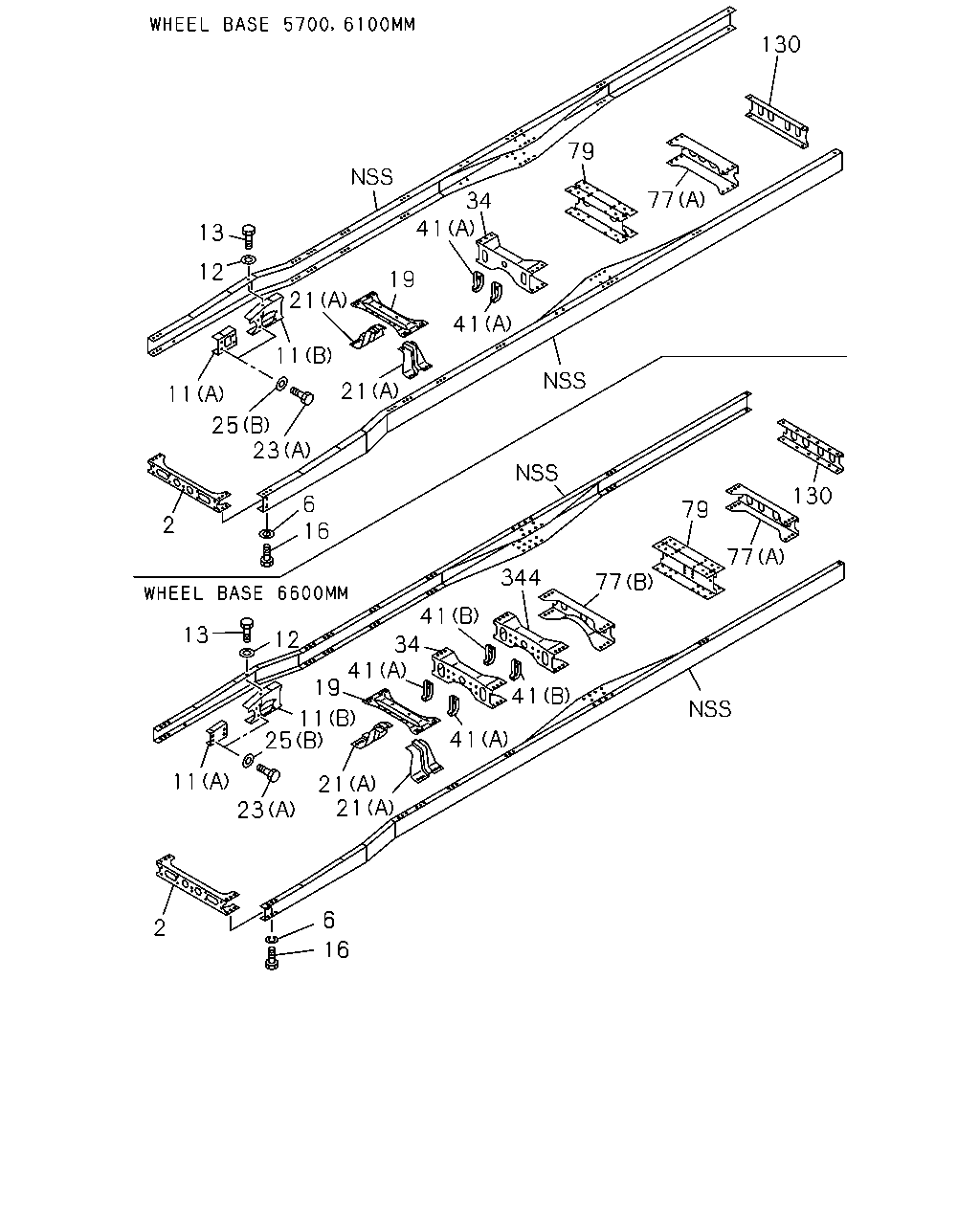

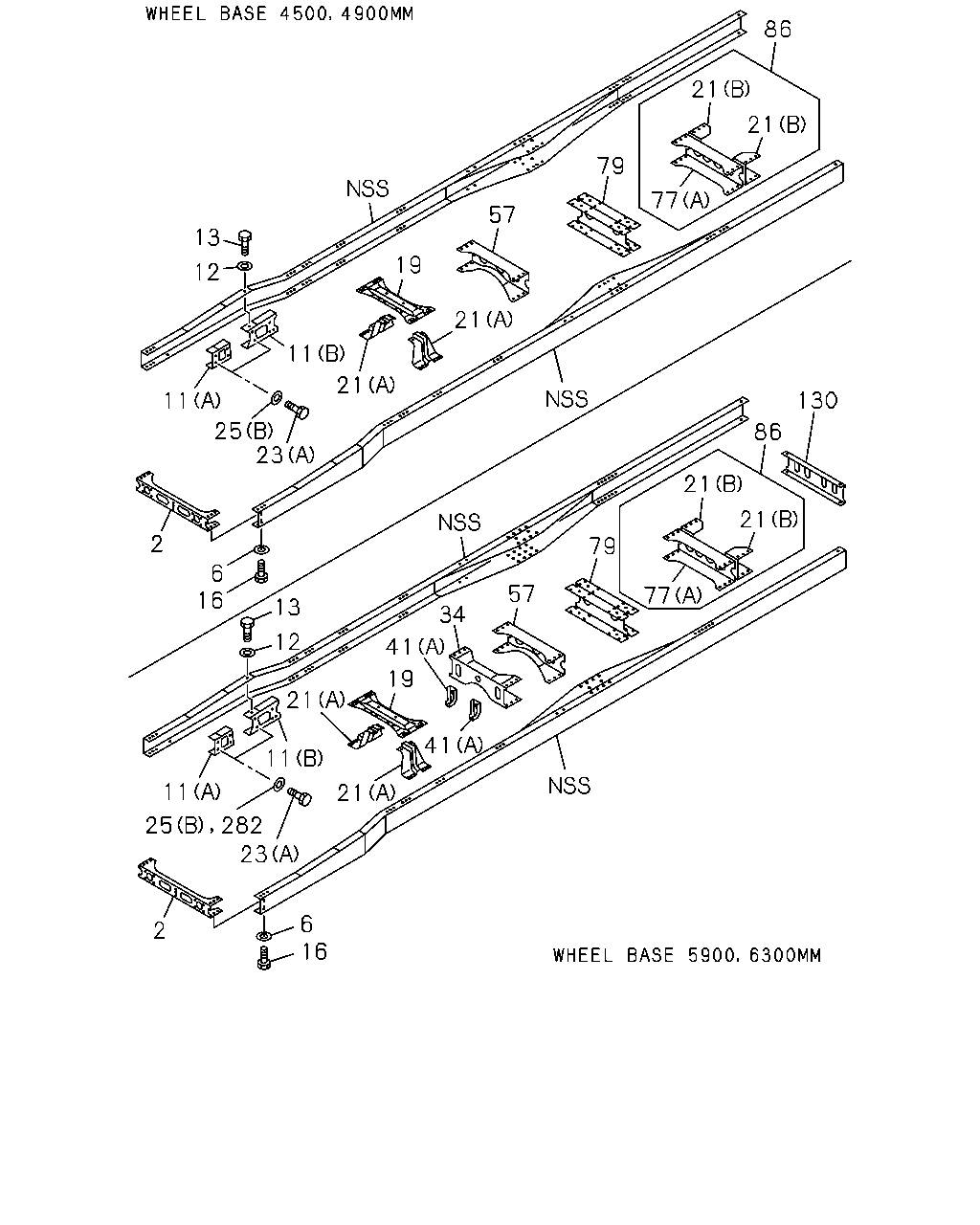

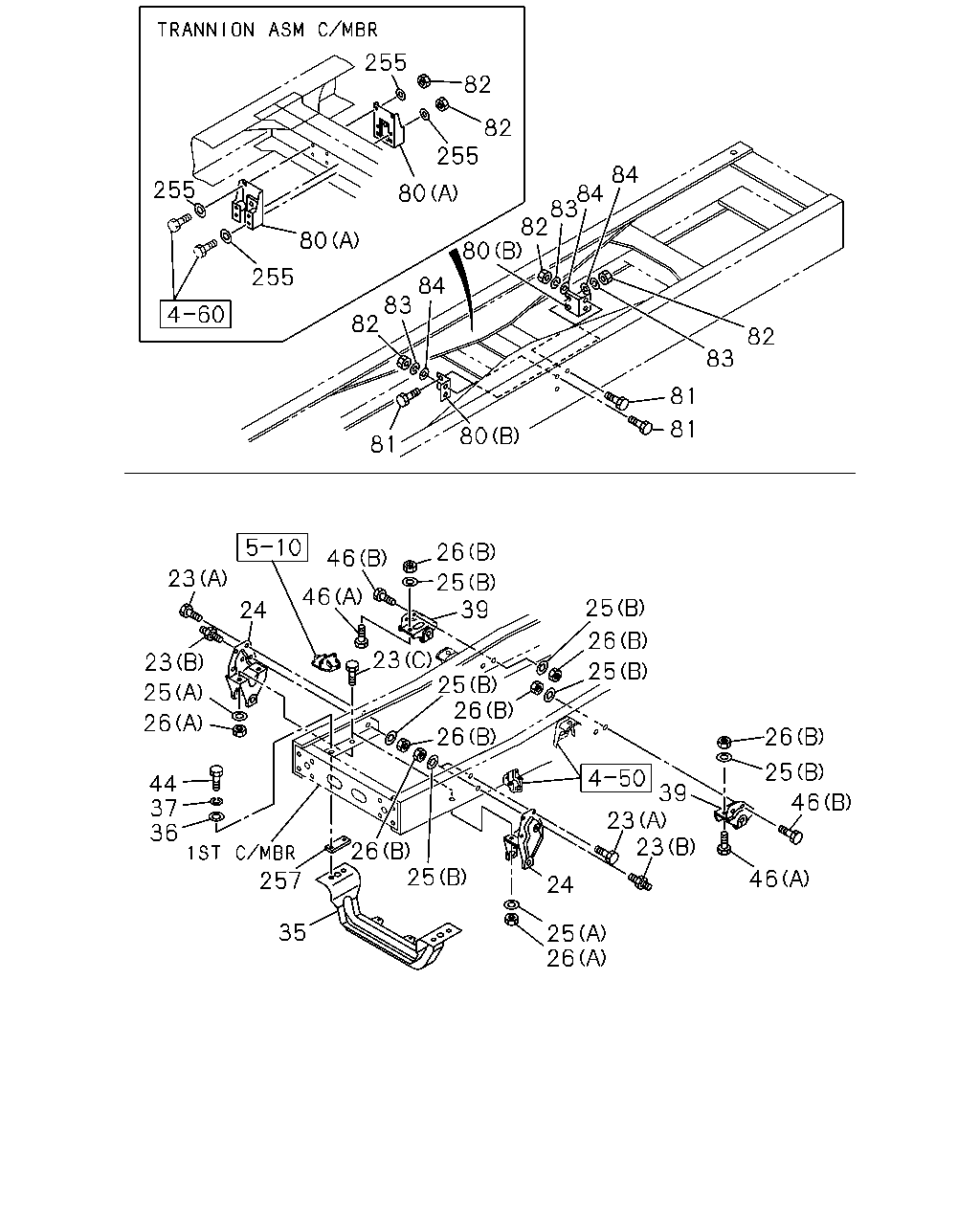

5-01 — FRAME AND OTHER PARTS (#5407) — 690 parça

86 21 21 79 77 57 13 19 12 21 11 21 130 11 25 23 86 21 21 2 79 6 16 57 77 13 34 12 21 41 19 41 21 11 11 23 6 16 2 25 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	MEMBER; CROSS,1ST	1-53181-710-0	01	1	9603-9901	●	●	●	●	●	●	●
2	MEMBER; CROSS,1ST EXC. CAB UP +110MM<TGG>	1-53181-710-0	01	1	9902-9904		●		●
2	MEMBER; CROSS,1ST V TYPE ENG<91L>	1-53181-710-1	01	1	9905-	●	●		●		●
2	MEMBER; CROSS,1ST L TYPE ENG<90L> EXC. CAB UP +110MM<TGG>	1-53181-710-1	01	1	9905-		●		●		●
2	MEMBER; CROSS,1ST CAB UP +110MM<TGG>	1-53181-526-3	01	1	9902-9904		●		●
2	MEMBER; CROSS,1ST	1-53181-526-3	01	1	9902-9904			●				●
2	MEMBER; CROSS,1ST L TYPE ENG<90L> CAB UP +110MM<TGG>	1-53181-526-3	01	1	9905-9905	●	●		●		●
2	MEMBER; CROSS,1ST	1-53181-526-3	01	1	9905-9905			●		●		●
2	MEMBER; CROSS,1ST L TYPE ENG<90L> CAB UP +110MM<TGG>	1-53181-526-4	01	1	9906-	●	●		●		●
2	MEMBER; CROSS,1ST	1-53181-526-4	01	1	9906-			●		●		●
6	WASHER; LK,1ST C/MBR EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-616-0	02	1	9603-9901	●	●	●	●		●	●
6	WASHER; LK,1ST C/MBR EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>,REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-616-0	02	1	9902-	●	●		●		●
11	BRACKET; ENG MTG 10PE1S(60L) (A) FRONT	1-53219-583-0	01	1	9603-9901	●
11	BRACKET; ENG MTG 10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FRONT	1-53219-583-0	01	1	9603-9901				●
11	BRACKET; ENG MTG 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) FRONT	1-53219-583-0	01	1	9603-9901						●
11	BRACKET; ENG MTG 10PE1S(60L) (A) FRONT	1-53219-582-0	01	1	9603-9901	●
11	BRACKET; ENG MTG 10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FRONT	1-53219-582-0	01	1	9603-9901				●
11	BRACKET; ENG MTG 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) FRONT	1-53219-582-0	01	1	9603-9901						●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> (B) REAR	1-53219-789-1	01	1	9906-		●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> (B) REAR	1-53219-788-1	01	1	9906-		●
11	BRACKET; ENG MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) FRONT	1-53219-583-0	01	1	9906-	●	●		●		●
11	BRACKET; ENG MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) FRONT	1-53219-582-0	01	1	9906-	●	●		●		●
11	BRACKET; ENG MTG 8PE1S(59L) FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-730-1	01	1	9906-	●			●
11	BRACKET; ENG MTG 8PE1S(59L) FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-729-1	01	1	9906-	●			●
11	BRACKET; ENG MTG V TYPE ENG<91L> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-728-1	01	1	9905-	●	●		●		●
11	BRACKET; ENG MTG V TYPE ENG<91L> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-727-1	01	1	9905-	●	●		●		●
11	BRACKET; ENG MTG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-728-1	01	1	9603-9901	●			●
11	BRACKET; ENG MTG 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-728-1	01	1	9603-9901						●
11	BRACKET; ENG MTG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-727-1	01	1	9603-9901	●			●
11	BRACKET; ENG MTG 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-727-1	01	1	9603-9901						●
11	BRACKET; ENG MTG 8PE1S(59L) (A) FRONT	1-53219-524-3	01	1	9906-	●			●
11	BRACKET; ENG MTG 8PE1S(59L) (A) FRONT	1-53219-726-1	01	1	9906-	●			●
11	BRACKET; ENG MTG 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FRONT	1-53219-524-2	01	1	9603-9901	●			●
11	BRACKET; ENG MTG CAB UP +110MM<TGG> (A) FRONT	1-53219-777-0	01	1	9902-9904		●		●
11	BRACKET; ENG MTG 6WG1 TC-R(75L) EXC. MIXER TRUCK<RA2> (A) FRONT	1-53219-777-0	01	1	9905-9905	●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1 TC-R(93L) CAB UP +110MM<TGG> (A) FRONT	1-53219-777-0	01	1	9905-9905		●		●		●
11	BRACKET; ENG MTG L TYPE ENG<90L> CAB UP +110MM<TGG> (A) FRONT	1-53219-777-0	01	1	9906-0006	●	●		●		●
11	BRACKET; ENG MTG (A) FRONT	1-53219-777-0	01	1	9906-0006			●				●
11	BRACKET; ENG MTG L TYPE ENG<90L> CAB UP +110MM<TGG> (A) FRONT	1-53219-777-1	01	1	0007-	●	●		●		●
11	BRACKET; ENG MTG (A) FRONT	1-53219-777-1	01	1	0007-			●		●		●
11	BRACKET; ENG MTG 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FRONT	1-53219-726-0	01	1	9603-9901	●			●
11	BRACKET; ENG MTG CAB UP +110MM<TGG> (A) FRONT	1-53219-778-0	01	1	9902-9904		●		●
11	BRACKET; ENG MTG 6WG1 TC-R(75L) EXC. MIXER TRUCK<RA2> (A) FRONT	1-53219-778-0	01	1	9905-9905	●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1 TC-R(93L) CAB UP +110MM<TGG> (A) FRONT	1-53219-778-0	01	1	9905-9905		●		●		●
11	BRACKET; ENG MTG L TYPE ENG<90L> CAB UP +110MM<TGG> (A) FRONT	1-53219-778-0	01	1	9906-0006	●	●		●		●
11	BRACKET; ENG MTG (A) FRONT	1-53219-778-0	01	1	9906-0006			●				●
11	BRACKET; ENG MTG L TYPE ENG<90L> CAB UP +110MM<TGG> (A) FRONT	1-53219-778-1	01	1	0007-	●	●		●		●
11	BRACKET; ENG MTG (A) FRONT	1-53219-778-1	01	1	0007-			●		●		●
11	BRACKET; ENG MTG 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-730-1	01	1	9603-9901	●			●
11	BRACKET; ENG MTG 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-730-1	01	1	9603-9901						●
11	BRACKET; ENG MTG CAB UP +110MM<TGG> (B) REAR	1-53219-990-0	01	1	9902-9904		●		●
11	BRACKET; ENG MTG L TYPE ENG<90L> CAB UP +110MM<TGG> (B) REAR	1-53219-990-1	01	1	9905-	●	●		●		●
11	BRACKET; ENG MTG 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-729-1	01	1	9603-9901	●			●
11	BRACKET; ENG MTG 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-729-1	01	1	9603-9901						●
11	BRACKET; ENG MTG CAB UP +110MM<TGG> (B) REAR	1-53219-988-0	01	1	9902-9904		●		●
11	BRACKET; ENG MTG L TYPE ENG<90L> CAB UP +110MM<TGG> (B) REAR	1-53219-988-0	01	1	9905-	●	●		●		●
11	BRACKET; ENG MTG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME ENG MTG SEPARATE TYPE<SGM> L TYPE ENG<90L> (A) FRONT	1-53219-472-1	01	1	9603-9901		●		●
11	BRACKET; ENG MTG (A) FRONT	1-53219-472-1	01	1	9603-9901			●				●
11	BRACKET; ENG MTG EXC. CAB UP +110MM<TGG> (A) FRONT	1-53219-472-1	01	1	9902-9904		●		●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. CAB UP +110MM<TGG> (A) FRONT	1-53219-472-1	01	1	9905-		●		●		●
11	BRACKET; ENG MTG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME ENG MTG SEPARATE TYPE<SGM> L TYPE ENG<90L> (B) REAR	1-53219-742-0	01	1	9603-9901		●		●
11	BRACKET; ENG MTG EXC. CAB UP +110MM<TGG> (B) REAR	1-53219-742-0	01	1	9902-9904		●		●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. CAB UP +110MM<TGG> (B) REAR	1-53219-742-0	01	1	9905-		●		●		●
11	BRACKET; ENG MTG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME ENG MTG SEPARATE TYPE<SGM> L TYPE ENG<90L> (A) FRONT	1-53219-471-0	01	1	9603-9901		●		●
11	BRACKET; ENG MTG (A) FRONT	1-53219-471-0	01	1	9603-9901			●				●
11	BRACKET; ENG MTG EXC. CAB UP +110MM<TGG> (A) FRONT	1-53219-471-0	01	1	9902-9904		●		●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. CAB UP +110MM<TGG> (A) FRONT	1-53219-471-0	01	1	9905-		●		●		●
11	BRACKET; ENG MTG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME ENG MTG SEPARATE TYPE<SGM> L TYPE ENG<90L> (B) REAR	1-53219-741-0	01	1	9603-9901		●		●
11	BRACKET; ENG MTG EXC. CAB UP +110MM<TGG> (B) REAR	1-53219-741-0	01	1	9902-9904		●		●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. CAB UP +110MM<TGG> (B) REAR	1-53219-741-0	01	1	9905-		●		●		●
11	BRACKET; ENG MTG CAB UP +110MM<TGG> (B) REAR	1-53219-994-0	01	1	9902-9904		●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1 TC-R(93L) CAB UP +110MM<TGG> (B) REAR	1-53219-994-0	01	1	9905-9910	●	●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1 TC-R(93L) CAB UP +110MM<TGG> (B) REAR	1-53239-082-0	01	1	9911-	●	●
11	BRACKET; ENG MTG CAB UP +110MM<TGG> (B) REAR	1-53219-993-0	01	1	9902-9904		●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1 TC-R(93L) CAB UP +110MM<TGG> (B) REAR	1-53219-993-0	01	1	9905-9910	●	●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1 TC-R(93L) CAB UP +110MM<TGG> (B) REAR	1-53239-081-0	01	1	9911-	●	●
11	BRACKET; ENG MTG (B) REAR	1-53219-652-2	01	1	9603-9904			●				●
11	BRACKET; ENG MTG (B) REAR	1-53219-652-2	01	1	9905-9905			●				●
11	BRACKET; ENG MTG (B) REAR	1-53219-986-1	01	1	9906-			●		●		●
11	BRACKET; ENG MTG (A) FRONT	1-53219-977-0	01	1	9902-9905			●				●
11	BRACKET; ENG MTG (B) REAR	1-53219-651-2	01	1	9603-9904			●				●
11	BRACKET; ENG MTG (B) REAR	1-53219-651-2	01	1	9905-9905			●				●
11	BRACKET; ENG MTG (B) REAR	1-53219-985-0	01	1	9906-			●		●		●
11	BRACKET; ENG MTG (A) FRONT	1-53219-746-0	01	1	9902-9905			●				●
12	WASHER; PL,BRKT,ENG MTG 10PE1S(60L) ID=15	9-09651-069-0	01	1	9603-9901	●
12	WASHER; PL,BRKT,ENG MTG 10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=15	9-09651-069-0	01	1	9603-9901				●
12	WASHER; PL,BRKT,ENG MTG 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=15	9-09651-069-0	01	1	9603-9901						●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	05	1	9902-9904				●
12	WASHER; PL,BRKT,ENG MTG L TYPE ENG<90L> ID=15	9-09651-069-0	05	1	9905-9910				●
12	WASHER; PL,BRKT,ENG MTG L TYPE ENG<90L> ID=15	9-09651-069-0	01	1	9911-				●
12	WASHER; PL,BRKT,ENG MTG 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=15	9-09651-069-0	02	1	9603-9605	●			●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	02	1	9603-9605			●				●
12	WASHER; PL,BRKT,ENG MTG 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=15	9-09651-069-0	02	1	9606-9901	●			●
12	WASHER; PL,BRKT,ENG MTG FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	02	1	9606-9901			●				●
12	WASHER; PL,BRKT,ENG MTG CAB UP +110MM<TGG> ID=15	9-09651-069-0	02	1	9902-9904		●
12	WASHER; PL,BRKT,ENG MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15	9-09651-069-0	03	1	9905-9909		●
12	WASHER; PL,BRKT,ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. MIXER TRUCK<RA2> ID=15	9-09651-069-0	03	1	9905-9909		●
12	WASHER; PL,BRKT,ENG MTG EXC. FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	03	1	9905-9909			●				●
12	WASHER; PL,BRKT,ENG MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15	9-09651-069-0	03	1	9910-9910		●
12	WASHER; PL,BRKT,ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) FRONT SPOILER<VP1> EXC. MIXER TRUCK<RA2> ID=15	9-09651-069-0	03	1	9910-9910		●
12	WASHER; PL,BRKT,ENG MTG EXC. FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	03	1	9910-9910			●				●
12	WASHER; PL,BRKT,ENG MTG 8PE1S(59L) EXC. SILENCER SINGLE VERTICAL<N28>,FRONT SPOILER<VP1> ID=15	9-09651-069-0	02	1	9911-9912	●			●
12	WASHER; PL,BRKT,ENG MTG FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	02	1	9911-9912			●				●
12	WASHER; PL,BRKT,ENG MTG 10PE1N(61L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=15	9-09651-069-0	02	1	0001-0006				●		●
12	WASHER; PL,BRKT,ENG MTG V TYPE ENG<91L> ID=15	9-09651-069-0	02	1	0007-				●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	02	1	0007-						●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	03	1	9603-9605		●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	03	1	9606-9901		●
12	WASHER; PL,BRKT,ENG MTG EXC. FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	03	1	9606-9901			●				●
12	WASHER; PL,BRKT,ENG MTG EXC. MIXER TRUCK<RA2> ID=15	9-09651-069-0	03	1	9902-9904		●
12	WASHER; PL,BRKT,ENG MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15	9-09651-069-0	01	1	9905-9910	●			●		●
12	WASHER; PL,BRKT,ENG MTG 6WG1 TC-R(75L) CAB UP +110MM<TGG> ID=15	9-09651-069-0	01	1	9905-9910						●
12	WASHER; PL,BRKT,ENG MTG L TYPE ENG<90L> ID=15	9-09651-069-0	03	1	9911-	●	●
12	WASHER; PL,BRKT,ENG MTG EXC. FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	03	1	9911-			●				●
12	WASHER; PL,BRKT,ENG MTG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 6WA1 TC-S(56L) ID=15	9-09651-069-0	05	1	9603-9901				●
12	WASHER; PL,BRKT,ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1 TC-R(93L) ID=15	9-09651-069-0	05	1	9905-9905				●
12	WASHER; PL,BRKT,ENG MTG 8PE1S(59L) ID=15	9-09651-069-0	02	1	9906-9909	●			●
12	WASHER; PL,BRKT,ENG MTG 6WG1 TC-R(75L) CAB UP +110MM<TGG> ID=15	9-09651-069-0	02	1	9906-9909	●
12	WASHER; PL,BRKT,ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) MIXER TRUCK<RA2> ID=15	9-09651-069-0	02	1	9906-9909		●
12	WASHER; PL,BRKT,ENG MTG FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	02	1	9906-9909			●				●
12	WASHER; PL,BRKT,ENG MTG L TYPE ENG<90L> ID=15	9-09651-069-0	02	1	9910-9910				●		●
12	WASHER; PL,BRKT,ENG MTG L TYPE ENG<90L> ID=15	9-09651-069-0	05	1	9911-				●		●
13	BOLT; BRKT,ENG MTG 10PE1S(60L) M14X40	9-92061-440-0	01	1	9603-9901	●
13	BOLT; BRKT,ENG MTG 10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X40	9-92061-440-0	01	1	9603-9901				●
13	BOLT; BRKT,ENG MTG 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14X40	9-92061-440-0	01	1	9603-9901						●
13	BOLT; BRKT,ENG MTG M14X40	9-92061-440-0	05	1	9902-9904				●
13	BOLT; BRKT,ENG MTG L TYPE ENG<90L> M14X40	9-92061-440-0	05	1	9905-9910				●
13	BOLT; BRKT,ENG MTG L TYPE ENG<90L> M14X40	9-92061-440-0	01	1	9911-				●
13	BOLT; BRKT,ENG MTG 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X40	9-92061-440-0	02	1	9603-9605	●			●
13	BOLT; BRKT,ENG MTG M14X40	9-92061-440-0	02	1	9603-9605			●				●
13	BOLT; BRKT,ENG MTG 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X40	9-92061-440-0	02	1	9606-9901	●			●
13	BOLT; BRKT,ENG MTG FRONT STABILIZER SHAFT<F59> M14X40	9-92061-440-0	02	1	9606-9901			●				●
13	BOLT; BRKT,ENG MTG CAB UP +110MM<TGG> M14X40	9-92061-440-0	02	1	9902-9904		●
13	BOLT; BRKT,ENG MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40	9-92061-440-0	03	1	9905-9909		●
13	BOLT; BRKT,ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. MIXER TRUCK<RA2> M14X40	9-92061-440-0	03	1	9905-9909		●
13	BOLT; BRKT,ENG MTG EXC. FRONT STABILIZER SHAFT<F59> M14X40	9-92061-440-0	03	1	9905-9909			●				●
13	BOLT; BRKT,ENG MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40	9-92061-440-0	03	1	9910-9910		●
13	BOLT; BRKT,ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) FRONT SPOILER<VP1> EXC. MIXER TRUCK<RA2> M14X40	9-92061-440-0	03	1	9910-9910		●
13	BOLT; BRKT,ENG MTG EXC. FRONT STABILIZER SHAFT<F59> M14X40	9-92061-440-0	03	1	9910-9910			●				●
13	BOLT; BRKT,ENG MTG 8PE1S(59L) M14X40	9-92061-440-0	02	1	9911-	●			●
13	BOLT; BRKT,ENG MTG FRONT STABILIZER SHAFT<F59> M14X40	9-92061-440-0	02	1	9911-			●				●
13	BOLT; BRKT,ENG MTG M14X40	9-92061-440-0	02	1	9911-					●
13	BOLT; BRKT,ENG MTG M14X40	9-92061-440-0	03	1	9603-9605		●
13	BOLT; BRKT,ENG MTG M14X40	9-92061-440-0	03	1	9606-9901		●
13	BOLT; BRKT,ENG MTG EXC. FRONT STABILIZER SHAFT<F59> M14X40	9-92061-440-0	03	1	9606-9901			●				●
13	BOLT; BRKT,ENG MTG EXC. MIXER TRUCK<RA2> M14X40	9-92061-440-0	03	1	9902-9904		●
13	BOLT; BRKT,ENG MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40	9-92061-440-0	01	1	9905-9910	●			●		●
13	BOLT; BRKT,ENG MTG 6WG1 TC-R(75L) CAB UP +110MM<TGG> M14X40	9-92061-440-0	01	1	9905-9910						●
13	BOLT; BRKT,ENG MTG L TYPE ENG<90L> M14X40	9-92061-440-0	03	1	9911-	●	●
13	BOLT; BRKT,ENG MTG EXC. FRONT STABILIZER SHAFT<F59> M14X40	9-92061-440-0	03	1	9911-			●				●
13	BOLT; BRKT,ENG MTG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 6WA1 TC-S(56L) M14X40	9-92061-440-0	05	1	9603-9901				●
13	BOLT; BRKT,ENG MTG 8PE1S(59L) M14X40	9-92061-440-0	02	1	9905-9909	●			●
13	BOLT; BRKT,ENG MTG 6WG1 TC-R(75L) CAB UP +110MM<TGG> M14X40	9-92061-440-0	02	1	9905-9909	●
13	BOLT; BRKT,ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) MIXER TRUCK<RA2> M14X40	9-92061-440-0	02	1	9905-9909		●
13	BOLT; BRKT,ENG MTG FRONT STABILIZER SHAFT<F59> M14X40	9-92061-440-0	02	1	9905-9909			●				●
13	BOLT; BRKT,ENG MTG L TYPE ENG<90L> M14X40	9-92061-440-0	02	1	9910-9910				●		●
13	BOLT; BRKT,ENG MTG L TYPE ENG<90L> M14X40	9-92061-440-0	05	1	9911-				●		●
16	BOLT; 1ST C/MBR TO S/MBR EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X40	0-20801-640-0	02	1	9603-9901	●	●	●	●		●	●
16	BOLT; 1ST C/MBR TO S/MBR EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>,REINFORCEMENT BUMPER<VG7> M16X40	0-20801-640-0	02	1	9902-	●	●		●		●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	9603-9904	●	●	●	●		●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	9905-	●	●	●	●	●	●	●
21	GUSSET; 2ND CROSS (A)	1-53164-208-0	02	1	9603-	●	●		●		●
21	GUSSET; 2ND CROSS (B)	1-53167-287-2	02	1	9603-	●	●		●		●
21	GUSSET; 2ND CROSS (A)	1-53164-207-0	02	1	9603-9901			●				●
21	GUSSET; 2ND CROSS (A)	1-53164-207-0	02	1	9905-			●		●		●
23	BOLT; BRKT,SPR (B) M12X35,M14X45 L=100	1-09029-075-0	04	1	9603-9904	●	●	●	●		●	●
23	BOLT; BRKT,SPR (B) M12X35,M14X45 L=100	1-09029-075-0	04	1	9905-	●	●	●	●	●	●	●
23	BOLT; BRKT,SPR (A) M14X40	9-92061-440-0	04	1	9603-9904	●	●	●	●		●	●
23	BOLT; BRKT,SPR (A) M14X40	9-92061-440-0	04	1	9905-	●	●	●	●	●	●	●
23	BOLT; BRKT,SPR (C) M16X50	9-92061-650-0	04	1	9603-9904	●	●	●	●		●	●
23	BOLT; BRKT,SPR (C) M16X50	9-92061-650-0	04	1	9905-	●	●	●	●	●	●	●
25	WASHER; PL,BRKT 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) ID=16.2	1-09503-223-0	08	1	9603-9702	●			●
25	WASHER; PL,BRKT FRAME ENG MTG SEPARATE TYPE<SGM> L TYPE ENG<90L> (A) ID=16.2	1-09503-223-0	08	1	9603-9702		●		●
25	WASHER; PL,BRKT (A) ID=16.2	1-09503-223-0	08	1	9603-9702			●				●
25	WASHER; PL,BRKT 6WA1 TC-S(56L),8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2	1-09503-223-0	08	1	9703-9901	●			●
25	WASHER; PL,BRKT (A) ID=16.2	1-09503-223-0	08	1	9703-9901		●	●				●
25	WASHER; PL,BRKT (A) ID=16.2	1-09503-223-0	08	1	9902-9904		●		●
25	WASHER; PL,BRKT (A) ID=16.2	1-09503-223-0	08	1	9905-	●		●	●			●
25	WASHER; PL,BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (A) ID=16.2	1-09503-223-0	08	1	9905-		●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) ID=16.2	1-09503-223-0	08	1	9905-		●
25	WASHER; PL,BRKT (A) ID=16.2	1-09503-223-0	08	1	9910-9910	●		●	●			●
25	WASHER; PL,BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A) ID=16.2	1-09503-223-0	08	1	9910-9910		●
25	WASHER; PL,BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. CAB UP +110MM<TGG> (A) ID=16.2	1-09503-223-0	08	1	9910-9910		●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) ID=16.2	1-09503-223-0	08	1	9910-9910		●
25	WASHER; PL,BRKT L TYPE ENG<90L> (A) ID=16.2	1-09503-223-0	08	1	9911-	●	●		●		●
25	WASHER; PL,BRKT (A) ID=16.2	1-09503-223-0	08	1	9911-		●	●	●	●		●
25	WASHER; PL,BRKT 10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	24	1	9603-9901	●			●		●
25	WASHER; PL,BRKT 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	24	1	9603-9901	●			●
25	WASHER; PL,BRKT FRAME ENG MTG SEPARATE TYPE<SGM> L TYPE ENG<90L> (B) ID=15	9-09651-069-0	24	1	9603-9901		●		●
25	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	24	1	9603-9901			●				●
25	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	24	1	9902-9904		●		●
25	WASHER; PL,BRKT 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) ID=15	9-09651-069-0	24	1	9905-9909	●
25	WASHER; PL,BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) (B) ID=15	9-09651-069-0	24	1	9905-9909		●
25	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	24	1	9905-9909			●	●			●
25	WASHER; PL,BRKT 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) ID=15	9-09651-069-0	24	1	9910-9910	●
25	WASHER; PL,BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WA1 TC-R(93L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) ID=15	9-09651-069-0	24	1	9910-9910		●
25	WASHER; PL,BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. CAB UP +110MM<TGG> (B) ID=15	9-09651-069-0	24	1	9910-9910		●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	24	1	9910-9910		●
25	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	24	1	9910-9910			●				●
25	WASHER; PL,BRKT 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (B) ID=15	9-09651-069-0	24	1	9911-0001	●			●
25	WASHER; PL,BRKT 8PE1S(59L) FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	24	1	9911-0001	●			●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) ID=15	9-09651-069-0	24	1	9911-0001	●
25	WASHER; PL,BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WG1 TC-C(72L),6WA1 TC-R(93L) (B) ID=15	9-09651-069-0	24	1	9911-0001		●		●		●
25	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	24	1	9911-0001			●				●
25	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	24	1	0002-	●	●	●	●	●	●	●
25	WASHER; PL,BRKT 10PE1S(60L) (A) ID=16.2	1-09503-223-0	06	1	9603-9904	●
25	WASHER; PL,BRKT 10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2	1-09503-223-0	06	1	9603-9904				●
25	WASHER; PL,BRKT 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16.2	1-09503-223-0	06	1	9603-9904						●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) ID=16.2	1-09503-223-0	06	1	9905-9910	●			●		●
25	WASHER; PL,BRKT 6WG1 TC-R(75L) CAB UP +110MM<TGG> (A) ID=16.2	1-09503-223-0	06	1	9905-9910						●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) ID=16.2	1-09503-223-0	06	1	9911-0001	●	●		●		●
25	WASHER; PL,BRKT V TYPE ENG<91L> (A) ID=16.2	1-09503-223-0	06	1	0002-	●	●		●		●
25	WASHER; PL,BRKT 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	28	1	9603-9904	●			●
25	WASHER; PL,BRKT 8PE1S(59L) (B) ID=15	9-09651-069-0	28	1	9905-	●			●
25	WASHER; PL,BRKT 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	20	1	9603-9904						●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	20	1	9906-9910						●
25	WASHER; PL,BRKT 6WG1 TC-R(75L) CAB UP +110MM<TGG> (B) ID=15	9-09651-069-0	20	1	9906-9910						●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) BUMPER W/HEADLAMPS<SLB> EXC. CONCRETE PUMP<RA5>,FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	20	1	9911-0001				●
25	WASHER; PL,BRKT V TYPE ENG<91L> (B) ID=15	9-09651-069-0	20	1	0002-				●
25	WASHER; PL,BRKT 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (B) ID=15	9-09651-069-0	26	1	9911-						●
34	MEMBER; CROSS,3RD	1-53181-640-1	01	1	9603-9901			●				●
34	MEMBER; CROSS,3RD	1-53181-640-1	01	1	9905-			●		●		●
34	MEMBER; CROSS,3RD	1-53181-645-1	01	1	9603-				●		●
41	BRACKET; CENTER BRG,FRAME SIDE (A) L=315	1-53271-353-0	02	1	9603-9901			●
41	BRACKET; CENTER BRG,FRAME SIDE (A) L=315	1-53271-353-0	02	1	9905-			●
41	BRACKET; CENTER BRG,FRAME SIDE L TYPE ENG<90L> (A) L=290	1-53271-322-1	02	1	9603-				●
41	BRACKET; CENTER BRG,FRAME SIDE V TYPE ENG<91L> (A) L=305	1-53271-262-2	02	1	9603-				●
41	BRACKET; CENTER BRG,FRAME SIDE (A) L=305	1-53271-262-2	02	1	9603-						●	●
41	BRACKET; CENTER BRG,FRAME SIDE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1 TC-R(93L) CAB UP +110MM<TGG> (A) L=310	1-53271-305-0	02	1	9905-				●		●
41	BRACKET; CENTER BRG,FRAME SIDE 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (A) L=310	1-53271-305-0	02	1	9905-				●
41	BRACKET; CENTER BRG,FRAME SIDE (B) L=330	1-53271-265-2	02	1	9603-							●
41	BRACKET; CENTER BRG,FRAME SIDE (A) L=335	1-53271-309-1	02	1	0007-					●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-2	01	1	9603-	●	●		●		●
77	MEMBER; CROSS,TRUNNION RR (A)	1-53181-146-4	01	1	9603-	●	●		●		●
77	MEMBER; CROSS,TRUNNION RR (A)	1-53181-689-0	01	1	9603-9901			●				●
77	MEMBER; CROSS,TRUNNION RR (A)	1-53181-689-0	01	1	9905-0001			●				●
77	MEMBER; CROSS,TRUNNION RR (A)	1-53181-689-1	01	1	0002-			●	●	●		●
77	MEMBER; CROSS,TRUNNION RR (B)	1-53181-693-0	01	1	9603-							●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-374-0	01	1	9603-0001	●	●		●		●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-374-0	01	1	0002-	●	●				●
79	MEMBER; CROSS,TRUNNION ASM EXC. FRAME EQUIPMENT HEAVY DUTY<F01>	1-53181-374-0	01	1	0002-				●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-1	01	1	9603-0006			●				●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-1	01	1	0007-			●		●		●
79	MEMBER; CROSS,TRUNNION ASM FRAME EQUIPMENT HEAVY DUTY<F01>	1-53181-685-0	01	1	0002-				●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-0	01	1	9603-	●	●		●		●
130	MEMBER; CROSS,END	1-53181-537-0	01	1	9603-0001			●				●
130	MEMBER; CROSS,END	1-53181-537-1	01	1	0002-			●		●		●
130	MEMBER; CROSS,END FRAME EQUIPMENT HEAVY DUTY<F01>	1-53181-537-1	01	1	0002-				●
130	MEMBER; CROSS,END	1-53171-876-2	01	1	9603-0001				●		●
130	MEMBER; CROSS,END EXC. FRAME EQUIPMENT HEAVY DUTY<F01>	1-53171-876-3	01	1	0002-				●
130	MEMBER; CROSS,END	1-53171-876-3	01	1	0002-						●
282	WASHER; PL,STOPPER ID=15	9-09651-069-0	04	1	9902-9904				●
282	WASHER; PL,STOPPER ID=15	9-09651-069-0	04	1	9905-				●		●

255 82 82 255 84 84 83 82 80 255 80 80 255 84 83 82 82 83 81 81 80 81 26 46 23 25 39 46 25 24 23 25 26 26 26 23 25 25 26 26 25 44 37 36 39 23 23 46 26 25 46 257 24 35 25 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
23	BOLT; BRKT,SPR (B) M12X35,M14X45 L=100	1-09029-075-0	04	1	9603-9904	●	●	●	●		●	●
23	BOLT; BRKT,SPR (B) M12X35,M14X45 L=100	1-09029-075-0	04	1	9905-	●	●	●	●	●	●	●
23	BOLT; BRKT,SPR (A) M14X40	9-92061-440-0	04	1	9603-9904	●	●	●	●		●	●
23	BOLT; BRKT,SPR (A) M14X40	9-92061-440-0	04	1	9905-	●	●	●	●	●	●	●
23	BOLT; BRKT,SPR (C) M16X50	9-92061-650-0	04	1	9603-9904	●	●	●	●		●	●
23	BOLT; BRKT,SPR (C) M16X50	9-92061-650-0	04	1	9905-	●	●	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-220-0	01	1	9603-9904	●	●	●	●		●	●
24	BRACKET; FRT SPR,FRT	1-53351-220-0	01	1	9905-	●	●	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-219-0	01	1	9603-9904	●	●	●	●		●	●
24	BRACKET; FRT SPR,FRT	1-53351-219-0	01	1	9905-	●	●	●	●	●	●	●
25	WASHER; PL,BRKT 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) ID=16.2	1-09503-223-0	08	1	9603-9702	●			●
25	WASHER; PL,BRKT FRAME ENG MTG SEPARATE TYPE<SGM> L TYPE ENG<90L> (A) ID=16.2	1-09503-223-0	08	1	9603-9702		●		●
25	WASHER; PL,BRKT (A) ID=16.2	1-09503-223-0	08	1	9603-9702			●				●
25	WASHER; PL,BRKT 6WA1 TC-S(56L),8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2	1-09503-223-0	08	1	9703-9901	●			●
25	WASHER; PL,BRKT (A) ID=16.2	1-09503-223-0	08	1	9703-9901		●	●				●
25	WASHER; PL,BRKT (A) ID=16.2	1-09503-223-0	08	1	9902-9904		●		●
25	WASHER; PL,BRKT (A) ID=16.2	1-09503-223-0	08	1	9905-	●		●	●			●
25	WASHER; PL,BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (A) ID=16.2	1-09503-223-0	08	1	9905-		●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) ID=16.2	1-09503-223-0	08	1	9905-		●
25	WASHER; PL,BRKT (A) ID=16.2	1-09503-223-0	08	1	9910-9910	●		●	●			●
25	WASHER; PL,BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A) ID=16.2	1-09503-223-0	08	1	9910-9910		●
25	WASHER; PL,BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. CAB UP +110MM<TGG> (A) ID=16.2	1-09503-223-0	08	1	9910-9910		●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) ID=16.2	1-09503-223-0	08	1	9910-9910		●
25	WASHER; PL,BRKT L TYPE ENG<90L> (A) ID=16.2	1-09503-223-0	08	1	9911-	●	●		●		●
25	WASHER; PL,BRKT (A) ID=16.2	1-09503-223-0	08	1	9911-		●	●	●	●		●
25	WASHER; PL,BRKT 10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	24	1	9603-9901	●			●		●
25	WASHER; PL,BRKT 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	24	1	9603-9901	●			●
25	WASHER; PL,BRKT FRAME ENG MTG SEPARATE TYPE<SGM> L TYPE ENG<90L> (B) ID=15	9-09651-069-0	24	1	9603-9901		●		●
25	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	24	1	9603-9901			●				●
25	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	24	1	9902-9904		●		●
25	WASHER; PL,BRKT 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) ID=15	9-09651-069-0	24	1	9905-9909	●
25	WASHER; PL,BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) (B) ID=15	9-09651-069-0	24	1	9905-9909		●
25	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	24	1	9905-9909			●	●			●
25	WASHER; PL,BRKT 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) ID=15	9-09651-069-0	24	1	9910-9910	●
25	WASHER; PL,BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WA1 TC-R(93L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) ID=15	9-09651-069-0	24	1	9910-9910		●
25	WASHER; PL,BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. CAB UP +110MM<TGG> (B) ID=15	9-09651-069-0	24	1	9910-9910		●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	24	1	9910-9910		●
25	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	24	1	9910-9910			●				●
25	WASHER; PL,BRKT 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (B) ID=15	9-09651-069-0	24	1	9911-0001	●			●
25	WASHER; PL,BRKT 8PE1S(59L) FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	24	1	9911-0001	●			●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) ID=15	9-09651-069-0	24	1	9911-0001	●
25	WASHER; PL,BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WG1 TC-C(72L),6WA1 TC-R(93L) (B) ID=15	9-09651-069-0	24	1	9911-0001		●		●		●
25	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	24	1	9911-0001			●				●
25	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	24	1	0002-	●	●	●	●	●	●	●
25	WASHER; PL,BRKT 10PE1S(60L) (A) ID=16.2	1-09503-223-0	06	1	9603-9904	●
25	WASHER; PL,BRKT 10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2	1-09503-223-0	06	1	9603-9904				●
25	WASHER; PL,BRKT 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16.2	1-09503-223-0	06	1	9603-9904						●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) ID=16.2	1-09503-223-0	06	1	9905-9910	●			●		●
25	WASHER; PL,BRKT 6WG1 TC-R(75L) CAB UP +110MM<TGG> (A) ID=16.2	1-09503-223-0	06	1	9905-9910						●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) ID=16.2	1-09503-223-0	06	1	9911-0001	●	●		●		●
25	WASHER; PL,BRKT V TYPE ENG<91L> (A) ID=16.2	1-09503-223-0	06	1	0002-	●	●		●		●
25	WASHER; PL,BRKT 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	28	1	9603-9904	●			●
25	WASHER; PL,BRKT 8PE1S(59L) (B) ID=15	9-09651-069-0	28	1	9905-	●			●
25	WASHER; PL,BRKT 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	20	1	9603-9904						●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	20	1	9906-9910						●
25	WASHER; PL,BRKT 6WG1 TC-R(75L) CAB UP +110MM<TGG> (B) ID=15	9-09651-069-0	20	1	9906-9910						●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) BUMPER W/HEADLAMPS<SLB> EXC. CONCRETE PUMP<RA5>,FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	20	1	9911-0001				●
25	WASHER; PL,BRKT V TYPE ENG<91L> (B) ID=15	9-09651-069-0	20	1	0002-				●
25	WASHER; PL,BRKT 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (B) ID=15	9-09651-069-0	26	1	9911-						●
26	NUT; BRKT,SPR 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) M16	9-99110-516-0	04	1	9603-9702	●			●
26	NUT; BRKT,SPR FRAME ENG MTG SEPARATE TYPE<SGM> L TYPE ENG<90L> (A) M16	9-99110-516-0	04	1	9603-9702		●		●
26	NUT; BRKT,SPR (A) M16	9-99110-516-0	04	1	9603-9702			●				●
26	NUT; BRKT,SPR 6WA1 TC-S(56L),8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16	9-99110-516-0	04	1	9703-9901	●			●
26	NUT; BRKT,SPR (A) M16	9-99110-516-0	04	1	9703-9901		●	●				●
26	NUT; BRKT,SPR (A) M16	9-99110-516-0	04	1	9902-9904		●		●
26	NUT; BRKT,SPR (A) M16	9-99110-516-0	04	1	9905-9909	●		●	●			●
26	NUT; BRKT,SPR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (A) M16	9-99110-516-0	04	1	9905-9909		●
26	NUT; BRKT,SPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) M16	9-99110-516-0	04	1	9905-9909		●
26	NUT; BRKT,SPR (A) M16	9-99110-516-0	04	1	9910-9910	●		●	●			●
26	NUT; BRKT,SPR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A) M16	9-99110-516-0	04	1	9910-9910		●
26	NUT; BRKT,SPR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. CAB UP +110MM<TGG> (A) M16	9-99110-516-0	04	1	9910-9910		●
26	NUT; BRKT,SPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) M16	9-99110-516-0	04	1	9910-9910		●
26	NUT; BRKT,SPR L TYPE ENG<90L> (A) M16	9-99110-516-0	04	1	9911-	●	●		●		●
26	NUT; BRKT,SPR (A) M16	9-99110-516-0	04	1	9911-		●	●	●	●		●
26	NUT; BRKT,SPR 10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) M14	9-99110-514-0	08	1	9603-9901	●			●		●
26	NUT; BRKT,SPR 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME ENG MTG SEPARATE TYPE<SGM> (B) M14	9-99110-514-0	08	1	9603-9901	●			●
26	NUT; BRKT,SPR FRAME ENG MTG SEPARATE TYPE<SGM> L TYPE ENG<90L> (B) M14	9-99110-514-0	08	1	9603-9901		●		●
26	NUT; BRKT,SPR (B) M14	9-99110-514-0	08	1	9603-9901			●				●
26	NUT; BRKT,SPR (B) M14	9-99110-514-0	08	1	9902-9904		●		●
26	NUT; BRKT,SPR 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) M14	9-99110-514-0	08	1	9905-9909	●
26	NUT; BRKT,SPR 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) (B) M14	9-99110-514-0	08	1	9905-9909		●
26	NUT; BRKT,SPR (B) M14	9-99110-514-0	08	1	9905-9909			●	●			●
26	NUT; BRKT,SPR 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) M14	9-99110-514-0	08	1	9910-9910	●
26	NUT; BRKT,SPR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WA1 TC-R(93L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) M14	9-99110-514-0	08	1	9910-9910		●
26	NUT; BRKT,SPR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. CAB UP +110MM<TGG> (B) M14	9-99110-514-0	08	1	9910-9910		●
26	NUT; BRKT,SPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) M14	9-99110-514-0	08	1	9910-9910		●
26	NUT; BRKT,SPR (B) M14	9-99110-514-0	08	1	9910-9910			●				●
26	NUT; BRKT,SPR L TYPE ENG<90L> (B) M14	9-99110-514-0	08	1	9911-	●	●		●		●
26	NUT; BRKT,SPR (B) M14	9-99110-514-0	08	1	9911-		●	●	●	●		●
26	NUT; BRKT,SPR 10PE1S(60L) (A) M16	9-99110-516-0	02	1	9603-9901	●
26	NUT; BRKT,SPR 10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16	9-99110-516-0	02	1	9603-9901				●
26	NUT; BRKT,SPR 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16	9-99110-516-0	02	1	9603-9901						●
26	NUT; BRKT,SPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) M16	9-99110-516-0	02	1	9906-9910	●			●		●
26	NUT; BRKT,SPR 6WG1 TC-R(75L) CAB UP +110MM<TGG> (A) M16	9-99110-516-0	02	1	9906-9910						●
26	NUT; BRKT,SPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) M16	9-99110-516-0	02	1	9911-0001	●	●		●		●
26	NUT; BRKT,SPR V TYPE ENG<91L> (A) M16	9-99110-516-0	02	1	0002-	●	●		●		●
26	NUT; BRKT,SPR 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) M14	9-99110-514-0	12	1	9603-9905	●			●
26	NUT; BRKT,SPR 8PE1S(59L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) M14	9-99110-514-0	12	1	9906-9910	●
26	NUT; BRKT,SPR 6WG1 TC-R(75L) CAB UP +110MM<TGG> (B) M14	9-99110-514-0	12	1	9906-9910	●
26	NUT; BRKT,SPR 8PE1S(59L) (B) M14	9-99110-514-0	12	1	9911-	●			●
26	NUT; BRKT,SPR 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME ENG MTG SEPARATE TYPE<SGM> (B) M14	9-99110-514-0	04	1	9603-9905						●
26	NUT; BRKT,SPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) M14	9-99110-514-0	04	1	9906-9910						●
26	NUT; BRKT,SPR 6WG1 TC-R(75L) CAB UP +110MM<TGG> (B) M14	9-99110-514-0	04	1	9906-9910						●
26	NUT; BRKT,SPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) BUMPER W/HEADLAMPS<SLB> EXC. CONCRETE PUMP<RA5>,FRAME ENG MTG SEPARATE TYPE<SGM> (B) M14	9-99110-514-0	04	1	9911-0001				●
26	NUT; BRKT,SPR V TYPE ENG<91L> (B) M14	9-99110-514-0	04	1	0002-				●
35	MEMBER; UNDER	1-53174-214-2	01	1	9603-9904	●	●	●	●		●	●
35	MEMBER; UNDER	1-53174-214-2	01	1	9905-	●	●	●	●	●	●	●
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	9603-9904	●	●	●	●		●	●
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	9905-	●	●	●	●	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	9-09150-816-0	04	1	9603-9904	●	●	●	●		●	●
37	WASHER; LK,UNDER MBR ID=16.2	9-09150-816-0	04	1	9905-	●	●	●	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	9603-9904	●	●	●	●		●	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	9905-	●	●	●	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	9603-9904	●	●	●	●		●	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	9905-	●	●	●	●	●	●	●
44	BOLT; UNDER MBR M16X50	9-92061-650-0	04	1	9603-9606	●	●	●	●		●	●
44	BOLT; UNDER MBR M16X45	9-92061-645-0	04	1	9607-9904	●	●	●	●		●	●
44	BOLT; UNDER MBR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) M16X45	9-92061-645-0	04	1	9905-	●	●		●		●
44	BOLT; UNDER MBR V TYPE ENG<91L> M16X45	9-92061-645-0	04	1	9905-	●	●		●		●
44	BOLT; UNDER MBR 6WG1 TC-R(75L) M16X65	9-91061-665-0	04	1	9905-9909	●	●	●	●		●	●
44	BOLT; UNDER MBR 6WG1 TC-C(72L),6WG1 TC-R(75L) M16X65	9-91061-665-0	04	1	9910-	●	●	●	●	●	●	●
46	BOLT; BRKT FIX (B) M14X40	9-92061-440-0	04	1	9603-9901	●	●	●	●	●	●	●
46	BOLT; BRKT FIX (B) M14X40	9-92061-440-0	04	1	9902-9904		●		●
46	BOLT; BRKT FIX (B) M14X40	9-92061-440-0	04	1	9905-9910	●	●	●	●		●	●
46	BOLT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) M14X40	9-92061-440-0	02	1	9911-0001	●	●		●		●
46	BOLT; BRKT FIX 8PE1S(59L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,FRONT SPOILER<VP1> (B) M14X40	9-92061-440-0	02	1	9911-0001	●			●
46	BOLT; BRKT FIX 10PE1N(61L) BUMPER W/HEADLAMPS<SLB> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) M14X40	9-92061-440-0	02	1	9911-0001	●
46	BOLT; BRKT FIX 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (B) M14X40	9-92061-440-0	04	1	0002-0006	●			●		●
46	BOLT; BRKT FIX 8PE1S(59L) FRAME ENG MTG SEPARATE TYPE<SGM> EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (B) M14X40	9-92061-440-0	04	1	0002-0006	●			●
46	BOLT; BRKT FIX 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WA1 TC-R(93L) (B) M14X40	9-92061-440-0	04	1	0002-0006		●		●		●
46	BOLT; BRKT FIX (B) M14X40	9-92061-440-0	04	1	0002-0006			●				●
46	BOLT; BRKT FIX 10PE1S(60L),10PE1N(61L),10PE1H(68L) BUMPER W/HEADLAMPS<SLB> EXC. CONCRETE PUMP<RA5>,FRAME ENG MTG SEPARATE TYPE<SGM> (B) M14X40	9-92061-440-0	04	1	0002-0006				●
46	BOLT; BRKT FIX 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (B) M14X40	9-92061-440-0	04	1	0007-	●			●		●
46	BOLT; BRKT FIX 8PE1S(59L) FRAME ENG MTG SEPARATE TYPE<SGM> EXC. SILENCER SINGLE VERTICAL<N28>,MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (B) M14X40	9-92061-440-0	04	1	0007-	●			●
46	BOLT; BRKT FIX 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WA1 TC-R(93L) (B) M14X40	9-92061-440-0	04	1	0007-		●		●		●
46	BOLT; BRKT FIX (B) M14X40	9-92061-440-0	04	1	0007-			●				●
46	BOLT; BRKT FIX 10PE1S(60L),10PE1N(61L),10PE1H(68L) BUMPER W/HEADLAMPS<SLB> EXC. CONCRETE PUMP<RA5>,FRAME ENG MTG SEPARATE TYPE<SGM> (B) M14X40	9-92061-440-0	04	1	0007-				●
46	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> (B) M14X40	9-92061-440-0	04	1	0007-					●
46	BOLT; BRKT FIX (A) M14X50	9-92061-450-0	04	1	9603-9901	●	●		●		●
46	BOLT; BRKT FIX (A) M14X50	9-92061-450-0	04	1	9902-9904		●		●
46	BOLT; BRKT FIX (A) M14X50	9-92061-450-0	04	1	9905-9910	●	●	●	●		●	●
46	BOLT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) M14X50	9-92061-450-0	06	1	9911-0001	●	●		●		●
46	BOLT; BRKT FIX 8PE1S(59L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,FRONT SPOILER<VP1> (A) M14X50	9-92061-450-0	06	1	9911-0001	●			●
46	BOLT; BRKT FIX 10PE1N(61L) BUMPER W/HEADLAMPS<SLB> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) M14X50	9-92061-450-0	06	1	9911-0001	●
46	BOLT; BRKT FIX 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (A) M14X50	9-92061-450-0	04	1	0002-0006	●			●		●
46	BOLT; BRKT FIX 8PE1S(59L) FRAME ENG MTG SEPARATE TYPE<SGM> EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (A) M14X50	9-92061-450-0	04	1	0002-0006	●			●
46	BOLT; BRKT FIX 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WA1 TC-R(93L) (A) M14X50	9-92061-450-0	04	1	0002-0006		●		●		●
46	BOLT; BRKT FIX (A) M14X50	9-92061-450-0	04	1	0002-0006			●				●
46	BOLT; BRKT FIX 10PE1S(60L),10PE1N(61L),10PE1H(68L) BUMPER W/HEADLAMPS<SLB> EXC. CONCRETE PUMP<RA5>,FRAME ENG MTG SEPARATE TYPE<SGM> (A) M14X50	9-92061-450-0	04	1	0002-0006				●
46	BOLT; BRKT FIX 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (A) M14X50	9-92061-450-0	04	1	0007-	●			●		●
46	BOLT; BRKT FIX 8PE1S(59L) FRAME ENG MTG SEPARATE TYPE<SGM> EXC. SILENCER SINGLE VERTICAL<N28>,MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (A) M14X50	9-92061-450-0	04	1	0007-	●			●
46	BOLT; BRKT FIX 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WA1 TC-R(93L) (A) M14X50	9-92061-450-0	04	1	0007-		●		●		●
46	BOLT; BRKT FIX (A) M14X50	9-92061-450-0	04	1	0007-			●				●
46	BOLT; BRKT FIX 10PE1S(60L),10PE1N(61L),10PE1H(68L) BUMPER W/HEADLAMPS<SLB> EXC. CONCRETE PUMP<RA5>,FRAME ENG MTG SEPARATE TYPE<SGM> (A) M14X50	9-92061-450-0	04	1	0007-				●
46	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> (A) M14X50	9-92061-450-0	04	1	0007-					●
46	BOLT; BRKT FIX 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (B) M14X40	9-92061-440-0	04	1	9911-0001	●			●		●
46	BOLT; BRKT FIX 8PE1S(59L) FRAME ENG MTG SEPARATE TYPE<SGM> EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (B) M14X40	9-92061-440-0	04	1	9911-0001	●			●
46	BOLT; BRKT FIX 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WA1 TC-R(93L) (B) M14X40	9-92061-440-0	04	1	9911-0001		●		●		●
46	BOLT; BRKT FIX (B) M14X40	9-92061-440-0	04	1	9911-0001			●				●
46	BOLT; BRKT FIX 10PE1S(60L),10PE1N(61L),10PE1H(68L) BUMPER W/HEADLAMPS<SLB> EXC. CONCRETE PUMP<RA5>,FRAME ENG MTG SEPARATE TYPE<SGM> (B) M14X40	9-92061-440-0	04	1	9911-0001				●
46	BOLT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) M14X40	9-92061-440-0	02	1	0002-	●	●		●		●
46	BOLT; BRKT FIX 8PE1S(59L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,FRONT SPOILER<VP1> (B) M14X40	9-92061-440-0	02	1	0002-	●			●
46	BOLT; BRKT FIX 10PE1N(61L) BUMPER W/HEADLAMPS<SLB> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) M14X40	9-92061-440-0	02	1	0002-	●
46	BOLT; BRKT FIX 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (A) M14X50	9-92061-450-0	04	1	9911-0001	●			●		●
46	BOLT; BRKT FIX 8PE1S(59L) FRAME ENG MTG SEPARATE TYPE<SGM> EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (A) M14X50	9-92061-450-0	04	1	9911-0001	●			●
46	BOLT; BRKT FIX 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WA1 TC-R(93L) (A) M14X50	9-92061-450-0	04	1	9911-0001		●		●		●
46	BOLT; BRKT FIX (A) M14X50	9-92061-450-0	04	1	9911-0001			●				●
46	BOLT; BRKT FIX 10PE1S(60L),10PE1N(61L),10PE1H(68L) BUMPER W/HEADLAMPS<SLB> EXC. CONCRETE PUMP<RA5>,FRAME ENG MTG SEPARATE TYPE<SGM> (A) M14X50	9-92061-450-0	04	1	9911-0001				●
46	BOLT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) M14X50	9-92061-450-0	06	1	0002-	●	●		●		●
46	BOLT; BRKT FIX 8PE1S(59L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,FRONT SPOILER<VP1> (A) M14X50	9-92061-450-0	06	1	0002-	●			●
46	BOLT; BRKT FIX 10PE1N(61L) BUMPER W/HEADLAMPS<SLB> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) M14X50	9-92061-450-0	06	1	0002-	●
46	BOLT; BRKT FIX (A) M14X45	9-92061-445-0	04	1	9603-9901			●				●
80	BRACKET; C/MBR (B)	1-53167-288-0	04	1	9603-9904	●	●		●		●
80	BRACKET; C/MBR FRAME EQUIPMENT HEAVY DUTY<F03> (B)	1-53167-288-0	04	1	9905-	●	●		●		●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	9603-9904	●	●	●	●		●	●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	9905-	●	●	●	●	●	●	●
81	BOLT; BRKT M14X55	9-91066-455-0	04	1	9603-	●	●		●		●
81	BOLT; BRKT M14X45	9-92061-445-0	08	1	9603-	●	●		●		●
82	NUT; BRKT M14	9-99110-514-0	12	1	9603-	●	●		●		●
82	NUT; BRKT M14	9-99110-514-0	04	1	9603-9904	●	●	●	●		●	●
82	NUT; BRKT M14	9-99110-514-0	04	1	9905-	●	●	●	●	●	●	●
83	WASHER; LK,BRKT ID=14.2	9-09150-614-0	12	1	9603-	●	●		●		●
84	WASHER; PL,BRKT ID=15 OD=26	9-09164-514-0	16	1	9603-	●	●		●		●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	9603-9904	●	●	●	●		●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	9905-	●	●	●	●	●	●	●
257	SPACER; UNDER MBR 6WG1 TC-R(75L)	1-53168-319-0	02	1	9905-9909	●	●	●	●		●	●
257	SPACER; UNDER MBR 6WG1 TC-C(72L),6WG1 TC-R(75L)	1-53168-319-0	02	1	9910-	●	●	●	●		●	●

130 79 34 77 41 13 21 12 19 41 11 21 11 25 23 130 6 16 79 2 77 344 77 41 13 12 34 41 19 11 25 41 11 21 21 23 6 2 16 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	MEMBER; CROSS,1ST	1-53181-710-0	01	1	9603-9901	●	●	●	●	●	●	●
2	MEMBER; CROSS,1ST EXC. CAB UP +110MM<TGG>	1-53181-710-0	01	1	9902-9904		●		●
2	MEMBER; CROSS,1ST V TYPE ENG<91L>	1-53181-710-1	01	1	9905-	●	●		●		●
2	MEMBER; CROSS,1ST L TYPE ENG<90L> EXC. CAB UP +110MM<TGG>	1-53181-710-1	01	1	9905-		●		●		●
2	MEMBER; CROSS,1ST CAB UP +110MM<TGG>	1-53181-526-3	01	1	9902-9904		●		●
2	MEMBER; CROSS,1ST	1-53181-526-3	01	1	9902-9904			●				●
2	MEMBER; CROSS,1ST L TYPE ENG<90L> CAB UP +110MM<TGG>	1-53181-526-3	01	1	9905-9905	●	●		●		●
2	MEMBER; CROSS,1ST	1-53181-526-3	01	1	9905-9905			●		●		●
2	MEMBER; CROSS,1ST L TYPE ENG<90L> CAB UP +110MM<TGG>	1-53181-526-4	01	1	9906-	●	●		●		●
2	MEMBER; CROSS,1ST	1-53181-526-4	01	1	9906-			●		●		●
6	WASHER; LK,1ST C/MBR EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-616-0	02	1	9603-9901	●	●	●	●		●	●
6	WASHER; LK,1ST C/MBR EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>,REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-616-0	02	1	9902-	●	●		●		●
11	BRACKET; ENG MTG 10PE1S(60L) (A) FRONT	1-53219-583-0	01	1	9603-9901	●
11	BRACKET; ENG MTG 10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FRONT	1-53219-583-0	01	1	9603-9901				●
11	BRACKET; ENG MTG 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) FRONT	1-53219-583-0	01	1	9603-9901						●
11	BRACKET; ENG MTG 10PE1S(60L) (A) FRONT	1-53219-582-0	01	1	9603-9901	●
11	BRACKET; ENG MTG 10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FRONT	1-53219-582-0	01	1	9603-9901				●
11	BRACKET; ENG MTG 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) FRONT	1-53219-582-0	01	1	9603-9901						●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> (B) REAR	1-53219-789-1	01	1	9906-		●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> (B) REAR	1-53219-788-1	01	1	9906-		●
11	BRACKET; ENG MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) FRONT	1-53219-583-0	01	1	9906-	●	●		●		●
11	BRACKET; ENG MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) FRONT	1-53219-582-0	01	1	9906-	●	●		●		●
11	BRACKET; ENG MTG 8PE1S(59L) FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-730-1	01	1	9906-	●			●
11	BRACKET; ENG MTG 8PE1S(59L) FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-729-1	01	1	9906-	●			●
11	BRACKET; ENG MTG V TYPE ENG<91L> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-728-1	01	1	9905-	●	●		●		●
11	BRACKET; ENG MTG V TYPE ENG<91L> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-727-1	01	1	9905-	●	●		●		●
11	BRACKET; ENG MTG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-728-1	01	1	9603-9901	●			●
11	BRACKET; ENG MTG 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-728-1	01	1	9603-9901						●
11	BRACKET; ENG MTG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-727-1	01	1	9603-9901	●			●
11	BRACKET; ENG MTG 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-727-1	01	1	9603-9901						●
11	BRACKET; ENG MTG 8PE1S(59L) (A) FRONT	1-53219-524-3	01	1	9906-	●			●
11	BRACKET; ENG MTG 8PE1S(59L) (A) FRONT	1-53219-726-1	01	1	9906-	●			●
11	BRACKET; ENG MTG 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FRONT	1-53219-524-2	01	1	9603-9901	●			●
11	BRACKET; ENG MTG CAB UP +110MM<TGG> (A) FRONT	1-53219-777-0	01	1	9902-9904		●		●
11	BRACKET; ENG MTG 6WG1 TC-R(75L) EXC. MIXER TRUCK<RA2> (A) FRONT	1-53219-777-0	01	1	9905-9905	●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1 TC-R(93L) CAB UP +110MM<TGG> (A) FRONT	1-53219-777-0	01	1	9905-9905		●		●		●
11	BRACKET; ENG MTG L TYPE ENG<90L> CAB UP +110MM<TGG> (A) FRONT	1-53219-777-0	01	1	9906-0006	●	●		●		●
11	BRACKET; ENG MTG (A) FRONT	1-53219-777-0	01	1	9906-0006			●				●
11	BRACKET; ENG MTG L TYPE ENG<90L> CAB UP +110MM<TGG> (A) FRONT	1-53219-777-1	01	1	0007-	●	●		●		●
11	BRACKET; ENG MTG (A) FRONT	1-53219-777-1	01	1	0007-			●		●		●
11	BRACKET; ENG MTG 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FRONT	1-53219-726-0	01	1	9603-9901	●			●
11	BRACKET; ENG MTG CAB UP +110MM<TGG> (A) FRONT	1-53219-778-0	01	1	9902-9904		●		●
11	BRACKET; ENG MTG 6WG1 TC-R(75L) EXC. MIXER TRUCK<RA2> (A) FRONT	1-53219-778-0	01	1	9905-9905	●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1 TC-R(93L) CAB UP +110MM<TGG> (A) FRONT	1-53219-778-0	01	1	9905-9905		●		●		●
11	BRACKET; ENG MTG L TYPE ENG<90L> CAB UP +110MM<TGG> (A) FRONT	1-53219-778-0	01	1	9906-0006	●	●		●		●
11	BRACKET; ENG MTG (A) FRONT	1-53219-778-0	01	1	9906-0006			●				●
11	BRACKET; ENG MTG L TYPE ENG<90L> CAB UP +110MM<TGG> (A) FRONT	1-53219-778-1	01	1	0007-	●	●		●		●
11	BRACKET; ENG MTG (A) FRONT	1-53219-778-1	01	1	0007-			●		●		●
11	BRACKET; ENG MTG 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-730-1	01	1	9603-9901	●			●
11	BRACKET; ENG MTG 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-730-1	01	1	9603-9901						●
11	BRACKET; ENG MTG CAB UP +110MM<TGG> (B) REAR	1-53219-990-0	01	1	9902-9904		●		●
11	BRACKET; ENG MTG L TYPE ENG<90L> CAB UP +110MM<TGG> (B) REAR	1-53219-990-1	01	1	9905-	●	●		●		●
11	BRACKET; ENG MTG 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-729-1	01	1	9603-9901	●			●
11	BRACKET; ENG MTG 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME ENG MTG SEPARATE TYPE<SGM> (B) REAR	1-53219-729-1	01	1	9603-9901						●
11	BRACKET; ENG MTG CAB UP +110MM<TGG> (B) REAR	1-53219-988-0	01	1	9902-9904		●		●
11	BRACKET; ENG MTG L TYPE ENG<90L> CAB UP +110MM<TGG> (B) REAR	1-53219-988-0	01	1	9905-	●	●		●		●
11	BRACKET; ENG MTG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME ENG MTG SEPARATE TYPE<SGM> L TYPE ENG<90L> (A) FRONT	1-53219-472-1	01	1	9603-9901		●		●
11	BRACKET; ENG MTG (A) FRONT	1-53219-472-1	01	1	9603-9901			●				●
11	BRACKET; ENG MTG EXC. CAB UP +110MM<TGG> (A) FRONT	1-53219-472-1	01	1	9902-9904		●		●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. CAB UP +110MM<TGG> (A) FRONT	1-53219-472-1	01	1	9905-		●		●		●
11	BRACKET; ENG MTG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME ENG MTG SEPARATE TYPE<SGM> L TYPE ENG<90L> (B) REAR	1-53219-742-0	01	1	9603-9901		●		●
11	BRACKET; ENG MTG EXC. CAB UP +110MM<TGG> (B) REAR	1-53219-742-0	01	1	9902-9904		●		●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. CAB UP +110MM<TGG> (B) REAR	1-53219-742-0	01	1	9905-		●		●		●
11	BRACKET; ENG MTG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME ENG MTG SEPARATE TYPE<SGM> L TYPE ENG<90L> (A) FRONT	1-53219-471-0	01	1	9603-9901		●		●
11	BRACKET; ENG MTG (A) FRONT	1-53219-471-0	01	1	9603-9901			●				●
11	BRACKET; ENG MTG EXC. CAB UP +110MM<TGG> (A) FRONT	1-53219-471-0	01	1	9902-9904		●		●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. CAB UP +110MM<TGG> (A) FRONT	1-53219-471-0	01	1	9905-		●		●		●
11	BRACKET; ENG MTG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME ENG MTG SEPARATE TYPE<SGM> L TYPE ENG<90L> (B) REAR	1-53219-741-0	01	1	9603-9901		●		●
11	BRACKET; ENG MTG EXC. CAB UP +110MM<TGG> (B) REAR	1-53219-741-0	01	1	9902-9904		●		●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. CAB UP +110MM<TGG> (B) REAR	1-53219-741-0	01	1	9905-		●		●		●
11	BRACKET; ENG MTG CAB UP +110MM<TGG> (B) REAR	1-53219-994-0	01	1	9902-9904		●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1 TC-R(93L) CAB UP +110MM<TGG> (B) REAR	1-53219-994-0	01	1	9905-9910	●	●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1 TC-R(93L) CAB UP +110MM<TGG> (B) REAR	1-53239-082-0	01	1	9911-	●	●
11	BRACKET; ENG MTG CAB UP +110MM<TGG> (B) REAR	1-53219-993-0	01	1	9902-9904		●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1 TC-R(93L) CAB UP +110MM<TGG> (B) REAR	1-53219-993-0	01	1	9905-9910	●	●
11	BRACKET; ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1 TC-R(93L) CAB UP +110MM<TGG> (B) REAR	1-53239-081-0	01	1	9911-	●	●
11	BRACKET; ENG MTG (B) REAR	1-53219-652-2	01	1	9603-9904			●				●
11	BRACKET; ENG MTG (B) REAR	1-53219-652-2	01	1	9905-9905			●				●
11	BRACKET; ENG MTG (B) REAR	1-53219-986-1	01	1	9906-			●		●		●
11	BRACKET; ENG MTG (A) FRONT	1-53219-977-0	01	1	9902-9905			●				●
11	BRACKET; ENG MTG (B) REAR	1-53219-651-2	01	1	9603-9904			●				●
11	BRACKET; ENG MTG (B) REAR	1-53219-651-2	01	1	9905-9905			●				●
11	BRACKET; ENG MTG (B) REAR	1-53219-985-0	01	1	9906-			●		●		●
11	BRACKET; ENG MTG (A) FRONT	1-53219-746-0	01	1	9902-9905			●				●
12	WASHER; PL,BRKT,ENG MTG 10PE1S(60L) ID=15	9-09651-069-0	01	1	9603-9901	●
12	WASHER; PL,BRKT,ENG MTG 10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=15	9-09651-069-0	01	1	9603-9901				●
12	WASHER; PL,BRKT,ENG MTG 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=15	9-09651-069-0	01	1	9603-9901						●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	05	1	9902-9904				●
12	WASHER; PL,BRKT,ENG MTG L TYPE ENG<90L> ID=15	9-09651-069-0	05	1	9905-9910				●
12	WASHER; PL,BRKT,ENG MTG L TYPE ENG<90L> ID=15	9-09651-069-0	01	1	9911-				●
12	WASHER; PL,BRKT,ENG MTG 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=15	9-09651-069-0	02	1	9603-9605	●			●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	02	1	9603-9605			●				●
12	WASHER; PL,BRKT,ENG MTG 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=15	9-09651-069-0	02	1	9606-9901	●			●
12	WASHER; PL,BRKT,ENG MTG FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	02	1	9606-9901			●				●
12	WASHER; PL,BRKT,ENG MTG CAB UP +110MM<TGG> ID=15	9-09651-069-0	02	1	9902-9904		●
12	WASHER; PL,BRKT,ENG MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15	9-09651-069-0	03	1	9905-9909		●
12	WASHER; PL,BRKT,ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. MIXER TRUCK<RA2> ID=15	9-09651-069-0	03	1	9905-9909		●
12	WASHER; PL,BRKT,ENG MTG EXC. FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	03	1	9905-9909			●				●
12	WASHER; PL,BRKT,ENG MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15	9-09651-069-0	03	1	9910-9910		●
12	WASHER; PL,BRKT,ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) FRONT SPOILER<VP1> EXC. MIXER TRUCK<RA2> ID=15	9-09651-069-0	03	1	9910-9910		●
12	WASHER; PL,BRKT,ENG MTG EXC. FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	03	1	9910-9910			●				●
12	WASHER; PL,BRKT,ENG MTG 8PE1S(59L) EXC. SILENCER SINGLE VERTICAL<N28>,FRONT SPOILER<VP1> ID=15	9-09651-069-0	02	1	9911-9912	●			●
12	WASHER; PL,BRKT,ENG MTG FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	02	1	9911-9912			●				●
12	WASHER; PL,BRKT,ENG MTG 10PE1N(61L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=15	9-09651-069-0	02	1	0001-0006				●		●
12	WASHER; PL,BRKT,ENG MTG V TYPE ENG<91L> ID=15	9-09651-069-0	02	1	0007-				●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	02	1	0007-						●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	03	1	9603-9605		●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	03	1	9606-9901		●
12	WASHER; PL,BRKT,ENG MTG EXC. FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	03	1	9606-9901			●				●
12	WASHER; PL,BRKT,ENG MTG EXC. MIXER TRUCK<RA2> ID=15	9-09651-069-0	03	1	9902-9904		●
12	WASHER; PL,BRKT,ENG MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15	9-09651-069-0	01	1	9905-9910	●			●		●
12	WASHER; PL,BRKT,ENG MTG 6WG1 TC-R(75L) CAB UP +110MM<TGG> ID=15	9-09651-069-0	01	1	9905-9910						●
12	WASHER; PL,BRKT,ENG MTG L TYPE ENG<90L> ID=15	9-09651-069-0	03	1	9911-	●	●
12	WASHER; PL,BRKT,ENG MTG EXC. FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	03	1	9911-			●				●
12	WASHER; PL,BRKT,ENG MTG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 6WA1 TC-S(56L) ID=15	9-09651-069-0	05	1	9603-9901				●
12	WASHER; PL,BRKT,ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1 TC-R(93L) ID=15	9-09651-069-0	05	1	9905-9905				●
12	WASHER; PL,BRKT,ENG MTG 8PE1S(59L) ID=15	9-09651-069-0	02	1	9906-9909	●			●
12	WASHER; PL,BRKT,ENG MTG 6WG1 TC-R(75L) CAB UP +110MM<TGG> ID=15	9-09651-069-0	02	1	9906-9909	●
12	WASHER; PL,BRKT,ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) MIXER TRUCK<RA2> ID=15	9-09651-069-0	02	1	9906-9909		●
12	WASHER; PL,BRKT,ENG MTG FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	02	1	9906-9909			●				●
12	WASHER; PL,BRKT,ENG MTG L TYPE ENG<90L> ID=15	9-09651-069-0	02	1	9910-9910				●		●
12	WASHER; PL,BRKT,ENG MTG L TYPE ENG<90L> ID=15	9-09651-069-0	05	1	9911-				●		●
13	BOLT; BRKT,ENG MTG 10PE1S(60L) M14X40	9-92061-440-0	01	1	9603-9901	●
13	BOLT; BRKT,ENG MTG 10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X40	9-92061-440-0	01	1	9603-9901				●
13	BOLT; BRKT,ENG MTG 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14X40	9-92061-440-0	01	1	9603-9901						●
13	BOLT; BRKT,ENG MTG M14X40	9-92061-440-0	05	1	9902-9904				●
13	BOLT; BRKT,ENG MTG L TYPE ENG<90L> M14X40	9-92061-440-0	05	1	9905-9910				●
13	BOLT; BRKT,ENG MTG L TYPE ENG<90L> M14X40	9-92061-440-0	01	1	9911-				●
13	BOLT; BRKT,ENG MTG 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X40	9-92061-440-0	02	1	9603-9605	●			●
13	BOLT; BRKT,ENG MTG M14X40	9-92061-440-0	02	1	9603-9605			●				●
13	BOLT; BRKT,ENG MTG 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X40	9-92061-440-0	02	1	9606-9901	●			●
13	BOLT; BRKT,ENG MTG FRONT STABILIZER SHAFT<F59> M14X40	9-92061-440-0	02	1	9606-9901			●				●
13	BOLT; BRKT,ENG MTG CAB UP +110MM<TGG> M14X40	9-92061-440-0	02	1	9902-9904		●
13	BOLT; BRKT,ENG MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40	9-92061-440-0	03	1	9905-9909		●
13	BOLT; BRKT,ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. MIXER TRUCK<RA2> M14X40	9-92061-440-0	03	1	9905-9909		●
13	BOLT; BRKT,ENG MTG EXC. FRONT STABILIZER SHAFT<F59> M14X40	9-92061-440-0	03	1	9905-9909			●				●
13	BOLT; BRKT,ENG MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40	9-92061-440-0	03	1	9910-9910		●
13	BOLT; BRKT,ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) FRONT SPOILER<VP1> EXC. MIXER TRUCK<RA2> M14X40	9-92061-440-0	03	1	9910-9910		●
13	BOLT; BRKT,ENG MTG EXC. FRONT STABILIZER SHAFT<F59> M14X40	9-92061-440-0	03	1	9910-9910			●				●
13	BOLT; BRKT,ENG MTG 8PE1S(59L) M14X40	9-92061-440-0	02	1	9911-	●			●
13	BOLT; BRKT,ENG MTG FRONT STABILIZER SHAFT<F59> M14X40	9-92061-440-0	02	1	9911-			●				●
13	BOLT; BRKT,ENG MTG M14X40	9-92061-440-0	02	1	9911-					●
13	BOLT; BRKT,ENG MTG M14X40	9-92061-440-0	03	1	9603-9605		●
13	BOLT; BRKT,ENG MTG M14X40	9-92061-440-0	03	1	9606-9901		●
13	BOLT; BRKT,ENG MTG EXC. FRONT STABILIZER SHAFT<F59> M14X40	9-92061-440-0	03	1	9606-9901			●				●
13	BOLT; BRKT,ENG MTG EXC. MIXER TRUCK<RA2> M14X40	9-92061-440-0	03	1	9902-9904		●
13	BOLT; BRKT,ENG MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40	9-92061-440-0	01	1	9905-9910	●			●		●
13	BOLT; BRKT,ENG MTG 6WG1 TC-R(75L) CAB UP +110MM<TGG> M14X40	9-92061-440-0	01	1	9905-9910						●
13	BOLT; BRKT,ENG MTG L TYPE ENG<90L> M14X40	9-92061-440-0	03	1	9911-	●	●
13	BOLT; BRKT,ENG MTG EXC. FRONT STABILIZER SHAFT<F59> M14X40	9-92061-440-0	03	1	9911-			●				●
13	BOLT; BRKT,ENG MTG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 6WA1 TC-S(56L) M14X40	9-92061-440-0	05	1	9603-9901				●
13	BOLT; BRKT,ENG MTG 8PE1S(59L) M14X40	9-92061-440-0	02	1	9905-9909	●			●
13	BOLT; BRKT,ENG MTG 6WG1 TC-R(75L) CAB UP +110MM<TGG> M14X40	9-92061-440-0	02	1	9905-9909	●
13	BOLT; BRKT,ENG MTG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) MIXER TRUCK<RA2> M14X40	9-92061-440-0	02	1	9905-9909		●
13	BOLT; BRKT,ENG MTG FRONT STABILIZER SHAFT<F59> M14X40	9-92061-440-0	02	1	9905-9909			●				●
13	BOLT; BRKT,ENG MTG L TYPE ENG<90L> M14X40	9-92061-440-0	02	1	9910-9910				●		●
13	BOLT; BRKT,ENG MTG L TYPE ENG<90L> M14X40	9-92061-440-0	05	1	9911-				●		●
16	BOLT; 1ST C/MBR TO S/MBR EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X40	0-20801-640-0	02	1	9603-9901	●	●	●	●		●	●
16	BOLT; 1ST C/MBR TO S/MBR EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>,REINFORCEMENT BUMPER<VG7> M16X40	0-20801-640-0	02	1	9902-	●	●		●		●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	9603-9904	●	●	●	●		●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	9905-	●	●	●	●	●	●	●
21	GUSSET; 2ND CROSS (A)	1-53164-208-0	02	1	9603-	●	●		●		●
21	GUSSET; 2ND CROSS (B)	1-53167-287-2	02	1	9603-	●	●		●		●
21	GUSSET; 2ND CROSS (A)	1-53164-207-0	02	1	9603-9901			●				●
21	GUSSET; 2ND CROSS (A)	1-53164-207-0	02	1	9905-			●		●		●
23	BOLT; BRKT,SPR (B) M12X35,M14X45 L=100	1-09029-075-0	04	1	9603-9904	●	●	●	●		●	●
23	BOLT; BRKT,SPR (B) M12X35,M14X45 L=100	1-09029-075-0	04	1	9905-	●	●	●	●	●	●	●
23	BOLT; BRKT,SPR (A) M14X40	9-92061-440-0	04	1	9603-9904	●	●	●	●		●	●
23	BOLT; BRKT,SPR (A) M14X40	9-92061-440-0	04	1	9905-	●	●	●	●	●	●	●
23	BOLT; BRKT,SPR (C) M16X50	9-92061-650-0	04	1	9603-9904	●	●	●	●		●	●
23	BOLT; BRKT,SPR (C) M16X50	9-92061-650-0	04	1	9905-	●	●	●	●	●	●	●
25	WASHER; PL,BRKT 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) ID=16.2	1-09503-223-0	08	1	9603-9702	●			●
25	WASHER; PL,BRKT FRAME ENG MTG SEPARATE TYPE<SGM> L TYPE ENG<90L> (A) ID=16.2	1-09503-223-0	08	1	9603-9702		●		●
25	WASHER; PL,BRKT (A) ID=16.2	1-09503-223-0	08	1	9603-9702			●				●
25	WASHER; PL,BRKT 6WA1 TC-S(56L),8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2	1-09503-223-0	08	1	9703-9901	●			●
25	WASHER; PL,BRKT (A) ID=16.2	1-09503-223-0	08	1	9703-9901		●	●				●
25	WASHER; PL,BRKT (A) ID=16.2	1-09503-223-0	08	1	9902-9904		●		●
25	WASHER; PL,BRKT (A) ID=16.2	1-09503-223-0	08	1	9905-	●		●	●			●
25	WASHER; PL,BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (A) ID=16.2	1-09503-223-0	08	1	9905-		●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) ID=16.2	1-09503-223-0	08	1	9905-		●
25	WASHER; PL,BRKT (A) ID=16.2	1-09503-223-0	08	1	9910-9910	●		●	●			●
25	WASHER; PL,BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A) ID=16.2	1-09503-223-0	08	1	9910-9910		●
25	WASHER; PL,BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. CAB UP +110MM<TGG> (A) ID=16.2	1-09503-223-0	08	1	9910-9910		●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) ID=16.2	1-09503-223-0	08	1	9910-9910		●
25	WASHER; PL,BRKT L TYPE ENG<90L> (A) ID=16.2	1-09503-223-0	08	1	9911-	●	●		●		●
25	WASHER; PL,BRKT (A) ID=16.2	1-09503-223-0	08	1	9911-		●	●	●	●		●
25	WASHER; PL,BRKT 10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	24	1	9603-9901	●			●		●
25	WASHER; PL,BRKT 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	24	1	9603-9901	●			●
25	WASHER; PL,BRKT FRAME ENG MTG SEPARATE TYPE<SGM> L TYPE ENG<90L> (B) ID=15	9-09651-069-0	24	1	9603-9901		●		●
25	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	24	1	9603-9901			●				●
25	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	24	1	9902-9904		●		●
25	WASHER; PL,BRKT 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) ID=15	9-09651-069-0	24	1	9905-9909	●
25	WASHER; PL,BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) (B) ID=15	9-09651-069-0	24	1	9905-9909		●
25	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	24	1	9905-9909			●	●			●
25	WASHER; PL,BRKT 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) ID=15	9-09651-069-0	24	1	9910-9910	●
25	WASHER; PL,BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WA1 TC-R(93L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) ID=15	9-09651-069-0	24	1	9910-9910		●
25	WASHER; PL,BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. CAB UP +110MM<TGG> (B) ID=15	9-09651-069-0	24	1	9910-9910		●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	24	1	9910-9910		●
25	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	24	1	9910-9910			●				●
25	WASHER; PL,BRKT 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (B) ID=15	9-09651-069-0	24	1	9911-0001	●			●
25	WASHER; PL,BRKT 8PE1S(59L) FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	24	1	9911-0001	●			●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) ID=15	9-09651-069-0	24	1	9911-0001	●
25	WASHER; PL,BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WG1 TC-C(72L),6WA1 TC-R(93L) (B) ID=15	9-09651-069-0	24	1	9911-0001		●		●		●
25	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	24	1	9911-0001			●				●
25	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	24	1	0002-	●	●	●	●	●	●	●
25	WASHER; PL,BRKT 10PE1S(60L) (A) ID=16.2	1-09503-223-0	06	1	9603-9904	●
25	WASHER; PL,BRKT 10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2	1-09503-223-0	06	1	9603-9904				●
25	WASHER; PL,BRKT 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16.2	1-09503-223-0	06	1	9603-9904						●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) ID=16.2	1-09503-223-0	06	1	9905-9910	●			●		●
25	WASHER; PL,BRKT 6WG1 TC-R(75L) CAB UP +110MM<TGG> (A) ID=16.2	1-09503-223-0	06	1	9905-9910						●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) ID=16.2	1-09503-223-0	06	1	9911-0001	●	●		●		●
25	WASHER; PL,BRKT V TYPE ENG<91L> (A) ID=16.2	1-09503-223-0	06	1	0002-	●	●		●		●
25	WASHER; PL,BRKT 8PE1S(59L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	28	1	9603-9904	●			●
25	WASHER; PL,BRKT 8PE1S(59L) (B) ID=15	9-09651-069-0	28	1	9905-	●			●
25	WASHER; PL,BRKT 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	20	1	9603-9904						●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	20	1	9906-9910						●
25	WASHER; PL,BRKT 6WG1 TC-R(75L) CAB UP +110MM<TGG> (B) ID=15	9-09651-069-0	20	1	9906-9910						●
25	WASHER; PL,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) BUMPER W/HEADLAMPS<SLB> EXC. CONCRETE PUMP<RA5>,FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=15	9-09651-069-0	20	1	9911-0001				●
25	WASHER; PL,BRKT V TYPE ENG<91L> (B) ID=15	9-09651-069-0	20	1	0002-				●
25	WASHER; PL,BRKT 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (B) ID=15	9-09651-069-0	26	1	9911-						●
34	MEMBER; CROSS,3RD	1-53181-640-1	01	1	9603-9901			●				●
34	MEMBER; CROSS,3RD	1-53181-640-1	01	1	9905-			●		●		●
34	MEMBER; CROSS,3RD	1-53181-645-1	01	1	9603-				●		●
41	BRACKET; CENTER BRG,FRAME SIDE (A) L=315	1-53271-353-0	02	1	9603-9901			●
41	BRACKET; CENTER BRG,FRAME SIDE (A) L=315	1-53271-353-0	02	1	9905-			●
41	BRACKET; CENTER BRG,FRAME SIDE L TYPE ENG<90L> (A) L=290	1-53271-322-1	02	1	9603-				●
41	BRACKET; CENTER BRG,FRAME SIDE V TYPE ENG<91L> (A) L=305	1-53271-262-2	02	1	9603-				●
41	BRACKET; CENTER BRG,FRAME SIDE (A) L=305	1-53271-262-2	02	1	9603-						●	●
41	BRACKET; CENTER BRG,FRAME SIDE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1 TC-R(93L) CAB UP +110MM<TGG> (A) L=310	1-53271-305-0	02	1	9905-				●		●
41	BRACKET; CENTER BRG,FRAME SIDE 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (A) L=310	1-53271-305-0	02	1	9905-				●
41	BRACKET; CENTER BRG,FRAME SIDE (B) L=330	1-53271-265-2	02	1	9603-							●
41	BRACKET; CENTER BRG,FRAME SIDE (A) L=335	1-53271-309-1	02	1	0007-					●
77	MEMBER; CROSS,TRUNNION RR (A)	1-53181-146-4	01	1	9603-	●	●		●		●
77	MEMBER; CROSS,TRUNNION RR (A)	1-53181-689-0	01	1	9603-9901			●				●
77	MEMBER; CROSS,TRUNNION RR (A)	1-53181-689-0	01	1	9905-0001			●				●
77	MEMBER; CROSS,TRUNNION RR (A)	1-53181-689-1	01	1	0002-			●	●	●		●
77	MEMBER; CROSS,TRUNNION RR (B)	1-53181-693-0	01	1	9603-							●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-374-0	01	1	9603-0001	●	●		●		●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-374-0	01	1	0002-	●	●				●
79	MEMBER; CROSS,TRUNNION ASM EXC. FRAME EQUIPMENT HEAVY DUTY<F01>	1-53181-374-0	01	1	0002-				●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-1	01	1	9603-0006			●				●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-1	01	1	0007-			●		●		●
79	MEMBER; CROSS,TRUNNION ASM FRAME EQUIPMENT HEAVY DUTY<F01>	1-53181-685-0	01	1	0002-				●
130	MEMBER; CROSS,END	1-53181-537-0	01	1	9603-0001			●				●
130	MEMBER; CROSS,END	1-53181-537-1	01	1	0002-			●		●		●
130	MEMBER; CROSS,END FRAME EQUIPMENT HEAVY DUTY<F01>	1-53181-537-1	01	1	0002-				●
130	MEMBER; CROSS,END	1-53171-876-2	01	1	9603-0001				●		●
130	MEMBER; CROSS,END EXC. FRAME EQUIPMENT HEAVY DUTY<F01>	1-53171-876-3	01	1	0002-				●
130	MEMBER; CROSS,END	1-53171-876-3	01	1	0002-						●
344	MEMBER; CROSS,4TH	1-53181-640-1	01	1	9603-							●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
