Isuzu WW
▶
TRUCKS
▶
NPR
▶
51292 - NPR/NQR BUS CHA(LHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#54069) — 29 parça
Tümü
A - NPR6JN
B - NPR6JS
◀
[826A] NO.1 (13 parça)
[826A] NO.2 (16 parça)
▶

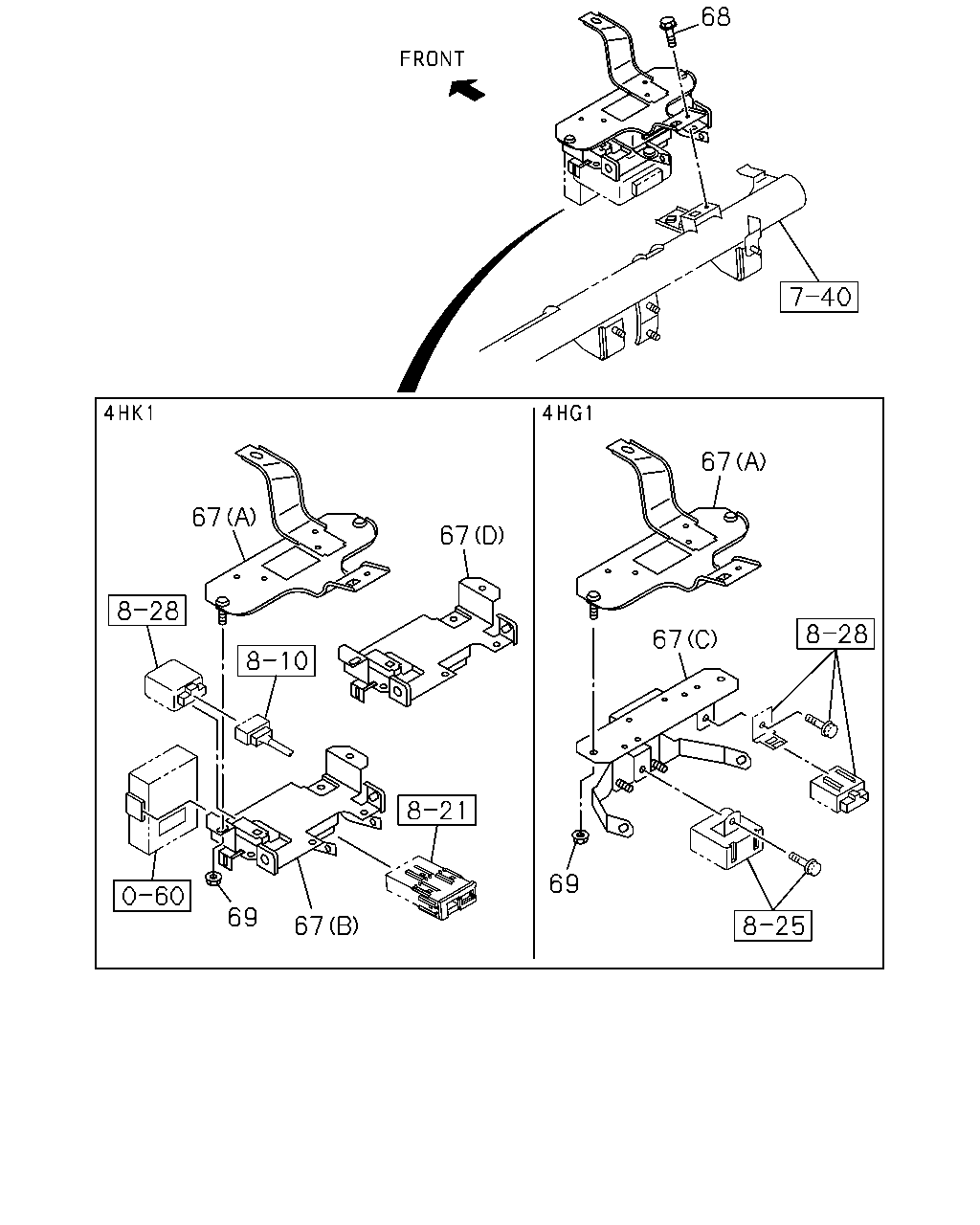

68
67
67
67
67
69
69
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
67
03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (B)
8-98022-206-2
01
1
1012-1111
●
67
03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (D)
8-98203-057-0
01
1
1112-1207
●
67
03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (D)
8-98217-377-0
01
1
1208-1212
●
67
03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (D)
8-98237-555-0
01
1
1301-1303
●
67
03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (D)
8-98237-555-0
01
1
1304-1404
●
●
67
03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (D)
8-98217-377-0
01
1
1405-
●
●
67
03.887 BRACKET; CONT UNIT
4HG1 ENG(RJH) (C)
8-98110-224-1
01
1
1012-
●
67
03.887 BRACKET; CONT UNIT
(A)
8-98015-039-1
01
1
1012-1303
●
67
03.887 BRACKET; CONT UNIT
(A)
8-98015-039-1
01
1
1304-
●
●
68
02.500 BOLT; BRKT
00.206 M6X12 FLANGE
0-28450-612-0
01
1
1012-1303
●
68
02.500 BOLT; BRKT
00.206 M6X12 FLANGE
0-28450-612-0
01
1
1304-
●
●
69
02.458 NUT; BRKT
01.062 M6 FLANGE
0-91180-106-0
02
1
1012-1303
●
69
02.458 NUT; BRKT
01.062 M6 FLANGE
0-91180-106-0
02
1
1304-
●
●
1
21
234
648
553
448
549
635
448

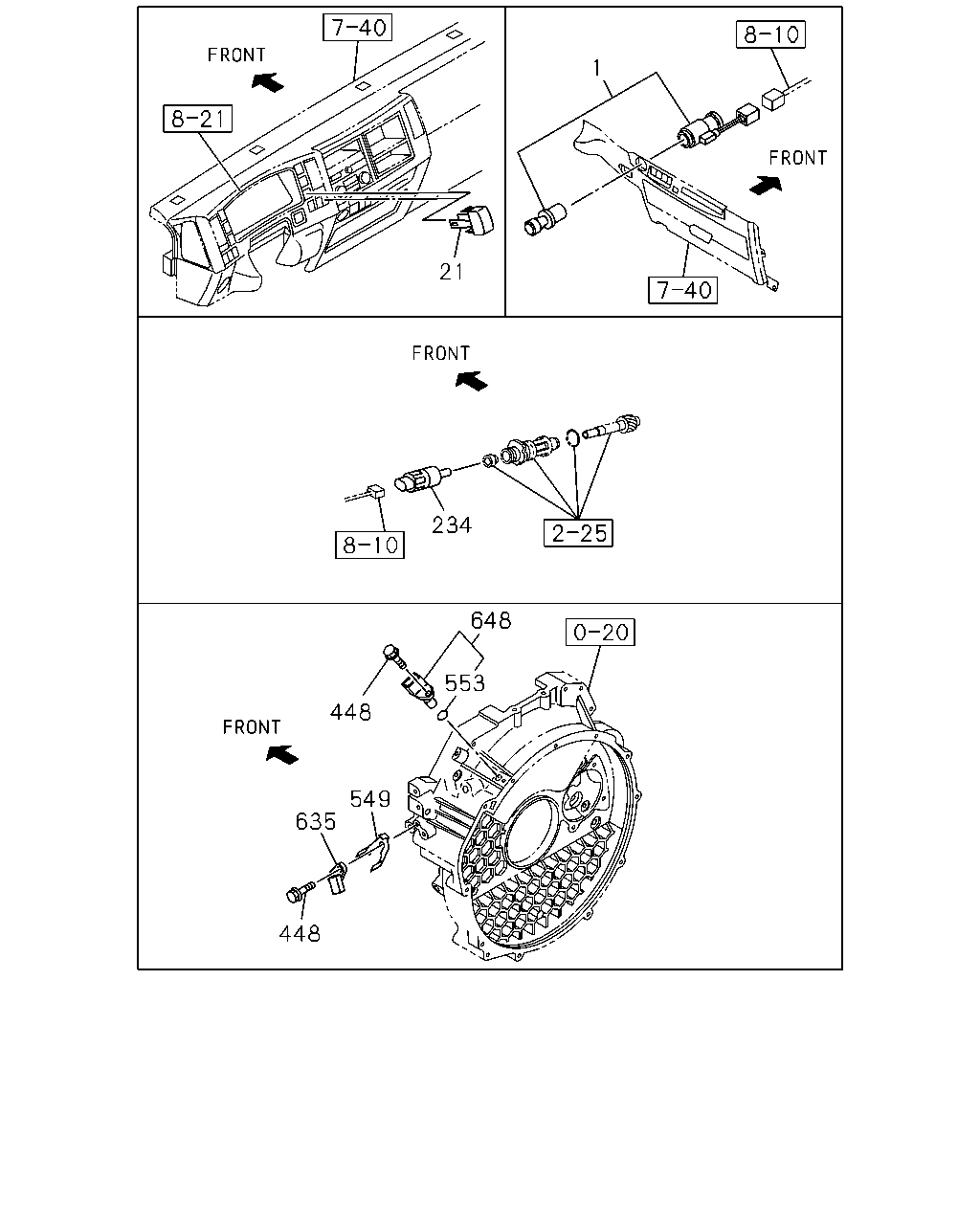

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
09.709 LIGHTER; CIGAR
8-98142-962-0
01
1
1012-1303
●
1
09.709 LIGHTER; CIGAR
8-98142-962-0
01
1
1304-
●
●
21
09.744 COVER; HOLE
16.081
8-98025-954-1
01
1
1012-1303
●
21
09.744 COVER; HOLE
16.081
8-98025-954-1
01
1
1304-
●
●
21
09.744 COVER; HOLE
16.081
8-98025-954-1
02
1
1012-1303
●
21
09.744 COVER; HOLE
16.081
8-98025-954-1
02
1
1304-
●
●
234
03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM
8-97328-058-1
01
1
1012-1303
●
234
03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM
8-97328-058-1
01
1
1304-
●
●
448
02.500 BOLT; SENSOR
09.242 M6X16 FLANGE
0-28050-616-0
01
1
1012-1303
●
448
02.500 BOLT; SENSOR
09.242 M6X16 FLANGE
0-28050-616-0
01
1
1304-
●
●
549
02.510 SHEET
4HG1 ENG(RJH) 09.743
8-97161-633-2
01
1
1012-
●
553
02.500 GASKET
4HK1-TCN ENG(RDQ) 00.724 ID=14.2 OD=18.8
8-97369-404-0
01
1
1012-1303
●
553
02.500 GASKET
4HK1-TCN ENG(RDQ) 00.724 ID=14.2 OD=18.8
8-97369-404-0
01
1
1304-
●
●
635
09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) CALSONIC KANSEI
8-97163-104-0
01
1
1012-
●
648
03.682 SENSOR; CRANK ANGLE
4HK1-TCN ENG(RDQ)
8-97606-943-0
01
1
1012-1303
●
648
03.682 SENSOR; CRANK ANGLE
4HK1-TCN ENG(RDQ)
8-97606-943-0
01
1
1304-
●
●
