8-21 — METER ASM (#54067) — 37 parça

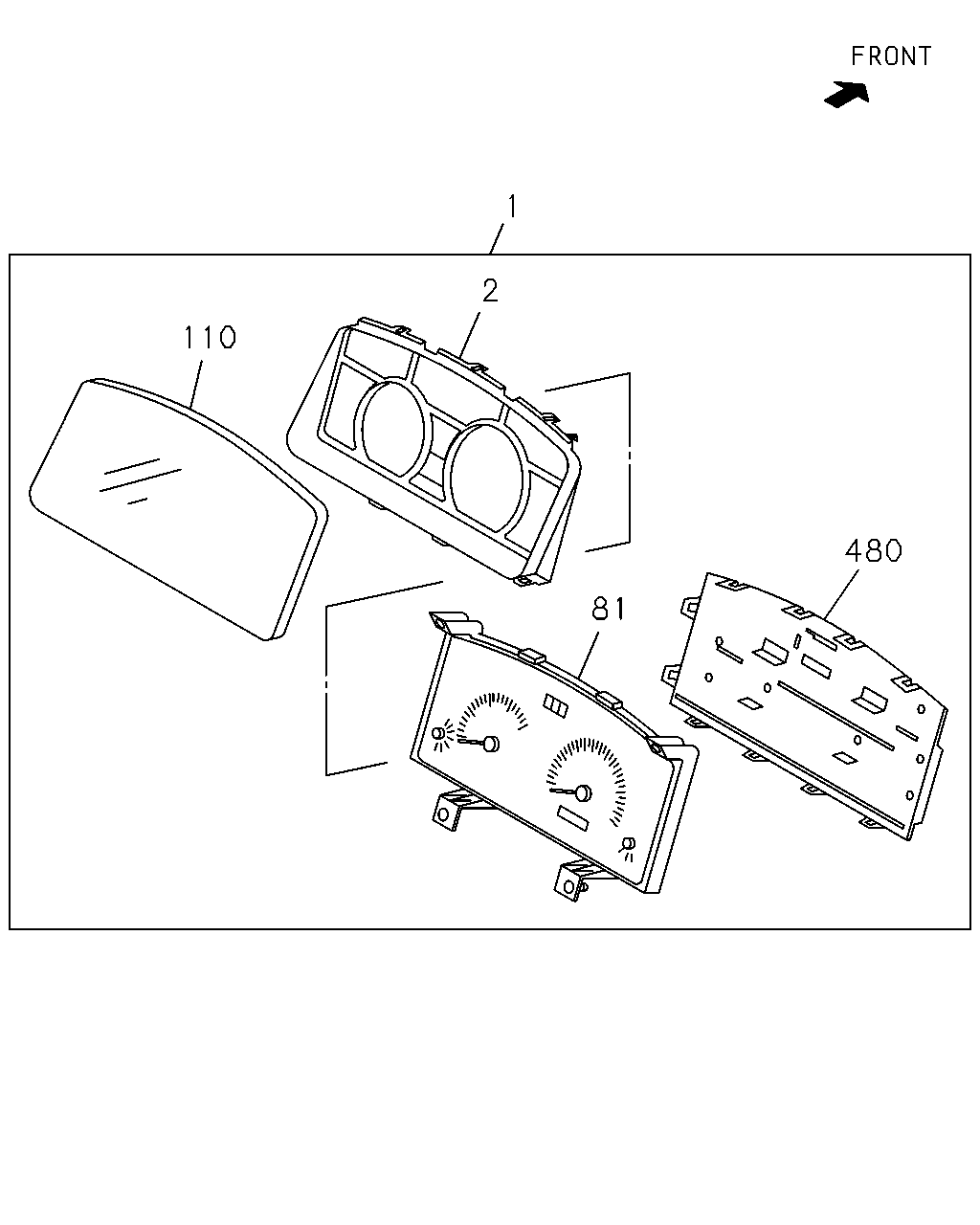

çizim 175111
1 2 110 480 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) SPEEDOMETER MILE<UC1> 		8-98126-675-3 01 1 1012-1303 ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) SPEEDOMETER MILE<UC1> 		8-98126-675-3 01 1 1304- ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) EXC. SPEEDOMETER MILE<UC1> 		8-98021-249-4 01 1 1012-1303 ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) EXC. SPEEDOMETER MILE<UC1> 		8-98021-249-4 01 1 1304- ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) SPEEDOMETER MILE<UC1> 		8-98126-678-2 01 1 1012- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> 		8-98100-029-2 01 1 1012- ●
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 1012-1303 ●
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 1304- ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ) 		8-98054-432-0 01 1 1304- ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ) SPEEDOMETER MILE<UC1> 		8-98126-832-0 01 1 1012-1303 ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ) SPEEDOMETER MILE<UC1> 		8-98126-832-0 01 1 1304- ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ) EXC. SPEEDOMETER MILE<UC1> 		8-98073-677-0 01 1 1012-1303 ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ) EXC. SPEEDOMETER MILE<UC1> 		8-98073-677-0 01 1 1304- ● ●
81 09.735 METER SUB ASM
4HG1 ENG(RJH) SPEEDOMETER MILE<UC1> 		8-98126-835-0 01 1 1012- ●
81 09.735 METER SUB ASM
4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> 		8-98107-762-0 01 1 1012- ●
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1012-1303 ●
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1304- ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ) 		8-98054-431-0 01 1 1304- ●
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 1012-1303 ●
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 1304- ●
480 09.748 COVER; METER
4HK1-TCN ENG(RDQ) BLACK 		8-98054-433-0 01 1 1304- ●

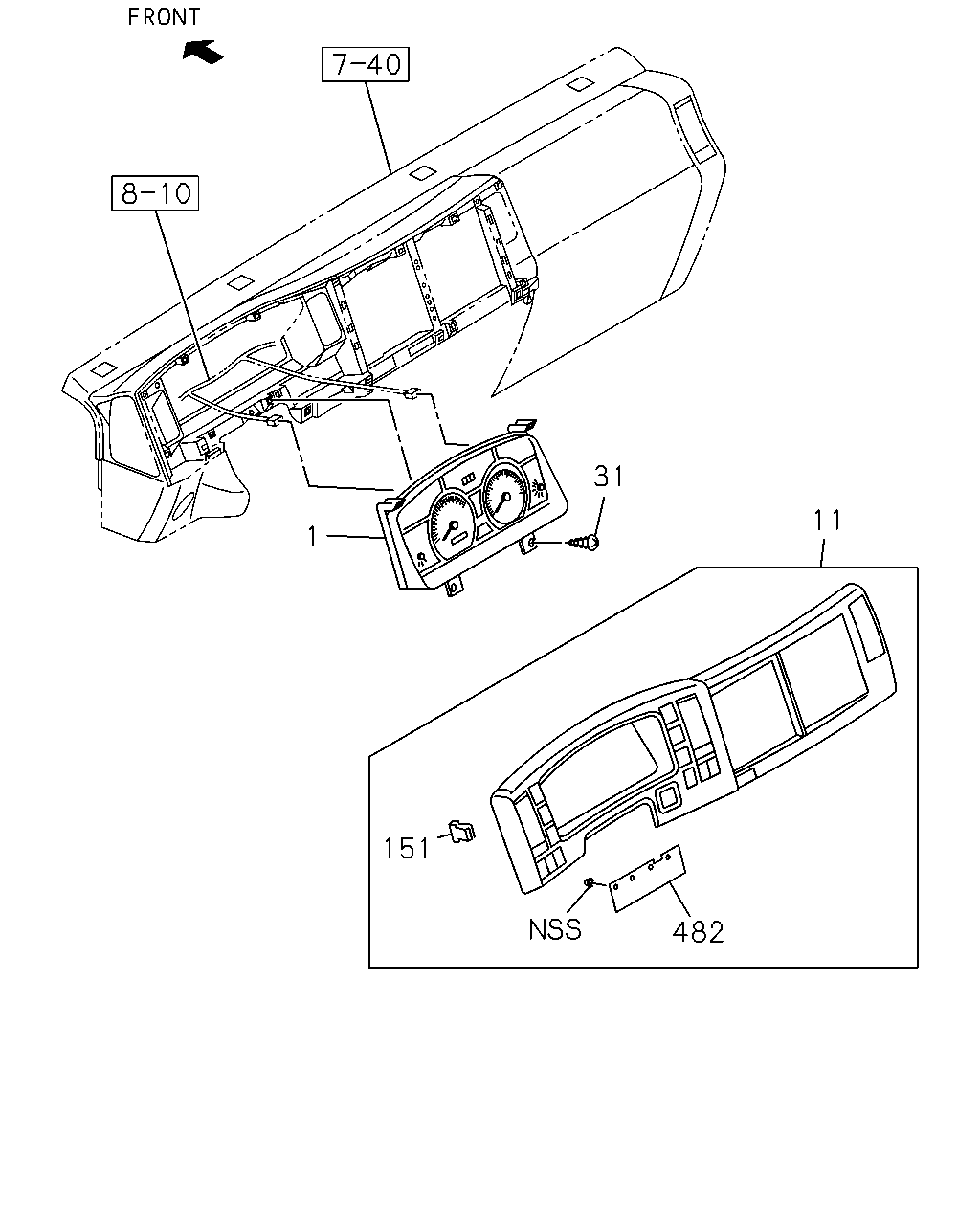

çizim 175112
31 11 1 151 482
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) SPEEDOMETER MILE<UC1> 		8-98126-675-3 01 1 1012-1303 ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) SPEEDOMETER MILE<UC1> 		8-98126-675-3 01 1 1304- ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) EXC. SPEEDOMETER MILE<UC1> 		8-98021-249-4 01 1 1012-1303 ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) EXC. SPEEDOMETER MILE<UC1> 		8-98021-249-4 01 1 1304- ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) SPEEDOMETER MILE<UC1> 		8-98126-678-2 01 1 1012- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> 		8-98100-029-2 01 1 1012- ●
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97406-005-6 01 1 1012-1303 ●
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97406-005-6 01 1 1304- ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1012-1012 ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1101-1212 ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-1303 ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1304- ● ●
151 09.747 CLIP; METER CLUSTER
16.085 		8-98021-271-0 13 1 1012-1303 ●
151 09.747 CLIP; METER CLUSTER
16.085 		8-98021-271-0 13 1 1304- ● ●
482 09.772 SEAL; CLUSTER METER 8-98116-843-0 01 1 1012-1303 ●
482 09.772 SEAL; CLUSTER METER 8-98116-843-0 01 1 1304- ● ●
