Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#54066) — 284 parça

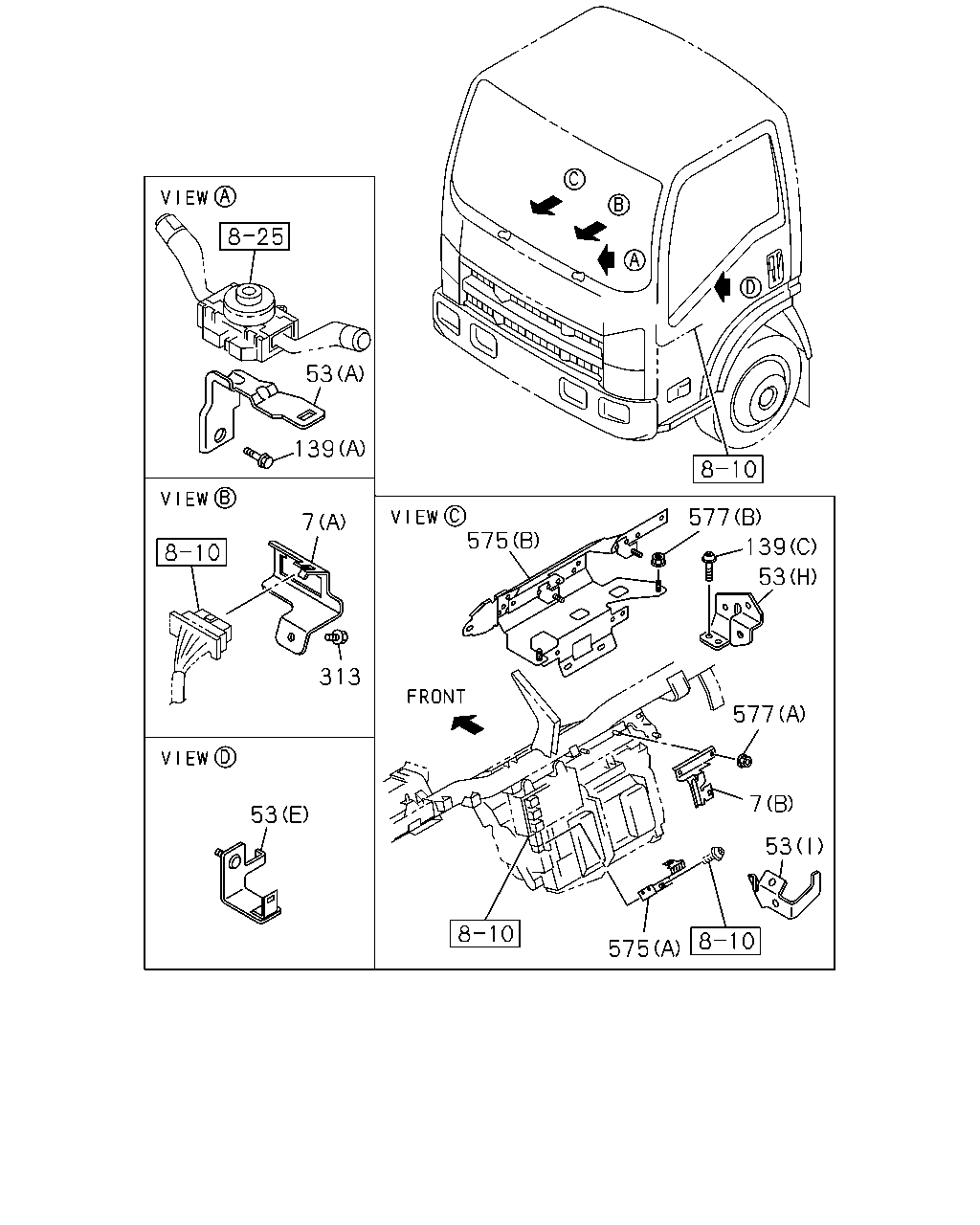

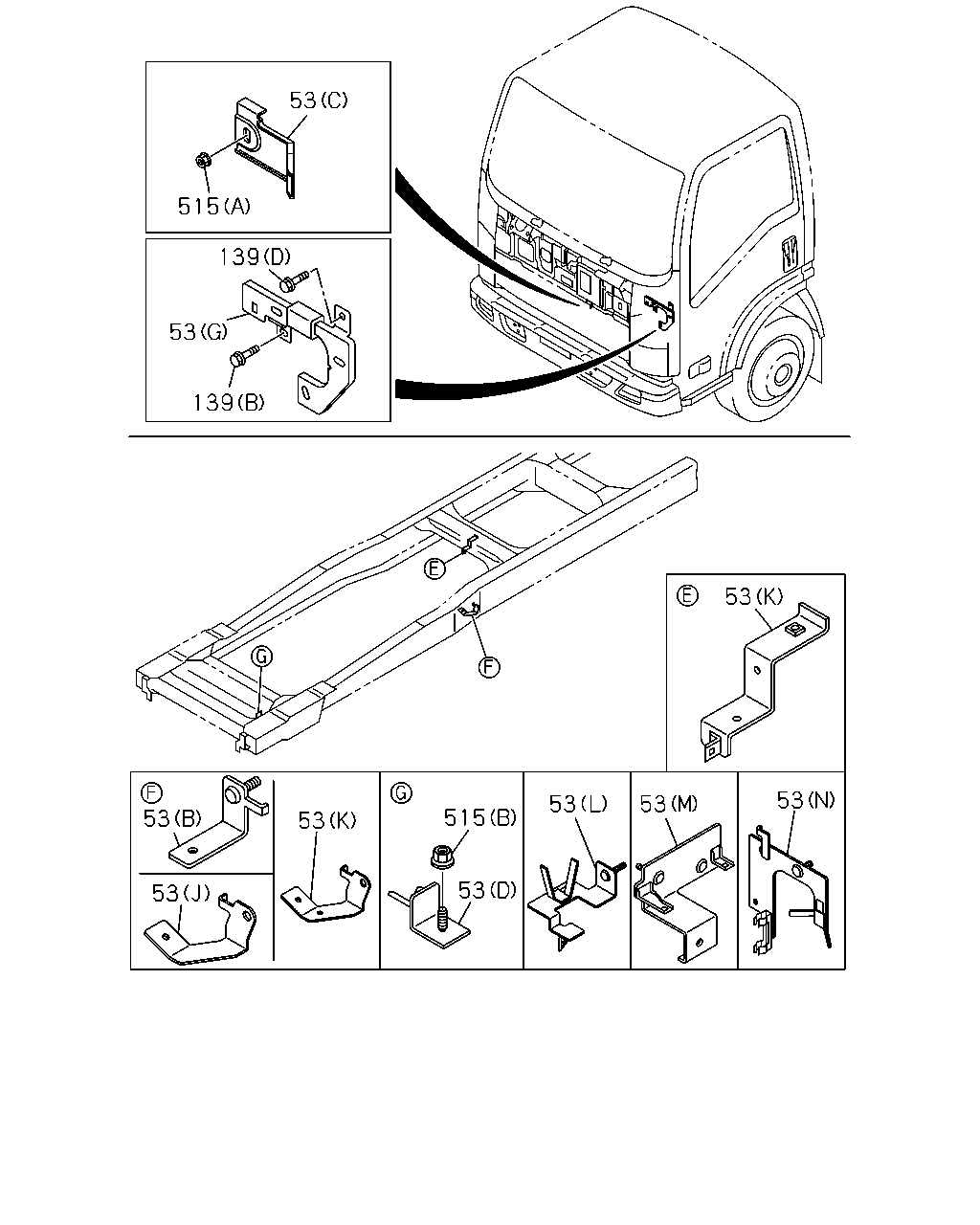

516 139 150 313 139 139 150 480 529 480 377 377 386 386 139 577 24 294 515 577 294 515 515 552 24 515 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	02.559 NUT; HARNESS 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
24	02.559 NUT; HARNESS 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-	●	●
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-1303	●
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1304-1409	●	●
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-1303	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1304-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-1303	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1304-	●	●
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1012	●
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1101-1212	●
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-1303	●
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1304-	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1012-1303	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1304-	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	1012-1303	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	1304-	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) (A) M8X16 FLANGE	0-28050-816-0	04	1	1012-1303	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) (A) M8X16 FLANGE	0-28050-816-0	04	1	1304-	●	●
294	02.559 NUT 4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1303	●
294	02.559 NUT 4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
294	02.559 NUT 4HG1 ENG(RJH) 02.343 (B) M6 W/LK WASHER	8-94424-179-0	01	1	1012-	●
313	02.559 BOLT; BRKT 4HK1-TCN ENG(RDQ) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1012-1303	●
313	02.559 BOLT; BRKT 4HK1-TCN ENG(RDQ) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1304-	●	●
377	02.559 BOLT; CAB EARTH 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1012-1303	●
377	02.559 BOLT; CAB EARTH 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1304-	●	●
377	02.559 BOLT; CAB EARTH (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1012-1303	●
377	02.559 BOLT; CAB EARTH (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1304-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1012-1303	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1304-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1012-1303	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1304-	●	●
480	02.483 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-1303	●
480	02.483 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1304-	●
480	02.483 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1304-		●
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-1303	●
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1304-	●
480	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1304-		●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1304-	●	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1304-	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1304-	●
515	02.559 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1304-		●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8 FLANGE	0-91180-108-0	02	1	1012-	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8 FLANGE	0-91180-108-0	02	1	1012-	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-1303	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1304-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1012-1303	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1304-	●	●
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1012-1303	●
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1304-	●	●
529	02.559 BOLT; RELAY BOX 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1012-1303	●
529	02.559 BOLT; RELAY BOX EXC. FRAME STRAIGHT TYPE<7KJ> 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1012-1303	●
529	02.559 BOLT; RELAY BOX 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1304-	●
529	02.559 BOLT; RELAY BOX EXC. FRAME STRAIGHT TYPE<7KJ> 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1304-	●
529	02.559 BOLT; RELAY BOX 4HK1-TCN ENG(RDQ) 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1304-		●
529	02.559 BOLT; RELAY BOX 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1012-	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-1303	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1304-	●
552	02.483 NUT; BRKT,HARNESS 4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1304-		●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-	●
552	02.483 NUT; BRKT,HARNESS 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-		●
577	02.559 NUT; FUSE BOX 4HG1 ENG(RJH) 09.744 (B) M5 FLANGE	5-09440-003-0	04	1	1012-	●
577	02.559 NUT; FUSE BOX 4HK1-TCN ENG(RDQ) 01.062 (A) M6 FLANGE	0-91180-106-0	04	1	1012-1303	●
577	02.559 NUT; FUSE BOX 4HK1-TCN ENG(RDQ) 01.062 (A) M6 FLANGE	0-91180-106-0	04	1	1304-	●	●
577	02.559 NUT; FUSE BOX 4HG1 ENG(RJH) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1012-	●

14 48 22 14 102 16 483 102 483 483 483 22 483 483 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) GLOW SYSTEM DELETE<7RK> 03.162 (B) L=140	5-09707-031-1	01	1	1502-	●	●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) 09.242 (A) L=150	8-97355-273-0	01	1	1012-1303	●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) 09.242 (A) L=150	8-97355-273-0	01	1	1304-	●	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (E)	8-97101-436-0	01	1	1012-1303	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (E)	8-97101-436-0	01	1	1304-	●	●
16	02.559 CLIP; HARNESS (B) L=250	5-09707-030-1	01	1	1012-1303	●
16	02.559 CLIP; HARNESS (B) L=250	5-09707-030-1	01	1	1304-	●	●
16	02.559 CLIP; HARNESS 04.930 (A) L=91 ID=8.5	8-94329-956-0	01	1	1012-1303	●
16	02.559 CLIP; HARNESS 04.930 (A) L=91 ID=8.5	8-94329-956-0	01	1	1304-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1303	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1304-	●	●
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1304-	●
16	02.559 CLIP; HARNESS 16.578 (C) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1012-1303	●
16	02.559 CLIP; HARNESS 16.578 (C) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1304-	●	●
22	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) (B) L=170.3	1-09987-182-0	01	1	1012-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-1303	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1304-	●	●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 03.483 (C) L=450	1-09707-142-1	01	1	1303-1303	●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 03.483 (C) L=450	1-09707-142-1	01	1	1304-1308	●
48	02.559 CLIP; FRAME HARNESS 03.483 (C) L=450	1-09707-142-1	01	1	1304-1308		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 03.483 (C) L=450	1-09707-142-1	01	1	1309-	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 03.483 (C) L=450	1-09707-142-1	01	1	1309-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.430 (D) ID=10 & 16.5	8-94424-440-0	01	1	1303-1303	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.430 (D) ID=10 & 16.5	8-94424-440-0	01	1	1304-	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 03.430 (D) ID=10 & 16.5	8-94424-440-0	01	1	1304-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (B) ID=14 L=47	5-09700-319-0	03	1	1304-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (B) ID=14 L=47	5-09700-319-0	04	1	1304-		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=14 L=47	5-09700-319-0	05	1	1012-	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=14 L=47	5-09700-319-0	10	1	1012-	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1012-1412	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) (B) L=250	5-09707-030-1	01	1	1012-1303	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) (B) L=250	5-09707-030-1	01	1	1304-	●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) 03.162 (A) L=140	5-09707-031-1	04	1	1012-1202	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.162 (A) L=140	5-09707-031-1	02	1	1203-1303	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) 03.162 (A) L=140	5-09707-031-1	02	1	1304-	●	●
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) 03.162 (F) L=140	5-09707-031-1	01	1	1012-	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (A) ID=19 L=60	0-95235-896-0	01	1	1012-1303	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (A) ID=19 L=60	0-95235-896-0	01	1	1304-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 04.785 (B) ID=12 L=70	1-09700-097-1	01	1	1012-1303	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 04.785 (B) ID=12 L=70	1-09700-097-1	01	1	1304-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (C) ID=24 L=24	1-09701-001-1	01	1	1012-1303	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (C) ID=24 L=24	1-09701-001-1	01	1	1304-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 01.152 (E) L=36	8-94224-891-1	04	1	1012-1303	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 01.152 (E) L=36	8-94224-891-1	04	1	1304-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 03.671 (D) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-1303	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 03.671 (D) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1304-	●	●

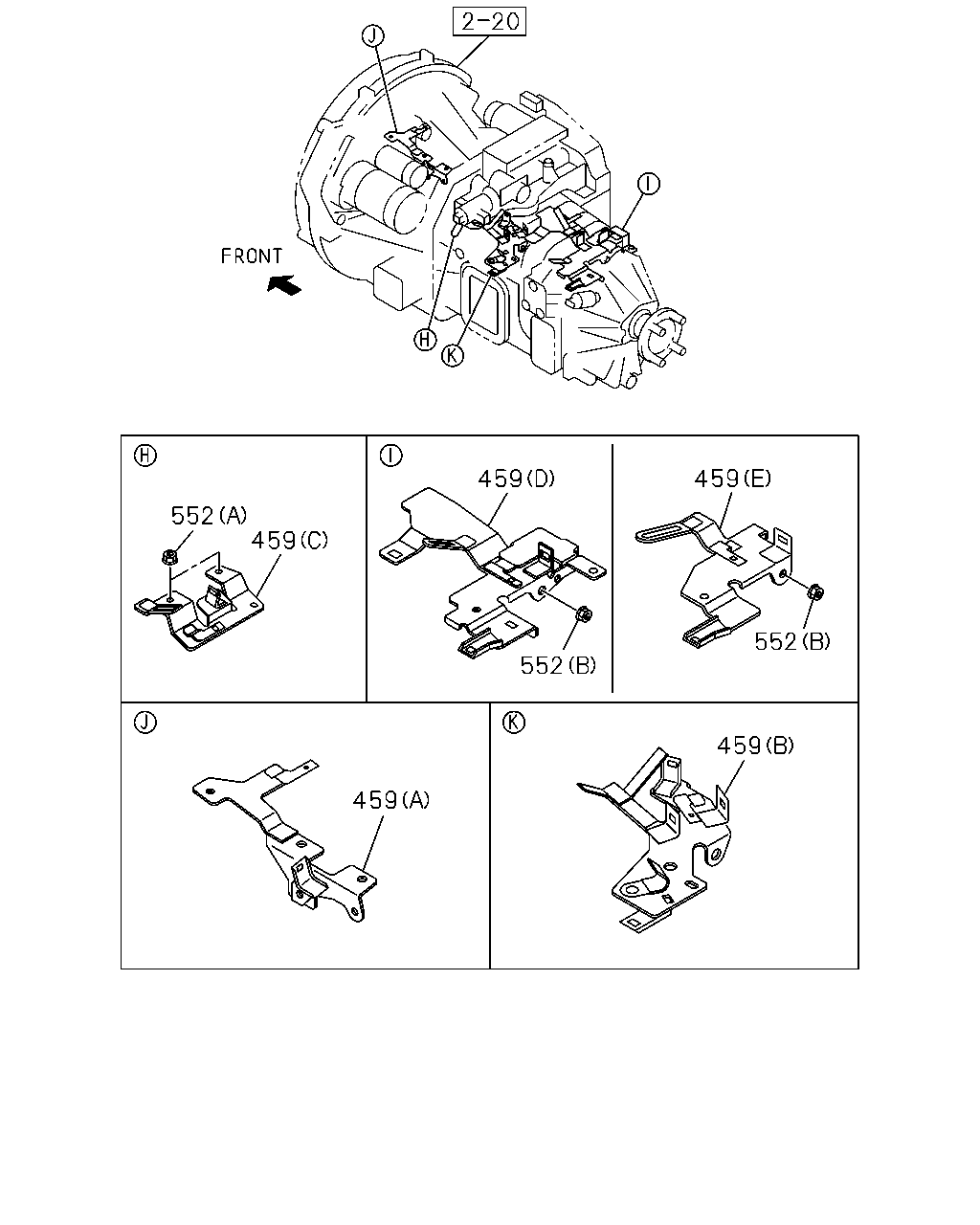

459 459 552 459 552 552 459 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (C)	8-98020-227-3	01	1	1012-1303	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (C)	8-98020-227-3	01	1	1304-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (D)	8-98030-990-2	01	1	1012-1109	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (E)	8-98196-974-0	01	1	1110-1303	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (E)	8-98196-974-0	01	1	1304-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HG1 ENG(RJH) (A)	8-98123-282-0	01	1	1012-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HG1 ENG(RJH) (B)	8-98123-286-1	01	1	1012-	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-1303	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1304-	●
552	02.483 NUT; BRKT,HARNESS 4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1304-		●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-	●
552	02.483 NUT; BRKT,HARNESS 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-		●

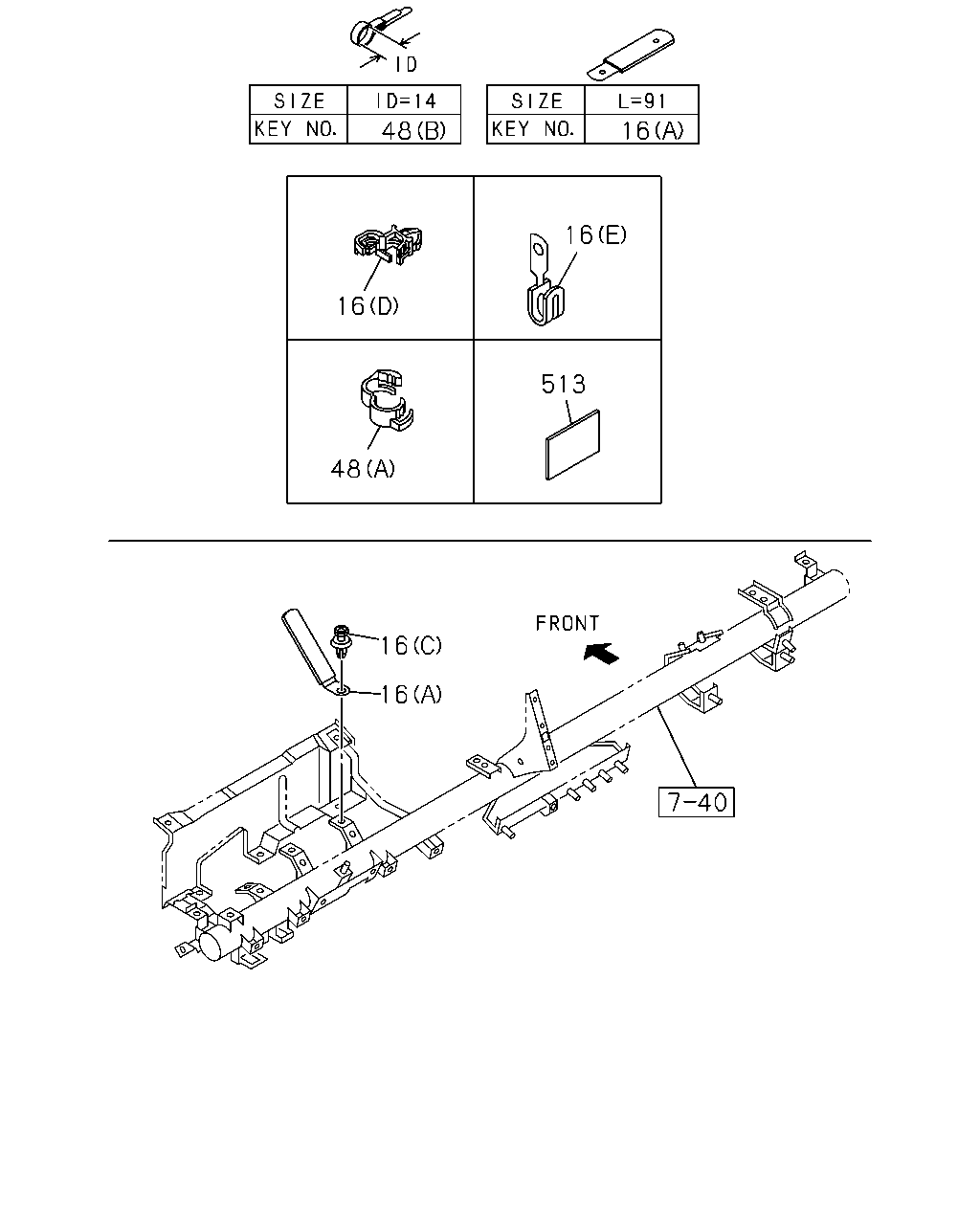

48 16 16 16 513 48 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (E)	8-97101-436-0	01	1	1012-1303	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (E)	8-97101-436-0	01	1	1304-	●	●
16	02.559 CLIP; HARNESS (B) L=250	5-09707-030-1	01	1	1012-1303	●
16	02.559 CLIP; HARNESS (B) L=250	5-09707-030-1	01	1	1304-	●	●
16	02.559 CLIP; HARNESS 04.930 (A) L=91 ID=8.5	8-94329-956-0	01	1	1012-1303	●
16	02.559 CLIP; HARNESS 04.930 (A) L=91 ID=8.5	8-94329-956-0	01	1	1304-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1303	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1304-	●	●
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1304-	●
16	02.559 CLIP; HARNESS 16.578 (C) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1012-1303	●
16	02.559 CLIP; HARNESS 16.578 (C) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1304-	●	●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 03.483 (C) L=450	1-09707-142-1	01	1	1303-1303	●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 03.483 (C) L=450	1-09707-142-1	01	1	1304-1308	●
48	02.559 CLIP; FRAME HARNESS 03.483 (C) L=450	1-09707-142-1	01	1	1304-1308		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 03.483 (C) L=450	1-09707-142-1	01	1	1309-	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 03.483 (C) L=450	1-09707-142-1	01	1	1309-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.430 (D) ID=10 & 16.5	8-94424-440-0	01	1	1303-1303	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.430 (D) ID=10 & 16.5	8-94424-440-0	01	1	1304-	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 03.430 (D) ID=10 & 16.5	8-94424-440-0	01	1	1304-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (B) ID=14 L=47	5-09700-319-0	03	1	1304-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (B) ID=14 L=47	5-09700-319-0	04	1	1304-		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=14 L=47	5-09700-319-0	05	1	1012-	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=14 L=47	5-09700-319-0	10	1	1012-	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1012-1412	●
513	02.559 TAPE; SOFT,HARNESS 130X80	8-97304-373-0	01	1	1012-1303	●
513	02.559 TAPE; SOFT,HARNESS 130X80	8-97304-373-0	01	1	1304-	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

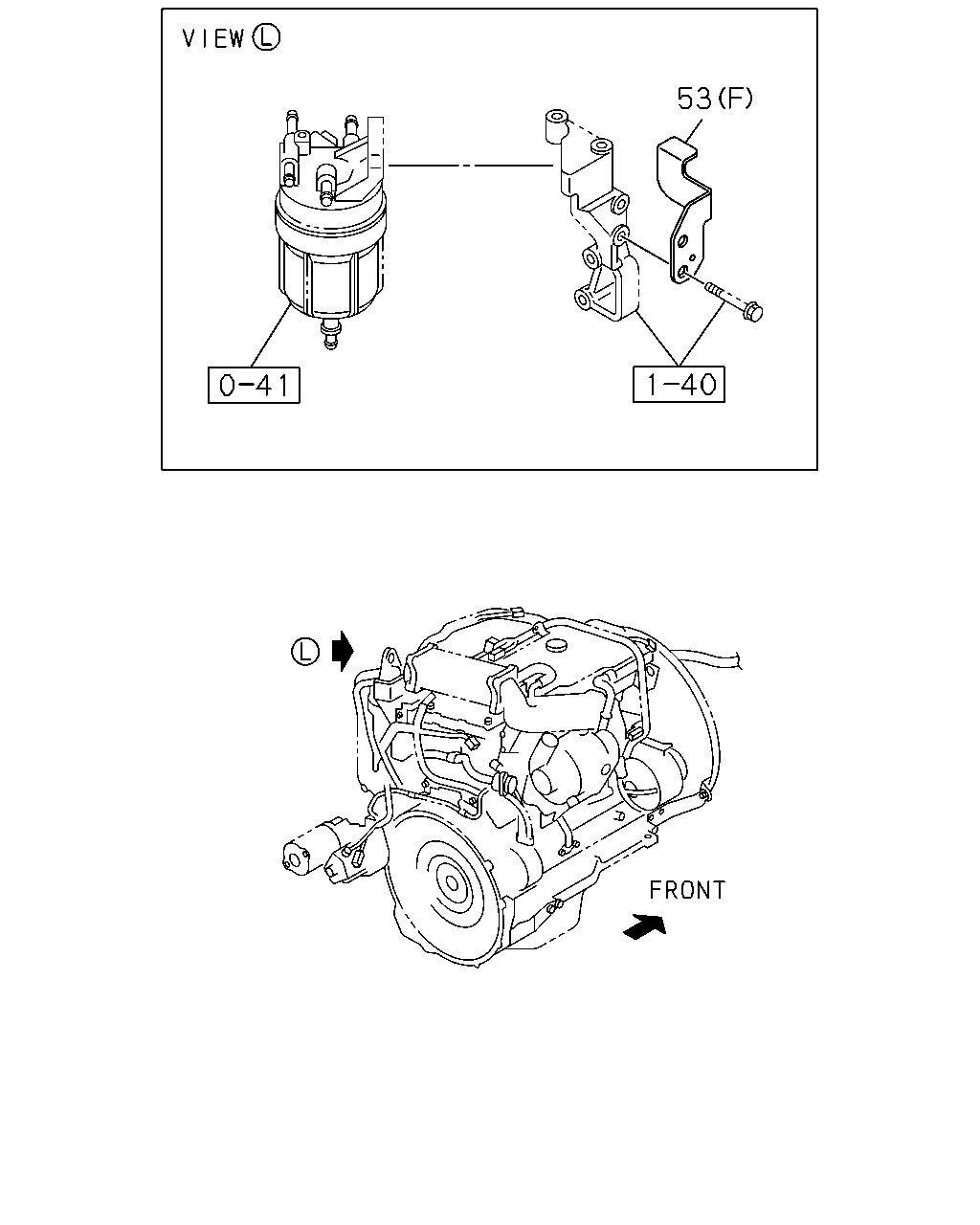

53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (I)	8-98074-502-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (I)	8-98074-502-0	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (J)	8-98094-629-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (J)	8-98094-629-0	01	1	1304-1304	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (J)	8-98094-629-0	01	1	1304-1304		●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) (N)	8-98126-454-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (E)	8-98114-461-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (K)	8-98130-669-1	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98130-669-1	01	1	1304-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (K)	8-98130-669-1	01	1	1304-		●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (L)	8-98132-377-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (M)	8-98173-558-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	1304-	●
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	1304-		●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS (H)	8-98084-699-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS (H)	8-98084-699-0	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98083-225-1	01	1	1012-	●

53 515 139 53 139 53 53 53 53 53 515 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (I)	8-98074-502-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (I)	8-98074-502-0	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (J)	8-98094-629-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (J)	8-98094-629-0	01	1	1304-1304	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (J)	8-98094-629-0	01	1	1304-1304		●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) (N)	8-98126-454-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (E)	8-98114-461-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (K)	8-98130-669-1	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98130-669-1	01	1	1304-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (K)	8-98130-669-1	01	1	1304-		●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (L)	8-98132-377-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (M)	8-98173-558-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	1304-	●
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	1304-		●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS (H)	8-98084-699-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS (H)	8-98084-699-0	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98083-225-1	01	1	1012-	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-1303	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1304-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-1303	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1304-	●	●
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1012	●
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1101-1212	●
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-1303	●
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1304-	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1012-1303	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1304-	●	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1304-	●	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1304-	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1304-	●
515	02.559 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1304-		●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8 FLANGE	0-91180-108-0	02	1	1012-	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8 FLANGE	0-91180-108-0	02	1	1012-	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-1303	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1304-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1012-1303	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1304-	●	●

53 139 575 577 7 139 53 313 577 7 53 53 575

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98043-070-1	01	1	1012-1303	●
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98043-070-1	01	1	1304-	●	●
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ) (B)	8-98056-073-3	01	1	1012-1303	●
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ) (B)	8-98056-073-3	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (I)	8-98074-502-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (I)	8-98074-502-0	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (J)	8-98094-629-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (J)	8-98094-629-0	01	1	1304-1304	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (J)	8-98094-629-0	01	1	1304-1304		●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) (N)	8-98126-454-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (E)	8-98114-461-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (K)	8-98130-669-1	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98130-669-1	01	1	1304-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (K)	8-98130-669-1	01	1	1304-		●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (L)	8-98132-377-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (M)	8-98173-558-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	1304-	●
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	1304-		●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS (H)	8-98084-699-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS (H)	8-98084-699-0	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98083-225-1	01	1	1012-	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-1303	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1304-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-1303	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1304-	●	●
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1012	●
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1101-1212	●
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-1303	●
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1304-	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1012-1303	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1304-	●	●
313	02.559 BOLT; BRKT 4HK1-TCN ENG(RDQ) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1012-1303	●
313	02.559 BOLT; BRKT 4HK1-TCN ENG(RDQ) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1304-	●	●
575	02.559 BRACKET; FUSE BOX 4HK1-TCN ENG(RDQ) (A)	8-98132-932-1	01	1	1012-1303	●
575	02.559 BRACKET; FUSE BOX 4HK1-TCN ENG(RDQ) (A)	8-98132-932-1	01	1	1304-	●	●
575	02.559 BRACKET; FUSE BOX 4HG1 ENG(RJH) (B)	8-98173-145-3	01	1	1012-	●
577	02.559 NUT; FUSE BOX 4HG1 ENG(RJH) 09.744 (B) M5 FLANGE	5-09440-003-0	04	1	1012-	●
577	02.559 NUT; FUSE BOX 4HK1-TCN ENG(RDQ) 01.062 (A) M6 FLANGE	0-91180-106-0	04	1	1012-1303	●
577	02.559 NUT; FUSE BOX 4HK1-TCN ENG(RDQ) 01.062 (A) M6 FLANGE	0-91180-106-0	04	1	1304-	●	●
577	02.559 NUT; FUSE BOX 4HG1 ENG(RJH) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1012-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
