Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#54065) — 379 parça

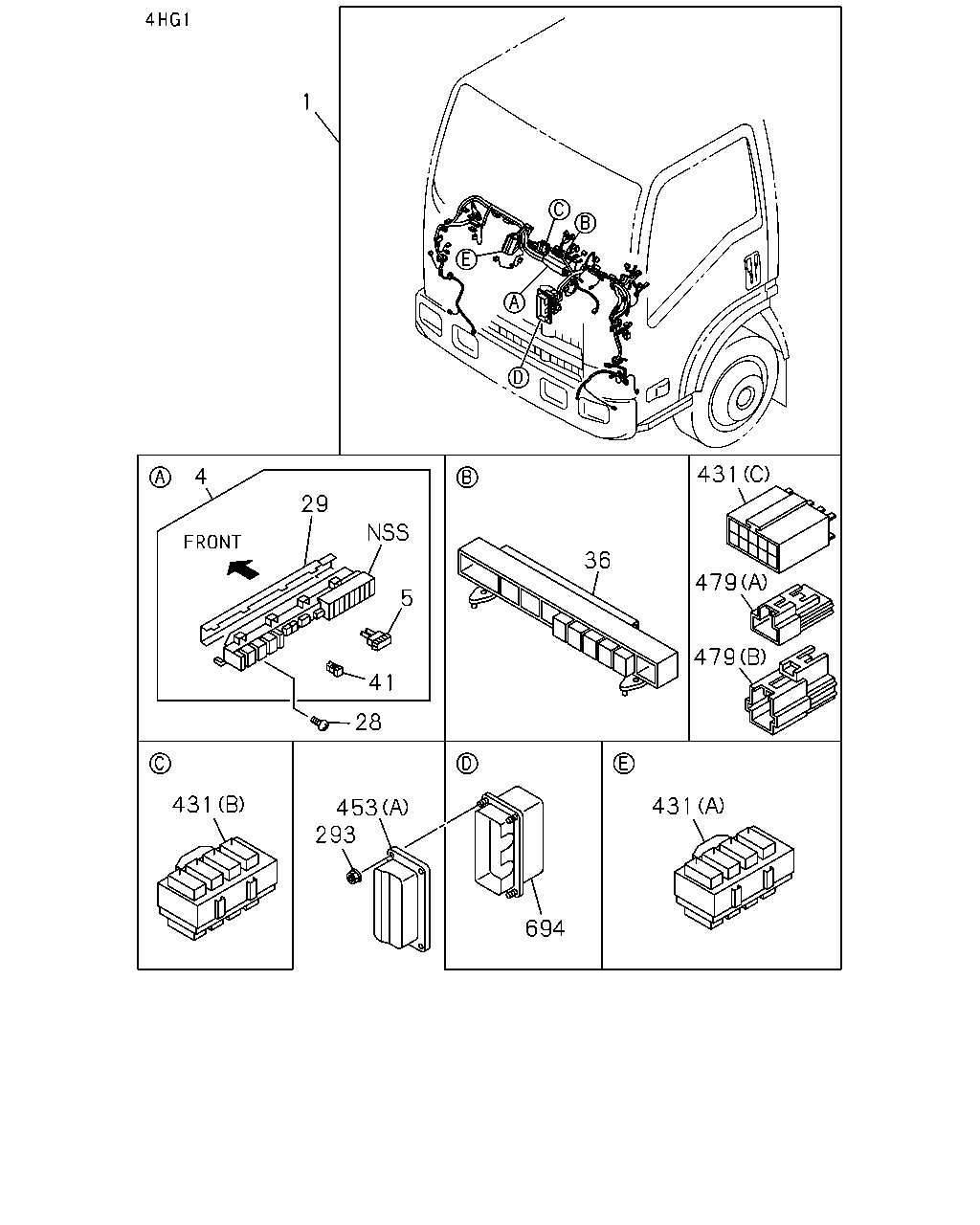

1 431 4 29 36 479 5 479 41 28 431 431 453 293 694

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. FAST GLOW SYSTEM<KM6>	8-98298-793-0	01	1	1504-	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FAST GLOW SYSTEM<KM6>	8-98298-793-0	01	1	1504-	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. FAST GLOW SYSTEM<KM6>,FUEL SEDIMENTER WITH HEATER<6HU>	8-98291-051-0	01	1	1504-	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ)	8-98158-765-1	01	1	1012-1204	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ)	8-98200-871-0	01	1	1205-1303	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ)	8-98200-871-0	01	1	1304-	●	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU>	8-98172-123-3	01	1	1012-1503	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> FUEL SEDIMENTER WITH HEATER<6HU>	8-98172-123-3	01	1	1504-	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98172-122-3	01	1	1012-1210	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98227-713-0	01	1	1211-1503	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98227-713-0	01	1	1504-	●
4	02.483 BOX ASM; FUSE,HARNESS 4HK1-TCN ENG(RDQ)	8-98067-619-1	01	1	1012-1303	●
4	02.483 BOX ASM; FUSE,HARNESS 4HK1-TCN ENG(RDQ)	8-98067-619-1	01	1	1304-	●	●
4	02.483 BOX ASM; FUSE,HARNESS 4HG1 ENG(RJH)	8-97187-921-1	01	1	1012-	●
5	02.485 FUSE; FACIA HARNESS 4HG1 ENG(RJH) 08.965 20A MINI YELLOW	8-97062-024-0	AR	1	1012-	●
5	02.485 FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 10A RED	8-98054-257-0	AR	1	1012-1303	●
5	02.485 FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 10A RED	8-98054-257-0	AR	1	1304-	●	●
5	02.485 FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 15A BLUE	8-98054-258-0	AR	1	1012-1303	●
5	02.485 FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 15A BLUE	8-98054-258-0	AR	1	1304-	●	●
5	02.485 FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 20A YELLOW	8-98054-259-0	AR	1	1012-1303	●
5	02.485 FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 20A YELLOW	8-98054-259-0	AR	1	1304-	●	●
5	02.485 FUSE; FACIA HARNESS 4HG1 ENG(RJH) 08.965 10A MINI RED	8-97062-022-0	AR	1	1012-	●
5	02.485 FUSE; FACIA HARNESS 4HG1 ENG(RJH) 08.965 15A MINI BLUE	8-97062-023-0	AR	1	1012-	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1012	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1101-1212	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-1303	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1304-	●	●
29	02.483 COVER; FUSE BOX 4HK1-TCN ENG(RDQ)	8-98056-968-0	01	1	1012-1303	●
29	02.483 COVER; FUSE BOX 4HK1-TCN ENG(RDQ)	8-98056-968-0	01	1	1304-	●	●
29	02.483 COVER; FUSE BOX 4HG1 ENG(RJH)	8-97074-955-0	01	1	1012-	●
36	02.530 BOX; RELAY 4HG1 ENG(RJH)	8-97187-918-1	01	1	1012-	●
41	08.821 PULLER; FUSE 4HK1-TCN ENG(RDQ)	8-98054-260-0	01	1	1012-1303	●
41	08.821 PULLER; FUSE 4HK1-TCN ENG(RDQ)	8-98054-260-0	01	1	1304-	●	●
41	08.821 PULLER; FUSE 4HG1 ENG(RJH)	8-97103-388-0	01	1	1012-	●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	1012-1303	●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	1304-	●	●
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) (A)	8-98046-205-0	01	1	1012-1303	●
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) (A)	8-98046-205-0	01	1	1304-	●	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> (C) 10P	8-97077-943-0	02	1	1012-1012	●
431	02.530 CONNECTOR; JOINT EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C) 10P	8-97077-943-0	02	1	1012-1012	●
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C) 10P	8-97077-943-0	02	1	1012-1204	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (C) 10P	8-97077-943-0	02	1	1012-1204	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (C) 10P	8-97077-943-0	02	1	1205-1210	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> (C) 10P	8-97077-943-0	02	1	1211-1503	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> FUEL SEDIMENTER WITH HEATER<6HU> (C) 10P	8-97077-943-0	02	1	1504-	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) EXC. FAST GLOW SYSTEM<KM6> (C) 10P	8-97077-943-0	02	1	1504-	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) EXC. FAST GLOW SYSTEM<KM6> (C) 10P	8-97077-943-0	02	1	1504-	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98046-206-0	01	1	1012-1012	●
431	02.530 CONNECTOR; JOINT EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98046-206-0	01	1	1012-1012	●
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98046-206-0	01	1	1012-1212	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (B)	8-98046-206-0	01	1	1012-1212	●
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	1301-1303	●
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	1304-1503	●
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) (B)	8-98046-206-0	01	1	1304-1503		●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) EXC. FAST GLOW SYSTEM<KM6> (B)	8-98046-206-0	01	1	1504-	●
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	1504-	●
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) (B)	8-98046-206-0	01	1	1504-		●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8>,FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94417-716-0	01	1	1012-1101	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (C)	8-94417-716-0	01	1	1012-1101	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94417-716-0	02	1	1012-1101	●
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	02	1	1102-1303	●
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	02	1	1304-	●	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) (B)	8-98031-620-1	01	1	1012-1303	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) (B)	8-98031-620-1	01	1	1304-	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1012-1303	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1304-	●	●
479	02.530 CAP; CONNECTOR (A)	8-98108-678-0	01	1	1012-1303	●
479	02.530 CAP; CONNECTOR (A)	8-98108-678-0	01	1	1304-	●	●
479	02.530 CAP; CONNECTOR (B)	8-98108-679-0	01	1	1012-1303	●
479	02.530 CAP; CONNECTOR (B)	8-98108-679-0	01	1	1304-	●	●
694	02.483 BOX ASM; CONNECTOR 4HK1-TCN ENG(RDQ)	8-98190-772-0	01	1	1101-1112	●
694	02.483 BOX ASM; CONNECTOR 4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98190-772-0	01	1	1201-1212	●
694	02.483 BOX ASM; CONNECTOR 4HG1 ENG(RJH)	8-98190-772-0	01	1	1201-1212	●
694	02.483 BOX ASM; CONNECTOR	8-98190-772-0	01	1	1301-1303	●
694	02.483 BOX ASM; CONNECTOR	8-98190-772-0	01	1	1304-1503	●
694	02.483 BOX ASM; CONNECTOR 4HK1-TCN ENG(RDQ)	8-98190-772-0	01	1	1304-1503		●
694	02.483 BOX ASM; CONNECTOR 4HG1 ENG(RJH) EXC. FAST GLOW SYSTEM<KM6>	8-98190-772-0	01	1	1504-	●
694	02.483 BOX ASM; CONNECTOR	8-98190-772-0	01	1	1504-	●
694	02.483 BOX ASM; CONNECTOR 4HK1-TCN ENG(RDQ)	8-98190-772-0	01	1	1504-		●
694	02.483 BOX ASM; CONNECTOR 4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU>	8-98057-640-0	01	1	1012-1012	●
694	02.483 BOX ASM; CONNECTOR EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98057-640-0	01	1	1012-1012	●
694	02.483 BOX ASM; CONNECTOR 4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98057-640-0	01	1	1012-1012	●
694	02.483 BOX ASM; CONNECTOR 4HG1 ENG(RJH)	8-98057-640-0	01	1	1012-1012	●
694	02.483 BOX ASM; CONNECTOR 4HG1 ENG(RJH)	8-98057-640-0	01	1	1101-1112	●

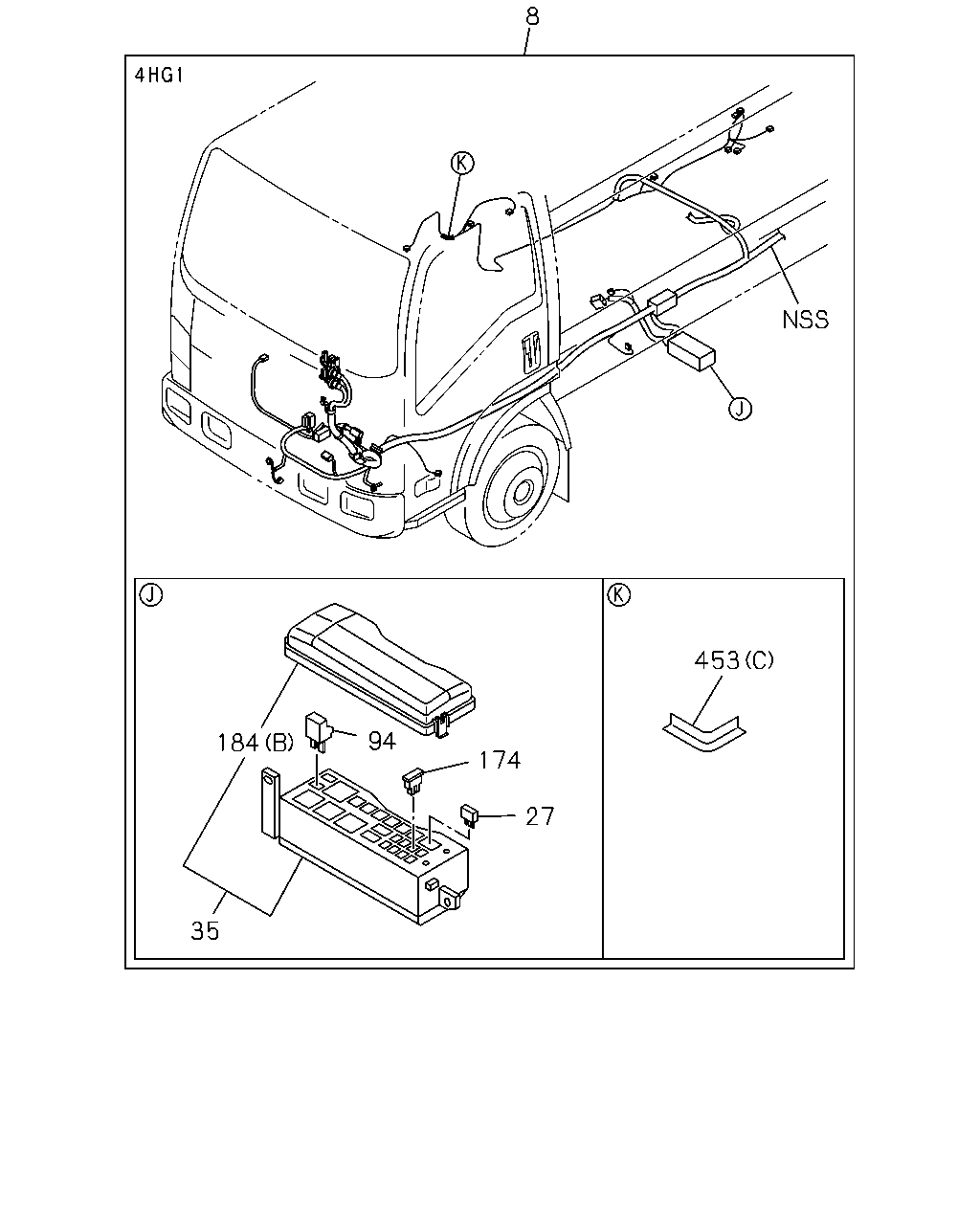

8 453 94 184 174 27 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ)	8-98115-313-4	01	1	1012-1303	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ)	8-98115-313-4	01	1	1304-1409	●	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ)	8-98294-280-0	01	1	1410-	●	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ>	8-98173-355-2	01	1	1012-1107	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ>	8-98199-736-1	01	1	1108-1306	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ>	8-98199-736-1	01	1	1307-1409	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ>	8-98294-418-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98173-357-2	01	1	1012-1107	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98199-737-1	01	1	1108-1306	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98199-737-1	01	1	1307-1409	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98294-419-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8>,FUEL SEDIMENTER WITH HEATER<6HU>	8-98173-358-2	01	1	1012-1107	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8>,FUEL SEDIMENTER WITH HEATER<6HU>	8-98199-738-1	01	1	1108-1306	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8>,FUEL SEDIMENTER WITH HEATER<6HU>	8-98199-738-1	01	1	1307-1409	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8>,FUEL SEDIMENTER WITH HEATER<6HU>	8-98294-420-0	01	1	1410-	●
27	08.965 FUSE UNIT 4HG1 ENG(RJH) 10A MINI RED	8-97062-022-0	AR	1	1012-	●
27	08.965 FUSE UNIT 4HK1-TCN ENG(RDQ) 02.485 10A RED	8-98054-257-0	AR	1	1012-1303	●
27	08.965 FUSE UNIT 4HK1-TCN ENG(RDQ) 02.485 10A RED	8-98054-257-0	AR	1	1304-	●	●
35	02.530 BOX; RELAY & FUSE 4HG1 ENG(RJH)	8-98173-937-0	01	1	1012-	●
35	02.530 BOX; RELAY & FUSE 4HK1-TCN ENG(RDQ)	8-98030-763-0	01	1	1012-1303	●
35	02.530 BOX; RELAY & FUSE 4HK1-TCN ENG(RDQ)	8-98030-763-0	01	1	1304-	●	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	AR	1	1012-1303	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	AR	1	1304-	●	●
174	08.965 FUSE; SLOW BLOW 4HK1-TCN ENG(RDQ) 30A PINK	8-98079-191-0	AR	1	1012-1303	●
174	08.965 FUSE; SLOW BLOW 4HK1-TCN ENG(RDQ) 30A PINK	8-98079-191-0	AR	1	1304-	●	●
174	08.965 FUSE; SLOW BLOW 4HK1-TCN ENG(RDQ) 40A GREEN	8-98079-192-0	AR	1	1012-1303	●
174	08.965 FUSE; SLOW BLOW 4HK1-TCN ENG(RDQ) 40A GREEN	8-98079-192-0	AR	1	1304-	●	●
174	08.965 FUSE; SLOW BLOW 4HK1-TCN ENG(RDQ) 50A RED	8-98079-193-0	AR	1	1012-1303	●
174	08.965 FUSE; SLOW BLOW 4HK1-TCN ENG(RDQ) 50A RED	8-98079-193-0	AR	1	1304-	●	●
174	08.965 FUSE; SLOW BLOW 4HK1-TCN ENG(RDQ) 60A YELLOW	8-97219-407-0	AR	1	1012-1303	●
174	08.965 FUSE; SLOW BLOW 4HK1-TCN ENG(RDQ) 60A YELLOW	8-97219-407-0	AR	1	1304-	●	●
174	08.965 FUSE; SLOW BLOW 4HG1 ENG(RJH) 30A PINK	8-97183-643-0	AR	1	1012-	●
174	08.965 FUSE; SLOW BLOW 4HG1 ENG(RJH) 40A GREEN	8-97183-644-0	AR	1	1012-	●
174	08.965 FUSE; SLOW BLOW 4HG1 ENG(RJH) 60A YELLOW	8-97219-407-0	AR	1	1012-	●
184	02.559 COVER; RELAY & FUSE BOX 4HG1 ENG(RJH) (B)	8-98179-321-0	01	1	1012-	●
184	02.559 COVER; RELAY & FUSE BOX 4HK1-TCN ENG(RDQ) (A)	8-98030-766-0	01	1	1012-1303	●
184	02.559 COVER; RELAY & FUSE BOX 4HK1-TCN ENG(RDQ) (A)	8-98030-766-0	01	1	1304-	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8>,FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94417-716-0	01	1	1012-1101	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (C)	8-94417-716-0	01	1	1012-1101	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94417-716-0	02	1	1012-1101	●
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	02	1	1102-1303	●
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	02	1	1304-	●	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) (B)	8-98031-620-1	01	1	1012-1303	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) (B)	8-98031-620-1	01	1	1304-	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1012-1303	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1304-	●	●

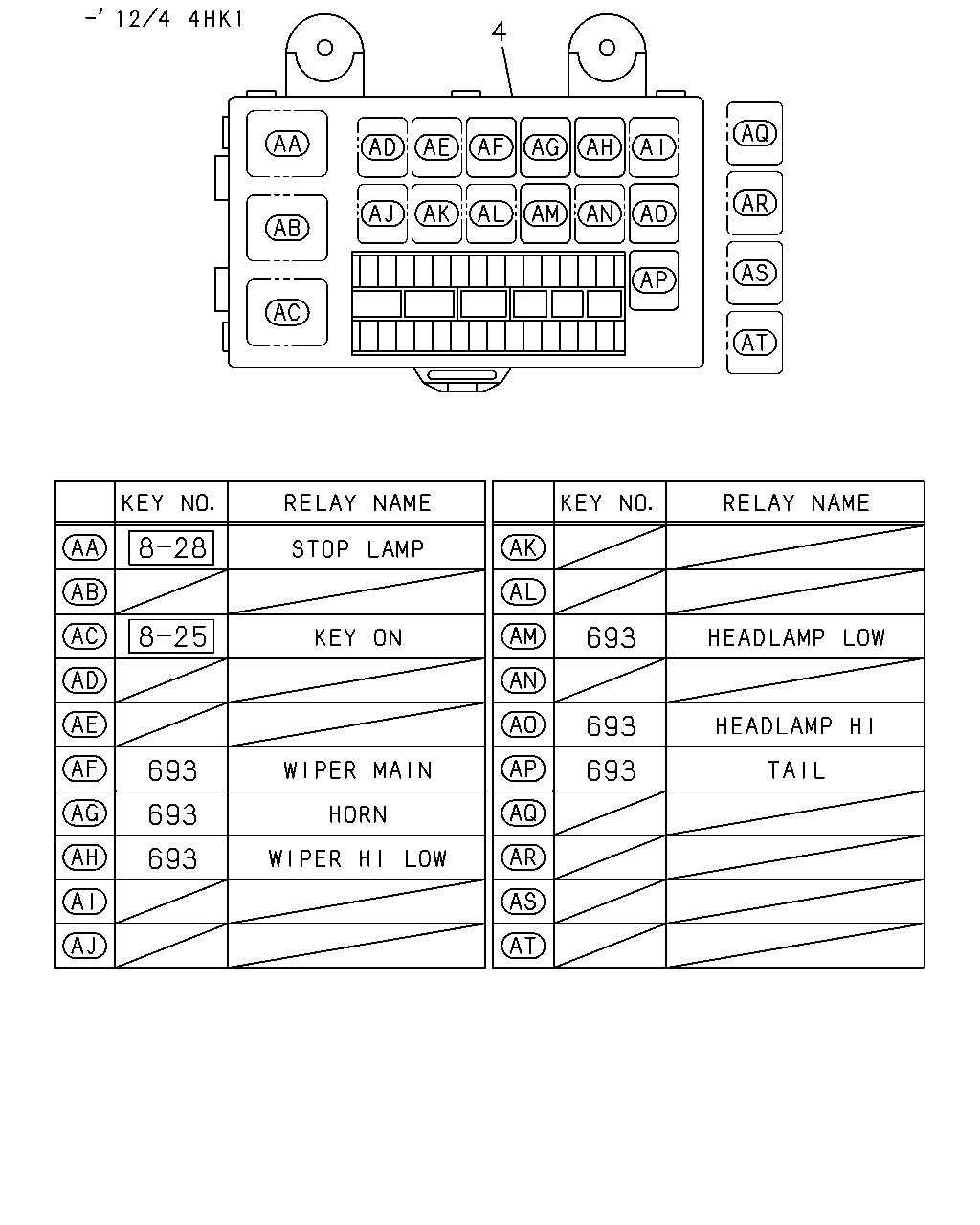

4 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	02.483 BOX ASM; FUSE,HARNESS 4HK1-TCN ENG(RDQ)	8-98067-619-1	01	1	1012-1303	●
4	02.483 BOX ASM; FUSE,HARNESS 4HK1-TCN ENG(RDQ)	8-98067-619-1	01	1	1304-	●	●
4	02.483 BOX ASM; FUSE,HARNESS 4HG1 ENG(RJH)	8-97187-921-1	01	1	1012-	●

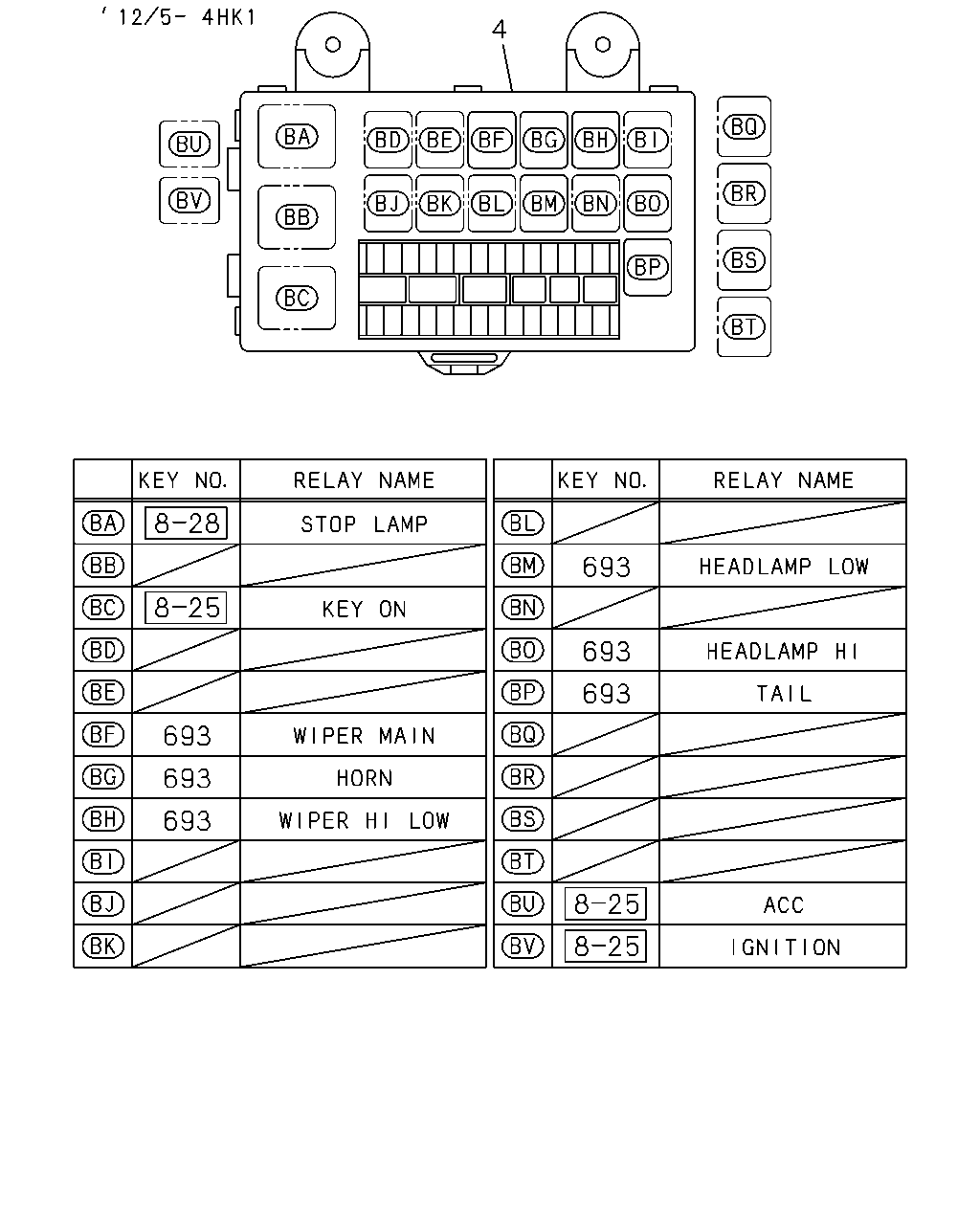

693	02.694 RELAY; FUSE BOX 4HK1-TCN ENG(RDQ) 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1012-1303	●
693	02.694 RELAY; FUSE BOX 4HK1-TCN ENG(RDQ) 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1304-	●	●

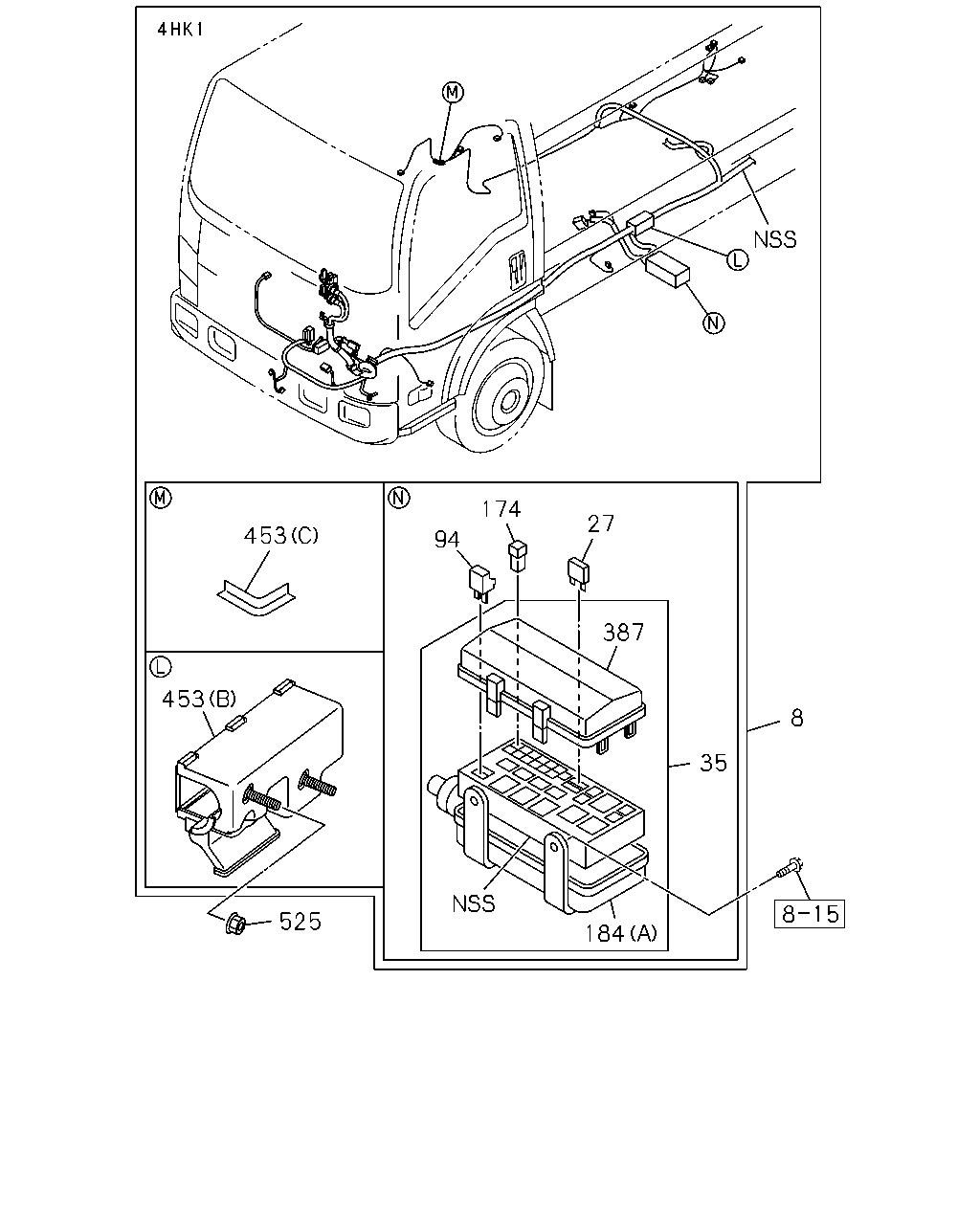

174 27 453 94 387 453 8 35 525 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ)	8-98115-313-4	01	1	1012-1303	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ)	8-98115-313-4	01	1	1304-1409	●	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ)	8-98294-280-0	01	1	1410-	●	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ>	8-98173-355-2	01	1	1012-1107	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ>	8-98199-736-1	01	1	1108-1306	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ>	8-98199-736-1	01	1	1307-1409	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ>	8-98294-418-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98173-357-2	01	1	1012-1107	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98199-737-1	01	1	1108-1306	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98199-737-1	01	1	1307-1409	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98294-419-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8>,FUEL SEDIMENTER WITH HEATER<6HU>	8-98173-358-2	01	1	1012-1107	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8>,FUEL SEDIMENTER WITH HEATER<6HU>	8-98199-738-1	01	1	1108-1306	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8>,FUEL SEDIMENTER WITH HEATER<6HU>	8-98199-738-1	01	1	1307-1409	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8>,FUEL SEDIMENTER WITH HEATER<6HU>	8-98294-420-0	01	1	1410-	●
27	08.965 FUSE UNIT 4HG1 ENG(RJH) 10A MINI RED	8-97062-022-0	AR	1	1012-	●
27	08.965 FUSE UNIT 4HK1-TCN ENG(RDQ) 02.485 10A RED	8-98054-257-0	AR	1	1012-1303	●
27	08.965 FUSE UNIT 4HK1-TCN ENG(RDQ) 02.485 10A RED	8-98054-257-0	AR	1	1304-	●	●
35	02.530 BOX; RELAY & FUSE 4HG1 ENG(RJH)	8-98173-937-0	01	1	1012-	●
35	02.530 BOX; RELAY & FUSE 4HK1-TCN ENG(RDQ)	8-98030-763-0	01	1	1012-1303	●
35	02.530 BOX; RELAY & FUSE 4HK1-TCN ENG(RDQ)	8-98030-763-0	01	1	1304-	●	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	AR	1	1012-1303	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	AR	1	1304-	●	●
174	08.965 FUSE; SLOW BLOW 4HK1-TCN ENG(RDQ) 30A PINK	8-98079-191-0	AR	1	1012-1303	●
174	08.965 FUSE; SLOW BLOW 4HK1-TCN ENG(RDQ) 30A PINK	8-98079-191-0	AR	1	1304-	●	●
174	08.965 FUSE; SLOW BLOW 4HK1-TCN ENG(RDQ) 40A GREEN	8-98079-192-0	AR	1	1012-1303	●
174	08.965 FUSE; SLOW BLOW 4HK1-TCN ENG(RDQ) 40A GREEN	8-98079-192-0	AR	1	1304-	●	●
174	08.965 FUSE; SLOW BLOW 4HK1-TCN ENG(RDQ) 50A RED	8-98079-193-0	AR	1	1012-1303	●
174	08.965 FUSE; SLOW BLOW 4HK1-TCN ENG(RDQ) 50A RED	8-98079-193-0	AR	1	1304-	●	●
174	08.965 FUSE; SLOW BLOW 4HK1-TCN ENG(RDQ) 60A YELLOW	8-97219-407-0	AR	1	1012-1303	●
174	08.965 FUSE; SLOW BLOW 4HK1-TCN ENG(RDQ) 60A YELLOW	8-97219-407-0	AR	1	1304-	●	●
174	08.965 FUSE; SLOW BLOW 4HG1 ENG(RJH) 30A PINK	8-97183-643-0	AR	1	1012-	●
174	08.965 FUSE; SLOW BLOW 4HG1 ENG(RJH) 40A GREEN	8-97183-644-0	AR	1	1012-	●
174	08.965 FUSE; SLOW BLOW 4HG1 ENG(RJH) 60A YELLOW	8-97219-407-0	AR	1	1012-	●
184	02.559 COVER; RELAY & FUSE BOX 4HG1 ENG(RJH) (B)	8-98179-321-0	01	1	1012-	●
184	02.559 COVER; RELAY & FUSE BOX 4HK1-TCN ENG(RDQ) (A)	8-98030-766-0	01	1	1012-1303	●
184	02.559 COVER; RELAY & FUSE BOX 4HK1-TCN ENG(RDQ) (A)	8-98030-766-0	01	1	1304-	●	●
387	02.483 COVER; RELAY BOX 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98081-367-0	01	1	1012-1303	●
387	02.483 COVER; RELAY BOX EXC. FRAME STRAIGHT TYPE<7KJ>	8-98081-367-0	01	1	1012-1303	●
387	02.483 COVER; RELAY BOX 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98081-367-0	01	1	1304-	●
387	02.483 COVER; RELAY BOX EXC. FRAME STRAIGHT TYPE<7KJ>	8-98081-367-0	01	1	1304-	●
387	02.483 COVER; RELAY BOX 4HK1-TCN ENG(RDQ)	8-98081-367-0	01	1	1304-		●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8>,FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94417-716-0	01	1	1012-1101	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (C)	8-94417-716-0	01	1	1012-1101	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94417-716-0	02	1	1012-1101	●
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	02	1	1102-1303	●
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	02	1	1304-	●	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) (B)	8-98031-620-1	01	1	1012-1303	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) (B)	8-98031-620-1	01	1	1304-	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1012-1303	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1304-	●	●
525	08.919 NUT; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1303	●
525	08.919 NUT; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1303	●
525	08.919 NUT; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1304-	●
525	08.919 NUT; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1304-	●
525	08.919 NUT; CLIP 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1304-		●

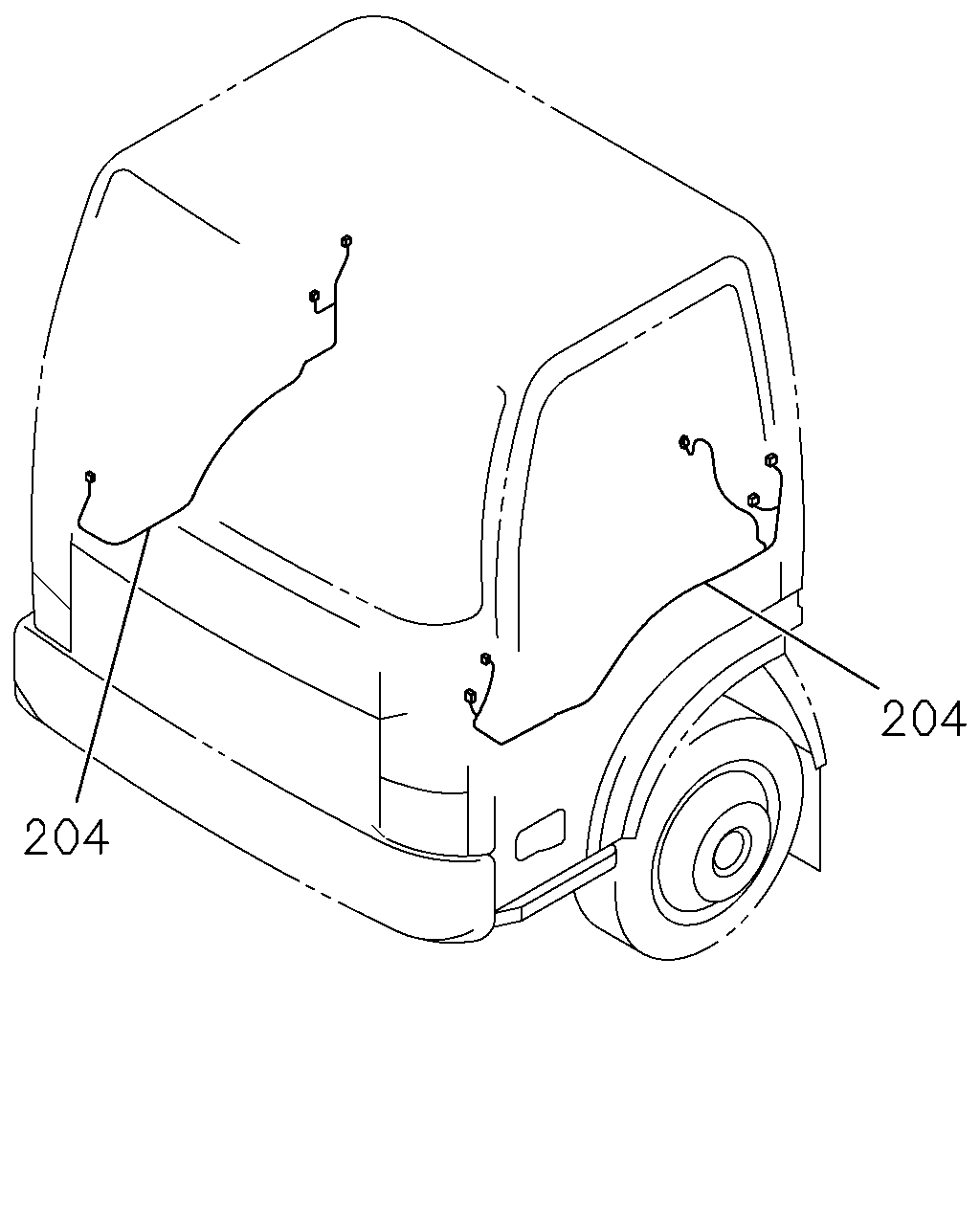

204 204

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	204	02.559 HARNESS; CABLE,FLOOR	8-98070-799-5	01	1	1012-1303	●
	204	02.559 HARNESS; CABLE,FLOOR	8-98070-799-5	01	1	1304-	●	●

1 29 431 431 41 5 431 693 2 2 28 4 453 293 479 479 694

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. FAST GLOW SYSTEM<KM6>	8-98298-793-0	01	1	1504-	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FAST GLOW SYSTEM<KM6>	8-98298-793-0	01	1	1504-	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. FAST GLOW SYSTEM<KM6>,FUEL SEDIMENTER WITH HEATER<6HU>	8-98291-051-0	01	1	1504-	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ)	8-98158-765-1	01	1	1012-1204	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ)	8-98200-871-0	01	1	1205-1303	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ)	8-98200-871-0	01	1	1304-	●	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU>	8-98172-123-3	01	1	1012-1503	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> FUEL SEDIMENTER WITH HEATER<6HU>	8-98172-123-3	01	1	1504-	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98172-122-3	01	1	1012-1210	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98227-713-0	01	1	1211-1503	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98227-713-0	01	1	1504-	●
2	02.483 DIODE; CABLE HARNESS 4HK1-TCN ENG(RDQ) (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	1012-1303	●
2	02.483 DIODE; CABLE HARNESS 4HK1-TCN ENG(RDQ) (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	1304-	●	●
2	02.483 DIODE; CABLE HARNESS 4HK1-TCN ENG(RDQ) (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1012-1303	●
2	02.483 DIODE; CABLE HARNESS 4HK1-TCN ENG(RDQ) (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1304-	●	●
4	02.483 BOX ASM; FUSE,HARNESS 4HK1-TCN ENG(RDQ)	8-98067-619-1	01	1	1012-1303	●
4	02.483 BOX ASM; FUSE,HARNESS 4HK1-TCN ENG(RDQ)	8-98067-619-1	01	1	1304-	●	●
4	02.483 BOX ASM; FUSE,HARNESS 4HG1 ENG(RJH)	8-97187-921-1	01	1	1012-	●
5	02.485 FUSE; FACIA HARNESS 4HG1 ENG(RJH) 08.965 20A MINI YELLOW	8-97062-024-0	AR	1	1012-	●
5	02.485 FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 10A RED	8-98054-257-0	AR	1	1012-1303	●
5	02.485 FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 10A RED	8-98054-257-0	AR	1	1304-	●	●
5	02.485 FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 15A BLUE	8-98054-258-0	AR	1	1012-1303	●
5	02.485 FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 15A BLUE	8-98054-258-0	AR	1	1304-	●	●
5	02.485 FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 20A YELLOW	8-98054-259-0	AR	1	1012-1303	●
5	02.485 FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 20A YELLOW	8-98054-259-0	AR	1	1304-	●	●
5	02.485 FUSE; FACIA HARNESS 4HG1 ENG(RJH) 08.965 10A MINI RED	8-97062-022-0	AR	1	1012-	●
5	02.485 FUSE; FACIA HARNESS 4HG1 ENG(RJH) 08.965 15A MINI BLUE	8-97062-023-0	AR	1	1012-	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1012	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1101-1212	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-1303	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1304-	●	●
29	02.483 COVER; FUSE BOX 4HK1-TCN ENG(RDQ)	8-98056-968-0	01	1	1012-1303	●
29	02.483 COVER; FUSE BOX 4HK1-TCN ENG(RDQ)	8-98056-968-0	01	1	1304-	●	●
29	02.483 COVER; FUSE BOX 4HG1 ENG(RJH)	8-97074-955-0	01	1	1012-	●
41	08.821 PULLER; FUSE 4HK1-TCN ENG(RDQ)	8-98054-260-0	01	1	1012-1303	●
41	08.821 PULLER; FUSE 4HK1-TCN ENG(RDQ)	8-98054-260-0	01	1	1304-	●	●
41	08.821 PULLER; FUSE 4HG1 ENG(RJH)	8-97103-388-0	01	1	1012-	●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	1012-1303	●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	1304-	●	●
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) (A)	8-98046-205-0	01	1	1012-1303	●
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) (A)	8-98046-205-0	01	1	1304-	●	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> (C) 10P	8-97077-943-0	02	1	1012-1012	●
431	02.530 CONNECTOR; JOINT EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C) 10P	8-97077-943-0	02	1	1012-1012	●
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C) 10P	8-97077-943-0	02	1	1012-1204	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (C) 10P	8-97077-943-0	02	1	1012-1204	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (C) 10P	8-97077-943-0	02	1	1205-1210	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> (C) 10P	8-97077-943-0	02	1	1211-1503	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> FUEL SEDIMENTER WITH HEATER<6HU> (C) 10P	8-97077-943-0	02	1	1504-	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) EXC. FAST GLOW SYSTEM<KM6> (C) 10P	8-97077-943-0	02	1	1504-	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) EXC. FAST GLOW SYSTEM<KM6> (C) 10P	8-97077-943-0	02	1	1504-	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98046-206-0	01	1	1012-1012	●
431	02.530 CONNECTOR; JOINT EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98046-206-0	01	1	1012-1012	●
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98046-206-0	01	1	1012-1212	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (B)	8-98046-206-0	01	1	1012-1212	●
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	1301-1303	●
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	1304-1503	●
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) (B)	8-98046-206-0	01	1	1304-1503		●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) EXC. FAST GLOW SYSTEM<KM6> (B)	8-98046-206-0	01	1	1504-	●
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	1504-	●
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) (B)	8-98046-206-0	01	1	1504-		●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8>,FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94417-716-0	01	1	1012-1101	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (C)	8-94417-716-0	01	1	1012-1101	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94417-716-0	02	1	1012-1101	●
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	02	1	1102-1303	●
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	02	1	1304-	●	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) (B)	8-98031-620-1	01	1	1012-1303	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) (B)	8-98031-620-1	01	1	1304-	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1012-1303	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1304-	●	●
479	02.530 CAP; CONNECTOR (A)	8-98108-678-0	01	1	1012-1303	●
479	02.530 CAP; CONNECTOR (A)	8-98108-678-0	01	1	1304-	●	●
479	02.530 CAP; CONNECTOR (B)	8-98108-679-0	01	1	1012-1303	●
479	02.530 CAP; CONNECTOR (B)	8-98108-679-0	01	1	1304-	●	●
693	02.694 RELAY; FUSE BOX 4HK1-TCN ENG(RDQ) 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1012-1303	●
693	02.694 RELAY; FUSE BOX 4HK1-TCN ENG(RDQ) 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1304-	●	●
694	02.483 BOX ASM; CONNECTOR 4HK1-TCN ENG(RDQ)	8-98190-772-0	01	1	1101-1112	●
694	02.483 BOX ASM; CONNECTOR 4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98190-772-0	01	1	1201-1212	●
694	02.483 BOX ASM; CONNECTOR 4HG1 ENG(RJH)	8-98190-772-0	01	1	1201-1212	●
694	02.483 BOX ASM; CONNECTOR	8-98190-772-0	01	1	1301-1303	●
694	02.483 BOX ASM; CONNECTOR	8-98190-772-0	01	1	1304-1503	●
694	02.483 BOX ASM; CONNECTOR 4HK1-TCN ENG(RDQ)	8-98190-772-0	01	1	1304-1503		●
694	02.483 BOX ASM; CONNECTOR 4HG1 ENG(RJH) EXC. FAST GLOW SYSTEM<KM6>	8-98190-772-0	01	1	1504-	●
694	02.483 BOX ASM; CONNECTOR	8-98190-772-0	01	1	1504-	●
694	02.483 BOX ASM; CONNECTOR 4HK1-TCN ENG(RDQ)	8-98190-772-0	01	1	1504-		●
694	02.483 BOX ASM; CONNECTOR 4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU>	8-98057-640-0	01	1	1012-1012	●
694	02.483 BOX ASM; CONNECTOR EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98057-640-0	01	1	1012-1012	●
694	02.483 BOX ASM; CONNECTOR 4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98057-640-0	01	1	1012-1012	●
694	02.483 BOX ASM; CONNECTOR 4HG1 ENG(RJH)	8-98057-640-0	01	1	1012-1012	●
694	02.483 BOX ASM; CONNECTOR 4HG1 ENG(RJH)	8-98057-640-0	01	1	1101-1112	●

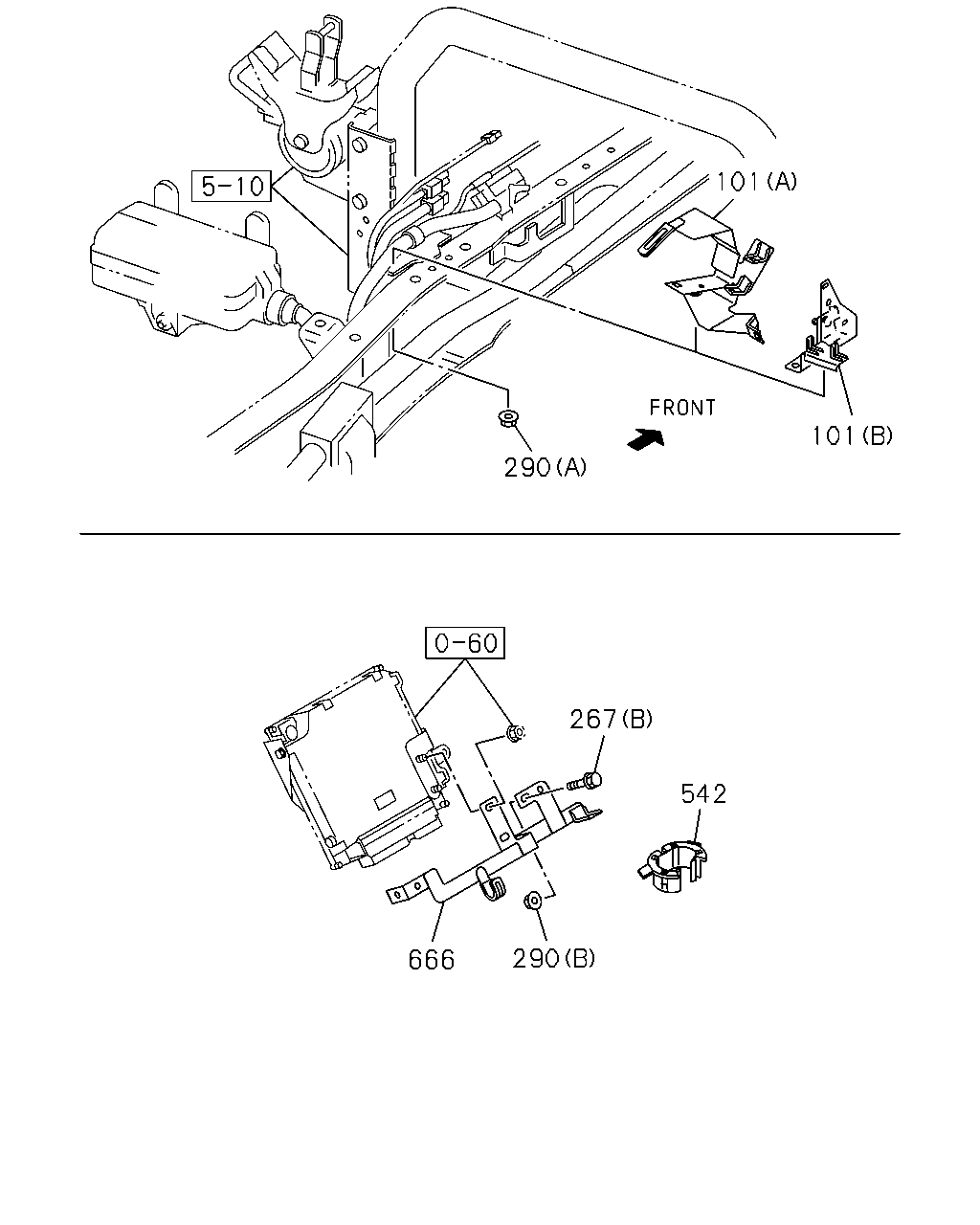

101 101 290 267 542 290 666

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (C)	8-98052-805-0	01	1	1012-1303	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (C)	8-98052-805-0	01	1	1304-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98094-483-1	01	1	1012-1303	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98094-483-1	01	1	1304-	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98094-483-1	01	1	1304-		●
101	02.483 BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98032-447-1	01	1	1012-	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) 09.171 (A) M10X120 FLANGE	0-28156-012-0	01	1	1012-1303	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) 09.171 (A) M10X120 FLANGE	0-28156-012-0	01	1	1304-	●	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1012-1303	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1304-	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1304-		●
290	02.483 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1102-1111	●
290	02.483 NUT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1112-1303	●
290	02.483 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1112-1303	●
290	02.483 NUT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1304-	●
290	02.483 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1304-	●
290	02.483 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1304-		●
290	02.483 NUT; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1012-1303	●
290	02.483 NUT; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1304-	●
290	02.483 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1304-		●
542	02.483 GROMMET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	01	1	1012-	●
666	02.483 BRACKET; CLIP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-98110-213-0	01	1	1012-1303	●
666	02.483 BRACKET; CLIP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-98110-213-0	01	1	1304-	●
666	02.483 BRACKET; CLIP 4HK1-TCN ENG(RDQ)	8-98110-213-0	01	1	1304-		●

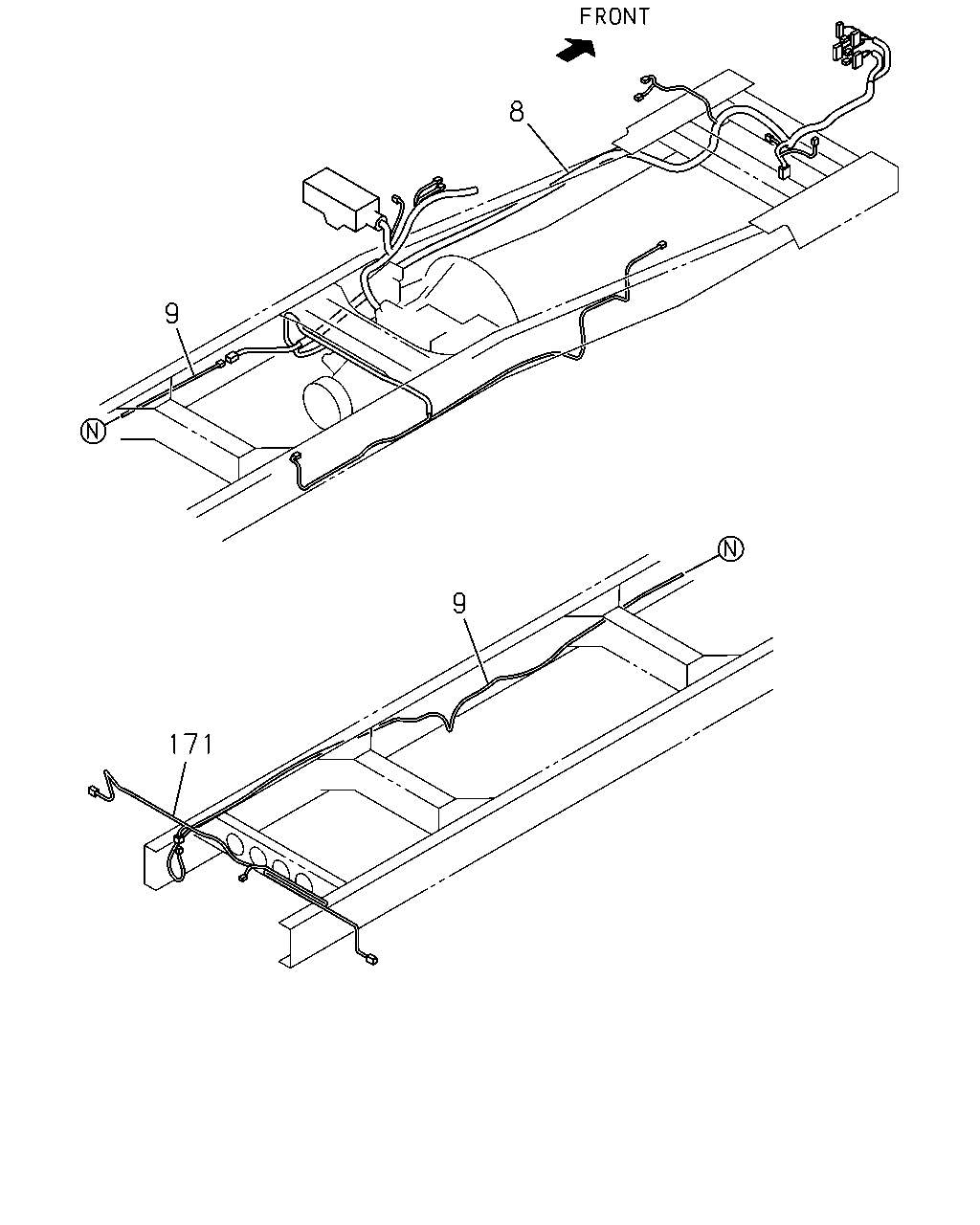

8 9 9 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ)	8-98115-313-4	01	1	1012-1303	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ)	8-98115-313-4	01	1	1304-1409	●	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ)	8-98294-280-0	01	1	1410-	●	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ>	8-98173-355-2	01	1	1012-1107	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ>	8-98199-736-1	01	1	1108-1306	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ>	8-98199-736-1	01	1	1307-1409	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ>	8-98294-418-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98173-357-2	01	1	1012-1107	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98199-737-1	01	1	1108-1306	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98199-737-1	01	1	1307-1409	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98294-419-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8>,FUEL SEDIMENTER WITH HEATER<6HU>	8-98173-358-2	01	1	1012-1107	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8>,FUEL SEDIMENTER WITH HEATER<6HU>	8-98199-738-1	01	1	1108-1306	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8>,FUEL SEDIMENTER WITH HEATER<6HU>	8-98199-738-1	01	1	1307-1409	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8>,FUEL SEDIMENTER WITH HEATER<6HU>	8-98294-420-0	01	1	1410-	●
9	02.480 HARNESS; FRAME,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W)	8-98117-250-0	01	1	1304-		●
9	02.480 HARNESS; FRAME,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W)	8-98117-251-0	01	1	1304-		●
9	02.480 HARNESS; FRAME,RR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98117-249-0	01	1	1012-	●
9	02.480 HARNESS; FRAME,RR 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-98173-516-0	01	1	1012-	●
9	02.480 HARNESS; FRAME,RR EXC. FRAME STRAIGHT TYPE<7KJ>	8-98047-009-2	01	1	1012-	●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-028-0	01	1	1012-1303	●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-028-0	01	1	1304-	●	●

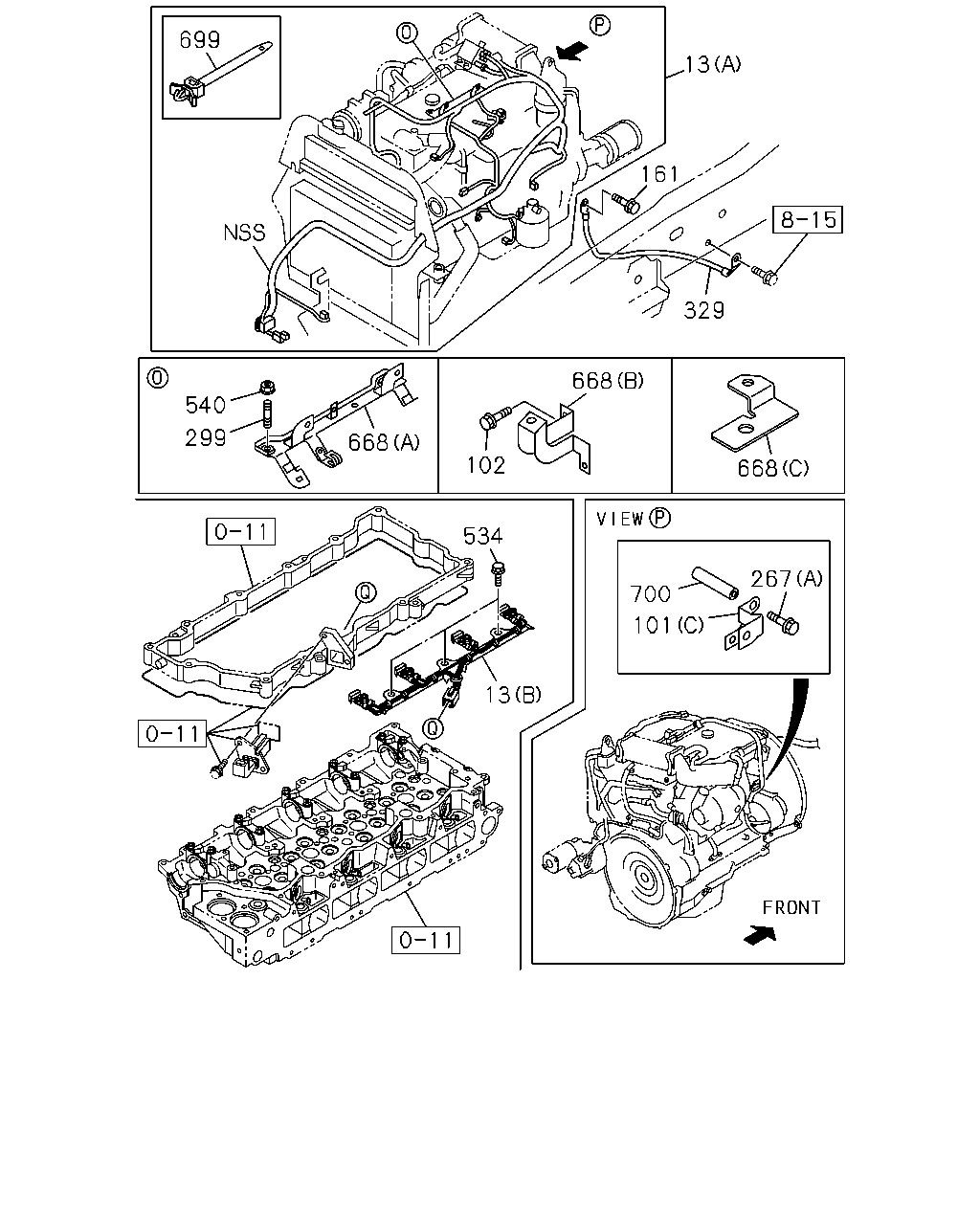

699 540 299 668 102 534 13 700 101 267 668 668 329 161 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) (A)	8-97356-988-1	01	1	1012-	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) (A)	8-98149-125-0	01	1	1012-1012	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) (A)	8-98178-534-0	01	1	1101-1202	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) (A)	8-98209-819-0	01	1	1203-1303	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN) (A)	8-98209-819-0	01	1	1304-	●	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) (B)	8-98171-638-0	01	1	1012-1303	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) (B)	8-98171-638-0	01	1	1304-	●	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) (A)	8-98149-126-0	01	1	1012-1012	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) (A)	8-98178-535-0	01	1	1101-1202	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) (A)	8-98209-820-0	01	1	1203-1303	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (A)	8-98209-820-0	01	1	1304-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (C)	8-98052-805-0	01	1	1012-1303	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (C)	8-98052-805-0	01	1	1304-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98094-483-1	01	1	1012-1303	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98094-483-1	01	1	1304-	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98094-483-1	01	1	1304-		●
101	02.483 BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98032-447-1	01	1	1012-	●
102	08.900 BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) 00.029 M10X16 FLANGE	0-28151-016-0	02	1	1012-1303	●
102	08.900 BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) 00.029 M10X16 FLANGE	0-28151-016-0	02	1	1304-	●	●
161	02.559 BOLT; GROUND,HARNESS 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1012-1303	●
161	02.559 BOLT; GROUND,HARNESS 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1304-	●
161	02.559 BOLT; GROUND,HARNESS 4HK1-TCN ENG(RDQ) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1304-		●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) 09.171 (A) M10X120 FLANGE	0-28156-012-0	01	1	1012-1303	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) 09.171 (A) M10X120 FLANGE	0-28156-012-0	01	1	1304-	●	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1012-1303	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1304-	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1304-		●
299	02.559 STUD; BRKT 4HK1-TCN ENG(RDQ) 01.062 M6X18 L=27	0-41010-618-0	02	1	1012-1202	●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98102-465-0	01	1	1012-1303	●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98102-465-0	01	1	1304-	●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ)	8-98102-465-0	01	1	1304-		●
329	02.480 CABLE; ENG TO FRAME 4HG1 ENG(RJH)	8-98123-064-0	01	1	1012-	●
534	02.483 BOLT 4HK1-TCN ENG(RDQ) 00.683 M10X55 FLANGE	8-97365-449-0	03	1	1012-1303	●
534	02.483 BOLT 4HK1-TCN ENG(RDQ) 00.683 M10X55 FLANGE	8-97365-449-0	03	1	1304-	●	●
540	02.483 NUT; BRKT FIX 4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-1202	●
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (B)	8-98011-484-0	01	1	1012-1303	●
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (B)	8-98011-484-0	01	1	1304-	●	●
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (A)	8-98061-805-2	01	1	1012-1202	●
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (C)	8-98205-089-0	01	1	1203-1303	●
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (C)	8-98205-089-0	01	1	1304-	●	●
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 04.128 L=213.5	8-98000-506-1	01	1	1012-1303	●
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 04.128 L=213.5	8-98000-506-1	01	1	1304-	●	●
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) L=146.2	8-98052-677-0	01	1	1012-1303	●
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) L=146.2	8-98052-677-0	01	1	1304-	●	●
700	02.483 TUBE; DISTANCE 4HK1-TCN ENG(RDQ) L=105	8-98084-726-0	01	1	1012-1303	●
700	02.483 TUBE; DISTANCE 4HK1-TCN ENG(RDQ) L=105	8-98084-726-0	01	1	1304-	●	●

4 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	02.483 BOX ASM; FUSE,HARNESS 4HK1-TCN ENG(RDQ)	8-98067-619-1	01	1	1012-1303	●
4	02.483 BOX ASM; FUSE,HARNESS 4HK1-TCN ENG(RDQ)	8-98067-619-1	01	1	1304-	●	●
4	02.483 BOX ASM; FUSE,HARNESS 4HG1 ENG(RJH)	8-97187-921-1	01	1	1012-	●
693	02.694 RELAY; FUSE BOX 4HK1-TCN ENG(RDQ) 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1012-1303	●
693	02.694 RELAY; FUSE BOX 4HK1-TCN ENG(RDQ) 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1304-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
