◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51292 - NPR/NQR BUS CHA(LHD) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#54059) — 227 parça

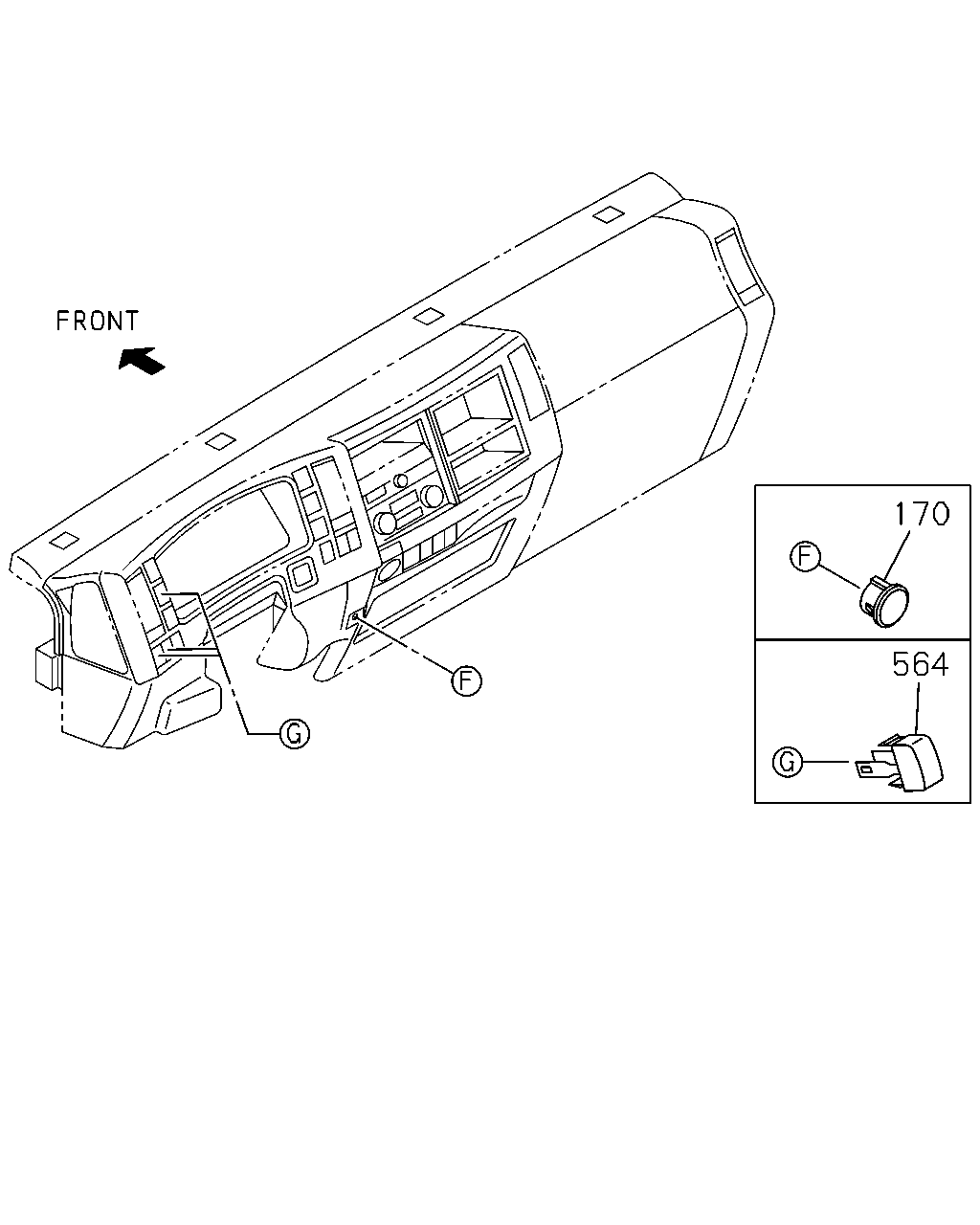

çizim 175087
170 564
BalonParca AdiParca NoAdetTipApplied Date A B
170 16.165 COVER; HOLE 8-98070-401-2 01 1 1012-1303 ●
170 16.165 COVER; HOLE 8-98070-401-2 01 1 1304- ● ●
564 16.081 COVER; SW 8-98025-954-1 03 1 1012-1303 ●
564 16.081 COVER; SW 8-98025-954-1 03 1 1304- ● ●

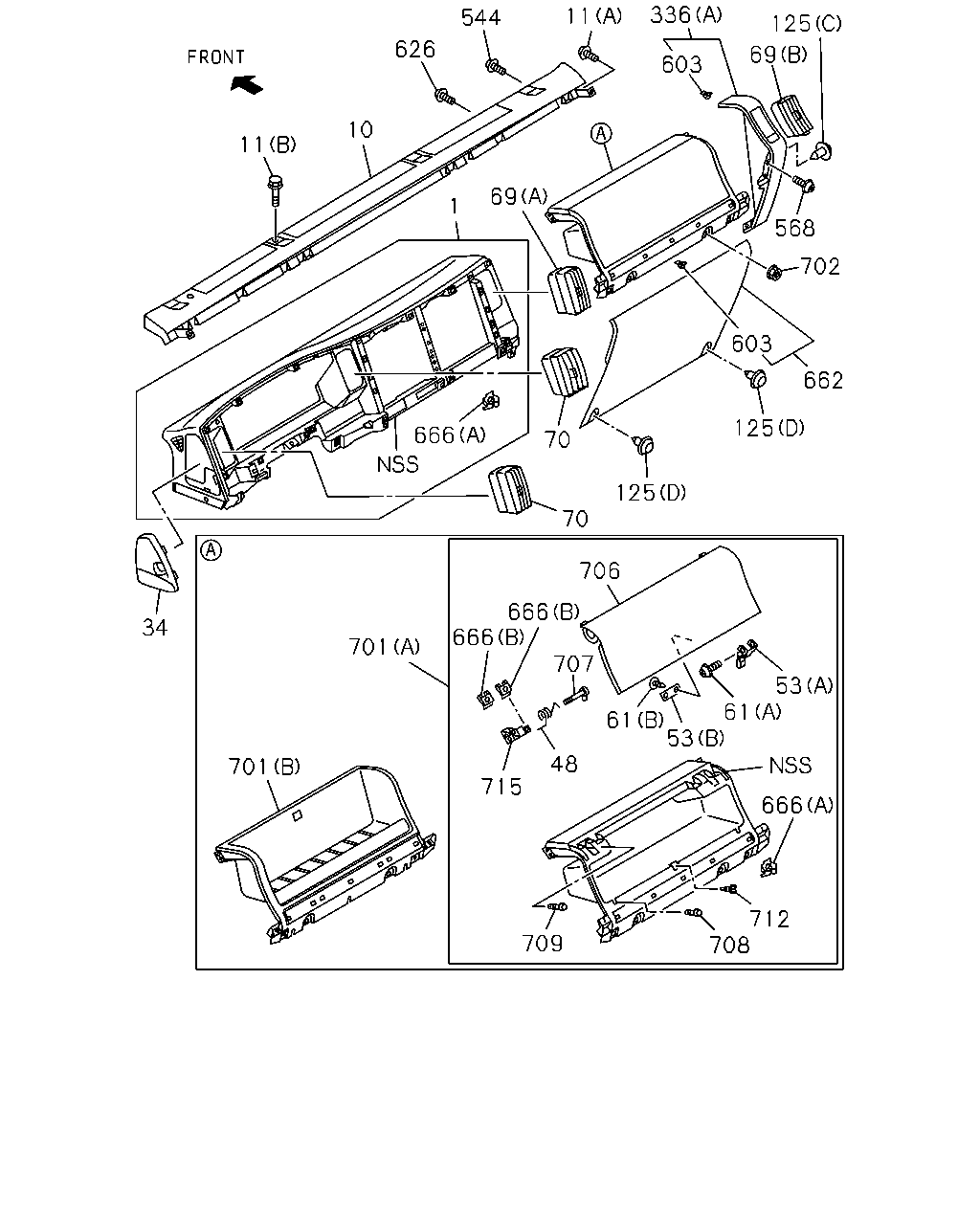

çizim 175089
125 662 603 702 568 69 125 603 336 11 544 626 10 11 69 1 70 125 70 666 34 701 701 706 666 666 707 48 715 61 53 61 53 666 712 708 709
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.080 PANEL; INST
GRAY 		8-97406-004-4 01 1 1012-1303 ●
1 16.080 PANEL; INST
GRAY 		8-97406-004-4 01 1 1304- ● ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1012-1303 ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1304- ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1012-1012 ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1101-1212 ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301-1303 ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1304- ● ●
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1012-1303 ●
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1304- ● ●
34 16.085 LID; OIL TANK
GRAY 		8-97406-003-1 01 1 1012-1303 ●
34 16.085 LID; OIL TANK
GRAY 		8-97406-003-1 01 1 1304- ● ●
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-986-0 01 1 1109-1303 ●
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-986-0 01 1 1304-1311 ● ●
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-410-0 01 1 1312-1405 ● ●
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1406- ● ●
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-987-0 01 1 1109-1303 ●
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-987-0 01 1 1304-1311 ● ●
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-411-0 01 1 1312-1405 ● ●
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1406- ● ●
53 16.115 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98108-913-0 01 1 1109-1303 ●
53 16.115 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98108-913-0 01 1 1304-1405 ● ●
53 16.115 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) 		8-98270-765-0 01 1 1406- ● ●
61 16.100 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98108-915-0 01 1 1109-1303 ●
61 16.100 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98108-915-0 01 1 1304-1405 ● ●
61 16.100 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) M4X85 		8-97926-404-0 02 1 1406- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 01 1 1012-1303 ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 01 1 1304- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1012-1303 ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1304- ● ●
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 02 1 1012-1303 ●
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 02 1 1304- ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1109-1303 ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1304- ● ●
125 16.085 CLIP; INST PANEL
(E) M6 SPIRE NUT 		8-97210-973-1 01 1 1012-1303 ●
125 16.085 CLIP; INST PANEL
(E) M6 SPIRE NUT 		8-97210-973-1 01 1 1304- ● ●
125 16.085 CLIP; INST PANEL
16.802 (D) GRAY 		8-97405-205-0 01 1 1012-1303 ●
125 16.085 CLIP; INST PANEL
16.802 (D) GRAY 		8-97405-205-0 01 1 1304- ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1012-1303 ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1304- ● ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97408-817-0 02 1 1012-1303 ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97408-817-0 02 1 1304- ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97419-968-1 01 1 1012-1303 ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97419-968-1 01 1 1304- ● ●
125 16.085 CLIP; INST PANEL
16.165 (F) 		8-98004-025-0 01 1 1012-1303 ●
125 16.085 CLIP; INST PANEL
16.165 (F) 		8-98004-025-0 01 1 1304- ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 1012-1303 ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 1304- ● ●
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97406-000-4 01 1 1109-1303 ●
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97406-000-4 01 1 1304- ● ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 1012-1303 ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 1304- ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1012-1101 ●
544 16.085 SCREW; TRAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212 ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301-1303 ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1304- ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1012-1012 ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1101-1212 ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-1303 ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1304- ● ●
603 16.090 CLIP; COVER
16.085 		8-98021-271-0 01 1 1012-1303 ●
603 16.090 CLIP; COVER
16.085 		8-98021-271-0 01 1 1304- ● ●
603 16.090 CLIP; COVER
16.085 		8-98021-271-0 05 1 1012-1303 ●
603 16.090 CLIP; COVER
16.085 		8-98021-271-0 05 1 1304- ● ●
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 1012-1303 ●
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 1304- ● ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97405-258-2 01 1 1012-1303 ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97405-258-2 01 1 1304- ● ●
666 16.085 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98037-629-0 02 1 1109-1303 ●
666 16.085 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98037-629-0 02 1 1304- ● ●
666 16.085 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) 		8-98038-450-0 04 1 1109-1303 ●
666 16.085 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) 		8-98038-450-0 04 1 1304-1311 ● ●
666 16.085 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) M5 		8-97926-400-0 04 1 1312- ● ●
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 1012-1303 ●
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 1304- ● ●
701 16.100 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY 		8-97415-542-6 01 1 1109-1303 ●
701 16.100 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY 		8-97415-542-6 01 1 1304-1405 ● ●
701 16.100 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY 		8-97429-702-1 01 1 1406- ● ●
701 16.100 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> (B) GRAY 		8-97422-091-1 01 1 1109-1303 ●
701 16.100 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> (B) GRAY 		8-97422-091-1 01 1 1304- ● ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012-1303 ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1304- ● ●
706 16.081 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY 		8-97415-541-0 01 1 1109-1303 ●
706 16.081 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY 		8-97415-541-0 01 1 1304-1405 ● ●
706 16.081 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1406- ● ●
707 09.744 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98035-730-1 02 1 1109-1303 ●
707 09.744 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98035-730-1 02 1 1304-1311 ● ●
707 09.744 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1312- ● ●
708 16.100 STOPPER; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1109-1303 ●
708 16.100 STOPPER; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1304- ● ●
709 16.085 SCREW; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1109-1303 ●
709 16.085 SCREW; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1304- ● ●
712 16.110 LOCK; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1109-1303 ●
712 16.110 LOCK; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1304- ● ●
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-928-0 01 1 1109-1303 ●
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-928-0 01 1 1304-1311 ● ●
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1312- ● ●
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-929-0 01 1 1109-1303 ●
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-929-0 01 1 1304-1311 ● ●
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1312- ● ●

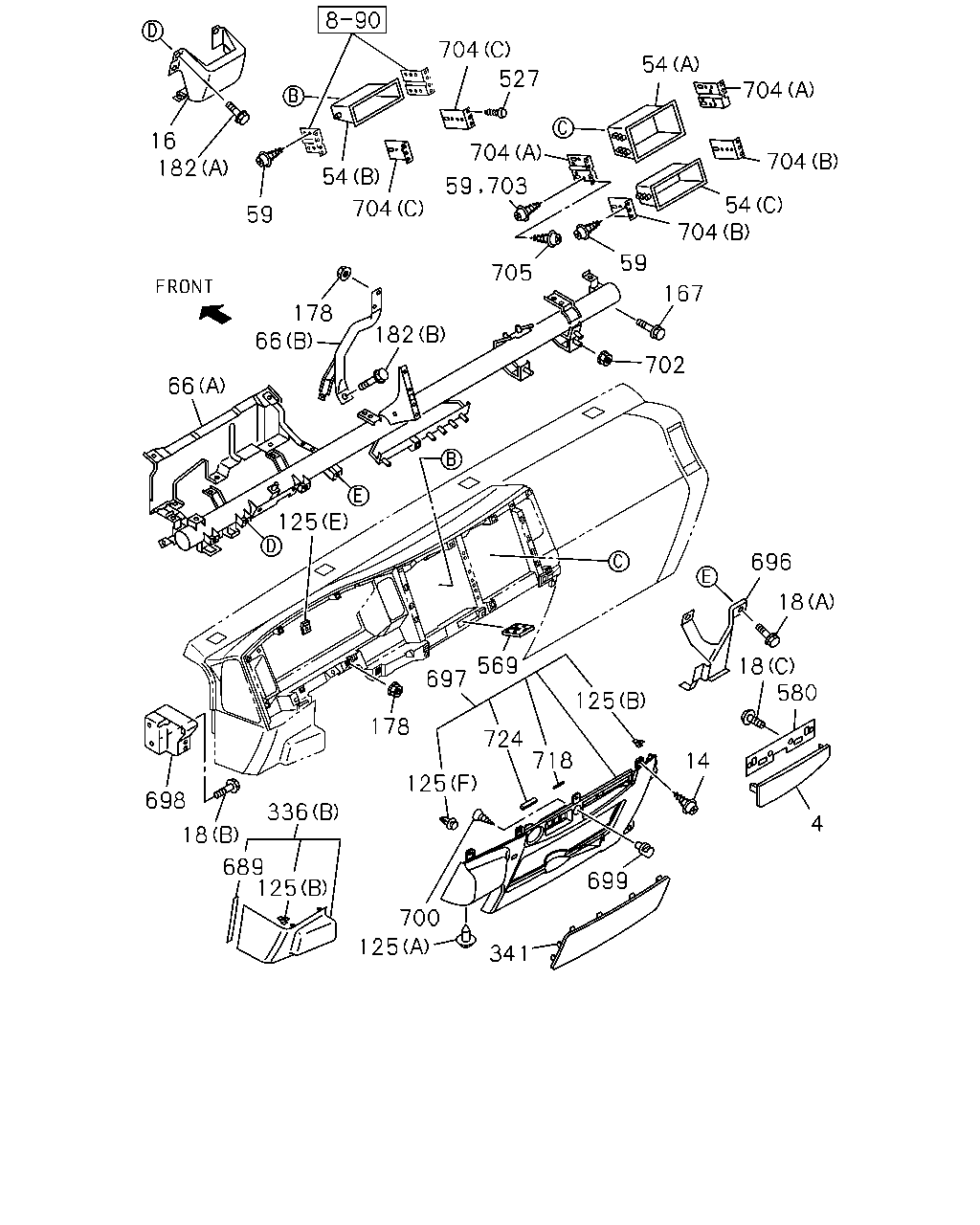

çizim 175093
4 14 699 341 700 125 125 689 18 698 336 125 718 724 125 18 580 18 696 569 697 178 125 66 66 178 182 702 167 59 705 704 54 59 59 703 704 527 704 54 704 704 54 704 16 182
BalonParca AdiParca NoAdetTipApplied Date A B
4 16.080 COVER; INST PNL
GRAY 		8-97407-898-1 01 1 1012-1303 ●
4 16.080 COVER; INST PNL
GRAY 		8-97407-898-1 01 1 1304- ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1012-1012 ●
14 16.085 SCREW; INST PNL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1101-1212 ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-1303 ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1304- ● ●
16 16.085 BRACKET; INST PNL 8-98081-718-1 01 1 1012-1303 ●
16 16.085 BRACKET; INST PNL 8-98081-718-1 01 1 1304- ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1012-1303 ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1304- ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1012-1012 ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1101-1212 ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-1303 ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1304- ● ●
18 16.085 BOLT; BRKT
16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1012-1303 ●
18 16.085 BOLT; BRKT
16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1304- ● ●
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1012-1303 ●
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1304- ● ●
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1012-1303 ●
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1304- ● ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1012-1303 ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1012-1303 ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1304- ● ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1304- ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1012-1303 ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1012-1303 ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1012-1303 ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1304- ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1304- ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1304- ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97585-579-1 01 1 1012-1303 ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97585-579-1 01 1 1304- ● ●
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-98089-365-3 01 1 1012-1303 ●
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-98089-365-3 01 1 1304-1309 ● ●
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-98192-944-0 01 1 1310- ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1109-1303 ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1304- ● ●
125 16.085 CLIP; INST PANEL
(E) M6 SPIRE NUT 		8-97210-973-1 01 1 1012-1303 ●
125 16.085 CLIP; INST PANEL
(E) M6 SPIRE NUT 		8-97210-973-1 01 1 1304- ● ●
125 16.085 CLIP; INST PANEL
16.802 (D) GRAY 		8-97405-205-0 01 1 1012-1303 ●
125 16.085 CLIP; INST PANEL
16.802 (D) GRAY 		8-97405-205-0 01 1 1304- ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1012-1303 ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1304- ● ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97408-817-0 02 1 1012-1303 ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97408-817-0 02 1 1304- ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97419-968-1 01 1 1012-1303 ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97419-968-1 01 1 1304- ● ●
125 16.085 CLIP; INST PANEL
16.165 (F) 		8-98004-025-0 01 1 1012-1303 ●
125 16.085 CLIP; INST PANEL
16.165 (F) 		8-98004-025-0 01 1 1304- ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 1012-1303 ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 1304- ● ●
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 1012-1303 ●
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 1304- ● ●
178 16.085 NUT; INST PANEL
01.062 M6 FLANGE 		0-91180-106-0 03 1 1012-1303 ●
178 16.085 NUT; INST PANEL
01.062 M6 FLANGE 		0-91180-106-0 03 1 1304- ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1012-1012 ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1101-1212 ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301-1303 ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1304- ● ●
182 16.085 BOLT; BRKT,INST PANEL
(B) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1012-1303 ●
182 16.085 BOLT; BRKT,INST PANEL
(B) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1304- ● ●
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97406-000-4 01 1 1109-1303 ●
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97406-000-4 01 1 1304- ● ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 1012-1303 ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 1304- ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97406-043-1 01 1 1012-1205 ●
341 16.110 LID; FUSE BOX
GRAY 		8-97423-659-0 01 1 1206-1303 ●
341 16.110 LID; FUSE BOX
GRAY 		8-97423-659-0 01 1 1304- ● ●
527 16.100 CLIP; INST CLUSTER
16.742 DARK GRAY 		8-97098-326-0 01 1 1012-1303 ●
527 16.100 CLIP; INST CLUSTER
16.742 DARK GRAY 		8-97098-326-0 01 1 1304- ● ●
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 1012-1303 ●
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 1304- ● ●
580 16.080 BRACKET; COVER 8-98091-546-0 01 1 1012-1303 ●
580 16.080 BRACKET; COVER 8-98091-546-0 01 1 1304- ● ●
689 09.743 SEAL; INST 8-98068-244-0 01 1 1109-1303 ●
689 09.743 SEAL; INST 8-98068-244-0 01 1 1304- ● ●
696 16.085 BRACKET; KNEE 8-98098-126-0 01 1 1012-1109 ●
696 16.085 BRACKET; KNEE 8-98071-234-0 01 1 1110-1211 ●
696 16.085 BRACKET; KNEE 8-98201-847-0 01 1 1212-1303 ●
696 16.085 BRACKET; KNEE 8-98201-847-0 01 1 1304- ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97405-999-8 01 1 1012-1205 ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-657-1 01 1 1206-1303 ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-657-1 01 1 1304- ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1012-1303 ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1304- ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1012-1303 ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1304- ● ●
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1012-1303 ●
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1304- ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1012-1012 ●
700 16.090 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1101-1212 ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-1303 ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1304- ● ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012-1303 ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1304- ● ●
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1012-1303 ●
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1304- ● ●
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1012-1303 ●
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1304- ● ●
704 16.085 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1012-1303 ●
704 16.085 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1304- ● ●
704 16.085 BRACKET; CENTER POCKET
(C) 		8-98107-549-0 02 1 1012-1303 ●
704 16.085 BRACKET; CENTER POCKET
(C) 		8-98107-549-0 02 1 1304- ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1012-1012 ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1101-1212 ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301-1303 ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1304- ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1012-1012 ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1012-1012 ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1101-1212 ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1101-1212 ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301-1303 ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301-1303 ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1304- ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1304- ● ●
718 16.100 SEAL; COVER
5X30 		8-98176-199-0 01 1 1206-1303 ●
718 16.100 SEAL; COVER
5X30 		8-98176-199-0 01 1 1304- ● ●
718 16.100 SEAL; COVER
8X80 		8-98200-040-0 01 1 1110-1303 ●
718 16.100 SEAL; COVER
8X80 		8-98200-040-0 01 1 1304- ● ●
718 16.100 SEAL; COVER
4X35 		8-98200-041-0 01 1 1110-1303 ●
718 16.100 SEAL; COVER
4X35 		8-98200-041-0 01 1 1304- ● ●
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1110-1303 ●
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1304- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
