Isuzu WW
▶
TRUCKS
▶
NPR
▶
51292 - NPR/NQR BUS CHA(LHD)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

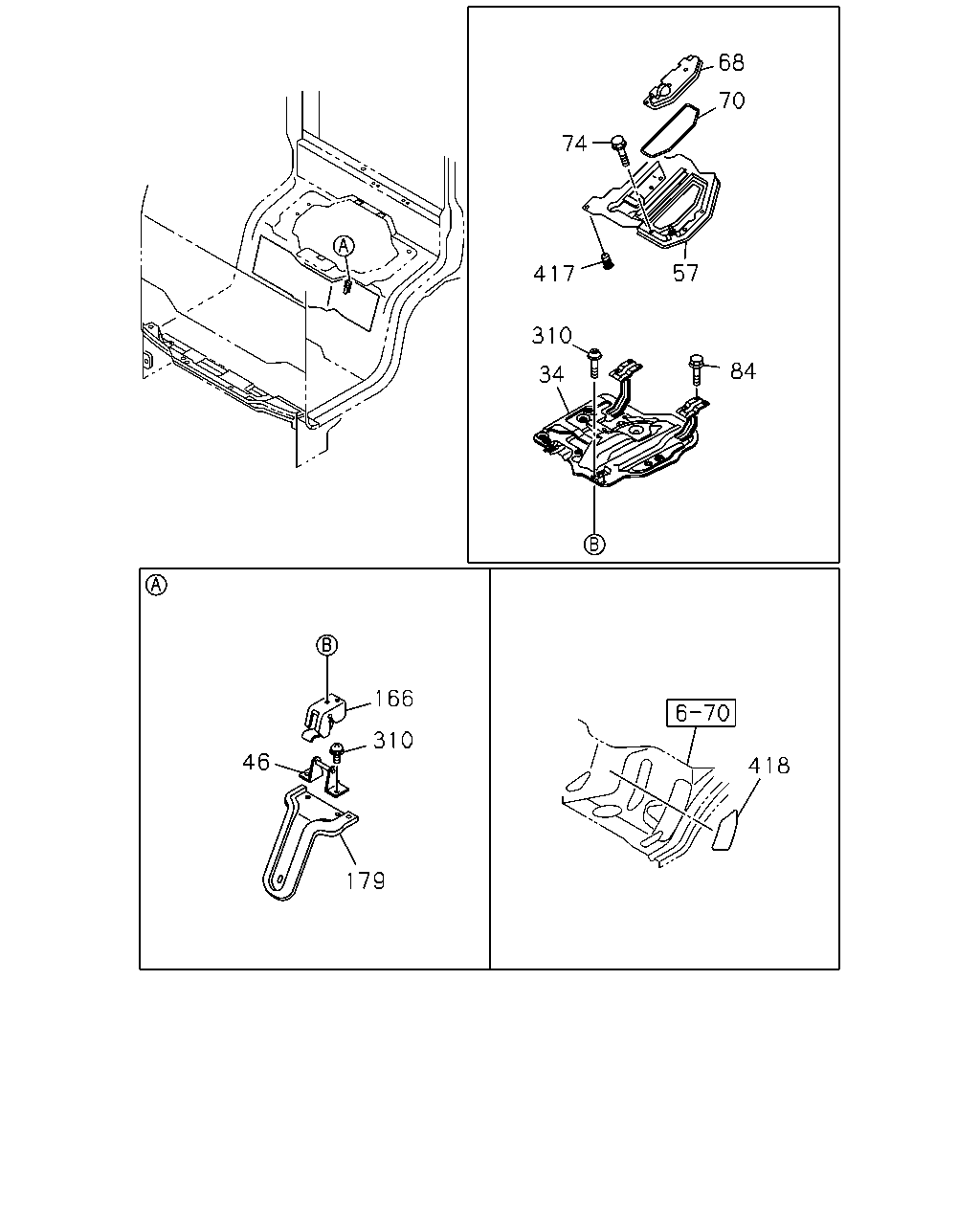

6-76 — FLOOR EQUIPMENT AND SEALING
(#54053) — 30 parça
Tümü
A - NPR6JN
B - NPR6JS
68
70
74
57
417
310
84
34
166
310
46
418
179
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
34
16.549 COVER ASM; ENG,CAB FLOOR
8-97589-391-2
01
1
1012-1303
●
34
16.549 COVER ASM; ENG,CAB FLOOR
8-97589-391-2
01
1
1304-
●
●
46
16.549 HOOK ASM; ENG COVER
8-98040-145-0
02
1
1012-1303
●
46
16.549 HOOK ASM; ENG COVER
8-98040-145-0
02
1
1304-
●
●
57
16.549 COVER ASM; SUPPORT,CAB FLOOR
8-97589-396-4
01
1
1012-1303
●
57
16.549 COVER ASM; SUPPORT,CAB FLOOR
8-97589-396-4
01
1
1304-
●
●
68
16.549 COVER ASM; SUB,ENG COVER
8-98040-141-0
01
1
1012-1303
●
68
16.549 COVER ASM; SUB,ENG COVER
8-98040-141-0
01
1
1304-
●
●
70
16.549 SEAL; ENG SUB COVER,CAB FLOOR
8-97853-050-1
01
1
1012-1303
●
70
16.549 SEAL; ENG SUB COVER,CAB FLOOR
8-97853-050-1
01
1
1304-
●
●
74
16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE
0-28650-820-0
10
1
1012-1303
●
74
16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE
0-28650-820-0
10
1
1304-
●
●
84
16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE
0-28650-820-0
04
1
1012-1303
●
84
16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE
0-28650-820-0
04
1
1304-
●
●
166
16.549 LOCK; ENG COVER
8-98040-152-0
02
1
1012-1303
●
166
16.549 LOCK; ENG COVER
8-98040-152-0
02
1
1304-
●
●
179
16.549 REINFORCEMENT; COVER
8-98048-301-1
01
1
1012-1303
●
179
16.549 REINFORCEMENT; COVER
8-98048-301-1
01
1
1304-
●
●
310
16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE
0-28650-616-0
04
1
1012-1303
●
310
16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE
0-28650-616-0
04
1
1304-
●
●
310
16.549 SCREW; ENG COVER HOOK
16.570 M6X16
0-38050-616-0
05
1
1012-1303
●
310
16.549 SCREW; ENG COVER HOOK
16.570 M6X16
0-38050-616-0
05
1
1304-
●
●
417
16.549 NUT; POP
09.786 M6 POP NUT
8-98013-752-0
01
1
1012-1303
●
417
16.549 NUT; POP
09.786 M6 POP NUT
8-98013-752-0
01
1
1304-
●
●
418
16.549 SEAL; PROTECTOR
8-98090-191-1
01
1
1012-1303
●
418
16.549 SEAL; PROTECTOR
8-98090-191-1
01
1
1304-1412
●
●
418
16.549 SEAL; PROTECTOR
4HK1-TCN ENG(RDQ)
8-98090-191-1
01
1
1501-
●
●
418
16.549 SEAL; PROTECTOR
8-98090-192-1
01
1
1012-1303
●
418
16.549 SEAL; PROTECTOR
8-98090-192-1
01
1
1304-1412
●
●
418
16.549 SEAL; PROTECTOR
4HK1-TCN ENG(RDQ)
8-98090-192-1
01
1
1501-
●
●
