Isuzu WW
▶
TRUCKS
▶
NPR
▶
51292 - NPR/NQR BUS CHA(LHD)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

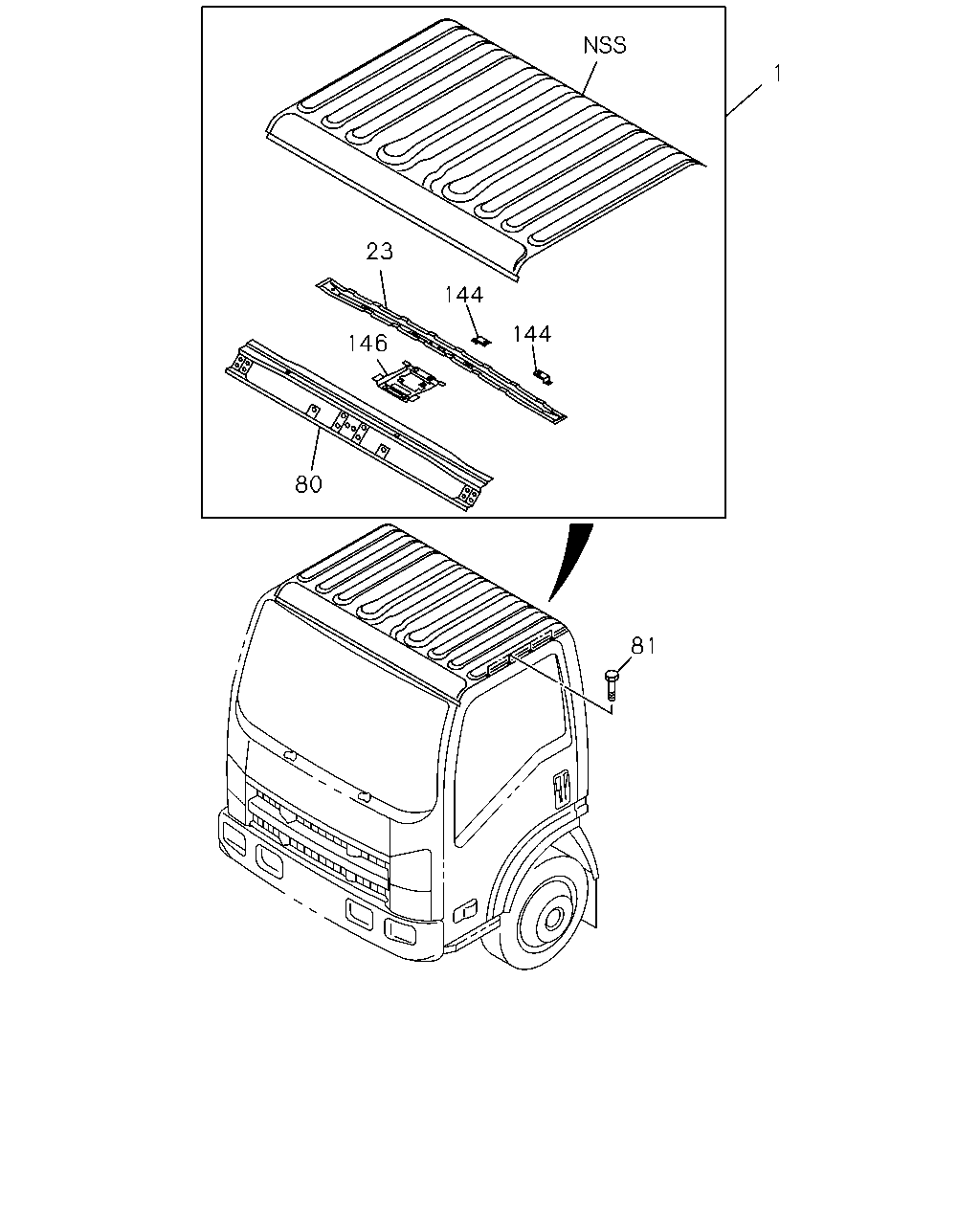

6-60 — ROOF PANEL
(#54051) — 15 parça
Tümü
A - NPR6JN
B - NPR6JS
1
23
144
144
146
80
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.585 PANEL; ROOF
8-98024-941-6
01
1
1012-1303
●
1
16.585 PANEL; ROOF
8-98024-941-6
01
1
1304-1503
●
●
1
16.585 PANEL; ROOF
8-98287-347-0
01
1
1504-
●
●
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
8-98013-502-0
01
1
1012-1303
●
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
8-98013-502-0
01
1
1304-1503
●
●
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
8-98287-359-0
01
1
1504-
●
●
80
16.585 PANEL; HEADER,ROOF
8-97584-190-4
01
1
1012-1303
●
80
16.585 PANEL; HEADER,ROOF
8-97584-190-4
01
1
1304-1503
●
●
80
16.585 PANEL; HEADER,ROOF
8-98287-354-0
01
1
1504-
●
●
81
16.585 BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
1012-1303
●
81
16.585 BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
1304-
●
●
144
16.585 BRACKET; ROOF
8-98013-931-1
02
1
1012-1303
●
144
16.585 BRACKET; ROOF
8-98013-931-1
02
1
1304-
●
●
146
16.570 REINFORCEMENT; ROOM LAMP
8-98075-827-0
01
1
1012-1303
●
146
16.570 REINFORCEMENT; ROOM LAMP
8-98075-827-0
01
1
1304-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
