6-20 — SIDE PANEL AND STEP (#54048) — 76 parça

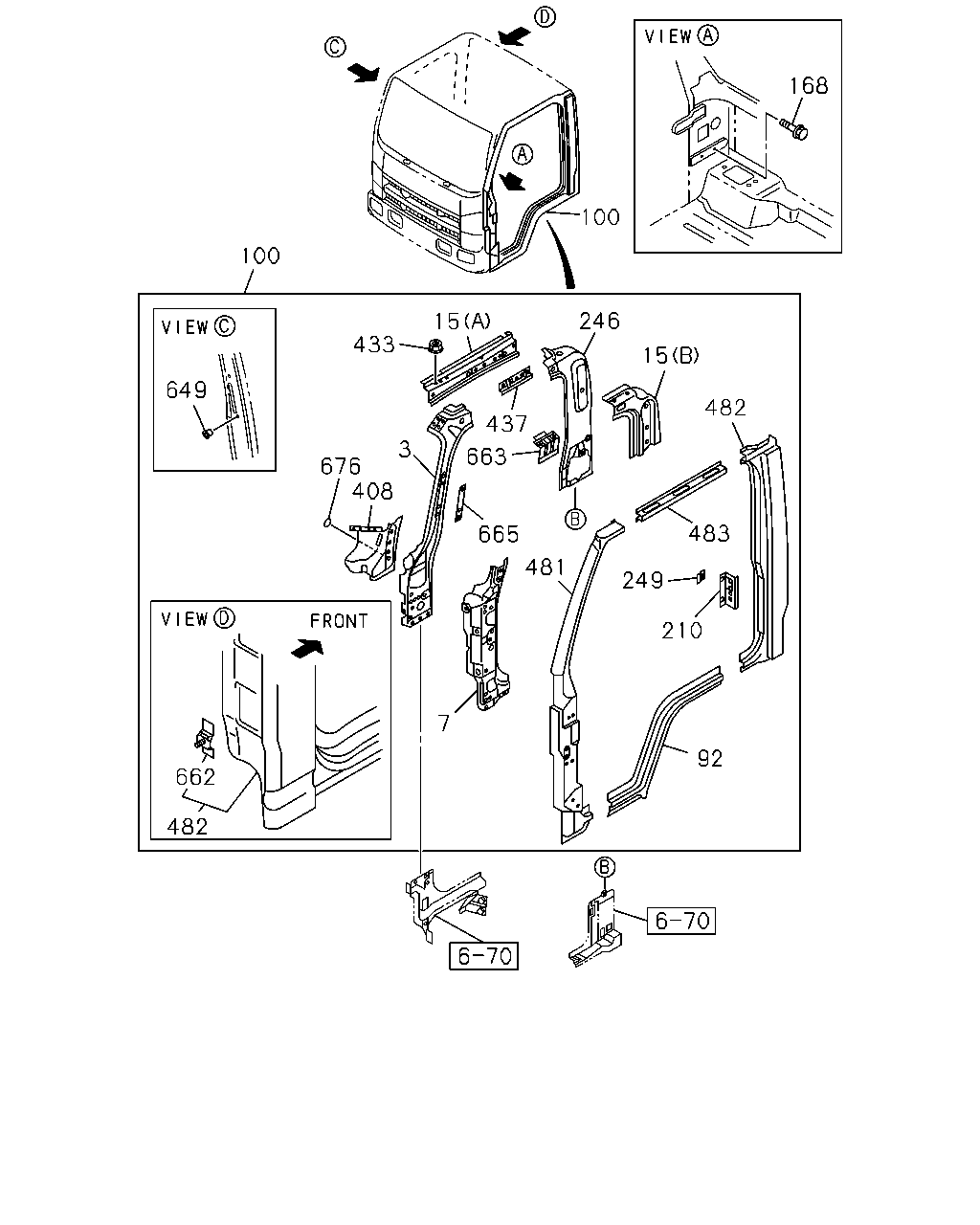

çizim 175066
168 100 100 246 15 433 15 649 482 437 3 663 676 408 483 665 481 249 210 7 92 662 482
BalonParca AdiParca NoAdetTipApplied Date A B
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1012-1303 ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1304- ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1012-1303 ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1304- ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1012-1303 ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1304- ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1012-1303 ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1304- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1012-1303 ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1304- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1012-1303 ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1304- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1012-1303 ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1304- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1012-1303 ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1304- ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1012-1303 ●
92 16.570 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1304- ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1012-1303 ●
92 16.570 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1304- ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-030-6 01 1 1012-1303 ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-030-6 01 1 1304- ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-047-8 01 1 1012-1303 ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-047-8 01 1 1304- ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1012-1303 ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1304- ● ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97585-260-4 01 1 1012-1303 ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97585-260-4 01 1 1304- ● ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97585-261-4 01 1 1012-1303 ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97585-261-4 01 1 1304- ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1012-1303 ●
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1304- ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1012-1303 ●
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1304- ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1012-1303 ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1012-1303 ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1304- ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1304- ● ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1012-1303 ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1304- ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1012-1303 ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1304- ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1012-1303 ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1012-1303 ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1304- ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1304- ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1012-1303 ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1304- ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1012-1303 ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1304- ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-787-0 01 1 1012-1303 ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-787-0 01 1 1304- ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-802-0 01 1 1012-1303 ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-802-0 01 1 1304- ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-98055-463-0 01 1 1012-1303 ●
482 16.570 PANEL; SIDE RR PILLAR 8-98055-463-0 01 1 1304- ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-98055-464-0 01 1 1012-1303 ●
482 16.570 PANEL; SIDE RR PILLAR 8-98055-464-0 01 1 1304- ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1012-1303 ●
483 16.570 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1304- ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1012-1303 ●
483 16.570 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1304- ● ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1012-1303 ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1304- ● ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 1012-1303 ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 1304- ● ●
663 08.228 BRACKET; AIR 8-97585-207-2 01 1 1012-1303 ●
663 08.228 BRACKET; AIR 8-97585-207-2 01 1 1304- ● ●
663 08.228 BRACKET; AIR 8-97585-208-2 01 1 1012-1303 ●
663 08.228 BRACKET; AIR 8-97585-208-2 01 1 1304- ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1012-1303 ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1012-1303 ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1304- ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1304- ● ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1012-1303 ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1304- ● ●
