◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51292 - NPR/NQR BUS CHA(LHD) ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#54042) — 49 parça

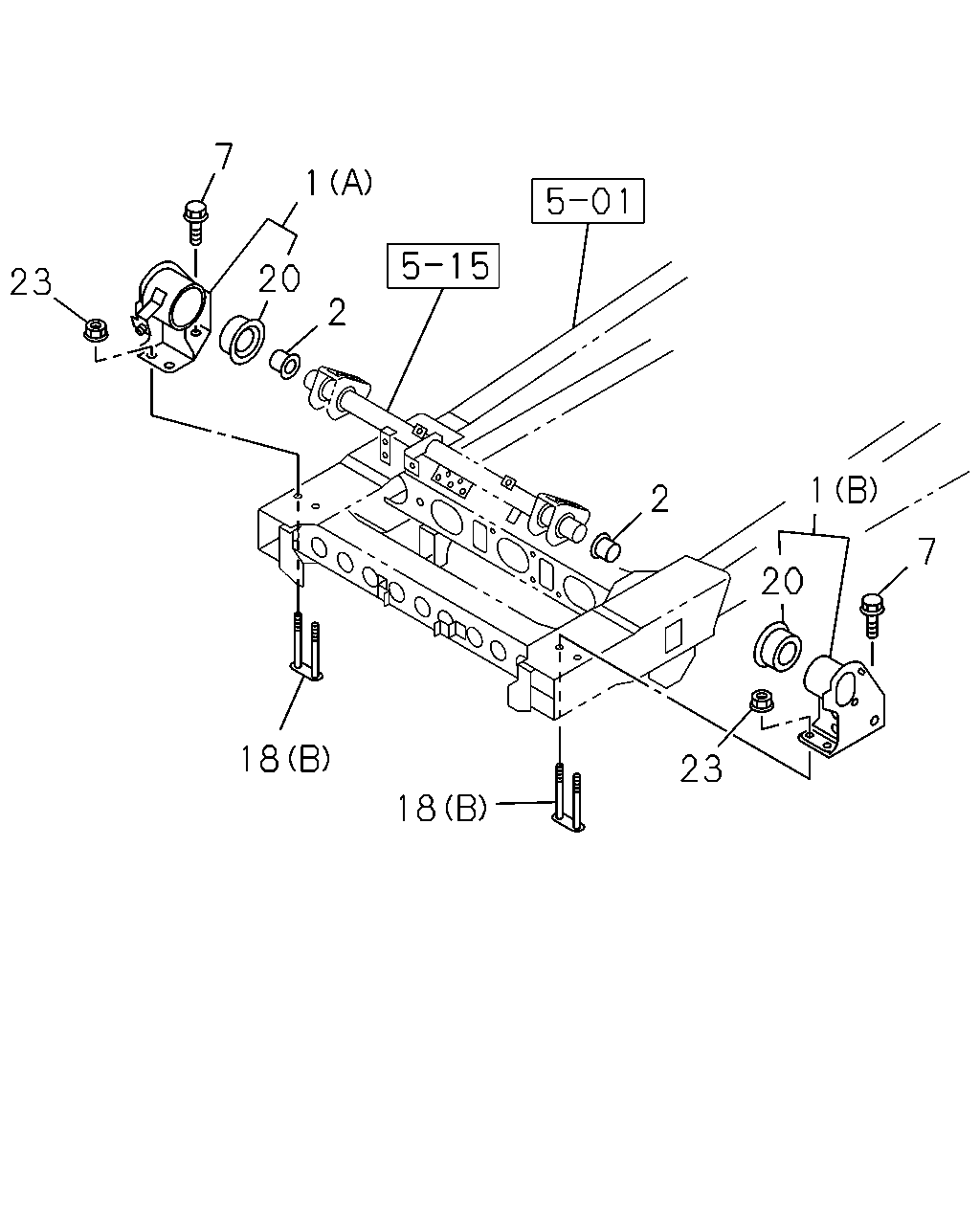

çizim 175052
7 1 20 23 2 1 2 7 20 18 23 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.003 BRACKET; CAB MTG
16.545 (A) 		8-98074-798-2 01 1 1012-1303 ●
1 09.003 BRACKET; CAB MTG
16.545 (A) 		8-98074-798-2 01 1 1304- ● ●
1 09.003 BRACKET; CAB MTG
16.545 (B) 		8-98074-800-2 01 1 1012-1303 ●
1 09.003 BRACKET; CAB MTG
16.545 (B) 		8-98074-800-2 01 1 1304- ● ●
2 09.009 BUSHING; TORSION BAR 8-97061-514-0 02 1 1012-1303 ●
2 09.009 BUSHING; TORSION BAR 8-97061-514-0 02 1 1304- ● ●
7 09.003 BOLT; BRKT,CAB TILT
M14X40 FLANGE 		0-28661-440-0 02 1 1012-1303 ●
7 09.003 BOLT; BRKT,CAB TILT
M14X40 FLANGE 		0-28661-440-0 02 1 1304- ● ●
18 09.003 PLATE; MTG BRKT FIX
(A) 		8-97034-139-2 02 1 1012-1303 ●
18 09.003 PLATE; MTG BRKT FIX
(A) 		8-97034-139-2 02 1 1304- ● ●
18 09.003 PLATE; MTG BRKT FIX
(B) 		8-98029-285-1 02 1 1012-1303 ●
18 09.003 PLATE; MTG BRKT FIX
(B) 		8-98029-285-1 02 1 1304- ● ●
20 09.003 RUBBER; MTG,CAB BRKT 8-98007-037-1 01 1 1012-1303 ●
20 09.003 RUBBER; MTG,CAB BRKT 8-98007-037-1 01 1 1012-1303 ●
20 09.003 RUBBER; MTG,CAB BRKT 8-98007-037-1 01 1 1304- ● ●
20 09.003 RUBBER; MTG,CAB BRKT 8-98007-037-1 01 1 1304- ● ●
23 09.003 NUT; MTG BRKT
M14 		8-98039-989-0 04 1 1012-1303 ●
23 09.003 NUT; MTG BRKT
M14 		8-98039-989-0 04 1 1304- ● ●

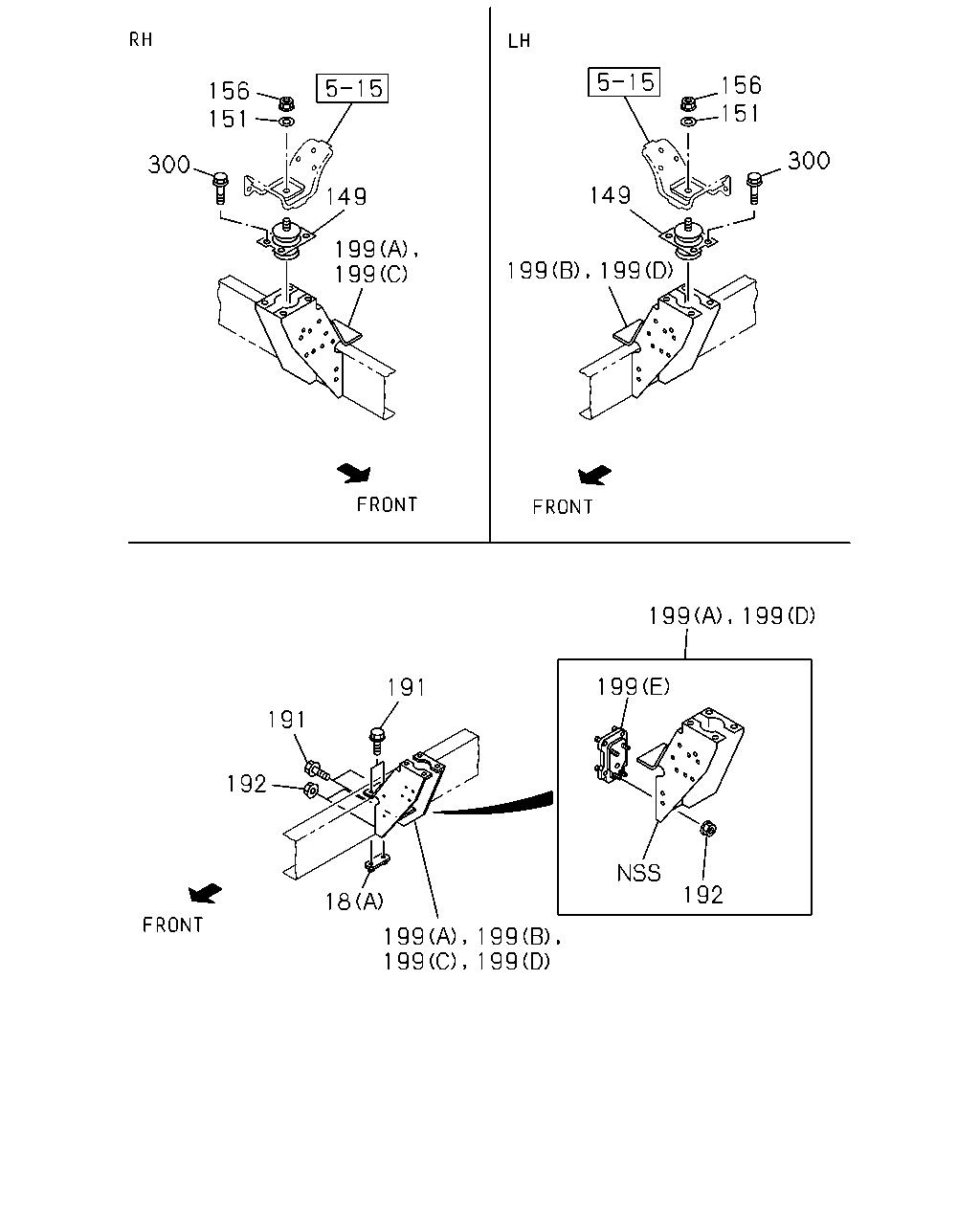

çizim 175063
156 151 156 151 300 300 149 149 199 199 199 199 199 199 199 191 191 192 192 18 199 199 199 199
BalonParca AdiParca NoAdetTipApplied Date A B
18 09.003 PLATE; MTG BRKT FIX
(A) 		8-97034-139-2 02 1 1012-1303 ●
18 09.003 PLATE; MTG BRKT FIX
(A) 		8-97034-139-2 02 1 1304- ● ●
18 09.003 PLATE; MTG BRKT FIX
(B) 		8-98029-285-1 02 1 1012-1303 ●
18 09.003 PLATE; MTG BRKT FIX
(B) 		8-98029-285-1 02 1 1304- ● ●
149 09.023 RUBBER; MTG,CAB,UPR RR 8-98038-868-0 02 1 1012-1303 ●
149 09.023 RUBBER; MTG,CAB,UPR RR 8-98038-868-0 02 1 1304- ● ●
151 09.011 WASHER; CAB MTG,RR UPR
ID=16.5 OD=58 		8-97359-040-1 02 1 1012-1303 ●
151 09.011 WASHER; CAB MTG,RR UPR
ID=16.5 OD=58 		8-97359-040-1 02 1 1304- ● ●
156 07.529 NUT; CAB MTG RR
M14 FLANGE 		0-91180-114-0 02 1 1012-1303 ●
156 07.529 NUT; CAB MTG RR
M14 FLANGE 		0-91180-114-0 02 1 1304- ● ●
191 09.003 BOLT; BRKT FIX
FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE 		0-28651-240-0 08 1 1012-1303 ●
191 09.003 BOLT; BRKT FIX
FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE 		0-28651-240-0 08 1 1304- ●
191 09.003 BOLT; BRKT FIX
M12X40 FLANGE 		0-28651-240-0 08 1 1304- ●
191 09.003 BOLT; BRKT FIX
EXC. FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE 		0-28651-240-0 04 1 1012- ●
192 09.003 NUT; BRKT FIX
02.042 M12 FLANGE 		0-91180-112-0 08 1 1012-1303 ●
192 09.003 NUT; BRKT FIX
02.042 M12 FLANGE 		0-91180-112-0 08 1 1304- ● ●
192 09.003 NUT; BRKT FIX
EXC. FRAME STRAIGHT TYPE<7KJ> 02.042 M12 FLANGE 		0-91180-112-0 04 1 1012- ●
192 09.003 NUT; BRKT FIX
EXC. FRAME STRAIGHT TYPE<7KJ> 02.042 M12 FLANGE 		0-91180-112-0 04 1 1012- ●
199 09.003 BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98024-772-1 01 1 1012-1101 ●
199 09.003 BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98099-144-1 01 1 1102-1303 ●
199 09.003 BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98099-144-1 01 1 1304- ●
199 09.003 BRACKET; CAB RR MTG
(C) 		8-98099-144-1 01 1 1304- ●
199 09.003 BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98024-778-1 01 1 1012-1303 ●
199 09.003 BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98024-778-1 01 1 1304- ●
199 09.003 BRACKET; CAB RR MTG
(B) 		8-98024-778-1 01 1 1304- ●
199 09.003 BRACKET; CAB RR MTG
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98024-770-1 01 1 1012- ●
199 09.003 BRACKET; CAB RR MTG
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98024-771-1 01 1 1012- ●
199 09.003 BRACKET; CAB RR MTG
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97092-102-5 01 1 1012- ●
199 09.003 BRACKET; CAB RR MTG
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97092-102-5 01 1 1012- ●
300 09.003 BOLT; MTG RUBBER
02.343 M10X20 FLANGE 		0-28651-020-0 08 1 1012-1303 ●
300 09.003 BOLT; MTG RUBBER
02.343 M10X20 FLANGE 		0-28651-020-0 08 1 1304- ● ●
