5-01 — FRAME AND OTHER PARTS (#54041) — 131 parça

51 51 42 31 39 31 24 140 63 103 141 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	07.105 BRACKET; FRT SPR,FRT	8-98015-274-0	02	1	1012-1303	●
24	07.105 BRACKET; FRT SPR,FRT	8-98015-274-0	02	1	1304-	●	●
31	07.428 BUSHING; FRT SPR,RR 07.524	8-97184-699-1	04	1	1012-1303	●
31	07.428 BUSHING; FRT SPR,RR 07.524	8-97184-699-1	04	1	1304-	●	●
39	07.112 BRACKET; FRT SPR,RR	8-98014-125-0	02	1	1012-1303	●
39	07.112 BRACKET; FRT SPR,RR	8-98014-125-0	02	1	1304-	●	●
42	07.011 MEMBER; CROSS,ENG MTG	8-98032-389-0	01	1	1012-1303	●
42	07.011 MEMBER; CROSS,ENG MTG	8-98032-389-0	01	1	1304-	●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-98034-961-0	02	1	1012-1303	●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-98034-961-0	02	1	1304-	●	●
63	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-97115-668-0	01	1	1012-	●
103	07.420 STOPPER; SUB SPR 07.524	8-97079-659-1	02	1	1012-1303	●
103	07.420 STOPPER; SUB SPR 07.524	8-97079-659-1	02	1	1304-	●	●
140	07.112 BRACKET; S/ABS,RR (A)	8-97080-884-1	02	1	1012-1303	●
140	07.112 BRACKET; S/ABS,RR (A)	8-97080-884-1	02	1	1304-	●	●
140	07.112 BRACKET; S/ABS,RR 07.395 (B)	8-97302-511-0	02	1	1012-1303	●
140	07.112 BRACKET; S/ABS,RR 07.395 (B)	8-97302-511-0	02	1	1304-	●	●
141	07.112 STIFFENER	8-98064-354-1	01	1	1012-1303	●
141	07.112 STIFFENER	8-98064-354-2	01	1	1304-	●	●
141	07.112 STIFFENER	8-98064-355-1	01	1	1012-1303	●
141	07.112 STIFFENER	8-98064-355-2	01	1	1304-	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

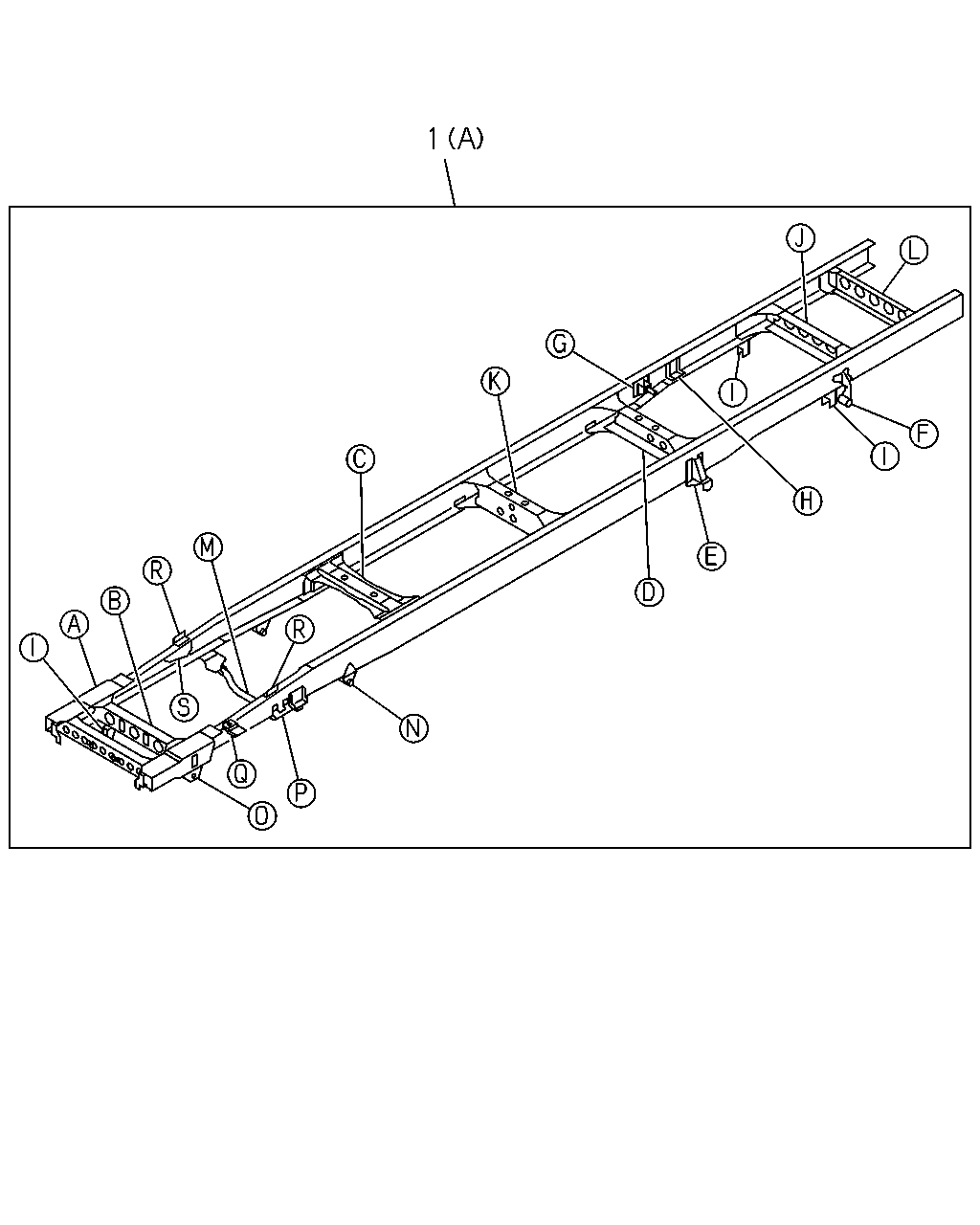

1	07.003 FRAME ASM WHEEL BASE 4100MM(41W) (B)	8-98240-428-0	01	1	1304-		●
1	07.003 FRAME ASM WHEEL BASE 4400MM(44W) (B)	8-98240-430-0	01	1	1304-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) (A)	8-98099-799-1	01	1	1012-	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) (A)	8-98106-326-1	01	1	1012-	●

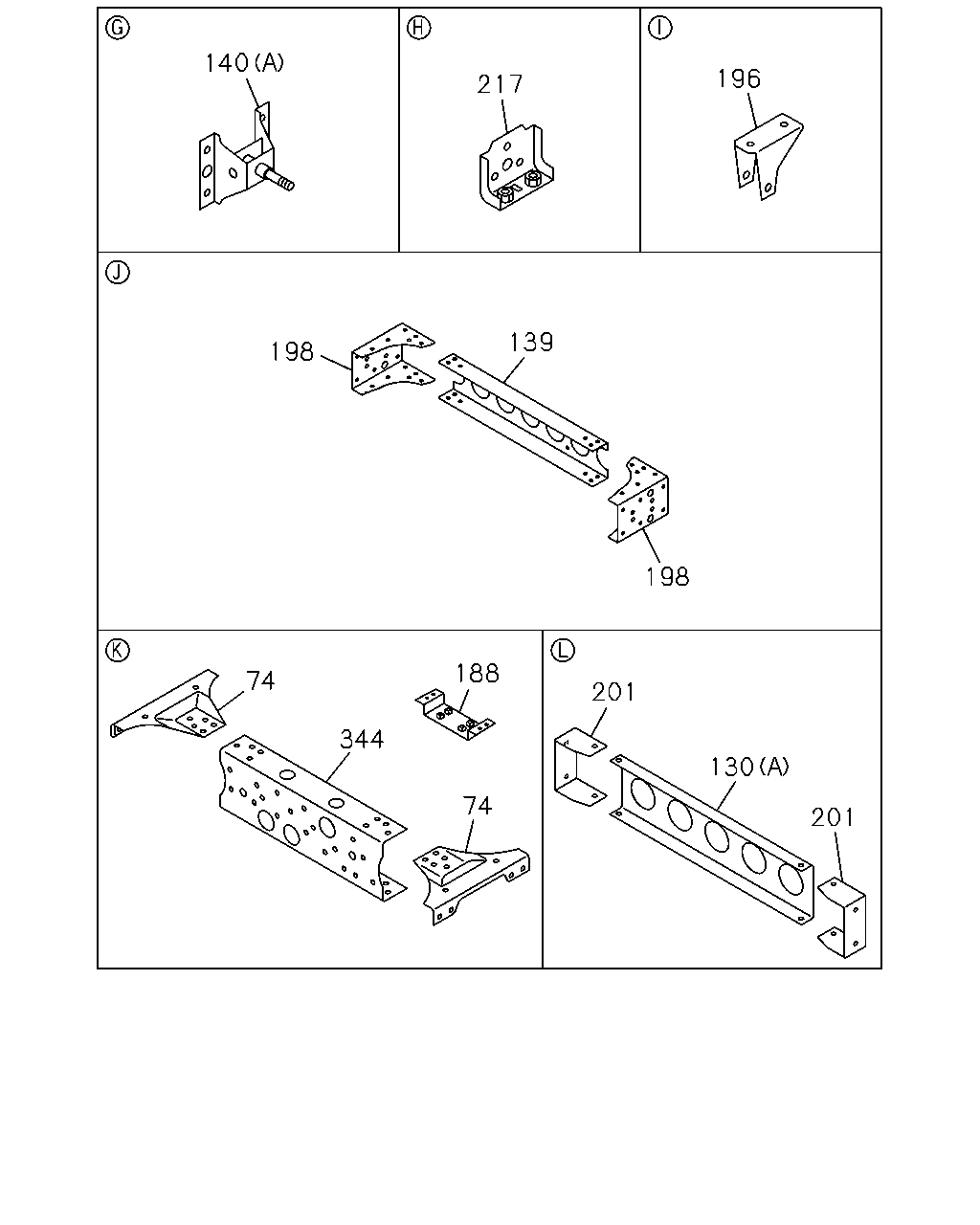

140 217 196 139 198 198 201 130 201 74 188 344 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
74	07.039 GUSSET; 4TH C/MBR RH-LOWER,LH-UPPER	8-98000-583-0	02	1	1012-1303	●
74	07.039 GUSSET; 4TH C/MBR RH-LOWER,LH-UPPER	8-98000-583-0	02	1	1304-	●	●
74	07.039 GUSSET; 4TH C/MBR RH-UPPER,LH-LOWER	8-98000-584-0	02	1	1012-1303	●
74	07.039 GUSSET; 4TH C/MBR RH-UPPER,LH-LOWER	8-98000-584-0	02	1	1304-	●	●
130	07.014 MEMBER; CROSS,END (B)	8-97205-394-0	01	1	1304-		●
130	07.014 MEMBER; CROSS,END (A)	8-97080-872-0	01	1	1012-	●
139	07.012 MEMBER; CROSS,6TH	8-97107-384-0	01	1	1012-1303	●
139	07.012 MEMBER; CROSS,6TH	8-97107-384-0	01	1	1304-	●	●
140	07.112 BRACKET; S/ABS,RR (A)	8-97080-884-1	02	1	1012-1303	●
140	07.112 BRACKET; S/ABS,RR (A)	8-97080-884-1	02	1	1304-	●	●
140	07.112 BRACKET; S/ABS,RR 07.395 (B)	8-97302-511-0	02	1	1012-1303	●
140	07.112 BRACKET; S/ABS,RR 07.395 (B)	8-97302-511-0	02	1	1304-	●	●
188	07.039 BRACKET; SUPPORT,CTR BRG 4HG1 ENG(RJH)	8-98227-662-0	01	1	1212-	●
196	07.242 BRACKET; STAB TO FRAME	8-98033-523-0	04	1	1012-1303	●
196	07.242 BRACKET; STAB TO FRAME	8-98033-523-0	04	1	1304-	●	●
198	07.039 GUSSET; 6TH C/MBR	8-98014-079-1	02	1	1012-1303	●
198	07.039 GUSSET; 6TH C/MBR	8-98014-079-1	02	1	1304-	●	●
201	07.039 GUSSET; C/MBR	8-97096-871-0	02	1	1012-1303	●
201	07.039 GUSSET; C/MBR	8-97096-871-0	02	1	1304-	●	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING	8-97202-417-0	02	1	1012-1303	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING	8-97202-417-0	02	1	1304-	●	●
344	07.012 MEMBER; CROSS,4TH	8-97175-993-3	01	1	1012-1303	●
344	07.012 MEMBER; CROSS,4TH	8-97175-993-3	01	1	1304-	●	●

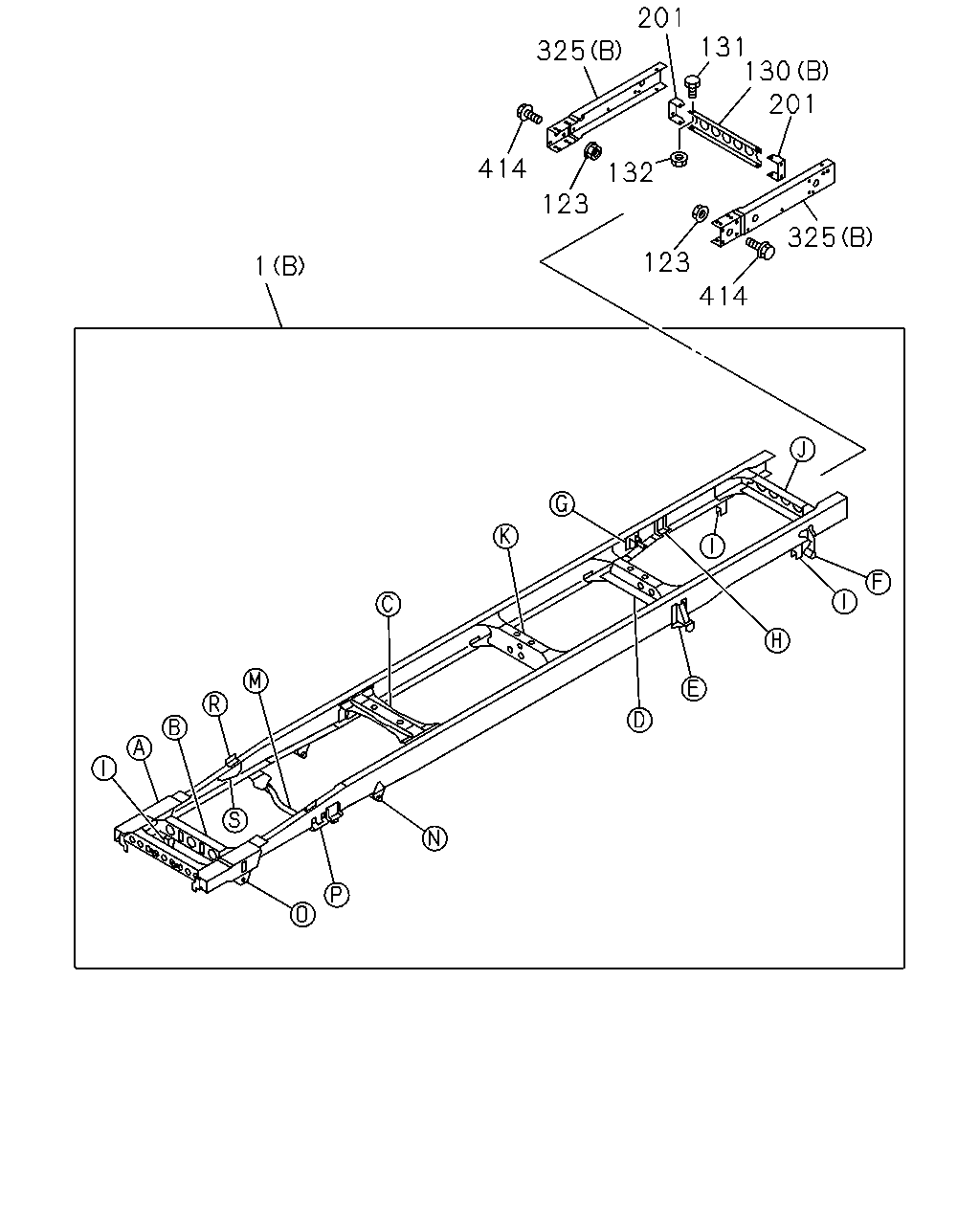

1 414 325 201 131 130 201 132 123 123 414 325

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.003 FRAME ASM WHEEL BASE 4100MM(41W) (B)	8-98240-428-0	01	1	1304-		●
1	07.003 FRAME ASM WHEEL BASE 4400MM(44W) (B)	8-98240-430-0	01	1	1304-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) (A)	8-98099-799-1	01	1	1012-	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) (A)	8-98106-326-1	01	1	1012-	●
123	07.039 NUT 07.395 M12	8-97360-126-0	16	1	1304-		●
130	07.014 MEMBER; CROSS,END (B)	8-97205-394-0	01	1	1304-		●
130	07.014 MEMBER; CROSS,END (A)	8-97080-872-0	01	1	1012-	●
131	07.014 BOLT; END C/MBR 07.833 M10X25 FLANGE	0-28661-025-0	08	1	1304-		●
132	07.014 NUT; END C/MBR 03.162 M10 FLANGE	0-91180-110-0	08	1	1304-		●
201	07.039 GUSSET; C/MBR	8-97096-871-0	02	1	1012-1303	●
201	07.039 GUSSET; C/MBR	8-97096-871-0	02	1	1304-	●	●
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-891-1	01	1	1304-		●
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-892-1	01	1	1304-		●
325	07.039 EXTENSION; FRAME WHEEL BASE 4400MM(44W) (B)	8-97128-752-3	01	1	1304-		●
325	07.039 EXTENSION; FRAME WHEEL BASE 4400MM(44W) (B)	8-97128-753-3	01	1	1304-		●
325	07.039 EXTENSION; FRAME (A)	8-98073-346-0	01	1	1012-1303	●
325	07.039 EXTENSION; FRAME (A)	8-98073-346-0	01	1	1304-	●	●
325	07.039 EXTENSION; FRAME (A)	8-98073-347-1	01	1	1012-1303	●
325	07.039 EXTENSION; FRAME (A)	8-98073-347-1	01	1	1304-	●	●
414	07.011 BOLT 06.509 M12X30 FLANGE	0-28661-230-0	12	1	1304-		●
414	07.011 BOLT M12X40 FLANGE	0-28661-240-0	04	1	1304-		●

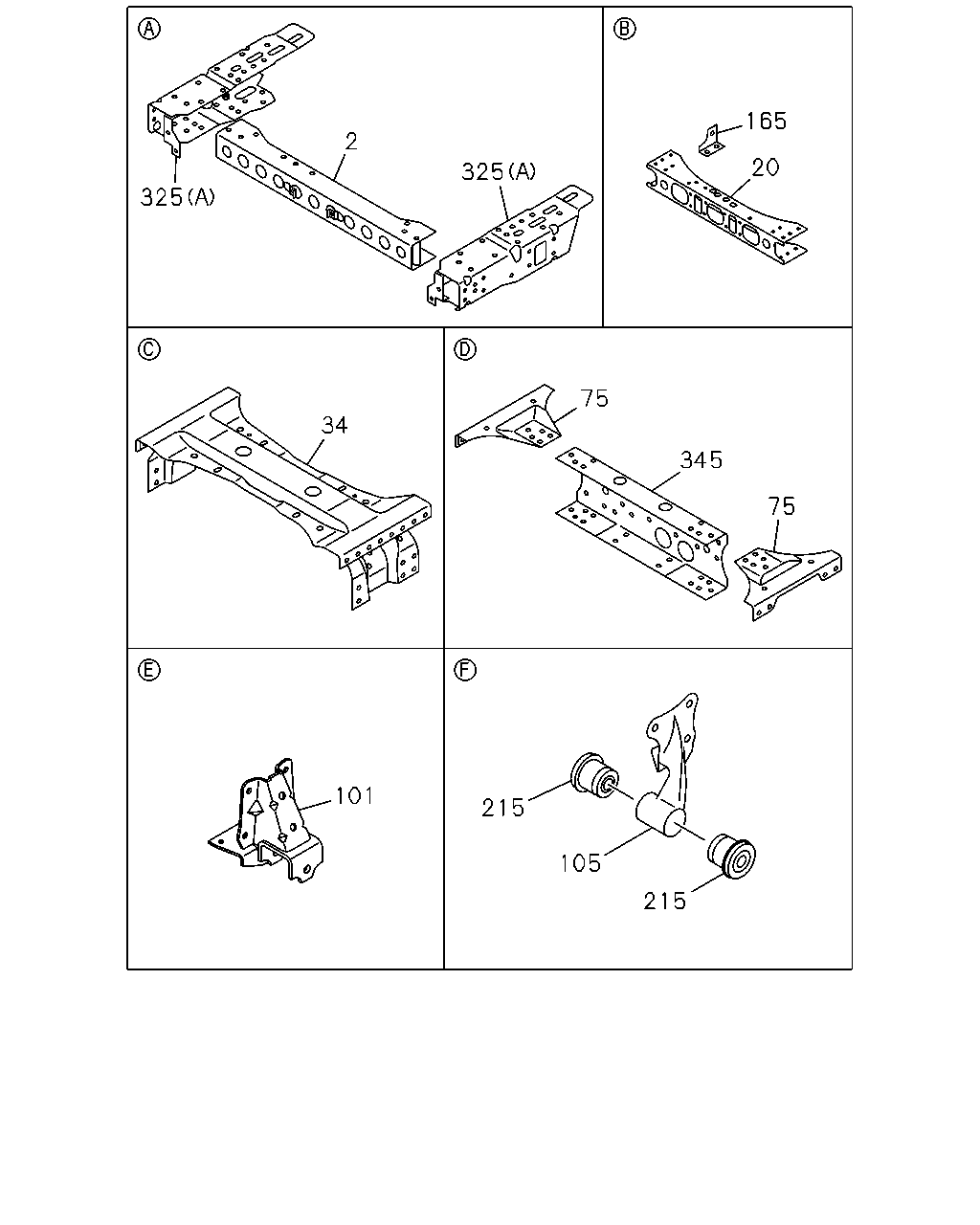

325 2 325 165 20 34 75 345 75 101 215 105 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	07.010 MEMBER; CROSS,1ST	8-97387-866-5	01	1	1012-1303	●
2	07.010 MEMBER; CROSS,1ST	8-97387-866-5	01	1	1304-	●	●
20	07.012 MEMBER; CROSS,2ND	8-98014-074-7	01	1	1012-1303	●
20	07.012 MEMBER; CROSS,2ND	8-98014-074-7	01	1	1304-	●	●
34	07.012 MEMBER; CROSS,3RD	8-98074-639-4	01	1	1012-1303	●
34	07.012 MEMBER; CROSS,3RD	8-98074-639-4	01	1	1304-	●	●
75	07.039 GUSSET; 5TH C/MBR RH-UPPER,LH-LOWER	8-98000-583-0	02	1	1012-1303	●
75	07.039 GUSSET; 5TH C/MBR RH-UPPER,LH-LOWER	8-98000-583-0	02	1	1304-	●	●
75	07.039 GUSSET; 5TH C/MBR RH-LOWER,LH-UPPER	8-98000-584-0	02	1	1012-1303	●
75	07.039 GUSSET; 5TH C/MBR RH-LOWER,LH-UPPER	8-98000-584-0	02	1	1304-	●	●
101	07.112 BRACKET; RR SPR,FRT	8-98202-857-0	02	1	1304-		●
101	07.112 BRACKET; RR SPR,FRT	8-97042-245-1	02	1	1012-	●
105	07.112 BRACKET; RR SPR,RR	8-98032-488-0	01	1	1012-1303	●
105	07.112 BRACKET; RR SPR,RR	8-98032-488-0	01	1	1304-	●	●
105	07.112 BRACKET; RR SPR,RR	8-98032-489-0	01	1	1012-1303	●
105	07.112 BRACKET; RR SPR,RR	8-98032-489-0	01	1	1304-	●	●
165	01.270 BRACKET; RAD STAY	8-98000-886-0	01	1	1012-1303	●
165	01.270 BRACKET; RAD STAY	8-98000-886-0	01	1	1304-	●	●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	1012-1303	●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	1304-	●	●
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-891-1	01	1	1304-		●
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-892-1	01	1	1304-		●
325	07.039 EXTENSION; FRAME WHEEL BASE 4400MM(44W) (B)	8-97128-752-3	01	1	1304-		●
325	07.039 EXTENSION; FRAME WHEEL BASE 4400MM(44W) (B)	8-97128-753-3	01	1	1304-		●
325	07.039 EXTENSION; FRAME (A)	8-98073-346-0	01	1	1012-1303	●
325	07.039 EXTENSION; FRAME (A)	8-98073-346-0	01	1	1304-	●	●
325	07.039 EXTENSION; FRAME (A)	8-98073-347-1	01	1	1012-1303	●
325	07.039 EXTENSION; FRAME (A)	8-98073-347-1	01	1	1304-	●	●
345	07.012 MEMBER; CROSS,5TH	8-97175-993-3	01	1	1012-1303	●
345	07.012 MEMBER; CROSS,5TH	8-97175-993-3	01	1	1304-	●	●

376 376 376 376 376 376 376 376 376 376 376 221 176 176 296 67 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	18	1	1012-1303	●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	18	1	1304-	●	●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 (B) M10X30 FLANGE	0-28051-030-0	04	1	1012-1303	●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 (B) M10X30 FLANGE	0-28051-030-0	04	1	1304-	●	●
176	04.085 BOLT; C/MBR,ENG MTG 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	1012-1303	●
176	04.085 BOLT; C/MBR,ENG MTG 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	1304-	●	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
222	07.039 NUT; RAD MTG BRKT,FRAME 4HK1-TCN ENG(RDQ) 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-	●
296	07.039 BOLT; 3RD C/MBR 00.029 M10X30 FLANGE	0-28651-030-0	16	1	1012-1303	●
296	07.039 BOLT; 3RD C/MBR 00.029 M10X30 FLANGE	0-28651-030-0	16	1	1304-	●	●
376	07.039 RIVET; FRAME 07.011 (A) D8X24 TAPER END	9-06750-824-0	AR	1	1012-1303	●
376	07.039 RIVET; FRAME 07.011 (A) D8X24 TAPER END	9-06750-824-0	AR	1	1304-	●	●
376	07.039 RIVET; FRAME (B) D10X24 TAPER END	9-06751-024-0	AR	1	1012-1303	●
376	07.039 RIVET; FRAME (B) D10X24 TAPER END	9-06751-024-0	AR	1	1304-	●	●
376	07.039 RIVET; FRAME (C) D10X26 TAPER END	9-06751-026-0	AR	1	1012-1303	●
376	07.039 RIVET; FRAME (C) D10X26 TAPER END	9-06751-026-0	AR	1	1304-	●	●
376	07.039 RIVET; FRAME (D) D10X28 TAPER END	9-06751-028-0	AR	1	1012-1303	●
376	07.039 RIVET; FRAME (D) D10X28 TAPER END	9-06751-028-0	AR	1	1304-	●	●
376	07.039 RIVET; FRAME (E) D10X32 TAPER END	9-06751-032-0	AR	1	1012-1303	●
376	07.039 RIVET; FRAME (E) D10X32 TAPER END	9-06751-032-0	AR	1	1304-	●	●
376	07.039 RIVET; FRAME (F) D10X36 TAPER END	9-06751-036-0	AR	1	1012-1303	●
376	07.039 RIVET; FRAME (F) D10X36 TAPER END	9-06751-036-0	AR	1	1304-	●	●
376	07.039 RIVET; FRAME (G) D11X26 TAPER END	9-06751-126-0	AR	1	1012-1303	●
376	07.039 RIVET; FRAME (G) D11X26 TAPER END	9-06751-126-0	AR	1	1304-	●	●
376	07.039 RIVET; FRAME (H) D11X30 TAPER END	9-06751-130-0	AR	1	1012-1303	●
376	07.039 RIVET; FRAME (H) D11X30 TAPER END	9-06751-130-0	AR	1	1304-	●	●
376	07.039 RIVET; FRAME 07.105 (I) D12X30 TAPER END	9-06751-230-0	AR	1	1012-1303	●
376	07.039 RIVET; FRAME 07.105 (I) D12X30 TAPER END	9-06751-230-0	AR	1	1304-	●	●
376	07.039 RIVET; FRAME 07.428 (J) D12X36 TAPER END	9-06751-236-0	AR	1	1012-1303	●
376	07.039 RIVET; FRAME 07.428 (J) D12X36 TAPER END	9-06751-236-0	AR	1	1304-	●	●
376	07.039 RIVET; FRAME 07.112 (K) D12X40 TAPER END	9-06751-240-0	AR	1	1012-1303	●
376	07.039 RIVET; FRAME 07.112 (K) D12X40 TAPER END	9-06751-240-0	AR	1	1304-	●	●
