4-80 — ROAD WHEEL (#54040) — 52 parça

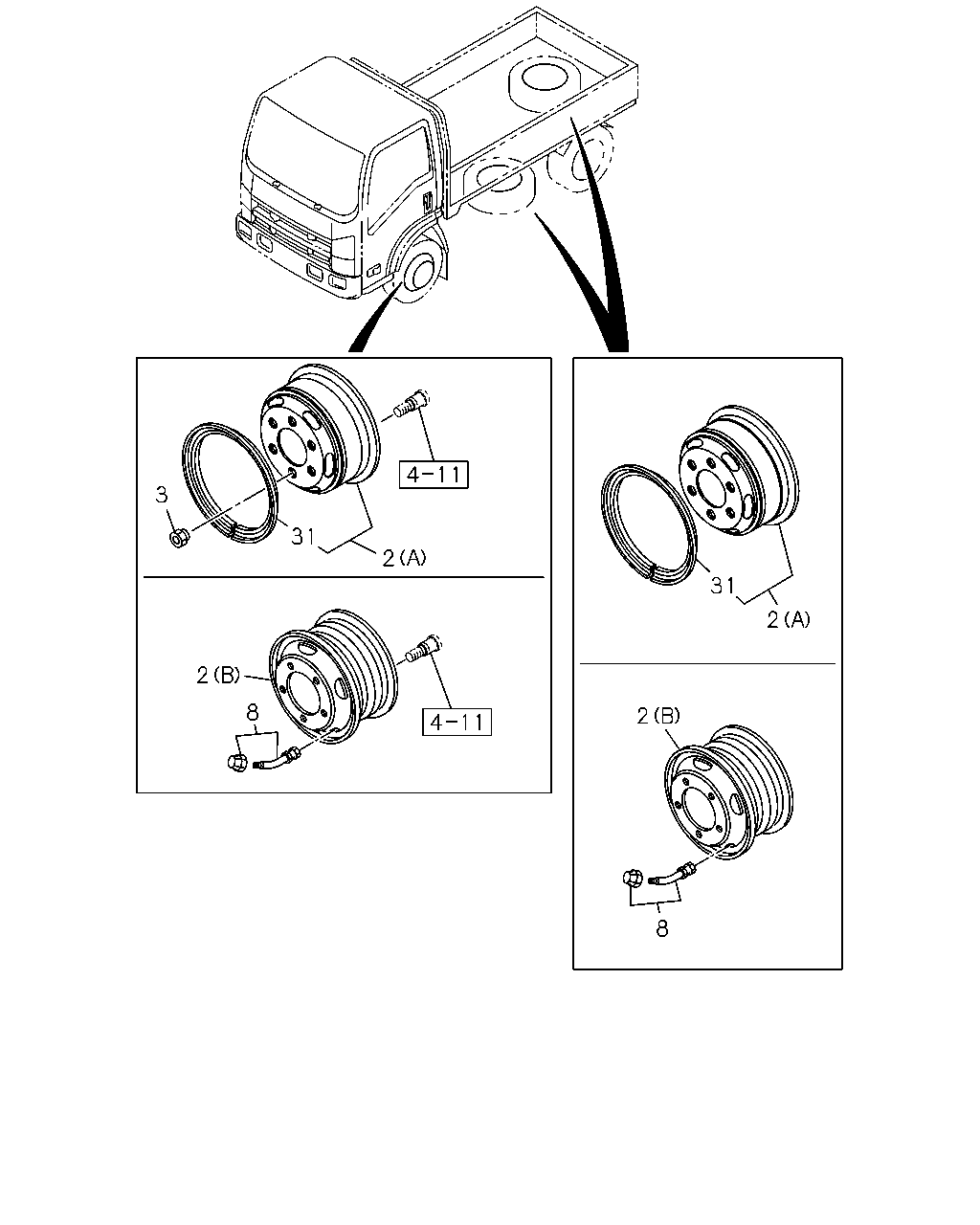

2 31 2 8 8 2 3 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1304-	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	06	1	1304-	●
2	05.803 WHEEL; DISC FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NU T(CUZ) (A) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE	1-42350-417-0	01	1	1304-	●
2	05.803 WHEEL; DISC FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NU T(CUZ) (A) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE	1-42350-417-0	06	1	1304-	●
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	01	1	1012-1303		●
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	01	1	1304-		●
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	01	1	1304-	●
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	06	1	1012-1303		●
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	06	1	1304-		●
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	06	1	1304-	●
3	05.813 NUT; WHEEL,FRT AXLE M20 RH THREAD	8-97359-807-0	06	1	1012-1303		●
3	05.813 NUT; WHEEL,FRT AXLE M20 RH THREAD	8-97359-807-0	06	1	1304-	●	●
3	05.813 NUT; WHEEL,FRT AXLE M20 LH THREAD	8-97359-808-0	06	1	1012-1303		●
3	05.813 NUT; WHEEL,FRT AXLE M20 LH THREAD	8-97359-808-0	06	1	1304-	●	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) SPARE	8-98221-112-0	01	1	1304-	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) FRONT,REAR	8-98221-112-0	06	1	1304-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NU T(CUZ) SPARE 16X6.00GS STAMP, BLACK	1-42355-015-2	01	1	1304-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NU T(CUZ) FRONT,REAR 16X6.00GS STAMP, BLACK	1-42355-015-2	06	1	1304-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	1012-1303		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	1304-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	1304-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	1012-1303		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	1304-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	1304-	●

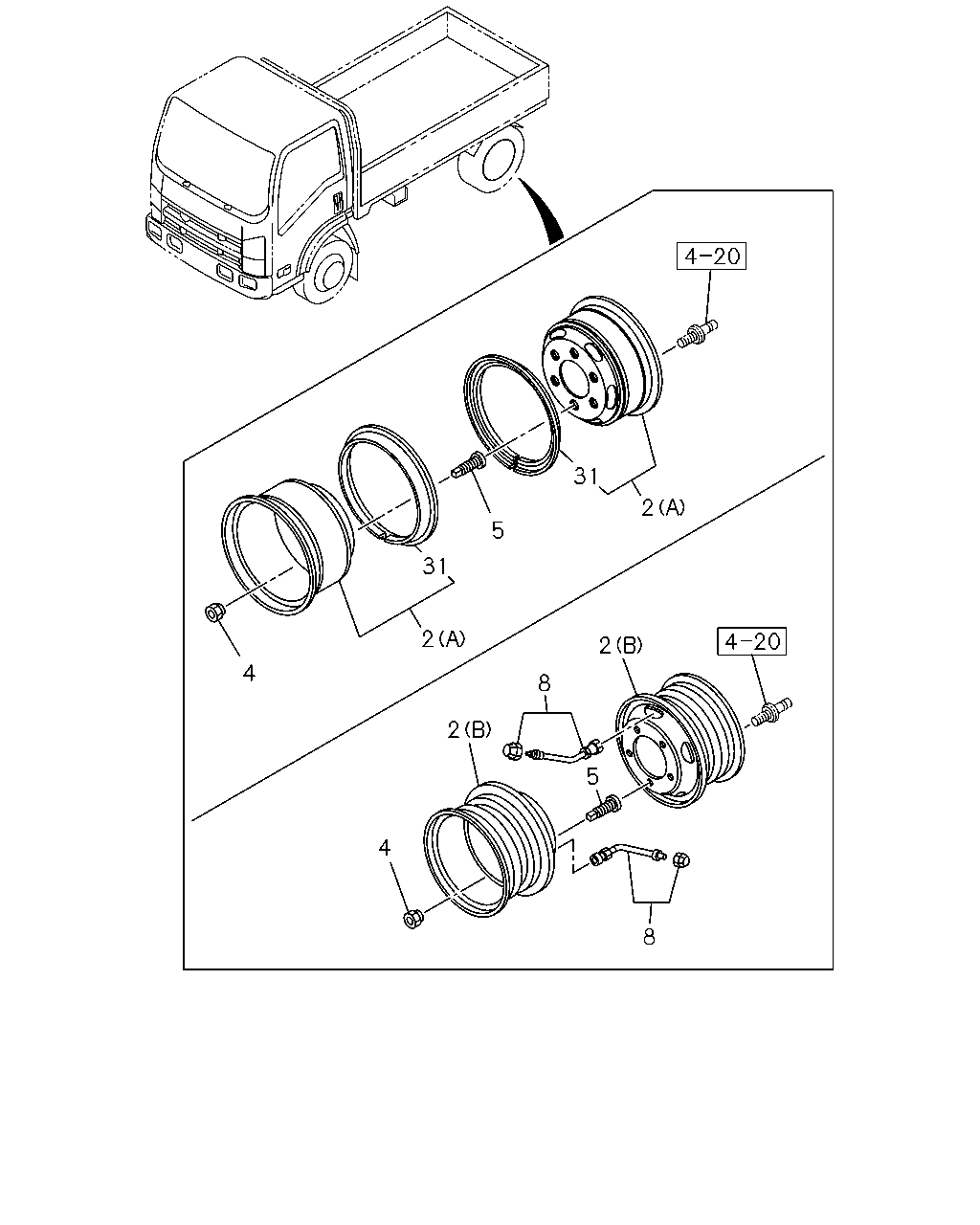

4 31 2 5 31 2 2 8 2 4 5 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1304-	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	06	1	1304-	●
2	05.803 WHEEL; DISC FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NU T(CUZ) (A) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE	1-42350-417-0	01	1	1304-	●
2	05.803 WHEEL; DISC FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NU T(CUZ) (A) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE	1-42350-417-0	06	1	1304-	●
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	01	1	1012-1303		●
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	01	1	1304-		●
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	01	1	1304-	●
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	06	1	1012-1303		●
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	06	1	1304-		●
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	06	1	1304-	●
4	05.813 NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	06	1	1012-1303		●
4	05.813 NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	06	1	1304-	●	●
4	05.813 NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	06	1	1012-1303		●
4	05.813 NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	06	1	1304-	●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	1012-1303		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	1304-	●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	1012-1303		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	1304-	●	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) SPARE	8-98221-112-0	01	1	1304-	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) FRONT,REAR	8-98221-112-0	06	1	1304-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NU T(CUZ) SPARE 16X6.00GS STAMP, BLACK	1-42355-015-2	01	1	1304-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NU T(CUZ) FRONT,REAR 16X6.00GS STAMP, BLACK	1-42355-015-2	06	1	1304-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	1012-1303		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	1304-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	1304-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	1012-1303		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	1304-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	1304-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
