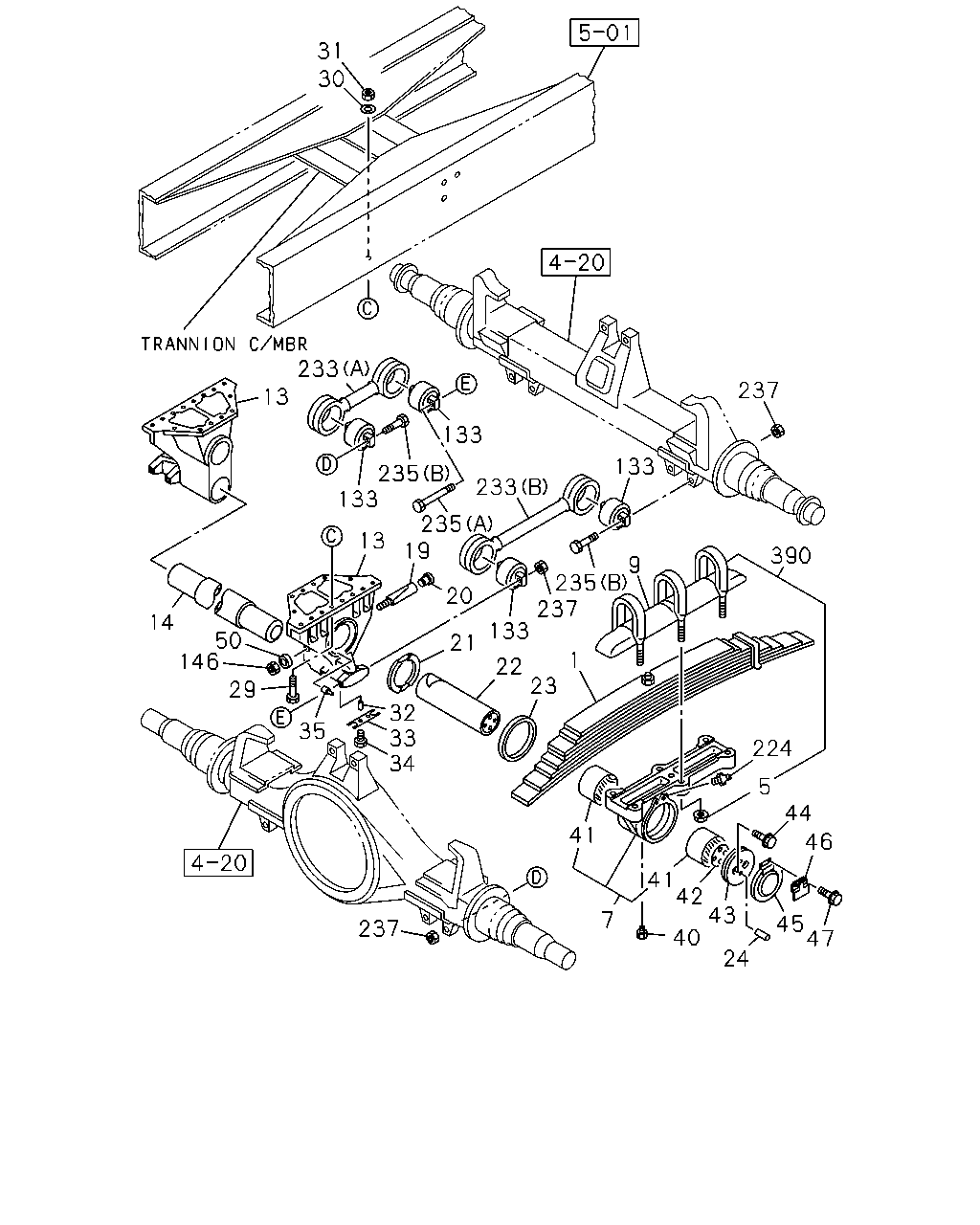

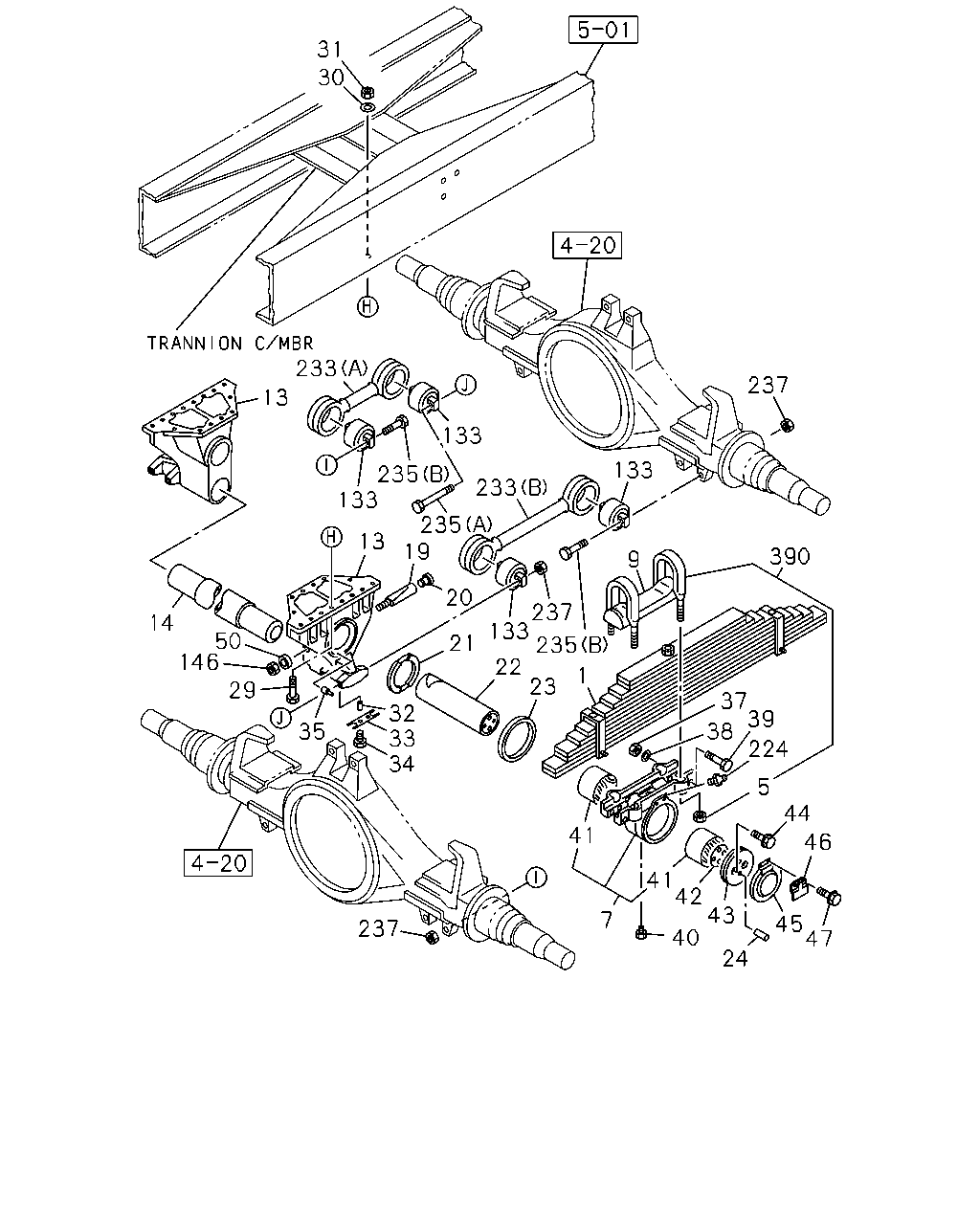

4-60 — REAR SUSPENSION (#5404) — 588 parça

31 30 233 237 13 133 133 235 133 233 235 19 13 390 9 20 237 133 235 14 50 146 21 22 23 1 29 37 39 32 33 34 38 35 224 5 44 41 46 41 42 43 40 7 45 47 237 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF	1-51310-467-3	02	1	9603-9901	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF	1-51310-467-4	02	1	9905-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(WW5) 11-LEAF	1-51310-975-0	02	1	9603-9901		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(WW5) 11-LEAF	1-51310-975-1	02	1	9905-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. TAIWAN EQUIPMENT(WW5) 9-LEAF	1-51410-055-1	02	1	9603-9901		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 9-LEAF	1-51410-055-1	02	1	9603-9901			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4900MM(49W) 9-LEAF	1-51410-055-1	02	1	9902-9904		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 9-LEAF	1-51410-055-1	02	1	9902-9904			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4500MM(45W) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. TAIWAN EQUIPMENT(WW5) 9-LEAF	1-51410-055-1	02	1	9905-9912		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4900MM(49W) 9-LEAF	1-51410-055-1	02	1	9905-9912		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 9-LEAF	1-51410-055-1	02	1	9905-9912			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4500MM(45W) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. TAIWAN EQUIPMENT(WW5) 9-LEAF	1-51410-055-1	02	1	0001-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4900MM(49W) 9-LEAF	1-51410-055-1	02	1	0001-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. RR TIRE 12.00-20<98X> 9-LEAF	1-51410-055-1	02	1	0001-			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4500MM(45W) EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), TAIWAN EQUIPMENT(WW5) 8-LEAF	1-51310-432-3	02	1	9905-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. RR TIRE 12.00-20<98X> 10-LEAF	1-51310-844-0	02	1	0001-			●
5	NUT; U-BOLT,RR SPR M24 FLANGE	1-09440-001-1	12	1	9603-9901	●
5	NUT; U-BOLT,RR SPR M24 FLANGE	1-09440-001-1	12	1	9905-	●
5	NUT; U-BOLT,RR SPR M27 FLANGE	9-09844-662-1	08	1	9603-9804		●	●
5	NUT; U-BOLT,RR SPR M27 FLANGE	1-09440-058-0	08	1	9805-		●	●
7	SEAT; SPR,LWR	1-51385-079-0	01	1	9603-9901	●
7	SEAT; SPR,LWR	1-51385-078-0	01	1	9603-9901	●
7	SEAT; SPR,LWR	1-51385-079-2	01	1	9905-	●
7	SEAT; SPR,LWR	1-51385-078-2	01	1	9905-	●
7	SEAT; SPR,LWR	1-51385-091-2	02	1	9603-		●	●
9	PAD; U BOLT,RR SPR	1-51372-061-0	02	1	9603-9901	●
9	PAD; U BOLT,RR SPR	1-51372-061-0	02	1	9905-	●
9	PAD; U BOLT,RR SPR	1-51372-019-1	02	1	9603-		●	●
13	BRACKET; TRUNNION SHAFT	1-53361-065-0	02	1	9603-9901	●	●	●
13	BRACKET; TRUNNION SHAFT	1-53361-065-0	02	1	9902-9904		●	●
13	BRACKET; TRUNNION SHAFT	1-53361-065-0	02	1	9905-	●	●	●
14	PIPE; TRUNNION BRKT L=695	1-51389-032-0	01	1	9603-9901	●	●	●
14	PIPE; TRUNNION BRKT L=695	1-51389-032-0	01	1	9902-9904		●	●
14	PIPE; TRUNNION BRKT L=695	1-51389-032-0	01	1	9905-	●	●	●
19	BOLT; KEY,SHAFT	1-51389-018-2	02	1	9603-9805	●	●	●
19	BOLT; KEY,SHAFT	1-51389-066-0	02	1	9806-9901	●	●	●
19	BOLT; KEY,SHAFT	1-51389-066-0	02	1	9902-9904		●	●
19	BOLT; KEY,SHAFT	1-51389-066-0	02	1	9905-	●	●	●
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	9603-9901	●	●	●
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	9902-9904		●	●
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	9905-	●	●	●
21	WASHER; THRUST,TRUNNION SHAFT ID=115.3 OD=155 T=7	1-51389-058-0	02	1	9603-9901	●	●	●
21	WASHER; THRUST,TRUNNION SHAFT ID=115.3 OD=155 T=7	1-51389-058-0	02	1	9902-9904		●	●
21	WASHER; THRUST,TRUNNION SHAFT ID=115.3 OD=155 T=7	1-51389-058-0	02	1	9905-	●	●	●
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-2	02	1	9603-9901	●	●	●
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-2	02	1	9902-9904		●	●
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-2	02	1	9905-	●	●	●
23	SEAL; OIL,TRUNNION SHAFT ID=152.4 OD=185 T=16	1-51389-005-0	02	1	9603-9901	●	●	●
23	SEAL; OIL,TRUNNION SHAFT ID=152.4 OD=185 T=16	1-51389-005-0	02	1	9902-9904		●	●
23	SEAL; OIL,TRUNNION SHAFT ID=152.4 OD=185 T=16	1-51389-005-0	02	1	9905-	●	●	●
24	PIN; SIDE PLATE TO SHAFT OD=20 L=50	1-09740-009-0	04	1	9603-9901	●	●	●
24	PIN; SIDE PLATE TO SHAFT OD=20 L=50	1-09740-009-0	04	1	9902-9904		●	●
24	PIN; SIDE PLATE TO SHAFT OD=20 L=50	1-09740-009-0	04	1	9905-	●	●	●
29	BOLT; BRKT TO FRAME M18X75	1-09000-221-1	24	1	9603-9901	●	●
29	BOLT; BRKT TO FRAME M18X75	1-09000-221-1	24	1	9902-9904		●
29	BOLT; BRKT TO FRAME EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M18X75	1-09000-221-1	24	1	9902-9904			●
29	BOLT; BRKT TO FRAME M18X75	1-09000-221-1	24	1	9905-	●	●
29	BOLT; BRKT TO FRAME EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M18X75	1-09000-221-1	24	1	9905-			●
29	BOLT; BRKT TO FRAME M18X55	9-92061-855-0	04	1	9603-9901	●	●	●
29	BOLT; BRKT TO FRAME M18X55	9-92061-855-0	04	1	9902-9904		●	●
29	BOLT; BRKT TO FRAME M18X55	9-92061-855-0	04	1	9905-	●	●	●
29	BOLT; BRKT TO FRAME M18X80	1-09000-428-1	24	1	9603-9901			●
29	BOLT; BRKT TO FRAME FRAME EQUIPMENT HEAVY DUTY<F03> M18X80	1-09000-428-1	24	1	9902-			●
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	AR	1	9603-9901	●	●	●
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	AR	1	9902-9904		●	●
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	AR	1	9905-	●	●	●
31	NUT; TRUNNION BRKT M18	9-99110-518-0	28	1	9603-9901	●	●	●
31	NUT; TRUNNION BRKT M18	9-99110-518-0	28	1	9902-9904		●	●
31	NUT; TRUNNION BRKT M18	9-99110-518-0	28	1	9905-	●	●	●
32	PIN; STRAIGHT OD=9.5 L=37.34	1-09740-027-0	04	1	9603-9901	●	●	●
32	PIN; STRAIGHT OD=9.5 L=37.34	1-09740-027-0	04	1	9902-9904		●	●
32	PIN; STRAIGHT OD=9.5 L=37.34	1-09740-027-0	04	1	9905-	●	●	●
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	9603-9901	●	●	●
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	9902-9904		●	●
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	9905-	●	●	●
34	BOLT; LOCK PLATE M10X20 W/LK&PL WASHER	0-50141-020-0	02	1	9603-9606	●	●	●
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28081-016-0	02	1	9607-9901	●	●	●
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28081-016-0	02	1	9902-9904		●	●
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28081-016-0	02	1	9905-	●	●	●
35	PIN; TRUNNION SHAFT OD=8 L=19	1-09749-030-1	04	1	9603-9901	●	●	●
35	PIN; TRUNNION SHAFT OD=8 L=19	1-09749-030-1	04	1	9902-9904		●	●
35	PIN; TRUNNION SHAFT OD=8 L=19	1-09749-030-1	04	1	9905-	●	●	●
37	NUT; SPR SETTING M22	9-09110-522-0	04	1	9603-		●	●
38	WASHER; LK,SPR SETTING ID=22.5	9-09150-622-0	04	1	9603-		●	●
39	BOLT; SPR SETTING M22X155	9-09801-290-1	04	1	9603-		●	●
40	VALVE; GREASE ESCAPE PT1/8	9-51389-010-0	02	1	9603-9901	●	●	●
40	VALVE; GREASE ESCAPE PT1/8	9-51389-010-0	02	1	9902-9904		●	●
40	VALVE; GREASE ESCAPE PT1/8	9-51389-010-0	02	1	9905-	●	●	●
41	BUSHING; TRUNNION SHAFT ID=115.23 T=78	1-51386-004-0	04	1	9603-9901	●	●	●
41	BUSHING; TRUNNION SHAFT ID=115.23 T=78	1-51386-004-0	04	1	9902-9904		●	●
41	BUSHING; TRUNNION SHAFT ID=115.23 T=78	1-51386-004-0	04	1	9905-	●	●	●
42	SHIM; SIDE PLATE TO SHAFT OD=94	1-51389-033-1	12	1	9603-9901	●	●	●
42	SHIM; SIDE PLATE TO SHAFT OD=94	1-51389-033-1	12	1	9902-9904		●	●
42	SHIM; SIDE PLATE TO SHAFT OD=24	1-51389-033-1	12	1	9905-	●	●	●
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	9603-9901	●	●	●
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	9902-9904		●	●
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	9905-	●	●	●
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 W/FLANGE M18X48.5 FLANGE	1-09044-038-2	04	1	9603-9901	●	●	●
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 W/FLANGE M18X48.5 FLANGE	1-09044-038-2	04	1	9902-9904		●	●
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 W/FLANGE M18X48.5 FLANGE	1-09044-038-2	04	1	9905-	●	●	●
45	COVER; SPR SEAT	1-51387-013-2	02	1	9603-9901	●	●	●
45	COVER; SPR SEAT	1-51387-013-2	02	1	9902-9904		●	●
45	COVER; SPR SEAT	1-51387-013-2	02	1	9905-	●	●	●
46	BRACKET; COVER	1-51387-015-2	02	1	9603-9901	●	●	●
46	BRACKET; COVER	1-51387-015-2	02	1	9902-9904		●	●
46	BRACKET; COVER	1-51387-015-2	02	1	9905-	●	●	●
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28080-812-0	08	1	9603-9901	●	●	●
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28080-812-0	08	1	9902-9904		●	●
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28080-812-0	08	1	9905-	●	●	●
50	WASHER; PL,TRUNNION SHAFT ID=25 OD=48 T=14	1-09503-071-0	02	1	9603-9901	●	●	●
50	WASHER; PL,TRUNNION SHAFT ID=25 OD=48 T=14	1-09503-071-0	02	1	9902-9904		●	●
50	WASHER; PL,TRUNNION SHAFT ID=25 OD=48 T=14	1-09503-071-0	02	1	9905-	●	●	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	12	1	9603-9901	●
133	BUSHING; RUBBER,TORQUE ROD CAB UP +110MM<TGG> OD=105	1-51519-113-1	02	1	9902-9904		●
133	BUSHING; RUBBER,TORQUE ROD L TYPE ENG<90L> CAB UP +110MM<TGG> OD=105	1-51519-113-1	02	1	9905-		●
133	BUSHING; RUBBER,TORQUE ROD V TYPE ENG<91L> OD=105	1-51519-113-1	02	1	9905-		●
133	BUSHING; RUBBER,TORQUE ROD V TYPE ENG<91L> OD=105	1-51519-113-1	04	1	9905-		●
133	BUSHING; RUBBER,TORQUE ROD L TYPE ENG<90L> CAB UP +110MM<TGG> OD=105	1-51519-113-1	04	1	9905-		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9603-9901		●	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9603-9901		●	●
133	BUSHING; RUBBER,TORQUE ROD CAB UP +110MM<TGG> OD=105	1-51519-113-1	04	1	9902-9904		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	12	1	9905-9912	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	12	1	0001-	●
133	BUSHING; RUBBER,TORQUE ROD L TYPE ENG<90L> CAB UP +110MM<TGG> RR TIRE 12.00-20<98X> OD=105	1-51519-113-1	12	1	0001-			●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9902-9904		●	●
133	BUSHING; RUBBER,TORQUE ROD EXC. CAB UP +110MM<TGG> OD=105	1-51519-113-1	06	1	9902-9904		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9902-9904			●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9905-9912		●	●
133	BUSHING; RUBBER,TORQUE ROD L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> OD=105	1-51519-113-1	06	1	9905-9912		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9905-9912			●
133	BUSHING; RUBBER,TORQUE ROD L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> OD=105	1-51519-113-1	06	1	0001-		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	0001-		●
133	BUSHING; RUBBER,TORQUE ROD EXC. RR TIRE 12.00-20<98X> OD=105	1-51519-113-1	06	1	0001-			●
133	BUSHING; RUBBER,TORQUE ROD EXC. RR TIRE 12.00-20<98X> OD=105	1-51519-113-1	06	1	0001-			●
146	NUT; KEY BOLT M24	9-99110-524-0	02	1	9603-9901	●	●	●
146	NUT; KEY BOLT M24	9-99110-524-0	02	1	9902-9904		●	●
146	NUT; KEY BOLT M24	9-99110-524-0	02	1	9905-	●	●	●
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	9-09031-010-0	02	1	9603-9901	●	●	●
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	9-09031-010-0	02	1	9902-9904		●	●
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	9-09031-010-0	02	1	9905-	●	●	●
233	ROD ASM; TORQUE,RR SUSP (A) L=355	1-51511-648-0	03	1	9603-9901	●
233	ROD ASM; TORQUE,RR SUSP (B) L=695	1-51511-663-0	03	1	9603-9901	●
233	ROD ASM; TORQUE,RR SUSP (A) FORWARD UPPER & LOWER L=355	1-51511-648-0	03	1	9905-	●
233	ROD ASM; TORQUE,RR SUSP (B) FORWARD UPPER & LOWER L=695	1-51511-663-0	03	1	9905-	●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9603-9901		●
233	ROD ASM; TORQUE,RR SUSP (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9603-9901			●
233	ROD ASM; TORQUE,RR SUSP EXC. CAB UP +110MM<TGG> (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9902-9904		●
233	ROD ASM; TORQUE,RR SUSP (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9902-9904			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9905-9912		●
233	ROD ASM; TORQUE,RR SUSP (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9905-9912			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) FORWARD LOWER L=515	1-51511-655-0	02	1	0001-		●
233	ROD ASM; TORQUE,RR SUSP EXC. RR TIRE 12.00-20<98X> (B) FORWARD LOWER L=515	1-51511-655-0	02	1	0001-			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9603-9901		●
233	ROD ASM; TORQUE,RR SUSP (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9603-9901			●
233	ROD ASM; TORQUE,RR SUSP EXC. CAB UP +110MM<TGG> (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9902-9904		●
233	ROD ASM; TORQUE,RR SUSP (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9902-9904			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9905-9912		●
233	ROD ASM; TORQUE,RR SUSP (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9905-9912			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) FORWARD UPPER L=535	1-51511-657-0	01	1	0001-		●
233	ROD ASM; TORQUE,RR SUSP EXC. RR TIRE 12.00-20<98X> (A) FORWARD UPPER L=535	1-51511-657-0	01	1	0001-			●
233	ROD ASM; TORQUE,RR SUSP V TYPE ENG<91L> (A) FORWARD UPPER L=525	1-51511-656-0	01	1	9603-9901		●
233	ROD ASM; TORQUE,RR SUSP CAB UP +110MM<TGG> (A) FORWARD UPPER L=525	1-51511-656-0	01	1	9902-9904		●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> (A) FORWARD UPPER L=525	1-51511-656-0	01	1	9905-		●
233	ROD ASM; TORQUE,RR SUSP V TYPE ENG<91L> (A) FORWARD UPPER L=525	1-51511-656-0	01	1	9905-		●
233	ROD ASM; TORQUE,RR SUSP V TYPE ENG<91L> (A) FORWARD UPPER L=535	1-51511-657-0	02	1	9603-9901		●
233	ROD ASM; TORQUE,RR SUSP CAB UP +110MM<TGG> (A) FORWARD UPPER L=525	1-51511-656-0	02	1	9902-9904		●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> (A) FORWARD UPPER L=525	1-51511-656-0	02	1	9905-		●
233	ROD ASM; TORQUE,RR SUSP V TYPE ENG<91L> (B) FORWARD UPPER L=535	1-51511-657-0	02	1	9905-		●
233	ROD ASM; TORQUE,RR SUSP (B) REARWARD UPPER & LOWER L=550	1-51511-659-0	03	1	9603-9912		●	●
233	ROD ASM; TORQUE,RR SUSP EXC. RR TIRE 12.00-20<98X> (B) REARWARD UPPER & LOWER L=550	1-51511-659-0	03	1	0001-		●	●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> RR TIRE 12.00-20<98X> (A) FORWARD UPPER L=580	1-51511-661-0	01	1	0001-			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> RR TIRE 12.00-20<98X> (B) FORWARD LOWER L=560	1-51511-669-0	02	1	0001-			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> RR TIRE 12.00-20<98X> (B) REARWARD UPPER & LOWER L=585	1-51511-672-0	03	1	0001-			●
235	BOLT; TORQUE ROD (A) M18X265	1-09000-078-1	06	1	9603-9901	●	●	●
235	BOLT; TORQUE ROD (A) M18X265	1-09000-078-1	06	1	9902-9904		●	●
235	BOLT; TORQUE ROD (A) M18X265	1-09000-078-1	06	1	9905-	●	●	●
235	BOLT; TORQUE ROD (B) M18X102	1-09000-568-0	12	1	9603-9901	●	●	●
235	BOLT; TORQUE ROD (B) M18X102	1-09000-568-0	12	1	9902-9904		●	●
235	BOLT; TORQUE ROD (B) M18X102	1-09000-568-0	12	1	9905-	●	●	●
237	NUT; TORQUE ROD M18 SELF LOCK	1-09464-011-0	18	1	9603-9901	●	●	●
237	NUT; TORQUE ROD M18 SELF LOCK	1-09464-011-0	18	1	9902-9904		●	●
237	NUT; TORQUE ROD M18 SELF LOCK	1-09464-011-0	18	1	9905-	●	●	●
390	U-BOLT SET; RR SPRING L=305	1-87870-374-0	06	1	9603-9901	●
390	U-BOLT SET; RR SPRING L=305	1-87870-374-0	06	1	9905-	●
390	U-BOLT SET; RR SPRING TAIWAN EQUIPMENT(WW5) L=370	1-87870-217-2	04	1	9603-9901		●
390	U-BOLT SET; RR SPRING TAIWAN EQUIPMENT(WW5) L=370	1-87870-217-3	04	1	9905-9912		●
390	U-BOLT SET; RR SPRING WHEEL BASE 4500MM(45W) TAIWAN EQUIPMENT(WW5) L=370	1-87870-217-3	04	1	0001-		●
390	U-BOLT SET; RR SPRING RR TIRE 12.00-20<98X> L=370	1-87870-217-3	04	1	0001-			●
390	U-BOLT SET; RR SPRING EXC. TAIWAN EQUIPMENT(WW5) L=350	1-87870-392-0	04	1	9603-9901		●
390	U-BOLT SET; RR SPRING L=350	1-87870-392-0	04	1	9603-9901			●
390	U-BOLT SET; RR SPRING WHEEL BASE 4900MM(49W) L=350	1-87870-392-1	04	1	9902-9904		●
390	U-BOLT SET; RR SPRING L=350	1-87870-392-1	04	1	9902-9904			●
390	U-BOLT SET; RR SPRING WHEEL BASE 4500MM(45W) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. TAIWAN EQUIPMENT(WW5) L=350	1-87870-392-1	04	1	9905-9912		●
390	U-BOLT SET; RR SPRING WHEEL BASE 4900MM(49W) L=350	1-87870-392-1	04	1	9905-9912		●
390	U-BOLT SET; RR SPRING L=350	1-87870-392-1	04	1	9905-9912			●
390	U-BOLT SET; RR SPRING WHEEL BASE 4500MM(45W) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. TAIWAN EQUIPMENT(WW5) L=350	1-87870-392-1	04	1	0001-		●
390	U-BOLT SET; RR SPRING WHEEL BASE 4900MM(49W) L=350	1-87870-392-1	04	1	0001-		●
390	U-BOLT SET; RR SPRING EXC. RR TIRE 12.00-20<98X> L=350	1-87870-392-1	04	1	0001-			●
390	U-BOLT SET; RR SPRING WHEEL BASE 4500MM(45W) EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), TAIWAN EQUIPMENT(WW5) L=330	1-87870-164-3	04	1	9905-		●

31 30 233 13 237 133 133 235 133 233 235 19 13 390 9 235 237 133 20 14 50 146 21 1 22 23 29 32 33 34 35 224 5 44 41 46 41 42 43 40 7 45 47 237 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF	1-51310-467-3	02	1	9603-9901	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF	1-51310-467-4	02	1	9905-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(WW5) 11-LEAF	1-51310-975-0	02	1	9603-9901		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(WW5) 11-LEAF	1-51310-975-1	02	1	9905-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. TAIWAN EQUIPMENT(WW5) 9-LEAF	1-51410-055-1	02	1	9603-9901		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 9-LEAF	1-51410-055-1	02	1	9603-9901			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4900MM(49W) 9-LEAF	1-51410-055-1	02	1	9902-9904		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 9-LEAF	1-51410-055-1	02	1	9902-9904			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4500MM(45W) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. TAIWAN EQUIPMENT(WW5) 9-LEAF	1-51410-055-1	02	1	9905-9912		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4900MM(49W) 9-LEAF	1-51410-055-1	02	1	9905-9912		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 9-LEAF	1-51410-055-1	02	1	9905-9912			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4500MM(45W) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. TAIWAN EQUIPMENT(WW5) 9-LEAF	1-51410-055-1	02	1	0001-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4900MM(49W) 9-LEAF	1-51410-055-1	02	1	0001-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. RR TIRE 12.00-20<98X> 9-LEAF	1-51410-055-1	02	1	0001-			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4500MM(45W) EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), TAIWAN EQUIPMENT(WW5) 8-LEAF	1-51310-432-3	02	1	9905-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. RR TIRE 12.00-20<98X> 10-LEAF	1-51310-844-0	02	1	0001-			●
5	NUT; U-BOLT,RR SPR M24 FLANGE	1-09440-001-1	12	1	9603-9901	●
5	NUT; U-BOLT,RR SPR M24 FLANGE	1-09440-001-1	12	1	9905-	●
5	NUT; U-BOLT,RR SPR M27 FLANGE	9-09844-662-1	08	1	9603-9804		●	●
5	NUT; U-BOLT,RR SPR M27 FLANGE	1-09440-058-0	08	1	9805-		●	●
7	SEAT; SPR,LWR	1-51385-079-0	01	1	9603-9901	●
7	SEAT; SPR,LWR	1-51385-078-0	01	1	9603-9901	●
7	SEAT; SPR,LWR	1-51385-079-2	01	1	9905-	●
7	SEAT; SPR,LWR	1-51385-078-2	01	1	9905-	●
7	SEAT; SPR,LWR	1-51385-091-2	02	1	9603-		●	●
9	PAD; U BOLT,RR SPR	1-51372-061-0	02	1	9603-9901	●
9	PAD; U BOLT,RR SPR	1-51372-061-0	02	1	9905-	●
9	PAD; U BOLT,RR SPR	1-51372-019-1	02	1	9603-		●	●
13	BRACKET; TRUNNION SHAFT	1-53361-065-0	02	1	9603-9901	●	●	●
13	BRACKET; TRUNNION SHAFT	1-53361-065-0	02	1	9902-9904		●	●
13	BRACKET; TRUNNION SHAFT	1-53361-065-0	02	1	9905-	●	●	●
14	PIPE; TRUNNION BRKT L=695	1-51389-032-0	01	1	9603-9901	●	●	●
14	PIPE; TRUNNION BRKT L=695	1-51389-032-0	01	1	9902-9904		●	●
14	PIPE; TRUNNION BRKT L=695	1-51389-032-0	01	1	9905-	●	●	●
19	BOLT; KEY,SHAFT	1-51389-018-2	02	1	9603-9805	●	●	●
19	BOLT; KEY,SHAFT	1-51389-066-0	02	1	9806-9901	●	●	●
19	BOLT; KEY,SHAFT	1-51389-066-0	02	1	9902-9904		●	●
19	BOLT; KEY,SHAFT	1-51389-066-0	02	1	9905-	●	●	●
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	9603-9901	●	●	●
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	9902-9904		●	●
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	9905-	●	●	●
21	WASHER; THRUST,TRUNNION SHAFT ID=115.3 OD=155 T=7	1-51389-058-0	02	1	9603-9901	●	●	●
21	WASHER; THRUST,TRUNNION SHAFT ID=115.3 OD=155 T=7	1-51389-058-0	02	1	9902-9904		●	●
21	WASHER; THRUST,TRUNNION SHAFT ID=115.3 OD=155 T=7	1-51389-058-0	02	1	9905-	●	●	●
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-2	02	1	9603-9901	●	●	●
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-2	02	1	9902-9904		●	●
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-2	02	1	9905-	●	●	●
23	SEAL; OIL,TRUNNION SHAFT ID=152.4 OD=185 T=16	1-51389-005-0	02	1	9603-9901	●	●	●
23	SEAL; OIL,TRUNNION SHAFT ID=152.4 OD=185 T=16	1-51389-005-0	02	1	9902-9904		●	●
23	SEAL; OIL,TRUNNION SHAFT ID=152.4 OD=185 T=16	1-51389-005-0	02	1	9905-	●	●	●
24	PIN; SIDE PLATE TO SHAFT OD=20 L=50	1-09740-009-0	04	1	9603-9901	●	●	●
24	PIN; SIDE PLATE TO SHAFT OD=20 L=50	1-09740-009-0	04	1	9902-9904		●	●
24	PIN; SIDE PLATE TO SHAFT OD=20 L=50	1-09740-009-0	04	1	9905-	●	●	●
29	BOLT; BRKT TO FRAME M18X75	1-09000-221-1	24	1	9603-9901	●	●
29	BOLT; BRKT TO FRAME M18X75	1-09000-221-1	24	1	9902-9904		●
29	BOLT; BRKT TO FRAME EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M18X75	1-09000-221-1	24	1	9902-9904			●
29	BOLT; BRKT TO FRAME M18X75	1-09000-221-1	24	1	9905-	●	●
29	BOLT; BRKT TO FRAME EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M18X75	1-09000-221-1	24	1	9905-			●
29	BOLT; BRKT TO FRAME M18X55	9-92061-855-0	04	1	9603-9901	●	●	●
29	BOLT; BRKT TO FRAME M18X55	9-92061-855-0	04	1	9902-9904		●	●
29	BOLT; BRKT TO FRAME M18X55	9-92061-855-0	04	1	9905-	●	●	●
29	BOLT; BRKT TO FRAME M18X80	1-09000-428-1	24	1	9603-9901			●
29	BOLT; BRKT TO FRAME FRAME EQUIPMENT HEAVY DUTY<F03> M18X80	1-09000-428-1	24	1	9902-			●
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	AR	1	9603-9901	●	●	●
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	AR	1	9902-9904		●	●
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	AR	1	9905-	●	●	●
31	NUT; TRUNNION BRKT M18	9-99110-518-0	28	1	9603-9901	●	●	●
31	NUT; TRUNNION BRKT M18	9-99110-518-0	28	1	9902-9904		●	●
31	NUT; TRUNNION BRKT M18	9-99110-518-0	28	1	9905-	●	●	●
32	PIN; STRAIGHT OD=9.5 L=37.34	1-09740-027-0	04	1	9603-9901	●	●	●
32	PIN; STRAIGHT OD=9.5 L=37.34	1-09740-027-0	04	1	9902-9904		●	●
32	PIN; STRAIGHT OD=9.5 L=37.34	1-09740-027-0	04	1	9905-	●	●	●
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	9603-9901	●	●	●
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	9902-9904		●	●
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	9905-	●	●	●
34	BOLT; LOCK PLATE M10X20 W/LK&PL WASHER	0-50141-020-0	02	1	9603-9606	●	●	●
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28081-016-0	02	1	9607-9901	●	●	●
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28081-016-0	02	1	9902-9904		●	●
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28081-016-0	02	1	9905-	●	●	●
35	PIN; TRUNNION SHAFT OD=8 L=19	1-09749-030-1	04	1	9603-9901	●	●	●
35	PIN; TRUNNION SHAFT OD=8 L=19	1-09749-030-1	04	1	9902-9904		●	●
35	PIN; TRUNNION SHAFT OD=8 L=19	1-09749-030-1	04	1	9905-	●	●	●
40	VALVE; GREASE ESCAPE PT1/8	9-51389-010-0	02	1	9603-9901	●	●	●
40	VALVE; GREASE ESCAPE PT1/8	9-51389-010-0	02	1	9902-9904		●	●
40	VALVE; GREASE ESCAPE PT1/8	9-51389-010-0	02	1	9905-	●	●	●
41	BUSHING; TRUNNION SHAFT ID=115.23 T=78	1-51386-004-0	04	1	9603-9901	●	●	●
41	BUSHING; TRUNNION SHAFT ID=115.23 T=78	1-51386-004-0	04	1	9902-9904		●	●
41	BUSHING; TRUNNION SHAFT ID=115.23 T=78	1-51386-004-0	04	1	9905-	●	●	●
42	SHIM; SIDE PLATE TO SHAFT OD=94	1-51389-033-1	12	1	9603-9901	●	●	●
42	SHIM; SIDE PLATE TO SHAFT OD=94	1-51389-033-1	12	1	9902-9904		●	●
42	SHIM; SIDE PLATE TO SHAFT OD=24	1-51389-033-1	12	1	9905-	●	●	●
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	9603-9901	●	●	●
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	9902-9904		●	●
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	9905-	●	●	●
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 W/FLANGE M18X48.5 FLANGE	1-09044-038-2	04	1	9603-9901	●	●	●
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 W/FLANGE M18X48.5 FLANGE	1-09044-038-2	04	1	9902-9904		●	●
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 W/FLANGE M18X48.5 FLANGE	1-09044-038-2	04	1	9905-	●	●	●
45	COVER; SPR SEAT	1-51387-013-2	02	1	9603-9901	●	●	●
45	COVER; SPR SEAT	1-51387-013-2	02	1	9902-9904		●	●
45	COVER; SPR SEAT	1-51387-013-2	02	1	9905-	●	●	●
46	BRACKET; COVER	1-51387-015-2	02	1	9603-9901	●	●	●
46	BRACKET; COVER	1-51387-015-2	02	1	9902-9904		●	●
46	BRACKET; COVER	1-51387-015-2	02	1	9905-	●	●	●
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28080-812-0	08	1	9603-9901	●	●	●
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28080-812-0	08	1	9902-9904		●	●
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28080-812-0	08	1	9905-	●	●	●
50	WASHER; PL,TRUNNION SHAFT ID=25 OD=48 T=14	1-09503-071-0	02	1	9603-9901	●	●	●
50	WASHER; PL,TRUNNION SHAFT ID=25 OD=48 T=14	1-09503-071-0	02	1	9902-9904		●	●
50	WASHER; PL,TRUNNION SHAFT ID=25 OD=48 T=14	1-09503-071-0	02	1	9905-	●	●	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	12	1	9603-9901	●
133	BUSHING; RUBBER,TORQUE ROD CAB UP +110MM<TGG> OD=105	1-51519-113-1	02	1	9902-9904		●
133	BUSHING; RUBBER,TORQUE ROD L TYPE ENG<90L> CAB UP +110MM<TGG> OD=105	1-51519-113-1	02	1	9905-		●
133	BUSHING; RUBBER,TORQUE ROD V TYPE ENG<91L> OD=105	1-51519-113-1	02	1	9905-		●
133	BUSHING; RUBBER,TORQUE ROD V TYPE ENG<91L> OD=105	1-51519-113-1	04	1	9905-		●
133	BUSHING; RUBBER,TORQUE ROD L TYPE ENG<90L> CAB UP +110MM<TGG> OD=105	1-51519-113-1	04	1	9905-		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9603-9901		●	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9603-9901		●	●
133	BUSHING; RUBBER,TORQUE ROD CAB UP +110MM<TGG> OD=105	1-51519-113-1	04	1	9902-9904		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	12	1	9905-9912	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	12	1	0001-	●
133	BUSHING; RUBBER,TORQUE ROD L TYPE ENG<90L> CAB UP +110MM<TGG> RR TIRE 12.00-20<98X> OD=105	1-51519-113-1	12	1	0001-			●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9902-9904		●	●
133	BUSHING; RUBBER,TORQUE ROD EXC. CAB UP +110MM<TGG> OD=105	1-51519-113-1	06	1	9902-9904		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9902-9904			●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9905-9912		●	●
133	BUSHING; RUBBER,TORQUE ROD L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> OD=105	1-51519-113-1	06	1	9905-9912		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9905-9912			●
133	BUSHING; RUBBER,TORQUE ROD L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> OD=105	1-51519-113-1	06	1	0001-		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	0001-		●
133	BUSHING; RUBBER,TORQUE ROD EXC. RR TIRE 12.00-20<98X> OD=105	1-51519-113-1	06	1	0001-			●
133	BUSHING; RUBBER,TORQUE ROD EXC. RR TIRE 12.00-20<98X> OD=105	1-51519-113-1	06	1	0001-			●
146	NUT; KEY BOLT M24	9-99110-524-0	02	1	9603-9901	●	●	●
146	NUT; KEY BOLT M24	9-99110-524-0	02	1	9902-9904		●	●
146	NUT; KEY BOLT M24	9-99110-524-0	02	1	9905-	●	●	●
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	9-09031-010-0	02	1	9603-9901	●	●	●
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	9-09031-010-0	02	1	9902-9904		●	●
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	9-09031-010-0	02	1	9905-	●	●	●
233	ROD ASM; TORQUE,RR SUSP (A) L=355	1-51511-648-0	03	1	9603-9901	●
233	ROD ASM; TORQUE,RR SUSP (B) L=695	1-51511-663-0	03	1	9603-9901	●
233	ROD ASM; TORQUE,RR SUSP (A) FORWARD UPPER & LOWER L=355	1-51511-648-0	03	1	9905-	●
233	ROD ASM; TORQUE,RR SUSP (B) FORWARD UPPER & LOWER L=695	1-51511-663-0	03	1	9905-	●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9603-9901		●
233	ROD ASM; TORQUE,RR SUSP (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9603-9901			●
233	ROD ASM; TORQUE,RR SUSP EXC. CAB UP +110MM<TGG> (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9902-9904		●
233	ROD ASM; TORQUE,RR SUSP (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9902-9904			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9905-9912		●
233	ROD ASM; TORQUE,RR SUSP (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9905-9912			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) FORWARD LOWER L=515	1-51511-655-0	02	1	0001-		●
233	ROD ASM; TORQUE,RR SUSP EXC. RR TIRE 12.00-20<98X> (B) FORWARD LOWER L=515	1-51511-655-0	02	1	0001-			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9603-9901		●
233	ROD ASM; TORQUE,RR SUSP (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9603-9901			●
233	ROD ASM; TORQUE,RR SUSP EXC. CAB UP +110MM<TGG> (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9902-9904		●
233	ROD ASM; TORQUE,RR SUSP (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9902-9904			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9905-9912		●
233	ROD ASM; TORQUE,RR SUSP (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9905-9912			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) FORWARD UPPER L=535	1-51511-657-0	01	1	0001-		●
233	ROD ASM; TORQUE,RR SUSP EXC. RR TIRE 12.00-20<98X> (A) FORWARD UPPER L=535	1-51511-657-0	01	1	0001-			●
233	ROD ASM; TORQUE,RR SUSP V TYPE ENG<91L> (A) FORWARD UPPER L=525	1-51511-656-0	01	1	9603-9901		●
233	ROD ASM; TORQUE,RR SUSP CAB UP +110MM<TGG> (A) FORWARD UPPER L=525	1-51511-656-0	01	1	9902-9904		●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> (A) FORWARD UPPER L=525	1-51511-656-0	01	1	9905-		●
233	ROD ASM; TORQUE,RR SUSP V TYPE ENG<91L> (A) FORWARD UPPER L=525	1-51511-656-0	01	1	9905-		●
233	ROD ASM; TORQUE,RR SUSP V TYPE ENG<91L> (A) FORWARD UPPER L=535	1-51511-657-0	02	1	9603-9901		●
233	ROD ASM; TORQUE,RR SUSP CAB UP +110MM<TGG> (A) FORWARD UPPER L=525	1-51511-656-0	02	1	9902-9904		●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> (A) FORWARD UPPER L=525	1-51511-656-0	02	1	9905-		●
233	ROD ASM; TORQUE,RR SUSP V TYPE ENG<91L> (B) FORWARD UPPER L=535	1-51511-657-0	02	1	9905-		●
233	ROD ASM; TORQUE,RR SUSP (B) REARWARD UPPER & LOWER L=550	1-51511-659-0	03	1	9603-9912		●	●
233	ROD ASM; TORQUE,RR SUSP EXC. RR TIRE 12.00-20<98X> (B) REARWARD UPPER & LOWER L=550	1-51511-659-0	03	1	0001-		●	●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> RR TIRE 12.00-20<98X> (A) FORWARD UPPER L=580	1-51511-661-0	01	1	0001-			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> RR TIRE 12.00-20<98X> (B) FORWARD LOWER L=560	1-51511-669-0	02	1	0001-			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> RR TIRE 12.00-20<98X> (B) REARWARD UPPER & LOWER L=585	1-51511-672-0	03	1	0001-			●
235	BOLT; TORQUE ROD (A) M18X265	1-09000-078-1	06	1	9603-9901	●	●	●
235	BOLT; TORQUE ROD (A) M18X265	1-09000-078-1	06	1	9902-9904		●	●
235	BOLT; TORQUE ROD (A) M18X265	1-09000-078-1	06	1	9905-	●	●	●
235	BOLT; TORQUE ROD (B) M18X102	1-09000-568-0	12	1	9603-9901	●	●	●
235	BOLT; TORQUE ROD (B) M18X102	1-09000-568-0	12	1	9902-9904		●	●
235	BOLT; TORQUE ROD (B) M18X102	1-09000-568-0	12	1	9905-	●	●	●
237	NUT; TORQUE ROD M18 SELF LOCK	1-09464-011-0	18	1	9603-9901	●	●	●
237	NUT; TORQUE ROD M18 SELF LOCK	1-09464-011-0	18	1	9902-9904		●	●
237	NUT; TORQUE ROD M18 SELF LOCK	1-09464-011-0	18	1	9905-	●	●	●
390	U-BOLT SET; RR SPRING L=305	1-87870-374-0	06	1	9603-9901	●
390	U-BOLT SET; RR SPRING L=305	1-87870-374-0	06	1	9905-	●
390	U-BOLT SET; RR SPRING TAIWAN EQUIPMENT(WW5) L=370	1-87870-217-2	04	1	9603-9901		●
390	U-BOLT SET; RR SPRING TAIWAN EQUIPMENT(WW5) L=370	1-87870-217-3	04	1	9905-9912		●
390	U-BOLT SET; RR SPRING WHEEL BASE 4500MM(45W) TAIWAN EQUIPMENT(WW5) L=370	1-87870-217-3	04	1	0001-		●
390	U-BOLT SET; RR SPRING RR TIRE 12.00-20<98X> L=370	1-87870-217-3	04	1	0001-			●
390	U-BOLT SET; RR SPRING EXC. TAIWAN EQUIPMENT(WW5) L=350	1-87870-392-0	04	1	9603-9901		●
390	U-BOLT SET; RR SPRING L=350	1-87870-392-0	04	1	9603-9901			●
390	U-BOLT SET; RR SPRING WHEEL BASE 4900MM(49W) L=350	1-87870-392-1	04	1	9902-9904		●
390	U-BOLT SET; RR SPRING L=350	1-87870-392-1	04	1	9902-9904			●
390	U-BOLT SET; RR SPRING WHEEL BASE 4500MM(45W) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. TAIWAN EQUIPMENT(WW5) L=350	1-87870-392-1	04	1	9905-9912		●
390	U-BOLT SET; RR SPRING WHEEL BASE 4900MM(49W) L=350	1-87870-392-1	04	1	9905-9912		●
390	U-BOLT SET; RR SPRING L=350	1-87870-392-1	04	1	9905-9912			●
390	U-BOLT SET; RR SPRING WHEEL BASE 4500MM(45W) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. TAIWAN EQUIPMENT(WW5) L=350	1-87870-392-1	04	1	0001-		●
390	U-BOLT SET; RR SPRING WHEEL BASE 4900MM(49W) L=350	1-87870-392-1	04	1	0001-		●
390	U-BOLT SET; RR SPRING EXC. RR TIRE 12.00-20<98X> L=350	1-87870-392-1	04	1	0001-			●
390	U-BOLT SET; RR SPRING WHEEL BASE 4500MM(45W) EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), TAIWAN EQUIPMENT(WW5) L=330	1-87870-164-3	04	1	9905-		●

237 233 133 235 237 133 242 243 233 133 235 133 242 243 237 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	12	1	9603-9901	●
133	BUSHING; RUBBER,TORQUE ROD CAB UP +110MM<TGG> OD=105	1-51519-113-1	02	1	9902-9904		●
133	BUSHING; RUBBER,TORQUE ROD L TYPE ENG<90L> CAB UP +110MM<TGG> OD=105	1-51519-113-1	02	1	9905-		●
133	BUSHING; RUBBER,TORQUE ROD V TYPE ENG<91L> OD=105	1-51519-113-1	02	1	9905-		●
133	BUSHING; RUBBER,TORQUE ROD V TYPE ENG<91L> OD=105	1-51519-113-1	04	1	9905-		●
133	BUSHING; RUBBER,TORQUE ROD L TYPE ENG<90L> CAB UP +110MM<TGG> OD=105	1-51519-113-1	04	1	9905-		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9603-9901		●	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9603-9901		●	●
133	BUSHING; RUBBER,TORQUE ROD CAB UP +110MM<TGG> OD=105	1-51519-113-1	04	1	9902-9904		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	12	1	9905-9912	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	12	1	0001-	●
133	BUSHING; RUBBER,TORQUE ROD L TYPE ENG<90L> CAB UP +110MM<TGG> RR TIRE 12.00-20<98X> OD=105	1-51519-113-1	12	1	0001-			●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9902-9904		●	●
133	BUSHING; RUBBER,TORQUE ROD EXC. CAB UP +110MM<TGG> OD=105	1-51519-113-1	06	1	9902-9904		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9902-9904			●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9905-9912		●	●
133	BUSHING; RUBBER,TORQUE ROD L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> OD=105	1-51519-113-1	06	1	9905-9912		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9905-9912			●
133	BUSHING; RUBBER,TORQUE ROD L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> OD=105	1-51519-113-1	06	1	0001-		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	0001-		●
133	BUSHING; RUBBER,TORQUE ROD EXC. RR TIRE 12.00-20<98X> OD=105	1-51519-113-1	06	1	0001-			●
133	BUSHING; RUBBER,TORQUE ROD EXC. RR TIRE 12.00-20<98X> OD=105	1-51519-113-1	06	1	0001-			●
233	ROD ASM; TORQUE,RR SUSP (A) L=355	1-51511-648-0	03	1	9603-9901	●
233	ROD ASM; TORQUE,RR SUSP (B) L=695	1-51511-663-0	03	1	9603-9901	●
233	ROD ASM; TORQUE,RR SUSP (A) FORWARD UPPER & LOWER L=355	1-51511-648-0	03	1	9905-	●
233	ROD ASM; TORQUE,RR SUSP (B) FORWARD UPPER & LOWER L=695	1-51511-663-0	03	1	9905-	●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9603-9901		●
233	ROD ASM; TORQUE,RR SUSP (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9603-9901			●
233	ROD ASM; TORQUE,RR SUSP EXC. CAB UP +110MM<TGG> (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9902-9904		●
233	ROD ASM; TORQUE,RR SUSP (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9902-9904			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9905-9912		●
233	ROD ASM; TORQUE,RR SUSP (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9905-9912			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) FORWARD LOWER L=515	1-51511-655-0	02	1	0001-		●
233	ROD ASM; TORQUE,RR SUSP EXC. RR TIRE 12.00-20<98X> (B) FORWARD LOWER L=515	1-51511-655-0	02	1	0001-			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9603-9901		●
233	ROD ASM; TORQUE,RR SUSP (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9603-9901			●
233	ROD ASM; TORQUE,RR SUSP EXC. CAB UP +110MM<TGG> (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9902-9904		●
233	ROD ASM; TORQUE,RR SUSP (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9902-9904			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9905-9912		●
233	ROD ASM; TORQUE,RR SUSP (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9905-9912			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) FORWARD UPPER L=535	1-51511-657-0	01	1	0001-		●
233	ROD ASM; TORQUE,RR SUSP EXC. RR TIRE 12.00-20<98X> (A) FORWARD UPPER L=535	1-51511-657-0	01	1	0001-			●
233	ROD ASM; TORQUE,RR SUSP V TYPE ENG<91L> (A) FORWARD UPPER L=525	1-51511-656-0	01	1	9603-9901		●
233	ROD ASM; TORQUE,RR SUSP CAB UP +110MM<TGG> (A) FORWARD UPPER L=525	1-51511-656-0	01	1	9902-9904		●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> (A) FORWARD UPPER L=525	1-51511-656-0	01	1	9905-		●
233	ROD ASM; TORQUE,RR SUSP V TYPE ENG<91L> (A) FORWARD UPPER L=525	1-51511-656-0	01	1	9905-		●
233	ROD ASM; TORQUE,RR SUSP V TYPE ENG<91L> (A) FORWARD UPPER L=535	1-51511-657-0	02	1	9603-9901		●
233	ROD ASM; TORQUE,RR SUSP CAB UP +110MM<TGG> (A) FORWARD UPPER L=525	1-51511-656-0	02	1	9902-9904		●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> (A) FORWARD UPPER L=525	1-51511-656-0	02	1	9905-		●
233	ROD ASM; TORQUE,RR SUSP V TYPE ENG<91L> (B) FORWARD UPPER L=535	1-51511-657-0	02	1	9905-		●
233	ROD ASM; TORQUE,RR SUSP (B) REARWARD UPPER & LOWER L=550	1-51511-659-0	03	1	9603-9912		●	●
233	ROD ASM; TORQUE,RR SUSP EXC. RR TIRE 12.00-20<98X> (B) REARWARD UPPER & LOWER L=550	1-51511-659-0	03	1	0001-		●	●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> RR TIRE 12.00-20<98X> (A) FORWARD UPPER L=580	1-51511-661-0	01	1	0001-			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> RR TIRE 12.00-20<98X> (B) FORWARD LOWER L=560	1-51511-669-0	02	1	0001-			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> RR TIRE 12.00-20<98X> (B) REARWARD UPPER & LOWER L=585	1-51511-672-0	03	1	0001-			●
235	BOLT; TORQUE ROD (A) M18X265	1-09000-078-1	06	1	9603-9901	●	●	●
235	BOLT; TORQUE ROD (A) M18X265	1-09000-078-1	06	1	9902-9904		●	●
235	BOLT; TORQUE ROD (A) M18X265	1-09000-078-1	06	1	9905-	●	●	●
235	BOLT; TORQUE ROD (B) M18X102	1-09000-568-0	12	1	9603-9901	●	●	●
235	BOLT; TORQUE ROD (B) M18X102	1-09000-568-0	12	1	9902-9904		●	●
235	BOLT; TORQUE ROD (B) M18X102	1-09000-568-0	12	1	9905-	●	●	●
237	NUT; TORQUE ROD M18 SELF LOCK	1-09464-011-0	18	1	9603-9901	●	●	●
237	NUT; TORQUE ROD M18 SELF LOCK	1-09464-011-0	18	1	9902-9904		●	●
237	NUT; TORQUE ROD M18 SELF LOCK	1-09464-011-0	18	1	9905-	●	●	●
242	BOLT; BRKT TO FRAME (B) M14X205	1-09000-147-0	02	1	9603-9901	●	●	●
242	BOLT; BRKT TO FRAME (A) M14X50	9-92061-450-0	02	1	9603-9901	●	●	●
243	BOLT; BRKT,TORQUE ROD (B) L0WER M14X205	1-09000-147-0	02	1	9902-9904		●	●
243	BOLT; BRKT,TORQUE ROD (B) LOWER M14X205	1-09000-147-0	02	1	9905-	●	●	●
243	BOLT; BRKT,TORQUE ROD (A) UPPER M14X50	9-92061-450-0	02	1	9902-9904		●	●
243	BOLT; BRKT,TORQUE ROD (A) UPPER M14X50	9-92061-450-0	02	1	9905-	●	●	●

237 233 133 235 237 242 133 243 233 133 235 133 242 243 237 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	12	1	9603-9901	●
133	BUSHING; RUBBER,TORQUE ROD CAB UP +110MM<TGG> OD=105	1-51519-113-1	02	1	9902-9904		●
133	BUSHING; RUBBER,TORQUE ROD L TYPE ENG<90L> CAB UP +110MM<TGG> OD=105	1-51519-113-1	02	1	9905-		●
133	BUSHING; RUBBER,TORQUE ROD V TYPE ENG<91L> OD=105	1-51519-113-1	02	1	9905-		●
133	BUSHING; RUBBER,TORQUE ROD V TYPE ENG<91L> OD=105	1-51519-113-1	04	1	9905-		●
133	BUSHING; RUBBER,TORQUE ROD L TYPE ENG<90L> CAB UP +110MM<TGG> OD=105	1-51519-113-1	04	1	9905-		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9603-9901		●	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9603-9901		●	●
133	BUSHING; RUBBER,TORQUE ROD CAB UP +110MM<TGG> OD=105	1-51519-113-1	04	1	9902-9904		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	12	1	9905-9912	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	12	1	0001-	●
133	BUSHING; RUBBER,TORQUE ROD L TYPE ENG<90L> CAB UP +110MM<TGG> RR TIRE 12.00-20<98X> OD=105	1-51519-113-1	12	1	0001-			●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9902-9904		●	●
133	BUSHING; RUBBER,TORQUE ROD EXC. CAB UP +110MM<TGG> OD=105	1-51519-113-1	06	1	9902-9904		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9902-9904			●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9905-9912		●	●
133	BUSHING; RUBBER,TORQUE ROD L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> OD=105	1-51519-113-1	06	1	9905-9912		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9905-9912			●
133	BUSHING; RUBBER,TORQUE ROD L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> OD=105	1-51519-113-1	06	1	0001-		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	0001-		●
133	BUSHING; RUBBER,TORQUE ROD EXC. RR TIRE 12.00-20<98X> OD=105	1-51519-113-1	06	1	0001-			●
133	BUSHING; RUBBER,TORQUE ROD EXC. RR TIRE 12.00-20<98X> OD=105	1-51519-113-1	06	1	0001-			●
233	ROD ASM; TORQUE,RR SUSP (A) L=355	1-51511-648-0	03	1	9603-9901	●
233	ROD ASM; TORQUE,RR SUSP (B) L=695	1-51511-663-0	03	1	9603-9901	●
233	ROD ASM; TORQUE,RR SUSP (A) FORWARD UPPER & LOWER L=355	1-51511-648-0	03	1	9905-	●
233	ROD ASM; TORQUE,RR SUSP (B) FORWARD UPPER & LOWER L=695	1-51511-663-0	03	1	9905-	●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9603-9901		●
233	ROD ASM; TORQUE,RR SUSP (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9603-9901			●
233	ROD ASM; TORQUE,RR SUSP EXC. CAB UP +110MM<TGG> (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9902-9904		●
233	ROD ASM; TORQUE,RR SUSP (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9902-9904			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9905-9912		●
233	ROD ASM; TORQUE,RR SUSP (B) FORWARD LOWER L=515	1-51511-655-0	02	1	9905-9912			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) FORWARD LOWER L=515	1-51511-655-0	02	1	0001-		●
233	ROD ASM; TORQUE,RR SUSP EXC. RR TIRE 12.00-20<98X> (B) FORWARD LOWER L=515	1-51511-655-0	02	1	0001-			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9603-9901		●
233	ROD ASM; TORQUE,RR SUSP (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9603-9901			●
233	ROD ASM; TORQUE,RR SUSP EXC. CAB UP +110MM<TGG> (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9902-9904		●
233	ROD ASM; TORQUE,RR SUSP (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9902-9904			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9905-9912		●
233	ROD ASM; TORQUE,RR SUSP (A) FORWARD UPPER L=535	1-51511-657-0	01	1	9905-9912			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) FORWARD UPPER L=535	1-51511-657-0	01	1	0001-		●
233	ROD ASM; TORQUE,RR SUSP EXC. RR TIRE 12.00-20<98X> (A) FORWARD UPPER L=535	1-51511-657-0	01	1	0001-			●
233	ROD ASM; TORQUE,RR SUSP V TYPE ENG<91L> (A) FORWARD UPPER L=525	1-51511-656-0	01	1	9603-9901		●
233	ROD ASM; TORQUE,RR SUSP CAB UP +110MM<TGG> (A) FORWARD UPPER L=525	1-51511-656-0	01	1	9902-9904		●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> (A) FORWARD UPPER L=525	1-51511-656-0	01	1	9905-		●
233	ROD ASM; TORQUE,RR SUSP V TYPE ENG<91L> (A) FORWARD UPPER L=525	1-51511-656-0	01	1	9905-		●
233	ROD ASM; TORQUE,RR SUSP V TYPE ENG<91L> (A) FORWARD UPPER L=535	1-51511-657-0	02	1	9603-9901		●
233	ROD ASM; TORQUE,RR SUSP CAB UP +110MM<TGG> (A) FORWARD UPPER L=525	1-51511-656-0	02	1	9902-9904		●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> (A) FORWARD UPPER L=525	1-51511-656-0	02	1	9905-		●
233	ROD ASM; TORQUE,RR SUSP V TYPE ENG<91L> (B) FORWARD UPPER L=535	1-51511-657-0	02	1	9905-		●
233	ROD ASM; TORQUE,RR SUSP (B) REARWARD UPPER & LOWER L=550	1-51511-659-0	03	1	9603-9912		●	●
233	ROD ASM; TORQUE,RR SUSP EXC. RR TIRE 12.00-20<98X> (B) REARWARD UPPER & LOWER L=550	1-51511-659-0	03	1	0001-		●	●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> RR TIRE 12.00-20<98X> (A) FORWARD UPPER L=580	1-51511-661-0	01	1	0001-			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> RR TIRE 12.00-20<98X> (B) FORWARD LOWER L=560	1-51511-669-0	02	1	0001-			●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> RR TIRE 12.00-20<98X> (B) REARWARD UPPER & LOWER L=585	1-51511-672-0	03	1	0001-			●
235	BOLT; TORQUE ROD (A) M18X265	1-09000-078-1	06	1	9603-9901	●	●	●
235	BOLT; TORQUE ROD (A) M18X265	1-09000-078-1	06	1	9902-9904		●	●
235	BOLT; TORQUE ROD (A) M18X265	1-09000-078-1	06	1	9905-	●	●	●
235	BOLT; TORQUE ROD (B) M18X102	1-09000-568-0	12	1	9603-9901	●	●	●
235	BOLT; TORQUE ROD (B) M18X102	1-09000-568-0	12	1	9902-9904		●	●
235	BOLT; TORQUE ROD (B) M18X102	1-09000-568-0	12	1	9905-	●	●	●
237	NUT; TORQUE ROD M18 SELF LOCK	1-09464-011-0	18	1	9603-9901	●	●	●
237	NUT; TORQUE ROD M18 SELF LOCK	1-09464-011-0	18	1	9902-9904		●	●
237	NUT; TORQUE ROD M18 SELF LOCK	1-09464-011-0	18	1	9905-	●	●	●
242	BOLT; BRKT TO FRAME (B) M14X205	1-09000-147-0	02	1	9603-9901	●	●	●
242	BOLT; BRKT TO FRAME (A) M14X50	9-92061-450-0	02	1	9603-9901	●	●	●
243	BOLT; BRKT,TORQUE ROD (B) L0WER M14X205	1-09000-147-0	02	1	9902-9904		●	●
243	BOLT; BRKT,TORQUE ROD (B) LOWER M14X205	1-09000-147-0	02	1	9905-	●	●	●
243	BOLT; BRKT,TORQUE ROD (A) UPPER M14X50	9-92061-450-0	02	1	9902-9904		●	●
243	BOLT; BRKT,TORQUE ROD (A) UPPER M14X50	9-92061-450-0	02	1	9905-	●	●	●

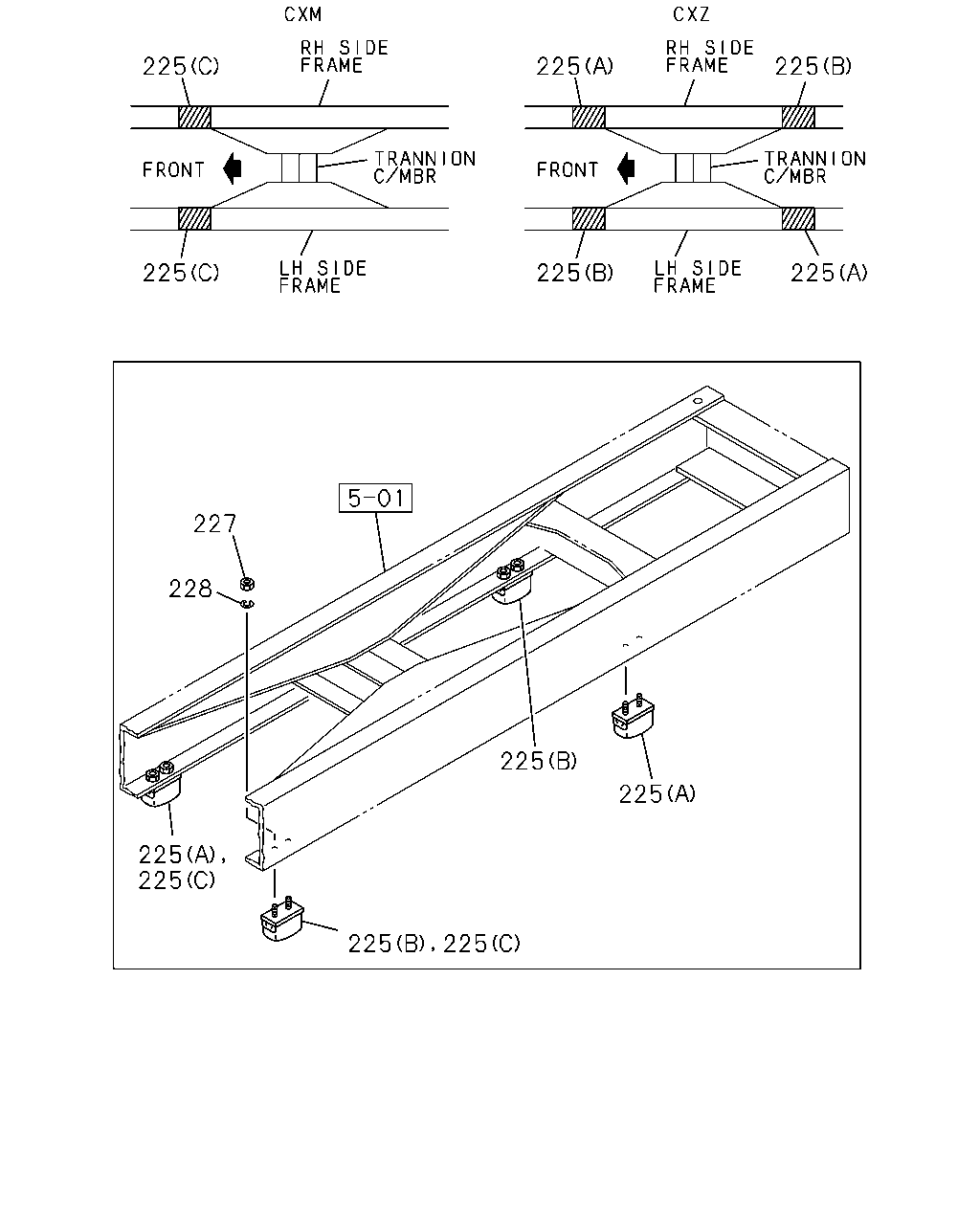

225 225 225 225 225 225 227 228 225 225 225 225 225 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
225	RUBBER; CUSHION,RR SPR (C)	1-53366-028-1	02	1	9603-9901	●
225	RUBBER; CUSHION,RR SPR (C)	1-53366-028-1	02	1	9905-	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2> (A)	1-53366-045-0	02	1	9603-9901		●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2> (B)	1-53366-046-0	02	1	9603-9901		●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (A)	1-53366-045-0	02	1	9905-9910		●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2> (A)	1-53366-045-0	02	1	9911-		●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (B)	1-53366-046-0	02	1	9905-9910		●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2> (B)	1-53366-046-0	02	1	9911-		●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-53366-072-1	02	1	9603-9810		●	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> (A)	1-53366-072-1	02	1	9603-9810		●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53366-072-1	02	1	9603-9810			●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-53366-072-1	02	1	9811-9901		●	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> (A)	1-53366-072-1	02	1	9811-9901		●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53366-072-1	02	1	9811-9901			●
225	RUBBER; CUSHION,RR SPR (A)	1-53366-072-1	02	1	9902-9904		●	●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-53366-072-1	02	1	9905-9905		●	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> (A)	1-53366-072-1	02	1	9905-9905		●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> (A)	1-53366-072-1	02	1	9905-9905			●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-53366-072-1	02	1	9906-9910		●	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> (A)	1-53366-072-1	02	1	9906-9910		●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> (A)	1-53366-072-1	02	1	9906-9910			●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-53366-072-1	02	1	9911-9911		●	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> (A)	1-53366-072-1	02	1	9911-9911		●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53366-072-1	02	1	9911-9911			●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-53366-072-1	02	1	9911-		●	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> (A)	1-53366-072-1	02	1	9911-		●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53366-072-1	02	1	9911-			●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-53366-073-1	02	1	9603-9810		●	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> (B)	1-53366-073-1	02	1	9603-9810		●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-53366-073-1	02	1	9603-9810			●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-53366-073-1	02	1	9811-9901		●	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> (B)	1-53366-073-1	02	1	9811-9901		●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-53366-073-1	02	1	9811-9901			●
225	RUBBER; CUSHION,RR SPR (B)	1-53366-073-1	02	1	9902-9904		●	●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-53366-073-1	02	1	9905-9905		●	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> (B)	1-53366-073-1	02	1	9905-9905		●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> (B)	1-53366-073-1	02	1	9905-9905			●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-53366-073-1	02	1	9906-9910		●	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> (B)	1-53366-073-1	02	1	9906-9910		●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> (B)	1-53366-073-1	02	1	9906-9910			●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-53366-073-1	02	1	9911-9911		●	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> (B)	1-53366-073-1	02	1	9911-9911		●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-53366-073-1	02	1	9911-9911			●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-53366-073-1	02	1	9912-		●	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> (B)	1-53366-073-1	02	1	9912-		●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-53366-073-1	02	1	9912-			●
227	NUT; CUSHION RUBBER M12	9-99110-512-0	04	1	9603-9606	●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	04	1	9607-9901	●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	04	1	9905-	●
227	NUT; CUSHION RUBBER M12	9-99110-512-0	08	1	9603-9606		●	●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	08	1	9607-		●	●
228	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	04	1	9603-9606	●
228	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	08	1	9603-9606		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
