◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51292 - NPR/NQR BUS CHA(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#54037) — 23 parça

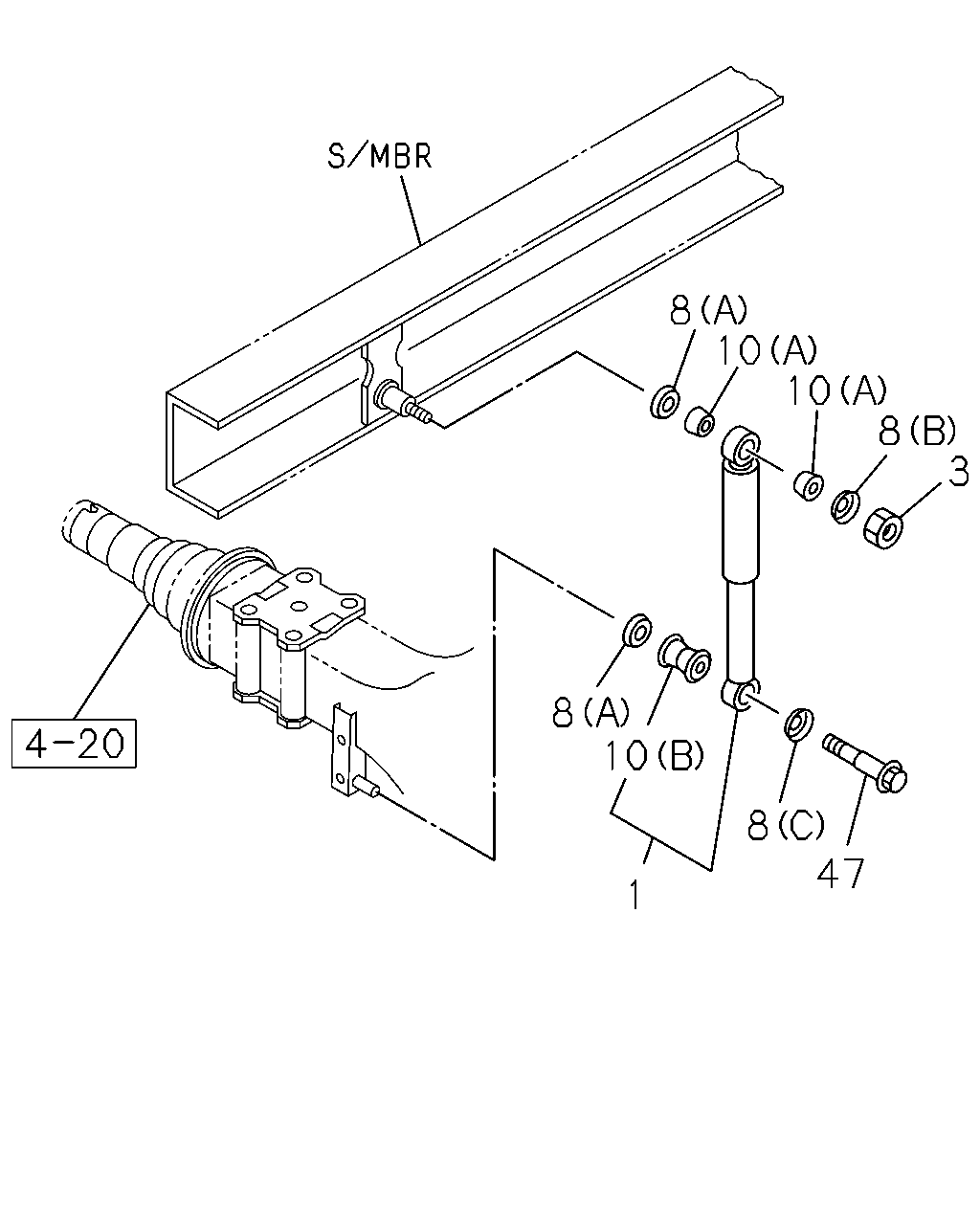

çizim 175045
8 10 10 8 3 8 10 8 47 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.395 ABSORBER ASM; SHOCK,RR
TIRE SIZE 8.25-16<7QP> 		8-98079-868-1 02 1 1304- ●
1 07.395 ABSORBER ASM; SHOCK,RR
FRAME STRAIGHT TYPE<7KJ> 		8-97253-662-2 02 1 1012-1303 ●
1 07.395 ABSORBER ASM; SHOCK,RR
FRAME STRAIGHT TYPE<7KJ> 		8-97253-662-2 02 1 1304- ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. TIRE SIZE 8.25-16<7QP> 		8-97253-662-2 02 1 1304- ●
1 07.395 ABSORBER ASM; SHOCK,RR
TIRE SIZE 8.25-16<7QP> BEST VALUE PARTS 		5-87610-133-0 02 1 1304- ●
1 07.395 ABSORBER ASM; SHOCK,RR
FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-156-0 02 1 1105-1303 ●
1 07.395 ABSORBER ASM; SHOCK,RR
FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-156-0 02 1 1304- ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. TIRE SIZE 8.25-16<7QP> BEST VALUE PARTS 		5-87610-156-0 02 1 1304- ●
3 07.347 NUT; S/ABS
07.833 M14 		0-91110-514-0 02 1 1012-1303 ●
3 07.347 NUT; S/ABS
07.833 M14 		0-91110-514-0 02 1 1304- ● ●
8 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1012-1303 ●
8 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1304- ● ●
8 07.347 WASHER; S/ABS
(A) ID=20.0 		8-97360-057-0 04 1 1012-1303 ●
8 07.347 WASHER; S/ABS
(A) ID=20.0 		8-97360-057-0 04 1 1304- ● ●
8 07.347 WASHER; S/ABS
(C) ID=10.5 		8-97360-058-0 02 1 1012-1303 ●
8 07.347 WASHER; S/ABS
(C) ID=10.5 		8-97360-058-0 02 1 1304- ● ●
10 07.388 BUSHING; RUBBER,S/ABS
FRAME STRAIGHT TYPE<7KJ> (B) TOKICO 		8-94382-149-0 02 1 1012-1303 ●
10 07.388 BUSHING; RUBBER,S/ABS
FRAME STRAIGHT TYPE<7KJ> (B) TOKICO 		8-94382-149-0 02 1 1304- ●
10 07.388 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 1304- ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 1012-1303 ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 1304- ● ●
47 07.347 PIN; S/ABS SETTING
02.483 M10X16 FLANGE 		0-28051-016-0 02 1 1012-1303 ●
47 07.347 PIN; S/ABS SETTING
02.483 M10X16 FLANGE 		0-28051-016-0 02 1 1304- ● ●
