◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51292 - NPR/NQR BUS CHA(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#54036) — 83 parça

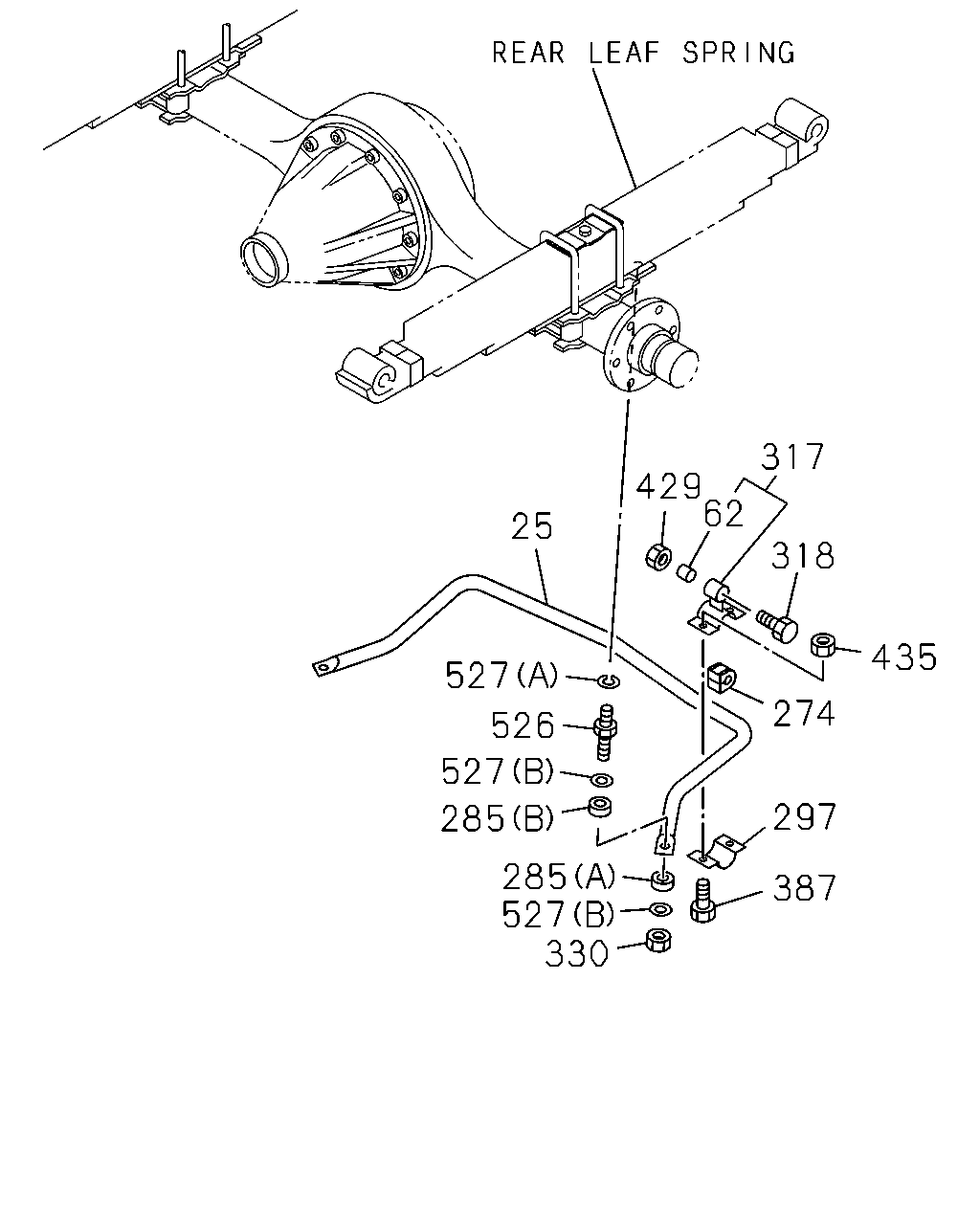

çizim 175042
317 429 62 25 318 435 527 274 526 527 297 285 285 527 330 387
BalonParca AdiParca NoAdetTipApplied Date A B
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> 		8-98067-239-0 01 1 1012-1303 ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> 		8-98067-239-0 01 1 1304- ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-98067-239-0 01 1 1304- ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98025-630-0 01 1 1012- ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-97239-911-0 02 1 1012-1303 ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-97239-911-0 02 1 1304- ● ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94440-793-0 02 1 1012-1303 ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94440-793-0 02 1 1304- ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> (A) L=18 		8-97089-556-0 02 1 1012-1303 ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> (A) L=18 		8-97089-556-0 02 1 1304- ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> (B) L=29 		8-97089-557-0 02 1 1012-1303 ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> (B) L=29 		8-97089-557-0 02 1 1304- ● ●
297 07.242 CAP; STAB BAR
STABILIZER REAR<GN1> 		8-94178-430-2 02 1 1012-1303 ●
297 07.242 CAP; STAB BAR
STABILIZER REAR<GN1> 		8-94178-430-2 02 1 1304- ● ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-97239-907-0 02 1 1012-1303 ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-97239-907-0 02 1 1304- ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> M14X70 FLANGE 		0-28851-470-0 02 1 1012-1303 ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> M14X70 FLANGE 		0-28851-470-0 02 1 1304- ● ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> M12 LOCK NUT 		0-91370-012-0 02 1 1012-1303 ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> M12 LOCK NUT 		0-91370-012-0 02 1 1304- ● ●
387 07.242 BOLT; CAP FIX,STAB BAR
STABILIZER REAR<GN1> 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 1012-1303 ●
387 07.242 BOLT; CAP FIX,STAB BAR
STABILIZER REAR<GN1> 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 1304- ● ●
429 07.242 NUT; LINK
STABILIZER REAR<GN1> 06.174 M14 FLANGE 		8-97360-124-0 02 1 1012-1303 ●
429 07.242 NUT; LINK
STABILIZER REAR<GN1> 06.174 M14 FLANGE 		8-97360-124-0 02 1 1304- ● ●
435 07.242 NUT; CAP
STABILIZER REAR<GN1> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1012-1303 ●
435 07.242 NUT; CAP
STABILIZER REAR<GN1> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1304- ● ●
526 07.535 STUD; STABILIZER
STABILIZER REAR<GN1> 07.242 		8-97360-120-0 02 1 1012-1303 ●
526 07.535 STUD; STABILIZER
STABILIZER REAR<GN1> 07.242 		8-97360-120-0 02 1 1304- ● ●
527 07.242 WASHER; STABILIZER
STABILIZER REAR<GN1> 05.605 (A) ID=14.2 		0-91510-514-0 02 1 1012-1303 ●
527 07.242 WASHER; STABILIZER
STABILIZER REAR<GN1> 05.605 (A) ID=14.2 		0-91510-514-0 02 1 1304- ● ●
527 07.242 WASHER; STABILIZER
STABILIZER REAR<GN1> (B) 		8-97360-055-0 04 1 1012-1303 ●
527 07.242 WASHER; STABILIZER
STABILIZER REAR<GN1> (B) 		8-97360-055-0 04 1 1304- ● ●

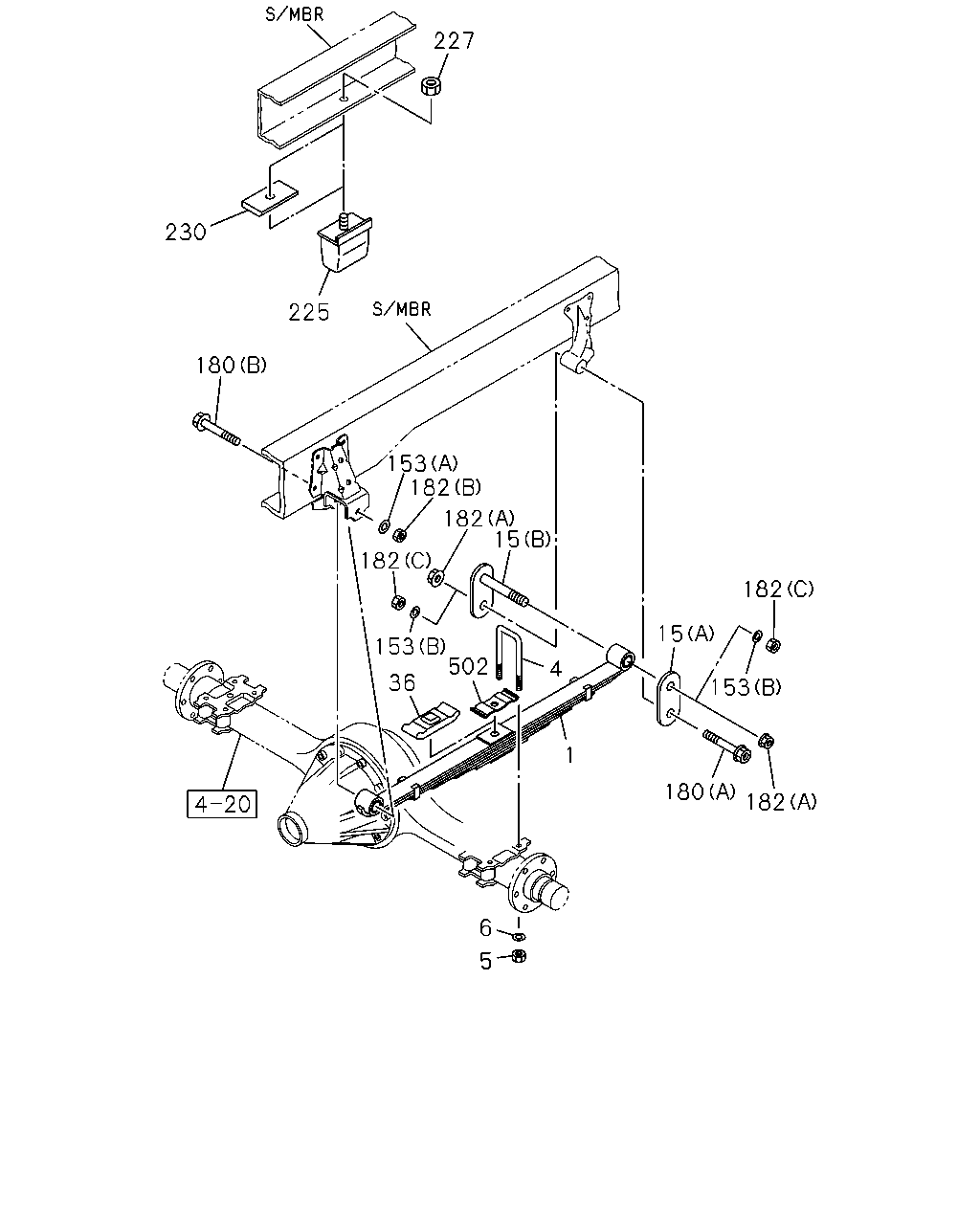

çizim 175048
227 225 230 180 153 182 182 15 1 4 502 153 182 36 6 5 182 180 153 15 182
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> EXC. TIRE SIZE 8.25-16<7QP> 9-LEAF 		8-98181-940-2 02 1 1304- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. STABILIZER REAR<GN1> 9-LEAF 		8-98182-048-2 02 1 1304- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> 10-LEAF 		8-98025-060-0 02 1 1012-1105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> 9-LEAF 		8-98190-548-0 02 1 1106- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98025-058-0 02 1 1012-1105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 9-LEAF 		8-98190-547-0 02 1 1106- ●
4 07.516 U-BOLT; RR SPR
FRAME STRAIGHT TYPE<7KJ> L=315 		1-51371-194-2 04 1 1012-1303 ●
4 07.516 U-BOLT; RR SPR
FRAME STRAIGHT TYPE<7KJ> L=315 		1-51371-194-2 04 1 1304-1310 ●
4 07.516 U-BOLT; RR SPR
TIRE SIZE 8.25-16<7QP> EXC. STABILIZER REAR<GN1> L=315 		1-51371-194-2 04 1 1304-1310 ●
4 07.516 U-BOLT; RR SPR
EXC. TIRE SIZE 8.25-16<7QP> L=315 		1-51371-194-2 04 1 1304-1310 ●
4 07.516 U-BOLT; RR SPR
FRAME STRAIGHT TYPE<7KJ> L=315 		1-51371-194-2 04 1 1311- ●
4 07.516 U-BOLT; RR SPR
L=315 		1-51371-194-2 04 1 1311- ●
5 07.529 NUT; U-BOLT,RR SPR
FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 1012-1303 ●
5 07.529 NUT; U-BOLT,RR SPR
FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 1304- ●
5 07.529 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 1304- ●
5 07.529 NUT; U-BOLT,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> 07.417 M16 		8-97360-121-0 08 1 1012- ●
6 07.516 WASHER; PL,U-BOLT
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-97360-118-0 08 1 1012- ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 1012-1303 ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 1304- ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 1012-1303 ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 1304- ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
FRAME STRAIGHT TYPE<7KJ> 07.518 		1-51372-059-0 02 1 1012-1303 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
FRAME STRAIGHT TYPE<7KJ> 07.518 		1-51372-059-0 02 1 1304- ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
07.518 		1-51372-059-0 02 1 1304- ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5 		8-98011-489-0 04 1 1012-1303 ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5 		8-98011-489-0 04 1 1304- ● ●
153 07.529 WASHER; PL,SPRING PIN
(A) ID=19 		8-97360-119-0 02 1 1012-1303 ●
153 07.529 WASHER; PL,SPRING PIN
(A) ID=19 		8-97360-119-0 02 1 1304- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 1012-1303 ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 1304- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 1012-1303 ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 1304- ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 1012-1303 ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 1304- ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 1012-1303 ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 1304- ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (C) M16 		0-91110-516-0 04 1 1012-1303 ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (C) M16 		0-91110-516-0 04 1 1304- ● ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 1012-1303 ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 1304- ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 1012-1303 ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 1304- ● ●
225 07.535 RUBBER; CUSHION,RR SPR
TIRE SIZE 8.25-16<7QP> 		8-98021-554-0 02 1 1304- ●
225 07.535 RUBBER; CUSHION,RR SPR 8-94379-470-1 02 1 1012-1103 ●
225 07.535 RUBBER; CUSHION,RR SPR 8-98187-342-0 02 1 1104-1303 ●
225 07.535 RUBBER; CUSHION,RR SPR 8-98187-342-0 02 1 1304- ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. TIRE SIZE 8.25-16<7QP> 		8-98187-342-0 02 1 1304- ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 1012-1303 ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 1304- ● ●
230 07.518 SPACER; CUSHION RUBBER 8-97136-852-0 02 1 1304- ●
502 07.506 CLAMP; RR LEAF SPR
EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=140 T=4.5 		8-94118-509-1 02 1 1012-1111 ●
