Sayfa 4-50 - Isuzu EPC

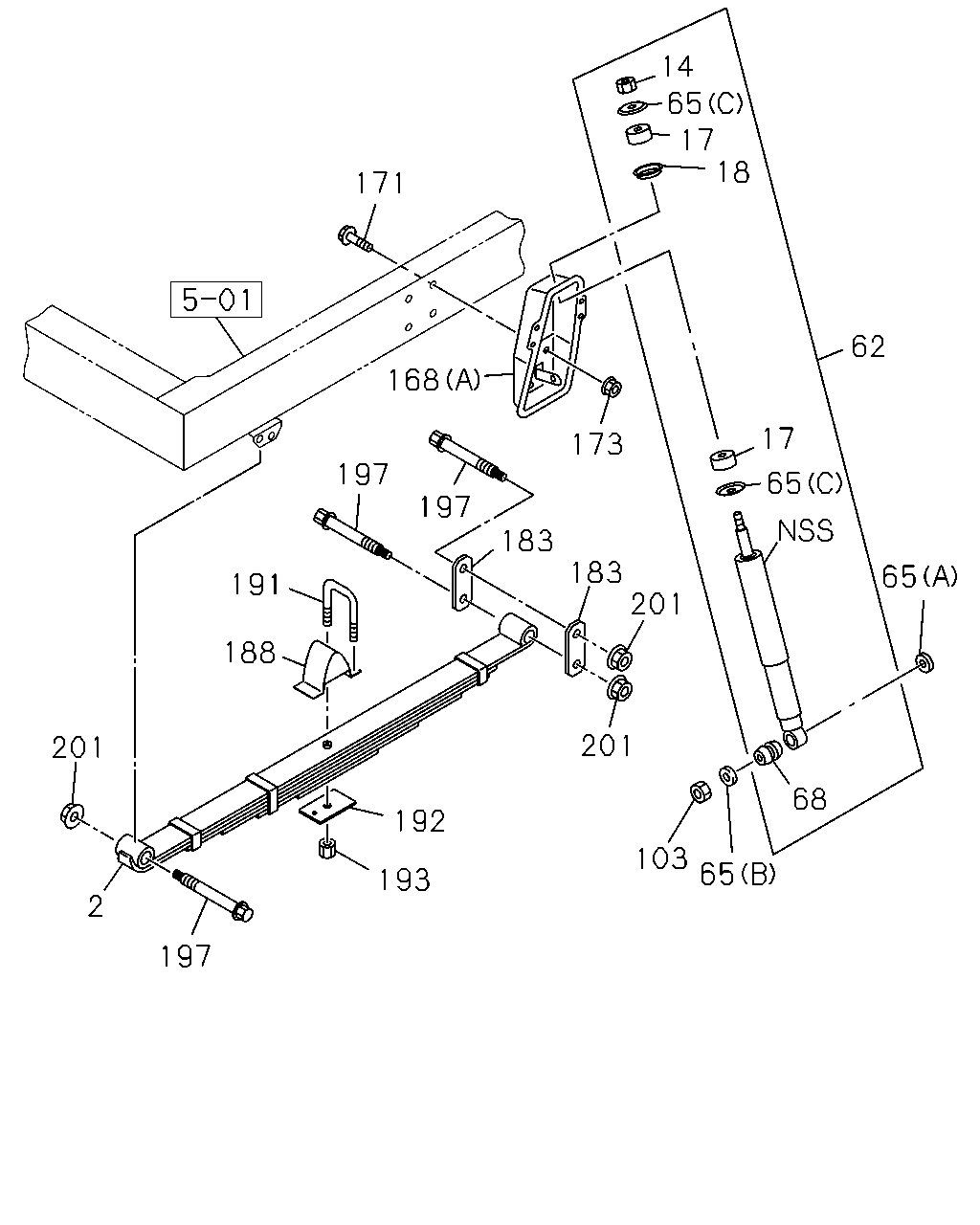

4-50 — FRONT SUSPENSION (#54033) — 189 parça

62 14 65 17 18 171 168 17 173 201 183 65 183 191 185 197 188 68 201 193 65 185 65 2 103 168 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TIRE SIZE 8.25-16<7QP> EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-537-1	01	1	1304-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TIRE SIZE 8.25-16<7QP> EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-538-1	01	1	1304-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98154-915-0	01	1	1012-1105		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98190-545-0	01	1	1106-1303		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98190-545-0	01	1	1304-1310		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> EXC. TIRE SIZE 8.25-16<7QP> 6-LEAF	8-98190-545-0	01	1	1304-1310	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98190-545-1	01	1	1311-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-545-1	01	1	1311-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98154-916-0	01	1	1012-1105		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98190-546-0	01	1	1106-1303		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98190-546-0	01	1	1304-1310		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> EXC. TIRE SIZE 8.25-16<7QP> 6-LEAF	8-98190-546-0	01	1	1304-1310	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98190-546-1	01	1	1311-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-546-1	01	1	1311-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-920-0	01	1	1012-1105		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-541-1	01	1	1106-1303		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-541-1	01	1	1304-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV>,TIRE SIZE 8.25-16<7QP> 6-LEAF	8-98190-541-1	01	1	1304-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-922-0	01	1	1012-1105		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-542-1	01	1	1106-1303		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-542-1	01	1	1304-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV>,TIRE SIZE 8.25-16<7QP> 6-LEAF	8-98190-542-1	01	1	1304-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-456-0	01	1	1012-1105		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-543-1	01	1	1106-1303		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-543-1	01	1	1304-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-543-1	01	1	1304-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-457-0	01	1	1012-1105		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-544-1	01	1	1106-1303		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-544-1	01	1	1304-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-544-1	01	1	1304-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-923-0	01	1	1012-1105		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-539-1	01	1	1106-1303		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-539-1	01	1	1304-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV>,TIRE SIZE 8.25-16<7QP> 6-LEAF	8-98190-539-1	01	1	1304-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-924-0	01	1	1012-1105		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-540-1	01	1	1106-1303		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-540-1	01	1	1304-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV>,TIRE SIZE 8.25-16<7QP> 6-LEAF	8-98190-540-1	01	1	1304-	●
14	07.389 NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	1012-	●	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	1012-	●	●
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	1012-	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT TIRE SIZE 8.25-16<7QP> EXC. FRONT WIDE TREAD<7GV>	8-98079-867-1	02	1	1304-	●
62	07.345 ABSORBER ASM; SHOCK,FRT FRONT WIDE TREAD<7GV>	8-98154-636-0	02	1	1012-1303		●
62	07.345 ABSORBER ASM; SHOCK,FRT FRONT WIDE TREAD<7GV>	8-98154-636-0	02	1	1304-	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV>	8-98080-129-1	01	1	1012-1303		●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV>	8-98080-129-1	01	1	1012-1303		●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV>,TIRE SIZE 8.25-16<7QP>	8-98080-129-1	02	1	1304-	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV> BEST VALUE PARTS	5-87610-153-0	02	1	1210-1303		●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV>,TIRE SIZE 8.25-16<7QP> BEST VALUE PARTS	5-87610-153-0	02	1	1304-	●	●
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	1012-1303		●
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	1304-	●	●
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	1012-1303		●
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	1304-	●	●
65	07.347 WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	1012-	●	●
68	07.388 BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	1012-	●	●
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	1012-1303		●
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	1304-	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-556-0	01	1	1012-1303		●
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-556-0	01	1	1304-	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-557-0	01	1	1012-1303		●
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-557-0	01	1	1304-	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-406-1	01	1	1012-1303		●
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-406-1	01	1	1304-	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-407-1	01	1	1012-1303		●
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-407-1	01	1	1304-	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-001-0	01	1	1012-1303		●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-001-0	01	1	1304-	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-002-0	01	1	1012-1303		●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-002-0	01	1	1304-	●	●
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	1012-1303		●
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	1304-	●	●
173	07.395 NUT; S/ABS M12	8-97360-126-0	08	1	1012-1303		●
173	07.395 NUT; S/ABS M12	8-97360-126-0	08	1	1304-	●	●
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	1012-1303		●
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	1304-	●	●
185	07.427 WASHER; LK,PIN KD PREPARATORY PACK<6HF> ID=16.5	8-98011-489-0	06	1	1012-1303		●
185	07.427 WASHER; LK,PIN KD PREPARATORY PACK<6HF> ID=16.5	8-98011-489-0	06	1	1304-	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	1012-1303		●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	1304-	●	●
191	07.417 U-BOLT; FRT SPR FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=165	9-51171-075-1	04	1	1012-1303		●
191	07.417 U-BOLT; FRT SPR FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=165	9-51171-075-1	04	1	1304-1310		●
191	07.417 U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> EXC. TIRE SIZE 8.25-16<7QP> L=165	9-51171-075-1	04	1	1304-1310	●
191	07.417 U-BOLT; FRT SPR EXC. FRONT STABILIZER SHAFT<F59> L=165	9-51171-075-1	04	1	1304-1310	●
191	07.417 U-BOLT; FRT SPR FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=165	9-51171-075-1	04	1	1311-		●
191	07.417 U-BOLT; FRT SPR FRONT WIDE TREAD<7GV> TIRE SIZE 8.25-16<7QP> L=165	9-51171-075-1	04	1	1311-	●
191	07.417 U-BOLT; FRT SPR TIRE SIZE 8.25-16<7QP> EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> L=165	9-51171-075-1	04	1	1311-	●
191	07.417 U-BOLT; FRT SPR EXC. TIRE SIZE 8.25-16<7QP> L=165	9-51171-075-1	04	1	1311-	●
191	07.417 U-BOLT; FRT SPR FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> L=135	5-51171-015-4	04	1	1012-		●
191	07.417 U-BOLT; FRT SPR EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV>,FRAME STRAIGHT TYPE<7KJ> L=135	5-51171-015-4	04	1	1012-		●
193	07.417 NUT; U BOLT FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> M16	8-97360-121-0	08	1	1012-1303		●
193	07.417 NUT; U BOLT FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> M16	8-97360-121-0	08	1	1304-		●
193	07.417 NUT; U BOLT M16	8-97360-121-0	08	1	1304-	●
193	07.417 NUT; U BOLT EXC. FRONT WIDE TREAD<7GV> 06.174 M14 FLANGE	8-97360-124-0	08	1	1012-		●
197	07.427 PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	1012-1303		●
197	07.427 PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	1304-	●	●
197	07.427 PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	1012-1303		●
197	07.427 PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	1304-	●	●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 M16	0-91110-516-0	06	1	1012-1303		●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 M16	0-91110-516-0	06	1	1304-	●	●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	1012-1303		●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	1304-	●	●

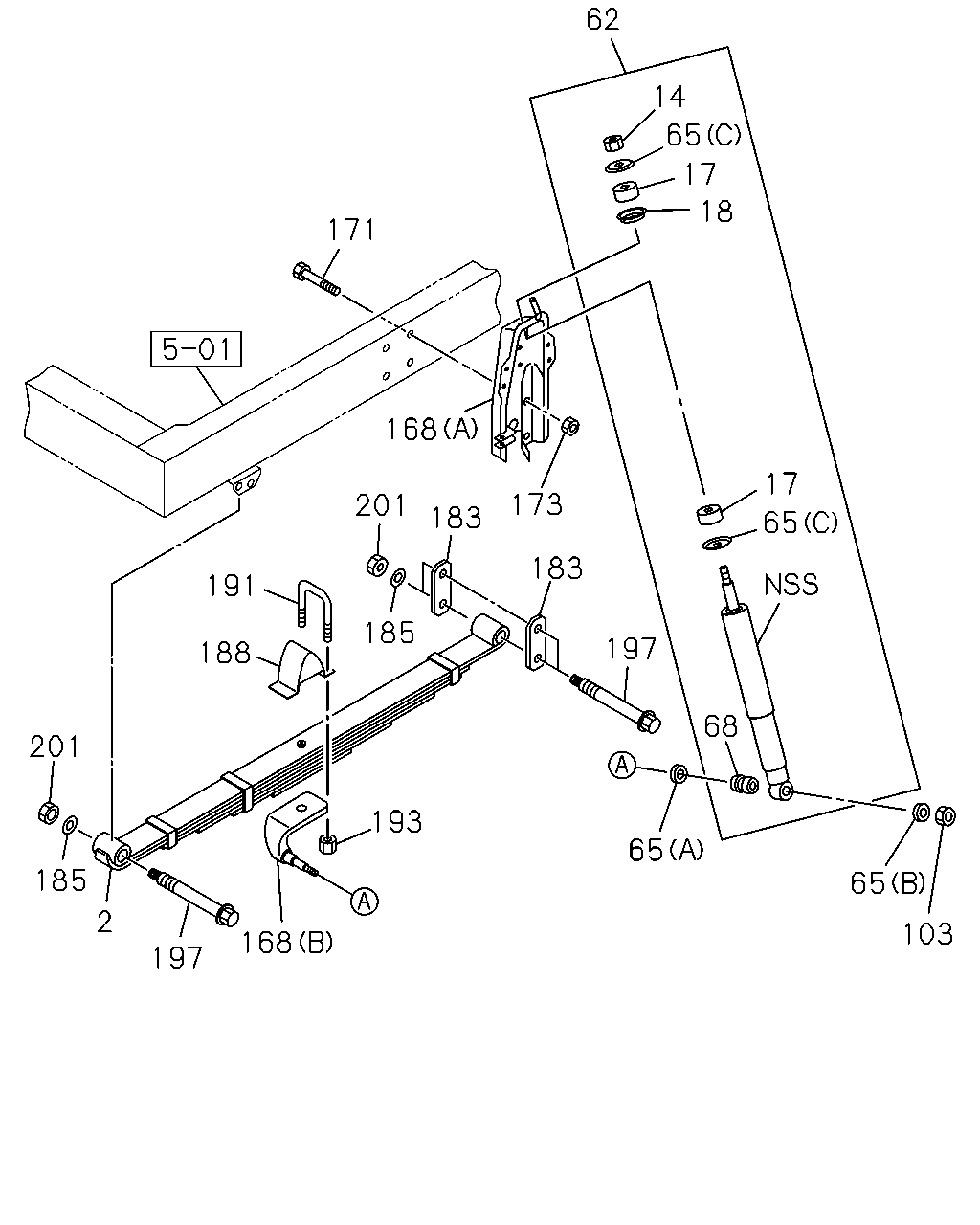

14 65 17 18 171 62 18 17 173 197 65 197 183 183 201 65 191 188 201 201 68 192 103 65 193 2 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TIRE SIZE 8.25-16<7QP> EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-537-1	01	1	1304-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TIRE SIZE 8.25-16<7QP> EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-538-1	01	1	1304-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98154-915-0	01	1	1012-1105		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98190-545-0	01	1	1106-1303		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98190-545-0	01	1	1304-1310		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> EXC. TIRE SIZE 8.25-16<7QP> 6-LEAF	8-98190-545-0	01	1	1304-1310	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98190-545-1	01	1	1311-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-545-1	01	1	1311-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98154-916-0	01	1	1012-1105		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98190-546-0	01	1	1106-1303		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98190-546-0	01	1	1304-1310		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> EXC. TIRE SIZE 8.25-16<7QP> 6-LEAF	8-98190-546-0	01	1	1304-1310	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98190-546-1	01	1	1311-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-546-1	01	1	1311-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-920-0	01	1	1012-1105		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-541-1	01	1	1106-1303		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-541-1	01	1	1304-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV>,TIRE SIZE 8.25-16<7QP> 6-LEAF	8-98190-541-1	01	1	1304-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-922-0	01	1	1012-1105		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-542-1	01	1	1106-1303		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-542-1	01	1	1304-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV>,TIRE SIZE 8.25-16<7QP> 6-LEAF	8-98190-542-1	01	1	1304-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-456-0	01	1	1012-1105		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-543-1	01	1	1106-1303		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-543-1	01	1	1304-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-543-1	01	1	1304-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-457-0	01	1	1012-1105		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-544-1	01	1	1106-1303		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-544-1	01	1	1304-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-544-1	01	1	1304-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-923-0	01	1	1012-1105		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-539-1	01	1	1106-1303		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-539-1	01	1	1304-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV>,TIRE SIZE 8.25-16<7QP> 6-LEAF	8-98190-539-1	01	1	1304-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-924-0	01	1	1012-1105		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-540-1	01	1	1106-1303		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-540-1	01	1	1304-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV>,TIRE SIZE 8.25-16<7QP> 6-LEAF	8-98190-540-1	01	1	1304-	●
14	07.389 NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	1012-	●	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	1012-	●	●
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	1012-	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT TIRE SIZE 8.25-16<7QP> EXC. FRONT WIDE TREAD<7GV>	8-98079-867-1	02	1	1304-	●
62	07.345 ABSORBER ASM; SHOCK,FRT FRONT WIDE TREAD<7GV>	8-98154-636-0	02	1	1012-1303		●
62	07.345 ABSORBER ASM; SHOCK,FRT FRONT WIDE TREAD<7GV>	8-98154-636-0	02	1	1304-	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV>	8-98080-129-1	01	1	1012-1303		●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV>	8-98080-129-1	01	1	1012-1303		●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV>,TIRE SIZE 8.25-16<7QP>	8-98080-129-1	02	1	1304-	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV> BEST VALUE PARTS	5-87610-153-0	02	1	1210-1303		●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV>,TIRE SIZE 8.25-16<7QP> BEST VALUE PARTS	5-87610-153-0	02	1	1304-	●	●
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	1012-1303		●
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	1304-	●	●
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	1012-1303		●
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	1304-	●	●
65	07.347 WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	1012-	●	●
68	07.388 BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	1012-	●	●
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	1012-1303		●
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	1304-	●	●
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	1012-1303		●
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	1304-	●	●
173	07.395 NUT; S/ABS M12	8-97360-126-0	08	1	1012-1303		●
173	07.395 NUT; S/ABS M12	8-97360-126-0	08	1	1304-	●	●
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	1012-1303		●
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	1304-	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	1012-1303		●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	1304-	●	●
191	07.417 U-BOLT; FRT SPR FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=165	9-51171-075-1	04	1	1012-1303		●
191	07.417 U-BOLT; FRT SPR FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=165	9-51171-075-1	04	1	1304-1310		●
191	07.417 U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> EXC. TIRE SIZE 8.25-16<7QP> L=165	9-51171-075-1	04	1	1304-1310	●
191	07.417 U-BOLT; FRT SPR EXC. FRONT STABILIZER SHAFT<F59> L=165	9-51171-075-1	04	1	1304-1310	●
191	07.417 U-BOLT; FRT SPR FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=165	9-51171-075-1	04	1	1311-		●
191	07.417 U-BOLT; FRT SPR FRONT WIDE TREAD<7GV> TIRE SIZE 8.25-16<7QP> L=165	9-51171-075-1	04	1	1311-	●
191	07.417 U-BOLT; FRT SPR TIRE SIZE 8.25-16<7QP> EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> L=165	9-51171-075-1	04	1	1311-	●
191	07.417 U-BOLT; FRT SPR EXC. TIRE SIZE 8.25-16<7QP> L=165	9-51171-075-1	04	1	1311-	●
191	07.417 U-BOLT; FRT SPR FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> L=135	5-51171-015-4	04	1	1012-		●
191	07.417 U-BOLT; FRT SPR EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV>,FRAME STRAIGHT TYPE<7KJ> L=135	5-51171-015-4	04	1	1012-		●
192	07.436 PIECE; DIST EXC. FRAME STRAIGHT TYPE<7KJ>	8-97093-554-1	02	1	1012-		●
193	07.417 NUT; U BOLT FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> M16	8-97360-121-0	08	1	1012-1303		●
193	07.417 NUT; U BOLT FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> M16	8-97360-121-0	08	1	1304-		●
193	07.417 NUT; U BOLT M16	8-97360-121-0	08	1	1304-	●
193	07.417 NUT; U BOLT EXC. FRONT WIDE TREAD<7GV> 06.174 M14 FLANGE	8-97360-124-0	08	1	1012-		●
197	07.427 PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	1012-1303		●
197	07.427 PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	1304-	●	●
197	07.427 PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	1012-1303		●
197	07.427 PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	1304-	●	●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 M16	0-91110-516-0	06	1	1012-1303		●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 M16	0-91110-516-0	06	1	1304-	●	●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	1012-1303		●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	1304-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
