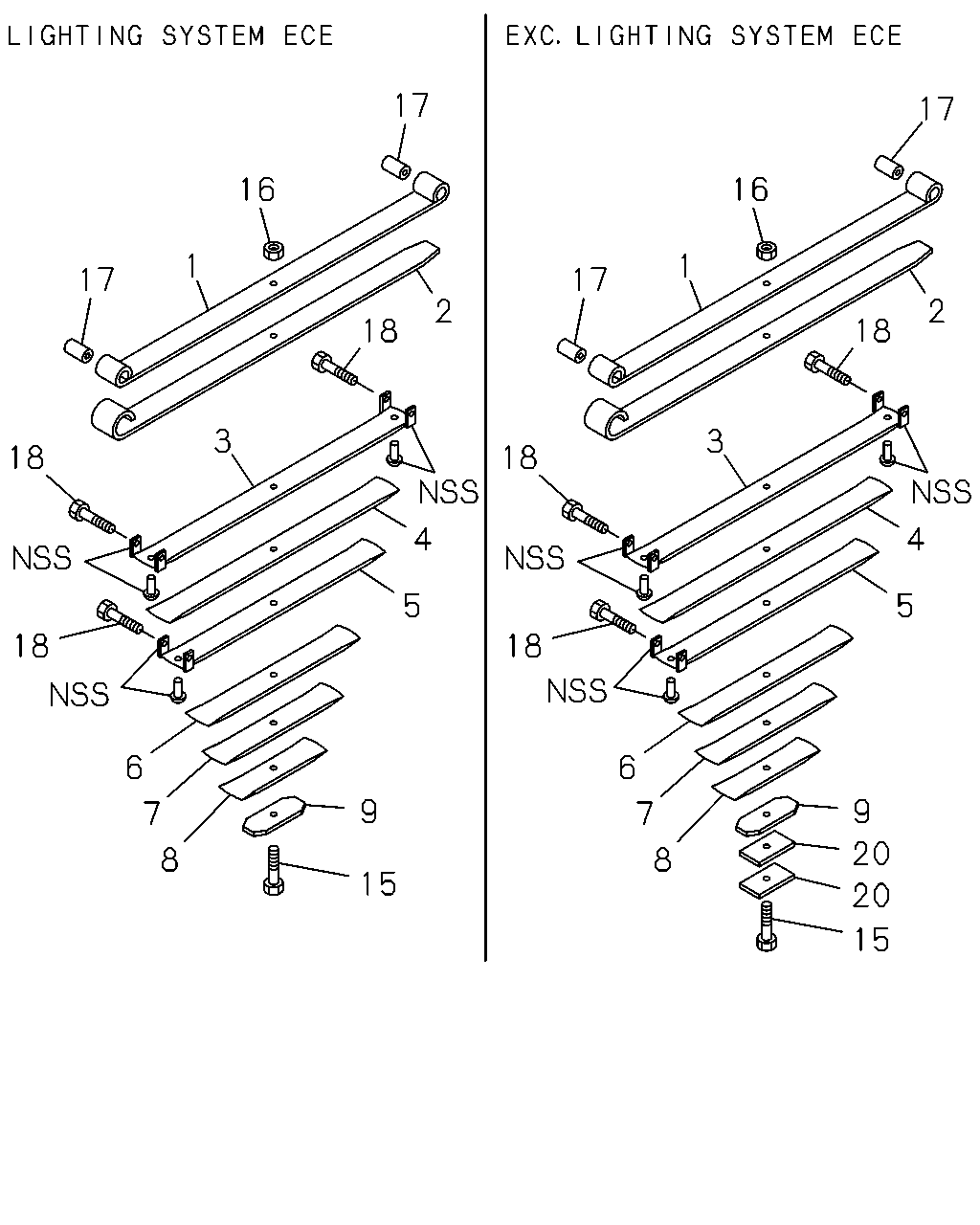

4-55 — FRONT LEAF SPRING (#5403) — 81 parça

17 17 16 16 1 1 17 17 2 2 18 18 3 3 18 18 4 4 5 5 18 18 6 6 9 9 7 7 20 8 8 15 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT 9 LEAF ASM PART: A = 1-51130-207-0	1-51131-207-0	01	1	-
1	SPRING; LEAF,NO 1,FRT 9 LEAF ASM PART: B = 1-51130-245-0, D = 1-51130-526-0	1-51131-245-0	01	1	-
1	SPRING; LEAF,NO 1,FRT 14 LEAF ASM PART: C = 1-51130-247-0	1-51131-247-0	01	1	-
2	SPRING; LEAF,NO 2,FRT 9 LEAF ASM PART: A = 1-51130-207-0	1-51132-207-0	01	1	-
2	SPRING; LEAF,NO 2,FRT 9 LEAF ASM PART: B = 1-51130-245-0, D = 1-51130-526-0	1-51132-245-0	01	1	-
2	SPRING; LEAF,NO 2,FRT 14 LEAF ASM PART: C = 1-51130-247-0	1-51132-247-0	01	1	-
3	SPRING; LEAF,NO 3,FRT 9 LEAF ASM PART: A = 1-51130-207-0	1-51133-207-0	01	1	-
3	SPRING; LEAF,NO 3,FRT 14 LEAF ASM PART: B = 1-51130-245-0, D = 1-51130-526-0	1-51133-245-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51130-247-0	1-51133-247-0	01	1	-
4	SPRING; LEAF,NO 4,FRT 9 LEAF ASM PART: A = 1-51130-207-0	1-51134-207-0	01	1	-
4	SPRING; LEAF,NO 4,FRT 9 LEAF ASM PART: B = 1-51130-245-0, D = 1-51130-526-0	1-51134-245-0	01	1	-
4	SPRING; LEAF,NO 4,FRT 14 LEAF ASM PART: C = 1-51130-247-0	1-51134-247-0	01	1	-
5	SPRING; LEAF,NO 5,FRT 9 LEAF ASM PART: A = 1-51130-207-0	1-51135-207-0	01	1	-
5	SPRING; LEAF,NO 5,FRT 14 LEAF ASM PART: B = 1-51130-245-0, D = 1-51130-526-0	1-51135-245-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 1-51130-247-0	1-51135-247-0	01	1	-
6	SPRING; LEAF,NO 6,FRT 9 LEAF ASM PART: A = 1-51130-207-0	1-51136-207-0	01	1	-
6	SPRING; LEAF,NO 6,FRT 9 LEAF ASM PART: B = 1-51130-245-0, D = 1-51130-526-0	1-51136-245-0	01	1	-
6	SPRING; LEAF,NO 6,FRT 14 LEAF ASM PART: C = 1-51130-247-0	1-51136-247-0	01	1	-
7	SPRING; LEAF,NO 7,FRT 9 LEAF ASM PART: A = 1-51130-207-0	1-51137-207-0	01	1	-
7	SPRING; LEAF,NO 7,FRT 9 LEAF ASM PART: B = 1-51130-245-0, D = 1-51130-526-0	1-51137-245-0	01	1	-
7	SPRING; LEAF,NO 7,FRT 14 LEAF ASM PART: C = 1-51130-247-0	1-51137-247-0	01	1	-
8	SPRING; LEAF,NO 8,FRT 9 LEAF ASM PART: A = 1-51130-207-0	1-51138-207-0	01	1	-
8	SPRING; LEAF,NO 8,FRT 9 LEAF ASM PART: B = 1-51130-245-0, D = 1-51130-526-0	1-51138-245-0	01	1	-
8	SPRING; LEAF,NO 8,FRT 14 LEAF ASM PART: C = 1-51130-247-0	1-51138-247-0	01	1	-
9	SPRING; LEAF,NO 9,FRT 9 LEAF ASM PART: A = 1-51130-207-0	1-51139-207-0	01	1	-
9	SPRING; LEAF,NO 9,FRT 9 LEAF ASM PART: B = 1-51130-245-0, D = 1-51130-526-0	1-51139-245-0	01	1	-
9	SPRING; LEAF,NO 9,FRT 14 LEAF ASM PART: C = 1-51130-247-0	1-51139-247-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=145 ASM PART: D = 1-51130-526-0	1-51156-355-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=160 ASM PART: A = 1-51130-207-0	1-51156-356-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=170 ASM PART: B = 1-51130-245-0	1-51156-357-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=195 ASM PART: C = 1-51130-247-0	1-51156-358-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-207-0, B = 1-51130-245-0, C = 1-51130-247-0, D = 1-51130-526-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 1-51130-207-0, B = 1-51130-245-0, C = 1-51130-247-0, D = 1-51130-526-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X97 ASM PART: A = 1-51130-207-0, B = 1-51130-245-0, D = 1-51130-526-0	1-09000-294-0	03	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: C = 1-51130-247-0	1-09000-328-0	04	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: A = 1-51130-207-0	1-51177-033-0	02	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: B = 1-51130-245-0	1-51177-069-0	02	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: C = 1-51130-247-0	1-51177-107-0	02	1	-

17 1 16 2 3 17 4 18 5 6 18 18 7 8 9 18 10 11 12 13 14 20 15 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT 9 LEAF ASM PART: A = 1-51130-207-0	1-51131-207-0	01	1	-
1	SPRING; LEAF,NO 1,FRT 9 LEAF ASM PART: B = 1-51130-245-0, D = 1-51130-526-0	1-51131-245-0	01	1	-
1	SPRING; LEAF,NO 1,FRT 14 LEAF ASM PART: C = 1-51130-247-0	1-51131-247-0	01	1	-
2	SPRING; LEAF,NO 2,FRT 9 LEAF ASM PART: A = 1-51130-207-0	1-51132-207-0	01	1	-
2	SPRING; LEAF,NO 2,FRT 9 LEAF ASM PART: B = 1-51130-245-0, D = 1-51130-526-0	1-51132-245-0	01	1	-
2	SPRING; LEAF,NO 2,FRT 14 LEAF ASM PART: C = 1-51130-247-0	1-51132-247-0	01	1	-
3	SPRING; LEAF,NO 3,FRT 9 LEAF ASM PART: A = 1-51130-207-0	1-51133-207-0	01	1	-
3	SPRING; LEAF,NO 3,FRT 14 LEAF ASM PART: B = 1-51130-245-0, D = 1-51130-526-0	1-51133-245-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51130-247-0	1-51133-247-0	01	1	-
4	SPRING; LEAF,NO 4,FRT 9 LEAF ASM PART: A = 1-51130-207-0	1-51134-207-0	01	1	-
4	SPRING; LEAF,NO 4,FRT 9 LEAF ASM PART: B = 1-51130-245-0, D = 1-51130-526-0	1-51134-245-0	01	1	-
4	SPRING; LEAF,NO 4,FRT 14 LEAF ASM PART: C = 1-51130-247-0	1-51134-247-0	01	1	-
5	SPRING; LEAF,NO 5,FRT 9 LEAF ASM PART: A = 1-51130-207-0	1-51135-207-0	01	1	-
5	SPRING; LEAF,NO 5,FRT 14 LEAF ASM PART: B = 1-51130-245-0, D = 1-51130-526-0	1-51135-245-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 1-51130-247-0	1-51135-247-0	01	1	-
6	SPRING; LEAF,NO 6,FRT 9 LEAF ASM PART: A = 1-51130-207-0	1-51136-207-0	01	1	-
6	SPRING; LEAF,NO 6,FRT 9 LEAF ASM PART: B = 1-51130-245-0, D = 1-51130-526-0	1-51136-245-0	01	1	-
6	SPRING; LEAF,NO 6,FRT 14 LEAF ASM PART: C = 1-51130-247-0	1-51136-247-0	01	1	-
7	SPRING; LEAF,NO 7,FRT 9 LEAF ASM PART: A = 1-51130-207-0	1-51137-207-0	01	1	-
7	SPRING; LEAF,NO 7,FRT 9 LEAF ASM PART: B = 1-51130-245-0, D = 1-51130-526-0	1-51137-245-0	01	1	-
7	SPRING; LEAF,NO 7,FRT 14 LEAF ASM PART: C = 1-51130-247-0	1-51137-247-0	01	1	-
8	SPRING; LEAF,NO 8,FRT 9 LEAF ASM PART: A = 1-51130-207-0	1-51138-207-0	01	1	-
8	SPRING; LEAF,NO 8,FRT 9 LEAF ASM PART: B = 1-51130-245-0, D = 1-51130-526-0	1-51138-245-0	01	1	-
8	SPRING; LEAF,NO 8,FRT 14 LEAF ASM PART: C = 1-51130-247-0	1-51138-247-0	01	1	-
9	SPRING; LEAF,NO 9,FRT 9 LEAF ASM PART: A = 1-51130-207-0	1-51139-207-0	01	1	-
9	SPRING; LEAF,NO 9,FRT 9 LEAF ASM PART: B = 1-51130-245-0, D = 1-51130-526-0	1-51139-245-0	01	1	-
9	SPRING; LEAF,NO 9,FRT 14 LEAF ASM PART: C = 1-51130-247-0	1-51139-247-0	01	1	-
10	SPRING; LEAF,NO 10,FRT 14 LEAF ASM PART: C = 1-51130-247-0	1-51141-247-0	01	1	-
11	SPRING; LEAF,NO 11,FRT 14 LEAF ASM PART: C = 1-51130-247-0	1-51142-247-0	01	1	-
12	SPRING; LEAF,NO 12,FRT 14 LEAF ASM PART: C = 1-51130-247-0	1-51143-247-0	01	1	-
13	SPRING; LEAF,NO 13,FRT 14 LEAF ASM PART: C = 1-51130-247-0	1-51144-247-0	01	1	-
14	SPRING; LEAF,NO 14,FRT 14 LEAF ASM PART: C = 1-51130-247-0	1-51145-247-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=145 ASM PART: D = 1-51130-526-0	1-51156-355-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=160 ASM PART: A = 1-51130-207-0	1-51156-356-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=170 ASM PART: B = 1-51130-245-0	1-51156-357-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=195 ASM PART: C = 1-51130-247-0	1-51156-358-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-207-0, B = 1-51130-245-0, C = 1-51130-247-0, D = 1-51130-526-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 1-51130-207-0, B = 1-51130-245-0, C = 1-51130-247-0, D = 1-51130-526-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X97 ASM PART: A = 1-51130-207-0, B = 1-51130-245-0, D = 1-51130-526-0	1-09000-294-0	03	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: C = 1-51130-247-0	1-09000-328-0	04	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: A = 1-51130-207-0	1-51177-033-0	02	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: B = 1-51130-245-0	1-51177-069-0	02	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: C = 1-51130-247-0	1-51177-107-0	02	1	-
