1 |

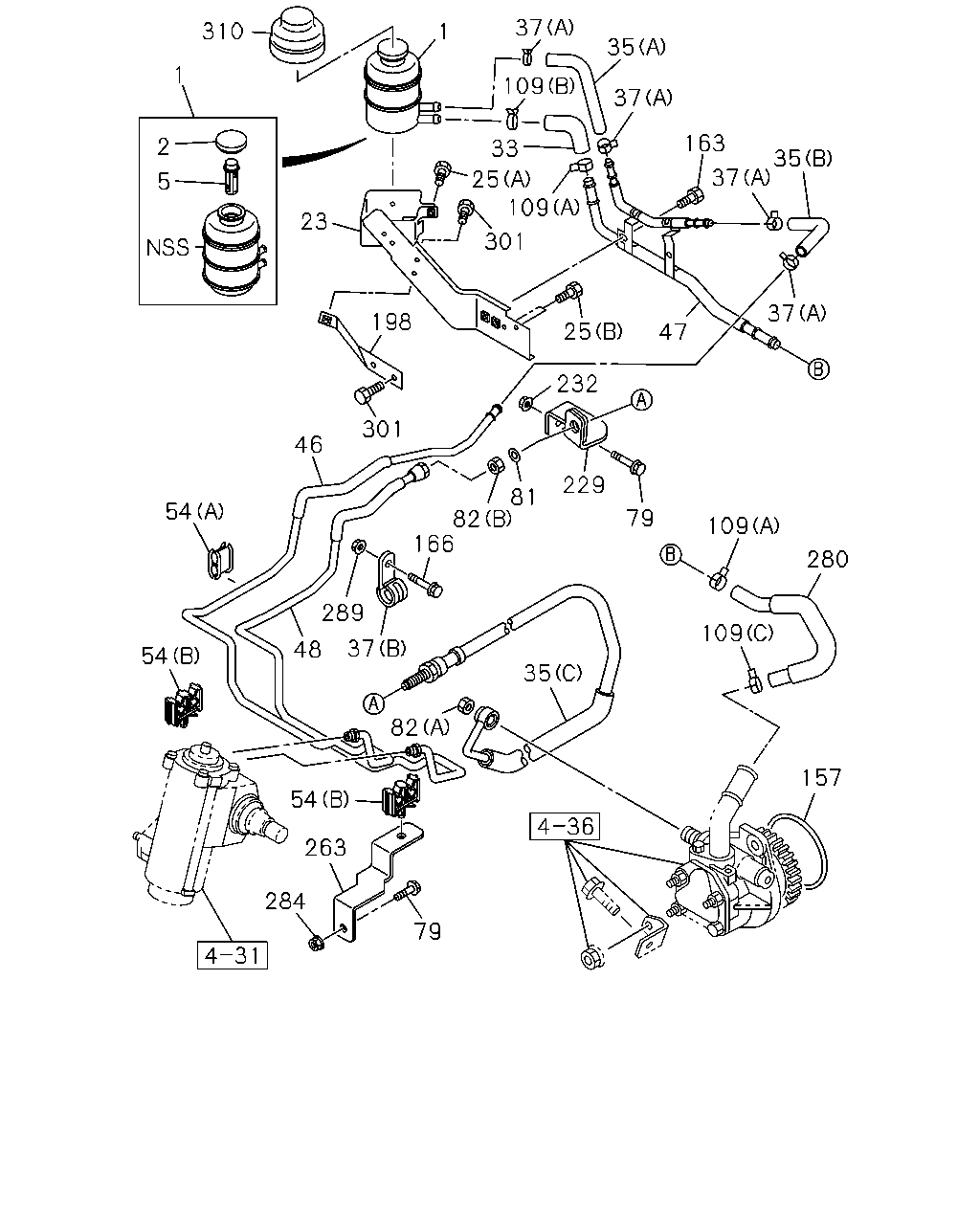

06.635 TANK ASM; OIL,P/S
|
8-97107-987-0 |
01 |
1 |
1012-1303 |
● |
|
| |
1 |
06.635 TANK ASM; OIL,P/S
|
8-97107-987-0 |
01 |
1 |
1304- |
● |
● |
| |
2 |
06.672 CAP; OIL TANK,P/S
06.635
|
8-94146-153-2 |
01 |
1 |
1012-1303 |
● |
|
| |
2 |
06.672 CAP; OIL TANK,P/S
06.635
|
8-94146-153-2 |
01 |
1 |
1304- |
● |
● |
| |
5 |
06.600 STRAINER; OIL TANK,P/S
|
8-97094-732-0 |
01 |
1 |
1012-1303 |
● |
|
| |
5 |
06.600 STRAINER; OIL TANK,P/S
|
8-97094-732-0 |
01 |
1 |
1304- |
● |
● |
| |
23 |
06.672 BRACKET; OIL TANK,P/S
|
8-98077-631-0 |
01 |
1 |
1012-1303 |
● |
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
|
8-98077-631-0 |
01 |
1 |
1304- |
● |
● |
| |
25 |
06.635 BOLT; OIL TANK BRKT
00.785
(A)
M6X20 FLANGE
|
0-28450-620-0 |
01 |
1 |
1012-1303 |
● |
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
00.785
(A)
M6X20 FLANGE
|
0-28450-620-0 |
01 |
1 |
1304- |
● |
● |
| |
25 |
06.635 BOLT; OIL TANK BRKT
06.216
(B)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1012-1303 |
● |
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
06.216
(B)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1304- |
● |
● |
| |
33 |
06.672 HOSE; RUBBER,POWER STRG
|
8-97389-811-0 |
01 |
1 |
1012-1303 |
● |
|
| |
33 |
06.672 HOSE; RUBBER,POWER STRG
|
8-97389-811-0 |
01 |
1 |
1304- |
● |
● |
| |
35 |
06.671 HOSE; RETURN,P/S TANK
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97389-832-2 |
01 |
1 |
1012-1303 |
● |
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97389-832-2 |
01 |
1 |
1304- |
● |
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
(C)
|
8-97389-832-2 |
01 |
1 |
1304- |
|
● |
| |
35 |
06.671 HOSE; RETURN,P/S TANK
(A)
|
8-97389-842-1 |
01 |
1 |
1012-1303 |
● |
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
(A)
|
8-97389-842-1 |
01 |
1 |
1304- |
● |
● |
| |
35 |
06.671 HOSE; RETURN,P/S TANK
(B)
|
8-98000-701-1 |
01 |
1 |
1012-1303 |
● |
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
(B)
|
8-98000-701-1 |
01 |
1 |
1304- |
● |
● |
| |
37 |
01.762 CLIP; HOSE,P/S
FRAME STRAIGHT TYPE<7KJ>
(B)
ID=26 L=26
|
1-09701-236-0 |
01 |
1 |
1012-1303 |
● |
|
| |
37 |
01.762 CLIP; HOSE,P/S
FRAME STRAIGHT TYPE<7KJ>
(B)
ID=26 L=26
|
1-09701-236-0 |
01 |
1 |
1304- |
● |
|
| |
37 |
01.762 CLIP; HOSE,P/S
(B)
ID=26 L=26
|
1-09701-236-0 |
01 |
1 |
1304- |
|
● |
| |
37 |
01.762 CLIP; HOSE,P/S
03.162
(A)
ID=16
|
8-98008-098-0 |
04 |
1 |
1012-1303 |
● |
|
| |
37 |
01.762 CLIP; HOSE,P/S
03.162
(A)
ID=16
|
8-98008-098-0 |
04 |
1 |
1304- |
● |
● |
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
L=2610
|
8-98135-831-0 |
01 |
1 |
1012-1303 |
● |
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
L=2610
|
8-98135-831-0 |
01 |
1 |
1304- |
● |
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
FRONT WIDE TREAD<7GV>
L=2610
|
8-98135-831-0 |
01 |
1 |
1304- |
|
● |
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT WIDE TREAD<7GV>
L=2651
|
8-98131-674-0 |
01 |
1 |
1012-1303 |
● |
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT WIDE TREAD<7GV>
L=2651
|
8-98131-674-0 |
01 |
1 |
1304- |
● |
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
EXC. FRONT WIDE TREAD<7GV>
L=2651
|
8-98131-674-0 |
01 |
1 |
1304- |
|
● |
| |
47 |
06.671 PIPE; RETURN
FRAME STRAIGHT TYPE<7KJ>
|
8-98083-166-1 |
01 |
1 |
1012-1303 |
● |
|
| |
47 |
06.671 PIPE; RETURN
FRAME STRAIGHT TYPE<7KJ>
|
8-98083-166-1 |
01 |
1 |
1304- |
● |
|
| |
47 |
06.671 PIPE; RETURN
|
8-98083-166-1 |
01 |
1 |
1304- |
|
● |
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
L=2809
|
8-98135-829-0 |
01 |
1 |
1012-1303 |
● |
|
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
L=2809
|
8-98135-829-0 |
01 |
1 |
1304- |
● |
|
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
FRONT WIDE TREAD<7GV>
L=2809
|
8-98135-829-0 |
01 |
1 |
1304- |
|
● |
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT WIDE TREAD<7GV>
L=2846
|
8-98131-673-0 |
01 |
1 |
1012-1303 |
● |
|
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT WIDE TREAD<7GV>
L=2846
|
8-98131-673-0 |
01 |
1 |
1304- |
● |
|
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
EXC. FRONT WIDE TREAD<7GV>
L=2846
|
8-98131-673-0 |
01 |
1 |
1304- |
|
● |
| |
54 |
06.672 CLIP; OIL PIPE
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=10X2 H=22
|
8-94252-455-2 |
01 |
1 |
1012-1303 |
● |
|
| |
54 |
06.672 CLIP; OIL PIPE
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=10X2 H=22
|
8-94252-455-2 |
01 |
1 |
1304- |
● |
|
| |
54 |
06.672 CLIP; OIL PIPE
(A)
ID=10X2 H=22
|
8-94252-455-2 |
01 |
1 |
1304- |
|
● |
| |
54 |
06.672 CLIP; OIL PIPE
FRAME STRAIGHT TYPE<7KJ>
04.930
(B)
ID=10X2 H=37.5
|
8-97018-546-0 |
02 |
1 |
1012-1303 |
● |
|
| |
54 |
06.672 CLIP; OIL PIPE
FRAME STRAIGHT TYPE<7KJ>
04.930
(B)
ID=10X2 H=37.5
|
8-97018-546-0 |
02 |
1 |
1012-1303 |
● |
|
| |
54 |
06.672 CLIP; OIL PIPE
FRAME STRAIGHT TYPE<7KJ>
04.930
(B)
ID=10X2 H=37.5
|
8-97018-546-0 |
02 |
1 |
1304- |
● |
|
| |
54 |
06.672 CLIP; OIL PIPE
FRAME STRAIGHT TYPE<7KJ>
04.930
(B)
ID=10X2 H=37.5
|
8-97018-546-0 |
02 |
1 |
1304- |
● |
|
| |
54 |
06.672 CLIP; OIL PIPE
04.930
(B)
ID=10X2 H=37.5
|
8-97018-546-0 |
02 |
1 |
1304- |
|
● |
| |
54 |
06.672 CLIP; OIL PIPE
04.930
(B)
ID=10X2 H=37.5
|
8-97018-546-0 |
02 |
1 |
1304- |
|
● |
| |
79 |
06.672 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
1012-1303 |
● |
|
| |
79 |
06.672 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
1304- |
● |
|
| |
79 |
06.672 BOLT; BRKT
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
1304- |
|
● |
| |
81 |
06.672 WASHER; LK,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ>
ID=16.5 TOOTH LK INT
|
0-91541-216-0 |
01 |
1 |
1012-1303 |
● |
|
| |
81 |
06.672 WASHER; LK,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ>
ID=16.5 TOOTH LK INT
|
0-91541-216-0 |
01 |
1 |
1304- |
● |
|
| |
81 |
06.672 WASHER; LK,FLEX HOSE
ID=16.5 TOOTH LK INT
|
0-91541-216-0 |
01 |
1 |
1304- |
|
● |
| |
82 |
06.672 NUT; FLEX HOSE,P/S
FRAME STRAIGHT TYPE<7KJ>
06.897
(B)
M16
|
8-94370-339-0 |
01 |
1 |
1012-1303 |
● |
|
| |
82 |
06.672 NUT; FLEX HOSE,P/S
FRAME STRAIGHT TYPE<7KJ>
06.897
(B)
M16
|
8-94370-339-0 |
01 |
1 |
1304- |
● |
|
| |
82 |
06.672 NUT; FLEX HOSE,P/S
06.897
(B)
M16
|
8-94370-339-0 |
01 |
1 |
1304- |
|
● |
| |
82 |
06.672 NUT; FLEX HOSE,P/S
FRAME STRAIGHT TYPE<7KJ>
06.606
(A)
M12 SELF LOCK
|
8-97028-390-1 |
01 |
1 |
1012-1303 |
● |
|
| |
82 |
06.672 NUT; FLEX HOSE,P/S
FRAME STRAIGHT TYPE<7KJ>
06.606
(A)
M12 SELF LOCK
|
8-97028-390-1 |
01 |
1 |
1304- |
● |
|
| |
82 |
06.672 NUT; FLEX HOSE,P/S
06.606
(A)
M12 SELF LOCK
|
8-97028-390-1 |
01 |
1 |
1304- |
|
● |
| |
109 |
06.672 CLIP; RUBBER HOSE
FRAME STRAIGHT TYPE<7KJ>
04.681
(A)
ID=21
|
8-98150-355-0 |
02 |
1 |
1012-1303 |
● |
|
| |
109 |
06.672 CLIP; RUBBER HOSE
FRAME STRAIGHT TYPE<7KJ>
04.681
(A)
ID=21
|
8-98150-355-0 |
02 |
1 |
1304- |
● |
|
| |
109 |
06.672 CLIP; RUBBER HOSE
04.681
(A)
ID=21
|
8-98150-355-0 |
02 |
1 |
1304- |
|
● |
| |
109 |
06.672 CLIP; RUBBER HOSE
03.278
(B)
ID=22
|
8-97359-141-0 |
01 |
1 |
1012-1303 |
● |
|
| |
109 |
06.672 CLIP; RUBBER HOSE
03.278
(B)
ID=22
|
8-97359-141-0 |
01 |
1 |
1304- |
● |
● |
| |
109 |
06.672 CLIP; RUBBER HOSE
04.681
(C)
ID=21
|
8-98150-355-0 |
01 |
1 |
1012-1303 |
● |
|
| |
109 |
06.672 CLIP; RUBBER HOSE
04.681
(C)
ID=21
|
8-98150-355-0 |
01 |
1 |
1304- |
● |
● |
| |
157 |
06.673 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
|
8-97101-875-2 |
01 |
1 |
1012-1303 |
● |
|
| |
157 |
06.673 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
|
8-97101-875-2 |
01 |
1 |
1304- |
● |
● |
| |
163 |
06.671 BOLT; OIL PIPE
FRAME STRAIGHT TYPE<7KJ>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1012-1303 |
● |
|
| |
163 |
06.671 BOLT; OIL PIPE
FRAME STRAIGHT TYPE<7KJ>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1304- |
● |
|
| |
163 |
06.671 BOLT; OIL PIPE
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1304- |
|
● |
| |
166 |
06.672 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
1012-1303 |
● |
|
| |
166 |
06.672 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
1304- |
● |
|
| |
166 |
06.672 BOLT; CLIP
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
1304- |
|
● |
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
|
8-97081-778-2 |
01 |
1 |
1012-1303 |
● |
|
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
|
8-97081-778-2 |
01 |
1 |
1304- |
● |
● |
| |
229 |
06.606 BRACKET; HOSE,POWER STRG
FRAME STRAIGHT TYPE<7KJ>
|
8-98079-341-0 |
01 |
1 |
1012-1303 |
● |
|
| |
229 |
06.606 BRACKET; HOSE,POWER STRG
FRAME STRAIGHT TYPE<7KJ>
|
8-98079-341-0 |
01 |
1 |
1304- |
● |
|
| |
229 |
06.606 BRACKET; HOSE,POWER STRG
|
8-98079-341-0 |
01 |
1 |
1304- |
|
● |
| |
232 |
06.672 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1012-1303 |
● |
|
| |
232 |
06.672 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1304- |
● |
|
| |
232 |
06.672 NUT; BRKT
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1304- |
|
● |
| |
263 |
06.672 BRACKET; P/S PIPE
FRAME STRAIGHT TYPE<7KJ>
|
8-98034-113-0 |
01 |
1 |
1012-1303 |
● |
|
| |
263 |
06.672 BRACKET; P/S PIPE
FRAME STRAIGHT TYPE<7KJ>
|
8-98034-113-0 |
01 |
1 |
1304- |
● |
|
| |
263 |
06.672 BRACKET; P/S PIPE
|
8-98034-113-0 |
01 |
1 |
1304- |
|
● |
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
|
8-98082-972-0 |
01 |
1 |
1304- |
|
● |
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
FRAME STRAIGHT TYPE<7KJ>
|
8-98082-973-0 |
01 |
1 |
1012- |
● |
|
| |
284 |
06.670 NUT; PIPE
FRAME STRAIGHT TYPE<7KJ>
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1012-1303 |
● |
|
| |
284 |
06.670 NUT; PIPE
FRAME STRAIGHT TYPE<7KJ>
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1304- |
● |
|
| |
284 |
06.670 NUT; PIPE
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1304- |
|
● |
| |
289 |
06.673 NUT; BRKT,POWER STRG
FRAME STRAIGHT TYPE<7KJ>
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1012-1303 |
● |
|
| |
289 |
06.673 NUT; BRKT,POWER STRG
FRAME STRAIGHT TYPE<7KJ>
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1304- |
● |
|
| |
289 |
06.673 NUT; BRKT,POWER STRG
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1304- |
|
● |
| |
301 |
06.672 BOLT; STAY,OIL TANK
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1012-1303 |
● |
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1304- |
● |
● |
| |
310 |
06.672 COVER; OIL TANK
|
8-97103-394-0 |
01 |
1 |
1012- |
● |
|
