4-30 — STEERING WHEEL AND COWL (#54026) — 23 parça

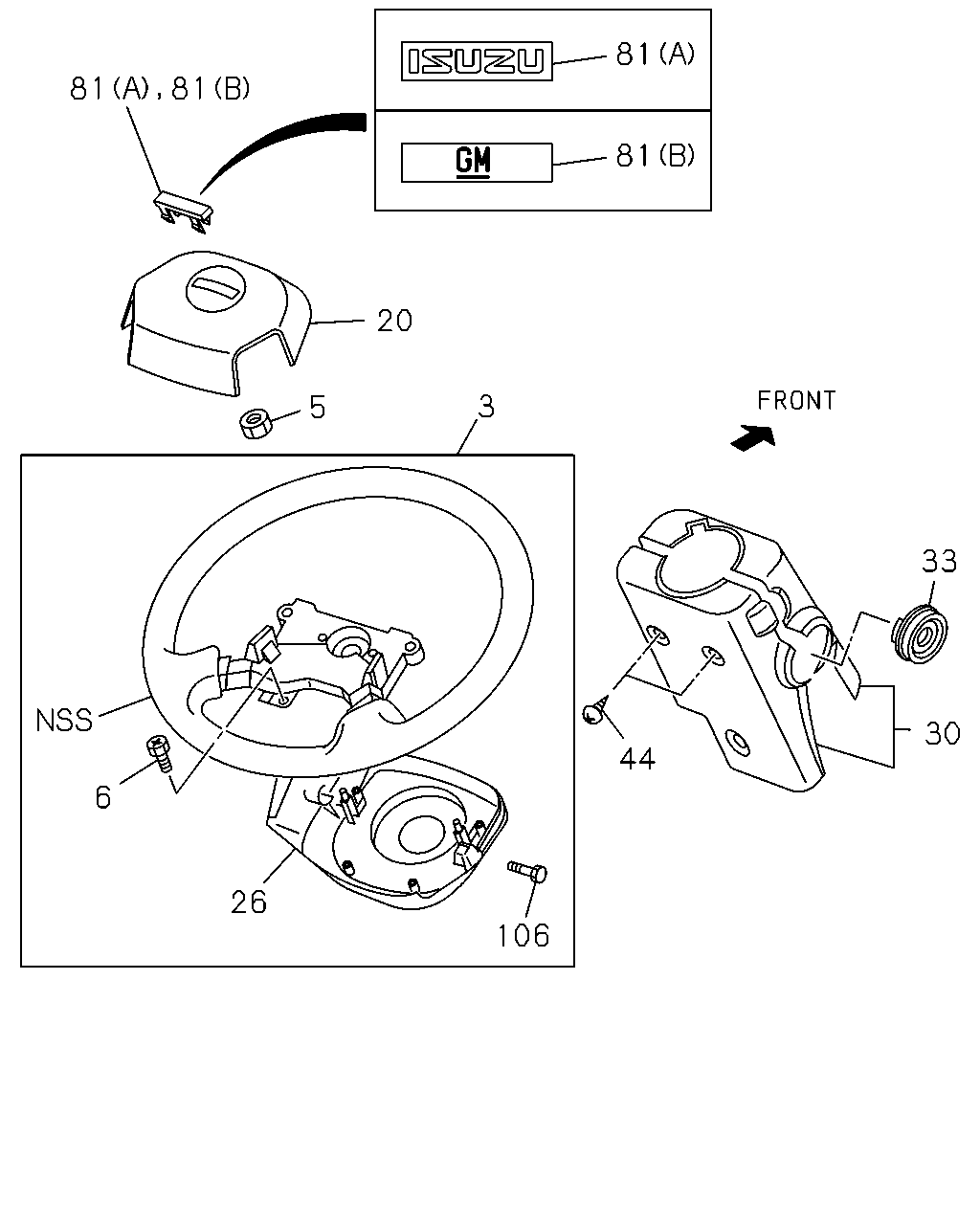

çizim 175021
81 81 20 3 5 6 26 106 44 30 33 81 81
BalonParca AdiParca NoAdetTipApplied Date A B
3 06.513 WHEEL; STRG
DARK GRAY 		8-97412-556-1 01 1 1012-1303 ●
3 06.513 WHEEL; STRG
DARK GRAY 		8-97412-556-1 01 1 1304- ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1012-1303 ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1304- ● ●
6 02.820 SCREW; HORN SPR CONTACT
M4X12 		8-97167-588-0 04 1 1012-1303 ●
6 02.820 SCREW; HORN SPR CONTACT
M4X12 		8-97167-588-0 04 1 1304- ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97405-985-1 01 1 1012-1303 ●
20 06.512 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97405-985-1 01 1 1304- ● ●
26 06.514 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97409-275-2 01 1 1012-1303 ●
26 06.514 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97409-275-2 01 1 1304- ● ●
30 06.518 COWL; STEERING
DARK GRAY 		8-97405-356-5 01 1 1012-1110 ●
30 06.518 COWL; STEERING
DARK GRAY 		8-97418-761-1 01 1 1111-1303 ●
30 06.518 COWL; STEERING
DARK GRAY 		8-97418-761-1 01 1 1304- ● ●
33 06.518 COVER; STRG COWL
DARK GRAY 		8-97409-495-0 01 1 1012-1303 ●
33 06.518 COVER; STRG COWL
DARK GRAY 		8-97409-495-0 01 1 1304- ● ●
44 06.514 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1012-1303 ●
44 06.514 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1304- ● ●
81 02.820 EMBLEM; STRG WHEEL
ISUZU BRAND<7WL> (A) DARK GRAY 		8-97405-986-0 01 1 1012-1303 ●
81 02.820 EMBLEM; STRG WHEEL
ISUZU BRAND<7WL> (A) DARK GRAY 		8-97405-986-0 01 1 1304- ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. ISUZU BRAND<7WL> (B) DARK GRAY 		8-97405-987-0 01 1 1012-1303 ●
81 02.820 EMBLEM; STRG WHEEL
EXC. ISUZU BRAND<7WL> (B) DARK GRAY 		8-97405-987-0 01 1 1304- ● ●
106 05.453 BOLT; TORX 8-98231-397-0 02 1 1012-1303 ●
106 05.453 BOLT; TORX 8-98231-397-0 02 1 1304- ● ●
