◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51292 - NPR/NQR BUS CHA(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#54025) — 116 parça

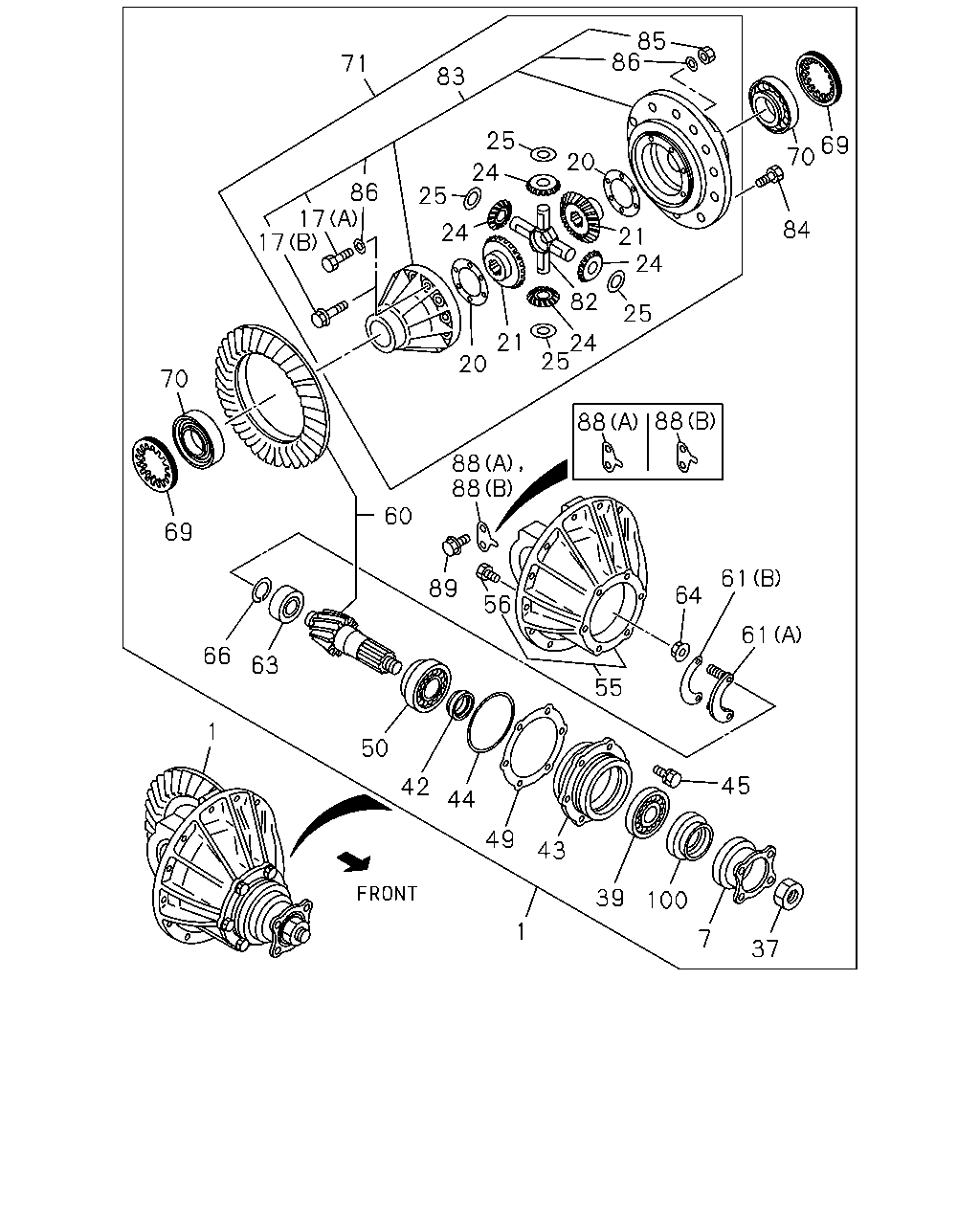

çizim 175047
69 70 84 85 86 83 71 20 21 25 24 82 25 24 25 24 25 21 20 24 86 17 17 70 69 88 88 88 89 88 60 63 66 1 61 61 64 55 56 45 37 7 100 39 1 43 49 44 42 50
BalonParca AdiParca NoAdetTipApplied Date A B
1 05.505 DRIVE ASM; FINAL,RR
41/8 		8-97388-704-0 01 1 1304- ●
1 05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/9(S2J) 43/9 		8-97388-703-0 01 1 1012- ●
1 05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 39/7(GV1) 39/7 		8-97388-710-0 01 1 1012- ●
1 05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/7(R41) 41/7 		8-97388-711-0 01 1 1012- ●
1 05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/7(R42) 43/7 		8-97388-712-0 01 1 1012- ●
7 05.545 FLANGE; FINAL
FINAL GEAR RATIO 43/9(S2J) 		8-97047-095-2 01 1 1012-1303 ●
7 05.545 FLANGE; FINAL
FINAL GEAR RATIO 43/9(S2J) 		8-97047-095-2 01 1 1304- ●
7 05.545 FLANGE; FINAL 8-97047-095-2 01 1 1304- ●
7 05.545 FLANGE; FINAL
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) 		8-97073-802-2 01 1 1012- ●
17 05.510 BOLT; DIFF CAGE SETTING
(A) M12X90 		8-97047-295-0 12 1 1012-1208 ●
17 05.510 BOLT; DIFF CAGE SETTING
(B) M12X90 		8-98219-448-0 12 1 1209-1303 ●
17 05.510 BOLT; DIFF CAGE SETTING
(B) M12X90 		8-98219-448-0 12 1 1304- ● ●
20 05.543 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-073-0 AR 1 1012-1303 ●
20 05.543 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-073-0 AR 1 1304- ● ●
20 05.543 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-074-0 AR 1 1012-1303 ●
20 05.543 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-074-0 AR 1 1304- ● ●
20 05.543 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-075-0 AR 1 1012-1303 ●
20 05.543 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-075-0 AR 1 1304- ● ●
20 05.543 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-076-0 AR 1 1012-1303 ●
20 05.543 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-076-0 AR 1 1304- ● ●
20 05.543 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-077-0 AR 1 1012-1303 ●
20 05.543 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-077-0 AR 1 1304- ● ●
20 05.543 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-078-0 AR 1 1012-1303 ●
20 05.543 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-078-0 AR 1 1304- ● ●
20 05.543 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-079-0 AR 1 1012-1303 ●
20 05.543 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-079-0 AR 1 1304- ● ●
21 05.528 GEAR; SIDE,DIFF
Z=16 		8-98165-935-0 02 1 1012-1303 ●
21 05.528 GEAR; SIDE,DIFF
Z=16 		8-98165-935-0 02 1 1304- ● ●
24 05.526 GEAR; PINION,DIFF
Z=10 		1-41551-050-0 04 1 1012-1303 ●
24 05.526 GEAR; PINION,DIFF
Z=10 		1-41551-050-0 04 1 1304- ● ●
25 05.528 WASHER; THRUST,PINION 1-41552-020-0 04 1 1012-1303 ●
25 05.528 WASHER; THRUST,PINION 1-41552-020-0 04 1 1304- ● ●
37 05.595 NUT; DRIVING PINION
M30 FLANGE 		8-97047-146-0 01 1 1012-1303 ●
37 05.595 NUT; DRIVING PINION
M30 FLANGE 		8-97047-146-0 01 1 1304- ● ●
39 05.484 BEARING; FINAL PINION
JTEKT 		5-09812-062-1 01 1 1012-1303 ●
39 05.484 BEARING; FINAL PINION
JTEKT 		5-09812-062-1 01 1 1304- ● ●
39 05.484 BEARING; FINAL PINION
NSK 		5-09812-063-0 01 1 1012-1303 ●
39 05.484 BEARING; FINAL PINION
NSK 		5-09812-063-0 01 1 1304- ● ●
42 05.453 COLLAR; DIST,COLLAPSIBLE 8-97047-097-0 01 1 1012-1303 ●
42 05.453 COLLAR; DIST,COLLAPSIBLE 8-97047-097-0 01 1 1304- ● ●
43 05.453 CAGE; FINAL PINION 8-97047-098-0 01 1 1012-1303 ●
43 05.453 CAGE; FINAL PINION 8-97047-098-0 01 1 1304- ● ●
44 05.476 GASKET; PINION CAGE 8-97048-053-0 01 1 1012-1303 ●
44 05.476 GASKET; PINION CAGE 8-97048-053-0 01 1 1304- ● ●
45 05.453 BOLT; FINAL PINION CAGE
16.545 M12X40 W/LK WASHER 		0-50571-240-0 06 1 1012-1209 ●
45 05.453 BOLT; FINAL PINION CAGE
M12X40 W/LK WASHER 		8-98220-227-0 06 1 1210-1303 ●
45 05.453 BOLT; FINAL PINION CAGE
M12X40 W/LK WASHER 		8-98220-227-0 06 1 1304- ● ●
49 05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.12 		8-97047-298-0 AR 1 1012-1303 ●
49 05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.12 		8-97047-298-0 AR 1 1304- ● ●
49 05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.15 		8-97047-299-0 AR 1 1012-1303 ●
49 05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.15 		8-97047-299-0 AR 1 1304- ● ●
49 05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.20 		8-97047-300-0 AR 1 1012-1303 ●
49 05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.20 		8-97047-300-0 AR 1 1304- ● ●
49 05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.25 		8-97048-418-0 AR 1 1012-1303 ●
49 05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.25 		8-97048-418-0 AR 1 1304- ● ●
49 05.458 SHIM; FINAL PINION CAGE
05.528 ID=142 T=0.50 		8-97048-419-0 AR 1 1012-1303 ●
49 05.458 SHIM; FINAL PINION CAGE
05.528 ID=142 T=0.50 		8-97048-419-0 AR 1 1304- ● ●
50 05.447 BEARING; FINAL PINION
05.484 NSK 		1-09812-041-2 01 1 1012-1303 ●
50 05.447 BEARING; FINAL PINION
05.484 NSK 		1-09812-041-2 01 1 1304- ● ●
50 05.447 BEARING; FINAL PINION
JTEKT 		1-09812-042-1 01 1 1012-1303 ●
50 05.447 BEARING; FINAL PINION
JTEKT 		1-09812-042-1 01 1 1304- ● ●
55 05.505 CARRIER; DIFF 8-97094-637-0 01 1 1012-1303 ●
55 05.505 CARRIER; DIFF 8-97094-637-0 01 1 1304- ● ●
56 05.506 BOLT; BRG CAP
M14X95 FLANGE 		1-09070-027-0 04 1 1012-1303 ●
56 05.506 BOLT; BRG CAP
M14X95 FLANGE 		1-09070-027-0 04 1 1304- ● ●
60 05.529 GEAR SET; FINAL DRIVE,RR
41/8 		8-97174-099-0 01 1 1304-1505 ●
60 05.529 GEAR SET; FINAL DRIVE,RR
41/8 		8-98092-137-0 01 1 1506- ●
60 05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/9(S2J) 43/9 		8-97061-850-0 01 1 1012-1505 ●
60 05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/9(S2J) 43/9 		8-98092-146-0 01 1 1506- ●
60 05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 39/7(GV1) 39/7 		8-97121-593-1 01 1 1012- ●
60 05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/7(R41) 41/7 		8-97083-126-0 01 1 1012- ●
60 05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/7(R42) 43/7 		8-97092-946-0 01 1 1012- ●
61 05.476 RETAINER; PILOT BRG,PINION
(A) W/STUD 		8-97047-149-0 01 1 1012-1303 ●
61 05.476 RETAINER; PILOT BRG,PINION
(A) W/STUD 		8-97047-149-0 01 1 1304- ● ●
61 05.476 RETAINER; PILOT BRG,PINION
(B) 		8-97047-150-0 01 1 1012-1303 ●
61 05.476 RETAINER; PILOT BRG,PINION
(B) 		8-97047-150-0 01 1 1304- ● ●
63 05.447 BEARING; PINION PILOT
NSK 		8-97047-296-0 01 1 1012-1303 ●
63 05.447 BEARING; PINION PILOT
NSK 		8-97047-296-0 01 1 1304- ● ●
63 05.447 BEARING; PINION PILOT
JTEKT 		8-97047-928-0 01 1 1012-1303 ●
63 05.447 BEARING; PINION PILOT
JTEKT 		8-97047-928-0 01 1 1304- ● ●
64 05.476 NUT; RET
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012-1303 ●
64 05.476 NUT; RET
01.062 M6 FLANGE 		0-91180-106-0 02 1 1304- ● ●
66 05.476 RING; SNAP,PILOT BRG 8-97047-297-0 01 1 1012-1303 ●
66 05.476 RING; SNAP,PILOT BRG 8-97047-297-0 01 1 1304- ● ●
69 05.506 NUT; ADJ,DIFF CAGE
M115 H=20 		1-41121-039-0 02 1 1012-1303 ●
69 05.506 NUT; ADJ,DIFF CAGE
M115 H=20 		1-41121-039-0 02 1 1304- ● ●
70 05.536 BEARING; DIFF CAGE
JTEKT ID=66.7 OD=113 T=30 		9-00093-130-0 02 1 1012-1303 ●
70 05.536 BEARING; DIFF CAGE
JTEKT ID=66.7 OD=113 T=30 		9-00093-130-0 02 1 1304- ● ●
71 05.510 CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 43/9(S2J) 		8-97047-099-4 01 1 1012- ●
71 05.510 CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) 		8-97047-100-3 01 1 1012-1303 ●
71 05.510 CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) 		8-97047-100-4 01 1 1304- ●
71 05.510 CAGE ASM; DIFF,FINAL DRIVE 8-97047-100-4 01 1 1304- ●
82 05.517 SPIDER; DIFF PINION 1-41521-062-0 01 1 1012-1303 ●
82 05.517 SPIDER; DIFF PINION 1-41521-062-0 01 1 1304-1309 ● ●
82 05.517 SPIDER; DIFF PINION
05.520 		1-41521-035-2 01 1 1310- ● ●
83 05.510 CAGE ASM; DIFF
FINAL GEAR RATIO 43/9(S2J) 		8-97047-101-2 01 1 1012-1208 ●
83 05.510 CAGE ASM; DIFF
FINAL GEAR RATIO 43/9(S2J) 		8-98219-705-0 01 1 1209- ●
83 05.510 CAGE ASM; DIFF
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) 		8-97047-117-2 01 1 1012-1208 ●
83 05.510 CAGE ASM; DIFF
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) 		8-98219-707-0 01 1 1209-1303 ●
83 05.510 CAGE ASM; DIFF
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) 		8-98219-707-0 01 1 1304- ●
83 05.510 CAGE ASM; DIFF 8-98219-707-0 01 1 1304- ●
84 05.531 BOLT; FINAL DRIVE GEAR
M16X30 		8-97047-147-0 12 1 1012-1303 ●
84 05.531 BOLT; FINAL DRIVE GEAR
M16X30 		8-97047-147-0 12 1 1304- ● ●
85 05.510 NUT; DIFF CAGE SETTING
M12 		8-97065-214-0 12 1 1012-1303 ●
85 05.510 NUT; DIFF CAGE SETTING
M12 		8-97065-214-0 12 1 1304- ● ●
86 05.510 WASHER; PL,DIFF CAGE SETTING
ID=12.5 OD=22 T=2 		8-97047-294-0 24 1 1012-1208 ●
86 05.510 WASHER; PL,DIFF CAGE SETTING
ID=12.5 OD=22 T=2 		8-97047-294-0 12 1 1209-1303 ●
86 05.510 WASHER; PL,DIFF CAGE SETTING
ID=12.5 OD=22 T=2 		8-97047-294-0 12 1 1304- ● ●
88 05.506 PLATE; LK,ADJ NUT
(B) T=2.3 		8-97087-821-0 AR 1 1012-1303 ●
88 05.506 PLATE; LK,ADJ NUT
(B) T=2.3 		8-97087-821-0 AR 1 1304- ● ●
88 05.506 PLATE; LK,ADJ NUT
(A) T=2.3 		9-41124-015-0 AR 1 1012-1303 ●
88 05.506 PLATE; LK,ADJ NUT
(A) T=2.3 		9-41124-015-0 AR 1 1304- ● ●
89 05.506 BOLT; LK PLATE
02.343 M8X16 FLANGE 		0-28050-816-0 04 1 1012-1303 ●
89 05.506 BOLT; LK PLATE
02.343 M8X16 FLANGE 		0-28050-816-0 04 1 1304- ● ●
100 05.469 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-1 01 1 1012-1303 ●
100 05.469 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-1 01 1 1304- ● ●
