Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#54020) — 377 parça

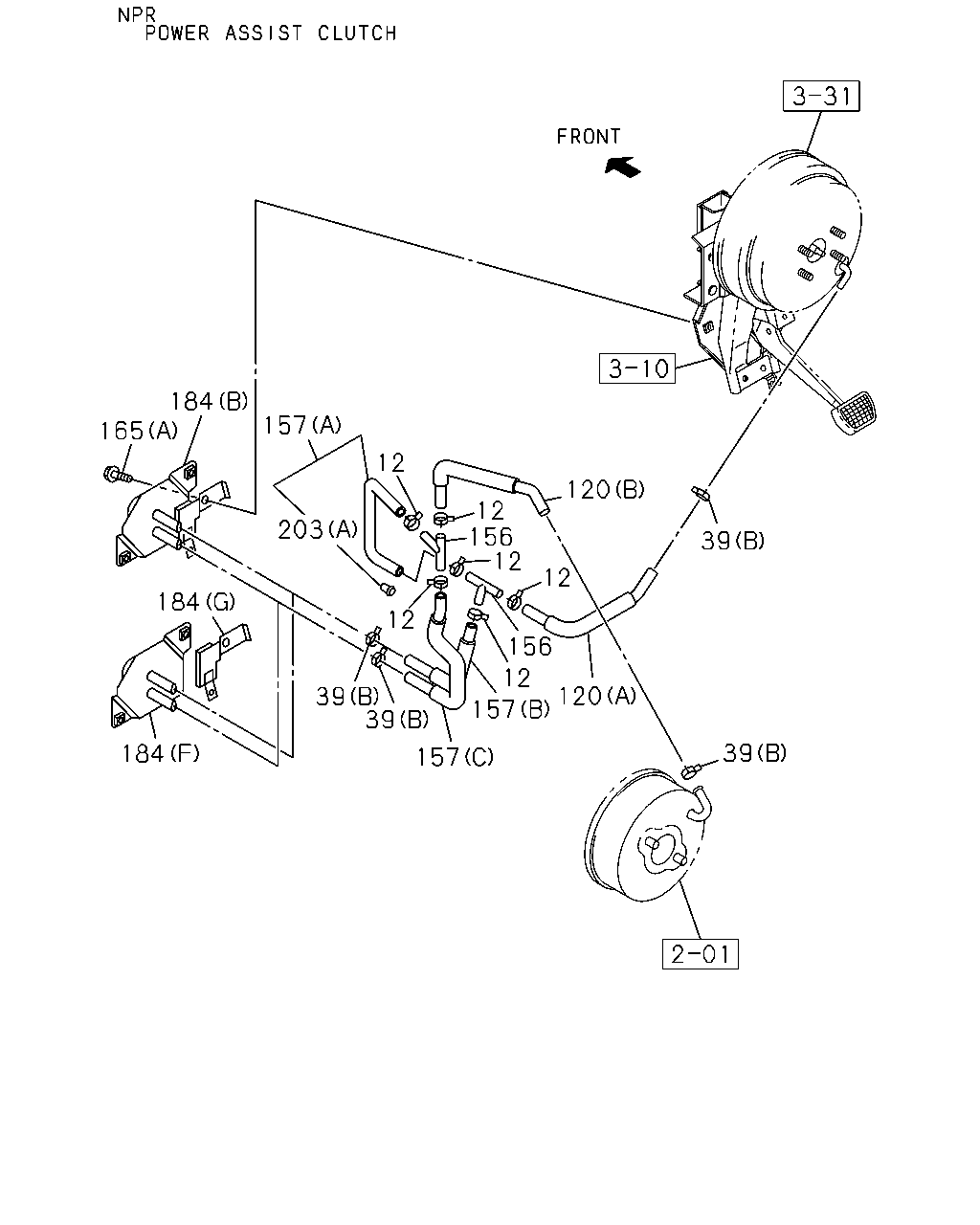

120 12 165 184 108 39 184 184 157 12 245 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	06	1	1012-	●
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	1012-1303	●
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	1304-	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1304-		●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1304-		●
39	04.681 CLIP; HOSE,VAC (D) ID=11-17	8-98173-762-1	06	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-1303	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-		●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-1205	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-1303	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1304-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (C) ID=16	8-97329-628-0	02	1	1304-		●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-1303	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-		●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (B)	9-09956-353-0	01	1	1304-		●
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8> 02.343 (A) ID=17	8-94128-319-2	01	1	1012-1303	●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 02.343 (A) ID=17	8-94128-319-2	01	1	1012-1303	●
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8> 02.343 (A) ID=17	8-94128-319-2	01	1	1304-	●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 02.343 (A) ID=17	8-94128-319-2	01	1	1304-	●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) 02.343 (A) ID=17	8-94128-319-2	01	1	1304-		●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) 02.343 (A) ID=17	8-94128-319-2	01	1	1304-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (A)	8-98060-856-2	01	1	1012-	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98060-857-2	01	1	1012-1303	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98060-857-3	01	1	1304-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98060-858-1	01	1	1012-	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98060-859-2	01	1	1012-	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-1	01	1	1012-1303	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-2	01	1	1304-	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1012-1303	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1304-	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-1303	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1304-	●	●
184	04.685 BRACKET; UNION FIX (G)	8-98255-541-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX (D)	8-98183-471-1	01	1	1304-1311		●
184	04.685 BRACKET; UNION FIX (H)	8-98255-538-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	01	1	1012-1012	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1101-1311	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (F)	8-98255-536-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	1012-1204	●
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-1303	●
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1304-	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98150-760-0	01	1	1012-1012	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98183-466-1	01	1	1101-1311	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98255-537-0	01	1	1312-	●
245	04.931 JOINT; 2 WAY POWER ASSIST CLUTCH(S2T) 04.681	8-98048-075-0	01	1	1304-		●

39 120 39 120 157 157 39 39 184 184 165 184 157 12 203 12 12 156 156 12 12 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	06	1	1012-	●
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	1012-1303	●
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	1304-	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1304-		●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1304-		●
39	04.681 CLIP; HOSE,VAC (D) ID=11-17	8-98173-762-1	06	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-1303	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-		●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-1205	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-1303	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1304-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (C) ID=16	8-97329-628-0	02	1	1304-		●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-1303	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (A)	8-98060-856-2	01	1	1012-	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98060-857-2	01	1	1012-1303	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98060-857-3	01	1	1304-	●	●
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 04.681	8-98035-106-0	02	1	1012-	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98060-858-1	01	1	1012-	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98060-859-2	01	1	1012-	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-1	01	1	1012-1303	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-2	01	1	1304-	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1012-1303	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1304-	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-1303	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1304-	●	●
184	04.685 BRACKET; UNION FIX (G)	8-98255-541-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX (D)	8-98183-471-1	01	1	1304-1311		●
184	04.685 BRACKET; UNION FIX (H)	8-98255-538-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	01	1	1012-1012	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1101-1311	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (F)	8-98255-536-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	1012-1204	●
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-1303	●
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1304-	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98150-760-0	01	1	1012-1012	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98183-466-1	01	1	1101-1311	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98255-537-0	01	1	1312-	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1012-1303	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1304-	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1012-	●

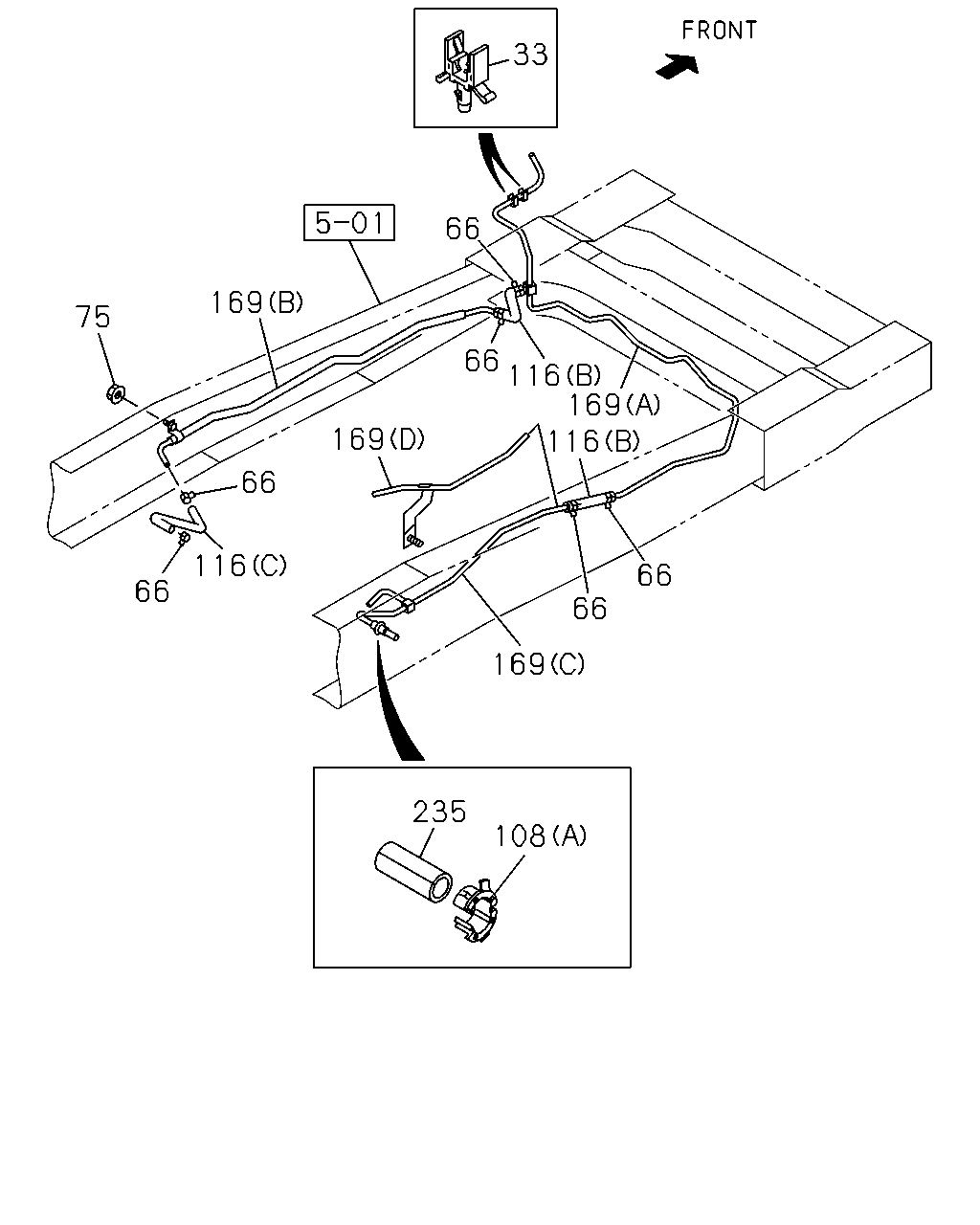

108 235 169 66 66 116 169 116 66 66 33 169 75 66 169 116 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	04.930 CLIP; VAC PIPE ID=10 H=40	8-94462-219-0	02	1	1012-1303	●
33	04.930 CLIP; VAC PIPE ID=10 H=40	8-94462-219-0	02	1	1304-	●
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) ID=10 H=40	8-94462-219-0	02	1	1304-		●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1012-1303	●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1304-	●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ) 03.162 ID=16	8-98008-098-0	06	1	1304-		●
66	04.930 CLIP; VAC HOSE,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1012-	●
66	04.930 CLIP; VAC HOSE,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	04	1	1012-	●
75	04.930 NUT; CLIP,VAC HOSE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1303	●
75	04.930 NUT; CLIP,VAC HOSE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1304-	●
75	04.930 NUT; CLIP,VAC HOSE 01.062 M8 FLANGE	0-91180-108-0	01	1	1304-		●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (B)	9-09956-353-0	01	1	1304-		●
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8> 02.343 (A) ID=17	8-94128-319-2	01	1	1012-1303	●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 02.343 (A) ID=17	8-94128-319-2	01	1	1012-1303	●
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8> 02.343 (A) ID=17	8-94128-319-2	01	1	1304-	●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 02.343 (A) ID=17	8-94128-319-2	01	1	1304-	●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) 02.343 (A) ID=17	8-94128-319-2	01	1	1304-		●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) 02.343 (A) ID=17	8-94128-319-2	01	1	1304-		●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1303	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1303	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98158-378-0	01	1	1012-1303	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98158-378-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (C)	8-98158-378-0	01	1	1304-		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98100-244-1	01	1	1012-1104	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98189-220-0	01	1	1105-	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (C)	8-98130-735-0	01	1	1012-1104	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (C)	8-98189-219-0	01	1	1105-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	1012-1303	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	1304-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-001-0	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (A)	8-98048-901-0	01	1	1304-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-052-2	01	1	1012-1303	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-052-2	01	1	1304-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) (B)	8-98041-052-2	01	1	1304-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98048-903-0	01	1	1012-1303	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98048-903-0	01	1	1304-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) (C)	8-98048-903-0	01	1	1304-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-067-0	01	1	1012-1303	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-067-0	01	1	1304-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) (A)	8-98092-067-0	01	1	1304-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98100-234-2	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98122-739-1	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98132-683-1	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (D)	8-98118-156-2	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (A)	8-98130-319-0	01	1	1012-	●
235	04.931 RUBBER; SUPPORT,PIPE EXHAUST BRAKE<NF8> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-1303	●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-1303	●
235	04.931 RUBBER; SUPPORT,PIPE EXHAUST BRAKE<NF8> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1304-	●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1304-	●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1304-		●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1304-		●

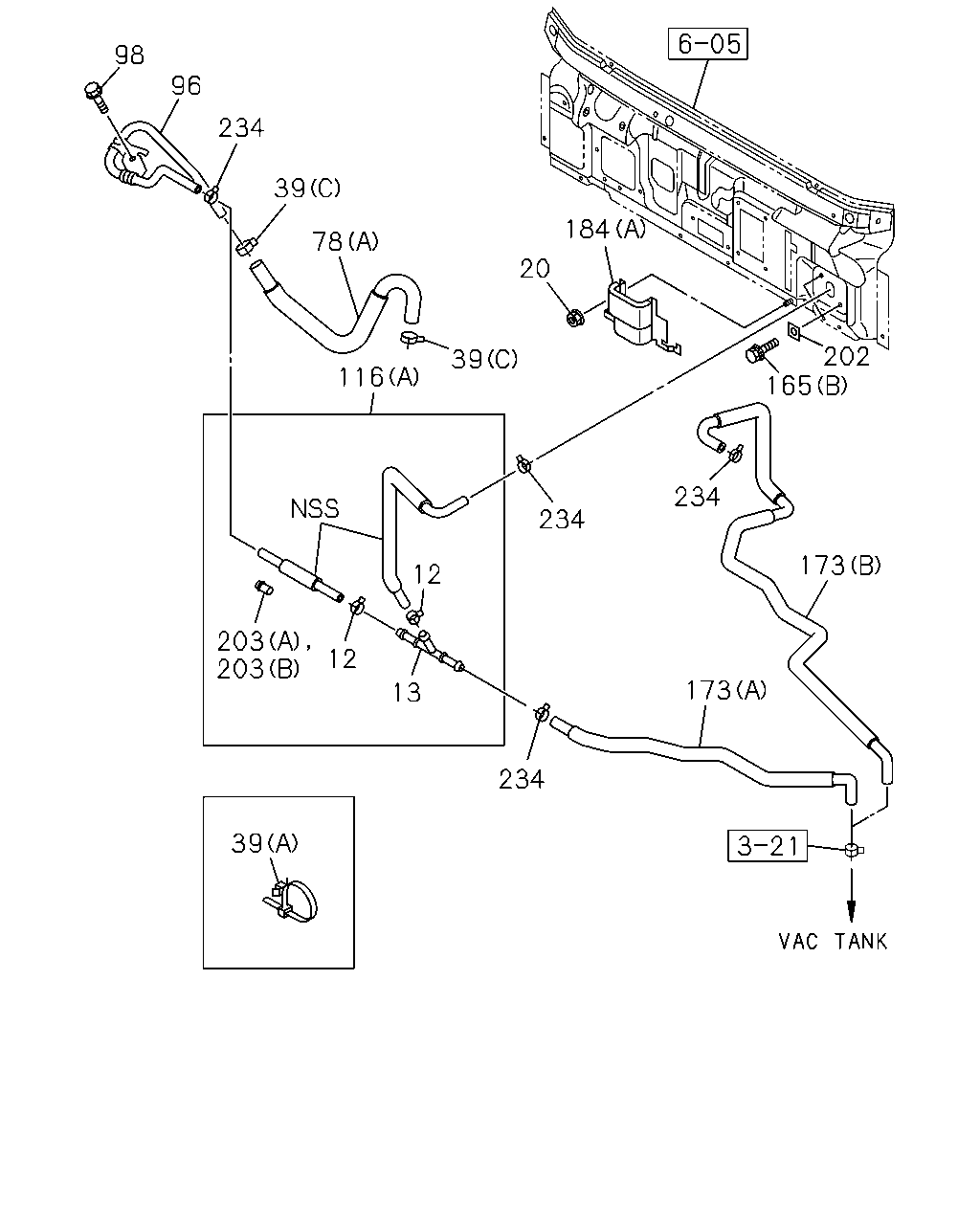

13 12 39 203 203 12 234 173 173 234 234 116 39 78 39 234 96 98 20 184 202 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	06	1	1012-	●
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	1012-1303	●
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	1304-	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1304-		●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1304-		●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	01	1	1012-1303	●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	01	1	1304-	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1304-		●
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-1303	●
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	1304-	●	●
39	04.681 CLIP; HOSE,VAC (D) ID=11-17	8-98173-762-1	06	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-1303	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-		●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-1205	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-1303	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1304-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (C) ID=16	8-97329-628-0	02	1	1304-		●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-1303	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98136-614-0	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98057-462-0	01	1	1012-1303	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98057-462-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (B)	8-98057-462-0	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98171-287-0	01	1	1012-1303	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98171-287-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (D)	8-98171-287-0	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98112-680-0	01	1	1012-1303	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98112-680-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (C)	8-98112-680-0	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98034-104-4	01	1	1012-1103	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98189-106-0	01	1	1104-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98133-654-1	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98081-681-2	01	1	1012-1303	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98081-681-2	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98081-681-2	01	1	1304-		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98082-321-0	01	1	1304-		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98082-322-0	01	1	1012-	●
98	04.931 BOLT; VAC PIPE FIX 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-		●
98	04.931 BOLT; VAC PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-1303	●
98	04.931 BOLT; VAC PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1304-	●	●
98	04.931 BOLT; VAC PIPE FIX POWER ASSIST CLUTCH(S2T) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1304-		●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1303	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1303	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98158-378-0	01	1	1012-1303	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98158-378-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (C)	8-98158-378-0	01	1	1304-		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98100-244-1	01	1	1012-1104	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98189-220-0	01	1	1105-	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (C)	8-98130-735-0	01	1	1012-1104	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (C)	8-98189-219-0	01	1	1105-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	1012-1303	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	1304-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-001-0	01	1	1012-	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1012-1303	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1304-	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-1303	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1304-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98047-184-2	01	1	1012-	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98031-774-1	01	1	1012-	●
184	04.685 BRACKET; UNION FIX (G)	8-98255-541-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX (D)	8-98183-471-1	01	1	1304-1311		●
184	04.685 BRACKET; UNION FIX (H)	8-98255-538-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	01	1	1012-1012	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1101-1311	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (F)	8-98255-536-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	1012-1204	●
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-1303	●
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1304-	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98150-760-0	01	1	1012-1012	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98183-466-1	01	1	1101-1311	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98255-537-0	01	1	1312-	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1012-1303	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1304-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1012-1303	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1304-	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1012-	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1012-	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1012-1303	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1304-	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1304-		●

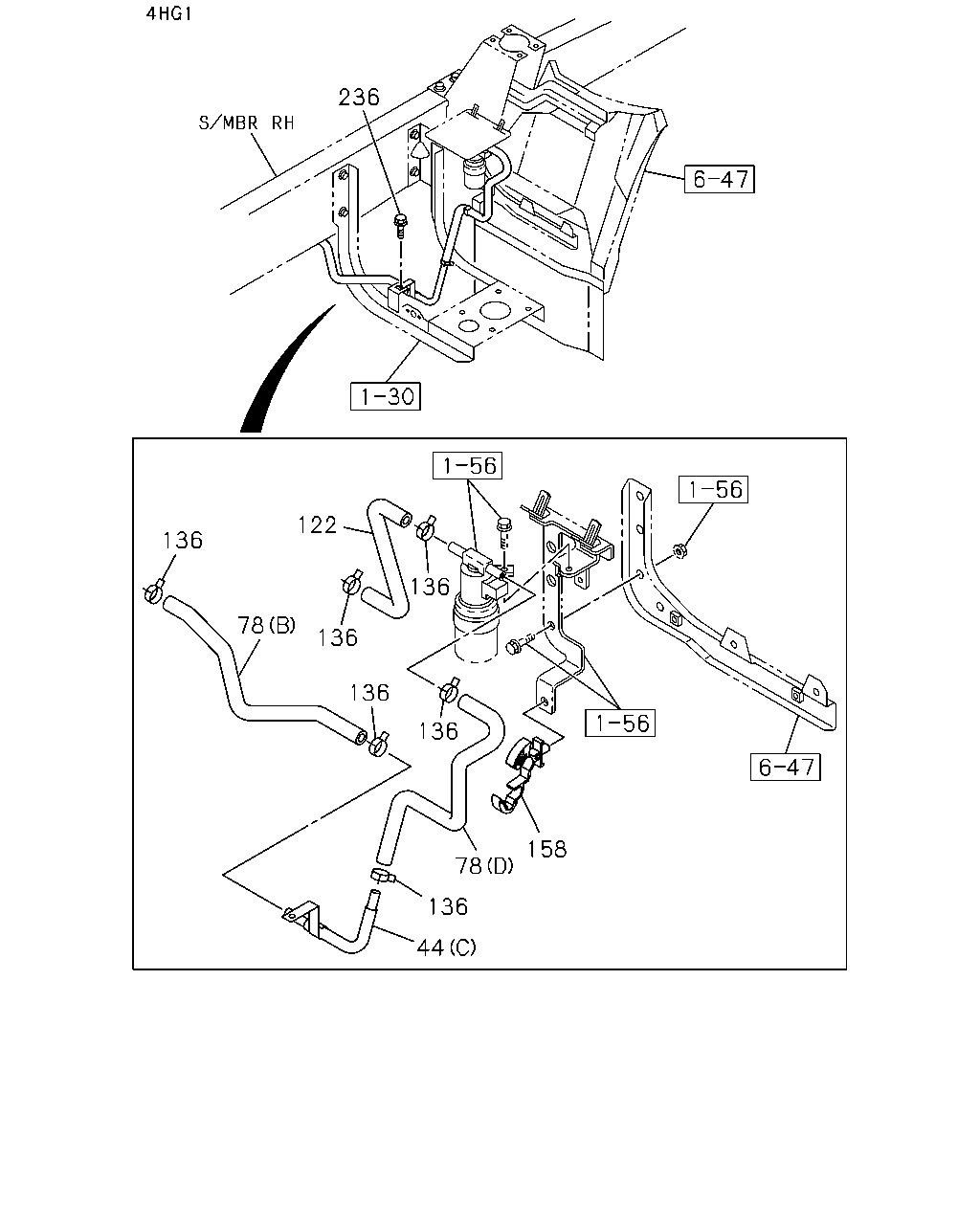

136 78 136 44 136 78 136 44 136 236 158 78 136 136 136 122 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98057-425-1	01	1	1012-1303	●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98057-425-1	01	1	1304-	●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) (B)	8-98057-425-1	01	1	1304-		●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98070-194-0	01	1	1012-1303	●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98070-194-0	01	1	1304-	●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) (A)	8-98070-194-0	01	1	1304-		●
44	04.930 PIPE; VAC,MAG VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98034-281-1	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98136-614-0	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98057-462-0	01	1	1012-1303	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98057-462-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (B)	8-98057-462-0	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98171-287-0	01	1	1012-1303	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98171-287-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (D)	8-98171-287-0	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98112-680-0	01	1	1012-1303	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98112-680-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (C)	8-98112-680-0	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98034-104-4	01	1	1012-1103	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98189-106-0	01	1	1104-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98133-654-1	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98081-681-2	01	1	1012-1303	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98081-681-2	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98081-681-2	01	1	1304-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ>	8-98034-103-2	01	1	1012-1103	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ>	8-98189-104-0	01	1	1104-1303	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ>	8-98189-104-0	01	1	1304-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HK1-TCN ENG(RDQ)	8-98189-104-0	01	1	1304-		●
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1012-1303	●
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1304-	●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) 03.162 ID=16	8-98008-098-0	06	1	1304-		●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1012-1303	●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1304-	●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) 03.162 ID=16	8-98008-098-0	02	1	1304-		●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 02.559 ID=14-20	8-97061-603-0	01	1	1012-1303	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 02.559 ID=14-20	8-97061-603-0	01	1	1304-	●
158	04.681 CLIP; HOSE 02.559 ID=14-20	8-97061-603-0	01	1	1304-		●
235	04.931 RUBBER; SUPPORT,PIPE EXHAUST BRAKE<NF8> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-1303	●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-1303	●
235	04.931 RUBBER; SUPPORT,PIPE EXHAUST BRAKE<NF8> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1304-	●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1304-	●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1304-		●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1304-		●
236	04.930 BOLT; PIPE EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1303	●
236	04.930 BOLT; PIPE EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-	●
236	04.930 BOLT; PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-		●

165 184 184 184 162 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC (D) ID=11-17	8-98173-762-1	06	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-1303	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-		●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-1205	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-1303	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1304-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (C) ID=16	8-97329-628-0	02	1	1304-		●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-1303	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-		●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98034-154-2	01	1	1012-	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1012-1303	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1304-	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-1303	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1304-	●	●
184	04.685 BRACKET; UNION FIX (G)	8-98255-541-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX (D)	8-98183-471-1	01	1	1304-1311		●
184	04.685 BRACKET; UNION FIX (H)	8-98255-538-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	01	1	1012-1012	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1101-1311	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (F)	8-98255-536-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	1012-1204	●
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-1303	●
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1304-	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98150-760-0	01	1	1012-1012	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98183-466-1	01	1	1101-1311	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98255-537-0	01	1	1312-	●

44 136 78 158 136 136 136 78 136 122 136 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98057-425-1	01	1	1012-1303	●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98057-425-1	01	1	1304-	●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) (B)	8-98057-425-1	01	1	1304-		●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98070-194-0	01	1	1012-1303	●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98070-194-0	01	1	1304-	●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) (A)	8-98070-194-0	01	1	1304-		●
44	04.930 PIPE; VAC,MAG VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98034-281-1	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98136-614-0	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98057-462-0	01	1	1012-1303	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98057-462-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (B)	8-98057-462-0	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98171-287-0	01	1	1012-1303	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98171-287-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (D)	8-98171-287-0	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98112-680-0	01	1	1012-1303	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98112-680-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (C)	8-98112-680-0	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98034-104-4	01	1	1012-1103	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98189-106-0	01	1	1104-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98133-654-1	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98081-681-2	01	1	1012-1303	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98081-681-2	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98081-681-2	01	1	1304-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ>	8-98034-103-2	01	1	1012-1103	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ>	8-98189-104-0	01	1	1104-1303	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ>	8-98189-104-0	01	1	1304-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HK1-TCN ENG(RDQ)	8-98189-104-0	01	1	1304-		●
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1012-1303	●
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1304-	●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) 03.162 ID=16	8-98008-098-0	06	1	1304-		●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1012-1303	●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1304-	●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) 03.162 ID=16	8-98008-098-0	02	1	1304-		●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 02.559 ID=14-20	8-97061-603-0	01	1	1012-1303	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 02.559 ID=14-20	8-97061-603-0	01	1	1304-	●
158	04.681 CLIP; HOSE 02.559 ID=14-20	8-97061-603-0	01	1	1304-		●
236	04.930 BOLT; PIPE EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1303	●
236	04.930 BOLT; PIPE EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-	●
236	04.930 BOLT; PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-		●

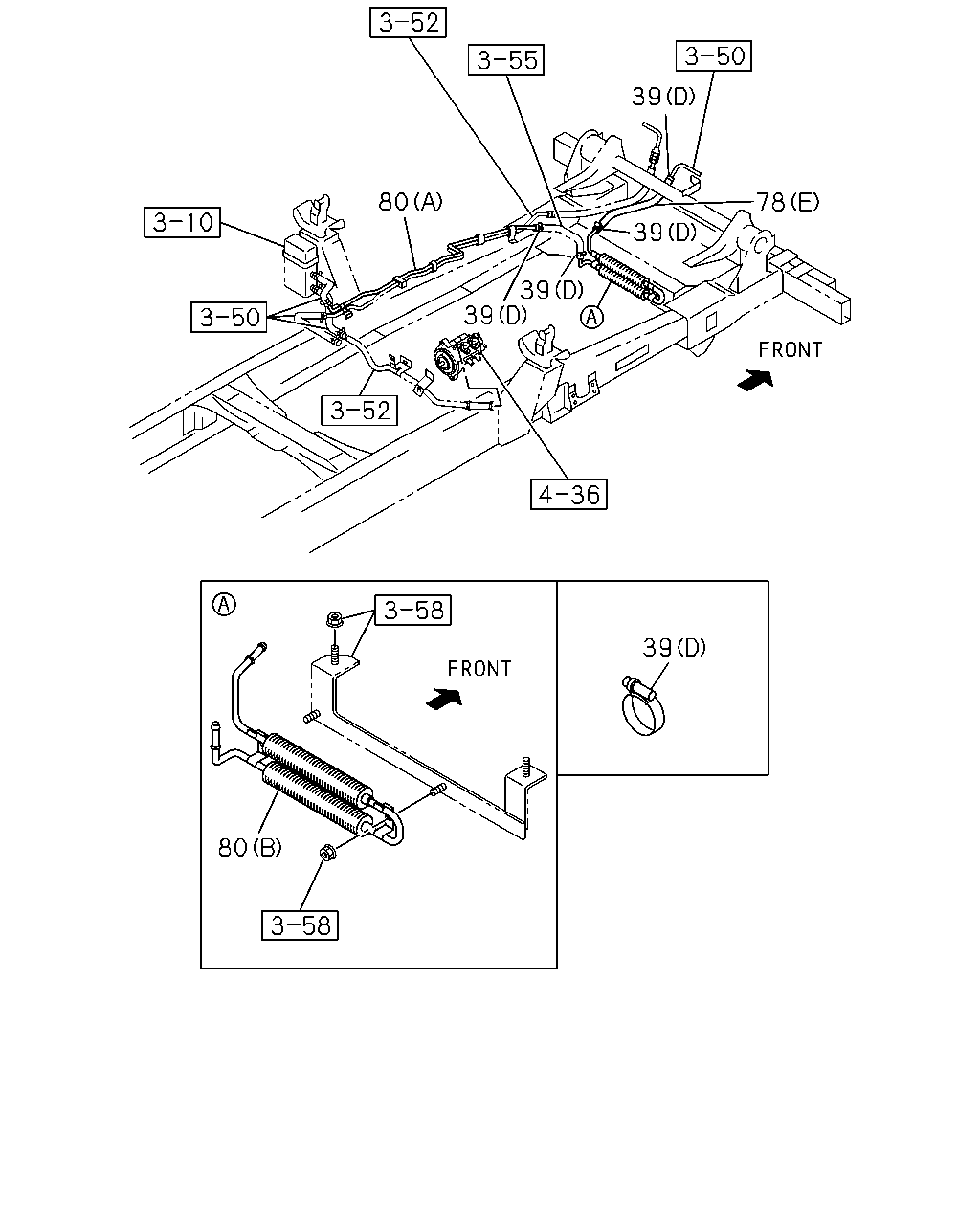

39 80 78 39 39 39 39 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC (D) ID=11-17	8-98173-762-1	06	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-1303	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-		●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-1205	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-1303	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1304-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (C) ID=16	8-97329-628-0	02	1	1304-		●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-1303	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98136-614-0	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98057-462-0	01	1	1012-1303	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98057-462-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (B)	8-98057-462-0	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98171-287-0	01	1	1012-1303	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98171-287-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (D)	8-98171-287-0	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98112-680-0	01	1	1012-1303	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98112-680-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (C)	8-98112-680-0	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98034-104-4	01	1	1012-1103	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98189-106-0	01	1	1104-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98133-654-1	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98081-681-2	01	1	1012-1303	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98081-681-2	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98081-681-2	01	1	1304-		●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98039-753-0	01	1	1304-		●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98097-788-0	01	1	1304-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
