4-50 — FRONT SUSPENSION (#5402) — 206 parça

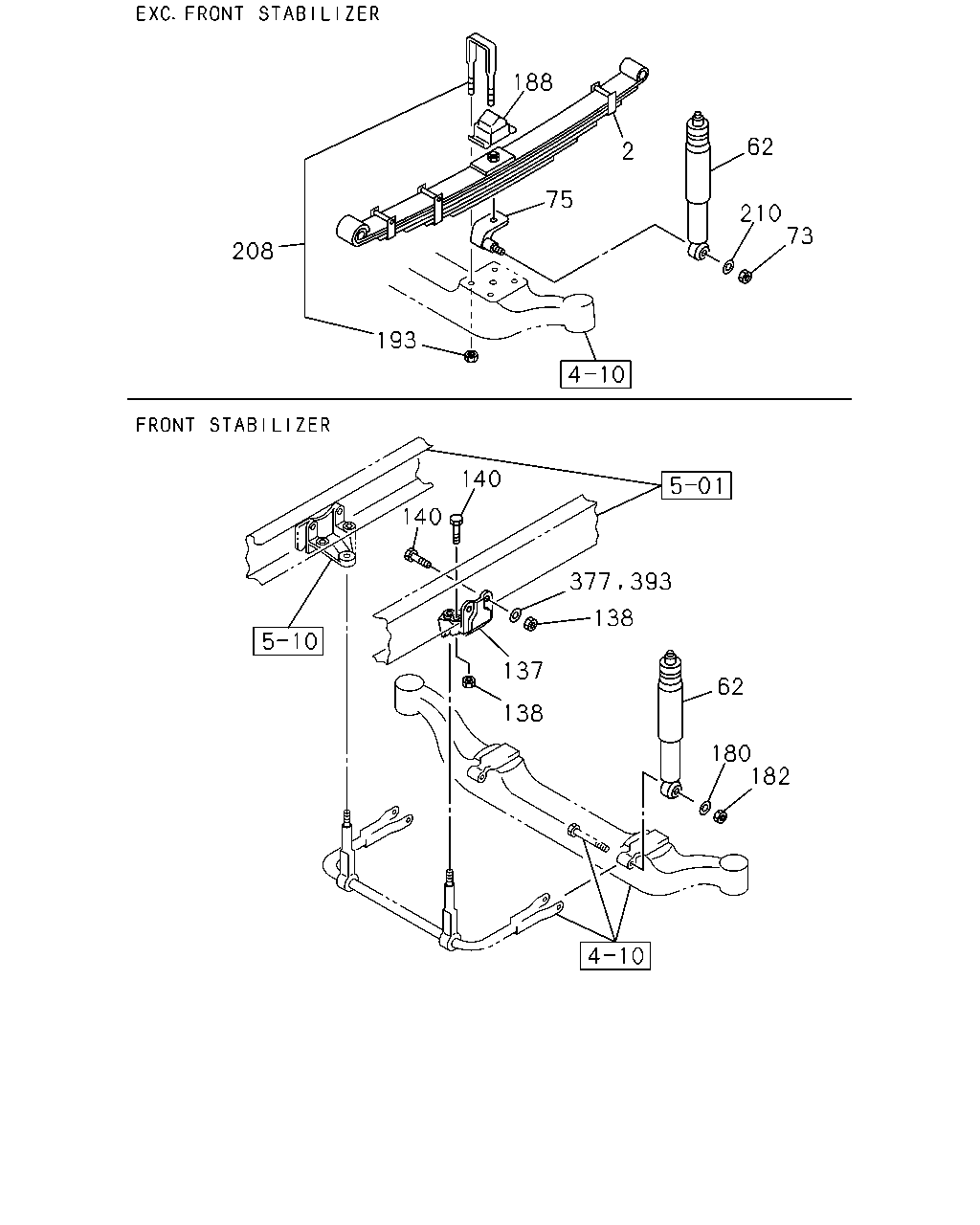

çizim 39801
188 62 2 75 210 73 208 193 140 140 138 137 62 138 180 182 377 393
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) 9 LEAF 		1-51130-245-0 02 1 9603-9705 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. CHINA EQUIPMENT(YT2) 9 LEAF 		1-51130-245-0 02 1 9603-9705 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) 9 LEAF 		1-51130-245-0 02 1 9706-9901 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. LIGHTING SYSTEM ECE<SLC>,CHINA EQUIPMENT(YT2) 9 LEAF 		1-51130-245-0 02 1 9706-9901 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 9 LEAF 		1-51130-245-0 02 1 9902-9904 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) 9 LEAF 		1-51130-245-0 02 1 9902-9904 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) EXC. CHINA EQUIPMENT(YT2) 9 LEAF 		1-51130-245-0 02 1 9905- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. LIGHTING SYSTEM ECE<SLC>,CHINA EQUIPMENT(YT2) 9 LEAF 		1-51130-245-0 02 1 9905- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 9 LEAF 		1-51130-207-0 02 1 9603-9901 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 9 LEAF 		1-51130-207-0 02 1 9902-9904 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 9 LEAF 		1-51130-207-0 02 1 9902-9904 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 9 LEAF 		1-51130-207-0 02 1 9905- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 9 LEAF 		1-51130-207-0 02 1 9905- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. LIGHTING SYSTEM ECE<SLC> EXC. CHINA EQUIPMENT(YT2) 9 LEAF 		1-51130-526-0 02 1 9706-9901 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. LIGHTING SYSTEM ECE<SLC> EXC. CHINA EQUIPMENT(YT2) 9 LEAF 		1-51130-526-0 02 1 9905- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. CHINA EQUIPMENT(YT2) 14 LEAF 		1-51130-247-0 02 1 9603-9901 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. CHINA EQUIPMENT(YT2) EXC. LIGHTING SYSTEM ECE<SLC> 14 LEAF 		1-51130-247-0 02 1 9905- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 9603-9901 ●
62 ABSORBER ASM; SHOCK,FRT
EXC. CHINA EQUIPMENT(YT2) 		1-51630-417-0 02 1 9603-9901 ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 9902-9904 ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 9905- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. CHINA EQUIPMENT(YT2) 		1-51630-417-0 02 1 9905- ● ●
62 ABSORBER ASM; SHOCK,FRT
CHINA EQUIPMENT(YT2) 		1-51630-512-0 02 1 9603-9901 ● ●
62 ABSORBER ASM; SHOCK,FRT
CHINA EQUIPMENT(YT2) 		1-51630-512-0 02 1 9905- ● ●
73 NUT; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> M20 		9-99110-420-0 02 1 9603-9901 ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9603-9901 ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9902-9904 ● ●
73 NUT; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> M20 		9-99110-420-0 02 1 9905- ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9905- ● ●
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-598-1 01 1 9603-9901 ●
75 BRACKET; FRT S/ABS 1-51681-598-1 01 1 9603-9901 ● ●
75 BRACKET; FRT S/ABS 1-51681-598-1 01 1 9902-9904 ● ●
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-598-2 01 1 9905-0002 ●
75 BRACKET; FRT S/ABS 1-51681-598-2 01 1 9905-0002 ● ●
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-826-1 01 1 0003- ●
75 BRACKET; FRT S/ABS 1-51681-826-1 01 1 0003- ● ●
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-597-1 01 1 9603-9901 ●
75 BRACKET; FRT S/ABS 1-51681-597-1 01 1 9603-9901 ● ●
75 BRACKET; FRT S/ABS 1-51681-597-1 01 1 9902-9904 ● ●
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-597-2 01 1 9905-0002 ●
75 BRACKET; FRT S/ABS 1-51681-597-2 01 1 9905-0002 ● ●
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-825-1 01 1 0003- ●
75 BRACKET; FRT S/ABS 1-51681-825-1 01 1 0003- ● ●
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-112-0 01 1 9603-9901 ●
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-112-0 01 1 9905- ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M14 		9-99110-514-0 02 1 9603-9901 ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M14 		9-99110-514-0 02 1 9905- ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M14X50 		9-92061-450-0 04 1 9603-9901 ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M14X50 		9-92061-450-0 04 1 9905- ●
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 02 1 9603-9901 ●
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 02 1 9905- ●
182 NUT; S/ABS LWR
FRONT STABILIZER SHAFT<F59> M20 		9-99110-420-0 02 1 9603-9901 ●
182 NUT; S/ABS LWR
FRONT STABILIZER SHAFT<F59> M20 		9-99110-420-0 02 1 9905- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-086-0 02 1 9603-9901 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. CHINA EQUIPMENT(YT2) 		1-51172-086-0 02 1 9603-9901 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51172-086-0 02 1 9902-9904 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-086-0 02 1 9902-9904 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-086-0 02 1 9905- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. CHINA EQUIPMENT(YT2) 		1-51172-086-0 02 1 9905- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-081-0 02 1 9603-9901 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
CHINA EQUIPMENT(YT2) 		1-51172-081-0 02 1 9603-9901 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-081-0 02 1 9902-9904 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-081-0 02 1 9905- ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
CHINA EQUIPMENT(YT2) 		1-51172-081-0 02 1 9905- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9603-9901 ● ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9902-9904 ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9905- ● ● ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-1 04 1 9603-9705 ●
208 U-BOLT SET; FRT SPRING
EXC. CHINA EQUIPMENT(YT2) L=230 		1-87870-269-1 04 1 9603-9705 ● ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-1 04 1 9706-9901 ●
208 U-BOLT SET; FRT SPRING
EXC. LIGHTING SYSTEM ECE<SLC>,CHINA EQUIPMENT(YT2) L=230 		1-87870-269-1 04 1 9706-9901 ● ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-1 04 1 9902-9904 ● ●
208 U-BOLT SET; FRT SPRING
EXC. LIGHTING SYSTEM ECE<SLC>,CHINA EQUIPMENT(YT2) L=230 		1-87870-269-1 04 1 9905- ● ● ●
208 U-BOLT SET; FRT SPRING
LIGHTING SYSTEM ECE<SLC> EXC. CHINA EQUIPMENT(YT2) L=210 		1-87870-380-0 04 1 9706-9901 ●
208 U-BOLT SET; FRT SPRING
LIGHTING SYSTEM ECE<SLC> EXC. CHINA EQUIPMENT(YT2) L=210 		1-87870-380-0 04 1 9905- ●
208 U-BOLT SET; FRT SPRING
CHINA EQUIPMENT(YT2) L=270 		1-87870-327-0 04 1 9603-9901 ● ●
208 U-BOLT SET; FRT SPRING
CHINA EQUIPMENT(YT2) EXC. LIGHTING SYSTEM ECE<SLC> L=270 		1-87870-327-0 04 1 9905- ● ●
210 WASHER; S/ABS,OUTER
EXC. FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 02 1 9603-9901 ●
210 WASHER; S/ABS,OUTER
ID=21 		9-09160-520-0 02 1 9603-9901 ● ●
210 WASHER; S/ABS,OUTER
ID=21 		9-09160-520-0 02 1 9902-9904 ● ●
210 WASHER; S/ABS,OUTER
EXC. FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 02 1 9905- ●
210 WASHER; S/ABS,OUTER
ID=21 		9-09160-520-0 02 1 9905- ● ●
377 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=15 		9-09651-069-0 04 1 9905- ●
393 WASHER; PL
FRONT STABILIZER SHAFT<F59> ID=15 		9-09651-069-0 04 1 9603-9901 ●

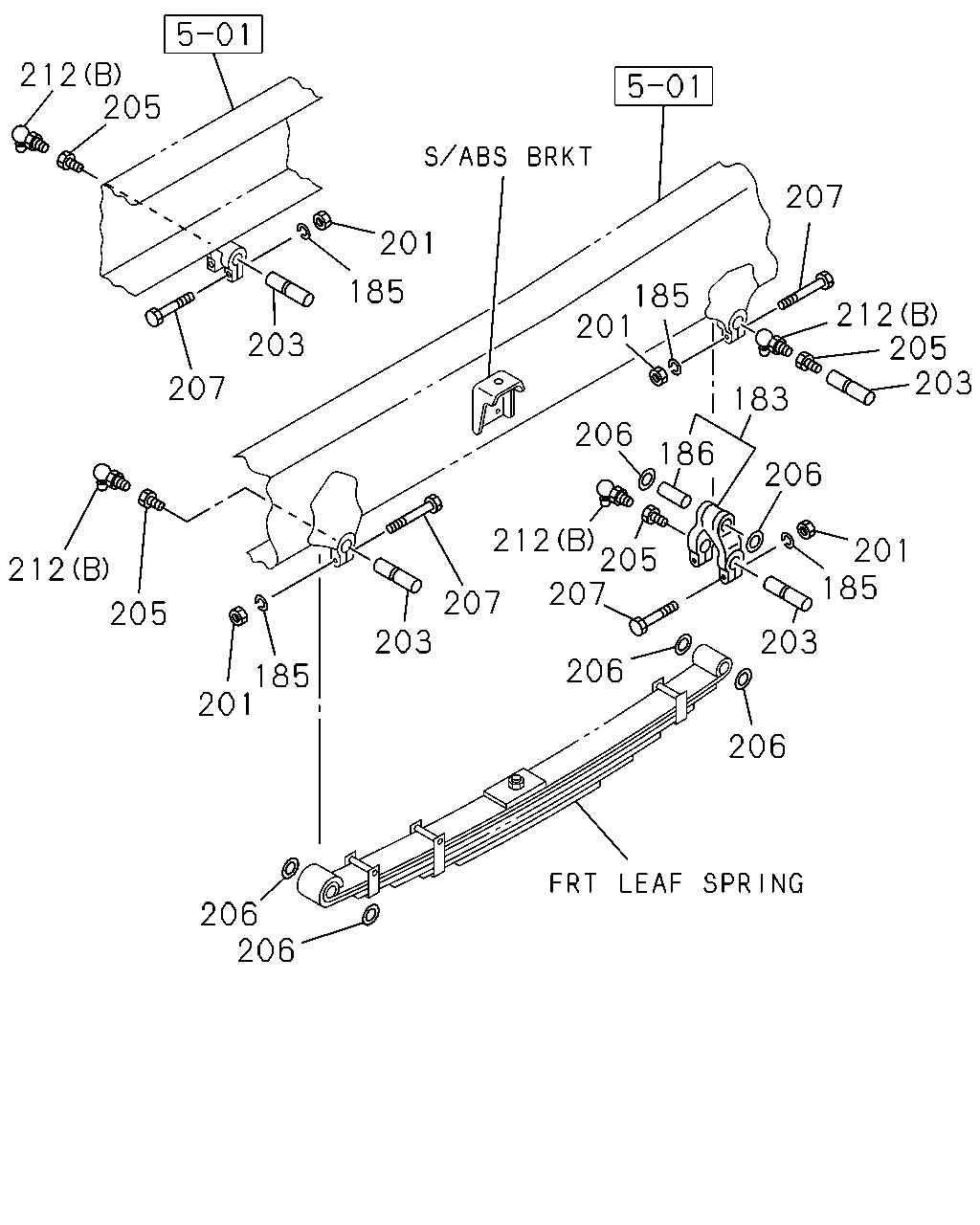

çizim 39881
212 205 207 201 185 185 201 212 205 203 203 207 183 206 186 206 212 205 207 201 185 212 207 203 205 203 206 185 201 206 206 206
BalonParca AdiParca NoAdetTipApplied Date A B C
183 SHACKLE; FRT SUSP
REAR 		1-51162-029-4 02 1 9603-9901 ● ● ●
183 SHACKLE; FRT SUSP
REAR 		1-51162-029-4 02 1 9902-9904 ● ●
183 SHACKLE; FRT SUSP
REAR 		1-51162-029-4 02 1 9905- ● ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9603-9606 ● ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9607-9901 ● ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9902-9904 ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9905- ● ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9603-9901 ● ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9902-9904 ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9905- ● ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9603-9606 ● ● ●
201 NUT; PIN LK
M12 FLANGE 		0-91150-212-0 12 1 9607-9608 ● ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9609-9901 ● ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9902-9904 ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9905- ● ● ●
203 PIN; SPR TO SHACKLE
OD=32 L=136 		1-51161-031-0 06 1 9603-9901 ● ● ●
203 PIN; SPR TO SHACKLE
OD=32 L=136 		1-51161-031-0 06 1 9902-9904 ● ●
203 PIN; SPR TO SHACKLE
OD=32 L=136 		1-51161-031-0 06 1 9905- ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9603-9901 ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9902-9904 ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9905- ● ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 OD=60.2 T=2 		1-51169-018-0 12 1 9603-9901 ● ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 OD=60.2 T=2 		1-51169-018-0 12 1 9902-9904 ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 OD=60.2 T=2 		1-51169-018-0 12 1 9905- ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9603-9606 ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-28081-280-0 12 1 9607-9608 ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9609-9901 ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9902-9904 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9905- ● ● ●
212 NIPPLE; GREASE,ELBOW
L TYPE ENG<90L> (A) REAR PT1/8 STRAIGHT 		9-09031-010-0 04 1 9603-9901 ● ● ●
212 NIPPLE; GREASE,ELBOW
(A) REAR PT1/8 STRAIGHT 		9-09031-010-0 04 1 9902-9904 ● ●
212 NIPPLE; GREASE,ELBOW
L TYPE ENG<90L> (A) REAR PT1/8 STRAIGHT 		9-09031-010-0 04 1 9905- ● ● ●
212 NIPPLE; GREASE,ELBOW
L TYPE ENG<90L> (B) FRONT PT1/8 ELBOW 		9-09031-210-0 02 1 9603-9901 ● ● ●
212 NIPPLE; GREASE,ELBOW
(B) FRONT PT1/8 ELBOW 		9-09031-210-0 02 1 9902-9904 ● ●
212 NIPPLE; GREASE,ELBOW
L TYPE ENG<90L> (B) FRONT PT1/8 ELBOW 		9-09031-210-0 02 1 9905- ● ● ●
212 NIPPLE; GREASE,ELBOW
V TYPE ENG<91L> (B) FRONT & REAR PT1/8 ELBOW 		9-09031-210-0 06 1 9603-9901 ● ●
212 NIPPLE; GREASE,ELBOW
V TYPE ENG<91L> (B) FRONT & REAR PT1/8 ELBOW 		9-09031-210-0 06 1 9905- ● ●
çizim 40560
173 14 65 65 68 18 168 62 177 68 18 65 211 68 68 211
BalonParca AdiParca NoAdetTipApplied Date A B C
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9603-9901 ● ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9902-9904 ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9905- ● ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 9603-9901 ● ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 9902-9904 ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 9905- ● ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 9603-9901 ●
62 ABSORBER ASM; SHOCK,FRT
EXC. CHINA EQUIPMENT(YT2) 		1-51630-417-0 02 1 9603-9901 ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 9902-9904 ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 9905- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. CHINA EQUIPMENT(YT2) 		1-51630-417-0 02 1 9905- ● ●
62 ABSORBER ASM; SHOCK,FRT
CHINA EQUIPMENT(YT2) 		1-51630-512-0 02 1 9603-9901 ● ●
62 ABSORBER ASM; SHOCK,FRT
CHINA EQUIPMENT(YT2) 		1-51630-512-0 02 1 9905- ● ●
65 WASHER; S/ABS
(A) UPPER ID=16.5 		1-09503-266-0 02 1 9603-9901 ● ● ●
65 WASHER; S/ABS
(A) UPPER ID=16.5 		1-09503-266-0 02 1 9902-9904 ● ●
65 WASHER; S/ABS
(A) UPPER ID=16.5 		1-09503-266-0 02 1 9905- ● ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 9603-9901 ● ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 9902-9904 ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 9905- ● ● ●
68 BUSHING; S/ABS
(A) UPPER ID=16 T=25 		1-51631-069-0 04 1 9603-9901 ● ● ●
68 BUSHING; S/ABS
(A) UPPER ID=16 T=25 		1-51631-069-0 04 1 9902-9904 ● ●
68 BUSHING; S/ABS
(A) UPPER ID=16 T=25 		1-51631-069-0 04 1 9905- ● ● ●
68 BUSHING; S/ABS
(B) LOWER 		9-51631-026-0 04 1 9603-9901 ● ● ●
68 BUSHING; S/ABS
(B) LOWER 		9-51631-026-0 04 1 9902-9904 ● ●
68 BUSHING; S/ABS
(B) LOWER 		9-51631-026-0 04 1 9905- ● ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 9603-9901 ● ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 9902-9904 ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 9905- ● ● ●
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 9603-9901 ● ● ●
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 9902-9904 ● ●
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 9905- ● ● ●
177 RIVET; BRKT,S/ABS
D13X36 PLATED TAPER END 		1-09730-087-0 08 1 9603-9611 ●
177 RIVET; BRKT,S/ABS
D13X36 PLATED TAPER END 		9-06771-336-0 08 1 9612-9901 ●
177 RIVET; BRKT,S/ABS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) D13X40 PLATED TAPER END 		9-06771-340-0 06 1 9905- ● ● ●
177 RIVET; BRKT,S/ABS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) D13X42 PLATED TAPER END 		9-06771-342-0 02 1 9905- ● ● ●
177 RIVET; BRKT,S/ABS
D13X40 		1-09730-089-0 06 1 9603-9611 ● ●
177 RIVET; BRKT,S/ABS
D13X40 PLATED TAPER END 		9-06771-340-0 06 1 9612-9901 ● ●
177 RIVET; BRKT,S/ABS
D13X42 		1-09730-090-0 02 1 9603-9611 ● ●
177 RIVET; BRKT,S/ABS
D13X42 PLATED TAPER END 		9-06771-342-0 02 1 9612-9901 ● ●
177 RIVET; BRKT,S/ABS
WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W) D13X40 PLATED TAPER END 		9-06771-340-0 06 1 9902-9904 ● ●
177 RIVET; BRKT,S/ABS
WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W) D13X42 PLATED TAPER END 		9-06771-342-0 02 1 9902-9904 ● ●
177 RIVET; BRKT,S/ABS
WHEEL BASE 5700MM(57W),WHEEL BASE 6600MM(66W) D13X36 PLATED TAPER END 		9-06771-336-0 08 1 9905- ● ●
211 WASHER; BRKT,SHOCK
(A) INSIDE ID=27 		9-51631-027-0 02 1 9603-9901 ● ● ●
211 WASHER; BRKT,SHOCK
(A) INSIDE ID=27 		9-51631-027-0 02 1 9902-9904 ● ●
211 WASHER; BRKT,SHOCK
(A) INSIDE ID=27 		9-51631-027-0 02 1 9905- ● ● ●
211 WASHER; BRKT,SHOCK
(B) OUTSIDE ID=21 		9-51631-028-0 02 1 9603-9901 ● ● ●
211 WASHER; BRKT,SHOCK
(B) OUTSIDE ID=21 		9-51631-028-0 02 1 9902-9904 ● ●
211 WASHER; BRKT,SHOCK
(B) OUTSIDE ID=21 		9-51631-028-0 02 1 9905- ● ● ●

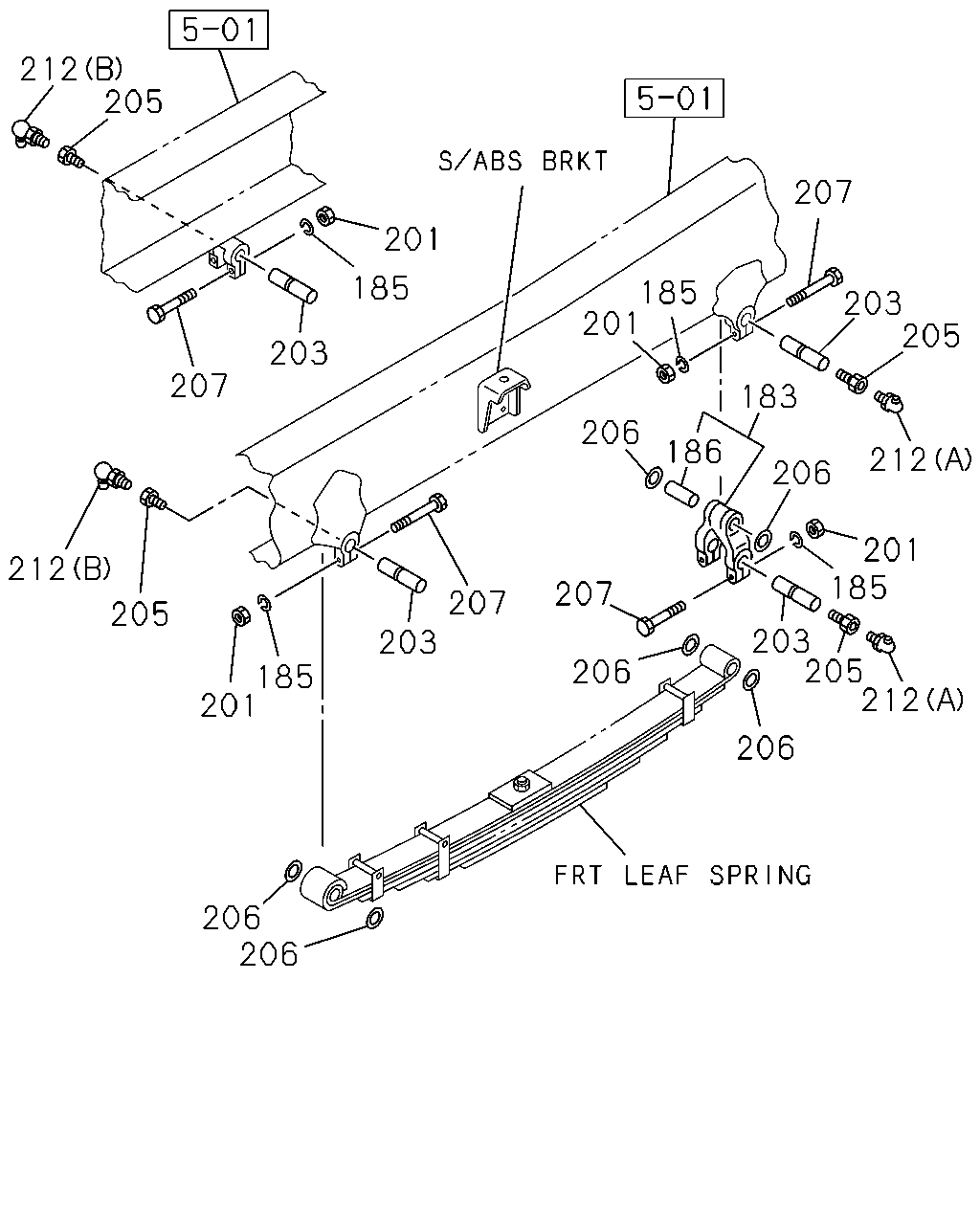

çizim 41083
212 205 207 201 185 185 201 203 205 203 207 183 206 186 212 206 201 185 212 207 207 203 205 203 205 212 206 185 201 206 206 206
BalonParca AdiParca NoAdetTipApplied Date A B C
183 SHACKLE; FRT SUSP
REAR 		1-51162-029-4 02 1 9603-9901 ● ● ●
183 SHACKLE; FRT SUSP
REAR 		1-51162-029-4 02 1 9902-9904 ● ●
183 SHACKLE; FRT SUSP
REAR 		1-51162-029-4 02 1 9905- ● ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9603-9606 ● ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9607-9901 ● ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9902-9904 ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9905- ● ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9603-9901 ● ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9902-9904 ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9905- ● ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9603-9606 ● ● ●
201 NUT; PIN LK
M12 FLANGE 		0-91150-212-0 12 1 9607-9608 ● ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9609-9901 ● ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9902-9904 ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9905- ● ● ●
203 PIN; SPR TO SHACKLE
OD=32 L=136 		1-51161-031-0 06 1 9603-9901 ● ● ●
203 PIN; SPR TO SHACKLE
OD=32 L=136 		1-51161-031-0 06 1 9902-9904 ● ●
203 PIN; SPR TO SHACKLE
OD=32 L=136 		1-51161-031-0 06 1 9905- ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9603-9901 ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9902-9904 ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9905- ● ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 OD=60.2 T=2 		1-51169-018-0 12 1 9603-9901 ● ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 OD=60.2 T=2 		1-51169-018-0 12 1 9902-9904 ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 OD=60.2 T=2 		1-51169-018-0 12 1 9905- ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9603-9606 ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-28081-280-0 12 1 9607-9608 ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9609-9901 ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9902-9904 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9905- ● ● ●
212 NIPPLE; GREASE,ELBOW
L TYPE ENG<90L> (A) REAR PT1/8 STRAIGHT 		9-09031-010-0 04 1 9603-9901 ● ● ●
212 NIPPLE; GREASE,ELBOW
(A) REAR PT1/8 STRAIGHT 		9-09031-010-0 04 1 9902-9904 ● ●
212 NIPPLE; GREASE,ELBOW
L TYPE ENG<90L> (A) REAR PT1/8 STRAIGHT 		9-09031-010-0 04 1 9905- ● ● ●
212 NIPPLE; GREASE,ELBOW
L TYPE ENG<90L> (B) FRONT PT1/8 ELBOW 		9-09031-210-0 02 1 9603-9901 ● ● ●
212 NIPPLE; GREASE,ELBOW
(B) FRONT PT1/8 ELBOW 		9-09031-210-0 02 1 9902-9904 ● ●
212 NIPPLE; GREASE,ELBOW
L TYPE ENG<90L> (B) FRONT PT1/8 ELBOW 		9-09031-210-0 02 1 9905- ● ● ●
212 NIPPLE; GREASE,ELBOW
V TYPE ENG<91L> (B) FRONT & REAR PT1/8 ELBOW 		9-09031-210-0 06 1 9603-9901 ● ●
212 NIPPLE; GREASE,ELBOW
V TYPE ENG<91L> (B) FRONT & REAR PT1/8 ELBOW 		9-09031-210-0 06 1 9905- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
