3-55 — BRAKE PIPING; OIL,REAR (#54018) — 21 parça

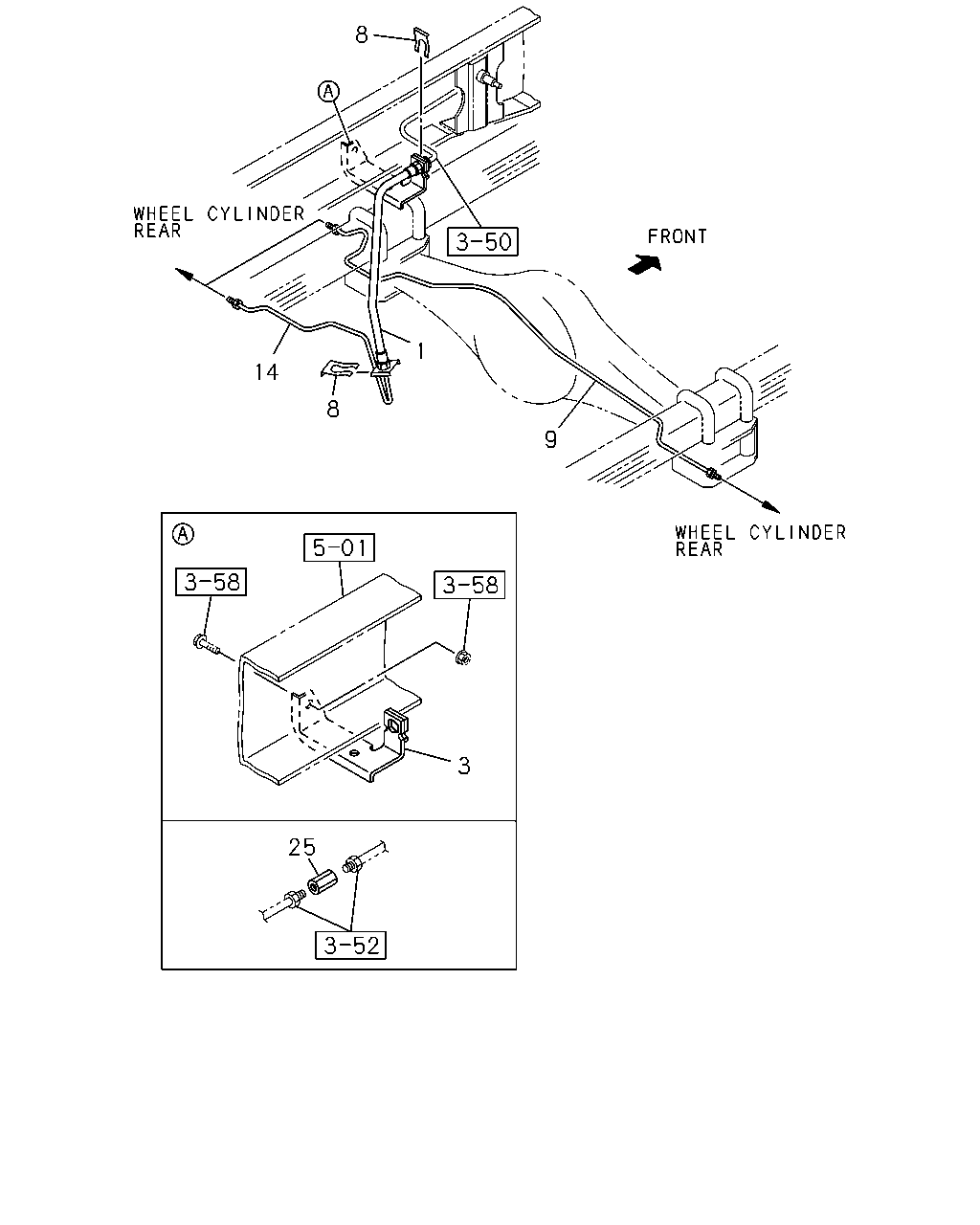

çizim 175024
8 1 14 8 9 3 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> L=405 		8-97089-061-0 01 1 1012-1303 ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> L=405 		8-97089-061-0 01 1 1304- ●
1 04.680 HOSE; FLEX,RR BRK
L=405 		8-97089-061-0 01 1 1304- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> L=310 		8-97035-063-1 01 1 1012- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-97205-714-1 01 1 1012-1303 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-97205-714-1 01 1 1304- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 1304- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1012-1303 ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1304- ● ●
9 04.685 PIPE; BRK,RR AXLE
FRAME STRAIGHT TYPE<7KJ> 		8-98026-057-0 01 1 1012-1303 ●
9 04.685 PIPE; BRK,RR AXLE
FRAME STRAIGHT TYPE<7KJ> 		8-98026-057-0 01 1 1304- ●
9 04.685 PIPE; BRK,RR AXLE 8-98026-057-0 01 1 1304- ●
9 04.685 PIPE; BRK,RR AXLE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98026-052-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1304- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98026-051-0 01 1 1012- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1012-1303 ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1304- ● ●

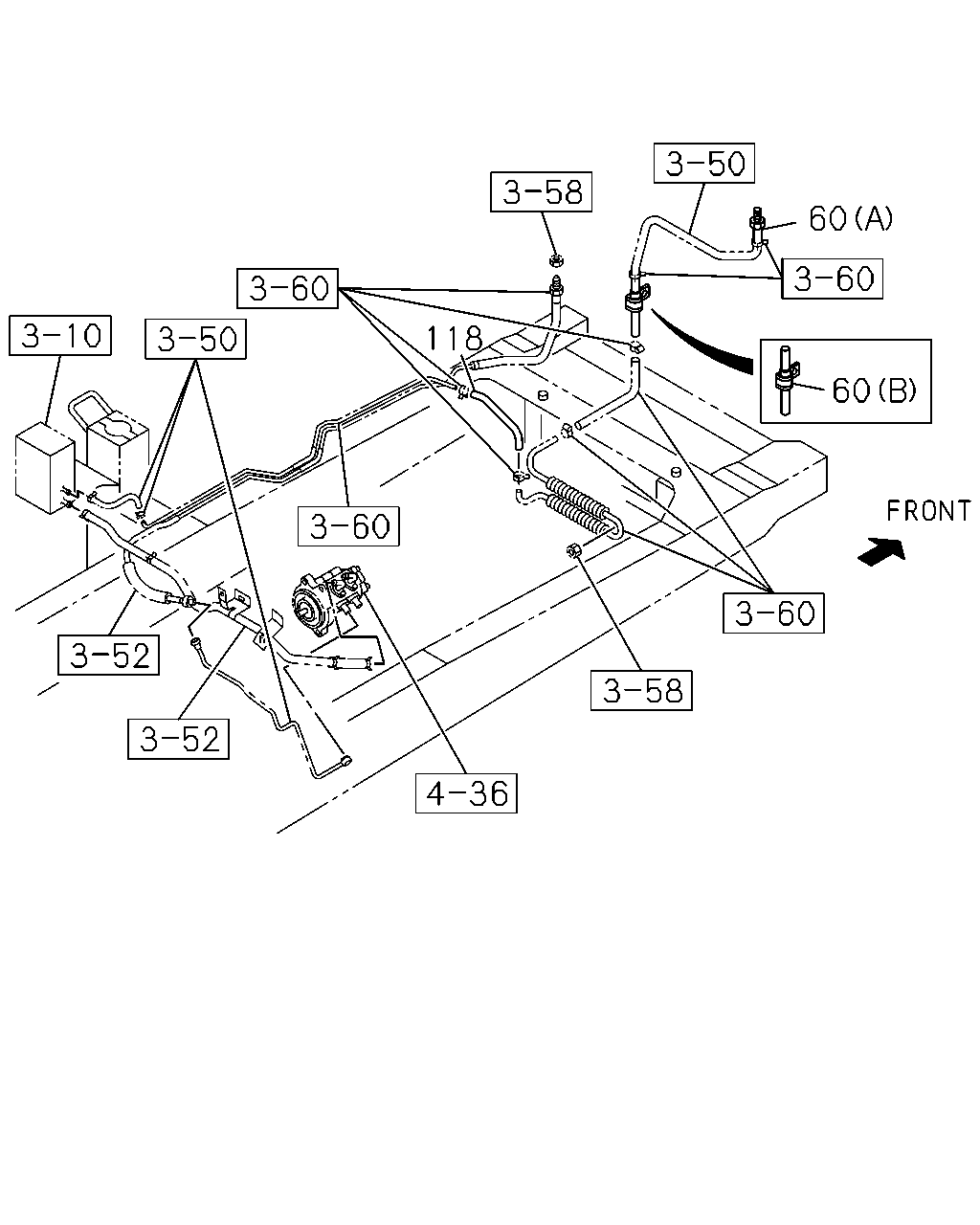

çizim 358909
118 60 60
BalonParca AdiParca NoAdetTipApplied Date A B
60 04.685 PIPE ASM; BRK
(A) 		8-98080-549-0 01 1 1304- ●
60 04.685 PIPE ASM; BRK
(B) 		8-98127-815-0 01 1 1304- ●
118 04.680 HOSE; PIPE TO PIPE 8-98158-200-0 01 1 1304- ●
