3-30 — BRAKE MASTER CYLINDER (#54014) — 28 parça

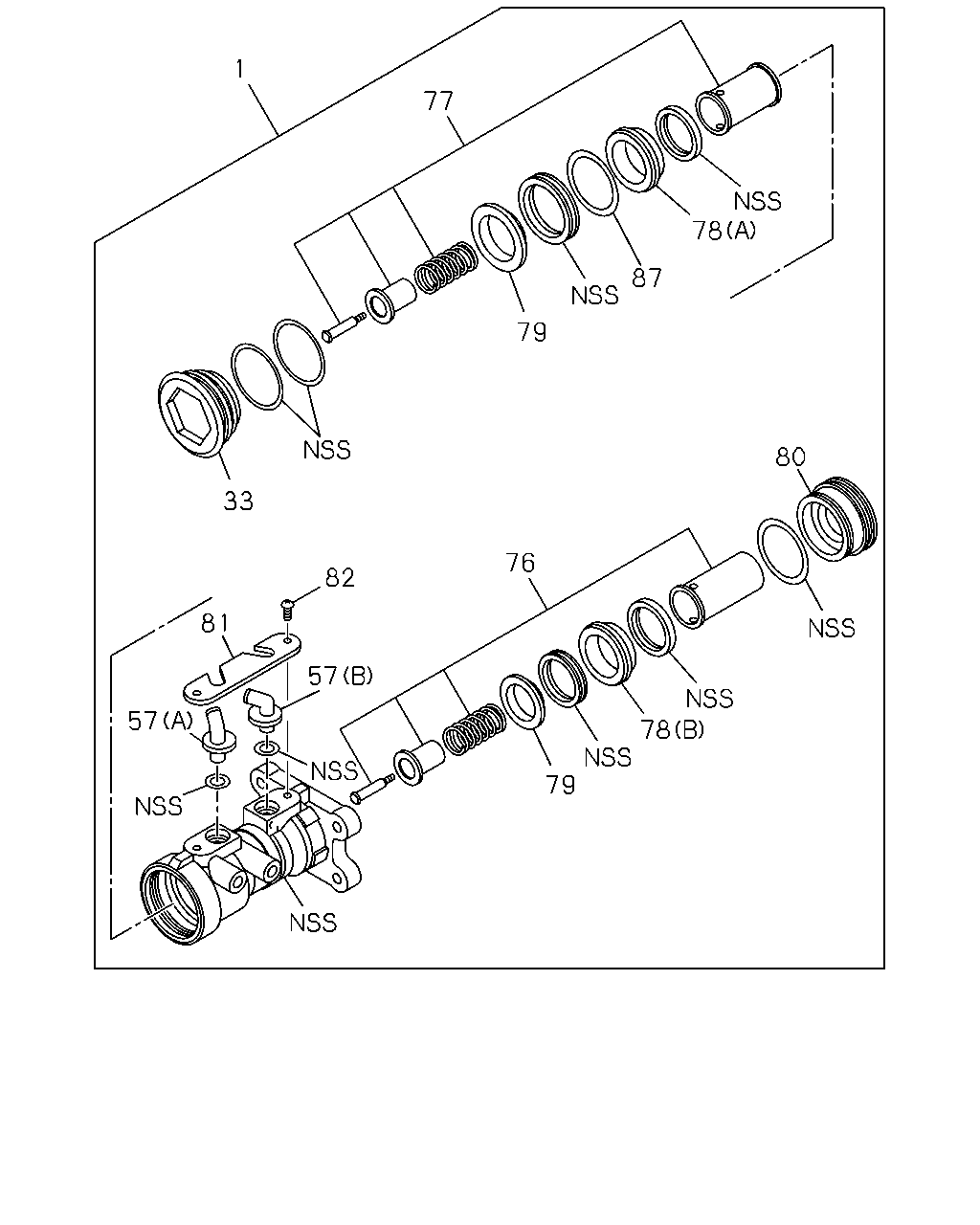

çizim 175040
1 77 78 87 79 80 33 76 82 81 57 78 79 57
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.650 CYLINDER ASM; BRK MASTER 8-98032-603-0 01 1 1304- ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98032-602-0 01 1 1012- ●
33 04.661 PLUG; END,M/CYL 8-97186-699-0 01 1 1304- ●
33 04.661 PLUG; END,M/CYL 8-97186-697-0 01 1 1012- ●
57 04.651 NIPPLE; BRK M/CYL
(A) 		8-97130-441-0 01 1 1012-1303 ●
57 04.651 NIPPLE; BRK M/CYL
(A) 		8-97130-441-0 01 1 1304- ● ●
57 04.651 NIPPLE; BRK M/CYL
(B) 		8-97130-442-0 01 1 1012-1303 ●
57 04.651 NIPPLE; BRK M/CYL
(B) 		8-97130-442-0 01 1 1304- ● ●
76 04.653 PISTON ASM; PRIMARY 8-97224-641-0 01 1 1304- ●
76 04.653 PISTON ASM; PRIMARY 8-97224-643-0 01 1 1012- ●
77 04.653 PISTON ASM; SECONDARY 8-97224-640-0 01 1 1304- ●
77 04.653 PISTON ASM; SECONDARY 8-97224-642-0 01 1 1012- ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97170-695-0 01 1 1304- ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97207-685-0 01 1 1304- ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-455-0 01 1 1012- ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-312-0 01 1 1012- ●
79 04.651 SUPPORTER; CUP 8-97170-698-0 02 1 1304- ●
79 04.651 SUPPORTER; CUP 8-97130-463-0 02 1 1012- ●
80 04.651 COVER; MASTER CYL 8-97170-692-0 01 1 1304- ●
80 04.651 COVER; MASTER CYL 8-97130-449-0 01 1 1012- ●
81 04.651 HOLDER; NIPPLE 8-97315-168-0 01 1 1012-1303 ●
81 04.651 HOLDER; NIPPLE 8-97315-168-0 01 1 1304- ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 1012-1303 ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 1304- ● ●
87 04.662 SPACER; CUP 8-97170-696-0 01 1 1304- ●
87 04.662 SPACER; CUP 8-97130-459-0 01 1 1012- ●

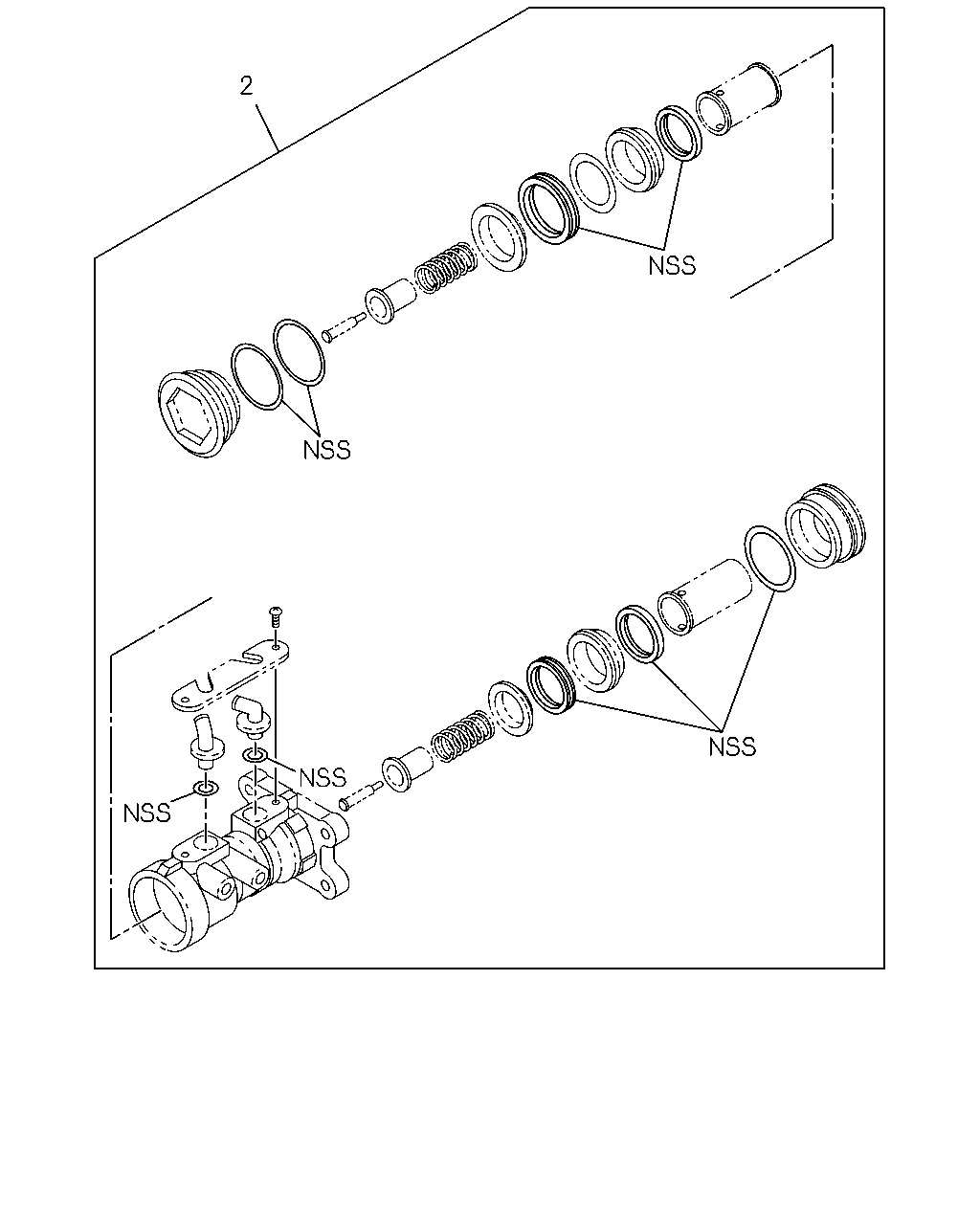

çizim 175279
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.649 REPAIR KIT; BRK,M/CYL 8-97254-775-0 01 1 1304- ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-471-0 01 1 1012- ●
