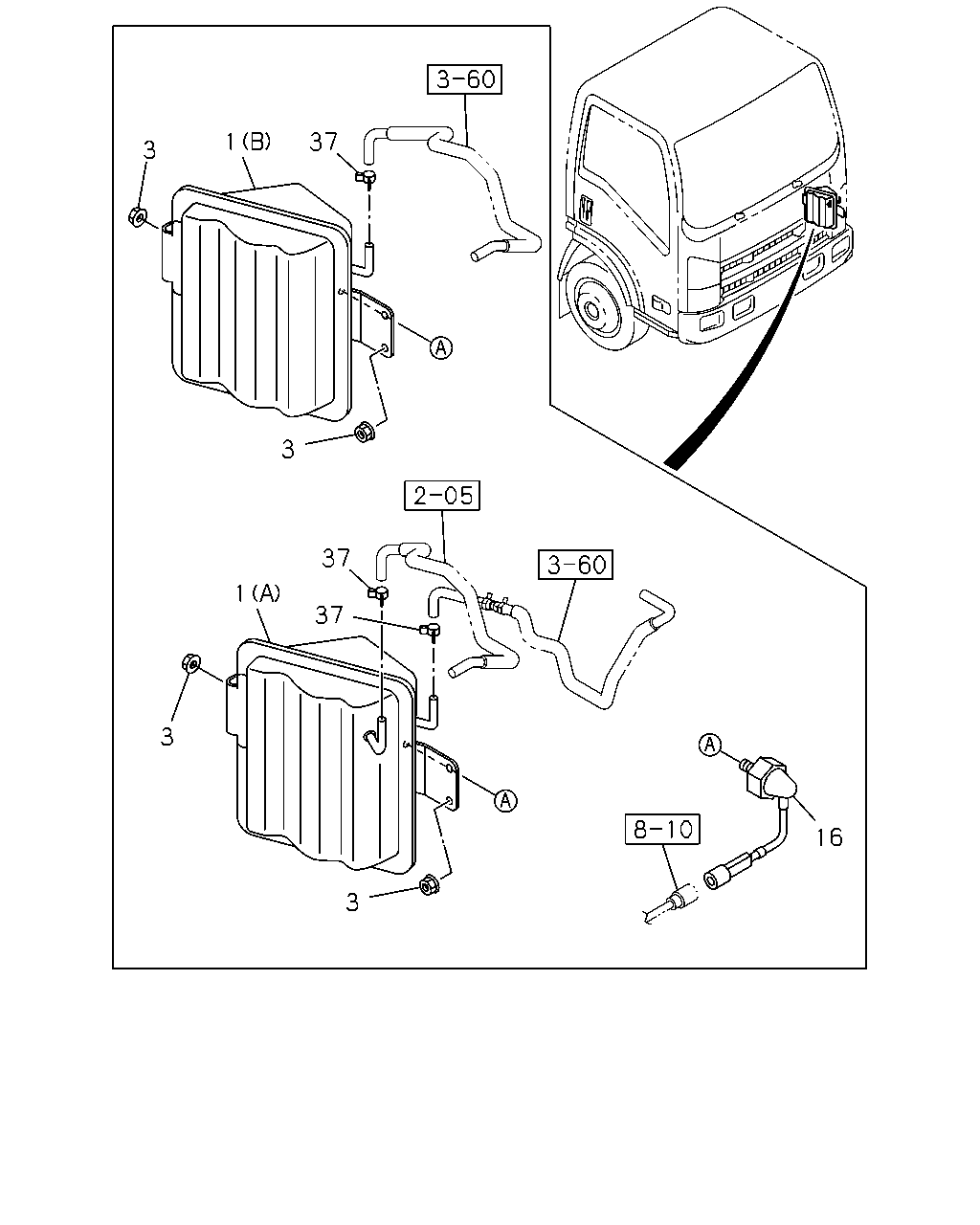

3-21 — VACUUM TANK
(#54013) — 21 parça
Tümü
A - NPR6JS
B - NPR6JN
◀
[321A] EXC.HYDRO BRAKE BOOSTER (11 parça)
[321A] HYDRO BRAKE BOOSTER (10 parça)
▶
1
37
3
3
37
1
37
3
16
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (C)
8-98032-292-0
01
1
1304-
●
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A)
8-98009-123-0
01
1
1012-
●
1
04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T) (B)
8-98009-124-1
01
1
1012-
●
3
04.902 NUT; VAC TANK TO BRKT
04.785
8-98008-071-0
03
1
1012-1303
●
3
04.902 NUT; VAC TANK TO BRKT
04.785
8-98008-071-0
03
1
1304-
●
3
04.902 NUT; VAC TANK TO BRKT
POWER ASSIST CLUTCH(S2T) 04.785
8-98008-071-0
03
1
1304-
●
16
04.906 SWITCH; VAC
8-98049-417-0
01
1
1012-
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5
8-94367-944-0
02
1
1012-
●
37
04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5
8-94367-944-0
01
1
1012-1303
●
37
04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5
8-94367-944-0
01
1
1304-
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5
8-94367-944-0
01
1
1304-
●
3
1
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (C)
8-98032-292-0
01
1
1304-
●
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A)
8-98009-123-0
01
1
1012-
●
1
04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T) (B)
8-98009-124-1
01
1
1012-
●
3
04.902 NUT; VAC TANK TO BRKT
04.785
8-98008-071-0
03
1
1012-1303
●
3
04.902 NUT; VAC TANK TO BRKT
04.785
8-98008-071-0
03
1
1304-
●
3
04.902 NUT; VAC TANK TO BRKT
POWER ASSIST CLUTCH(S2T) 04.785
8-98008-071-0
03
1
1304-
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5
8-94367-944-0
02
1
1012-
●
37
04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5
8-94367-944-0
01
1
1012-1303
●
37
04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5
8-94367-944-0
01
1
1304-
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5
8-94367-944-0
01
1
1304-
●
