3-11 — PARKING BRAKE CONTROL (#54012) — 137 parça

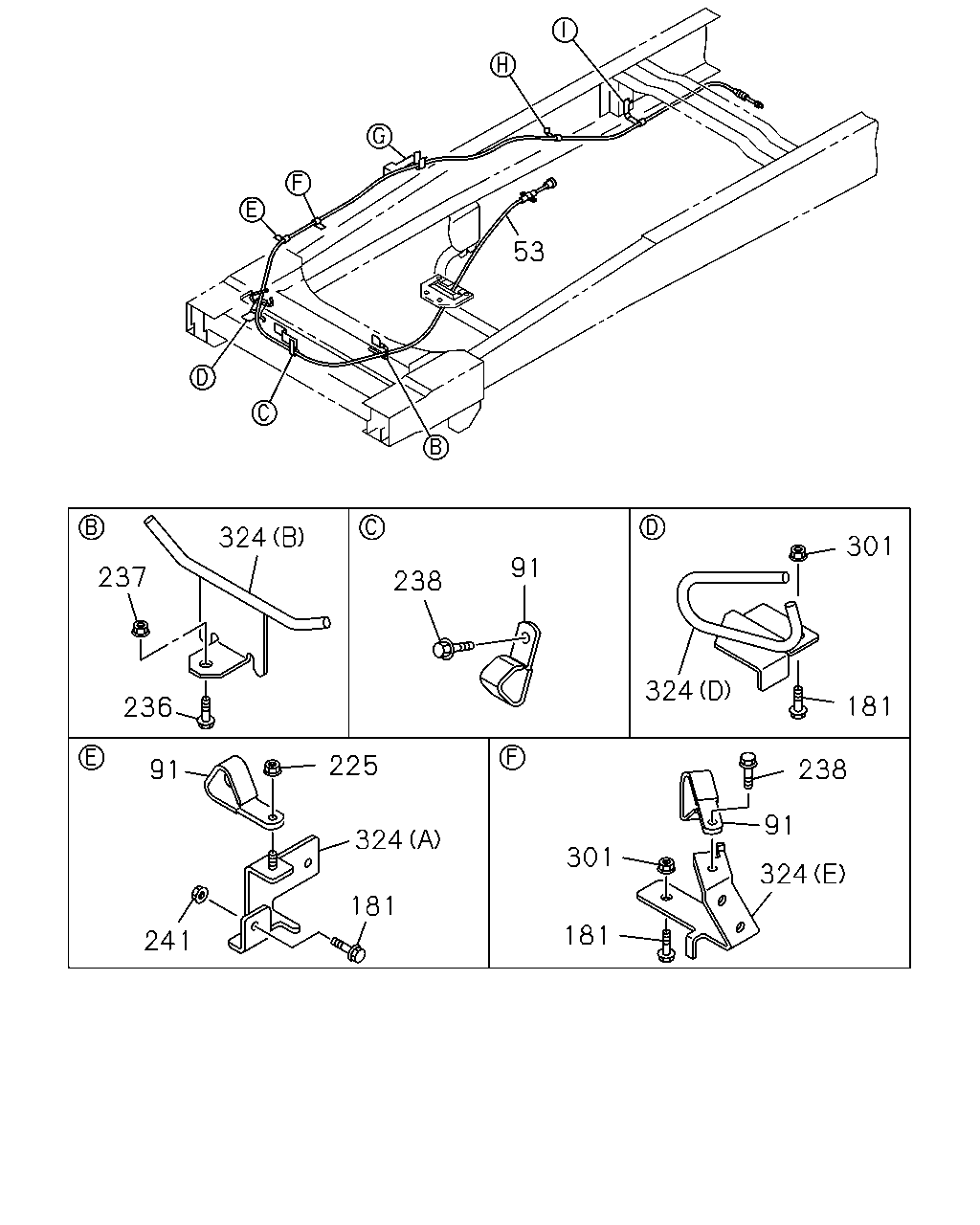

çizim 175017
53 324 301 91 237 238 324 181 236 225 238 91 91 324 301 324 181 181 241
BalonParca AdiParca NoAdetTipApplied Date A B
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 		8-98060-996-3 01 1 1012-1303 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 		8-98060-996-3 01 1 1304- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 		8-98060-996-3 01 1 1304- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1 ENG(RJH) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 		8-98100-229-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 		8-97036-333-1 01 1 1012-1303 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 		8-97036-333-1 01 1 1012-1303 ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 04.047 		8-97036-333-1 01 1 1012-1303 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 		8-97036-333-1 01 1 1304- ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 		8-97036-333-1 01 1 1304- ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 04.047 		8-97036-333-1 01 1 1304- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 		8-97036-333-1 01 1 1304- ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012-1303 ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012-1303 ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1304- ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-1303 ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-1303 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1304- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1304- ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
236 04.785 BOLT; BRKT TO FRAME
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1012-1303 ●
236 04.785 BOLT; BRKT TO FRAME
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1304- ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012-1303 ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1304- ● ●
238 04.785 BOLT; CLIP TO BRKT
EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012-1110 ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1111-1303 ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1304- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1304- ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1012-1303 ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1304- ●
238 04.785 BOLT; CLIP TO BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1304- ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-1303 ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1304- ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1304- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-1303 ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-1303 ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1304- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1304- ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98111-394-1 01 1 1012-1303 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98111-394-1 01 1 1304- ●
324 04.785 BRACKET
(C) 		8-98111-394-1 01 1 1304- ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (E) 		8-98034-185-1 01 1 1012-1303 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (E) 		8-98034-185-1 01 1 1304- ●
324 04.785 BRACKET
04.047 (E) 		8-98034-185-1 01 1 1304- ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98094-197-0 01 1 1012-1110 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.010 (D) 		8-98189-804-0 01 1 1111-1303 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.010 (D) 		8-98189-804-0 01 1 1304- ●
324 04.785 BRACKET
04.010 (D) 		8-98189-804-0 01 1 1304- ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98099-516-0 01 1 1012-1303 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98099-516-0 01 1 1304- ●
324 04.785 BRACKET
(A) 		8-98099-516-0 01 1 1304- ●
324 04.785 BRACKET
04.047 (B) 		8-98061-626-1 01 1 1012-1303 ●
324 04.785 BRACKET
04.047 (B) 		8-98061-626-1 01 1 1304- ● ●
çizim 175272
237 338 181 8 235 324 238 85 85 225 225 237 237 235 235
BalonParca AdiParca NoAdetTipApplied Date A B
8 04.592 GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> 		8-98110-964-0 01 1 1012-1303 ●
8 04.592 GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> 		8-98110-964-0 01 1 1304- ●
8 04.592 GUIDE; PARKING BRK 8-98110-964-0 01 1 1304- ●
85 04.785 CLIP; BRKT
FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20 		1-09701-012-0 01 1 1012-1303 ●
85 04.785 CLIP; BRKT
FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20 		1-09701-012-0 01 1 1304- ●
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1304- ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012-1303 ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012-1303 ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1304- ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-1303 ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-1303 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1304- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1304- ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98087-322-0 01 1 1012-1303 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98087-322-0 01 1 1304- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) (C) 		8-98087-322-0 01 1 1304- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98106-986-1 01 1 1012-1303 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98106-986-1 01 1 1304- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(A) 		8-98106-986-1 01 1 1304- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98034-410-3 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012-1303 ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1304- ● ●
238 04.785 BOLT; CLIP TO BRKT
EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012-1110 ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1111-1303 ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1304- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1304- ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1012-1303 ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1304- ●
238 04.785 BOLT; CLIP TO BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1304- ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98111-394-1 01 1 1012-1303 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98111-394-1 01 1 1304- ●
324 04.785 BRACKET
(C) 		8-98111-394-1 01 1 1304- ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (E) 		8-98034-185-1 01 1 1012-1303 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (E) 		8-98034-185-1 01 1 1304- ●
324 04.785 BRACKET
04.047 (E) 		8-98034-185-1 01 1 1304- ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98094-197-0 01 1 1012-1110 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.010 (D) 		8-98189-804-0 01 1 1111-1303 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.010 (D) 		8-98189-804-0 01 1 1304- ●
324 04.785 BRACKET
04.010 (D) 		8-98189-804-0 01 1 1304- ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98099-516-0 01 1 1012-1303 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98099-516-0 01 1 1304- ●
324 04.785 BRACKET
(A) 		8-98099-516-0 01 1 1304- ●
324 04.785 BRACKET
04.047 (B) 		8-98061-626-1 01 1 1012-1303 ●
324 04.785 BRACKET
04.047 (B) 		8-98061-626-1 01 1 1304- ● ●
338 04.785 SCREW; GUIDE
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012-1303 ●
338 04.785 SCREW; GUIDE
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1304- ●
338 04.785 SCREW; GUIDE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1304- ●

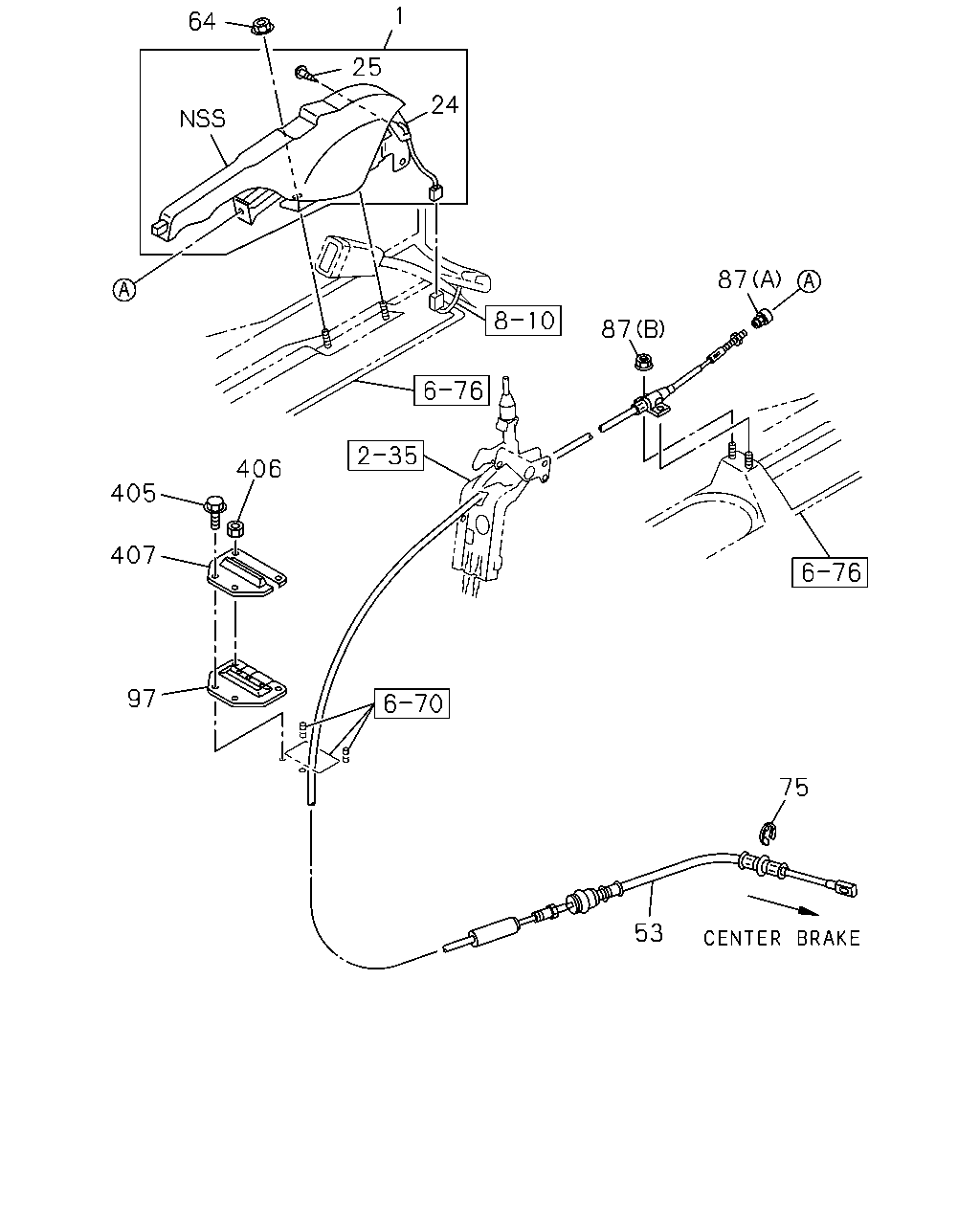

çizim 175276
1 64 25 24 87 87 406 405 407 97 75 53
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97406-006-0 01 1 1012-1303 ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97406-006-0 01 1 1304-1304 ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-514-0 01 1 1304- ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 1012-1303 ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 1304-1304 ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1304- ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 1012-1303 ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 1304- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 		8-98060-996-3 01 1 1012-1303 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 		8-98060-996-3 01 1 1304- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 		8-98060-996-3 01 1 1304- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1 ENG(RJH) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 		8-98100-229-1 01 1 1012- ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 1012-1303 ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 1304- ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 1012-1303 ●
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 1304- ● ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012-1303 ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1304- ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1012-1303 ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1304- ● ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97091-890-0 01 1 1012-1303 ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97091-890-0 01 1 1304- ● ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 1012-1303 ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 1304- ● ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012-1303 ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 1304- ● ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 1012-1303 ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 1304- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
