◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-42 - POWER STEERING OIL PUMP ▶
4-42 — POWER STEERING OIL PUMP (#5401) — 39 parça
çizim 5878
39 21 1 19 15 37 29
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		1-85574-049-0 01 1 -
15 BEARING; BALL,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		1-19515-004-0 01 1 -
19 SEAL; OIL,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		1-19519-252-0 01 1 -
21 GASKET; FRT COVER TO BODY
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		1-19519-314-0 01 1 -
29 GASKET; PLUG TO VLV
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		9-88510-248-0 01 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		1-19519-292-0 01 1 -
39 GASKET; OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		1-19519-313-0 01 1 -

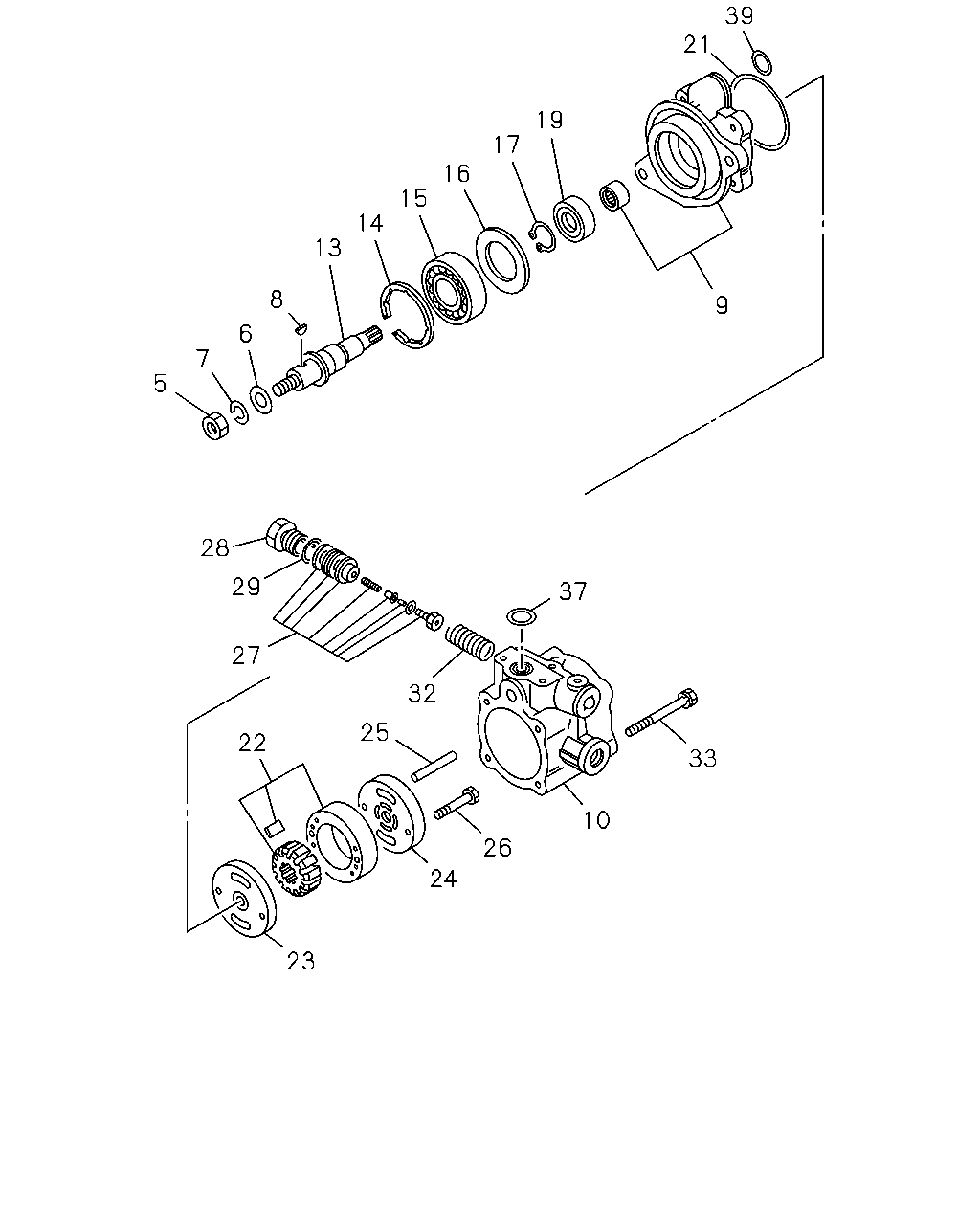

çizim 42686
39 21 19 17 16 15 14 13 8 9 6 7 5 28 29 37 27 32 25 22 33 10 26 24 23
BalonParca AdiParca NoAdetTipApplied Date
5 NUT; SHAFT,P/S PUMP
ASM PART: B = 1-19500-563-2 		9-88510-424-0 01 1 -9909
5 NUT; SHAFT,P/S PUMP
ASM PART: A = 1-19500-447-0 		9-88510-424-0 01 1 -
6 WASHER; PL,OIL PUMP
ASM PART: A = 1-19500-447-0 		1-19519-293-0 01 1 -
6 WASHER; PL,OIL PUMP
ASM PART: B = 1-19500-563-2 		1-19519-293-0 01 1 -9909
7 WASHER; SHAFT
ASM PART: A = 1-19500-447-0 		9-88510-425-0 01 1 -
7 WASHER; SHAFT
ASM PART: B = 1-19500-563-2 		9-88510-425-0 01 1 -9909
8 KEY; SHAFT,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		9-19519-036-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: B = 1-19500-563-2 		1-19511-130-0 01 1 9910-
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 1-19500-447-0 		1-19511-130-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: B = 1-19500-563-2 		1-19511-166-0 01 1 -9909
10 BODY ASM; RR,OIL PUMP
ASM PART: B = 1-19500-563-2 		1-19511-131-0 01 1 -9909
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 1-19500-447-0 		1-19511-131-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: B = 1-19500-563-2 		1-19511-193-0 01 1 9910-
13 SHAFT KIT; RET
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		1-19521-018-0 01 1 -
14 RING; RET,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		1-19519-135-0 01 1 -
15 BEARING; BALL,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		1-19515-004-0 01 1 -
16 RING; RET,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		9-19519-078-0 01 1 -
17 RING; RET
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		1-19519-177-0 01 1 -
19 SEAL; OIL,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		1-19519-252-0 01 1 -
21 GASKET; FRT COVER TO BODY
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		1-19519-314-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		1-19519-311-0 01 1 -
23 PLATE; SIDE,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		1-19519-234-0 01 1 -
24 PLATE ASM; THRUST
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		1-19519-312-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		9-88510-421-0 02 1 -
26 SCREW; PLATE
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		1-19519-142-0 02 1 -
27 VALVE ASM; OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		1-19519-183-1 01 1 -
28 PLUG; DRAIN,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		1-19519-230-0 01 1 -
29 GASKET; PLUG TO VLV
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		9-88510-248-0 01 1 -
32 SPRING; OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		9-19529-013-0 01 1 -
33 BOLT; COVER
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		1-19519-245-0 04 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		1-19519-292-0 01 1 -
39 GASKET; OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-2 		1-19519-313-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
