1 |

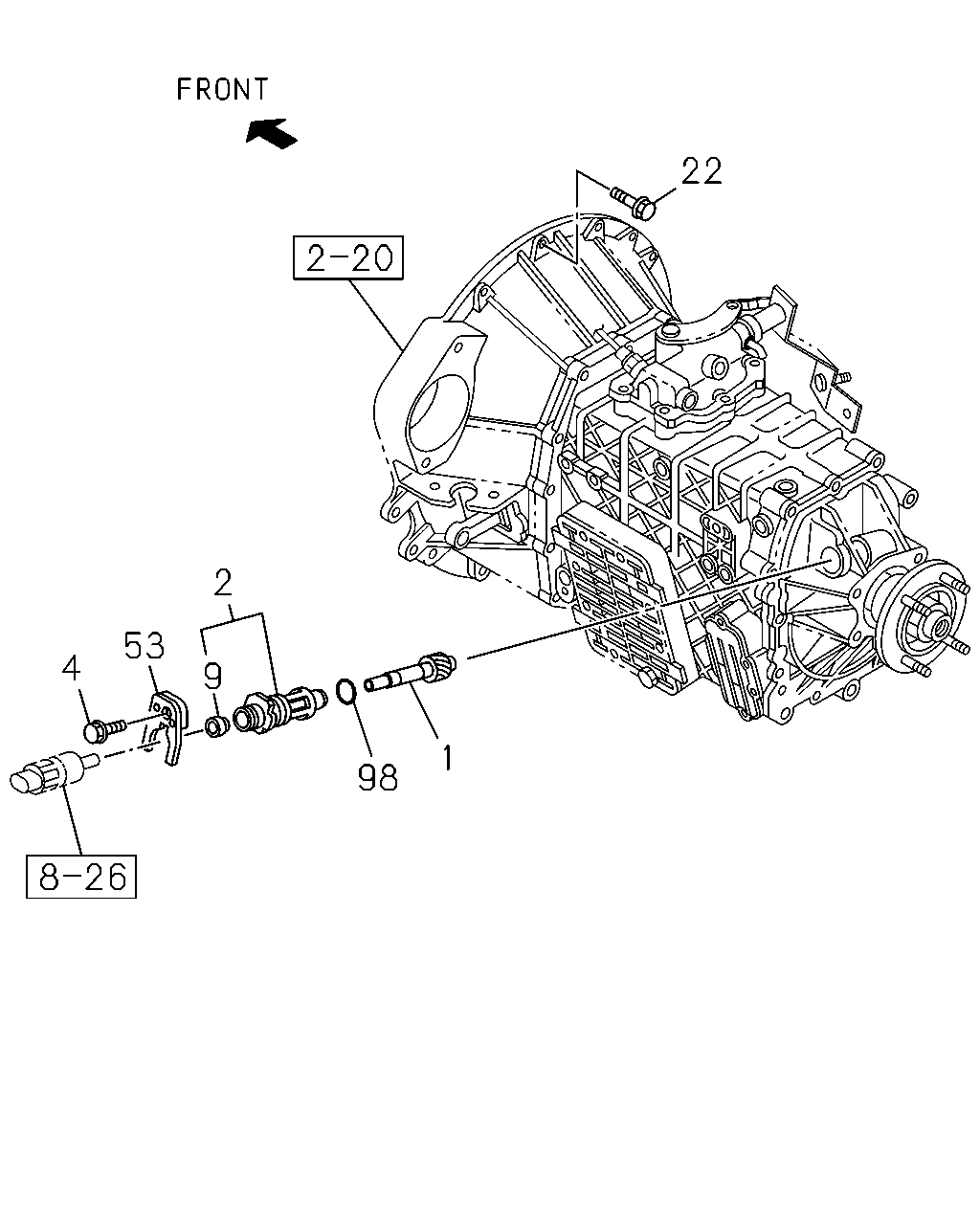

04.337 GEAR; DRIVEN,SPD
M/T MYY6S(RST)
FRT&RR 215/75R17.5 17.5X6.00-127
SILVER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF)
Z=13
|
8-97253-562-1 |
01 |
1 |
1304- |
● |
|
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41)
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6
-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
Z=14
|
8-97253-561-1 |
01 |
1 |
1012- |
|
● |
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42)
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6
-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
Z=15
|
8-97253-560-1 |
01 |
1 |
1012- |
|
● |
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9(S2J)
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6
-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
Z=12
|
8-97253-563-1 |
01 |
1 |
1012-1303 |
|
● |
| |
1 |
04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9(S2J)
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6
-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
Z=12
|
8-97253-563-1 |
01 |
1 |
1304- |
|
● |
| |
1 |
04.337 GEAR; DRIVEN,SPD
M/T MYY6S(RST)
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NU
T(CUZ)
Z=12
|
8-97253-563-1 |
01 |
1 |
1304- |
● |
|
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
1012-1303 |
|
● |
| |
2 |
04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
MARK "12,13,14,15"
|
8-97253-125-0 |
01 |
1 |
1304- |
● |
● |
| |
4 |
04.338 BOLT; RET,DRIVEN GEAR
01.531
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
1012-1303 |
|
● |
| |
4 |
04.338 BOLT; RET,DRIVEN GEAR
01.531
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
1304- |
● |
● |
| |
9 |
04.338 SEAL; OIL,DRIVEN GEAR
NOK
|
8-97131-328-1 |
01 |
1 |
1012-1303 |
|
● |
| |
9 |
04.338 SEAL; OIL,DRIVEN GEAR
NOK
|
8-97131-328-1 |
01 |
1 |
1304- |
● |
● |
| |
22 |
00.685 BOLT; TRANS CASE TO ENG
09.171
M10X30 FLANGE
|
0-28151-030-0 |
04 |
1 |
1302-1303 |
|
● |
| |
22 |
00.685 BOLT; TRANS CASE TO ENG
09.171
M10X30 FLANGE
|
0-28151-030-0 |
04 |
1 |
1304- |
● |
● |
| |
22 |
00.685 BOLT; TRANS CASE TO ENG
03.670
M10X35 FLANGE
|
0-28151-035-0 |
03 |
1 |
1012-1303 |
|
● |
| |
22 |
00.685 BOLT; TRANS CASE TO ENG
03.670
M10X35 FLANGE
|
0-28151-035-0 |
03 |
1 |
1304- |
● |
● |
| |
22 |
00.685 BOLT; TRANS CASE TO ENG
00.683
M10X55 FLANGE
|
8-97365-449-0 |
02 |
1 |
1012-1303 |
|
● |
| |
22 |
00.685 BOLT; TRANS CASE TO ENG
00.683
M10X55 FLANGE
|
8-97365-449-0 |
02 |
1 |
1304- |
● |
● |
| |
22 |
00.685 BOLT; TRANS CASE TO ENG
09.171
M10X30 FLANGE
|
0-28151-030-0 |
02 |
1 |
1012-1301 |
|
● |
| |
22 |
00.685 BOLT; TRANS CASE TO ENG
09.171
M10X30 FLANGE
|
0-28151-030-0 |
02 |
1 |
1012-1301 |
|
● |
| |
53 |
04.338 PLATE; LOCK,DRIVEN GEAR
|
8-98046-217-0 |
01 |
1 |
1012-1303 |
|
● |
| |
53 |
04.338 PLATE; LOCK,DRIVEN GEAR
|
8-98046-217-0 |
01 |
1 |
1304- |
● |
● |
| |
98 |
04.338 SEAL; OIL,BUSH
04.439
|
9-09561-324-0 |
01 |
1 |
1012-1303 |
|
● |
| |
98 |
04.338 SEAL; OIL,BUSH
04.439
|
9-09561-324-0 |
01 |
1 |
1304- |
● |
● |
