2-20 — MANUAL TRANSMISSION ASM AND CASE (#54002) — 39 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

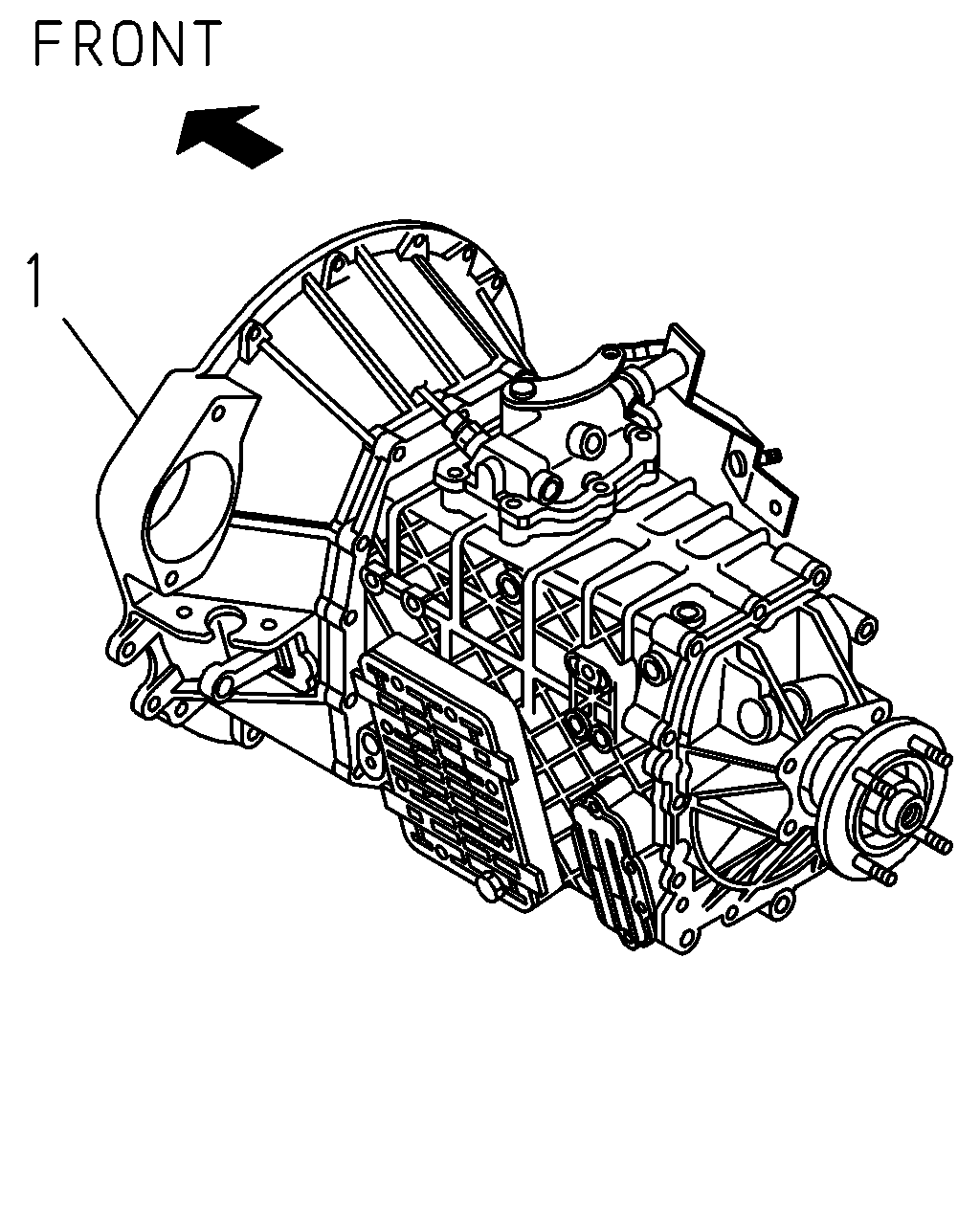

1	04.003 TRANSMISSION ASM; MANUAL	8-98067-680-0	01	1	1012-	●
1	04.003 TRANSMISSION ASM; MANUAL	8-98105-787-0	01	1	1012-1106		●
1	04.003 TRANSMISSION ASM; MANUAL	8-98187-418-0	01	1	1107-		●

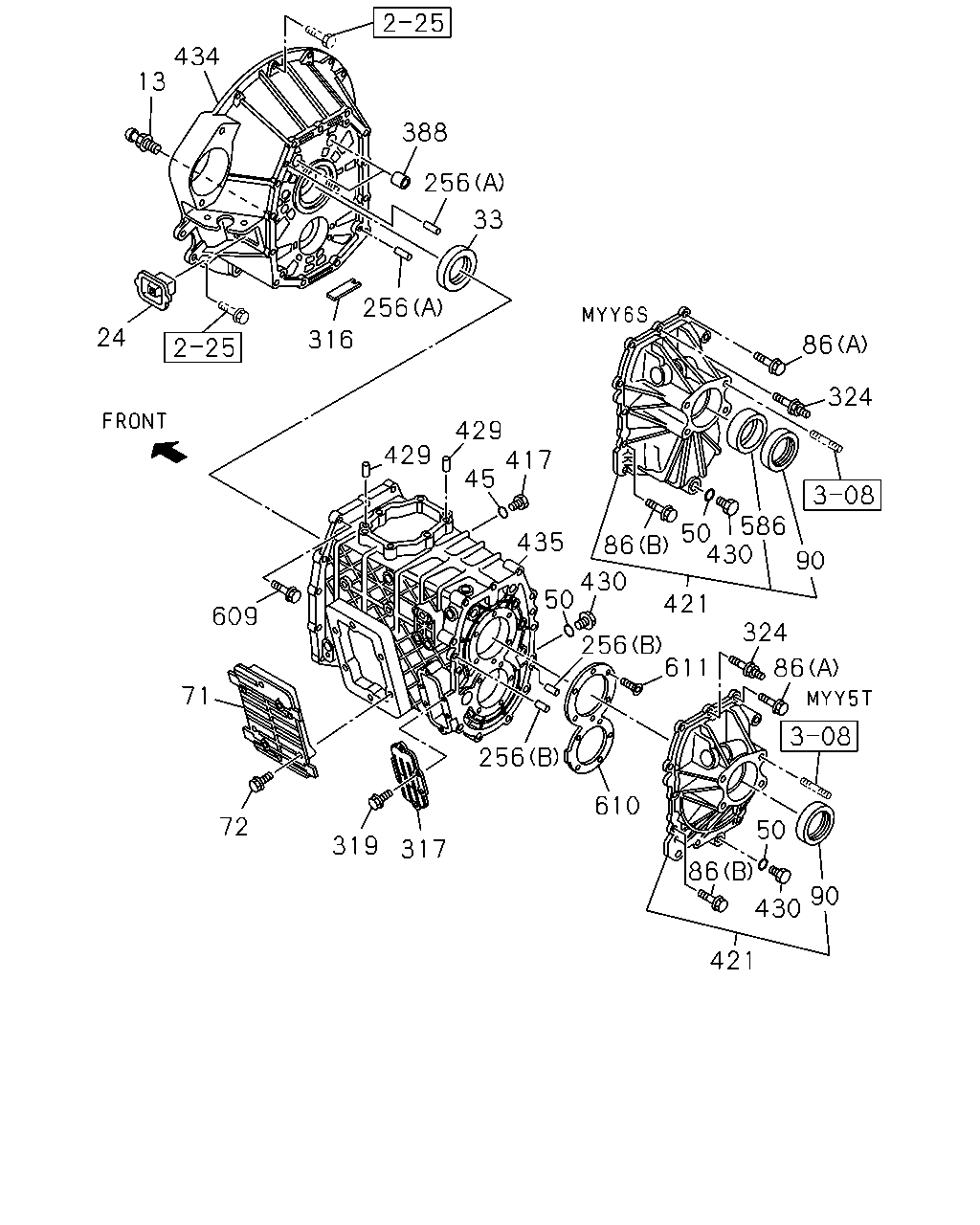

434 13 388 256 33 256 24 316 86 324 429 417 45 429 586 50 430 435 86 90 430 50 421 609 324 256 611 256 86 71 610 72 50 86 319 317 90 430 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	04.302 SUPPORT; SHIFT FORK	8-97255-385-1	01	1	1012-	●
13	04.302 SUPPORT; SHIFT FORK	8-97255-384-1	01	1	1012-		●
24	00.797 COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	1012-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1012-	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1012-	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1012-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1012-		●
71	04.439 COVER; SIDE,TRANS CASE	8-97252-625-0	01	1	1012-	●	●
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-98014-142-0	06	1	1012-	●	●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1406-		●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1012-1405	●	●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	09	1	1406-	●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	1012-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	1012-	●	●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	1012-	●	●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	1012-	●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1012-	●	●
317	04.109 COVER; CASE	8-97252-626-0	01	1	1012-	●	●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	1012-	●	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	1406-		●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	1012-1405	●	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	02	1	1406-	●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	1012-	●	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1012-	●	●
421	04.317 COVER; RR,TRANS	8-98020-028-0	01	1	1012-	●
421	04.317 COVER; RR,TRANS	8-98020-029-0	01	1	1012-		●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	1012-	●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	02	1	1012-	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1012-		●
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	1012-	●	●
435	04.103 CASE; TRANS	8-97379-374-0	01	1	1012-	●
435	04.103 CASE; TRANS	8-97379-375-0	01	1	1012-		●
586	00.683 BEARING; NEEDLE	8-97253-109-0	01	1	1012-	●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	1012-	●	●
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	1012-	●	●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	11	1	1012-	●	●
