4-60 — REAR SUSPENSION (#540) — 94 parça

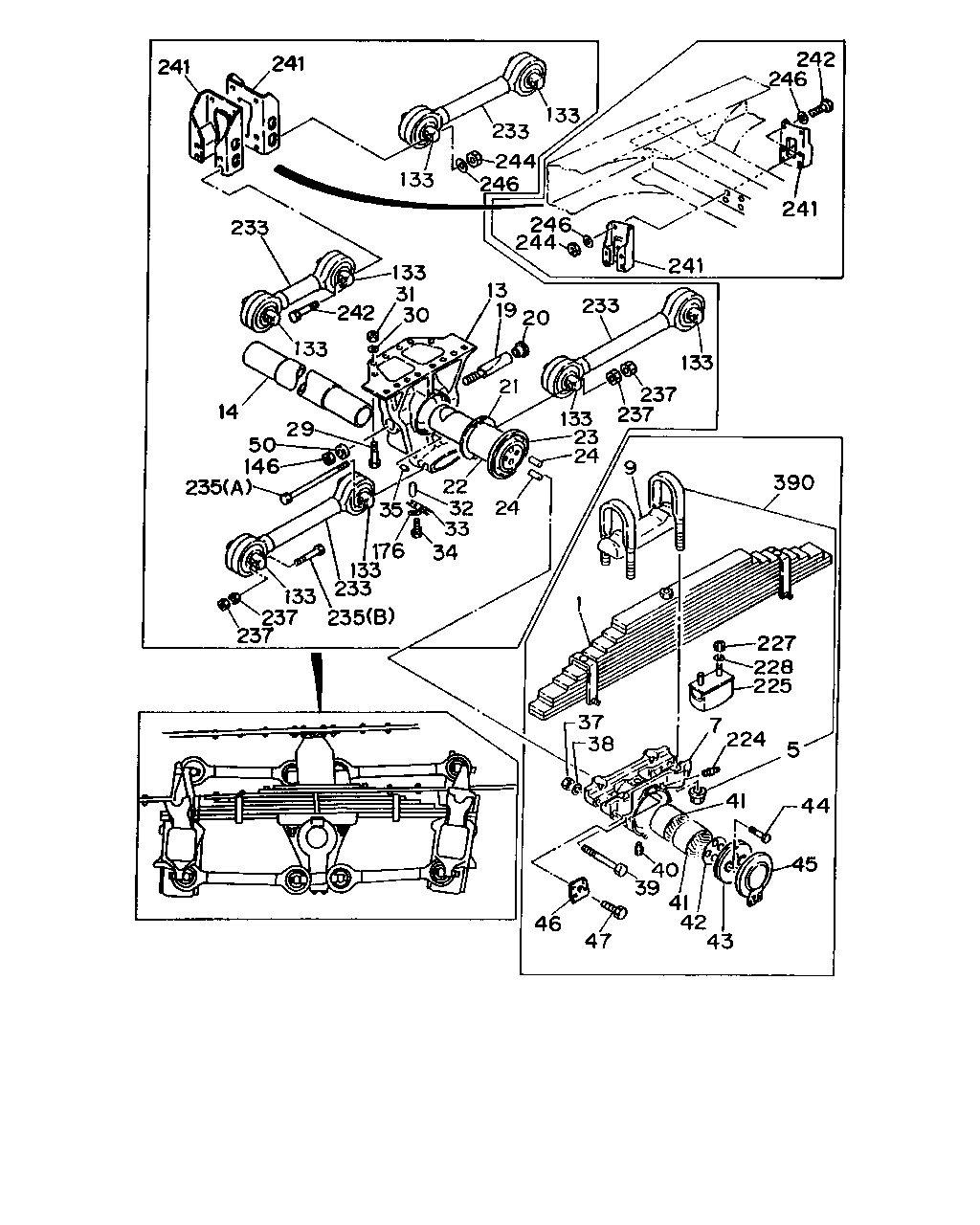

çizim 27810
242 241 246 241 246 244 246 244 233 133 133 241 241 233 133 31 242 133 30 14 29 50 146 235 237 237 133 235 233 133 176 35 22 32 33 34 24 24 23 133 21 20 19 13 233 133 237 237 390 227 228 225 7 224 5 44 41 45 43 42 41 40 39 47 46 38 37 1 9
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MITSUBISHI 8-LEAF 		1-51310-432-3 02 1 8712-9001
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. NHK 		1-51310-443-4 02 1 8712-9001
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY<G50> 		1-51310-453-1 02 1 9002-
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY<G50> MITSUBISHI 8-LEAF 		1-51310-432-3 02 1 9002-
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY<G50> NHK 		1-51310-443-4 02 1 9002-
5 NUT; U-BOLT,RR SPR
M27 FLANGE 		9-09844-662-1 08 1 8712-
7 SEAT; SPR,LWR 1-51385-060-2 02 1 8712-9208
7 SEAT; SPR,LWR 1-51385-091-0 02 1 9209-
9 PAD; U BOLT,RR SPR 1-51372-019-1 02 1 8712-
13 BRACKET; TRUNNION SHAFT 1-53361-032-6 02 1 8712-9407
13 BRACKET; TRUNNION SHAFT 1-53361-065-0 02 1 9408-
14 PIPE; TRUNNION BRKT 1-51389-032-0 01 1 8712-
19 BOLT; KEY,SHAFT 1-51389-018-2 02 1 8712-
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 8712-
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 8712-
22 SHAFT; TRUNNION,RR SUSP 1-51381-022-2 02 1 8712-
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 8712-
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 8712-
29 BOLT; BRKT TO FRAME
M18X75 		1-09000-221-1 24 1 8712-
29 BOLT; BRKT TO FRAME
M18X55 		9-91066-855-0 04 1 8712-9001
29 BOLT; BRKT TO FRAME
M18X55 		9-92061-855-0 04 1 9002-
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 AR 1 8712-
31 NUT; TRUNNION BRKT
M18 		9-99110-518-0 28 1 8712-
32 PIN; STRAIGHT 1-09740-027-0 04 1 8712-
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 8712-
34 BOLT; LOCK PLATE
M10X20 W/LK WASHER 		9-01901-020-0 04 1 8712-8802
34 BOLT; LOCK PLATE
M10X20 		9-01961-020-0 02 1 8803-9204
34 BOLT; LOCK PLATE
M10X20 W/LK&PL WASHER 		0-50141-020-0 02 1 9205-
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 8712-
37 NUT; SPR SETTING
M22 		9-09110-522-0 04 1 8712-
38 WASHER; LK,SPR SETTING
ID=22.5 		9-09150-622-0 04 1 8712-
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 8712-
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 8712-
41 BUSHING; TRUNNION SHAFT 1-51386-004-0 04 1 8712-
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 8712-
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 8712-
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 8712-
45 COVER; SPR SEAT 1-51387-013-2 02 1 8712-
46 BRACKET; COVER 1-51387-015-2 02 1 8712-
47 BOLT; COVER TO SEAT
M8X12 W/LK WASHER 		9-01900-812-0 08 1 8712-9204
47 BOLT; COVER TO SEAT
M8X12 W/LK WASHER 		0-50040-812-0 08 1 9205-9302
47 BOLT; COVER TO SEAT
M8X12 FLANGE 		0-28080-812-0 08 1 9303-
50 WASHER; PL,TRUNNION SHAFT 1-09503-071-0 02 1 8712-
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-066-2 16 1 8712-9210
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-0 16 1 9211-
146 NUT; KEY BOLT
M24 		9-99110-524-0 02 1 8712-
176 WASHER; PL,LOCK PLATE
ID=10.5 OD=22 		9-09164-610-0 02 1 8712-8802
224 NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 8712-
225 RUBBER; CUSHION,RR SPR 1-53366-072-1 02 1 8712-
225 RUBBER; CUSHION,RR SPR 1-53366-073-1 02 1 8712-
227 NUT; CUSHION RUBBER
M12 		9-99110-412-0 08 1 8712-9304
227 NUT; CUSHION RUBBER
M12 		9-99110-512-0 08 1 9305-
228 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 08 1 8712-
233 ROD ASM; TORQUE,RR SUSP
FORWARD LOWER L=522 		1-51511-386-2 02 1 8712-9205
233 ROD ASM; TORQUE,RR SUSP
FORWARD LOWER L=522 		1-51511-578-1 02 1 9206-9206
233 ROD ASM; TORQUE,RR SUSP
REARWARD LOWER L=481 		1-51511-387-2 02 1 8712-9009
233 ROD ASM; TORQUE,RR SUSP
V TYPE ENG<91L> FORWARD UPPER L=481 		1-51511-387-2 01 1 9010-9205
233 ROD ASM; TORQUE,RR SUSP
V TYPE ENG<91L> FORWARD UPPER L=481 		1-51511-577-0 01 1 9206-9306
233 ROD ASM; TORQUE,RR SUSP
REARWARD LOWER L=481 		1-51511-451-0 02 1 9010-9211
233 ROD ASM; TORQUE,RR SUSP
REARWARD LOWER L=481 		1-51511-577-0 02 1 9212-9508
233 ROD ASM; TORQUE,RR SUSP
REARWARD LOWER L=480 		1-51511-677-0 02 1 9509-
233 ROD ASM; TORQUE,RR SUSP
FORWARD LOWER L=522 		1-51511-450-0 02 1 9207-9211
233 ROD ASM; TORQUE,RR SUSP
FORWARD LOWER L=522 		1-51511-578-1 02 1 9212-9508
233 ROD ASM; TORQUE,RR SUSP
FORWARD LOWER L=520 		1-51511-605-0 02 1 9509-
233 ROD ASM; TORQUE,RR SUSP
L TYPE ENG<90L> FORWARD UPPER L=491 		1-51511-397-0 01 1 8712-9205
233 ROD ASM; TORQUE,RR SUSP
L TYPE ENG<90L> FORWARD UPPER L=491 		1-51511-585-0 01 1 9206-9210
233 ROD ASM; TORQUE,RR SUSP
L TYPE ENG<90L> FORWARD UPPER L=491 		1-51511-397-0 01 1 9211-9212
233 ROD ASM; TORQUE,RR SUSP
L TYPE ENG<90L> FORWARD UPPER L=491 		1-51511-585-0 01 1 9301-9508
233 ROD ASM; TORQUE,RR SUSP
L TYPE ENG<90L> FORWARD UPPER L=490 		1-51511-668-0 01 1 9509-
233 ROD ASM; TORQUE,RR SUSP
L TYPE ENG<90L> REARWARD UPPER L=605 		1-51511-434-0 01 1 8712-9205
233 ROD ASM; TORQUE,RR SUSP
L TYPE ENG<90L> REARWARD UPPER L=605 		1-51511-586-0 01 1 9206-9210
233 ROD ASM; TORQUE,RR SUSP
L TYPE ENG<90L> REARWARD UPPER L=605 		1-51511-434-0 01 1 9211-9212
233 ROD ASM; TORQUE,RR SUSP
L TYPE ENG<90L> REARWARD UPPER L=605 		1-51511-586-0 01 1 9301-9508
233 ROD ASM; TORQUE,RR SUSP
L TYPE ENG<90L> REARWARD UPPER L=605 		1-51511-686-0 01 1 9509-
233 ROD ASM; TORQUE,RR SUSP
V TYPE ENG<91L> FORWARD UPPER L=470 		1-51511-374-2 01 1 8712-9001
233 ROD ASM; TORQUE,RR SUSP
V TYPE ENG<91L> REARWARD UPPER L=593 		1-51511-435-0 01 1 8712-9108
233 ROD ASM; TORQUE,RR SUSP
V TYPE ENG<91L> REARWARD UPPER L=593 		1-51511-338-2 01 1 9109-9205
233 ROD ASM; TORQUE,RR SUSP
V TYPE ENG<91L> REARWARD UPPER L=593 		1-51511-579-1 01 1 9206-9508
233 ROD ASM; TORQUE,RR SUSP
V TYPE ENG<91L> REARWARD UPPER L=590 		1-51511-673-0 01 1 9509-
233 ROD ASM; TORQUE,RR SUSP
V TYPE ENG<91L> FORWARD UPPER L=481 		1-51511-451-0 01 1 9002-9009
233 ROD ASM; TORQUE,RR SUSP
V TYPE ENG<91L> FORWARD UPPER L=481 		1-51511-577-0 01 1 9307-9508
233 ROD ASM; TORQUE,RR SUSP
V TYPE ENG<91L> FORWARD UPPER L=480 		1-51511-677-0 01 1 9509-
235 BOLT; TORQUE ROD
(A) M18X265 		1-09000-078-1 06 1 8712-
235 BOLT; TORQUE ROD
(B) M18X95 		1-09000-266-1 12 1 8712-9011
235 BOLT; TORQUE ROD
(B) M18X102 		1-09000-568-0 12 1 9012-
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 8712-
241 BRACKET; TORQUE ROD 1-53363-031-2 02 1 8712-
242 BOLT; BRKT TO FRAME
M14X205 		1-09000-147-0 02 1 8712-
242 BOLT; BRKT TO FRAME
M14X50 		9-91066-450-0 02 1 8712-
244 NUT; BRKT
M14 		9-99110-514-0 04 1 8712-
246 WASHER; TORQUE ROD
ID=15 		9-09651-069-0 08 1 8712-9205
390 U-BOLT SET; RR SPRING
L=310 		1-87870-166-2 04 1 8712-9001
390 U-BOLT SET; RR SPRING
REAR SPRING HEAVY DUTY<G50> L=340 		1-87870-146-1 04 1 9002-
390 U-BOLT SET; RR SPRING
EXC. REAR SPRING HEAVY DUTY<G50> L=310 		1-87870-166-3 04 1 9002-
