◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10624 - FSR-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#54) — 112 parça

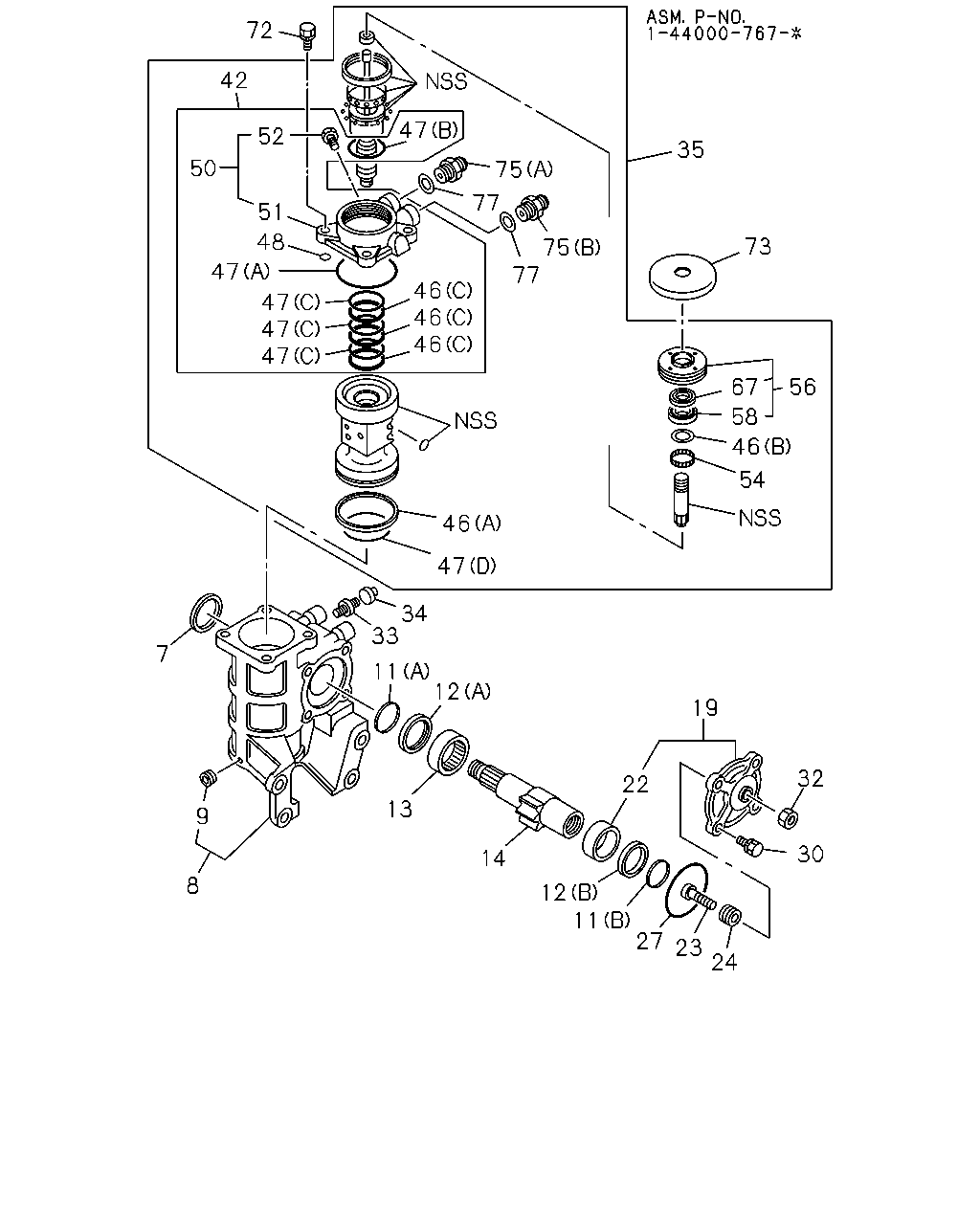

çizim 27135
72 42 47 52 35 50 75 77 51 48 73 75 77 47 46 46 46 47 47 47 56 67 58 46 54 46 47 34 33 7 11 12 19 32 22 13 9 30 14 8 12 11 27 23 24
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-157-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44240-077-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44241-126-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-071-0 02 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-718-4 		9-99202-024-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-767-3 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-767-3 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-767-3 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-767-3 		1-44519-162-1 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-09811-287-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-160-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44321-018-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44321-029-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44260-015-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44261-027-1 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-164-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-718-4 		9-00096-071-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44277-006-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-718-4 		9-44277-010-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44569-103-0 04 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-718-4 		9-92051-430-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
M14 ASM PART: A = 1-44000-718-4 		9-99110-414-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M12 ASM PART: B = 1-44000-767-3 		9-99110-512-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: B = 1-44000-767-3 		9-83331-704-0 01 1 -
34 PROTECTOR; STRG UNIT
ASM PART: B = 1-44000-767-3 		9-83335-044-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44150-037-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44560-069-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-767-3 		1-44159-063-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-767-3 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-767-3 		1-44519-155-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-767-3 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-767-3 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-767-3 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-767-3 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-097-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44560-068-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44561-017-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44159-062-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: B = 1-44000-767-3 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: B = 1-44000-767-3 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: B = 1-44000-767-3 		9-89970-787-0 02 1 -
çizim 93200
132 44 69 70 66 68 43 14 22 26 55 23 25 19 31 30 43 9 129 32 7 10 13 8
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-157-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44240-077-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44241-126-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-071-0 02 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-718-4 		9-99202-024-0 01 1 -
10 GASKET; PLUG,STRG UNIT
ID=24.5 OD=32.5 ASM PART: A = 1-44000-718-4 		9-09920-392-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-09811-287-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-160-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44321-018-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44321-029-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44260-015-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44261-027-1 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-164-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-718-4 		9-00096-071-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44277-006-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-718-4 		9-44277-010-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.515-2.535 ASM PART: A = 1-44000-718-4 		9-44279-013-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.545-2.565 ASM PART: A = 1-44000-718-4 		9-44279-014-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.575-2.595 ASM PART: A = 1-44000-718-4 		9-44279-015-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.605-2.625 ASM PART: A = 1-44000-718-4 		9-44279-016-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.635-2.655 ASM PART: A = 1-44000-718-4 		9-44279-017-0 AR 1 -
26 GASKET; COVER,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44262-005-1 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44569-103-0 04 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-718-4 		9-92051-430-0 04 1 -
31 WASHER; COVER STRG UNIT
ID=14.2 ASM PART: A = 1-44000-718-4 		9-09150-514-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
M14 ASM PART: A = 1-44000-718-4 		9-99110-414-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M12 ASM PART: B = 1-44000-767-3 		9-99110-512-0 01 1 -
43 BEARING; WORM SHAFT,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-09803-001-0 02 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-718-4 		1-09625-353-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44130-385-0 01 1 -
66 COVER; REAR STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44251-062-0 01 1 -
68 SHIM; COVER STRG UNIT
T=0.04 ASM PART: A = 1-44000-718-4 		1-44253-014-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.05 ASM PART: A = 1-44000-718-4 		1-44253-015-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.06 ASM PART: A = 1-44000-718-4 		1-44253-016-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.07 ASM PART: A = 1-44000-718-4 		1-44253-017-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.08 ASM PART: A = 1-44000-718-4 		1-44253-018-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.10 ASM PART: A = 1-44000-718-4 		1-44253-019-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.20 ASM PART: A = 1-44000-718-4 		1-44253-020-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.50 ASM PART: A = 1-44000-718-4 		1-44253-021-0 AR 1 -
69 BOLT; COVER FIX STRG UNIT
M14X35 ASM PART: A = 1-44000-718-4 		9-92051-435-0 04 1 -
70 WASHER; COVER FIX STRG UNIT
ID=14.2 ASM PART: A = 1-44000-718-4 		9-09150-514-0 04 1 -
129 WASHER; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44279-014-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44139-053-0 01 1 -

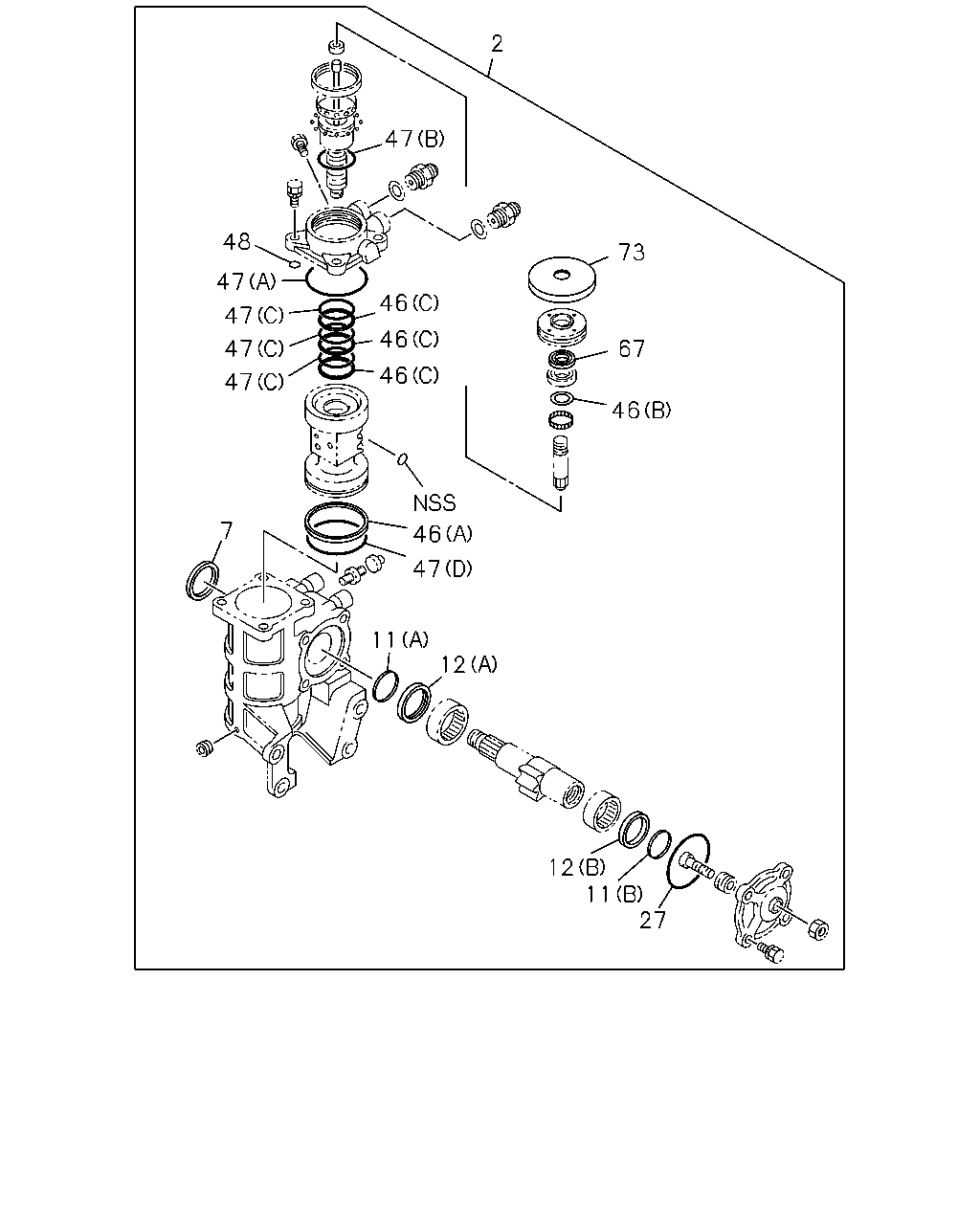

çizim 93457
2 47 48 73 47 46 47 46 47 67 46 47 46 7 46 47 11 12 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: B = 1-44000-767-3 		1-85574-024-1 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-157-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-767-3 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-767-3 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-767-3 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-767-3 		1-44519-162-1 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-767-3 		1-44159-063-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-767-3 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-767-3 		1-44519-155-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-767-3 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-767-3 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-767-3 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-767-3 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-097-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44259-057-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44159-062-0 01 1 -
