1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#53993) — 83 parça

137 142 139 184 144 138 141 24 143 6 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	03.632 VALVE; EXH BRAKE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97360-025-1	01	1	1012-	●
24	03.634 BOLT; COVER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.444	8-97065-029-0	02	1	1012-1303	●
24	03.634 BOLT; COVER 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.444	8-97065-029-0	02	1	1012-1303	●
24	03.634 BOLT; COVER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.444	8-97065-029-0	02	1	1304-	●
24	03.634 BOLT; COVER 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.444	8-97065-029-0	02	1	1304-	●
24	03.634 BOLT; COVER 4HK1-TCN ENG(RDQ) 03.444	8-97065-029-0	02	1	1304-		●
137	03.634 CHAMBER; POWER 4HK1-TCN ENG(RDQ)	8-98070-470-0	01	1	1012-1303	●
137	03.634 CHAMBER; POWER 4HK1-TCN ENG(RDQ)	8-98070-470-0	01	1	1304-	●	●
137	03.634 CHAMBER; POWER 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-98043-596-0	01	1	1012-	●
138	03.634 BEARING; EXH BRK VLV 4HK1-TCN ENG(RDQ)	5-22189-004-0	01	1	1012-1303	●
138	03.634 BEARING; EXH BRK VLV 4HK1-TCN ENG(RDQ)	5-22189-004-0	01	1	1304-	●	●
138	03.634 BEARING; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.440	8-94311-446-0	01	1	1012-	●
139	03.634 GASKET; EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-94328-234-0	01	1	1012-1303	●
139	03.634 GASKET; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	1012-1303	●
139	03.634 GASKET; EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-94328-234-0	01	1	1304-	●
139	03.634 GASKET; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	1304-	●
139	03.634 GASKET; EXH BRK VLV 4HK1-TCN ENG(RDQ)	8-94328-234-0	01	1	1304-		●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HK1-TCN ENG(RDQ) 05.122	8-94311-428-0	01	1	1012-1303	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HK1-TCN ENG(RDQ) 05.122	8-94311-428-0	01	1	1304-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	9-88510-009-0	01	1	1012-	●
142	03.636 CLEVIS; EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-97177-311-0	01	1	1012-1303	●
142	03.636 CLEVIS; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	1012-1303	●
142	03.636 CLEVIS; EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-97177-311-0	01	1	1304-	●
142	03.636 CLEVIS; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	1304-	●
142	03.636 CLEVIS; EXH BRK VLV 4HK1-TCN ENG(RDQ)	8-97177-311-0	01	1	1304-		●
143	03.636 PIN; EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-94311-452-0	01	1	1012-1303	●
143	03.636 PIN; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	1012-1303	●
143	03.636 PIN; EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-94311-452-0	01	1	1304-	●
143	03.636 PIN; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	1304-	●
143	03.636 PIN; EXH BRK VLV 4HK1-TCN ENG(RDQ)	8-94311-452-0	01	1	1304-		●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-97029-428-0	01	1	1012-1303	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	1012-1303	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-97029-428-0	01	1	1304-	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	1304-	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HK1-TCN ENG(RDQ)	8-97029-428-0	01	1	1304-		●
146	03.634 NUT; EXH BRK VLV 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1303	●
146	03.634 NUT; EXH BRK VLV 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1304-	●	●
146	03.634 NUT; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	1012-	●
184	03.634 COVER; BRKT 4HK1-TCN ENG(RDQ)	8-98070-514-0	01	1	1012-1303	●
184	03.634 COVER; BRKT 4HK1-TCN ENG(RDQ)	8-98070-514-0	01	1	1304-	●	●
184	03.634 COVER; BRKT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97311-447-1	01	1	1012-	●

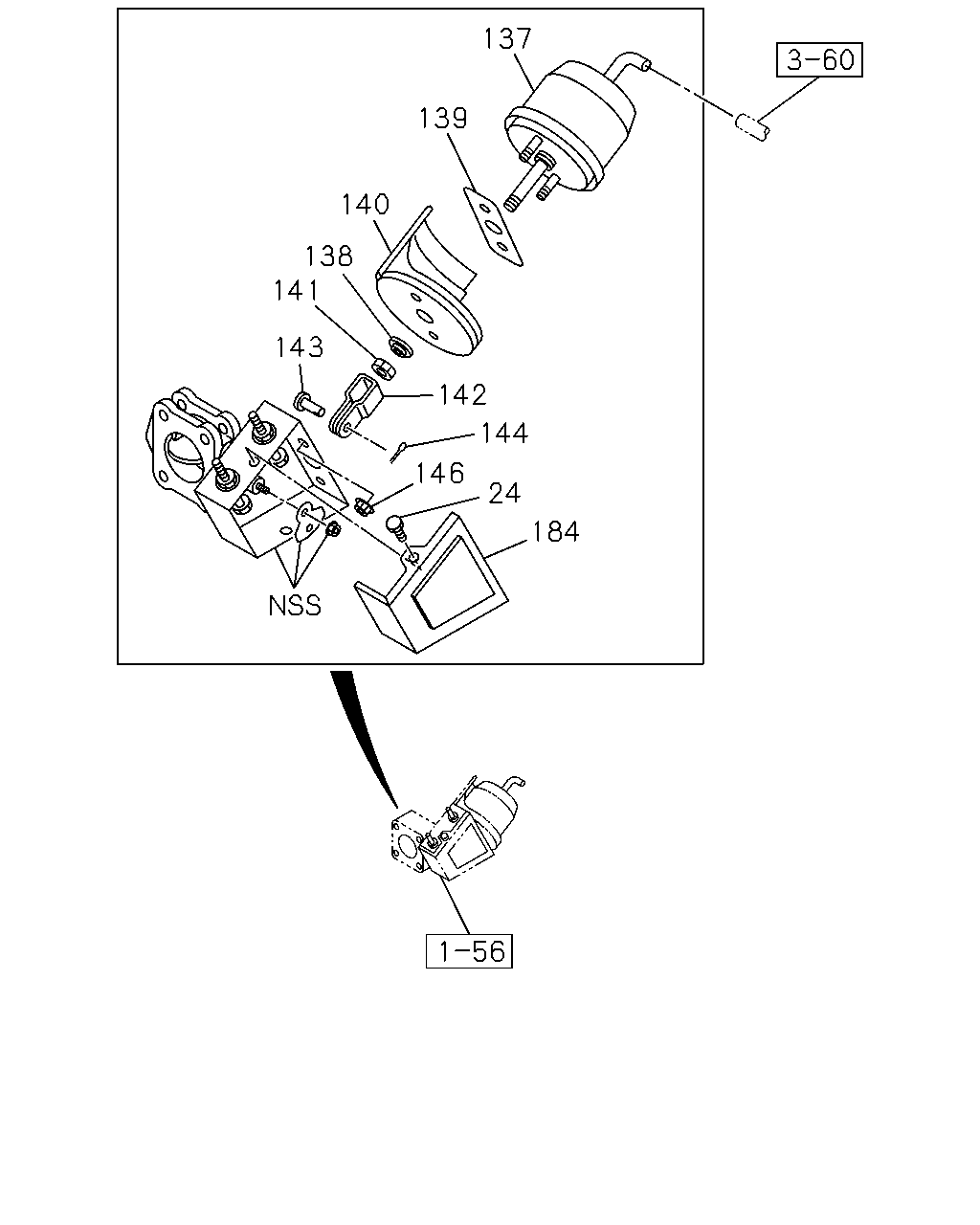

137 139 140 138 141 143 142 144 146 24 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	03.634 BOLT; COVER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.444	8-97065-029-0	02	1	1012-1303	●
24	03.634 BOLT; COVER 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.444	8-97065-029-0	02	1	1012-1303	●
24	03.634 BOLT; COVER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.444	8-97065-029-0	02	1	1304-	●
24	03.634 BOLT; COVER 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.444	8-97065-029-0	02	1	1304-	●
24	03.634 BOLT; COVER 4HK1-TCN ENG(RDQ) 03.444	8-97065-029-0	02	1	1304-		●
137	03.634 CHAMBER; POWER 4HK1-TCN ENG(RDQ)	8-98070-470-0	01	1	1012-1303	●
137	03.634 CHAMBER; POWER 4HK1-TCN ENG(RDQ)	8-98070-470-0	01	1	1304-	●	●
137	03.634 CHAMBER; POWER 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-98043-596-0	01	1	1012-	●
138	03.634 BEARING; EXH BRK VLV 4HK1-TCN ENG(RDQ)	5-22189-004-0	01	1	1012-1303	●
138	03.634 BEARING; EXH BRK VLV 4HK1-TCN ENG(RDQ)	5-22189-004-0	01	1	1304-	●	●
138	03.634 BEARING; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.440	8-94311-446-0	01	1	1012-	●
139	03.634 GASKET; EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-94328-234-0	01	1	1012-1303	●
139	03.634 GASKET; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	1012-1303	●
139	03.634 GASKET; EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-94328-234-0	01	1	1304-	●
139	03.634 GASKET; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	1304-	●
139	03.634 GASKET; EXH BRK VLV 4HK1-TCN ENG(RDQ)	8-94328-234-0	01	1	1304-		●
140	03.634 INSULATOR; EXH BRK VLV 4HK1-TCN ENG(RDQ)	8-97173-333-0	01	1	1012-1303	●
140	03.634 INSULATOR; EXH BRK VLV 4HK1-TCN ENG(RDQ)	8-97173-333-0	01	1	1304-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HK1-TCN ENG(RDQ) 05.122	8-94311-428-0	01	1	1012-1303	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HK1-TCN ENG(RDQ) 05.122	8-94311-428-0	01	1	1304-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	9-88510-009-0	01	1	1012-	●
142	03.636 CLEVIS; EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-97177-311-0	01	1	1012-1303	●
142	03.636 CLEVIS; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	1012-1303	●
142	03.636 CLEVIS; EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-97177-311-0	01	1	1304-	●
142	03.636 CLEVIS; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	1304-	●
142	03.636 CLEVIS; EXH BRK VLV 4HK1-TCN ENG(RDQ)	8-97177-311-0	01	1	1304-		●
143	03.636 PIN; EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-94311-452-0	01	1	1012-1303	●
143	03.636 PIN; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	1012-1303	●
143	03.636 PIN; EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-94311-452-0	01	1	1304-	●
143	03.636 PIN; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	1304-	●
143	03.636 PIN; EXH BRK VLV 4HK1-TCN ENG(RDQ)	8-94311-452-0	01	1	1304-		●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-97029-428-0	01	1	1012-1303	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	1012-1303	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-97029-428-0	01	1	1304-	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	1304-	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HK1-TCN ENG(RDQ)	8-97029-428-0	01	1	1304-		●
146	03.634 NUT; EXH BRK VLV 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1303	●
146	03.634 NUT; EXH BRK VLV 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1304-	●	●
146	03.634 NUT; EXH BRK VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	1012-	●
184	03.634 COVER; BRKT 4HK1-TCN ENG(RDQ)	8-98070-514-0	01	1	1012-1303	●
184	03.634 COVER; BRKT 4HK1-TCN ENG(RDQ)	8-98070-514-0	01	1	1304-	●	●
184	03.634 COVER; BRKT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97311-447-1	01	1	1012-	●
