Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#53992) — 660 parça

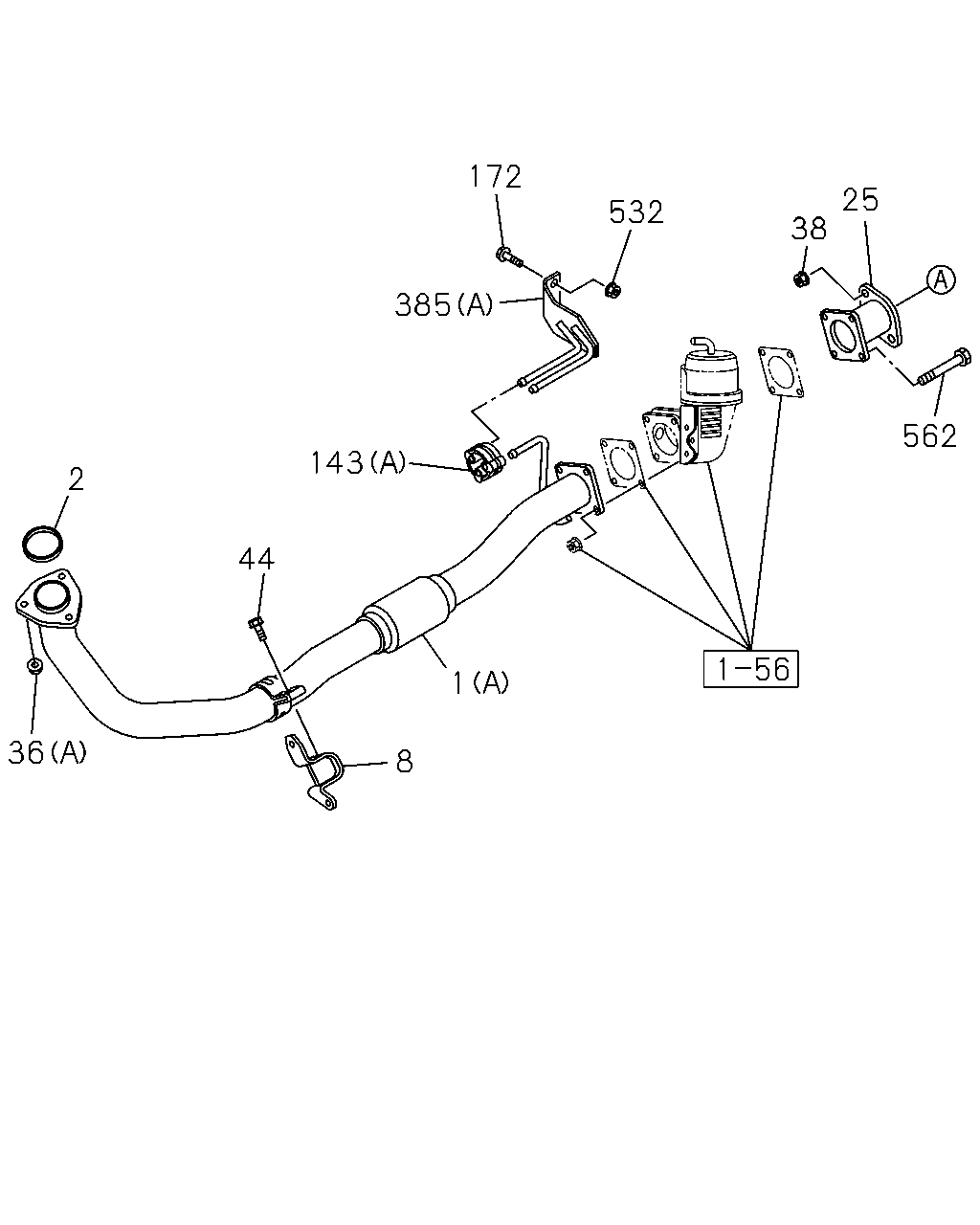

172 25 532 38 385 562 143 2 44 1 36 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (A)	8-98074-108-1	01	1	1012-1303	●
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (A)	8-98074-108-1	01	1	1304-	●	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (B)	8-98108-160-0	01	1	1012-1404	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (B)	8-98215-932-0	01	1	1405-	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXC. EXHAUST BRAKE<NF8> (C)	8-98117-520-0	01	1	1012-1404	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXC. EXHAUST BRAKE<NF8> (C)	8-98216-285-0	01	1	1405-	●
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	1012-1303	●
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	1304-	●
2	03.611 GASKET; PIPE TO MANIF 4HK1-TCN ENG(RDQ)	8-97381-455-0	01	1	1304-		●
8	03.704 BRACKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.613	8-97365-228-0	01	1	1012-1303	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.613	8-97365-228-0	01	1	1304-	●	●
8	03.704 BRACKET; EXH PIPE 4HG1 ENG(RJH) 03.613	8-98020-555-0	01	1	1012-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ)	8-98074-109-0	01	1	1012-1303	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ)	8-98074-109-0	01	1	1304-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-98108-164-1	01	1	1012-	●
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1304-	●
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1304-	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1304-		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1012-1303	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1304-	●	●
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
38	00.002 NUT; SILENCER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
38	00.002 NUT; SILENCER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-	●
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-	●
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-		●
44	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.685 M10X40 FLANGE	0-28051-040-0	01	1	1012-1303	●
44	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.685 M10X40 FLANGE	0-28051-040-0	01	1	1304-	●	●
44	03.613 BOLT; BRKT 4HG1 ENG(RJH) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	1012-1303	●
143	03.704 RUBBER; SUPPORT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98034-767-0	01	1	1012-1303	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	1304-	●	●
143	03.704 RUBBER; SUPPORT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98034-767-0	01	1	1304-	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (A)	8-97080-694-0	01	1	1012-1303	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (A)	8-97080-694-0	01	1	1304-	●	●
172	03.708 BOLT 4HK1-TCN ENG(RDQ) 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1012-1303	●
172	03.708 BOLT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1304-	●	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (B)	8-97207-224-0	02	1	1012-1303	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (B)	8-97207-224-0	02	1	1304-	●	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (A)	8-98074-495-1	01	1	1012-1303	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (A)	8-98074-495-1	01	1	1304-	●	●
385	03.704 BRACKET; SILENCER MTG 4HG1 ENG(RJH) 03.706 (C)	8-97076-020-0	02	1	1012-	●
532	03.704 NUT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-	●
532	03.704 NUT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) 03.632 M8X70	0-10855-870-0	04	1	1012-1303	●
562	03.690 PLATE; STUD,BOLT 03.632 M8X70	0-10855-870-0	04	1	1304-	●	●

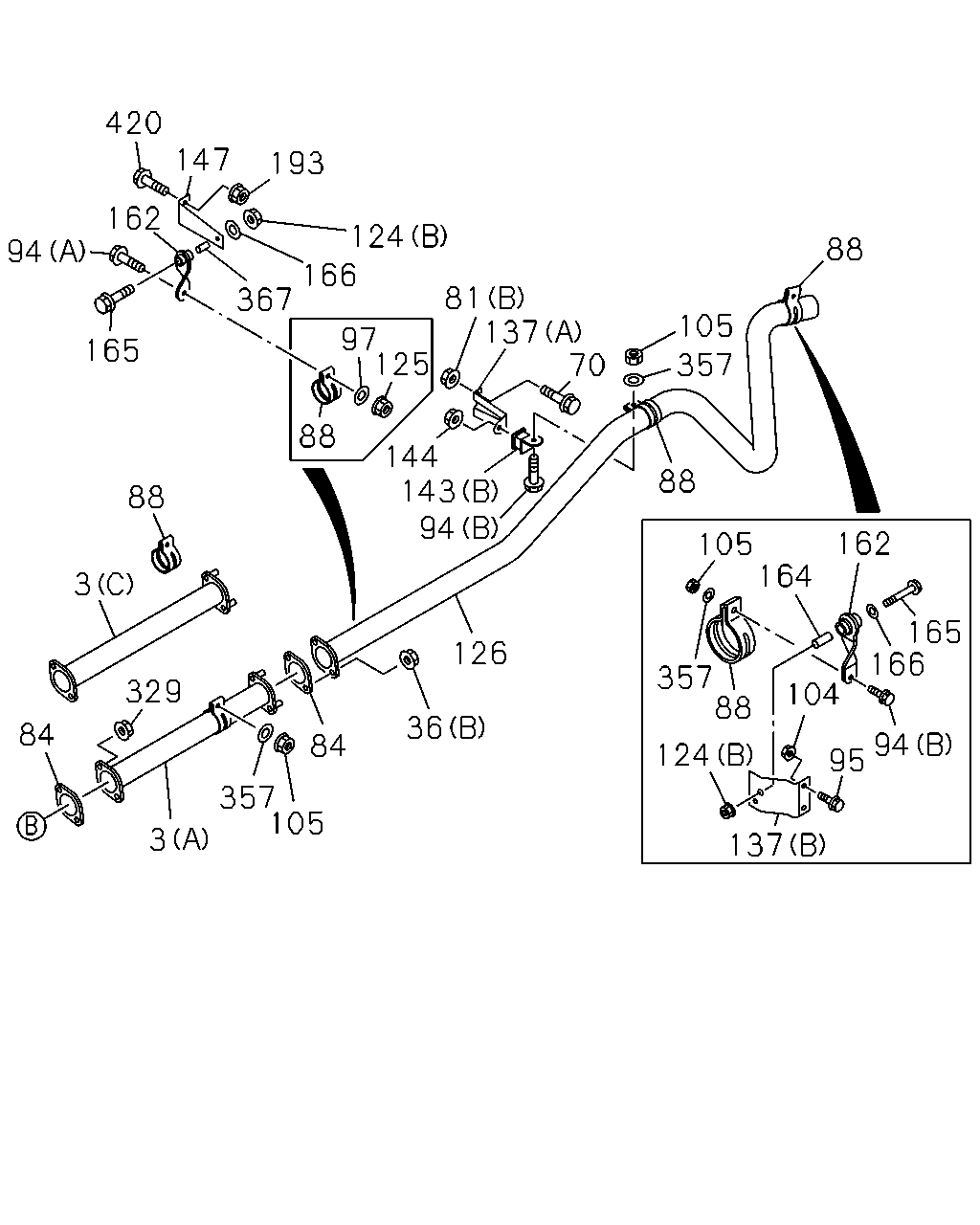

25 2 329 1 36 44 8 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (A)	8-98074-108-1	01	1	1012-1303	●
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (A)	8-98074-108-1	01	1	1304-	●	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (B)	8-98108-160-0	01	1	1012-1404	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (B)	8-98215-932-0	01	1	1405-	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXC. EXHAUST BRAKE<NF8> (C)	8-98117-520-0	01	1	1012-1404	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXC. EXHAUST BRAKE<NF8> (C)	8-98216-285-0	01	1	1405-	●
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	1012-1303	●
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	1304-	●
2	03.611 GASKET; PIPE TO MANIF 4HK1-TCN ENG(RDQ)	8-97381-455-0	01	1	1304-		●
8	03.704 BRACKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.613	8-97365-228-0	01	1	1012-1303	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.613	8-97365-228-0	01	1	1304-	●	●
8	03.704 BRACKET; EXH PIPE 4HG1 ENG(RJH) 03.613	8-98020-555-0	01	1	1012-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ)	8-98074-109-0	01	1	1012-1303	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ)	8-98074-109-0	01	1	1304-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-98108-164-1	01	1	1012-	●
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1304-	●
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1304-	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1304-		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1012-1303	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1304-	●	●
43	03.611 CLAMP; EXH PIPE 4HG1 ENG(RJH)	8-97351-200-1	01	1	1012-	●
44	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.685 M10X40 FLANGE	0-28051-040-0	01	1	1012-1303	●
44	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.685 M10X40 FLANGE	0-28051-040-0	01	1	1304-	●	●
44	03.613 BOLT; BRKT 4HG1 ENG(RJH) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-	●	●

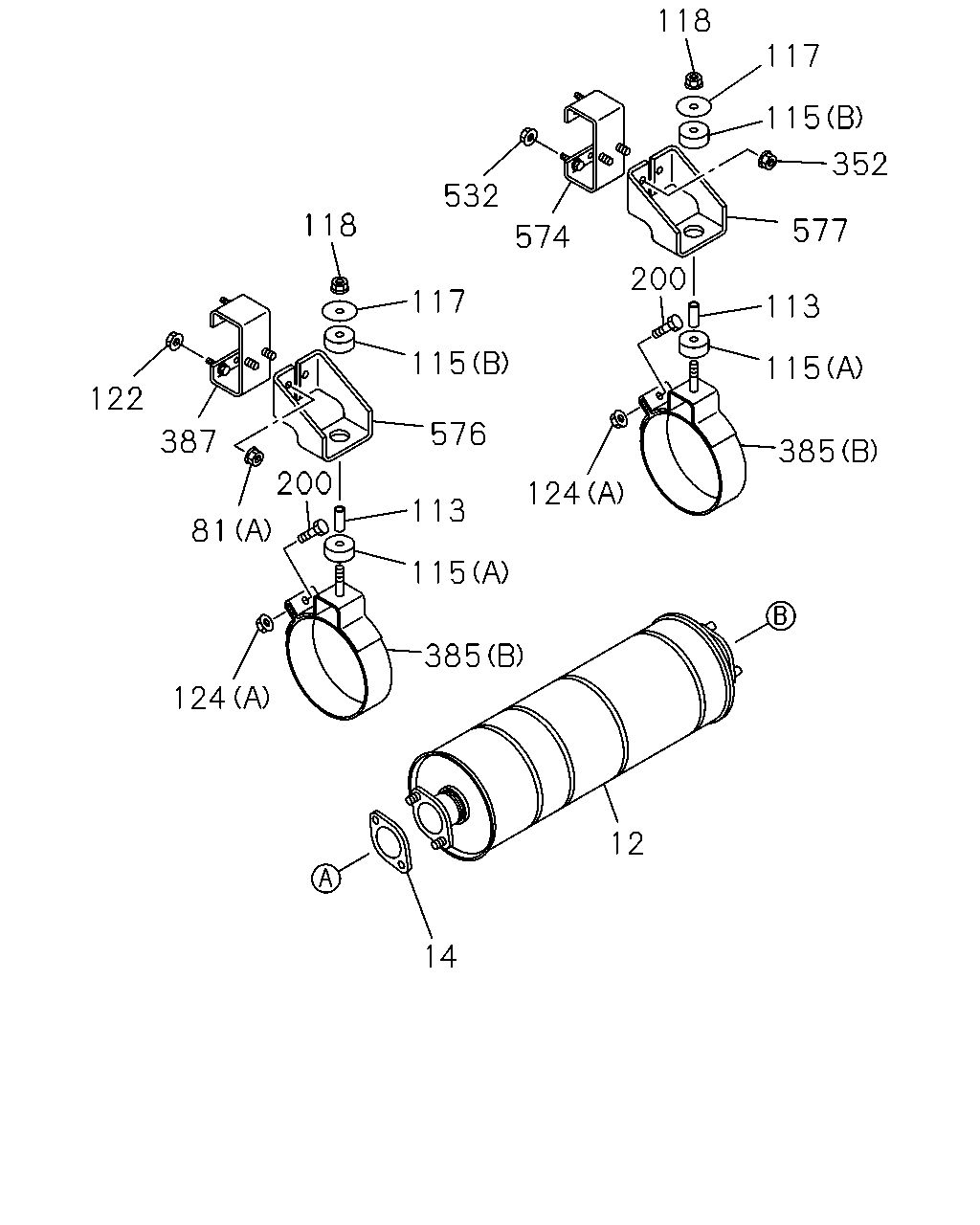

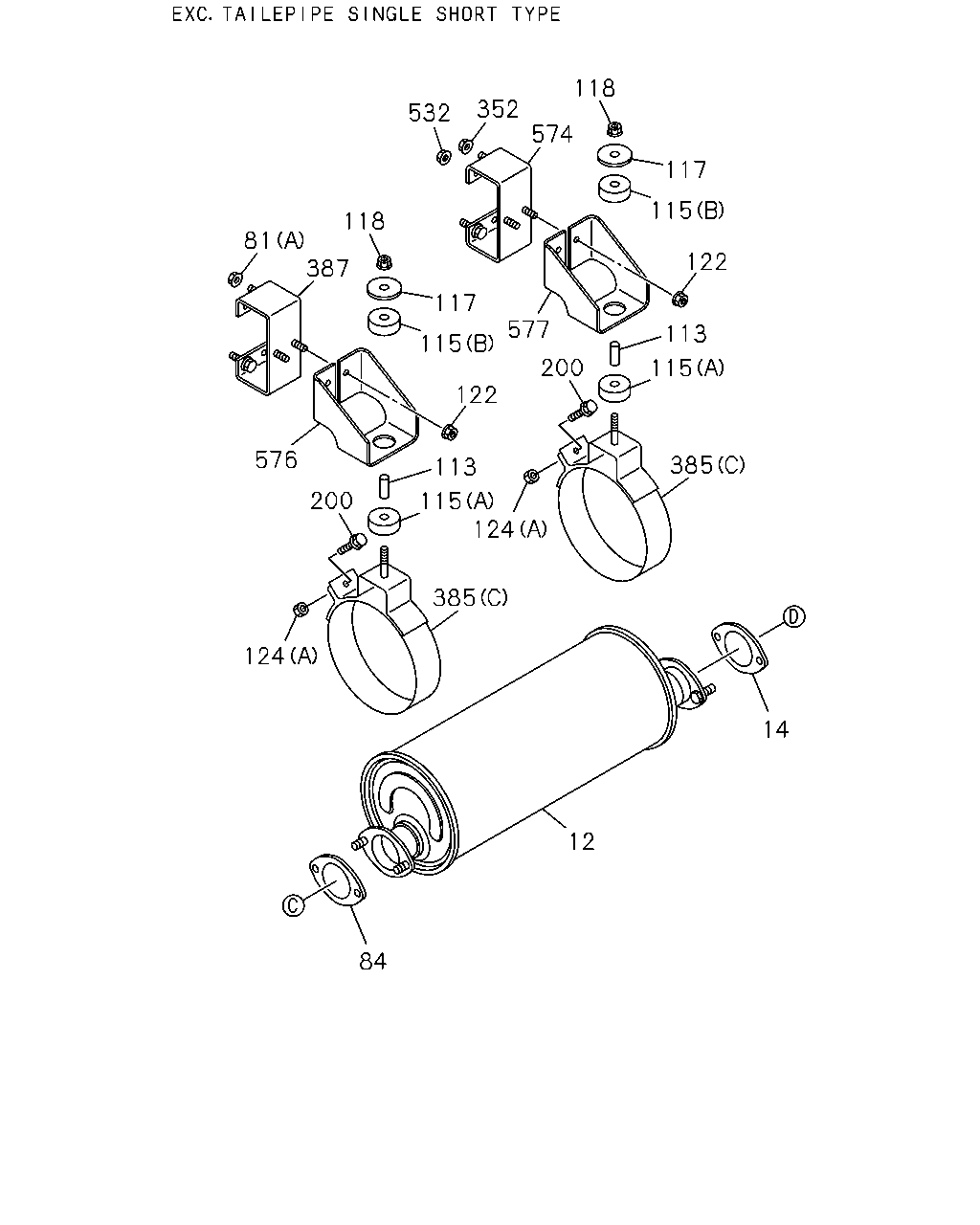

118 117 115 352 532 118 577 574 200 117 113 115 115 122 576 387 385 200 124 113 81 115 385 124 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ)	8-98090-839-0	01	1	1012-1303	●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ)	8-98090-839-0	01	1	1304-	●	●
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH) TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98108-930-1	01	1	1012-	●
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98117-518-0	01	1	1012-	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) ID=64.7	8-94328-352-0	01	1	1012-1303	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=64.7	8-94328-352-0	01	1	1012-1303	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=64.7	8-94328-352-0	01	1	1304-	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) ID=64.7	8-94328-352-0	01	1	1304-	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ) ID=64.7	8-94328-352-0	01	1	1304-		●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-1303	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-1303	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1304-	●	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1304-	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1304-	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1012-1303	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1304-	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-97379-882-0	02	1	1012-1303	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-97379-882-0	02	1	1304-	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-927-0	02	1	1012-1303	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-927-0	02	1	1304-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1012-1303	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1304-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1012-1303	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1304-	●	●
122	03.275 NUT; HANGER BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
122	03.275 NUT; HANGER BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-	●	●
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	1012-1303	●
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	1304-	●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
124	03.704 NUT; SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-	●
124	03.704 NUT; SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-	●
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-		●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-		●
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	02	1	1012-1303	●
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	02	1	1304-	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-	●	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (B)	8-97207-224-0	02	1	1012-1303	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (B)	8-97207-224-0	02	1	1304-	●	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (A)	8-98074-495-1	01	1	1012-1303	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (A)	8-98074-495-1	01	1	1304-	●	●
385	03.704 BRACKET; SILENCER MTG 4HG1 ENG(RJH) 03.706 (C)	8-97076-020-0	02	1	1012-	●
387	03.704 SPACER; BRKT 03.706	8-98044-774-0	01	1	1012-1303	●
387	03.704 SPACER; BRKT 03.706	8-98044-774-0	01	1	1304-	●	●
532	03.704 NUT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-	●
532	03.704 NUT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-		●
574	03.706 SPACER; DPD	8-98044-774-0	01	1	1012-1303	●
574	03.706 SPACER; DPD	8-98044-774-0	01	1	1304-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME	8-98074-124-1	01	1	1012-1303	●
576	03.706 BRACKET; DPD FRT TO FRAME	8-98074-124-1	01	1	1304-	●	●
577	03.706 BRACKET; DPD RR TO FRAME	8-98074-124-1	01	1	1012-1303	●
577	03.706 BRACKET; DPD RR TO FRAME	8-98074-124-1	01	1	1304-	●	●

2 36 1 329 44 8 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (A)	8-98074-108-1	01	1	1012-1303	●
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (A)	8-98074-108-1	01	1	1304-	●	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (B)	8-98108-160-0	01	1	1012-1404	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (B)	8-98215-932-0	01	1	1405-	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXC. EXHAUST BRAKE<NF8> (C)	8-98117-520-0	01	1	1012-1404	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXC. EXHAUST BRAKE<NF8> (C)	8-98216-285-0	01	1	1405-	●
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	1012-1303	●
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	1304-	●
2	03.611 GASKET; PIPE TO MANIF 4HK1-TCN ENG(RDQ)	8-97381-455-0	01	1	1304-		●
8	03.704 BRACKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.613	8-97365-228-0	01	1	1012-1303	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.613	8-97365-228-0	01	1	1304-	●	●
8	03.704 BRACKET; EXH PIPE 4HG1 ENG(RJH) 03.613	8-98020-555-0	01	1	1012-	●
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1304-	●
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1304-	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1304-		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1012-1303	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1304-	●	●
43	03.611 CLAMP; EXH PIPE 4HG1 ENG(RJH)	8-97351-200-1	01	1	1012-	●
44	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.685 M10X40 FLANGE	0-28051-040-0	01	1	1012-1303	●
44	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.685 M10X40 FLANGE	0-28051-040-0	01	1	1304-	●	●
44	03.613 BOLT; BRKT 4HG1 ENG(RJH) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-	●	●

420 147 193 124 81 137 105 88 357 88 105 164 162 165 166 94 95 104 88 357 124 137 84 126 36 357 3 105 84 329 3 88 165 367 166 125 97 88 144 143 94 162 94 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	03.609 PIPE; EXH,CENTER 4HG1 ENG(RJH) STABILIZER REAR<GN1> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98283-852-0	01	1	1509-	●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) (A)	8-98283-854-0	01	1	1509-		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (C)	8-97307-804-0	01	1	1304-1508		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (A)	8-98283-853-0	01	1	1509-		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) (A)	8-98134-199-0	01	1	1012-1303	●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (A)	8-98134-199-0	01	1	1304-1508	●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) (A)	8-98134-199-0	01	1	1304-1508		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) (A)	8-98134-199-0	01	1	1509-	●
3	03.609 PIPE; EXH,CENTER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98117-521-0	01	1	1012-1508	●
3	03.609 PIPE; EXH,CENTER 4HG1 ENG(RJH) EXC. STABILIZER REAR<GN1>,TAILPIPE SINGLESHORT TYPE<8JJ> (B)	8-98117-521-0	01	1	1509-	●
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1304-	●
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1304-	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1304-		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1012-1303	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1304-	●	●
70	03.706 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-1303	●
70	03.706 BOLT; BRKT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-1303	●
70	03.706 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1304-	●	●
70	03.706 BOLT; BRKT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1304-	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-1303	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-1303	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1304-	●	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1304-	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1304-	●	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-1303	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 ID=64.7	8-94328-352-0	01	1	1012-1303	●
84	03.611 GASKET; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 ID=64.7	8-94328-352-0	01	1	1012-1303	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1304-	●	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 ID=64.7	8-94328-352-0	01	1	1304-	●	●
84	03.611 GASKET; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 ID=64.7	8-94328-352-0	01	1	1304-	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1012-1303	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1012-1303	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1012-1303	●
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1012-1303	●
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1012-1303	●
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1012-1303	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1304-1508	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1304-1508	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1304-1508	●	●
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1304-1508	●
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1304-1508	●
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1304-1508	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W)	8-97373-158-0	01	1	1304-1508		●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	1509-	●
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1509-	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	1509-	●
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1509-	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	1509-	●
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) EXC. STABILIZER REAR<GN1>,TAILPIPE SINGLESHORT TYPE<8JJ>	8-97373-158-0	01	1	1509-	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1509-		●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1509-		●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1509-		●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1012-1303	●
94	03.704 BOLT; CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1012-1303	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1304-	●	●
94	03.704 BOLT; CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1304-	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1012-1303	●
94	03.704 BOLT; CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1012-1303	●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1012-1303	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1304-	●
94	03.704 BOLT; CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1304-	●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1304-	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1304-		●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1304-		●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1304-		●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
95	03.708 BOLT; BRKT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
97	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-1303	●
97	03.708 WASHER; PL,CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-1303	●
97	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1304-	●	●
97	03.708 WASHER; PL,CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1304-	●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-		●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●
104	03.704 NUT; BRKT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 00.833 M10	0-91110-510-0	01	1	1012-1303	●
105	03.704 NUT; CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	1012-1303	●
105	03.704 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	1012-1303	●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 00.833 M10	0-91110-510-0	01	1	1304-	●
105	03.704 NUT; CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	1304-	●
105	03.704 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	1304-	●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.833 M10	0-91110-510-0	01	1	1304-		●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	1304-		●
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	1012-1303	●
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	1304-	●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
124	03.704 NUT; SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-	●
124	03.704 NUT; SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-	●
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-		●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-		●
125	03.708 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	1012-1303	●
125	03.708 NUT; CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	1012-1303	●
125	03.708 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	1304-	●	●
125	03.708 NUT; CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	1304-	●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W)	8-98134-346-0	01	1	1304-1508		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-98283-855-0	01	1	1509-		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W)	8-98011-818-0	01	1	1304-1508		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ)	8-98134-798-0	01	1	1012-1508	●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-98134-798-0	01	1	1509-	●
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) STABILIZER REAR<GN1> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98134-798-0	01	1	1509-	●
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98090-128-1	01	1	1012-1508	●
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) EXC. STABILIZER REAR<GN1>,TAILPIPE SINGLESHORT TYPE<8JJ>	8-98090-128-1	01	1	1509-	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-97185-801-0	01	1	1304-		●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) 03.613 (A)	8-97096-651-0	01	1	1012-1303	●
137	03.706 BRACKET; TAIL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.613 (A)	8-97096-651-0	01	1	1012-1303	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) 03.613 (A)	8-97096-651-0	01	1	1304-	●	●
137	03.706 BRACKET; TAIL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.613 (A)	8-97096-651-0	01	1	1304-	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (B)	8-97116-588-2	01	1	1012-	●
137	03.706 BRACKET; TAIL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-97116-588-2	01	1	1012-	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	1012-1303	●
143	03.704 RUBBER; SUPPORT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98034-767-0	01	1	1012-1303	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	1304-	●	●
143	03.704 RUBBER; SUPPORT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98034-767-0	01	1	1304-	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (A)	8-97080-694-0	01	1	1012-1303	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (A)	8-97080-694-0	01	1	1304-	●	●
144	03.613 NUT; MTG RUBBER 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1303	●
144	03.613 NUT; MTG RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1303	●
144	03.613 NUT; MTG RUBBER 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
144	03.613 NUT; MTG RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1304-	●
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-98117-604-0	01	1	1012-1303	●
147	03.704 BRACKET; VERTICAL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98117-604-0	01	1	1012-1303	●
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-98117-604-0	01	1	1304-	●
147	03.704 BRACKET; VERTICAL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98117-604-0	01	1	1304-	●
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-98117-604-0	01	1	1304-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) L=115	8-98034-765-0	01	1	1012-1303	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=115	8-98034-765-0	01	1	1012-1303	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=115	8-98034-765-0	01	1	1012-1303	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) L=115	8-98034-765-0	01	1	1012-1303	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) L=115	8-98034-765-0	01	1	1304-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=115	8-98034-765-0	01	1	1304-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=115	8-98034-765-0	01	1	1304-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) L=115	8-98034-765-0	01	1	1304-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) L=115	8-98034-765-0	01	1	1304-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) L=115	8-98034-765-0	01	1	1304-		●
164	03.706 COLLAR; DIST,TAIL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=37.5	9-22151-217-0	01	1	1012-1303	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) L=37.5	9-22151-217-0	01	1	1012-1303	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=37.5	9-22151-217-0	01	1	1304-	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) L=37.5	9-22151-217-0	01	1	1304-	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) L=37.5	9-22151-217-0	01	1	1304-		●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) M10X70 FLANGE	0-28051-070-0	01	1	1012-1303	●
165	03.706 BOLT; SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE	0-28051-070-0	01	1	1012-1303	●
165	03.706 BOLT; SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE	0-28051-070-0	01	1	1012-1303	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) M10X70 FLANGE	0-28051-070-0	01	1	1012-1303	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) M10X70 FLANGE	0-28051-070-0	01	1	1304-	●
165	03.706 BOLT; SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE	0-28051-070-0	01	1	1304-	●
165	03.706 BOLT; SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE	0-28051-070-0	01	1	1304-	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) M10X70 FLANGE	0-28051-070-0	01	1	1304-	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10X70 FLANGE	0-28051-070-0	01	1	1304-		●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10X70 FLANGE	0-28051-070-0	01	1	1304-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-1303	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-1303	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-1303	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1304-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1304-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1304-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1304-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1304-		●
193	03.704 NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
193	03.704 NUT; BRKT,VERTICAL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
193	03.704 NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-	●
193	03.704 NUT; BRKT,VERTICAL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-	●
193	03.704 NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-		●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-	●	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-1303	●
357	03.708 WASHER; PL,CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-1303	●
357	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-1303	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1304-	●
357	03.708 WASHER; PL,CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1304-	●
357	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1304-	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1304-		●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1304-		●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.706 L=37.5	9-22151-217-0	01	1	1012-1303	●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.706 L=37.5	9-22151-217-0	01	1	1012-1303	●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.706 L=37.5	9-22151-217-0	01	1	1304-	●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.706 L=37.5	9-22151-217-0	01	1	1304-	●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.706 L=37.5	9-22151-217-0	01	1	1304-		●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-1303	●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-1303	●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1304-	●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1304-	●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1304-		●

118 352 532 574 117 115 118 81 387 122 117 577 113 115 200 115 122 576 385 113 200 115 124 385 124 14 12 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ)	8-98090-839-0	01	1	1012-1303	●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ)	8-98090-839-0	01	1	1304-	●	●
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH) TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98108-930-1	01	1	1012-	●
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98117-518-0	01	1	1012-	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) ID=64.7	8-94328-352-0	01	1	1012-1303	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=64.7	8-94328-352-0	01	1	1012-1303	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=64.7	8-94328-352-0	01	1	1304-	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) ID=64.7	8-94328-352-0	01	1	1304-	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ) ID=64.7	8-94328-352-0	01	1	1304-		●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-1303	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-1303	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1304-	●	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1304-	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1304-	●	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-1303	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 ID=64.7	8-94328-352-0	01	1	1012-1303	●
84	03.611 GASKET; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 ID=64.7	8-94328-352-0	01	1	1012-1303	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1304-	●	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 ID=64.7	8-94328-352-0	01	1	1304-	●	●
84	03.611 GASKET; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 ID=64.7	8-94328-352-0	01	1	1304-	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1012-1303	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1304-	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-97379-882-0	02	1	1012-1303	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-97379-882-0	02	1	1304-	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-927-0	02	1	1012-1303	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-927-0	02	1	1304-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1012-1303	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1304-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1012-1303	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1304-	●	●
122	03.275 NUT; HANGER BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
122	03.275 NUT; HANGER BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-	●	●
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	1012-1303	●
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	1304-	●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
124	03.704 NUT; SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-	●
124	03.704 NUT; SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-	●
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-		●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-		●
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	02	1	1012-1303	●
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	02	1	1304-	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-	●	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (B)	8-97207-224-0	02	1	1012-1303	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (B)	8-97207-224-0	02	1	1304-	●	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (A)	8-98074-495-1	01	1	1012-1303	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (A)	8-98074-495-1	01	1	1304-	●	●
385	03.704 BRACKET; SILENCER MTG 4HG1 ENG(RJH) 03.706 (C)	8-97076-020-0	02	1	1012-	●
387	03.704 SPACER; BRKT 03.706	8-98044-774-0	01	1	1012-1303	●
387	03.704 SPACER; BRKT 03.706	8-98044-774-0	01	1	1304-	●	●
532	03.704 NUT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-	●
532	03.704 NUT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-		●
574	03.706 SPACER; DPD	8-98044-774-0	01	1	1012-1303	●
574	03.706 SPACER; DPD	8-98044-774-0	01	1	1304-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME	8-98074-124-1	01	1	1012-1303	●
576	03.706 BRACKET; DPD FRT TO FRAME	8-98074-124-1	01	1	1304-	●	●
577	03.706 BRACKET; DPD RR TO FRAME	8-98074-124-1	01	1	1012-1303	●
577	03.706 BRACKET; DPD RR TO FRAME	8-98074-124-1	01	1	1304-	●	●

165 166 162 104 94 164 95 137 105 88 357 124 125 88 97 70 81 137 144 143 94 165 166 162 124 367 420 193 105 147 357 88 94 126 36 84 88 3 3 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	03.609 PIPE; EXH,CENTER 4HG1 ENG(RJH) STABILIZER REAR<GN1> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98283-852-0	01	1	1509-	●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) (A)	8-98283-854-0	01	1	1509-		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (C)	8-97307-804-0	01	1	1304-1508		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (A)	8-98283-853-0	01	1	1509-		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) (A)	8-98134-199-0	01	1	1012-1303	●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (A)	8-98134-199-0	01	1	1304-1508	●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) (A)	8-98134-199-0	01	1	1304-1508		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) (A)	8-98134-199-0	01	1	1509-	●
3	03.609 PIPE; EXH,CENTER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98117-521-0	01	1	1012-1508	●
3	03.609 PIPE; EXH,CENTER 4HG1 ENG(RJH) EXC. STABILIZER REAR<GN1>,TAILPIPE SINGLESHORT TYPE<8JJ> (B)	8-98117-521-0	01	1	1509-	●
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1304-	●
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1304-	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1304-		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1012-1303	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1304-	●	●
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
38	00.002 NUT; SILENCER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
38	00.002 NUT; SILENCER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-	●
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-	●
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-		●
70	03.706 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-1303	●
70	03.706 BOLT; BRKT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-1303	●
70	03.706 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1304-	●	●
70	03.706 BOLT; BRKT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1304-	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-1303	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-1303	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1304-	●	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1304-	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1304-	●	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-1303	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 ID=64.7	8-94328-352-0	01	1	1012-1303	●
84	03.611 GASKET; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 ID=64.7	8-94328-352-0	01	1	1012-1303	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1304-	●	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 ID=64.7	8-94328-352-0	01	1	1304-	●	●
84	03.611 GASKET; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 ID=64.7	8-94328-352-0	01	1	1304-	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1012-1303	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1012-1303	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1012-1303	●
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1012-1303	●
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1012-1303	●
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1012-1303	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1304-1508	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1304-1508	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1304-1508	●	●
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1304-1508	●
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1304-1508	●
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1304-1508	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W)	8-97373-158-0	01	1	1304-1508		●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	1509-	●
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1509-	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	1509-	●
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1509-	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	1509-	●
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) EXC. STABILIZER REAR<GN1>,TAILPIPE SINGLESHORT TYPE<8JJ>	8-97373-158-0	01	1	1509-	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1509-		●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1509-		●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1509-		●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1012-1303	●
94	03.704 BOLT; CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1012-1303	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1304-	●	●
94	03.704 BOLT; CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1304-	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1012-1303	●
94	03.704 BOLT; CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1012-1303	●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1012-1303	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1304-	●
94	03.704 BOLT; CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1304-	●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1304-	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1304-		●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1304-		●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1304-		●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
95	03.708 BOLT; BRKT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
97	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-1303	●
97	03.708 WASHER; PL,CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-1303	●
97	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1304-	●	●
97	03.708 WASHER; PL,CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1304-	●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-		●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●
104	03.704 NUT; BRKT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 00.833 M10	0-91110-510-0	01	1	1012-1303	●
105	03.704 NUT; CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	1012-1303	●
105	03.704 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	1012-1303	●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 00.833 M10	0-91110-510-0	01	1	1304-	●
105	03.704 NUT; CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	1304-	●
105	03.704 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	1304-	●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.833 M10	0-91110-510-0	01	1	1304-		●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	1304-		●
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	1012-1303	●
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	1304-	●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
124	03.704 NUT; SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-	●
124	03.704 NUT; SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-	●
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-		●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-		●
125	03.708 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	1012-1303	●
125	03.708 NUT; CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	1012-1303	●
125	03.708 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	1304-	●	●
125	03.708 NUT; CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	1304-	●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W)	8-98134-346-0	01	1	1304-1508		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-98283-855-0	01	1	1509-		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W)	8-98011-818-0	01	1	1304-1508		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ)	8-98134-798-0	01	1	1012-1508	●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-98134-798-0	01	1	1509-	●
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) STABILIZER REAR<GN1> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98134-798-0	01	1	1509-	●
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98090-128-1	01	1	1012-1508	●
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) EXC. STABILIZER REAR<GN1>,TAILPIPE SINGLESHORT TYPE<8JJ>	8-98090-128-1	01	1	1509-	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-97185-801-0	01	1	1304-		●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) 03.613 (A)	8-97096-651-0	01	1	1012-1303	●
137	03.706 BRACKET; TAIL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.613 (A)	8-97096-651-0	01	1	1012-1303	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) 03.613 (A)	8-97096-651-0	01	1	1304-	●	●
137	03.706 BRACKET; TAIL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.613 (A)	8-97096-651-0	01	1	1304-	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (B)	8-97116-588-2	01	1	1012-	●
137	03.706 BRACKET; TAIL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-97116-588-2	01	1	1012-	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	1012-1303	●
143	03.704 RUBBER; SUPPORT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98034-767-0	01	1	1012-1303	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	1304-	●	●
143	03.704 RUBBER; SUPPORT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98034-767-0	01	1	1304-	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (A)	8-97080-694-0	01	1	1012-1303	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (A)	8-97080-694-0	01	1	1304-	●	●
144	03.613 NUT; MTG RUBBER 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1303	●
144	03.613 NUT; MTG RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1303	●
144	03.613 NUT; MTG RUBBER 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
144	03.613 NUT; MTG RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1304-	●
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-98117-604-0	01	1	1012-1303	●
147	03.704 BRACKET; VERTICAL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98117-604-0	01	1	1012-1303	●
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-98117-604-0	01	1	1304-	●
147	03.704 BRACKET; VERTICAL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98117-604-0	01	1	1304-	●
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-98117-604-0	01	1	1304-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) L=115	8-98034-765-0	01	1	1012-1303	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=115	8-98034-765-0	01	1	1012-1303	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=115	8-98034-765-0	01	1	1012-1303	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) L=115	8-98034-765-0	01	1	1012-1303	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) L=115	8-98034-765-0	01	1	1304-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=115	8-98034-765-0	01	1	1304-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=115	8-98034-765-0	01	1	1304-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) L=115	8-98034-765-0	01	1	1304-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) L=115	8-98034-765-0	01	1	1304-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) L=115	8-98034-765-0	01	1	1304-		●
164	03.706 COLLAR; DIST,TAIL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=37.5	9-22151-217-0	01	1	1012-1303	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) L=37.5	9-22151-217-0	01	1	1012-1303	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=37.5	9-22151-217-0	01	1	1304-	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) L=37.5	9-22151-217-0	01	1	1304-	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) L=37.5	9-22151-217-0	01	1	1304-		●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) M10X70 FLANGE	0-28051-070-0	01	1	1012-1303	●
165	03.706 BOLT; SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE	0-28051-070-0	01	1	1012-1303	●
165	03.706 BOLT; SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE	0-28051-070-0	01	1	1012-1303	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) M10X70 FLANGE	0-28051-070-0	01	1	1012-1303	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) M10X70 FLANGE	0-28051-070-0	01	1	1304-	●
165	03.706 BOLT; SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE	0-28051-070-0	01	1	1304-	●
165	03.706 BOLT; SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE	0-28051-070-0	01	1	1304-	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) M10X70 FLANGE	0-28051-070-0	01	1	1304-	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10X70 FLANGE	0-28051-070-0	01	1	1304-		●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10X70 FLANGE	0-28051-070-0	01	1	1304-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-1303	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-1303	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-1303	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1304-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1304-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1304-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1304-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1304-		●
193	03.704 NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
193	03.704 NUT; BRKT,VERTICAL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
193	03.704 NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-	●
193	03.704 NUT; BRKT,VERTICAL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-	●
193	03.704 NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-		●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-1303	●
357	03.708 WASHER; PL,CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-1303	●
357	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-1303	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1304-	●
357	03.708 WASHER; PL,CLAMP 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1304-	●
357	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1304-	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1304-		●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1304-		●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.706 L=37.5	9-22151-217-0	01	1	1012-1303	●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.706 L=37.5	9-22151-217-0	01	1	1012-1303	●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.706 L=37.5	9-22151-217-0	01	1	1304-	●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.706 L=37.5	9-22151-217-0	01	1	1304-	●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.706 L=37.5	9-22151-217-0	01	1	1304-		●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-1303	●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-1303	●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1304-	●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1304-	●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1304-		●

118 352 532 574 117 115 118 81 387 122 117 577 113 115 200 115 122 576 385 113 200 115 124 385 124 12 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ)	8-98090-839-0	01	1	1012-1303	●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ)	8-98090-839-0	01	1	1304-	●	●
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH) TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98108-930-1	01	1	1012-	●
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98117-518-0	01	1	1012-	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-1303	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-1303	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1304-	●	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1304-	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1304-	●	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-1303	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 ID=64.7	8-94328-352-0	01	1	1012-1303	●
84	03.611 GASKET; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 ID=64.7	8-94328-352-0	01	1	1012-1303	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1304-	●	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 ID=64.7	8-94328-352-0	01	1	1304-	●	●
84	03.611 GASKET; EXH PIPE 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 ID=64.7	8-94328-352-0	01	1	1304-	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1012-1303	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1304-	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-97379-882-0	02	1	1012-1303	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-97379-882-0	02	1	1304-	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-927-0	02	1	1012-1303	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-927-0	02	1	1304-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1012-1303	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1304-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1012-1303	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1304-	●	●
122	03.275 NUT; HANGER BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
122	03.275 NUT; HANGER BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-	●	●
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	1012-1303	●
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	1304-	●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
124	03.704 NUT; SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-	●
124	03.704 NUT; SUPPORT RUBBER 4HG1 ENG(RJH) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-	●
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-		●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1304-		●
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	02	1	1012-1303	●
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	02	1	1304-	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-	●	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (B)	8-97207-224-0	02	1	1012-1303	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (B)	8-97207-224-0	02	1	1304-	●	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (A)	8-98074-495-1	01	1	1012-1303	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (A)	8-98074-495-1	01	1	1304-	●	●
385	03.704 BRACKET; SILENCER MTG 4HG1 ENG(RJH) 03.706 (C)	8-97076-020-0	02	1	1012-	●
387	03.704 SPACER; BRKT 03.706	8-98044-774-0	01	1	1012-1303	●
387	03.704 SPACER; BRKT 03.706	8-98044-774-0	01	1	1304-	●	●
532	03.704 NUT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-	●
532	03.704 NUT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-		●
574	03.706 SPACER; DPD	8-98044-774-0	01	1	1012-1303	●
574	03.706 SPACER; DPD	8-98044-774-0	01	1	1304-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME	8-98074-124-1	01	1	1012-1303	●
576	03.706 BRACKET; DPD FRT TO FRAME	8-98074-124-1	01	1	1304-	●	●
577	03.706 BRACKET; DPD RR TO FRAME	8-98074-124-1	01	1	1012-1303	●
577	03.706 BRACKET; DPD RR TO FRAME	8-98074-124-1	01	1	1304-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
